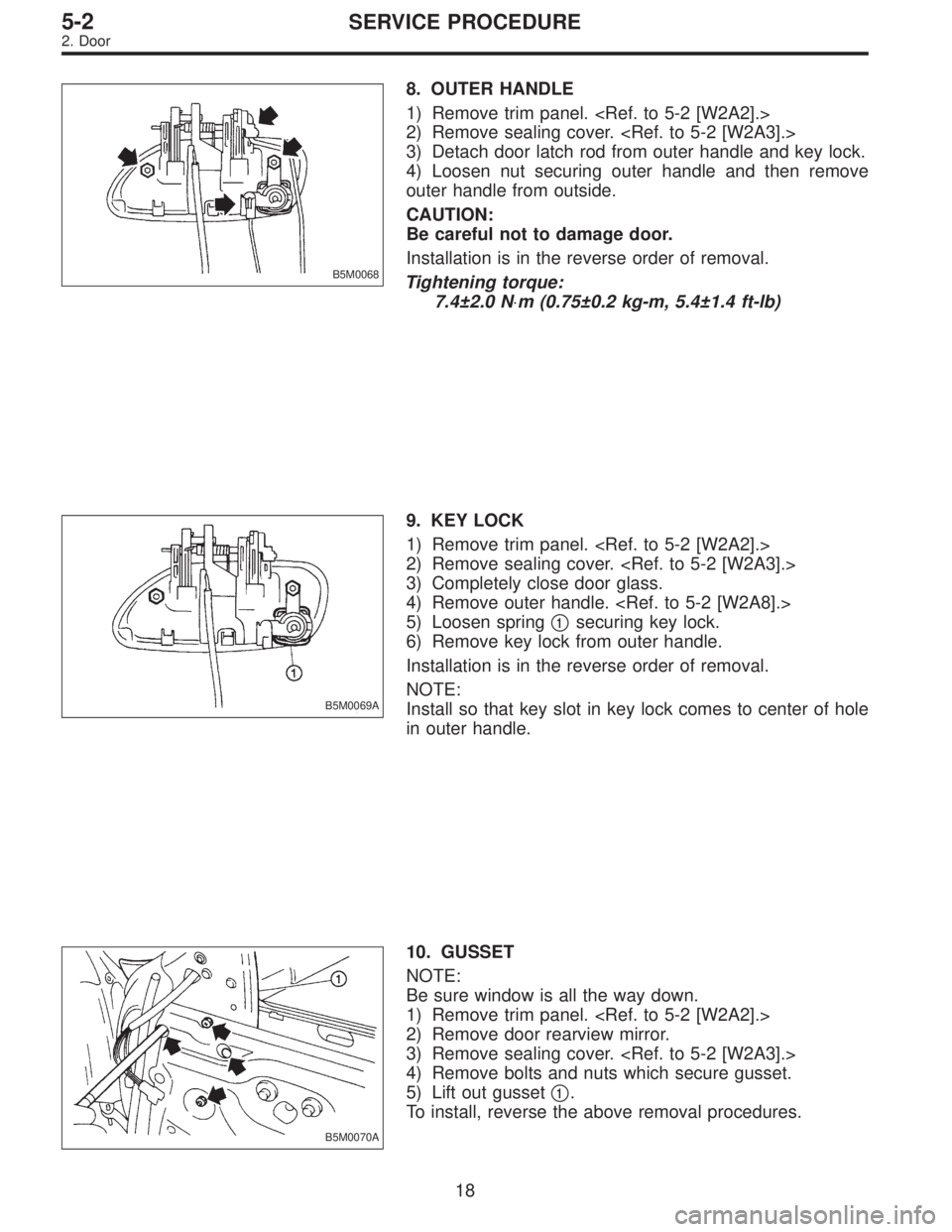

SUBARU LEGACY 1995 Service Repair Manual B5M0068 8. OUTER HANDLE 1) Remove trim panel. <Ref. to 5-2 [W2A2].> 2) Remove sealing cover. <Ref. to 5-2 [W2A3].> 3) Detach door latch rod from outer handle and key lock. 4) Loosen nut securing outer

Page 994 of 2248

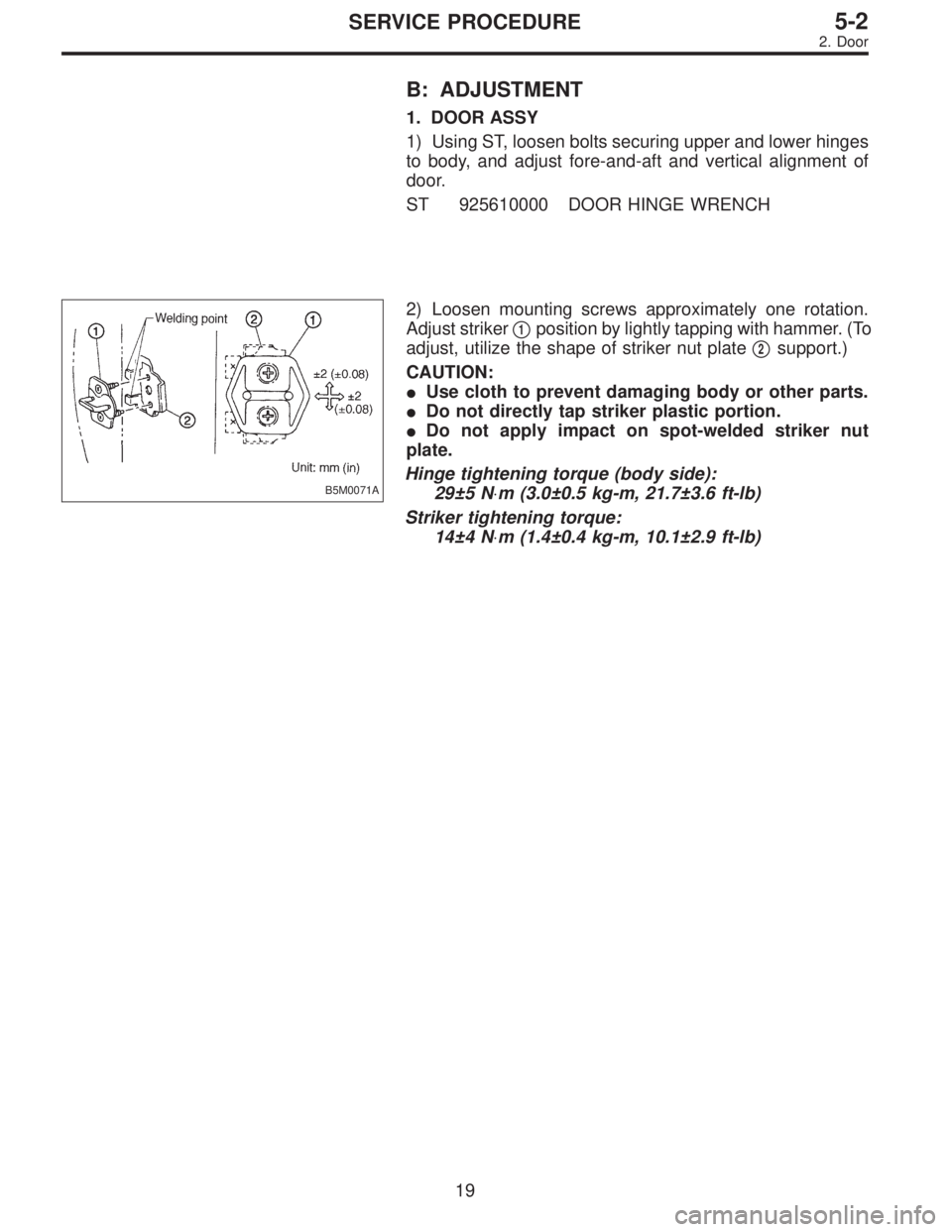

SUBARU LEGACY 1995 Service Repair Manual B: ADJUSTMENT 1. DOOR ASSY 1) Using ST, loosen bolts securing upper and lower hinges to body, and adjust fore-and-aft and vertical alignment of door. ST 925610000 DOOR HINGE WRENCH B5M0071A 2) Loosen

Page 995 of 2248

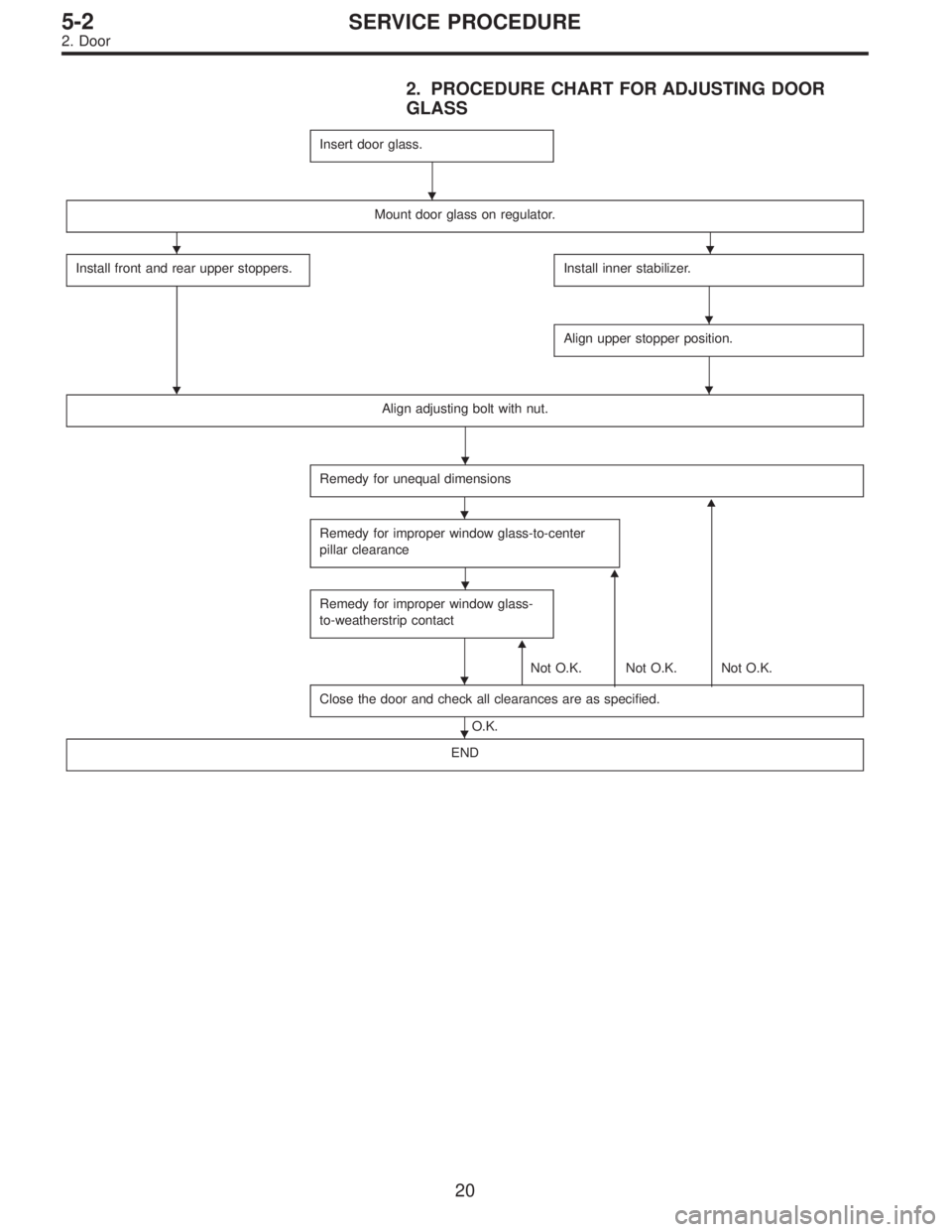

SUBARU LEGACY 1995 Service Repair Manual 2. PROCEDURE CHART FOR ADJUSTING DOOR GLASS Insert door glass. Mount door glass on regulator. Install front and rear upper stoppers.  Install inner stabilizer. Align upper stopper position. Align adj

Page 996 of 2248

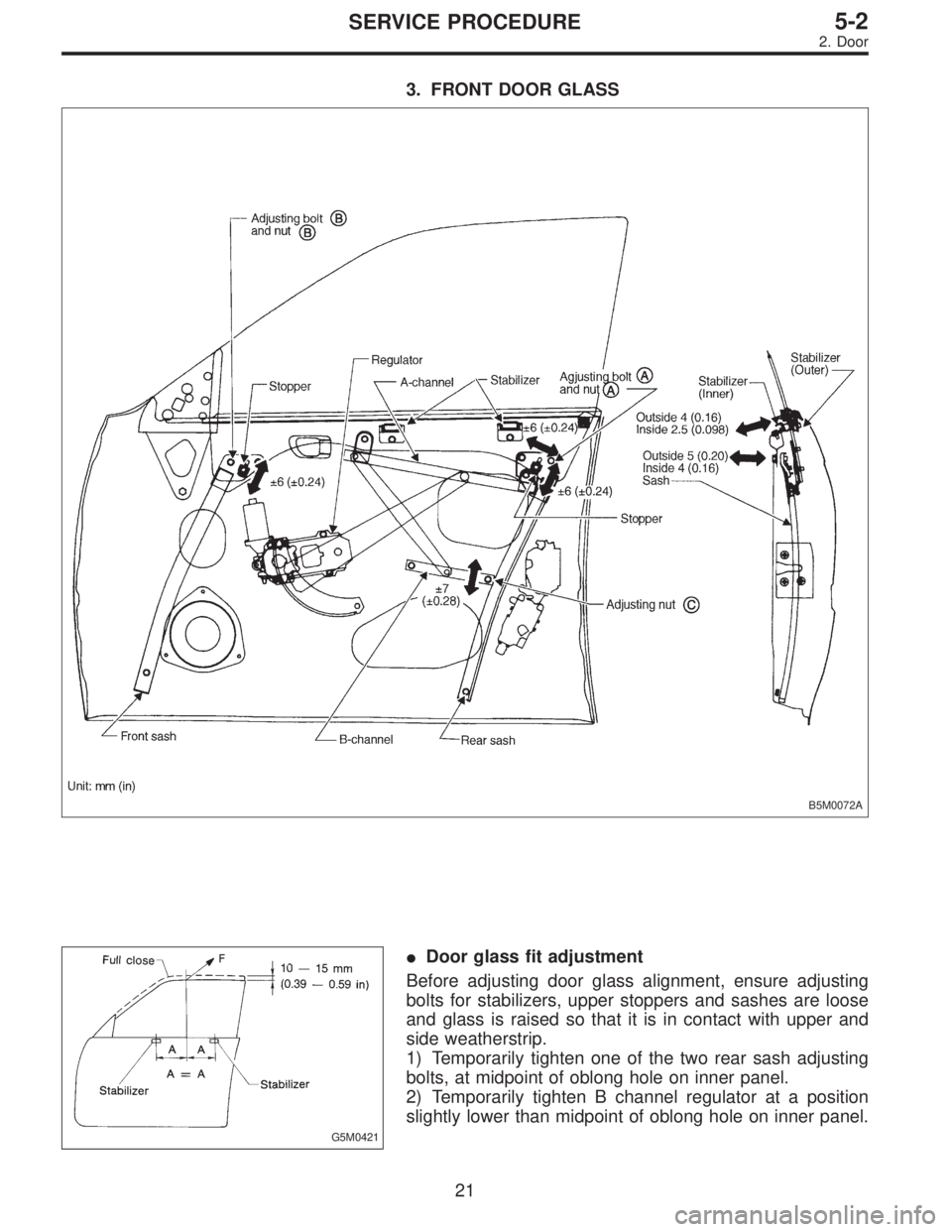

SUBARU LEGACY 1995 Service Repair Manual 3. FRONT DOOR GLASS B5M0072A G5M0421 Door glass fit adjustment Before adjusting door glass alignment, ensure adjusting bolts for stabilizers, upper stoppers and sashes are loose and glass is raised s

Page 997 of 2248

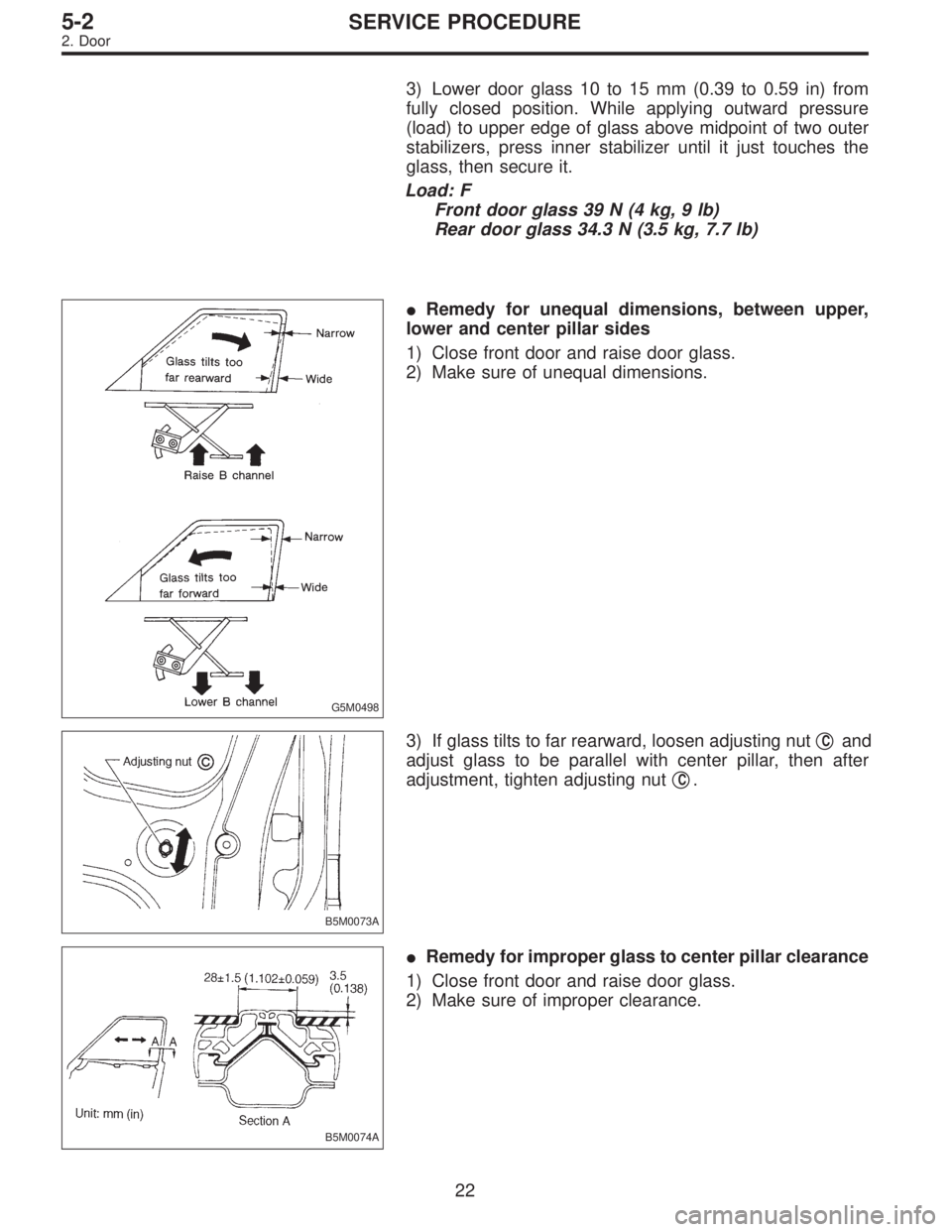

SUBARU LEGACY 1995 Service Repair Manual 3) Lower door glass 10 to 15 mm (0.39 to 0.59 in) from fully closed position. While applying outward pressure (load) to upper edge of glass above midpoint of two outer stabilizers, press inner stabili

Page 998 of 2248

SUBARU LEGACY 1995 Service Repair Manual B5M0075A 3) If clearance is improper, loosen adjusting nutA, boltA and adjust glass to center pillar. G5M0511 Remedy for improper upper stop point of door glass 1) Loosen front and rear sash stoppe

Page 999 of 2248

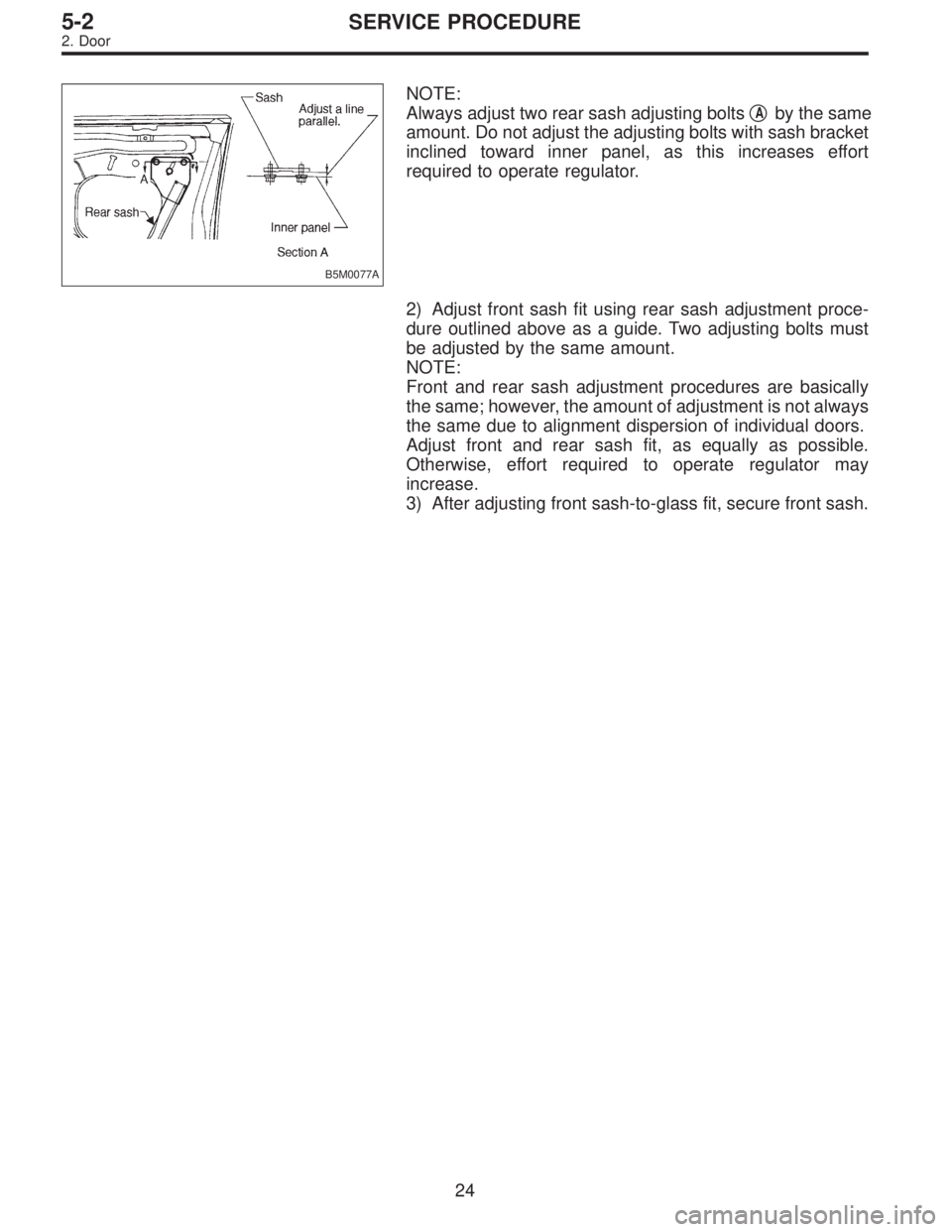

SUBARU LEGACY 1995 Service Repair Manual B5M0077A NOTE: Always adjust two rear sash adjusting bolts Aby the same amount. Do not adjust the adjusting bolts with sash bracket inclined toward inner panel, as this increases effort required to o

Page 1000 of 2248

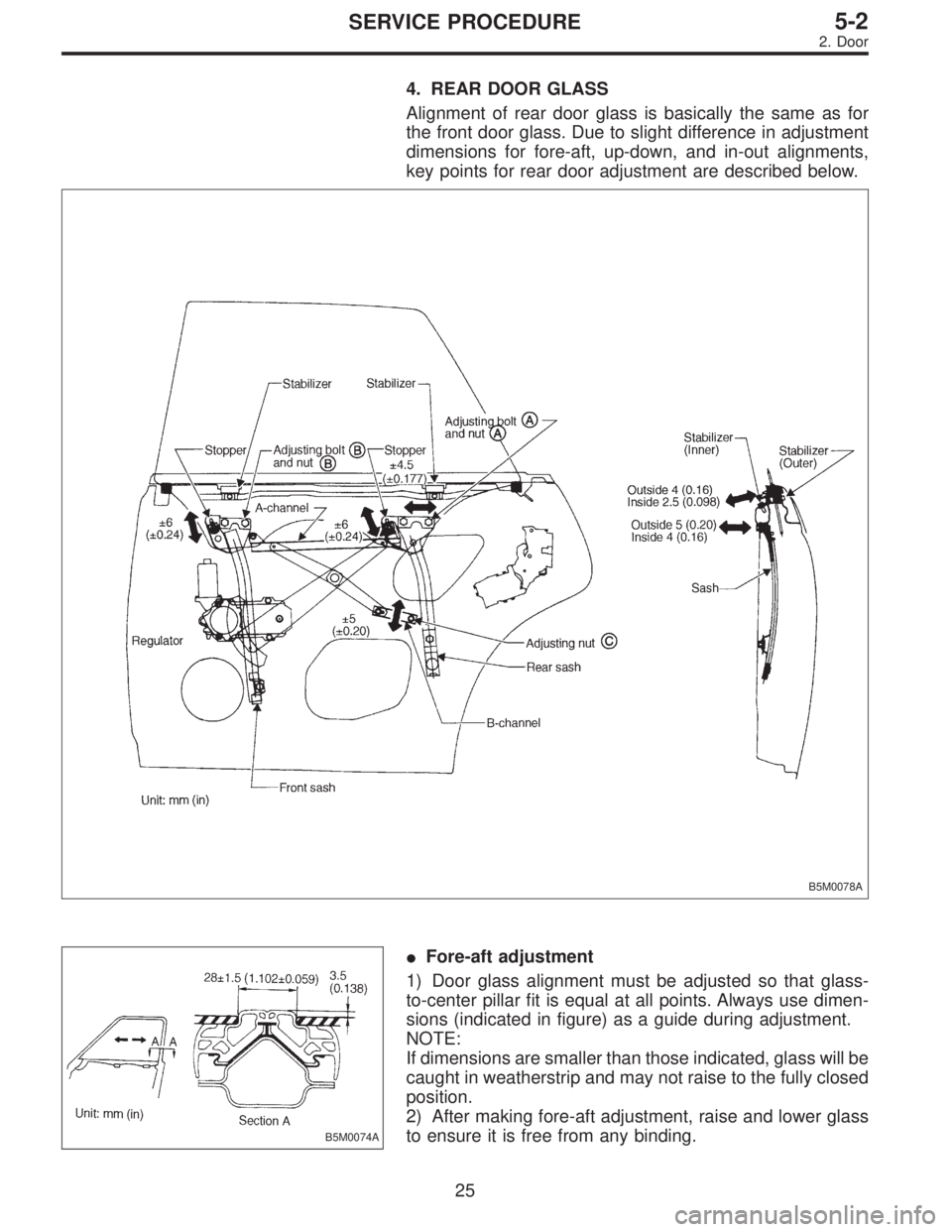

SUBARU LEGACY 1995 Service Repair Manual 4. REAR DOOR GLASS Alignment of rear door glass is basically the same as for the front door glass. Due to slight difference in adjustment dimensions for fore-aft, up-down, and in-out alignments, key p
