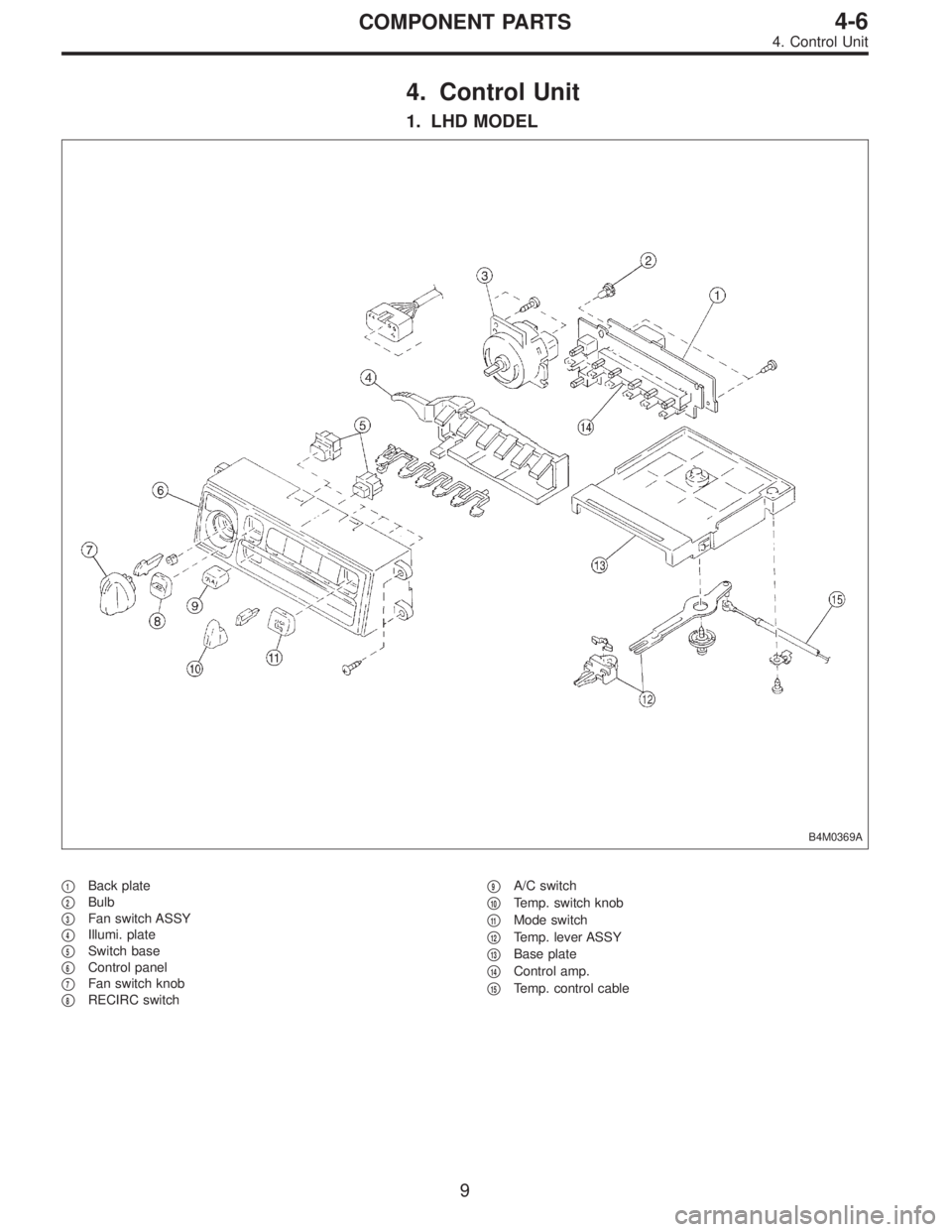

SUBARU LEGACY 1995 Service Repair Manual 4. Control Unit 1. LHD MODEL B4M0369A 1Back plate  2Bulb  3Fan switch ASSY  4Illumi. plate  5Switch base  6Control panel  7Fan switch knob  8RECIRC switch 9A/C switch  10Temp. switch knob

Page 850 of 2248

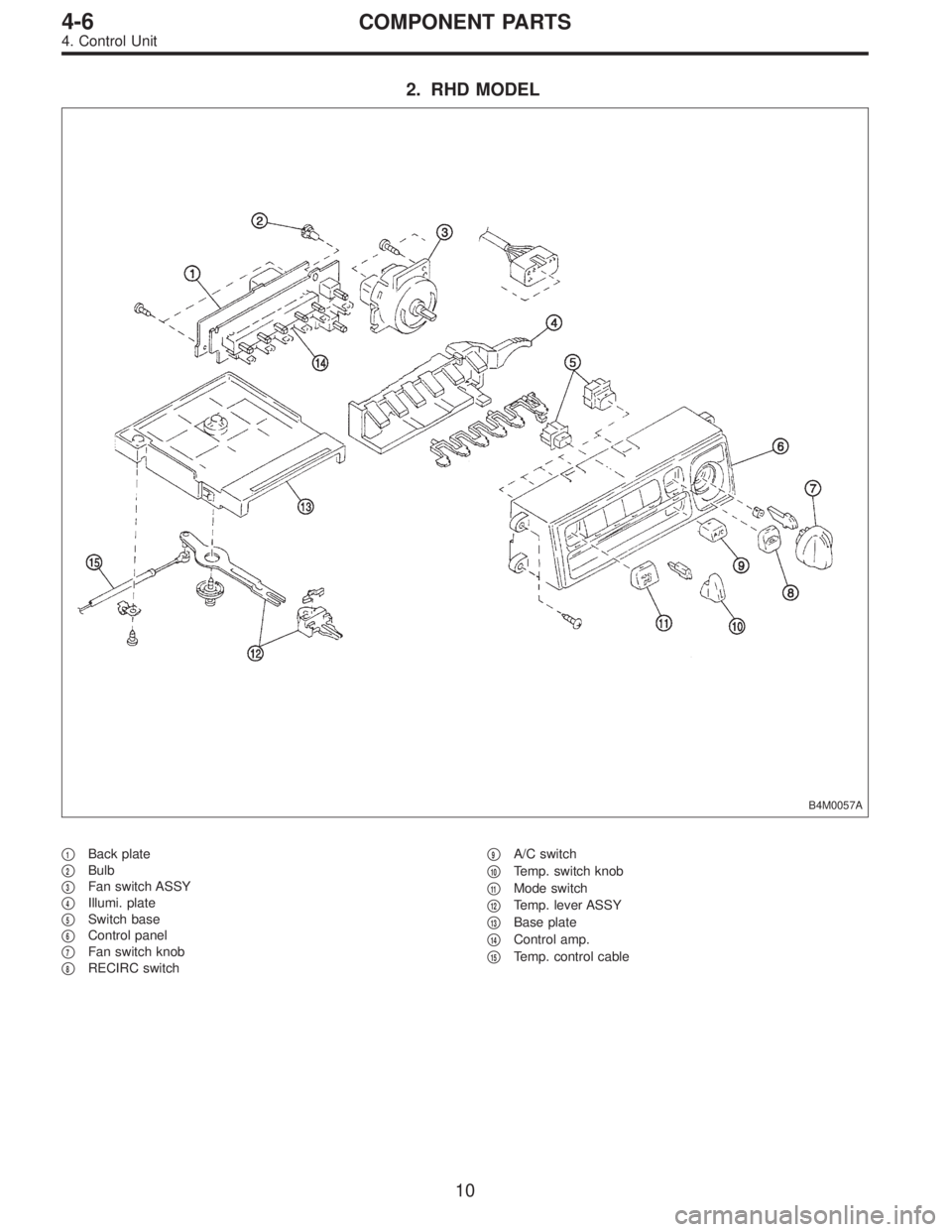

SUBARU LEGACY 1995 Service Repair Manual 2. RHD MODEL B4M0057A 1Back plate  2Bulb  3Fan switch ASSY  4Illumi. plate  5Switch base  6Control panel  7Fan switch knob  8RECIRC switch 9A/C switch  10Temp. switch knob  11Mode switch

Page 851 of 2248

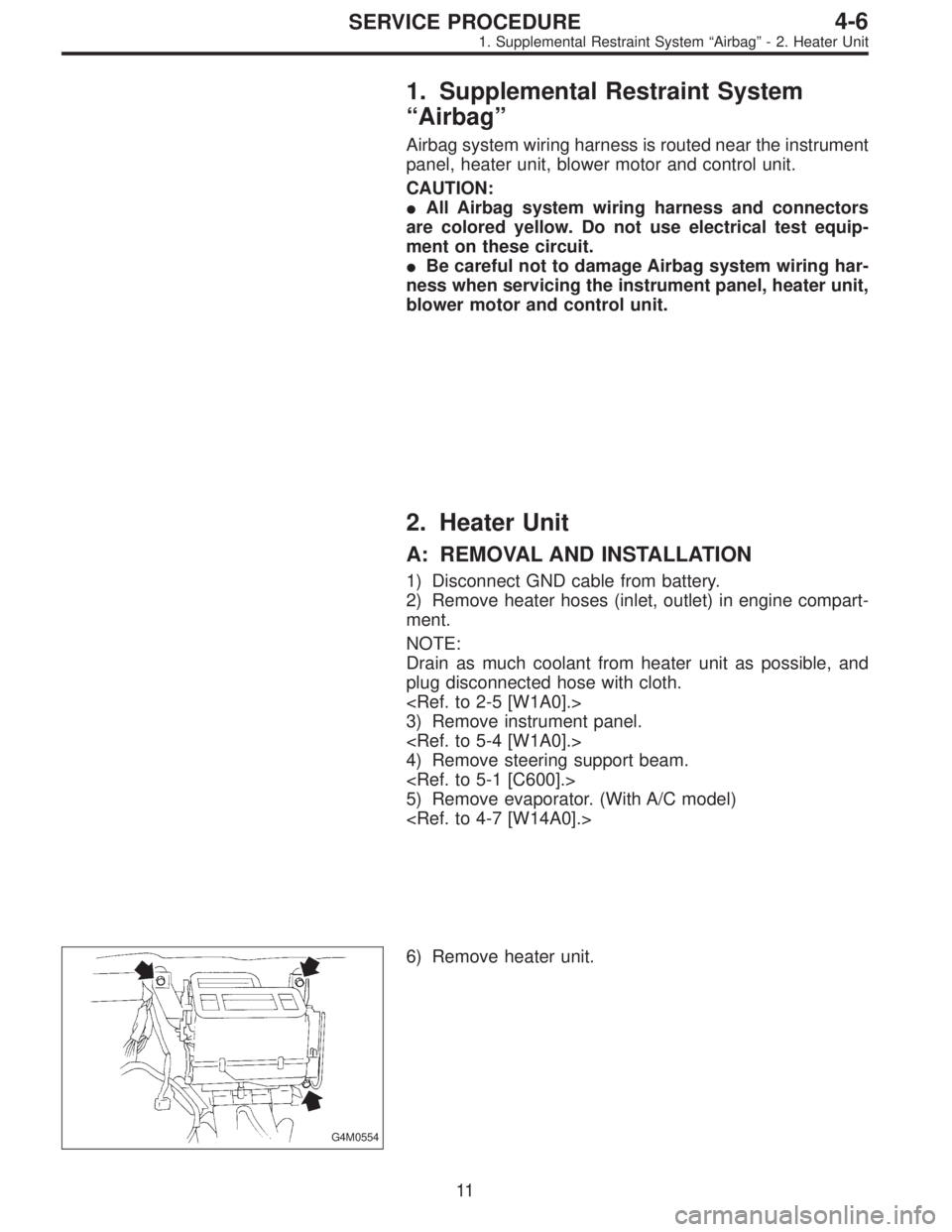

SUBARU LEGACY 1995 Service Repair Manual 1. Supplemental Restraint System “Airbag” Airbag system wiring harness is routed near the instrument panel, heater unit, blower motor and control unit. CAUTION: All Airbag system wiring harness a

Page 852 of 2248

SUBARU LEGACY 1995 Service Repair Manual 1. Supplemental Restraint System “Airbag” Airbag system wiring harness is routed near the instrument panel, heater unit, blower motor and control unit. CAUTION: All Airbag system wiring harness a

Page 853 of 2248

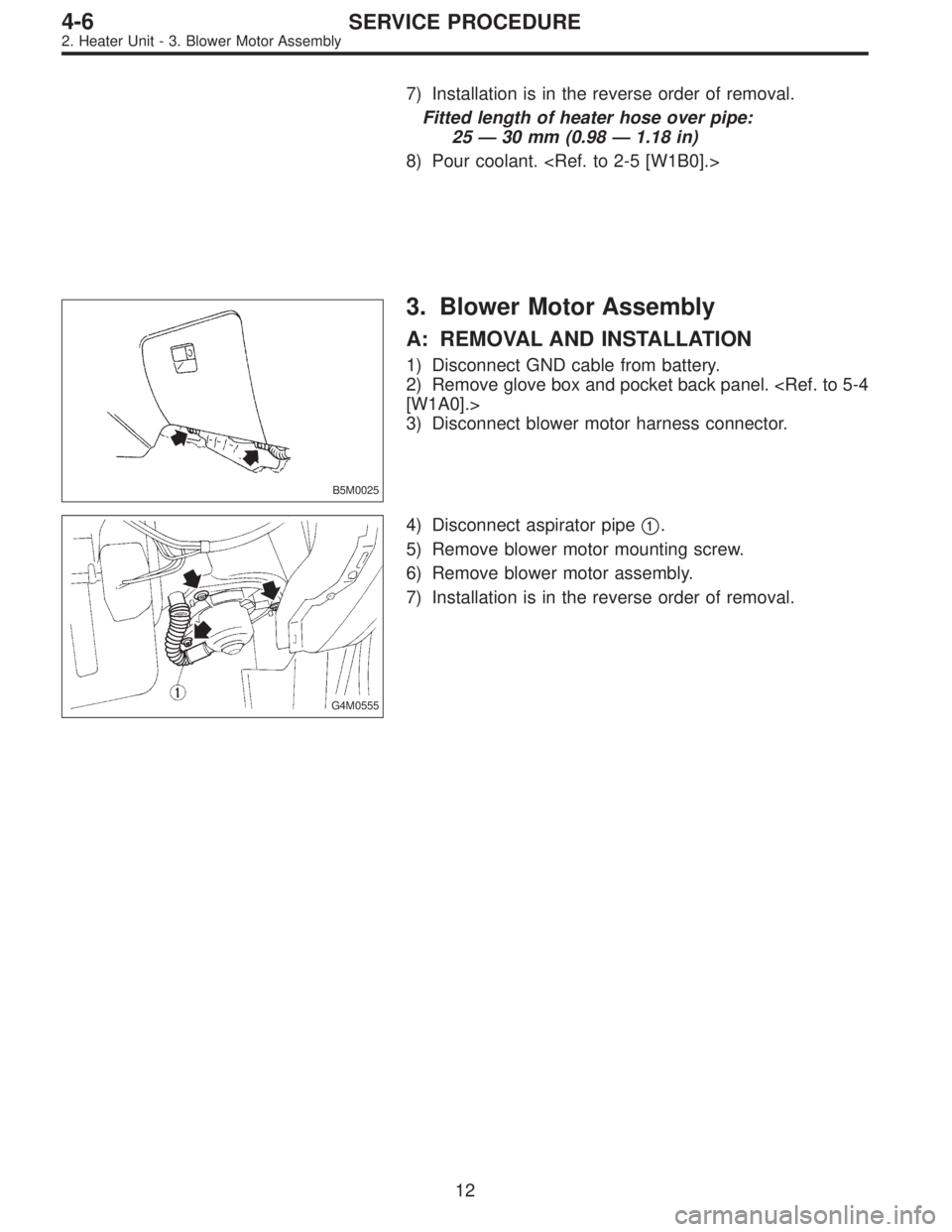

SUBARU LEGACY 1995 Service Repair Manual 7) Installation is in the reverse order of removal. Fitted length of heater hose over pipe: 25 — 30 mm (0.98 — 1.18 in) 8) Pour coolant. <Ref. to 2-5 [W1B0].> B5M0025 3. Blower Motor Assembly A: R

Page 854 of 2248

SUBARU LEGACY 1995 Service Repair Manual 7) Installation is in the reverse order of removal. Fitted length of heater hose over pipe: 25 — 30 mm (0.98 — 1.18 in) 8) Pour coolant. <Ref. to 2-5 [W1B0].> B5M0025 3. Blower Motor Assembly A: R

Page 855 of 2248

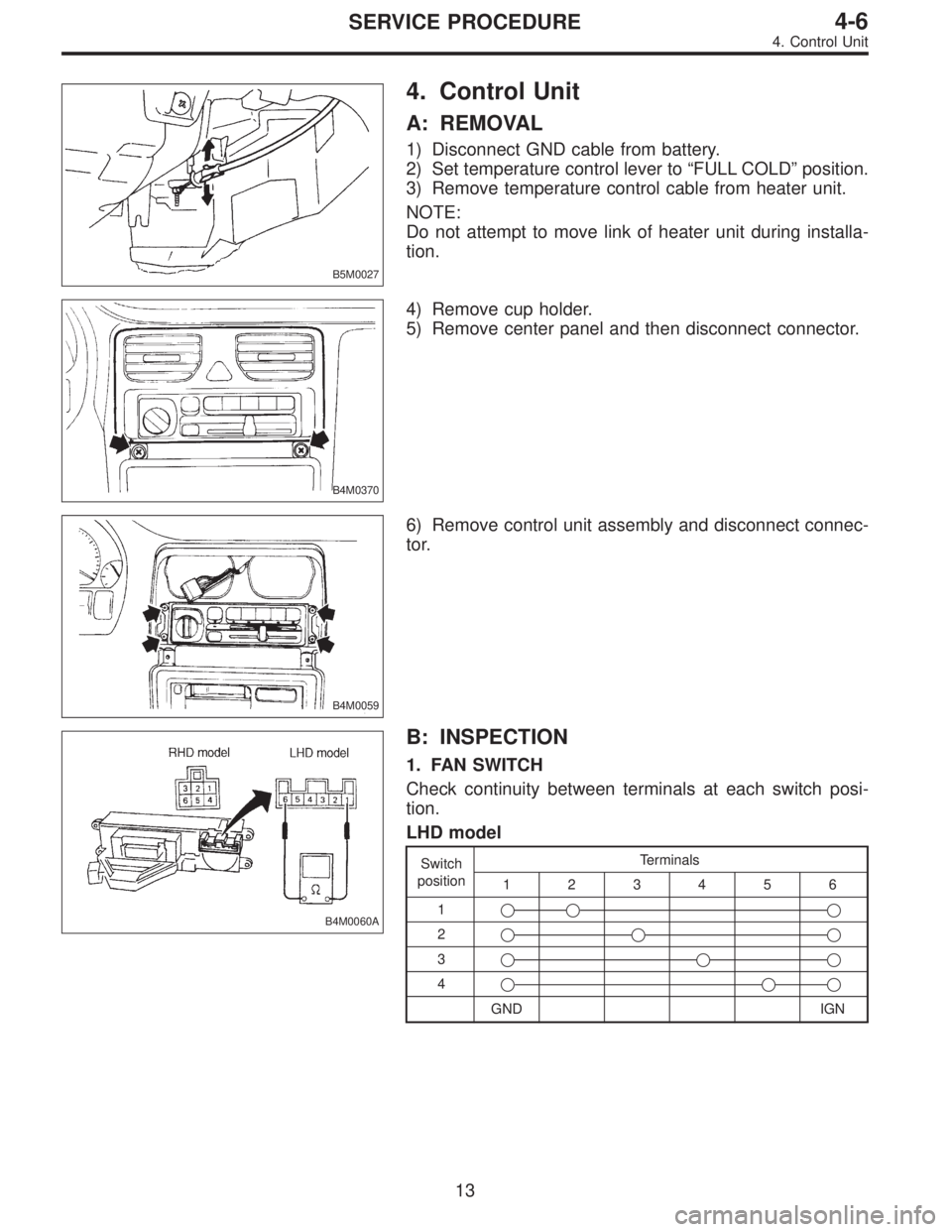

SUBARU LEGACY 1995 Service Repair Manual B5M0027 4. Control Unit A: REMOVAL 1) Disconnect GND cable from battery. 2) Set temperature control lever to“FULL COLD”position. 3) Remove temperature control cable from heater unit. NOTE: Do not

Page 856 of 2248

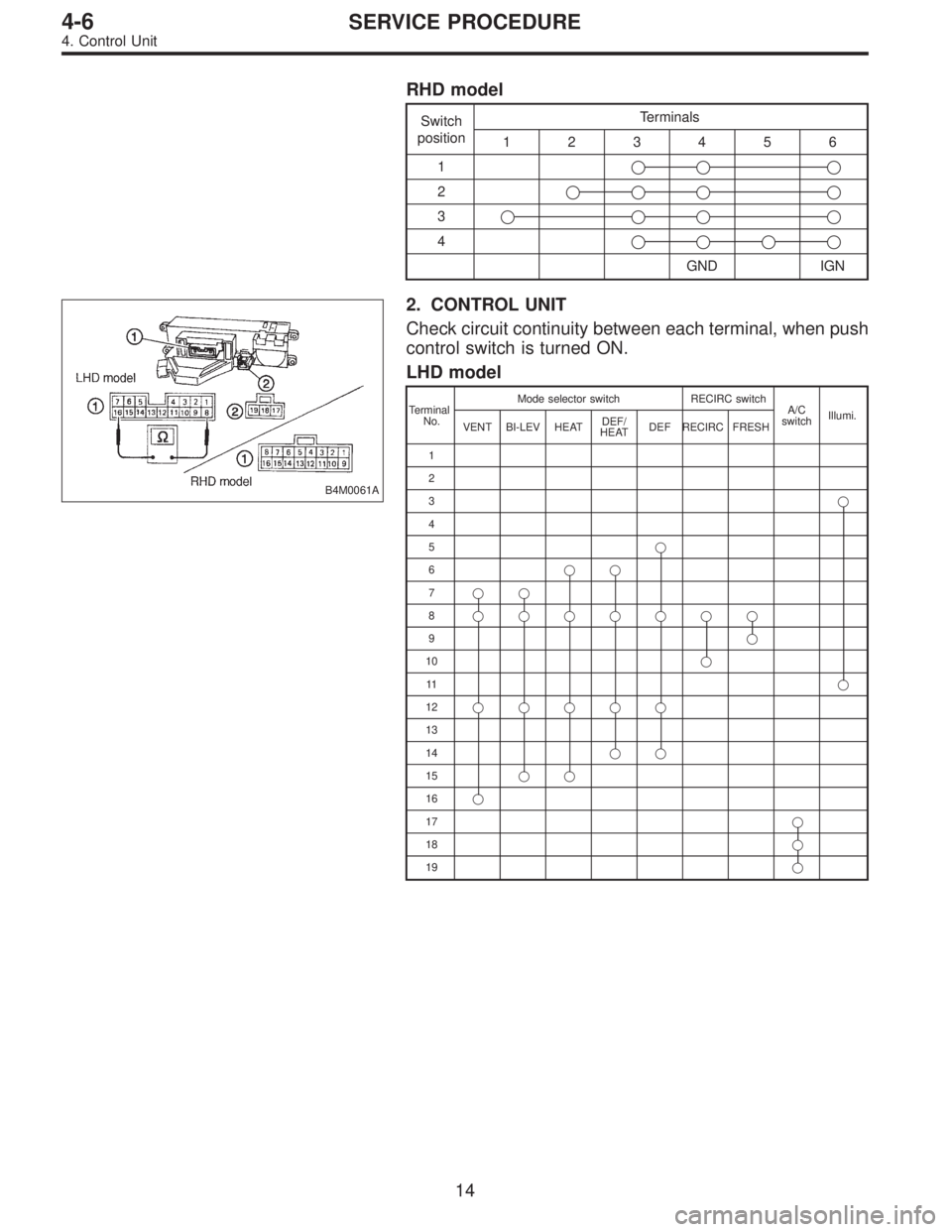

SUBARU LEGACY 1995 Service Repair Manual RHD model Switch positionTerminals 123456 1  2  3  4  GND IGN B4M0061A 2. CONTROL UNIT Check circuit continuity between each terminal, when push control switch is turned ON. LHD model T
