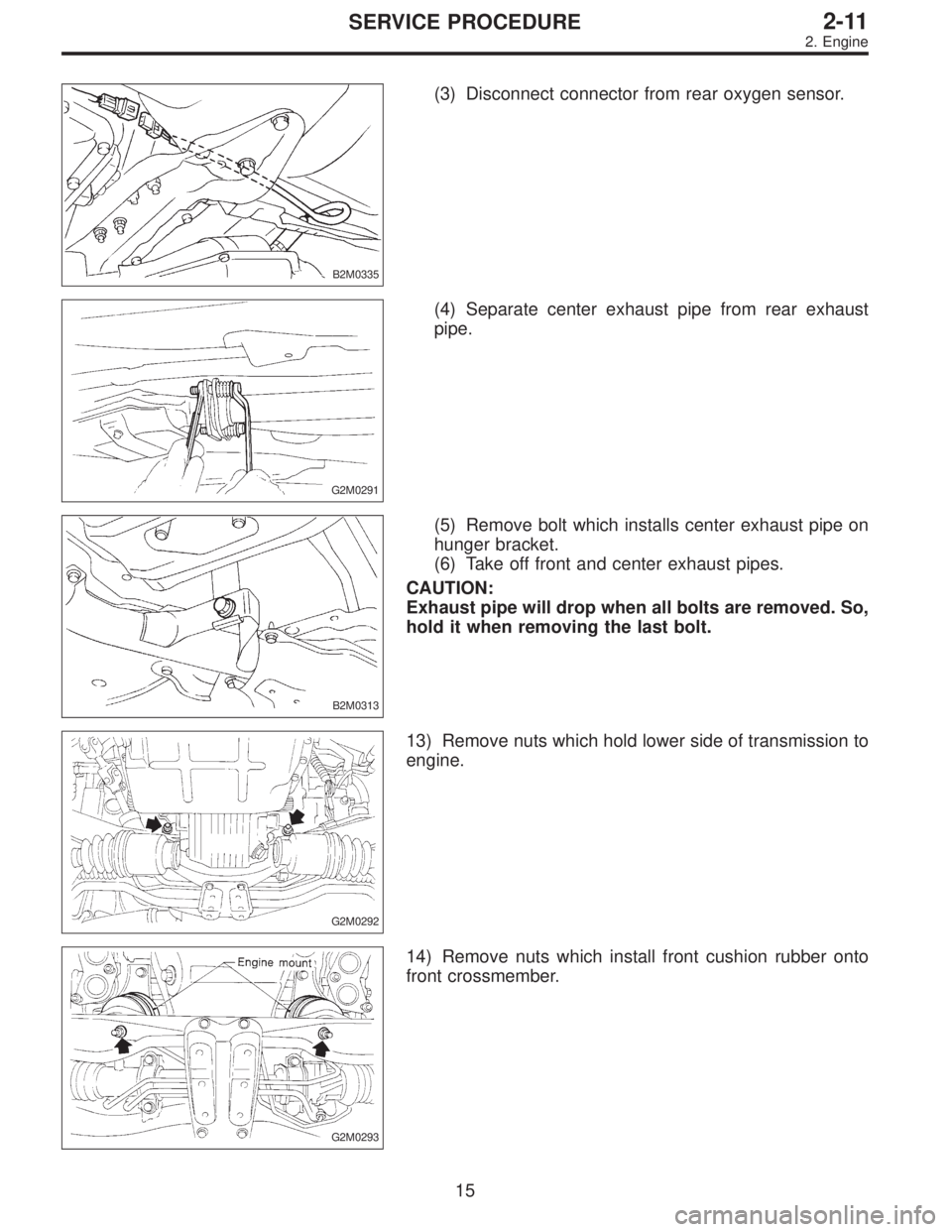

Page 249 of 2248

SUBARU LEGACY 1995 Service Repair Manual B2M0335 (3) Disconnect connector from rear oxygen sensor. G2M0291 (4) Separate center exhaust pipe from rear exhaust pipe. B2M0313 (5) Remove bolt which installs center exhaust pipe on hunger bracket.

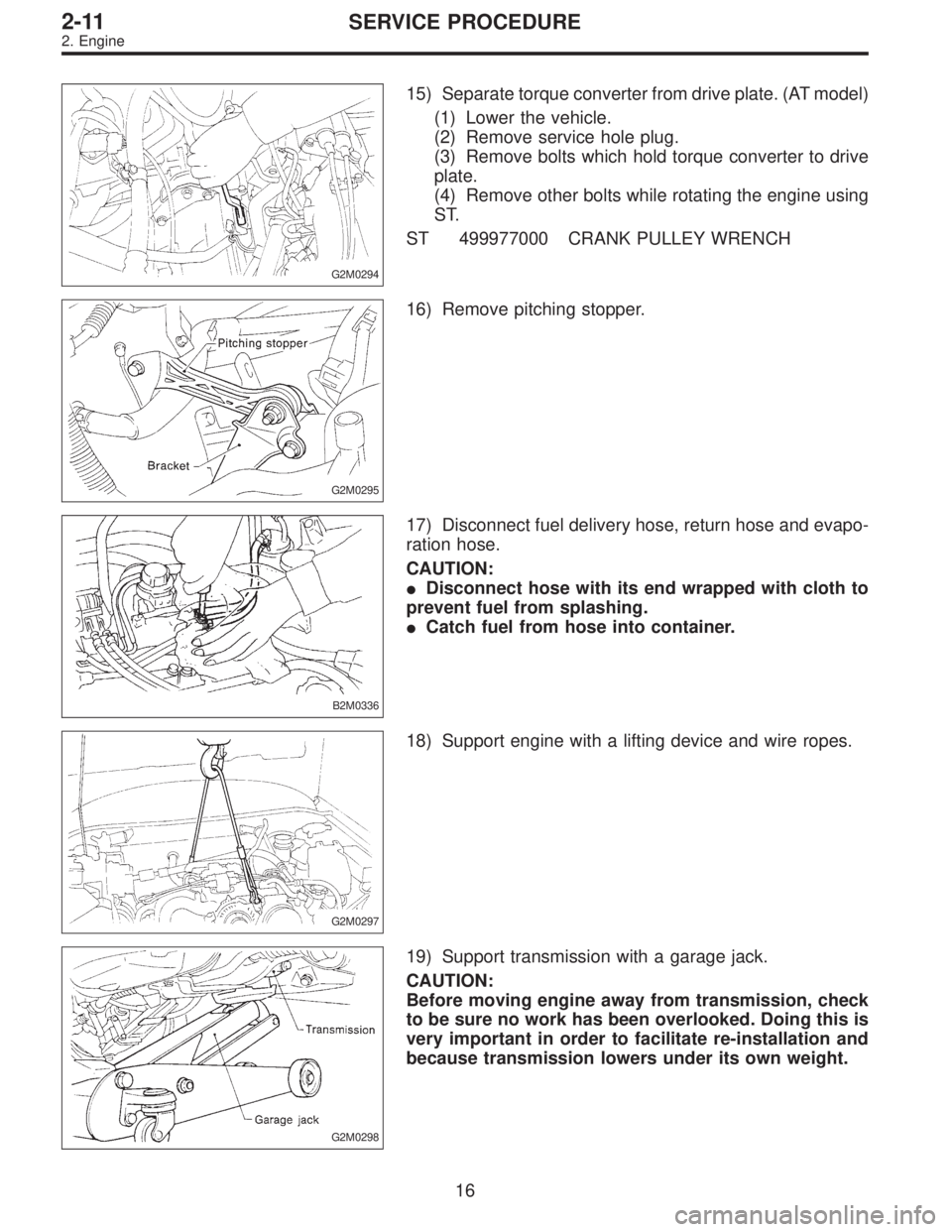

Page 250 of 2248

SUBARU LEGACY 1995 Service Repair Manual G2M0294 15) Separate torque converter from drive plate. (AT model) (1) Lower the vehicle. (2) Remove service hole plug. (3) Remove bolts which hold torque converter to drive plate. (4) Remove other bo

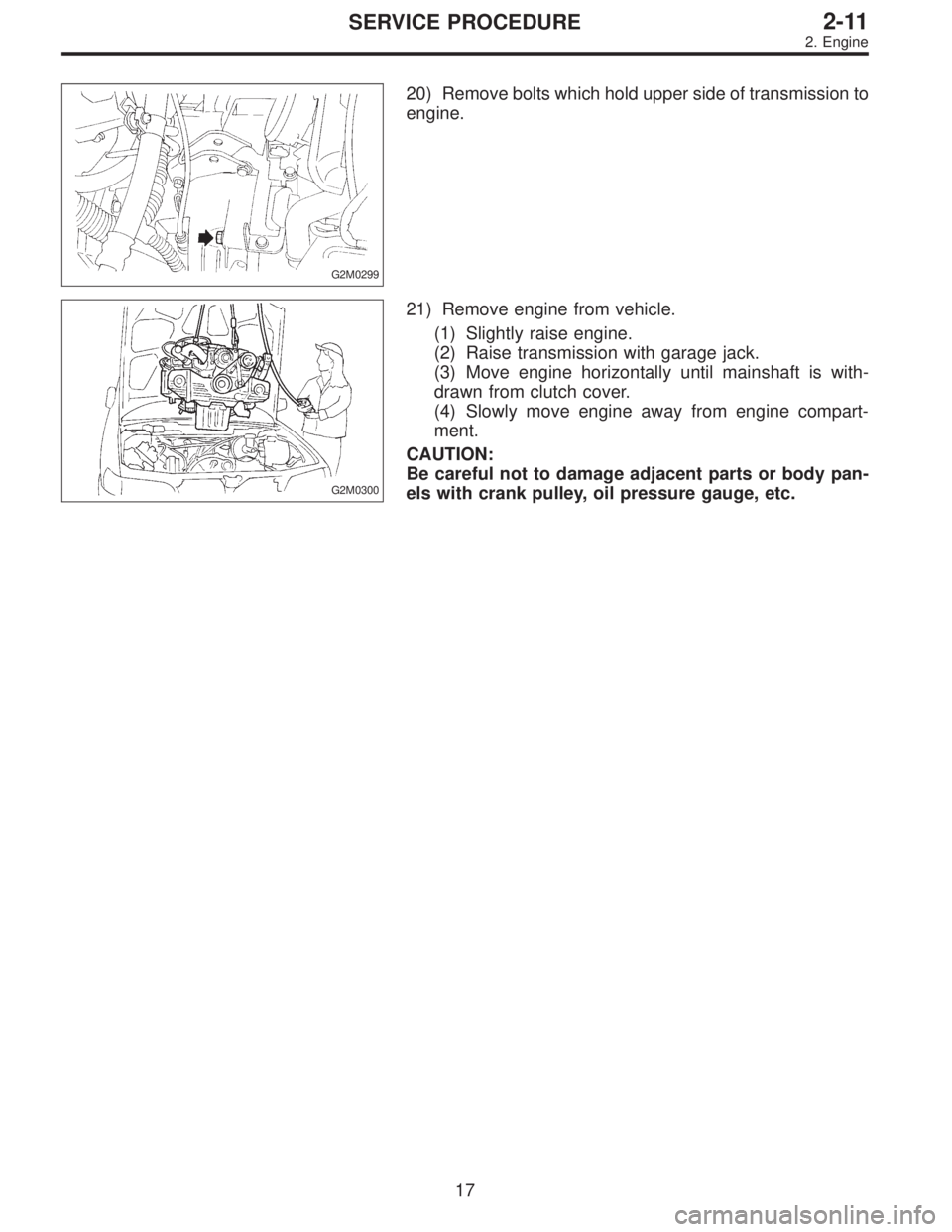

Page 251 of 2248

SUBARU LEGACY 1995 Service Repair Manual G2M0299 20) Remove bolts which hold upper side of transmission to engine. G2M0300 21) Remove engine from vehicle. (1) Slightly raise engine. (2) Raise transmission with garage jack. (3) Move engine ho

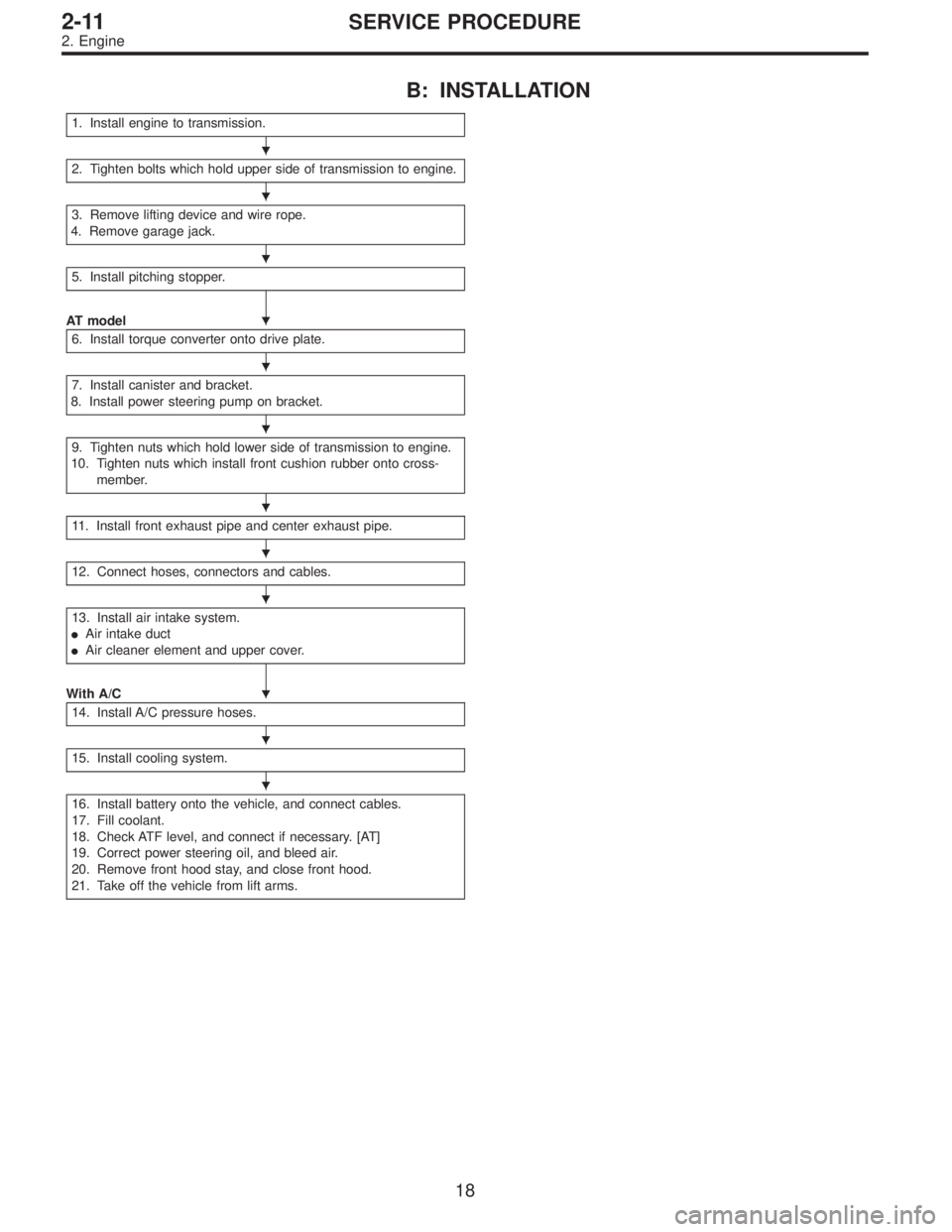

Page 252 of 2248

SUBARU LEGACY 1995 Service Repair Manual B: INSTALLATION 1. Install engine to transmission. 2. Tighten bolts which hold upper side of transmission to engine. 3. Remove lifting device and wire rope. 4. Remove garage jack. 5. Install pitching

Page 253 of 2248

SUBARU LEGACY 1995 Service Repair Manual G2M0301 1) Install engine onto transmission. (1) Position engine in engine compartment and align it with transmission. CAUTION: Be careful not to damage adjacent parts or body pan- els with crank pull

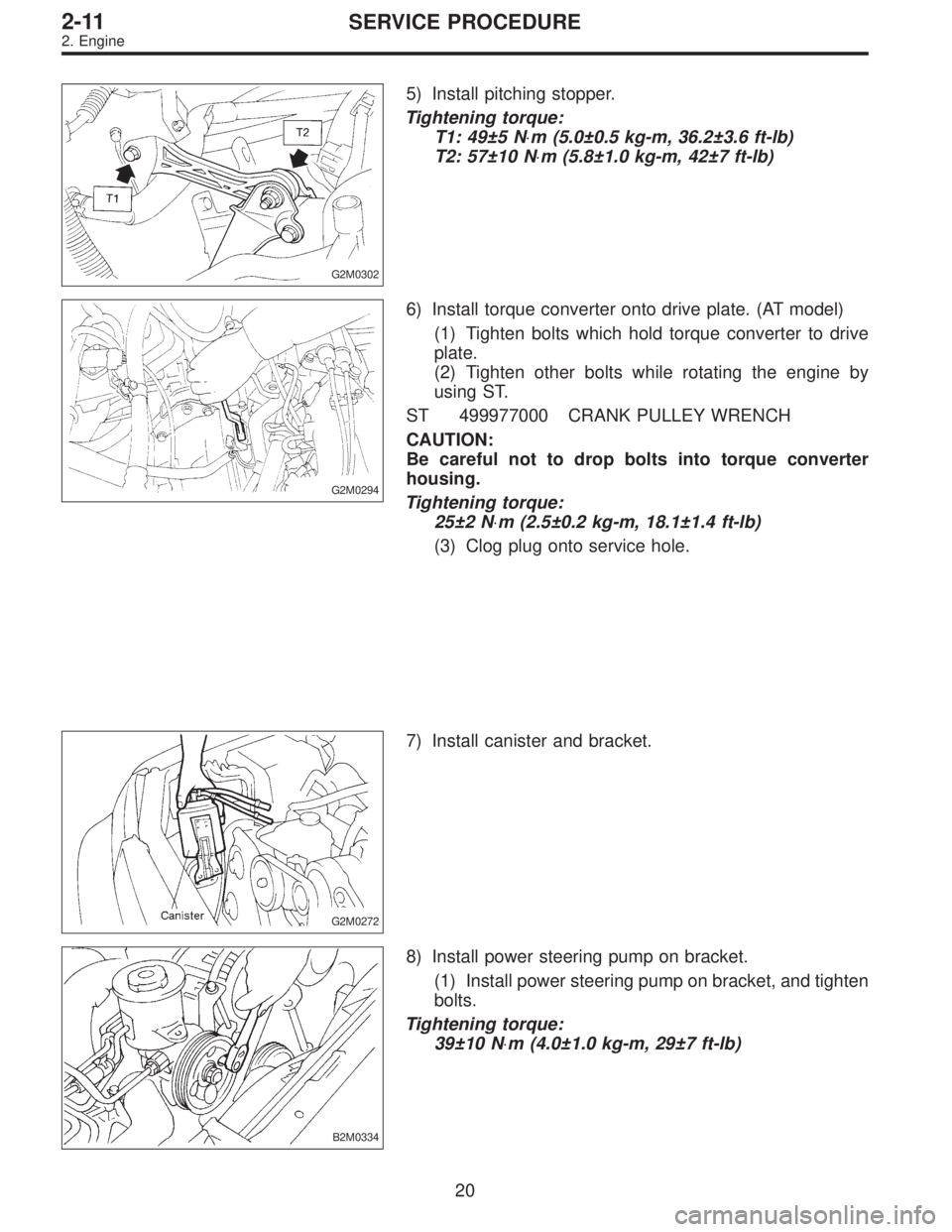

Page 254 of 2248

SUBARU LEGACY 1995 Service Repair Manual G2M0302 5) Install pitching stopper. Tightening torque: T1: 49±5 N⋅m (5.0±0.5 kg-m, 36.2±3.6 ft-lb) T2: 57±10 N⋅m (5.8±1.0 kg-m, 42±7 ft-lb) G2M0294 6) Install torque converter onto drive pl

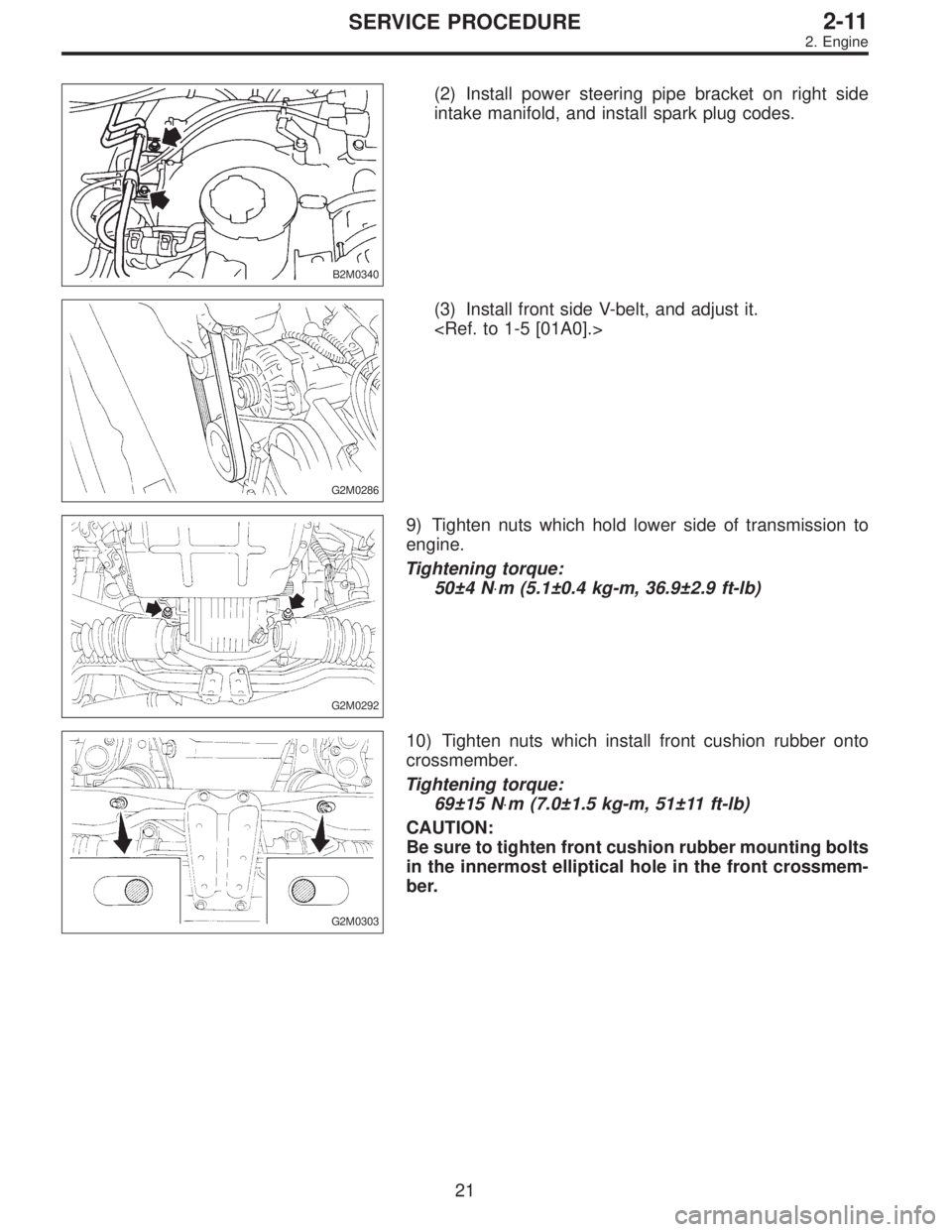

Page 255 of 2248

SUBARU LEGACY 1995 Service Repair Manual B2M0340 (2) Install power steering pipe bracket on right side intake manifold, and install spark plug codes. G2M0286 (3) Install front side V-belt, and adjust it. <Ref. to 1-5 [01A0].> G2M0292 9) Tigh

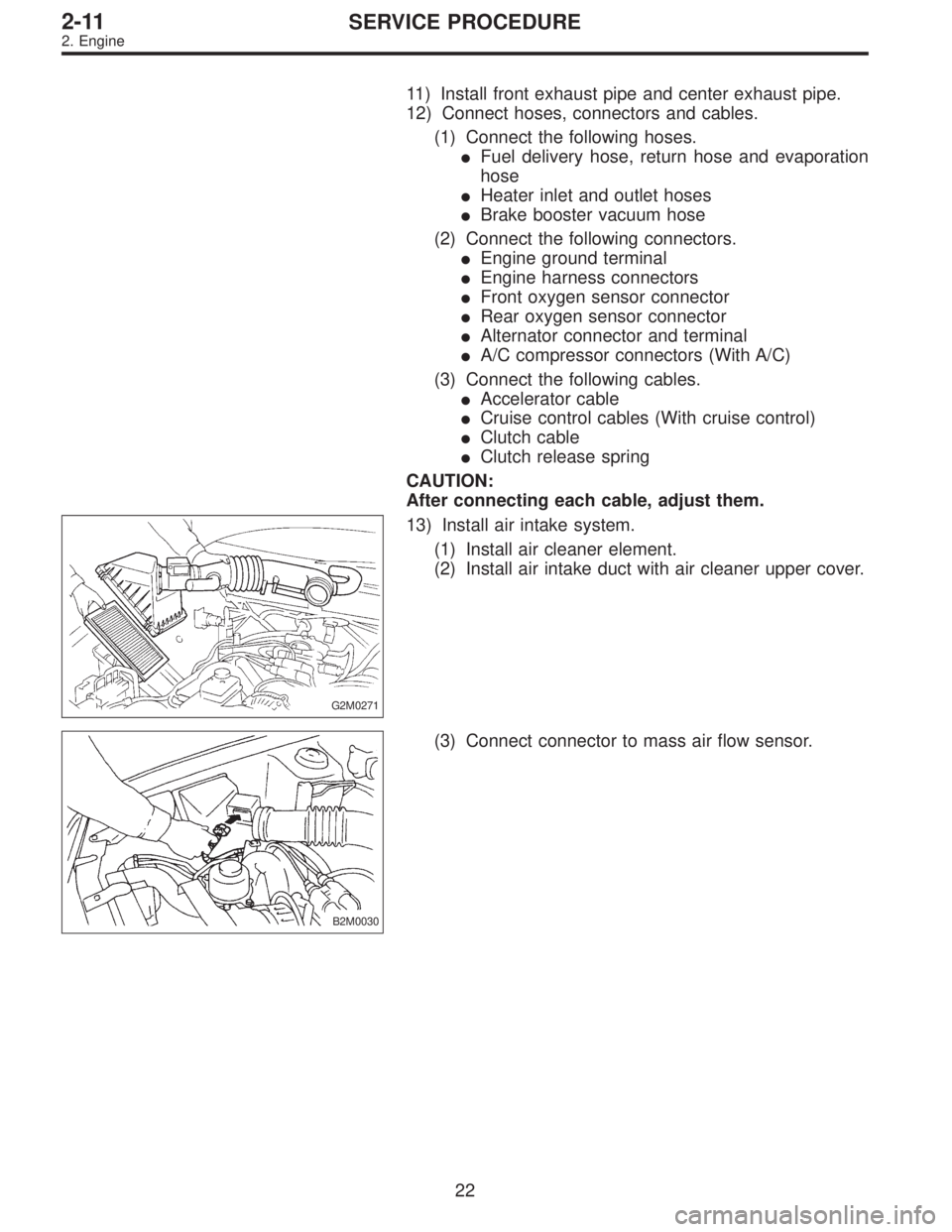

Page 256 of 2248

SUBARU LEGACY 1995 Service Repair Manual 11) Install front exhaust pipe and center exhaust pipe. 12) Connect hoses, connectors and cables. (1) Connect the following hoses. Fuel delivery hose, return hose and evaporation hose Heater inlet a
