Page 1601 of 2248

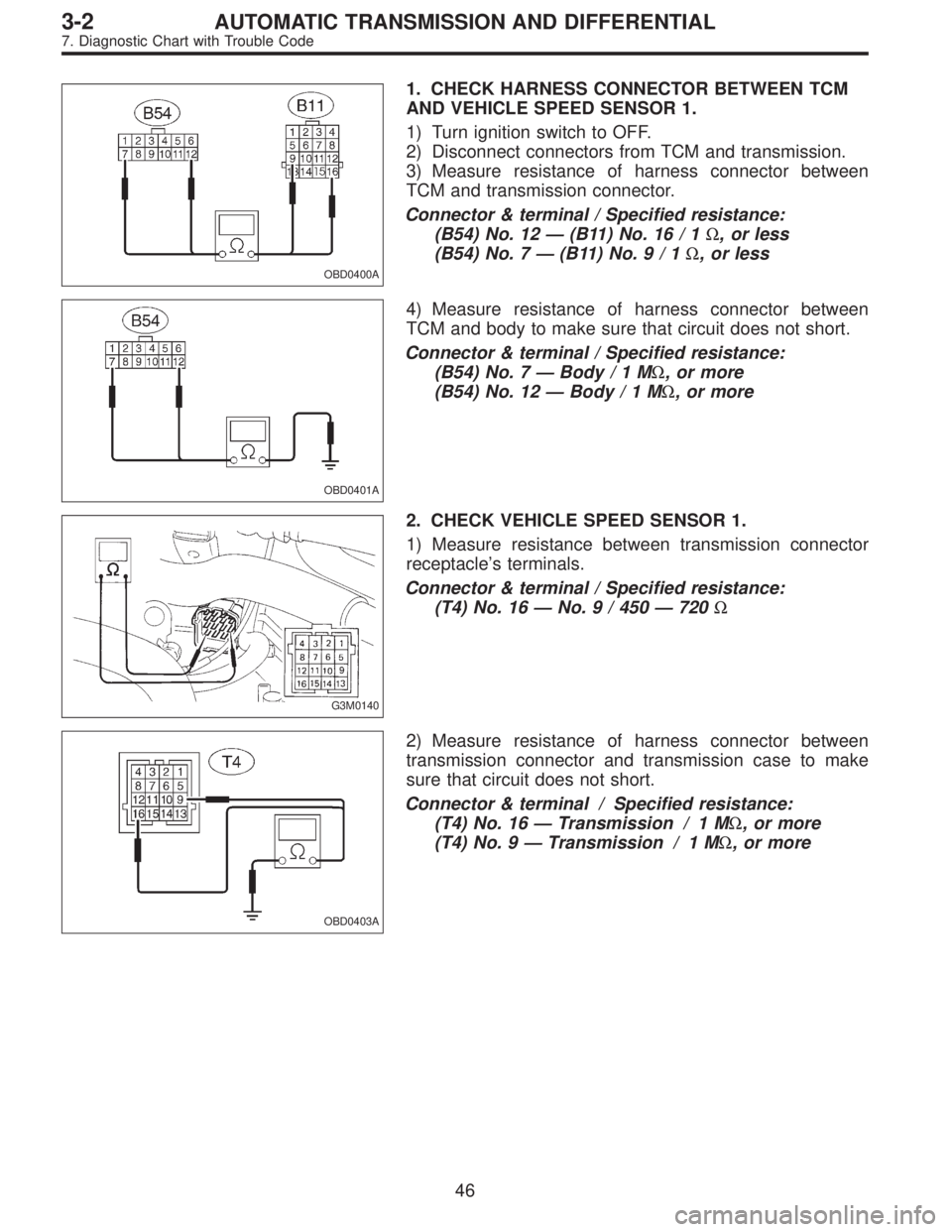

SUBARU LEGACY 1995 Service Repair Manual OBD0400A 1. CHECK HARNESS CONNECTOR BETWEEN TCM AND VEHICLE SPEED SENSOR 1. 1) Turn ignition switch to OFF. 2) Disconnect connectors from TCM and transmission. 3) Measure resistance of harness connect

Page 1602 of 2248

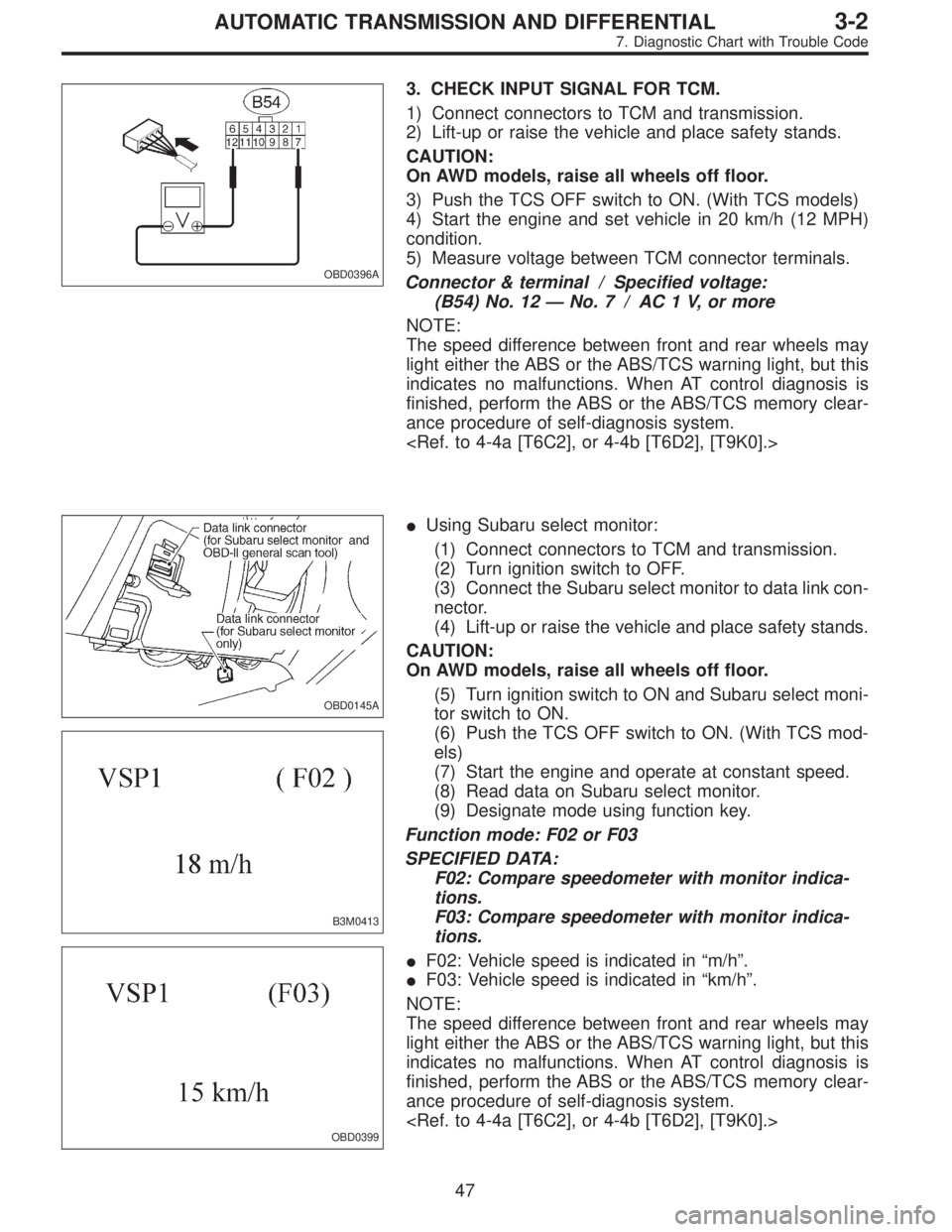

SUBARU LEGACY 1995 Service Repair Manual OBD0396A 3. CHECK INPUT SIGNAL FOR TCM. 1) Connect connectors to TCM and transmission. 2) Lift-up or raise the vehicle and place safety stands. CAUTION: On AWD models, raise all wheels off floor. 3) P

Page 1603 of 2248

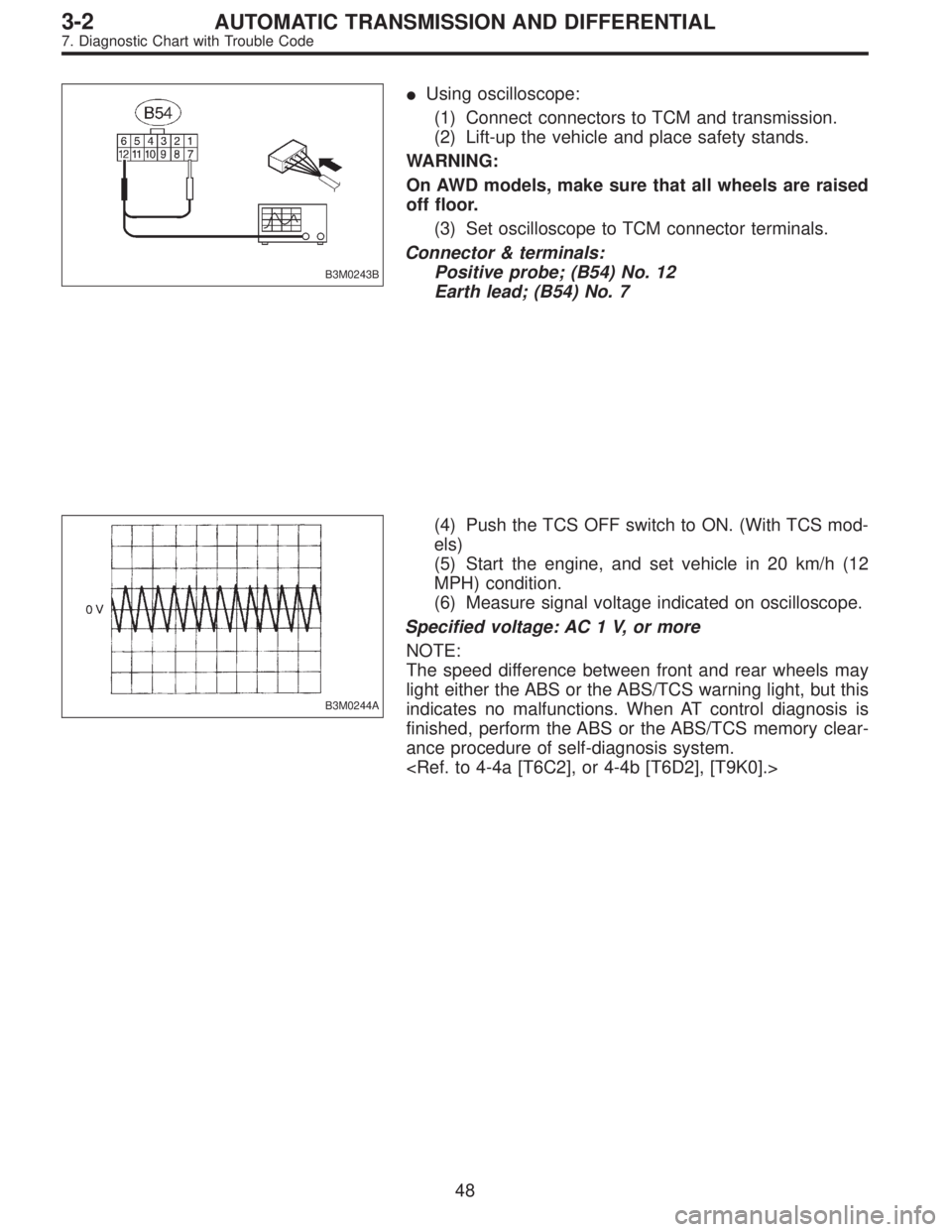

SUBARU LEGACY 1995 Service Repair Manual B3M0243B Using oscilloscope: (1) Connect connectors to TCM and transmission. (2) Lift-up the vehicle and place safety stands. WARNING: On AWD models, make sure that all wheels are raised off floor. (

Page 1604 of 2248

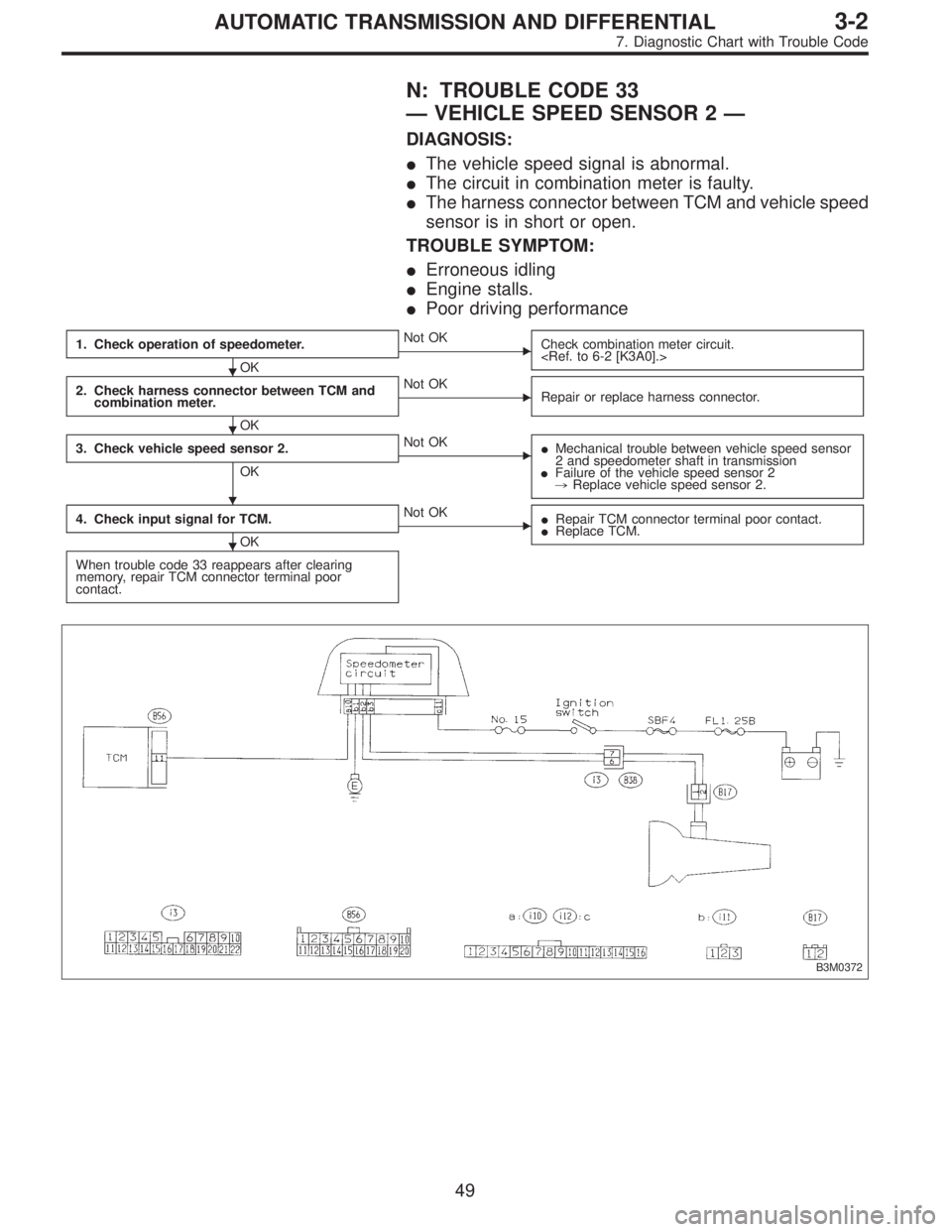

SUBARU LEGACY 1995 Service Repair Manual N: TROUBLE CODE 33 —VEHICLE SPEED SENSOR 2— DIAGNOSIS: The vehicle speed signal is abnormal. The circuit in combination meter is faulty. The harness connector between TCM and vehicle speed sens

Page 1605 of 2248

SUBARU LEGACY 1995 Service Repair Manual 1. CHECK OPERATION OF SPEEDOMETER. Make sure that speedometer indicates the vehicle speed by driving the vehicle. B3M0250 2. CHECK HARNESS CONNECTOR BETWEEN TCM AND COMBINATION METER. 1) Turn ignition

Page 1606 of 2248

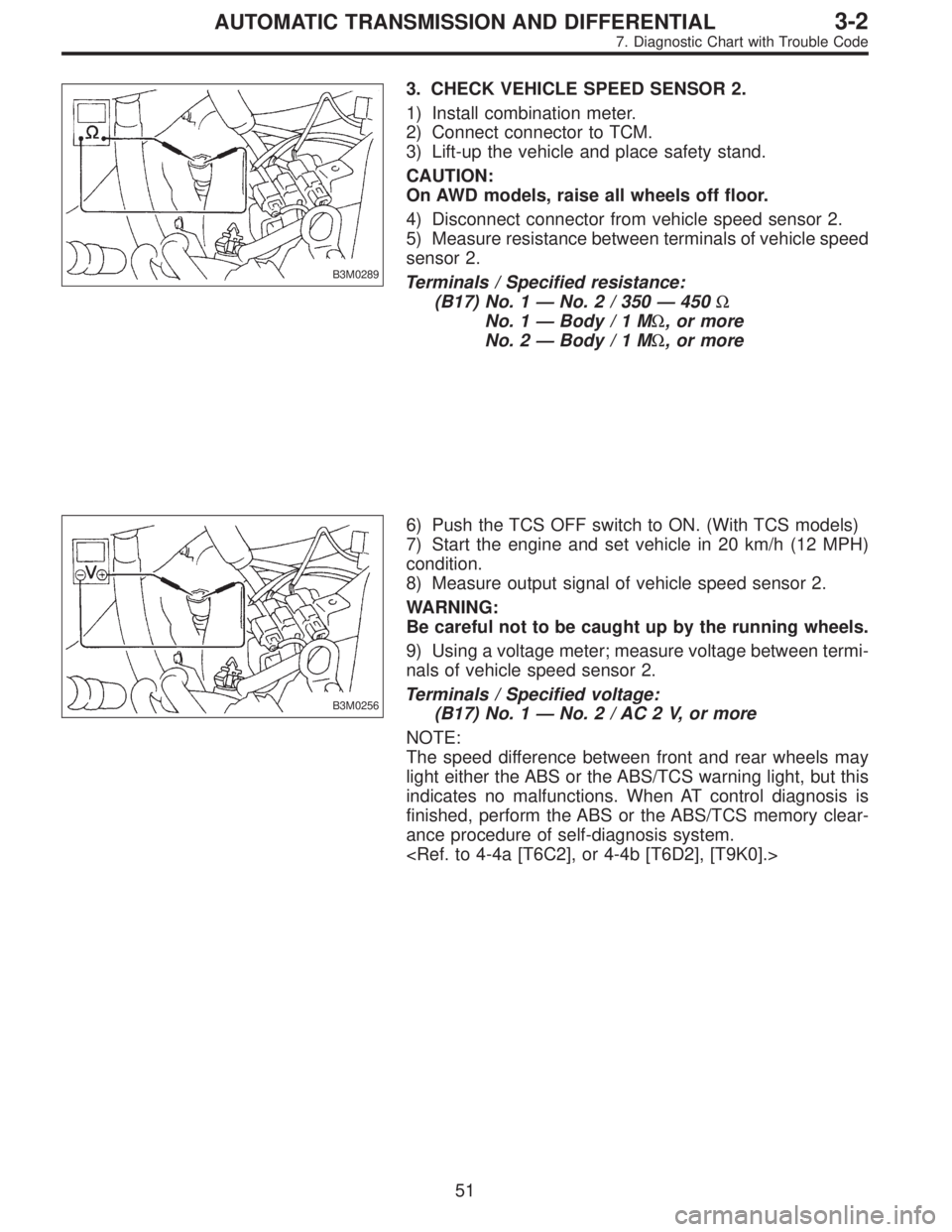

SUBARU LEGACY 1995 Service Repair Manual B3M0289 3. CHECK VEHICLE SPEED SENSOR 2. 1) Install combination meter. 2) Connect connector to TCM. 3) Lift-up the vehicle and place safety stand. CAUTION: On AWD models, raise all wheels off floor. 4

Page 1607 of 2248

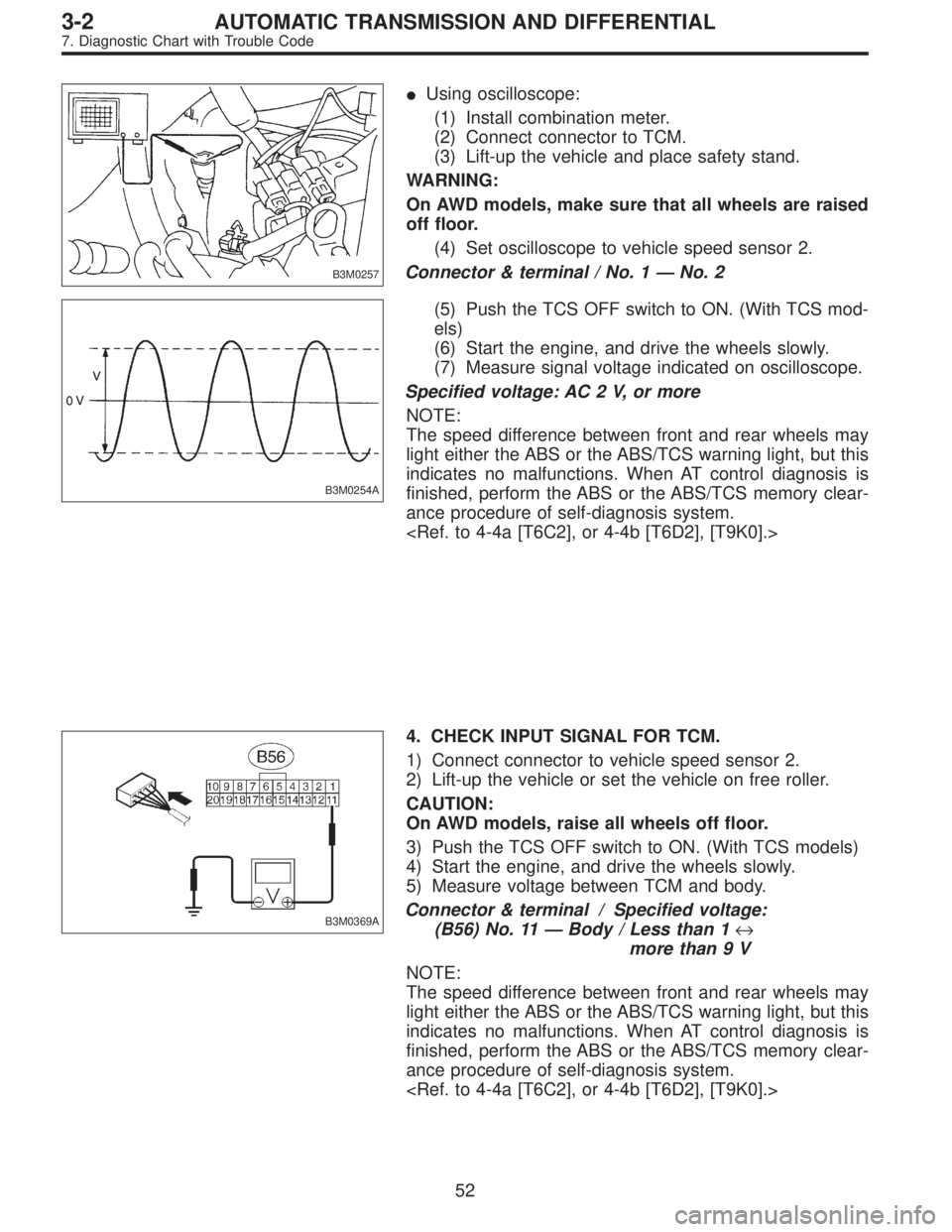

SUBARU LEGACY 1995 Service Repair Manual B3M0257 Using oscilloscope: (1) Install combination meter. (2) Connect connector to TCM. (3) Lift-up the vehicle and place safety stand. WARNING: On AWD models, make sure that all wheels are raised o

Page 1608 of 2248

SUBARU LEGACY 1995 Service Repair Manual OBD0145A Using Subaru select monitor: (1) Install combination meter. (2) Connect connectors to TCM and vehicle speed sensor 2. (3) Lift-up the vehicle or set the vehicle on free roller. (4) Turn igni
