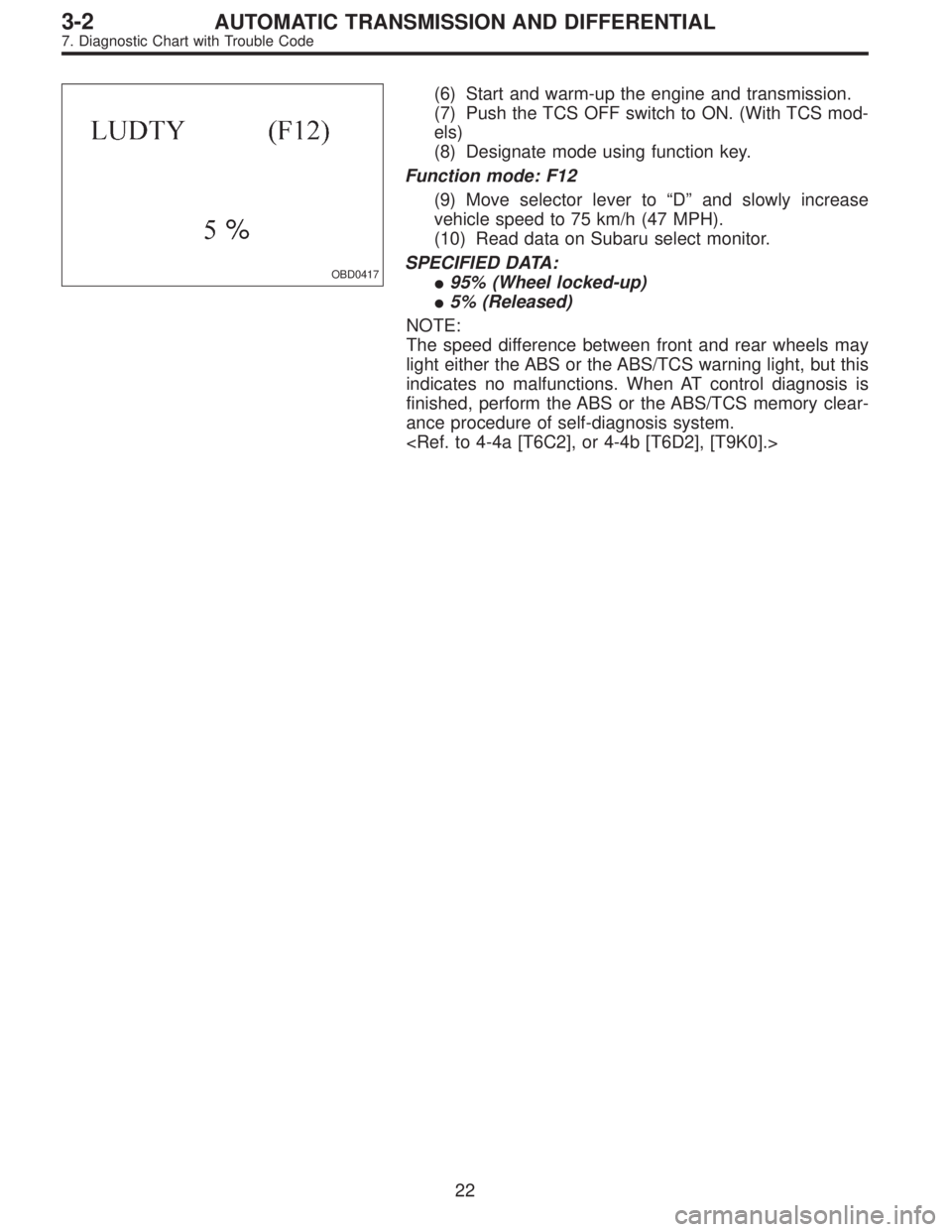

(6) Start and warm-up the engine and transmission.
(7) Push the TCS OFF switch to ON. (With TCS mod-
els)
(8) Designate mode using function key.
Function mode: F12
(9) Move selector lever to“D”and slowly increase
vehicle speed to 75 km/h (47 MPH).
(10) Read data on Subaru select monitor.
SPECIFIED DATA:
95% (Wheel locked-up)
5% (Released)
NOTE:
The speed difference between front and rear wheels may
light either the ABS or the ABS/TCS warning light, but this
indicates no malfunctions. When AT control diagnosis is
finished, perform the ABS or the ABS/TCS memory clear-
ance procedure of self-diagnosis system.
22
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
7. Diagnostic Chart with Trouble Code
Page 1578 of 2248

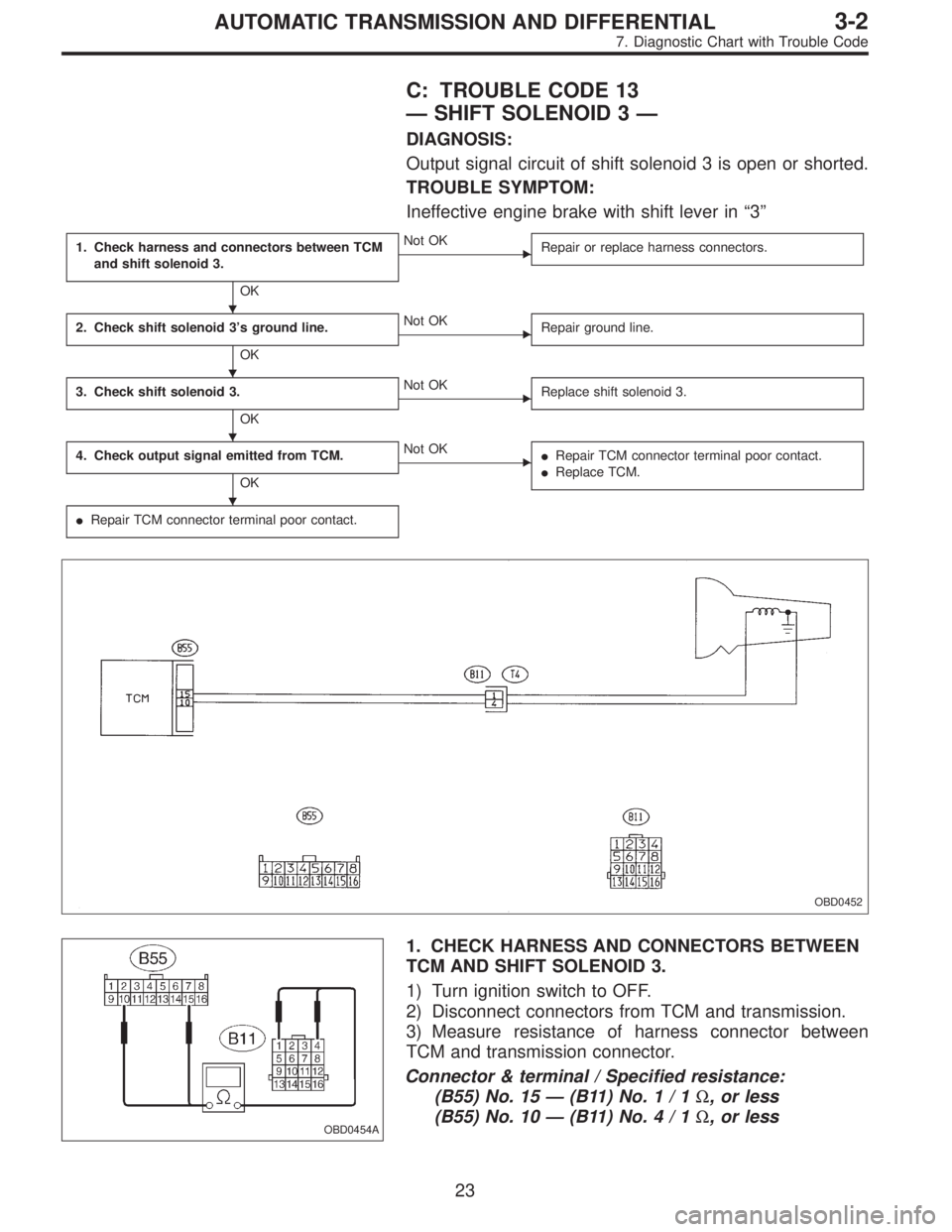

C: TROUBLE CODE 13
—SHIFT SOLENOID 3—
DIAGNOSIS:
Output signal circuit of shift solenoid 3 is open or shorted.
TROUBLE SYMPTOM:
Ineffective engine brake with shift lever in“3”
1. Check harness and connectors between TCM
and shift solenoid 3.
OK
Not OK
Repair or replace harness connectors.
2. Check shift solenoid 3’s ground line.
OK
Not OK
Repair ground line.
3. Check shift solenoid 3.
OK
Not OK
Replace shift solenoid 3.
4. Check output signal emitted from TCM.
OK
Not OK
Repair TCM connector terminal poor contact.
Replace TCM.
Repair TCM connector terminal poor contact.
OBD0452
OBD0454A
1. CHECK HARNESS AND CONNECTORS BETWEEN
TCM AND SHIFT SOLENOID 3.
1) Turn ignition switch to OFF.
2) Disconnect connectors from TCM and transmission.
3) Measure resistance of harness connector between
TCM and transmission connector.
Connector & terminal / Specified resistance:
(B55) No. 15—(B11)No.1/1Ω, or less
(B55) No. 10—(B11)No.4/1Ω, or less
23
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
7. Diagnostic Chart with Trouble Code
Page 1579 of 2248

OBD0455A

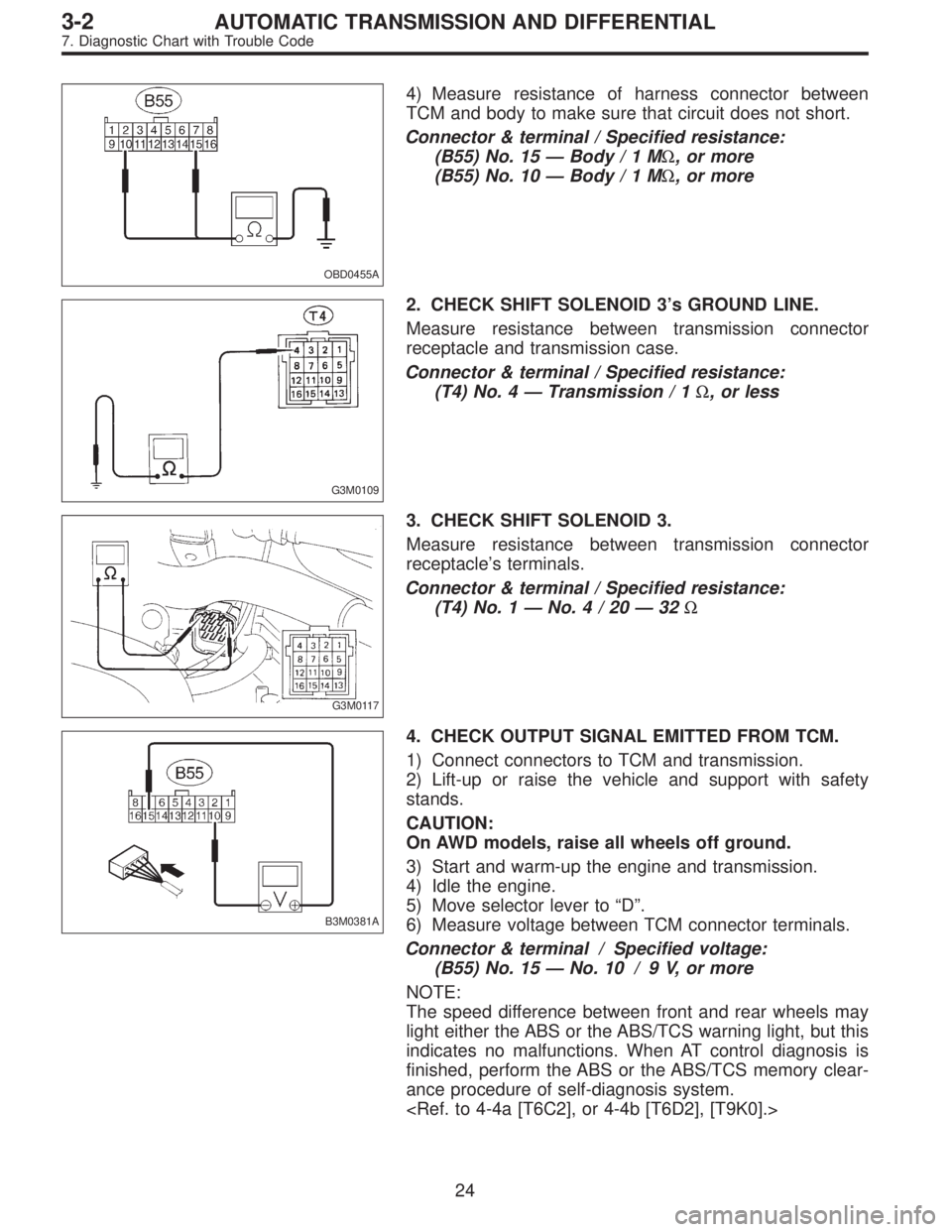

4) Measure resistance of harness connector between
TCM and body to make sure that circuit does not short.
Connector & terminal / Specified resistance:
(B55) No. 15—Body/1MΩ, or more
(B55) No. 10—Body/1MΩ, or more
G3M0109
2. CHECK SHIFT SOLENOID 3’s GROUND LINE.
Measure resistance between transmission connector
receptacle and transmission case.
Connector & terminal / Specified resistance:
(T4) No. 4—Transmission / 1Ω, or less
G3M0117
3. CHECK SHIFT SOLENOID 3.
Measure resistance between transmission connector
receptacle’s terminals.
Connector & terminal / Specified resistance:
(T4) No. 1—No.4/20—32Ω
B3M0381A
4. CHECK OUTPUT SIGNAL EMITTED FROM TCM.
1) Connect connectors to TCM and transmission.
2) Lift-up or raise the vehicle and support with safety
stands.
CAUTION:
On AWD models, raise all wheels off ground.
3) Start and warm-up the engine and transmission.
4) Idle the engine.
5) Move selector lever to“D”.
6) Measure voltage between TCM connector terminals.
Connector & terminal / Specified voltage:
(B55) No. 15—No. 10 / 9 V, or more
NOTE:
The speed difference between front and rear wheels may
light either the ABS or the ABS/TCS warning light, but this
indicates no malfunctions. When AT control diagnosis is
finished, perform the ABS or the ABS/TCS memory clear-
ance procedure of self-diagnosis system.
24
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
7. Diagnostic Chart with Trouble Code
Page 1580 of 2248

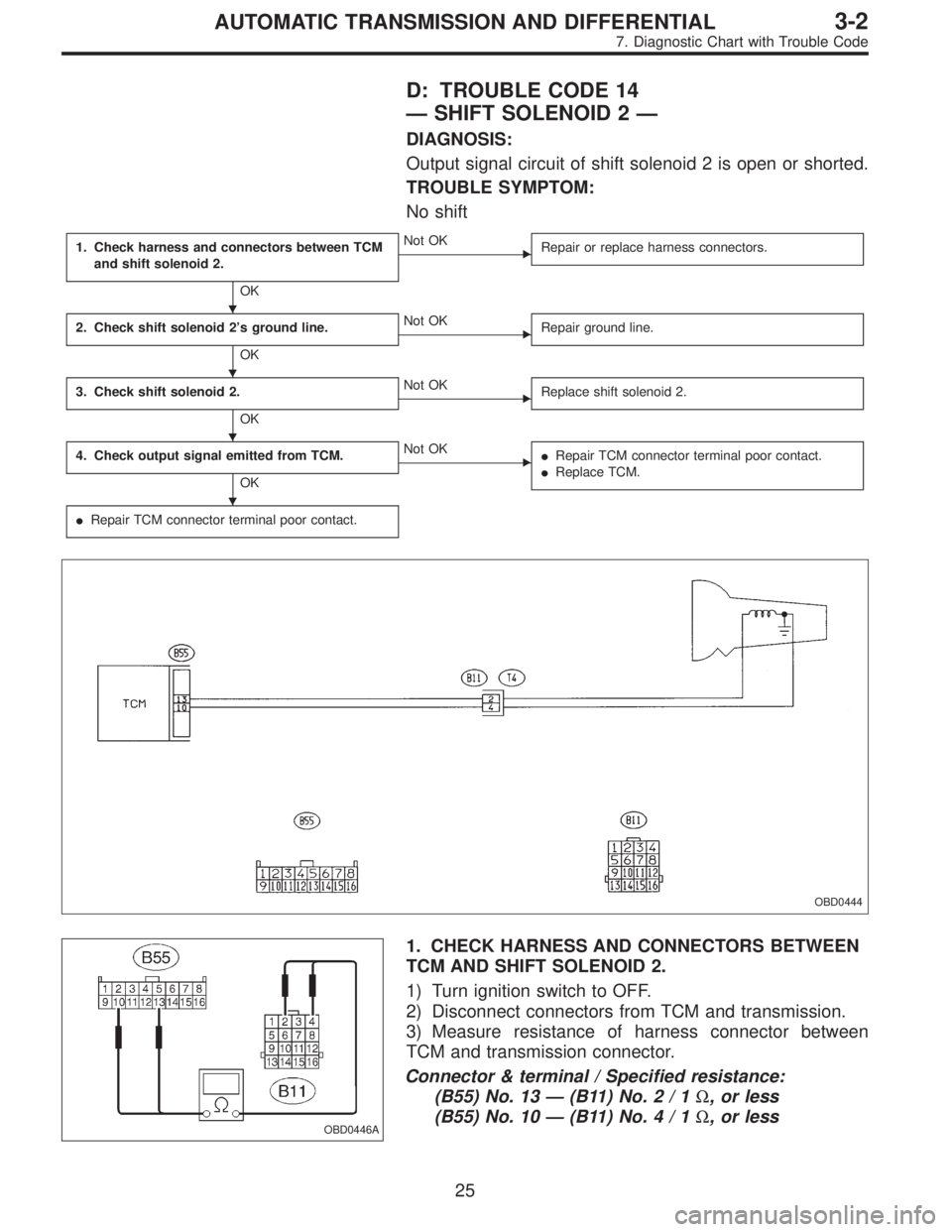

D: TROUBLE CODE 14
—SHIFT SOLENOID 2—
DIAGNOSIS:
Output signal circuit of shift solenoid 2 is open or shorted.
TROUBLE SYMPTOM:
No shift
1. Check harness and connectors between TCM
and shift solenoid 2.
OK
Not OK
Repair or replace harness connectors.
2. Check shift solenoid 2’s ground line.
OK
Not OK
Repair ground line.
3. Check shift solenoid 2.
OK
Not OK
Replace shift solenoid 2.
4. Check output signal emitted from TCM.
OK
Not OK
Repair TCM connector terminal poor contact.
Replace TCM.
Repair TCM connector terminal poor contact.
OBD0444
OBD0446A
1. CHECK HARNESS AND CONNECTORS BETWEEN
TCM AND SHIFT SOLENOID 2.
1) Turn ignition switch to OFF.
2) Disconnect connectors from TCM and transmission.
3) Measure resistance of harness connector between
TCM and transmission connector.
Connector & terminal / Specified resistance:
(B55) No. 13—(B11)No.2/1Ω, or less
(B55) No. 10—(B11)No.4/1Ω, or less
25
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
7. Diagnostic Chart with Trouble Code
Page 1581 of 2248

OBD0447A
4) Measure resistance of harness connector between
TCM and body to make sure that circuit does not short.
Connector & terminal / Specified resistance:
(B55) No. 13—Body/1MΩ, or more
(B55) No. 10—Body/1MΩ, or more
G3M0109
2. CHECK SHIFT SOLENOID 2’s GROUND LINE.
Measure resistance between transmission connector
receptacle and transmission case.
Connector & terminal / Specified resistance:
(T4) No. 4—Transmission / 1Ω, or less
G3M0120
3. CHECK SHIFT SOLENOID 2.
Measure resistance between transmission connector
receptacle’s terminals.
Connector & terminal / Specified resistance:
(T4) No. 2—No.4/20—32Ω
OBD0445A
4. CHECK OUTPUT SIGNAL EMITTED FROM TCM.
1) Connect connectors to TCM and transmission.
2) Lift-up or raise the vehicle and support with safety
stands.
CAUTION:
On AWD models, raise all wheels off ground.
3) Start and warm-up the engine and transmission.
4) Idle the engine.
5) Move selector lever to“D”.
6) Measure voltage between TCM connector terminals.
Connector & terminal / Specified voltage:
(B55) No. 13—No. 10 / 9 V, or more
NOTE:
The speed difference between front and rear wheels may
light either the ABS or the ABS/TCS warning light, but this
indicates no malfunctions. When AT control diagnosis is
finished, perform the ABS or the ABS/TCS memory clear-
ance procedure of self-diagnosis system.
26
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
7. Diagnostic Chart with Trouble Code
Page 1582 of 2248

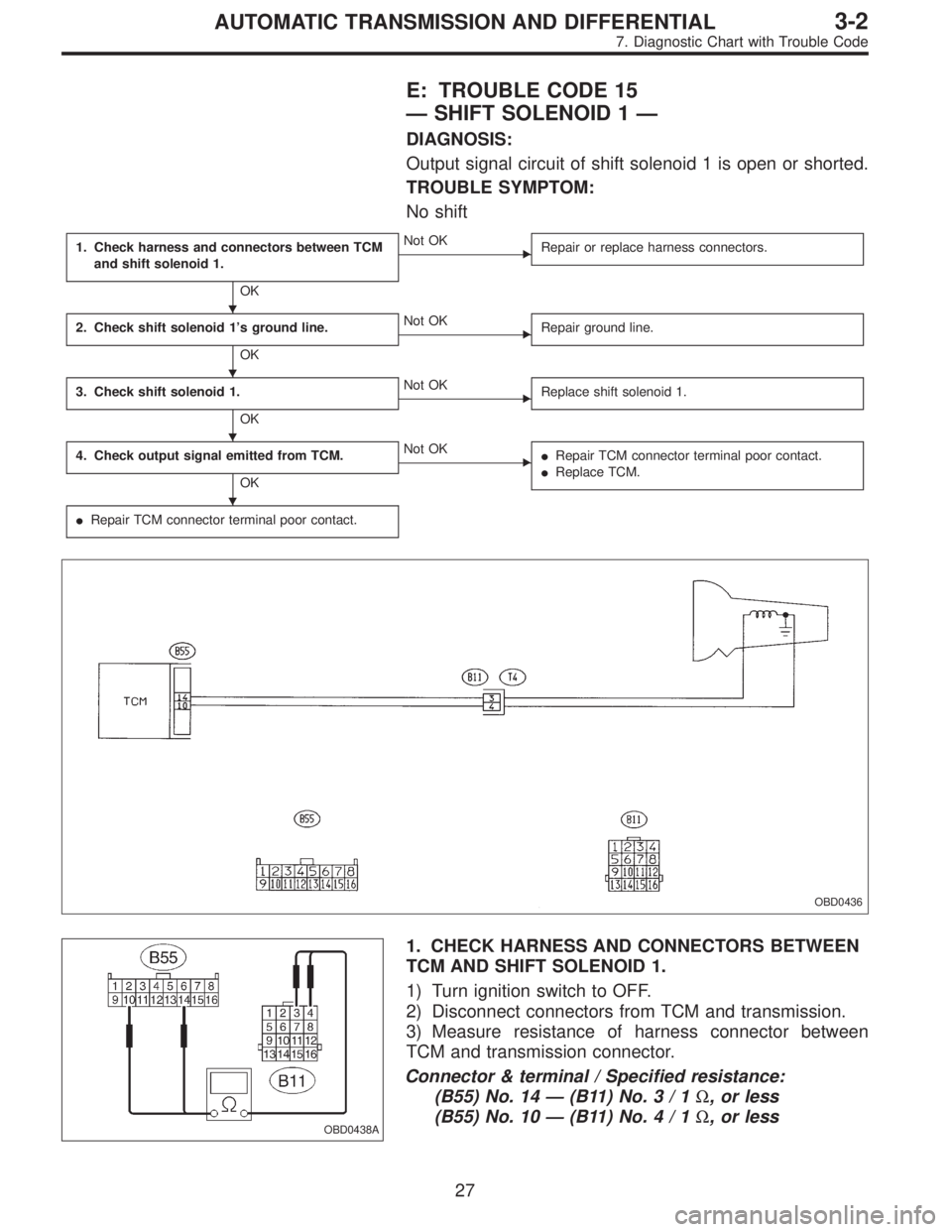

E: TROUBLE CODE 15
—SHIFT SOLENOID 1—
DIAGNOSIS:
Output signal circuit of shift solenoid 1 is open or shorted.
TROUBLE SYMPTOM:
No shift
1. Check harness and connectors between TCM
and shift solenoid 1.
OK
Not OK
Repair or replace harness connectors.
2. Check shift solenoid 1’s ground line.
OK
Not OK
Repair ground line.
3. Check shift solenoid 1.
OK
Not OK
Replace shift solenoid 1.
4. Check output signal emitted from TCM.
OK
Not OK
Repair TCM connector terminal poor contact.
Replace TCM.
Repair TCM connector terminal poor contact.
OBD0436
OBD0438A
1. CHECK HARNESS AND CONNECTORS BETWEEN
TCM AND SHIFT SOLENOID 1.
1) Turn ignition switch to OFF.
2) Disconnect connectors from TCM and transmission.
3) Measure resistance of harness connector between
TCM and transmission connector.
Connector & terminal / Specified resistance:
(B55) No. 14—(B11)No.3/1Ω, or less
(B55) No. 10—(B11)No.4/1Ω, or less
27
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
7. Diagnostic Chart with Trouble Code
Page 1583 of 2248

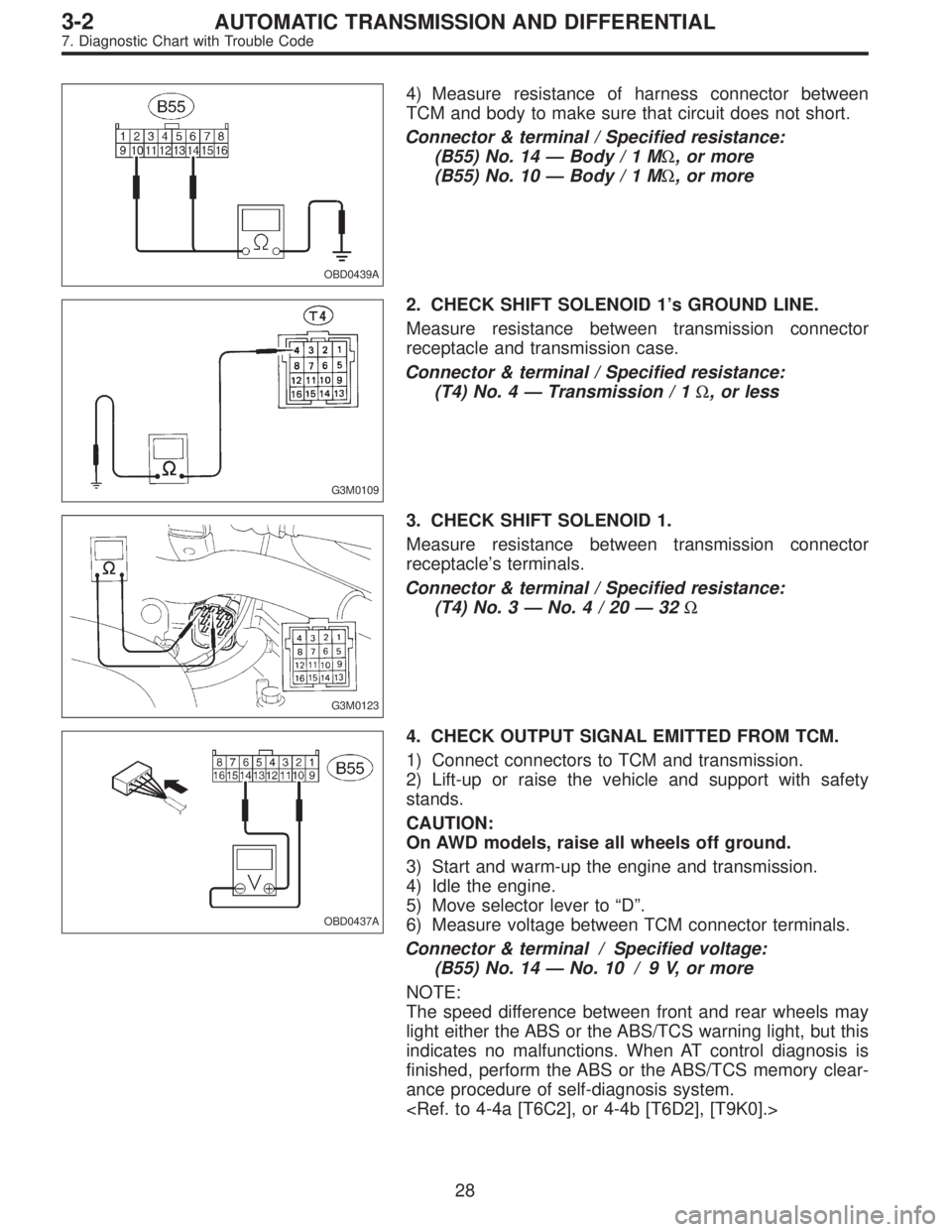

OBD0439A
4) Measure resistance of harness connector between
TCM and body to make sure that circuit does not short.
Connector & terminal / Specified resistance:
(B55) No. 14—Body/1MΩ, or more
(B55) No. 10—Body/1MΩ, or more
G3M0109
2. CHECK SHIFT SOLENOID 1’s GROUND LINE.
Measure resistance between transmission connector
receptacle and transmission case.
Connector & terminal / Specified resistance:
(T4) No. 4—Transmission / 1Ω, or less
G3M0123
3. CHECK SHIFT SOLENOID 1.
Measure resistance between transmission connector
receptacle’s terminals.
Connector & terminal / Specified resistance:
(T4) No. 3—No.4/20—32Ω
OBD0437A
4. CHECK OUTPUT SIGNAL EMITTED FROM TCM.
1) Connect connectors to TCM and transmission.
2) Lift-up or raise the vehicle and support with safety
stands.
CAUTION:
On AWD models, raise all wheels off ground.
3) Start and warm-up the engine and transmission.
4) Idle the engine.
5) Move selector lever to“D”.
6) Measure voltage between TCM connector terminals.
Connector & terminal / Specified voltage:
(B55) No. 14—No. 10 / 9 V, or more
NOTE:
The speed difference between front and rear wheels may
light either the ABS or the ABS/TCS warning light, but this
indicates no malfunctions. When AT control diagnosis is
finished, perform the ABS or the ABS/TCS memory clear-
ance procedure of self-diagnosis system.
28
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
7. Diagnostic Chart with Trouble Code
Page 1584 of 2248

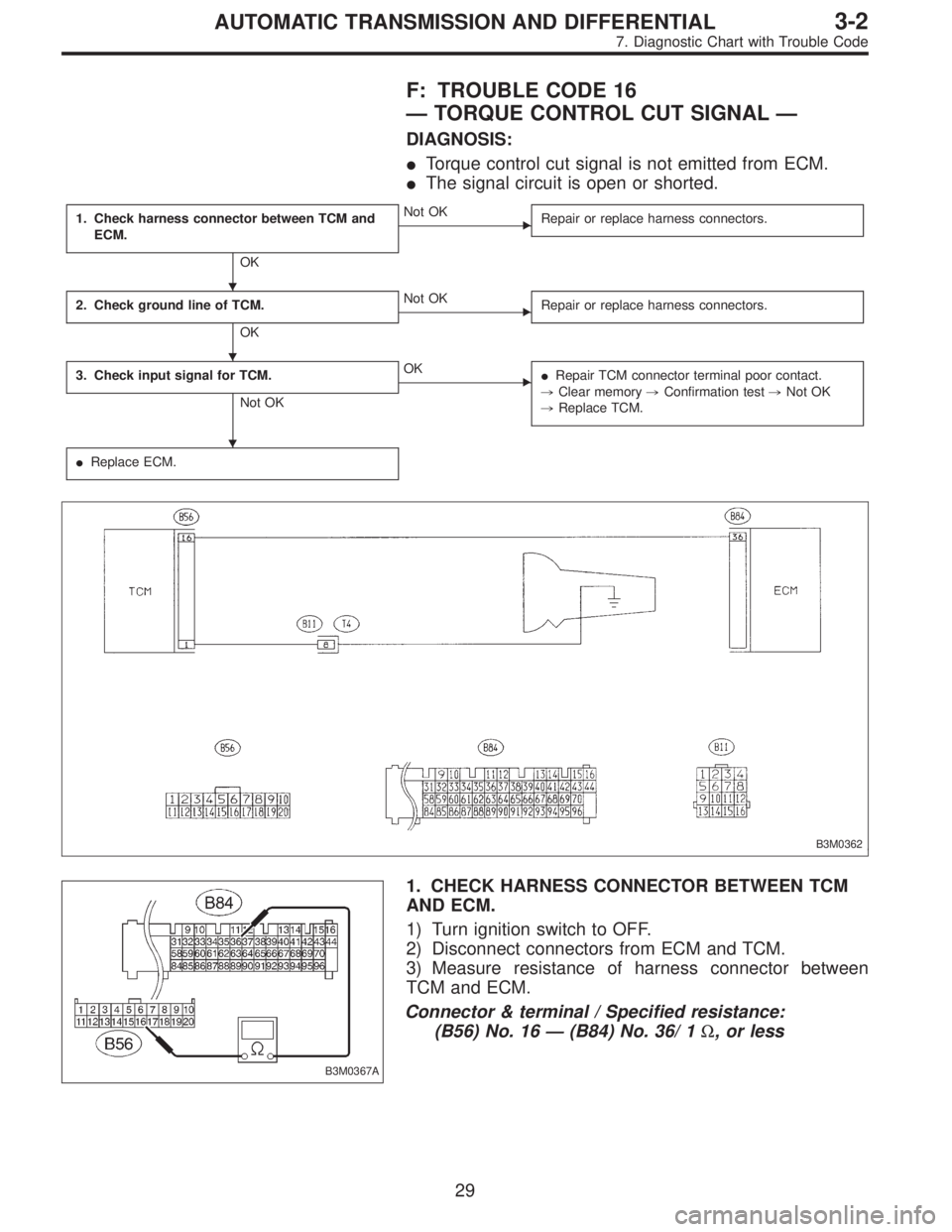

F: TROUBLE CODE 16
—TORQUE CONTROL CUT SIGNAL—
DIAGNOSIS:
Torque control cut signal is not emitted from ECM.
The signal circuit is open or shorted.
1. Check harness connector between TCM and
ECM.
OK
Not OK
Repair or replace harness connectors.
2. Check ground line of TCM.
OK
Not OK
Repair or replace harness connectors.
3. Check input signal for TCM.
Not OK
OK
Repair TCM connector terminal poor contact.
,Clear memory,Confirmation test,Not OK
,Replace TCM.
Replace ECM.
B3M0362
B3M0367A
1. CHECK HARNESS CONNECTOR BETWEEN TCM
AND ECM.
1) Turn ignition switch to OFF.
2) Disconnect connectors from ECM and TCM.
3) Measure resistance of harness connector between
TCM and ECM.
Connector & terminal / Specified resistance:
(B56) No. 16—(B84) No. 36/ 1Ω, or less
29
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
