Page 1449 of 2248

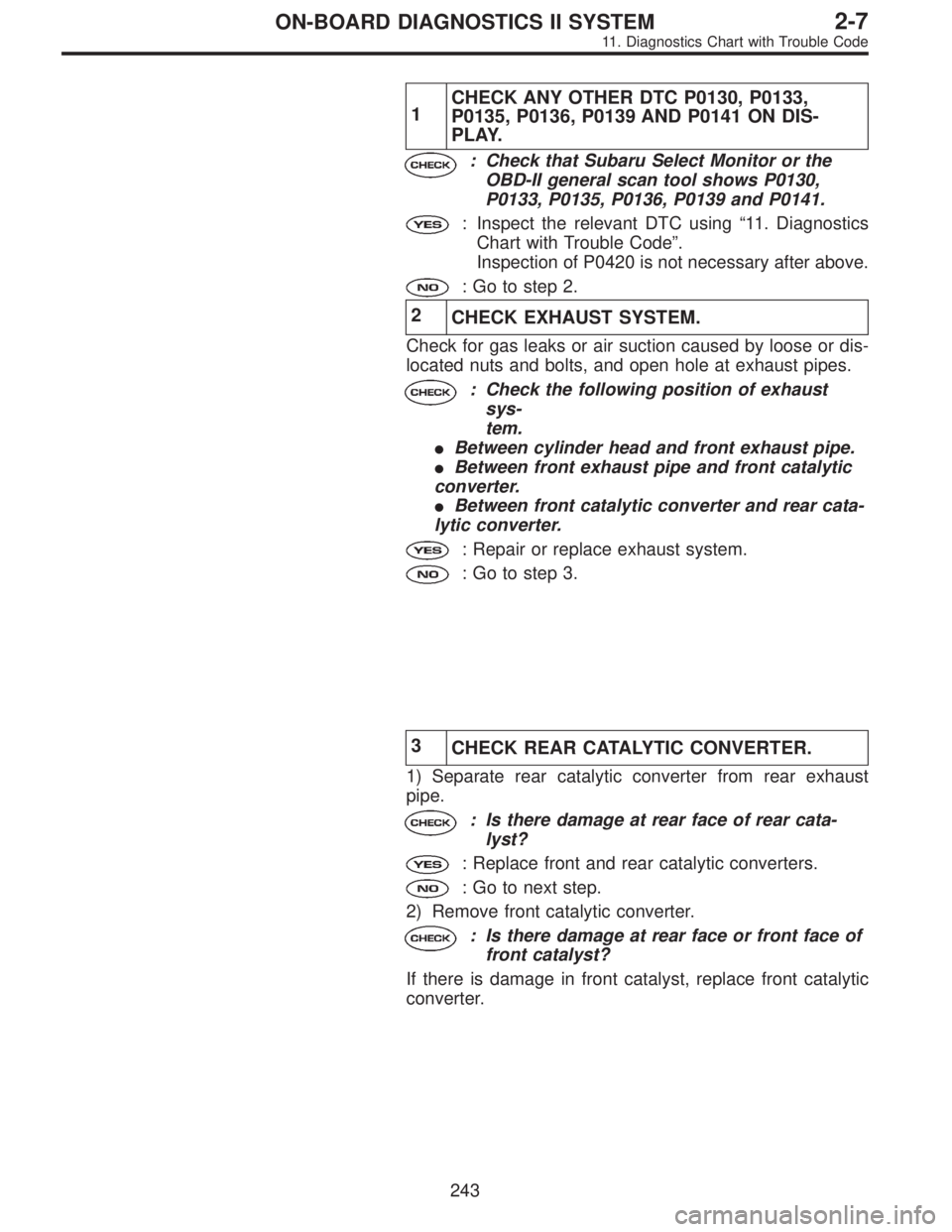

SUBARU LEGACY 1995 Service Repair Manual 1CHECK ANY OTHER DTC P0130, P0133, P0135, P0136, P0139 AND P0141 ON DIS- PLAY. : Check that Subaru Select Monitor or the OBD-II general scan tool shows P0130, P0133, P0135, P0136, P0139 and P0141. : I

Page 1450 of 2248

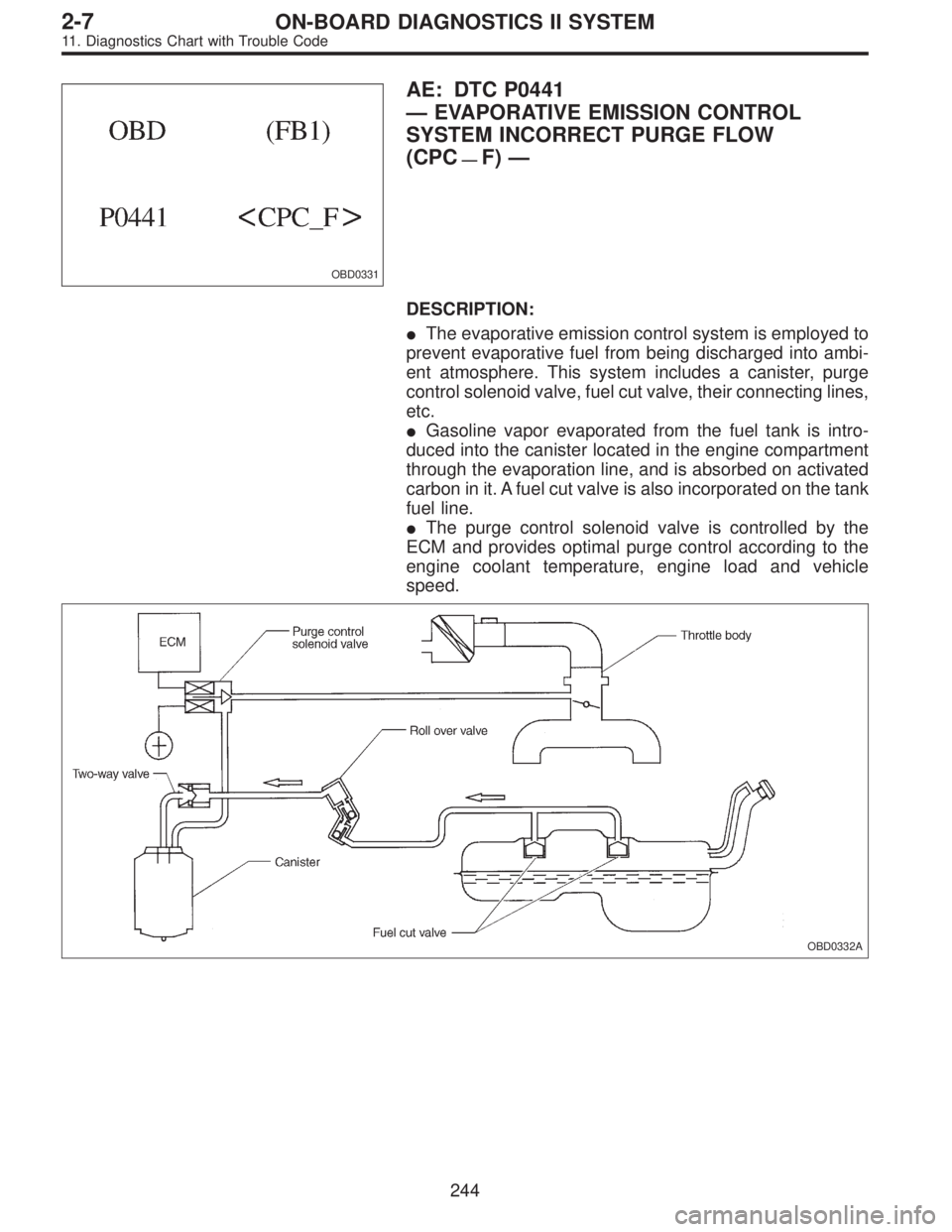

SUBARU LEGACY 1995 Service Repair Manual OBD0331 AE: DTC P0441 —EVAPORATIVE EMISSION CONTROL SYSTEM INCORRECT PURGE FLOW (CPC —F)— DESCRIPTION: The evaporative emission control system is employed to prevent evaporative fuel from being

Page 1451 of 2248

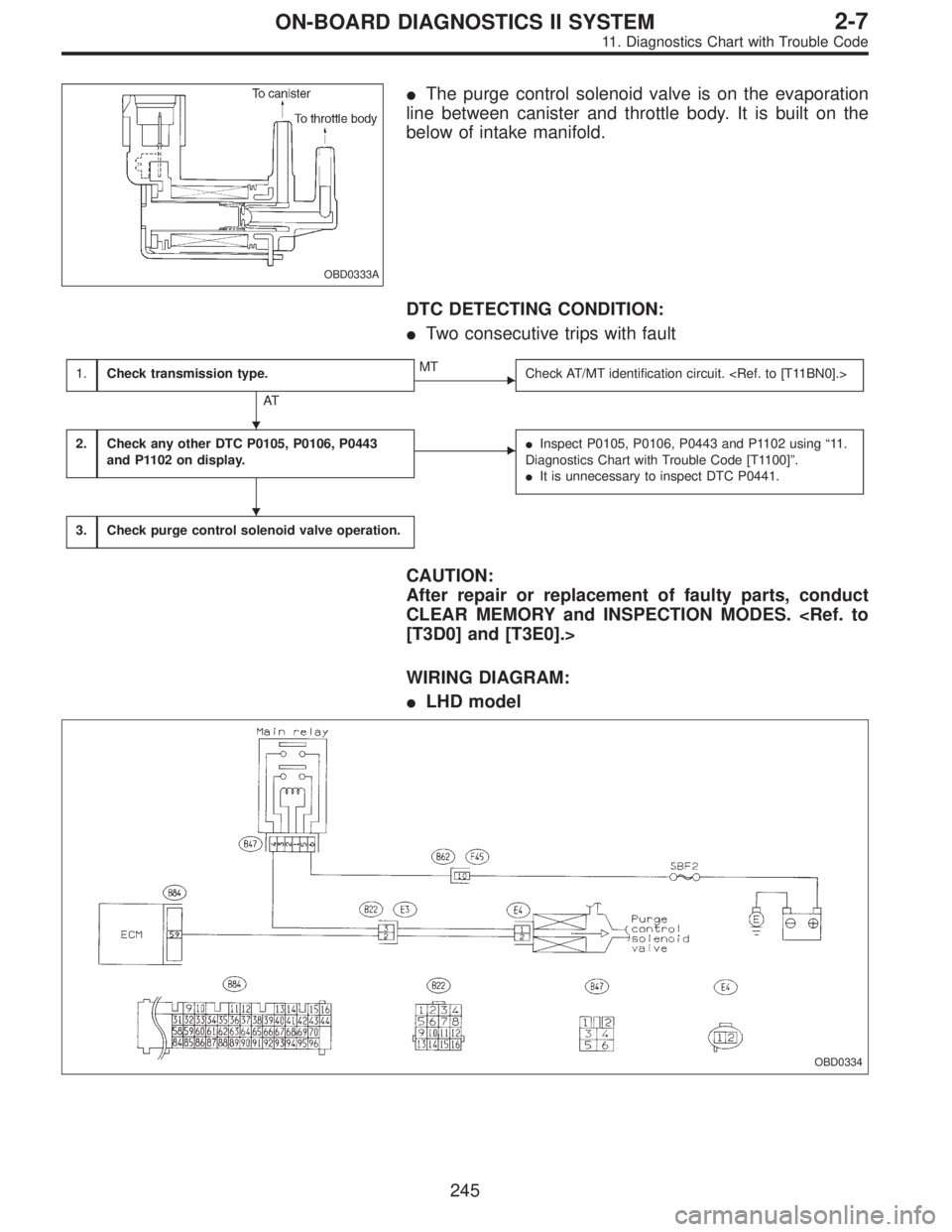

SUBARU LEGACY 1995 Service Repair Manual OBD0333A The purge control solenoid valve is on the evaporation line between canister and throttle body. It is built on the below of intake manifold. DTC DETECTING CONDITION: Two consecutive trips w

Page 1452 of 2248

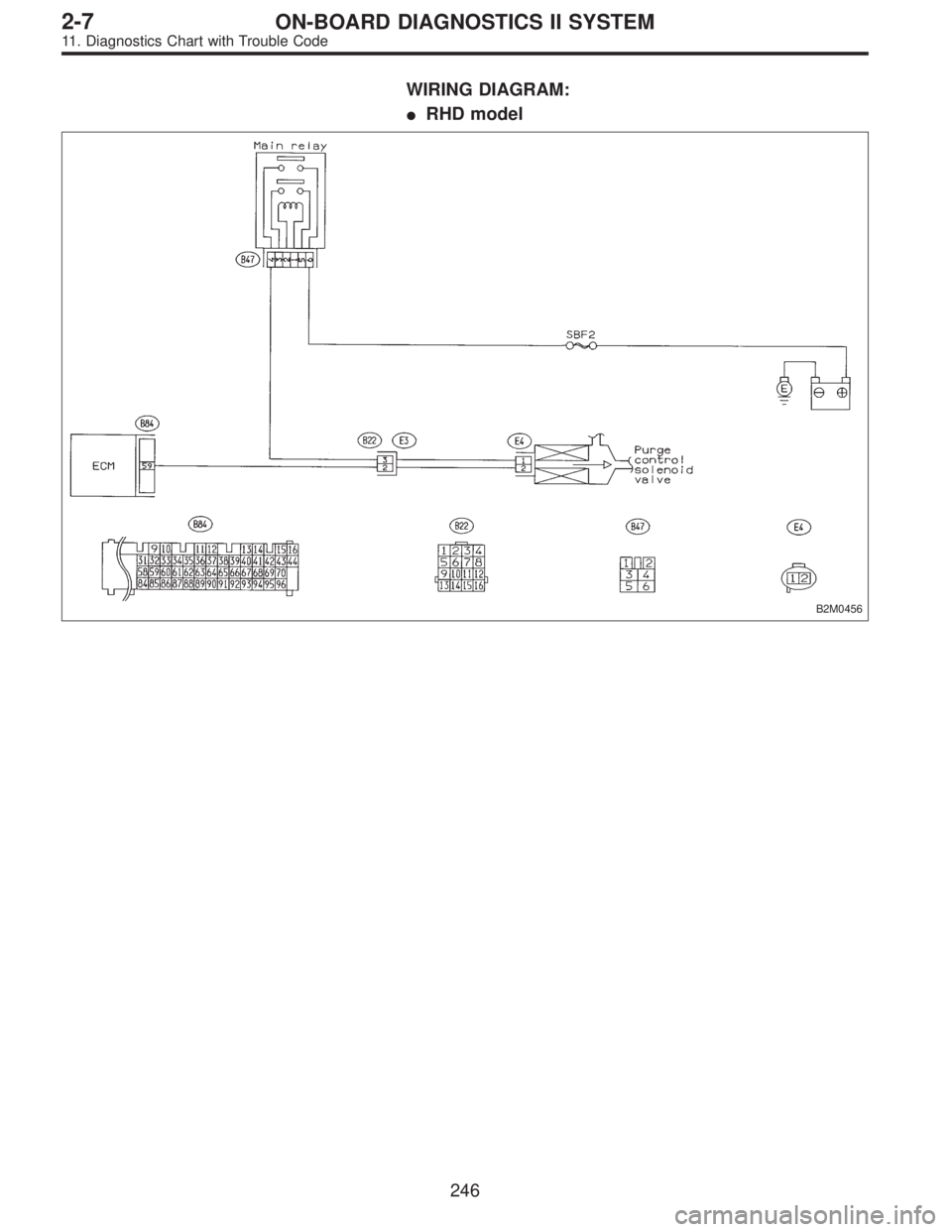

SUBARU LEGACY 1995 Service Repair Manual WIRING DIAGRAM: RHD model B2M0456 246 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11. Diagnostics Chart with Trouble Code

Page 1453 of 2248

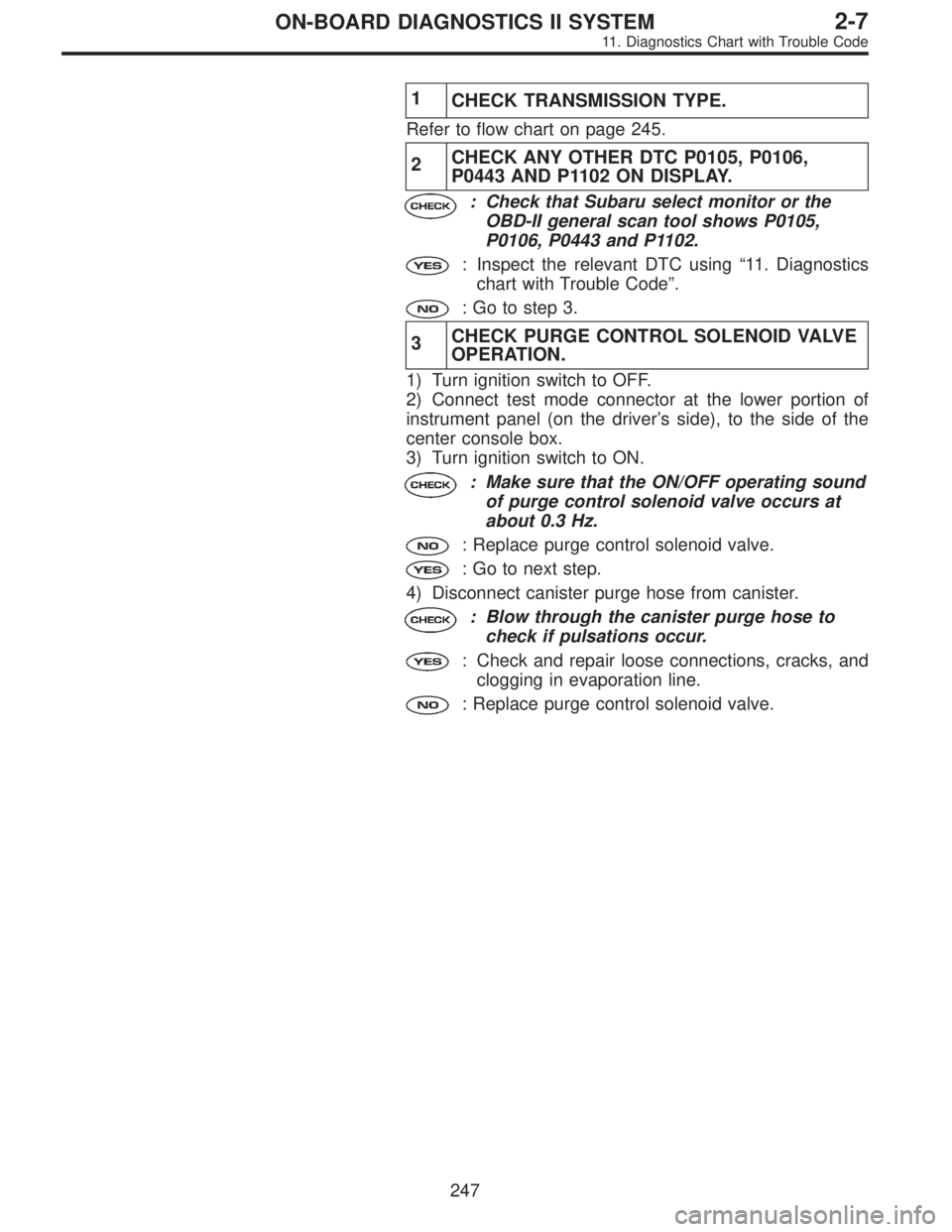

SUBARU LEGACY 1995 Service Repair Manual 1 CHECK TRANSMISSION TYPE. Refer to flow chart on page 245. 2CHECK ANY OTHER DTC P0105, P0106, P0443 AND P1102 ON DISPLAY. : Check that Subaru select monitor or the OBD-II general scan tool shows P010

Page 1454 of 2248

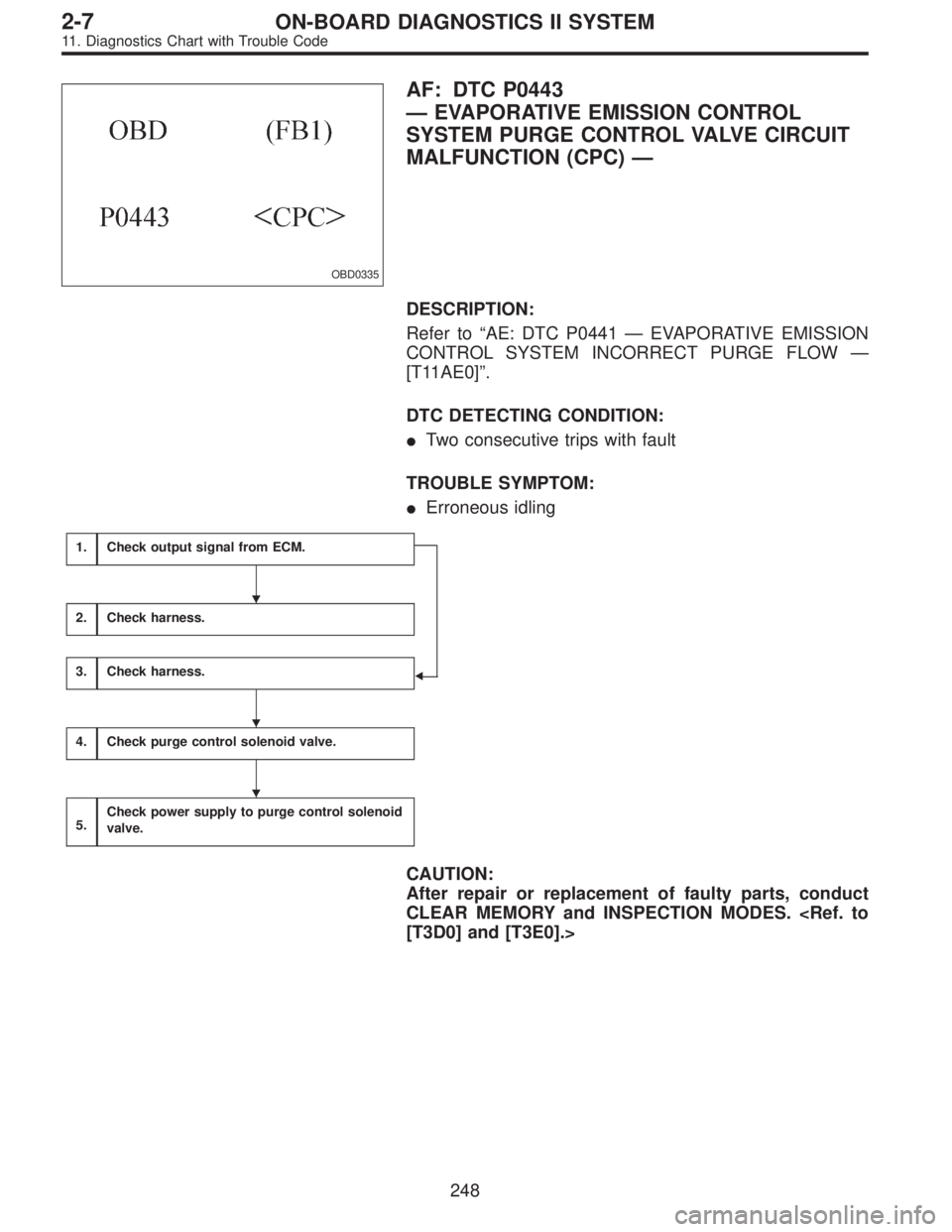

SUBARU LEGACY 1995 Service Repair Manual OBD0335 AF: DTC P0443 —EVAPORATIVE EMISSION CONTROL SYSTEM PURGE CONTROL VALVE CIRCUIT MALFUNCTION (CPC)— DESCRIPTION: Refer to“AE: DTC P0441—EVAPORATIVE EMISSION CONTROL SYSTEM INCORRECT PURG

Page 1455 of 2248

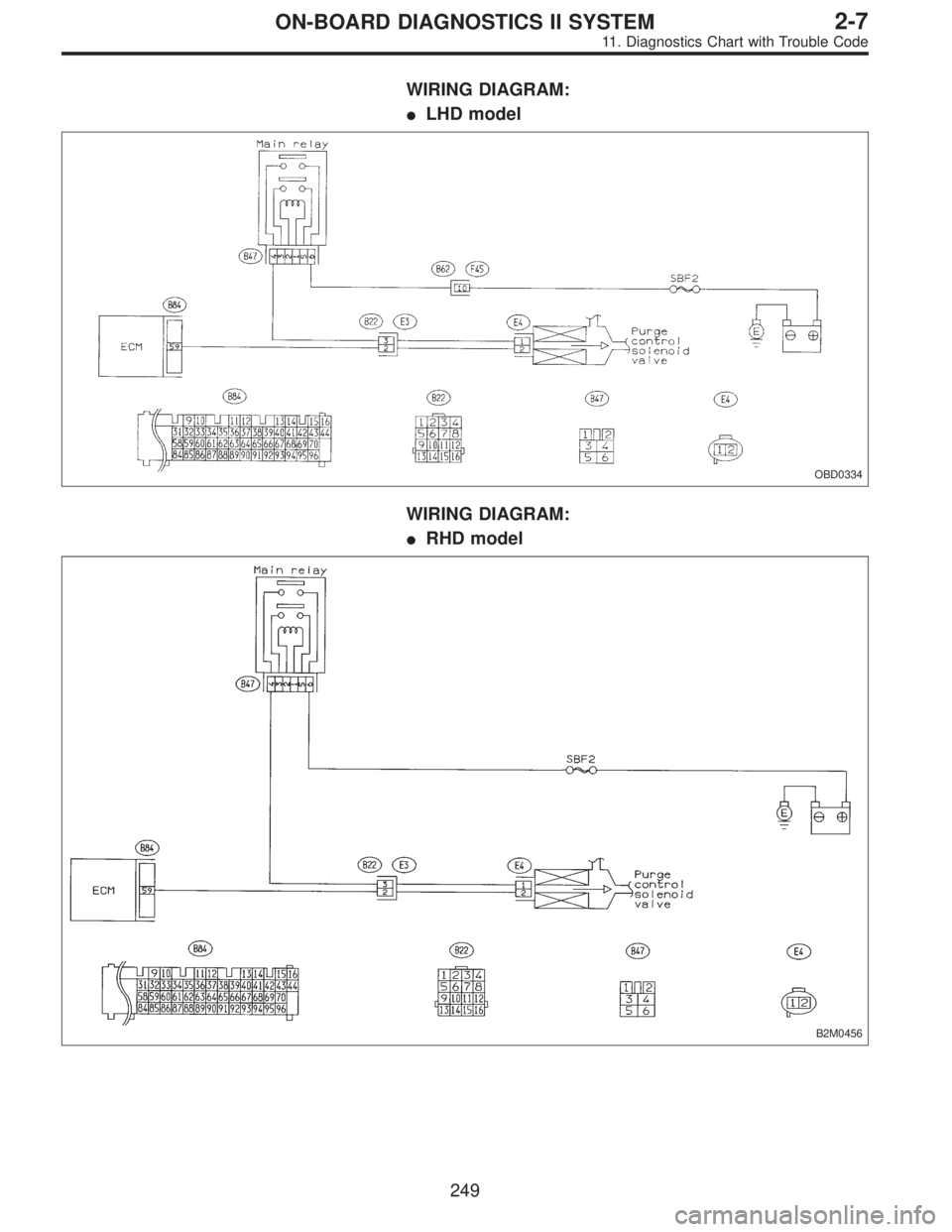

SUBARU LEGACY 1995 Service Repair Manual WIRING DIAGRAM: LHD model OBD0334 WIRING DIAGRAM: RHD model B2M0456 249 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11. Diagnostics Chart with Trouble Code

Page 1456 of 2248

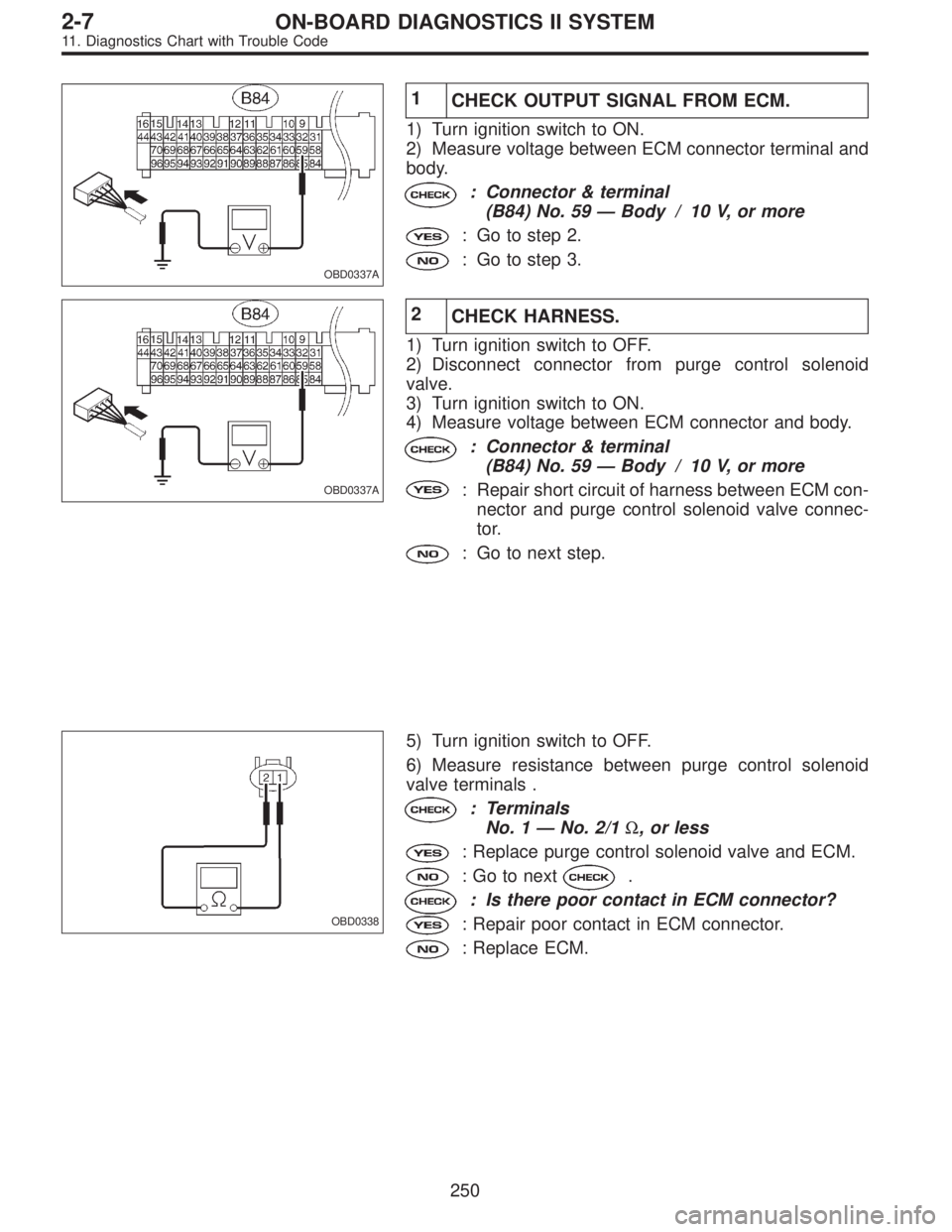

SUBARU LEGACY 1995 Service Repair Manual OBD0337A 1 CHECK OUTPUT SIGNAL FROM ECM. 1) Turn ignition switch to ON. 2) Measure voltage between ECM connector terminal and body. : Connector & terminal (B84) No. 59—Body / 10 V, or more : Go to s
