Page 1689 of 2248

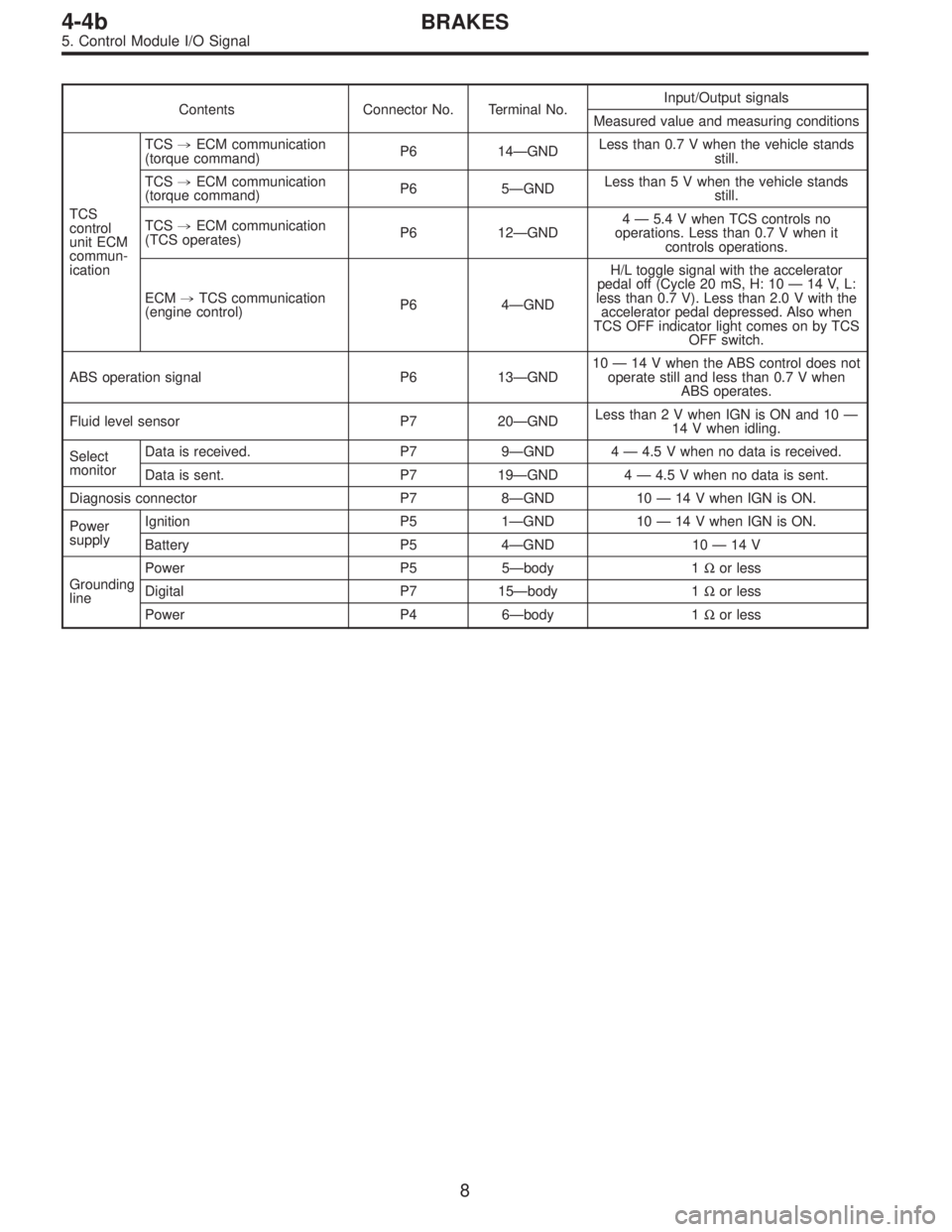

SUBARU LEGACY 1995 Service Repair Manual Contents Connector No. Terminal No.Input/Output signals
Measured value and measuring conditions
TCS
control
unit ECM
commun-
icationTCS,ECM communication
(torque command)P6 14—GNDLess than 0.7 V whe

Page 1690 of 2248

SUBARU LEGACY 1995 Service Repair Manual 2. I/O SIGNAL DIAGRAM
B4H0336
9
4-4bBRAKES
5. Control Module I/O Signal

Page 1691 of 2248

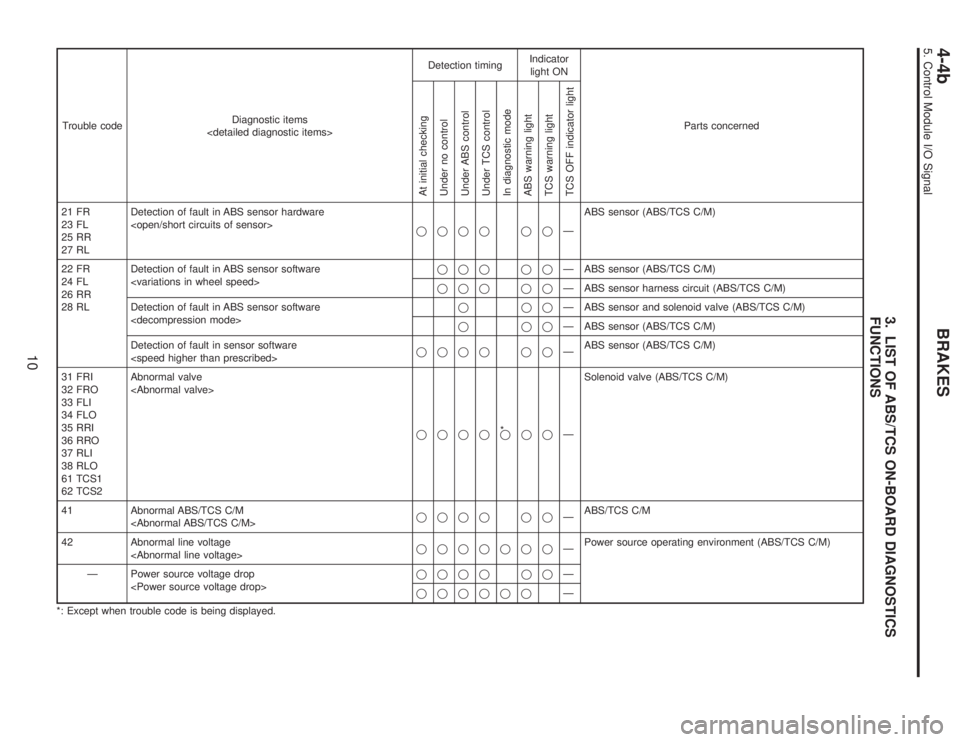

SUBARU LEGACY 1995 Service Repair Manual 3. LIST OF ABS/TCS ON-BOARD DIAGNOSTICS
FUNCTIONS
Trouble codeDiagnostic items
<detailed diagnostic items>Detection timingIndicator
light ON
Parts concerned
At initial checking
Under no control
Under

Page 1692 of 2248

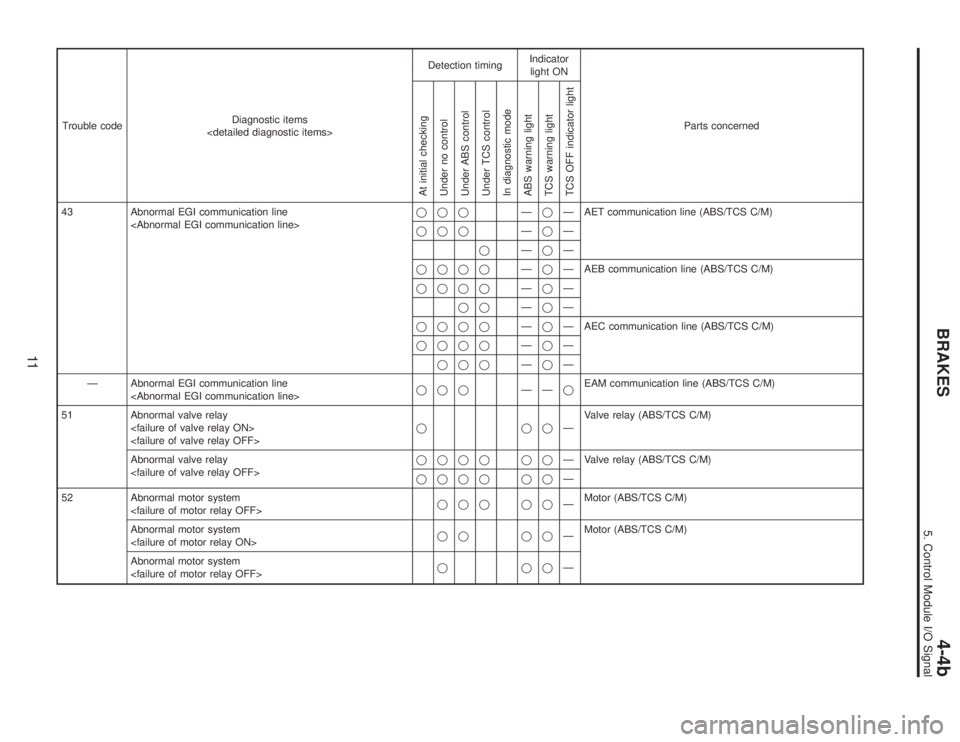

SUBARU LEGACY 1995 Service Repair Manual Trouble codeDiagnostic items
<detailed diagnostic items>Detection timingIndicator
light ON
Parts concerned
At initial checking
Under no control
Under ABS control
Under TCS control
In diagnostic mode
A

Page 1693 of 2248

Page 1694 of 2248

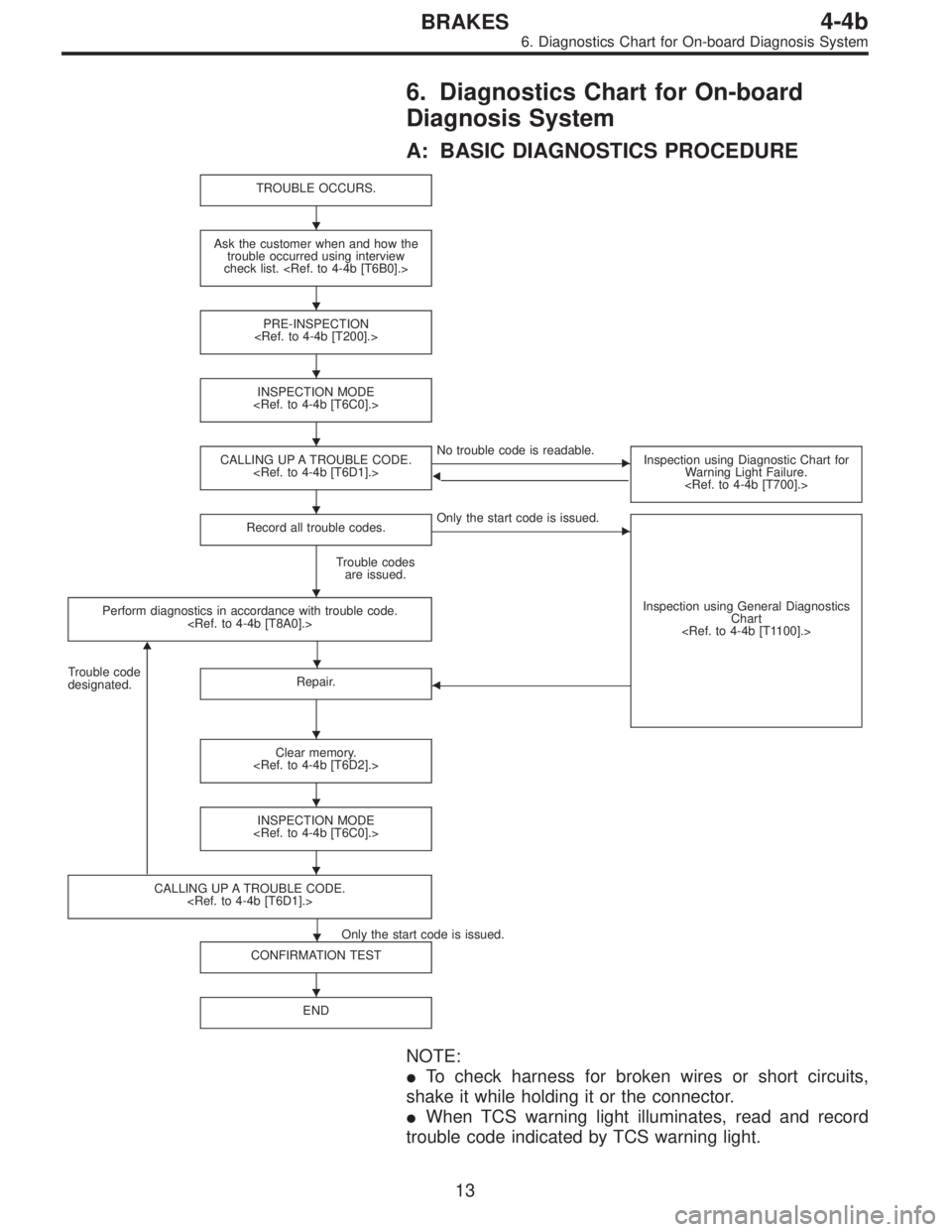

SUBARU LEGACY 1995 Service Repair Manual 6. Diagnostics Chart for On-board
Diagnosis System
A: BASIC DIAGNOSTICS PROCEDURE
TROUBLE OCCURS.
Ask the customer when and how the
trouble occurred using interview
check list. <Ref. to 4-4b [T6B0].>

Page 1695 of 2248

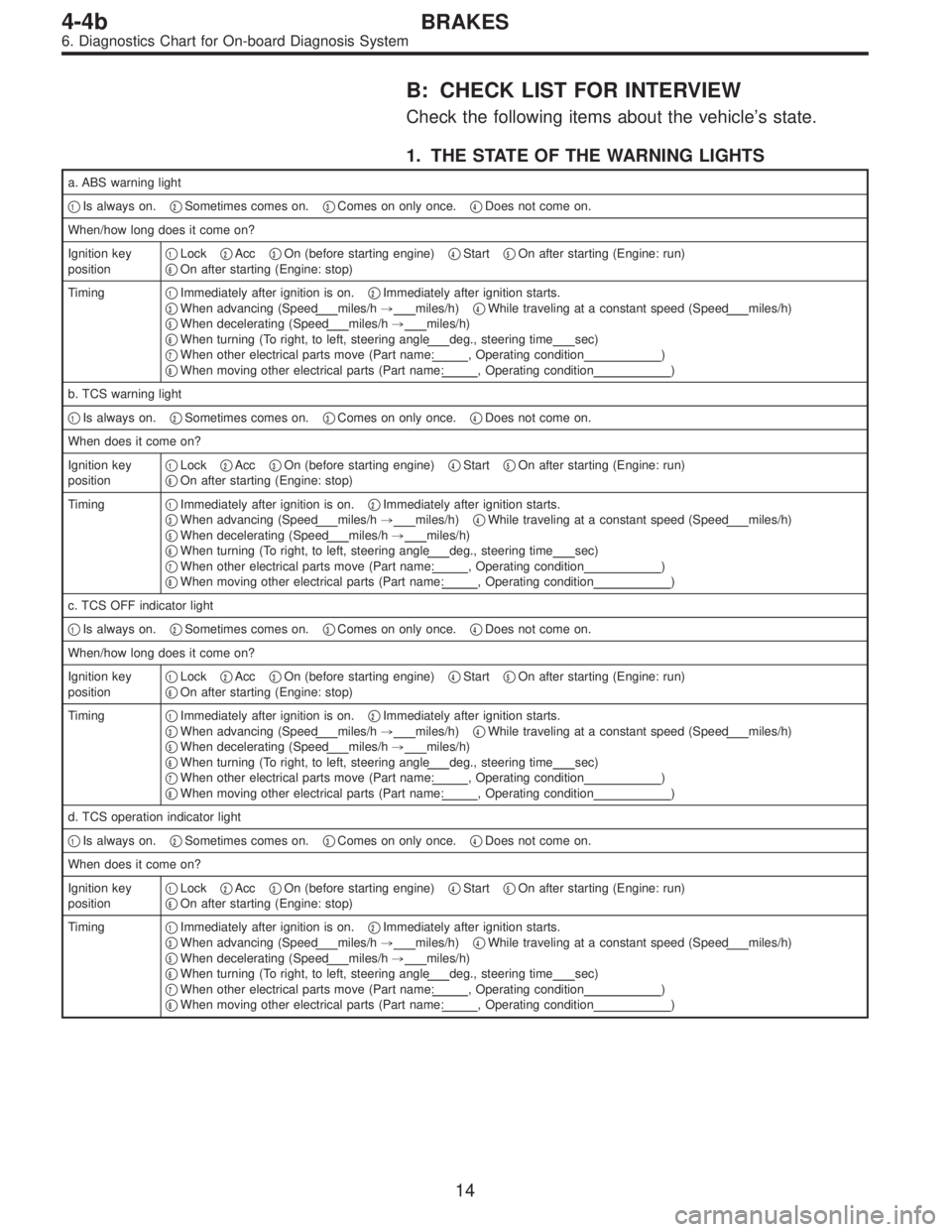

SUBARU LEGACY 1995 Service Repair Manual B: CHECK LIST FOR INTERVIEW
Check the following items about the vehicle’s state.
1. THE STATE OF THE WARNING LIGHTS
a. ABS warning light

1Is always on.2Sometimes comes on.3Comes on only once.4D

B: CHECK LIST FOR INTERVIEW
Check the following items about the vehicle’s state.
1. THE STATE OF THE WARNING LIGHTS
a. ABS warning light

1Is always on.2Sometimes comes on.3Comes on only once.4Does not come on.
When/how long does it come on?
Ignition key
position
1Lock2Acc3On (before starting engine)4Start5On after starting (Engine: run)
6On after starting (Engine: stop)
Timing
1Immediately after ignition is on.2Immediately after ignition starts.
3When advancing (Speedmiles/h,miles/h)4While traveling at a constant speed (Speedmiles/h)
5When decelerating (Speedmiles/h,miles/h)
6When turning (To right, to left, steering angledeg., steering timesec)
7When other electrical parts move (Part name:, Operating condition)
8When moving other electrical parts (Part name:, Operating condition)
b. TCS warning light

1Is always on.2Sometimes comes on.3Comes on only once.4Does not come on.
When does it come on?
Ignition key
position
1Lock2Acc3On (before starting engine)4Start5On after starting (Engine: run)
6On after starting (Engine: stop)
Timing
1Immediately after ignition is on.2Immediately after ignition starts.
3When advancing (Speedmiles/h,miles/h)4While traveling at a constant speed (Speedmiles/h)
5When decelerating (Speedmiles/h,miles/h)
6When turning (To right, to left, steering angledeg., steering timesec)
7When other electrical parts move (Part name:, Operating condition)
8When moving other electrical parts (Part name:, Operating condition)
c. TCS OFF indicator light

1Is always on.2Sometimes comes on.3Comes on only once.4Does not come on.
When/how long does it come on?
Ignition key
position
1Lock2Acc3On (before starting engine)4Start5On after starting (Engine: run)
6On after starting (Engine: stop)
Timing
1Immediately after ignition is on.2Immediately after ignition starts.
3When advancing (Speedmiles/h,miles/h)4While traveling at a constant speed (Speedmiles/h)
5When decelerating (Speedmiles/h,miles/h)
6When turning (To right, to left, steering angledeg., steering timesec)
7When other electrical parts move (Part name:, Operating condition)
8When moving other electrical parts (Part name:, Operating condition)
d. TCS operation indicator light

1Is always on.2Sometimes comes on.3Comes on only once.4Does not come on.
When does it come on?
Ignition key
position
1Lock2Acc3On (before starting engine)4Start5On after starting (Engine: run)
6On after starting (Engine: stop)
Timing
1Immediately after ignition is on.2Immediately after ignition starts.
3When advancing (Speedmiles/h,miles/h)4While traveling at a constant speed (Speedmiles/h)
5When decelerating (Speedmiles/h,miles/h)
6When turning (To right, to left, steering angledeg., steering timesec)
7When other electrical parts move (Part name:, Operating condition)
8When moving other electrical parts (Part name:, Operating condition)
14
4-4bBRAKES
6. Diagnostics Chart for On-board Diagnosis System

Page 1696 of 2248

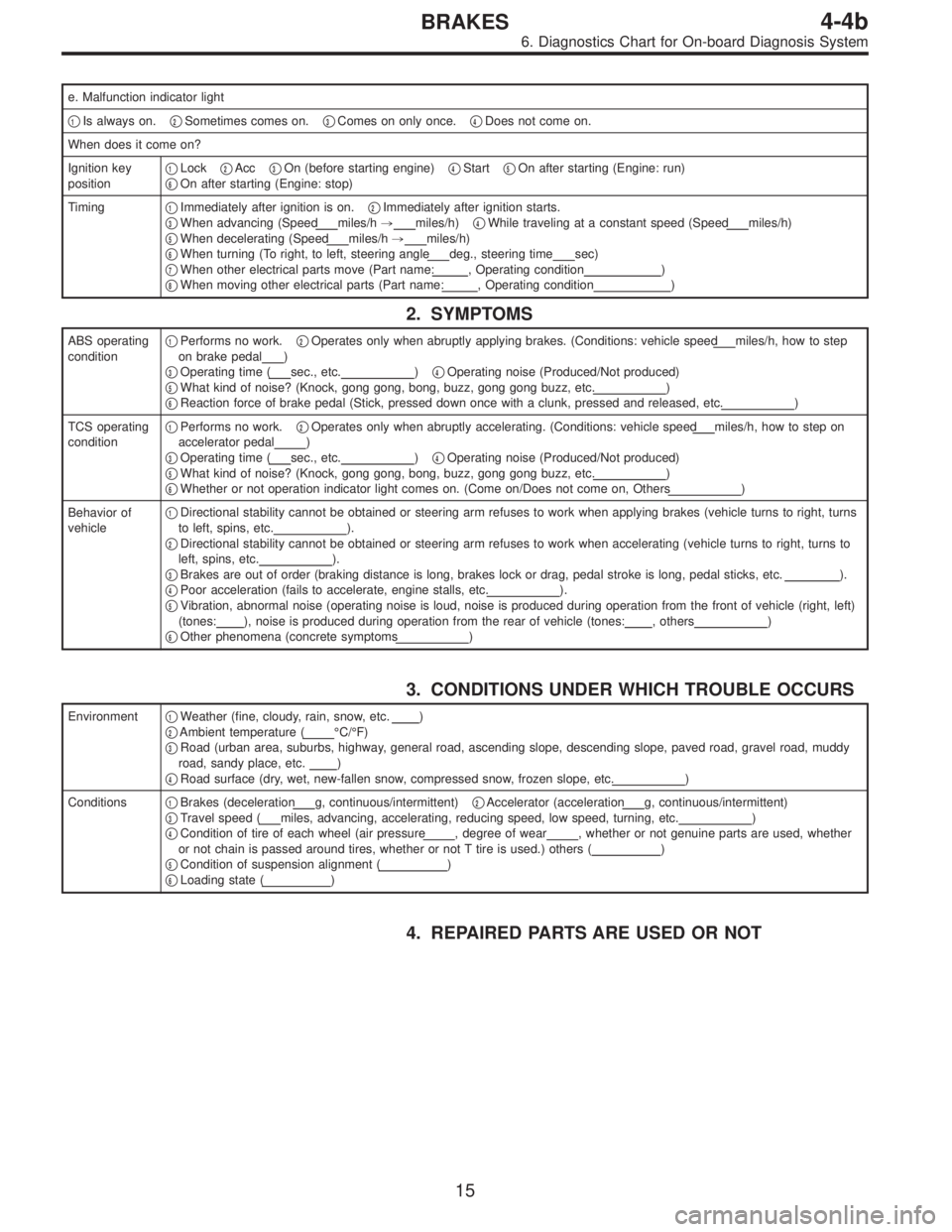

SUBARU LEGACY 1995 Service Repair Manual e. Malfunction indicator light

1Is always on.2Sometimes comes on.3Comes on only once.4Does not come on.
When does it come on?
Ignition key
position
1Lock2Acc3On (before starting engine)4Start

e. Malfunction indicator light

1Is always on.2Sometimes comes on.3Comes on only once.4Does not come on.
When does it come on?
Ignition key
position
1Lock2Acc3On (before starting engine)4Start5On after starting (Engine: run)
6On after starting (Engine: stop)
Timing
1Immediately after ignition is on.2Immediately after ignition starts.
3When advancing (Speedmiles/h,miles/h)4While traveling at a constant speed (Speedmiles/h)
5When decelerating (Speedmiles/h,miles/h)
6When turning (To right, to left, steering angledeg., steering timesec)
7When other electrical parts move (Part name:, Operating condition)
8When moving other electrical parts (Part name:, Operating condition)
2. SYMPTOMS
ABS operating
condition1Performs no work.2Operates only when abruptly applying brakes. (Conditions: vehicle speedmiles/h, how to step
on brake pedal)
3Operating time (sec., etc.)4Operating noise (Produced/Not produced)
5What kind of noise? (Knock, gong gong, bong, buzz, gong gong buzz, etc.)
6Reaction force of brake pedal (Stick, pressed down once with a clunk, pressed and released, etc.)
TCS operating
condition
1Performs no work.2Operates only when abruptly accelerating. (Conditions: vehicle speedmiles/h, how to step on
accelerator pedal)
3Operating time (sec., etc.)4Operating noise (Produced/Not produced)
5What kind of noise? (Knock, gong gong, bong, buzz, gong gong buzz, etc.)
6Whether or not operation indicator light comes on. (Come on/Does not come on, Others)
Behavior of
vehicle
1Directional stability cannot be obtained or steering arm refuses to work when applying brakes (vehicle turns to right, turns
to left, spins, etc.).
2Directional stability cannot be obtained or steering arm refuses to work when accelerating (vehicle turns to right, turns to
left, spins, etc.).
3Brakes are out of order (braking distance is long, brakes lock or drag, pedal stroke is long, pedal sticks, etc.).
4Poor acceleration (fails to accelerate, engine stalls, etc.).
5Vibration, abnormal noise (operating noise is loud, noise is produced during operation from the front of vehicle (right, left)
(tones:), noise is produced during operation from the rear of vehicle (tones:, others)
6Other phenomena (concrete symptoms)
3. CONDITIONS UNDER WHICH TROUBLE OCCURS
Environment1Weather (fine, cloudy, rain, snow, etc.)
2Ambient temperature (°C/°F)
3Road (urban area, suburbs, highway, general road, ascending slope, descending slope, paved road, gravel road, muddy
road, sandy place, etc.)
4Road surface (dry, wet, new-fallen snow, compressed snow, frozen slope, etc.)
Conditions
1Brakes (decelerationg, continuous/intermittent)2Accelerator (accelerationg, continuous/intermittent)
3Travel speed (miles, advancing, accelerating, reducing speed, low speed, turning, etc.)
4Condition of tire of each wheel (air pressure, degree of wear, whether or not genuine parts are used, whether
or not chain is passed around tires, whether or not T tire is used.) others ()
5Condition of suspension alignment ()
6Loading state ()
4. REPAIRED PARTS ARE USED OR NOT
15
4-4bBRAKES
6. Diagnostics Chart for On-board Diagnosis System
