Page 1225 of 2248

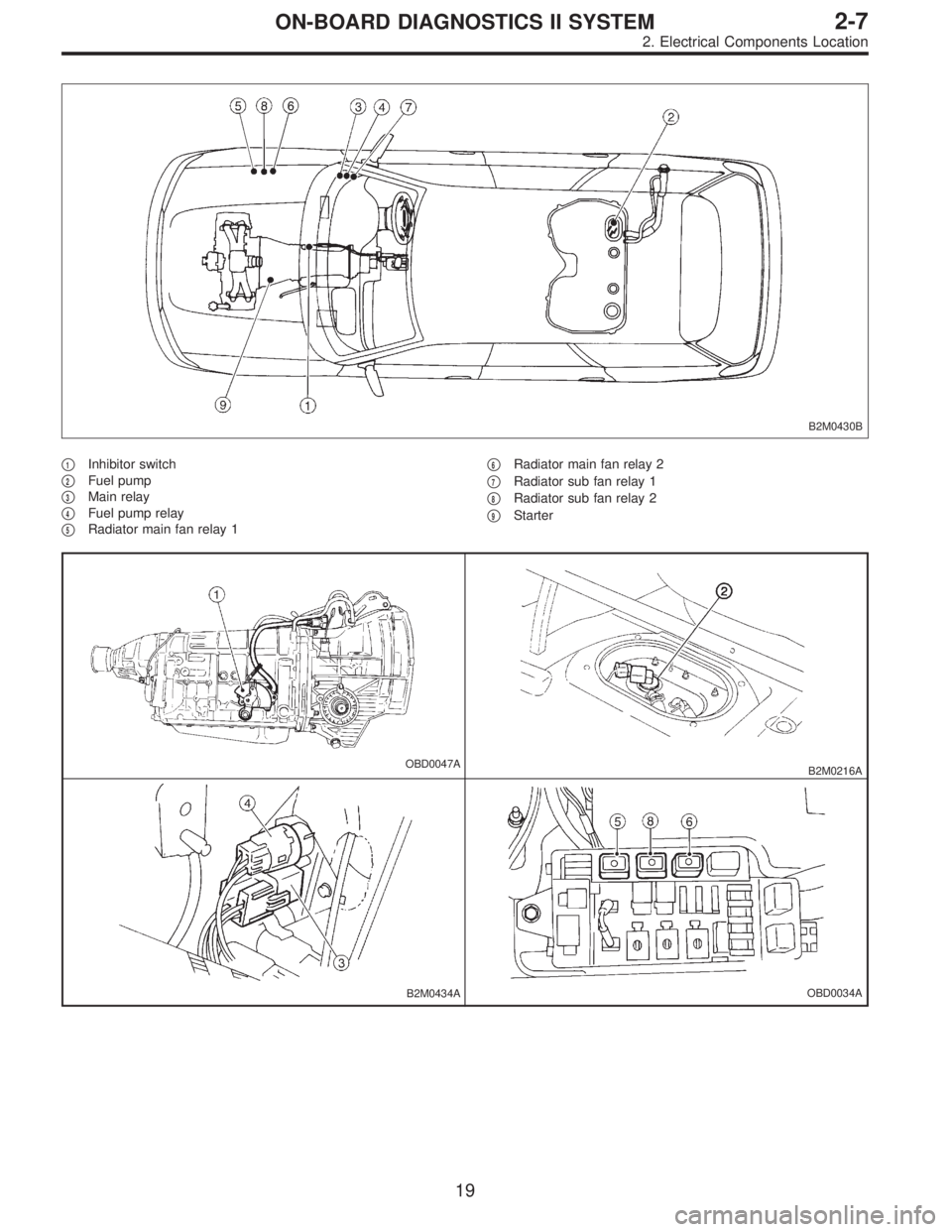

SUBARU LEGACY 1995 Service Repair Manual B2M0430B 1Inhibitor switch  2Fuel pump  3Main relay  4Fuel pump relay  5Radiator main fan relay 1 6Radiator main fan relay 2  7Radiator sub fan relay 1  8Radiator sub fan relay 2  9Starter OB

Page 1226 of 2248

SUBARU LEGACY 1995 Service Repair Manual OBD0036AOBD0038A 20 2-7ON-BOARD DIAGNOSTICS II SYSTEM 2. Electrical Components Location

Page 1227 of 2248

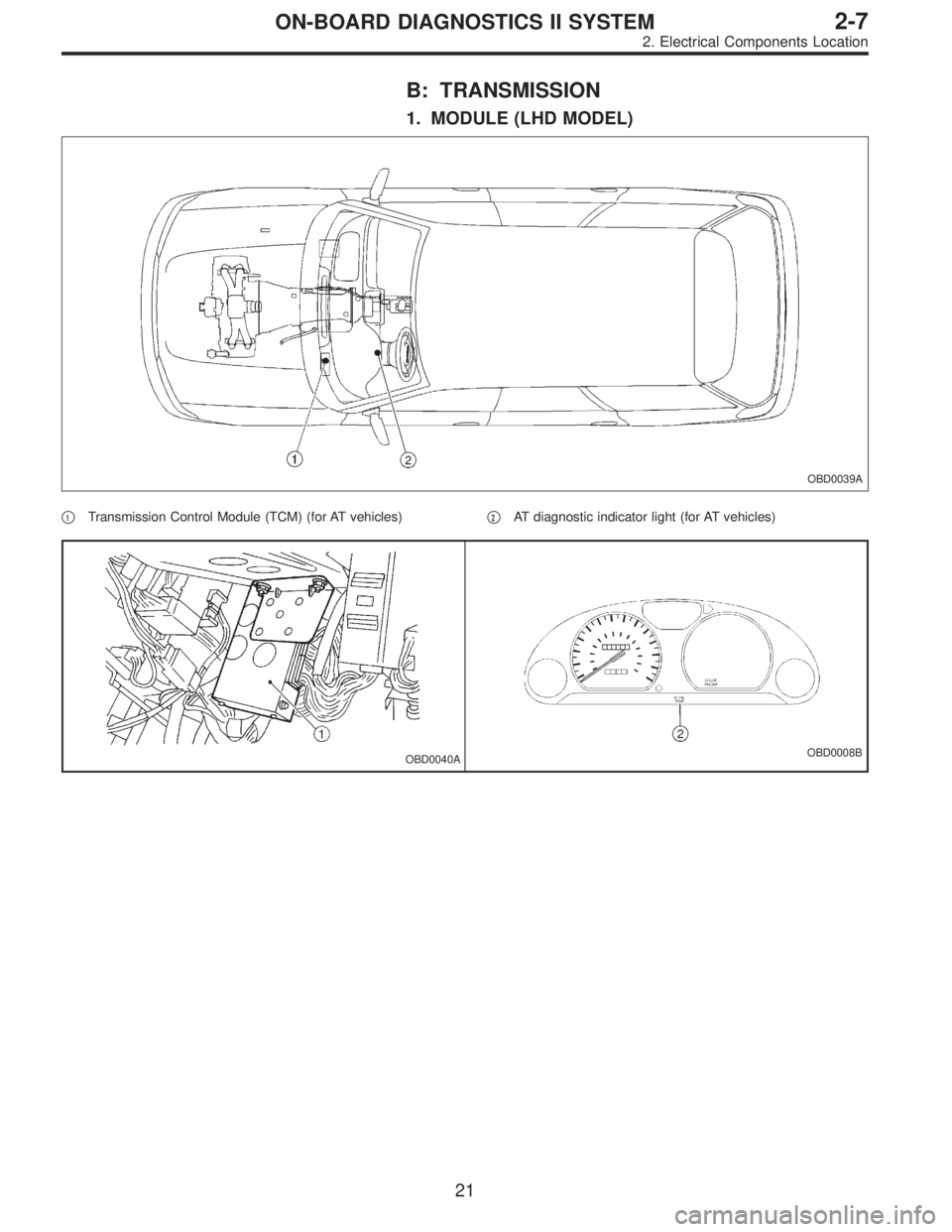

SUBARU LEGACY 1995 Service Repair Manual B: TRANSMISSION 1. MODULE (LHD MODEL) OBD0039A 1Transmission Control Module (TCM) (for AT vehicles)2AT diagnostic indicator light (for AT vehicles) OBD0040AOBD0008B 21 2-7ON-BOARD DIAGNOSTICS II SYS

Page 1228 of 2248

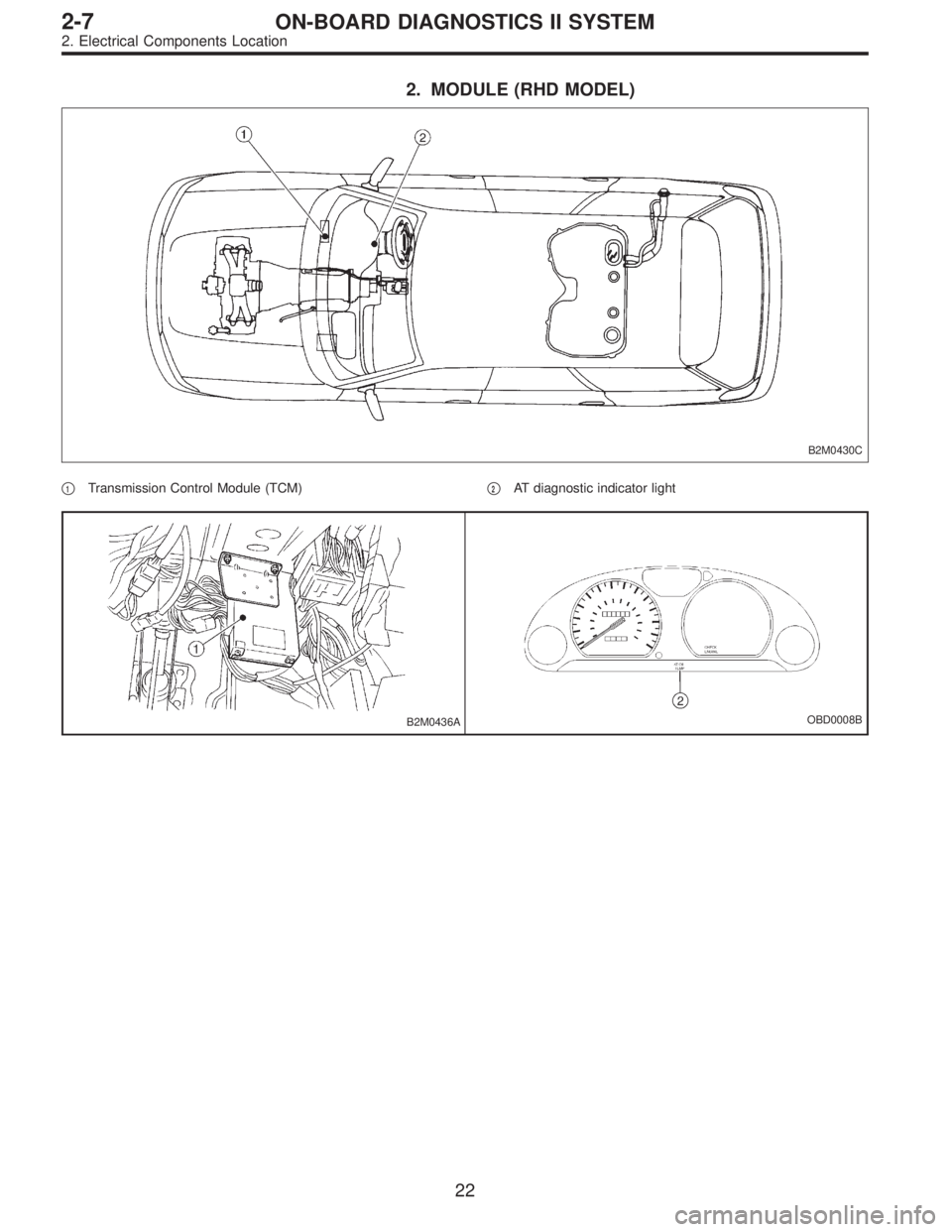

SUBARU LEGACY 1995 Service Repair Manual 2. MODULE (RHD MODEL) B2M0430C 1Transmission Control Module (TCM)2AT diagnostic indicator light B2M0436AOBD0008B 22 2-7ON-BOARD DIAGNOSTICS II SYSTEM 2. Electrical Components Location

Page 1229 of 2248

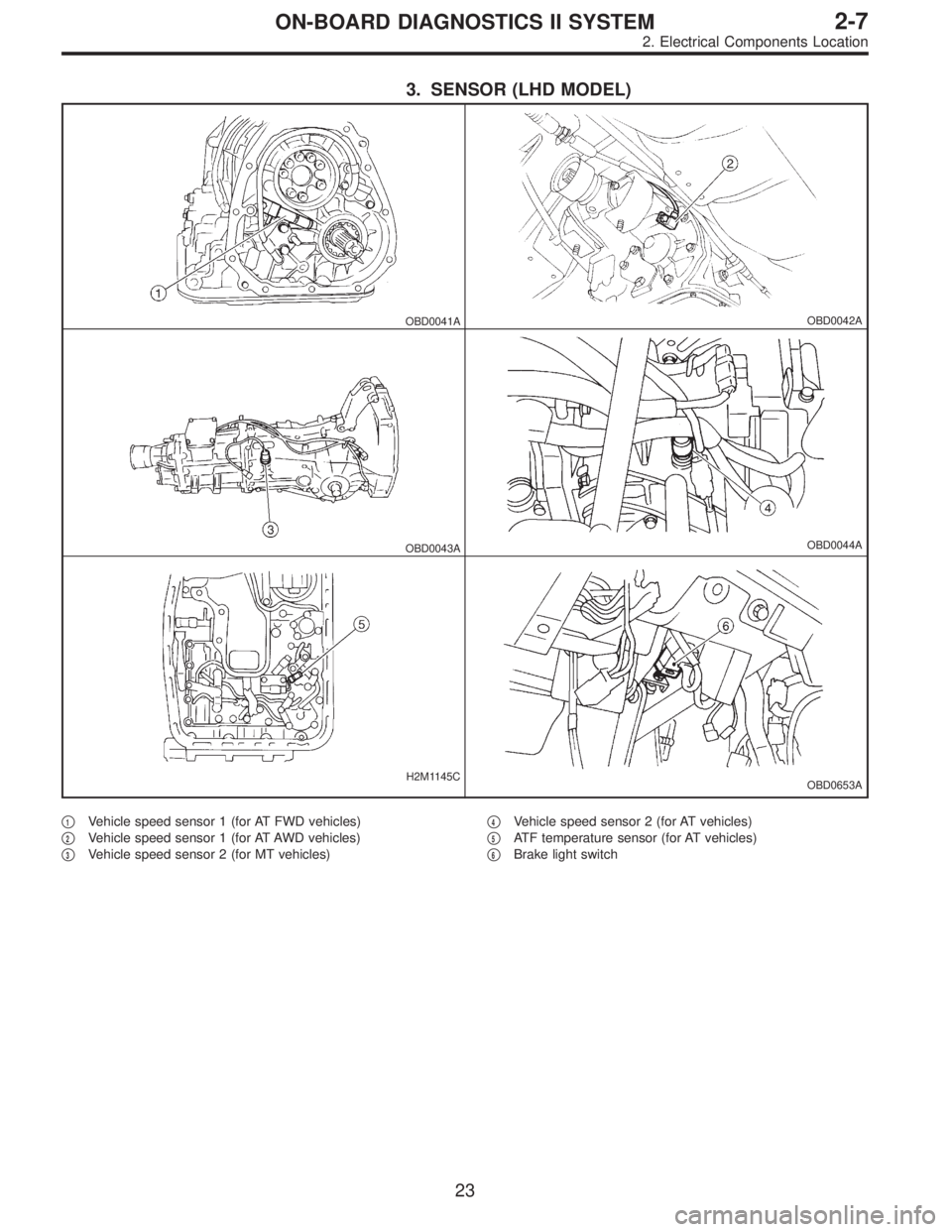

SUBARU LEGACY 1995 Service Repair Manual 3. SENSOR (LHD MODEL) OBD0041AOBD0042A OBD0043AOBD0044A H2M1145COBD0653A 1Vehicle speed sensor 1 (for AT FWD vehicles)  2Vehicle speed sensor 1 (for AT AWD vehicles)  3Vehicle speed sensor 2 (for M

Page 1230 of 2248

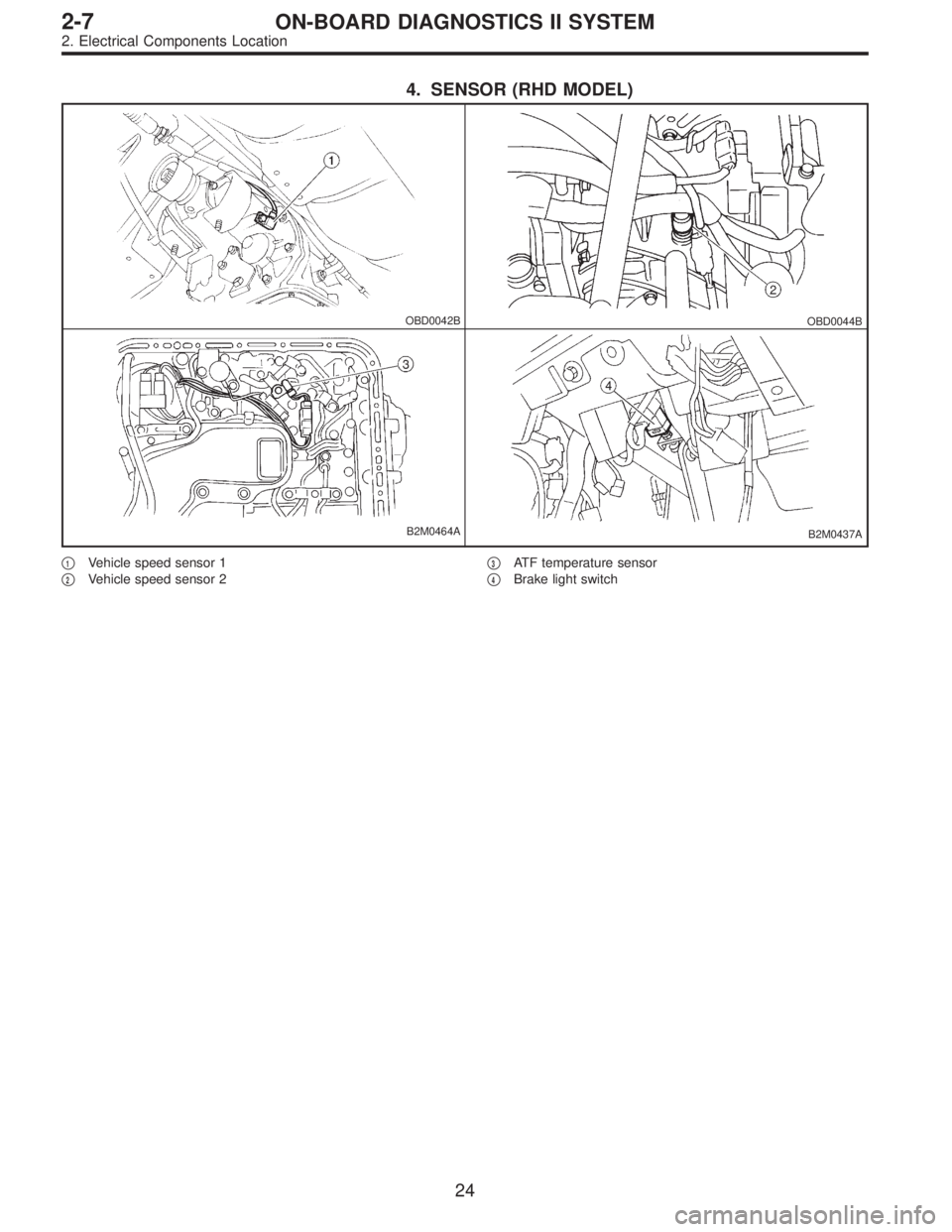

SUBARU LEGACY 1995 Service Repair Manual 4. SENSOR (RHD MODEL) OBD0042BOBD0044B B2M0464AB2M0437A 1Vehicle speed sensor 1  2Vehicle speed sensor 2 3ATF temperature sensor  4Brake light switch 24 2-7ON-BOARD DIAGNOSTICS II SYSTEM 2. Electr

Page 1231 of 2248

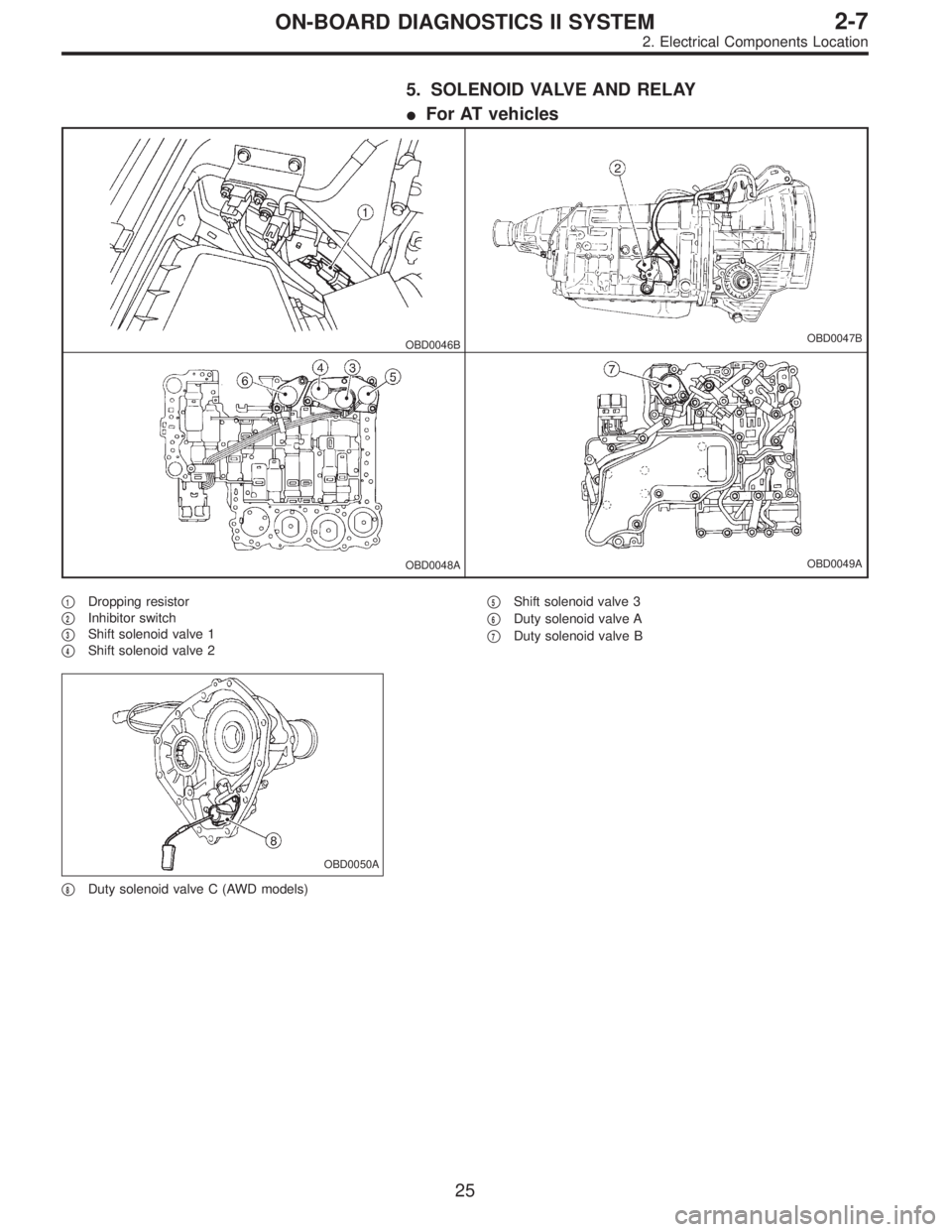

SUBARU LEGACY 1995 Service Repair Manual 5. SOLENOID VALVE AND RELAY For AT vehicles OBD0046BOBD0047B OBD0048AOBD0049A 1Dropping resistor  2Inhibitor switch  3Shift solenoid valve 1  4Shift solenoid valve 2 5Shift solenoid valve 3  6D

Page 1232 of 2248

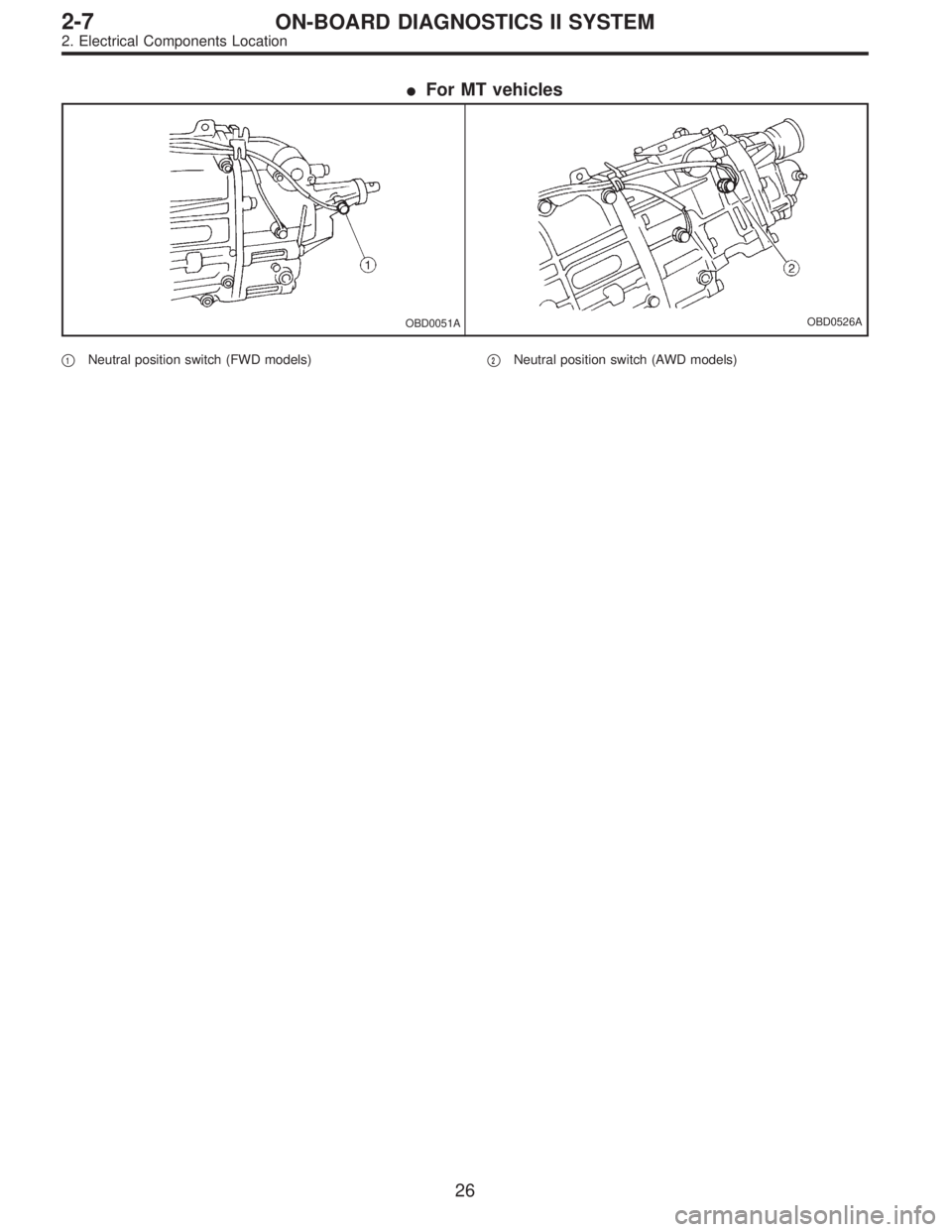

SUBARU LEGACY 1995 Service Repair Manual For MT vehicles OBD0051AOBD0526A 1Neutral position switch (FWD models)2Neutral position switch (AWD models) 26 2-7ON-BOARD DIAGNOSTICS II SYSTEM 2. Electrical Components Location
