Page 1353 of 2248

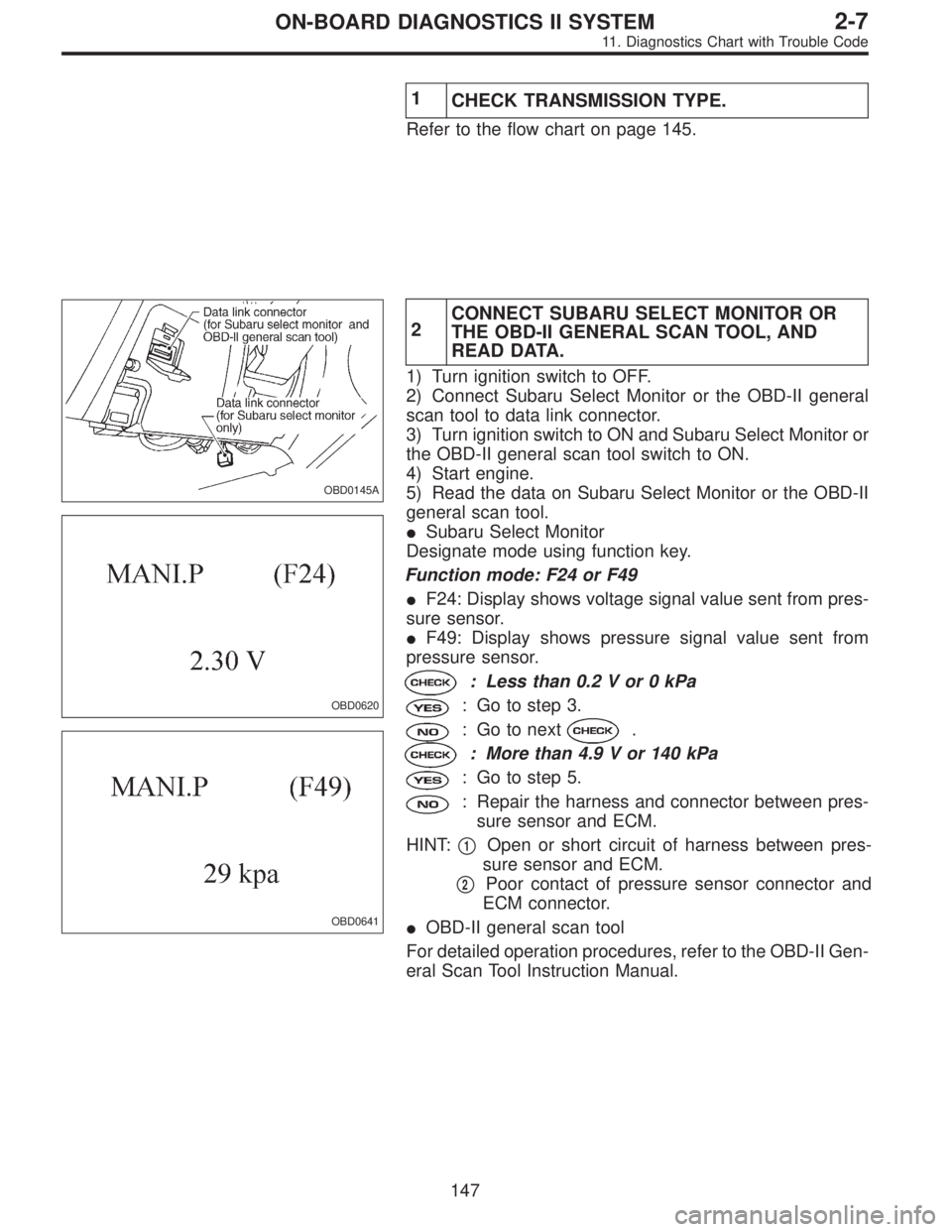

SUBARU LEGACY 1995 Service Repair Manual 1 CHECK TRANSMISSION TYPE. Refer to the flow chart on page 145. OBD0145A OBD0620 OBD0641 2CONNECT SUBARU SELECT MONITOR OR THE OBD-II GENERAL SCAN TOOL, AND READ DATA. 1) Turn ignition switch to OFF.

Page 1354 of 2248

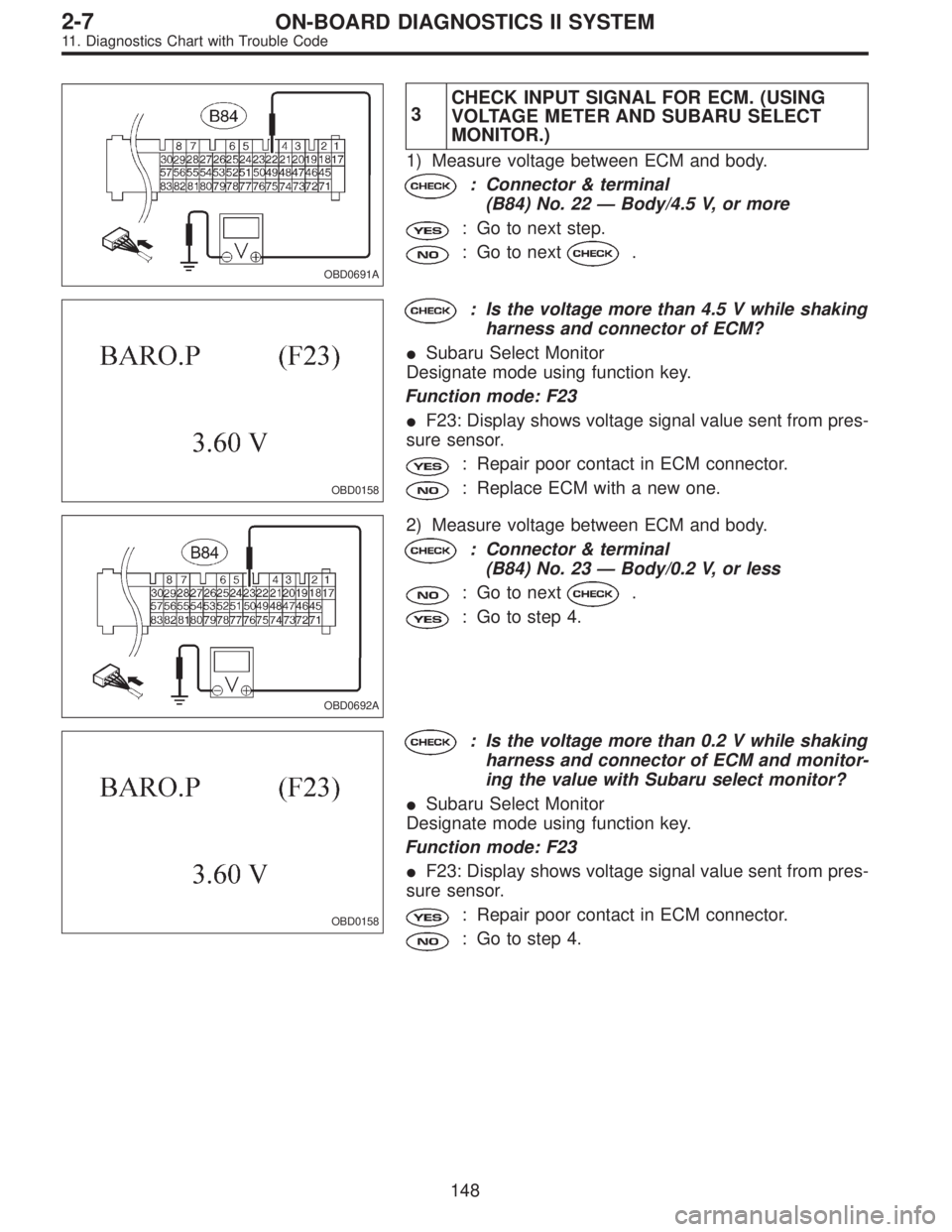

SUBARU LEGACY 1995 Service Repair Manual OBD0691A 3CHECK INPUT SIGNAL FOR ECM. (USING VOLTAGE METER AND SUBARU SELECT MONITOR.) 1) Measure voltage between ECM and body. : Connector & terminal (B84) No. 22—Body/4.5 V, or more : Go to next s

Page 1355 of 2248

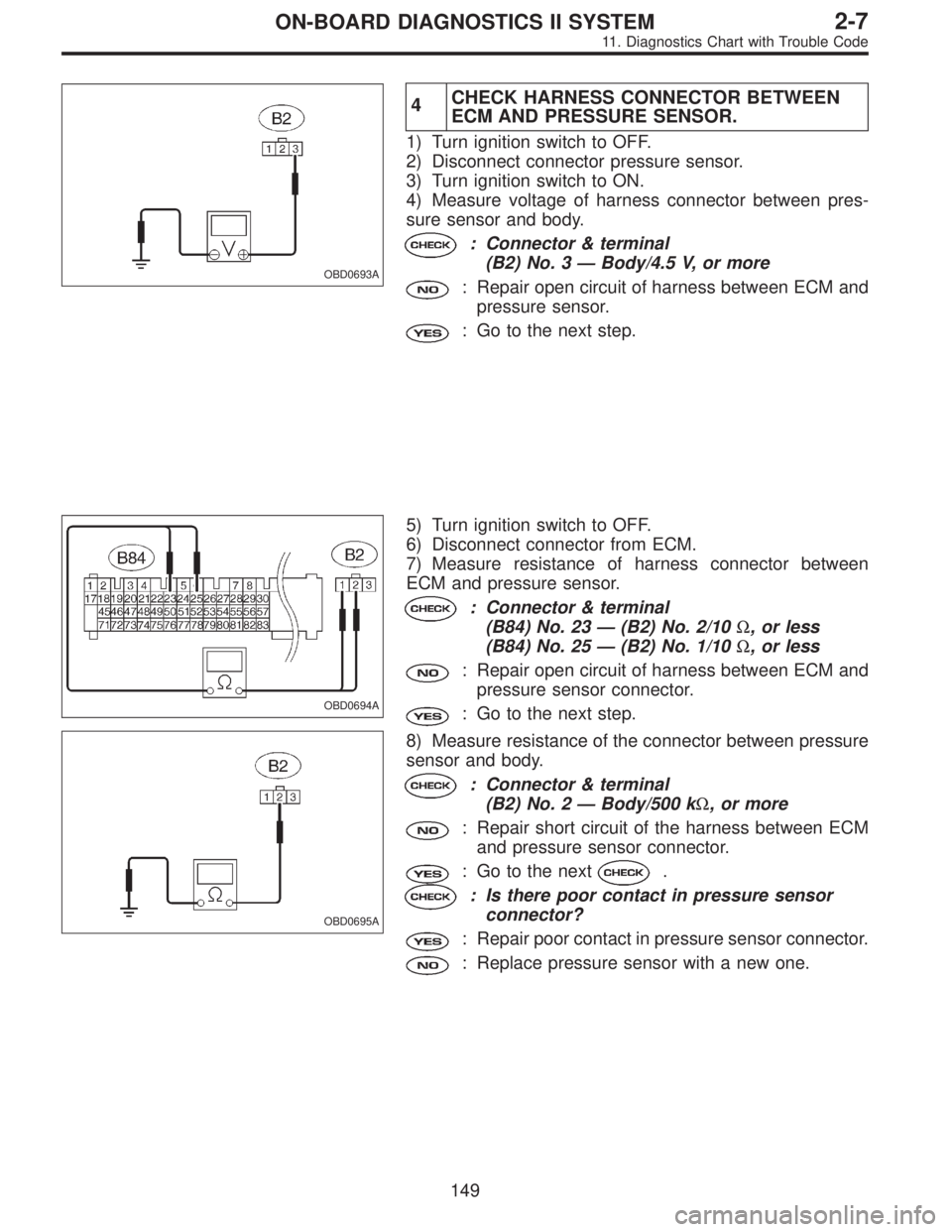

SUBARU LEGACY 1995 Service Repair Manual OBD0693A 4CHECK HARNESS CONNECTOR BETWEEN ECM AND PRESSURE SENSOR. 1) Turn ignition switch to OFF. 2) Disconnect connector pressure sensor. 3) Turn ignition switch to ON. 4) Measure voltage of harness

Page 1356 of 2248

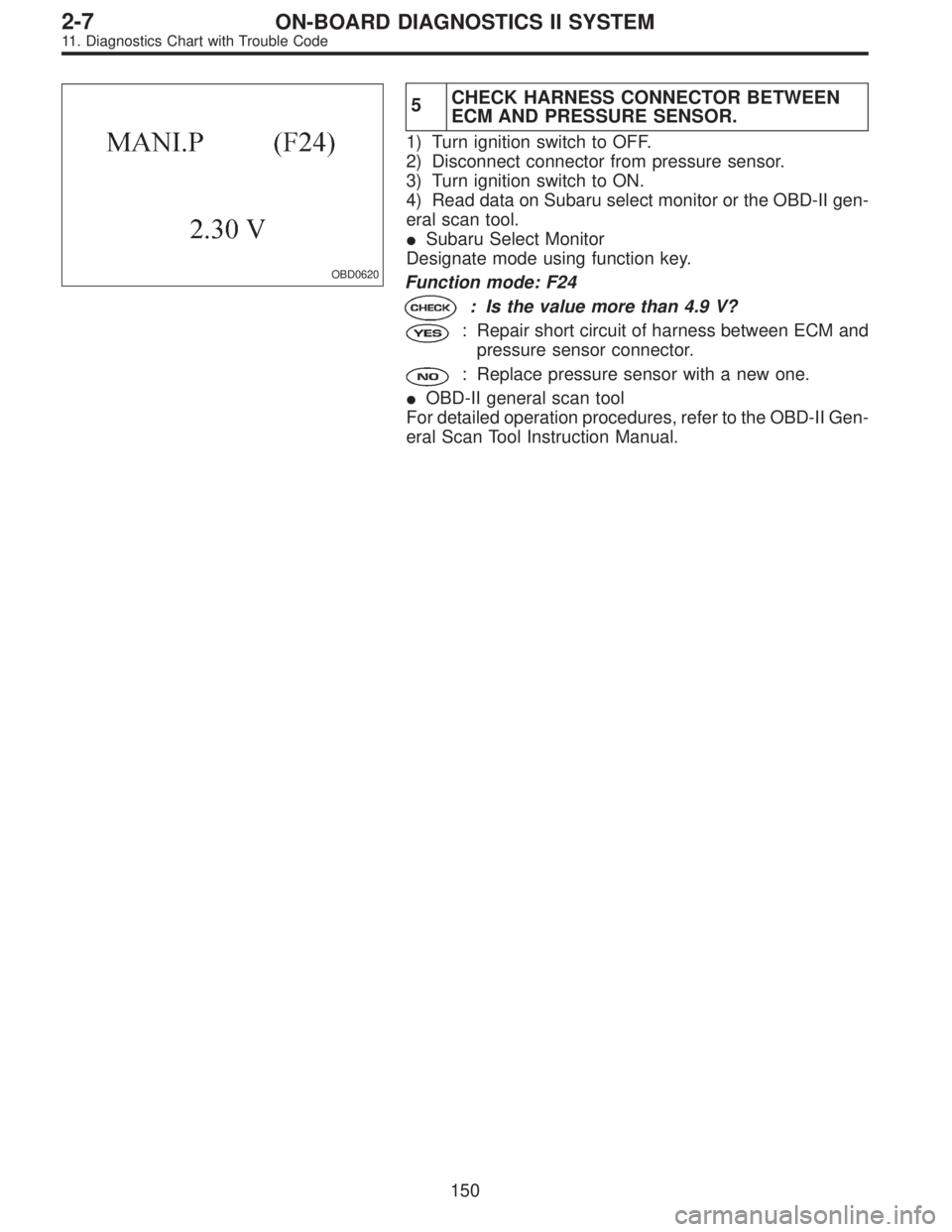

SUBARU LEGACY 1995 Service Repair Manual OBD0620 5CHECK HARNESS CONNECTOR BETWEEN ECM AND PRESSURE SENSOR. 1) Turn ignition switch to OFF. 2) Disconnect connector from pressure sensor. 3) Turn ignition switch to ON. 4) Read data on Subaru se

Page 1357 of 2248

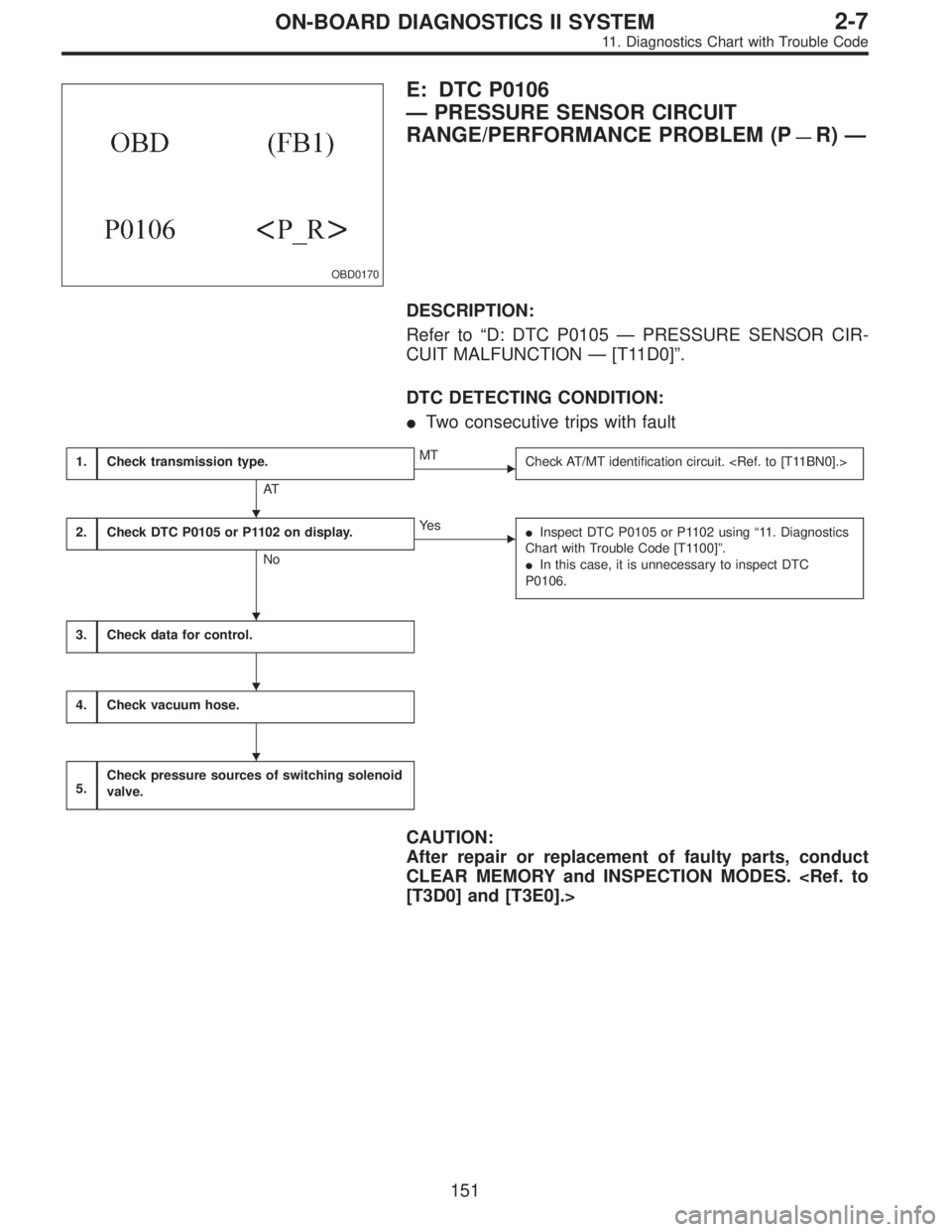

SUBARU LEGACY 1995 Service Repair Manual OBD0170 E: DTC P0106 —PRESSURE SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM (P —R)— DESCRIPTION: Refer to“D: DTC P0105—PRESSURE SENSOR CIR- CUIT MALFUNCTION—[T11D0]”. DTC DETECTING CONDITION

Page 1358 of 2248

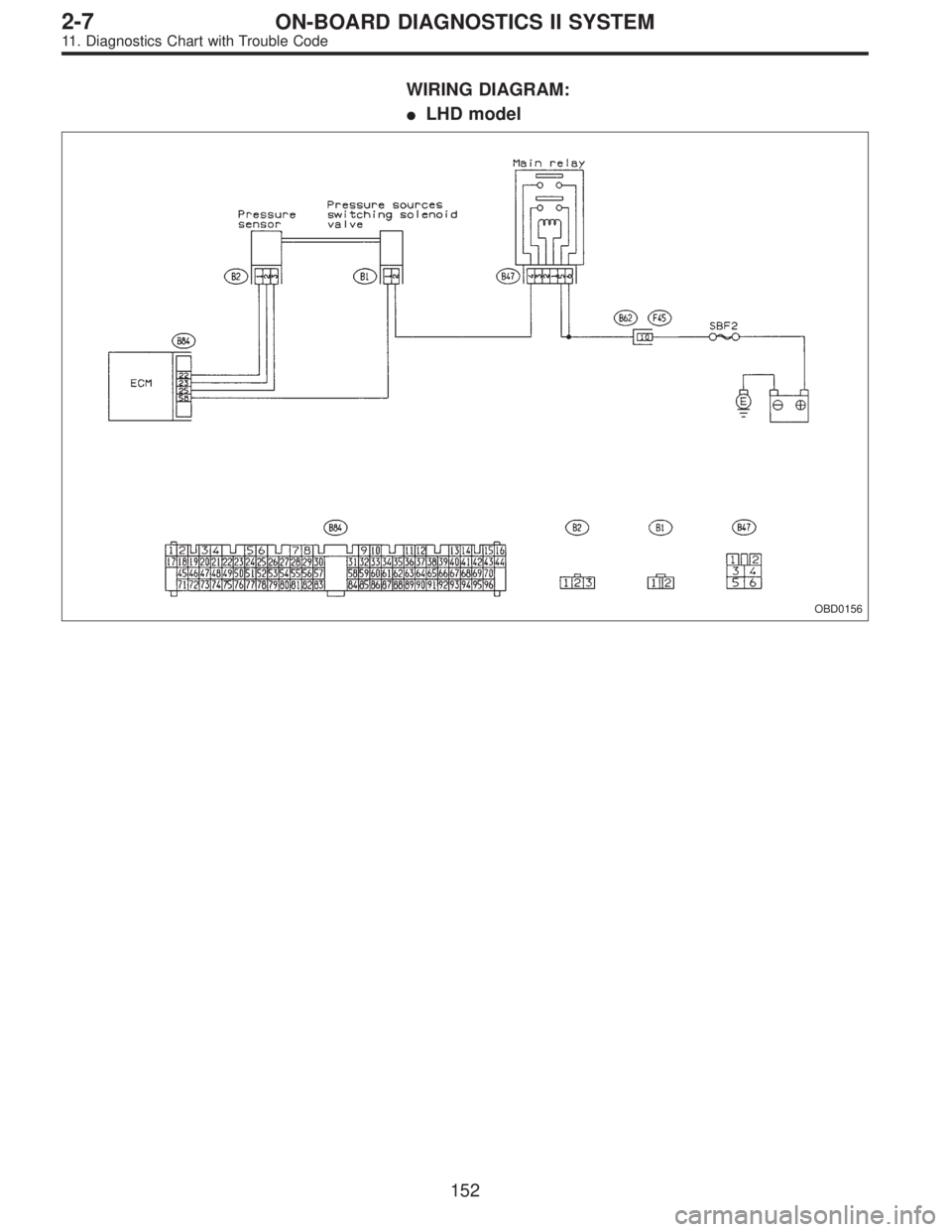

SUBARU LEGACY 1995 Service Repair Manual WIRING DIAGRAM: LHD model OBD0156 152 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11. Diagnostics Chart with Trouble Code

Page 1359 of 2248

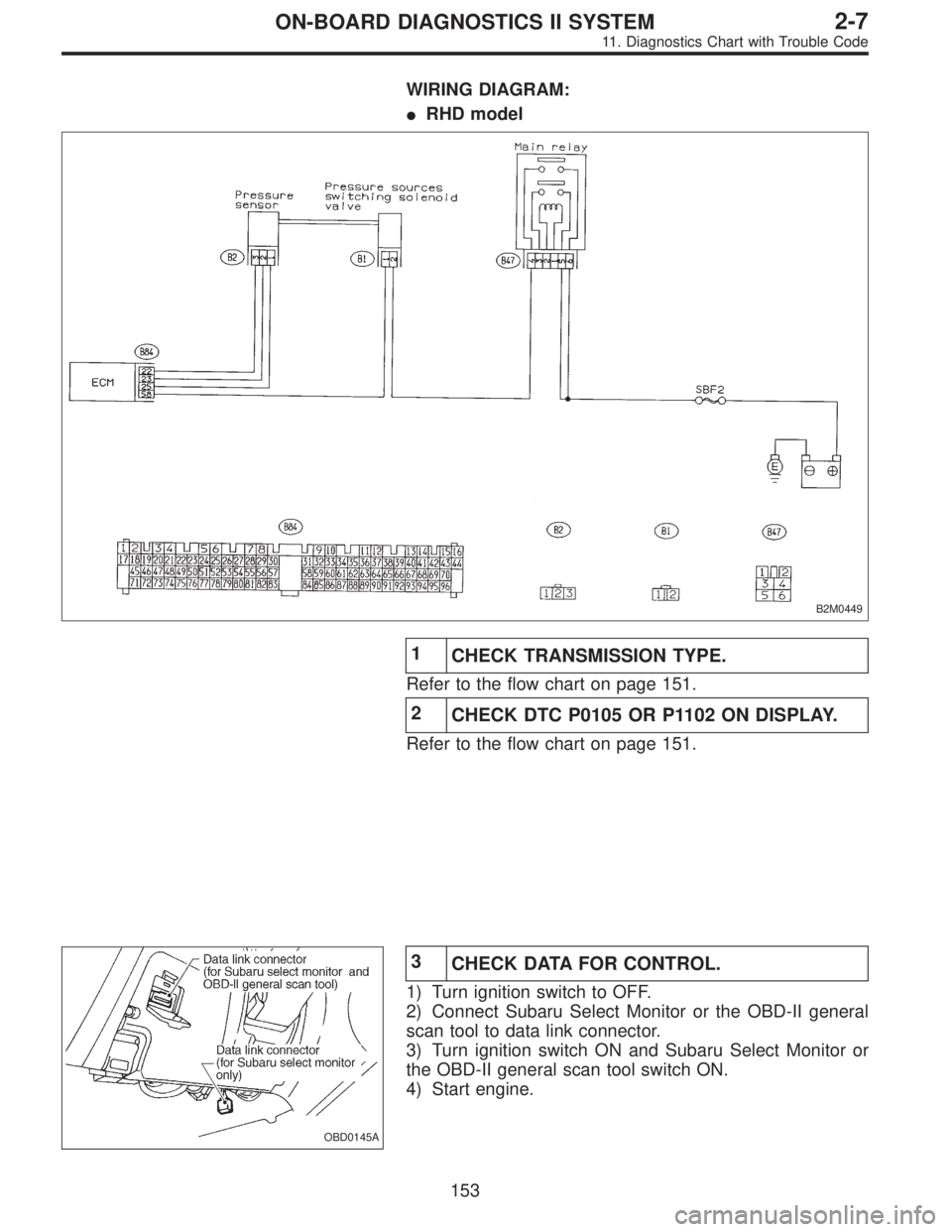

SUBARU LEGACY 1995 Service Repair Manual WIRING DIAGRAM: RHD model B2M0449 1 CHECK TRANSMISSION TYPE. Refer to the flow chart on page 151. 2 CHECK DTC P0105 OR P1102 ON DISPLAY. Refer to the flow chart on page 151. OBD0145A 3 CHECK DATA FOR

Page 1360 of 2248

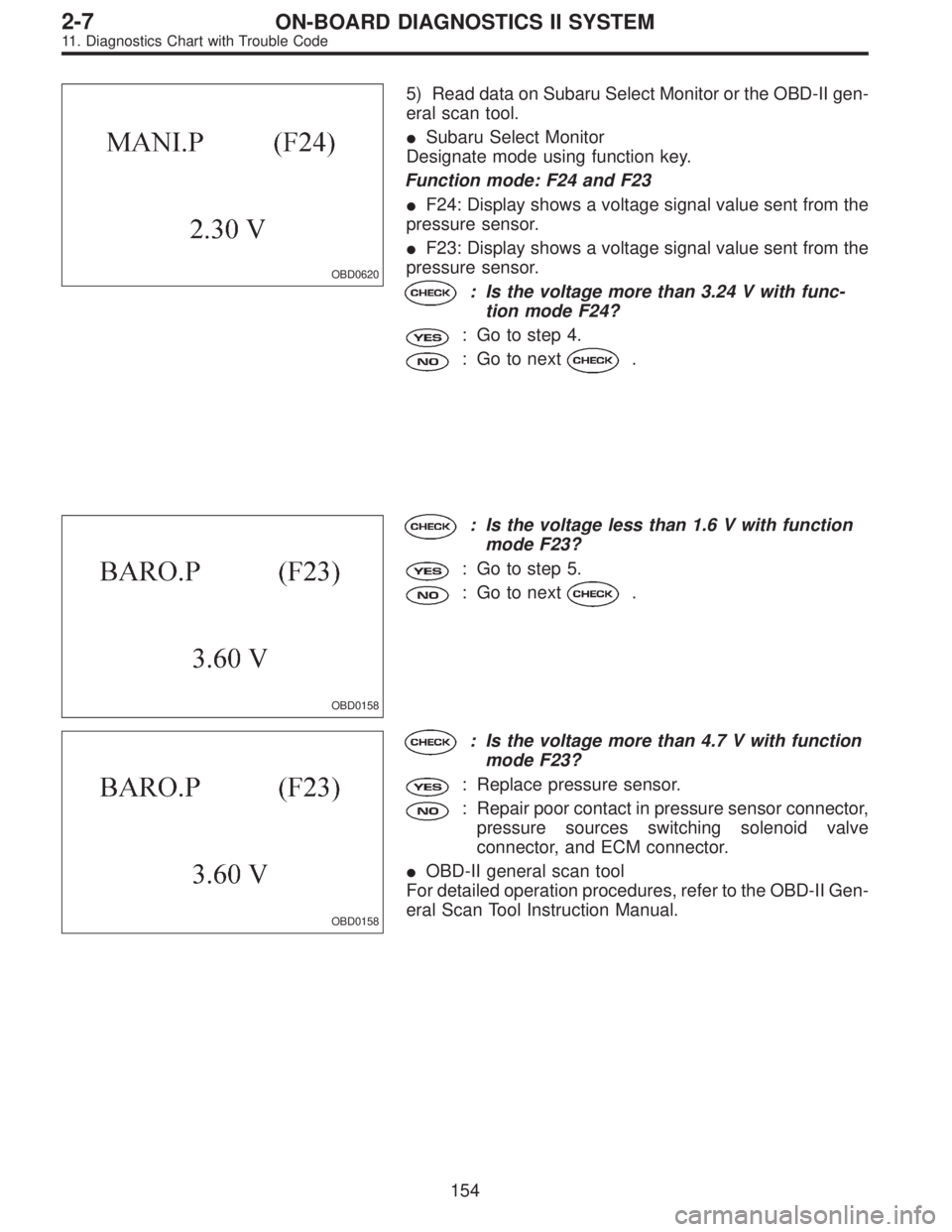

SUBARU LEGACY 1995 Service Repair Manual OBD0620 5) Read data on Subaru Select Monitor or the OBD-II gen- eral scan tool. Subaru Select Monitor Designate mode using function key. Function mode: F24 and F23 F24: Display shows a voltage sign
