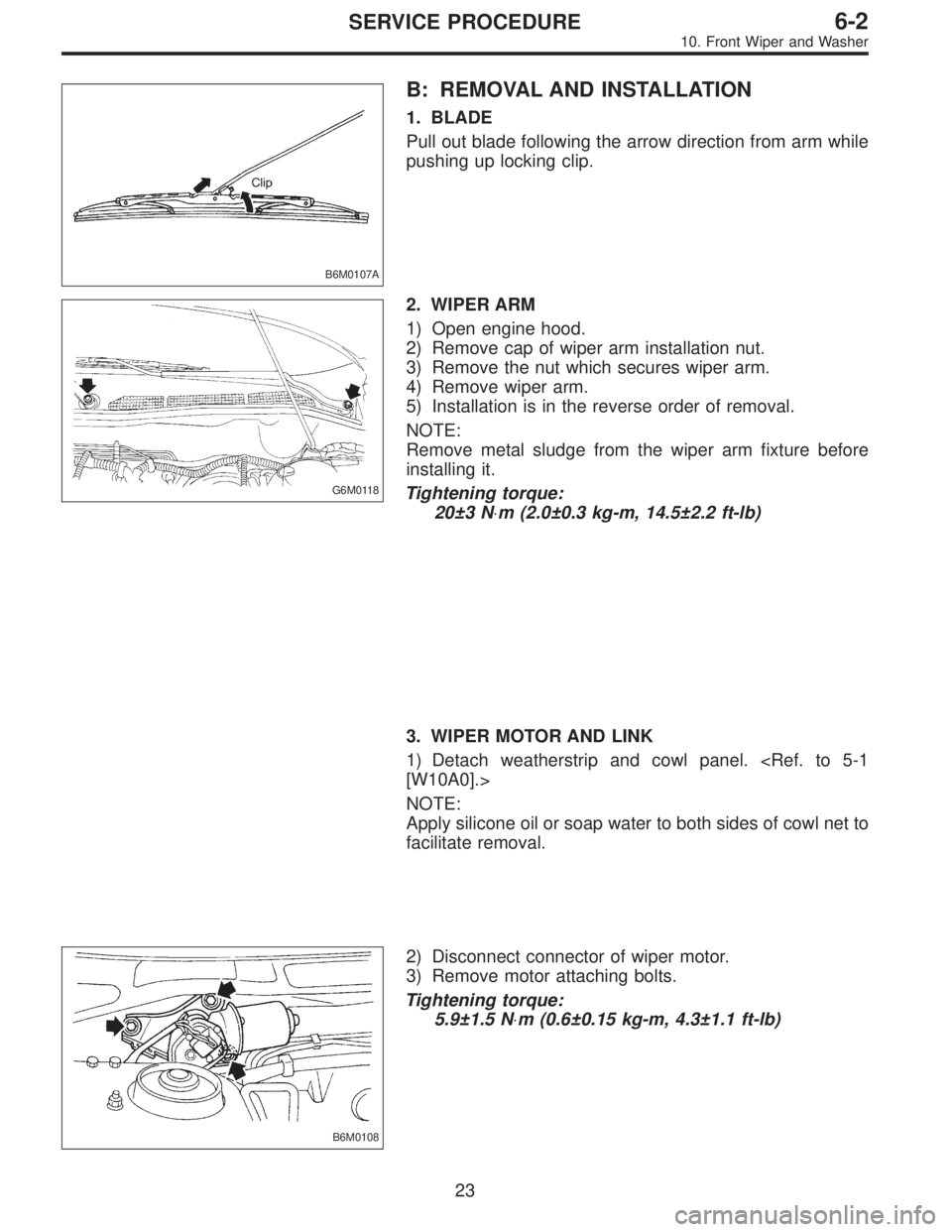

SUBARU LEGACY 1995 Service Repair Manual B6M0107A B: REMOVAL AND INSTALLATION 1. BLADE Pull out blade following the arrow direction from arm while pushing up locking clip. G6M0118 2. WIPER ARM 1) Open engine hood. 2) Remove cap of wiper arm

Page 1122 of 2248

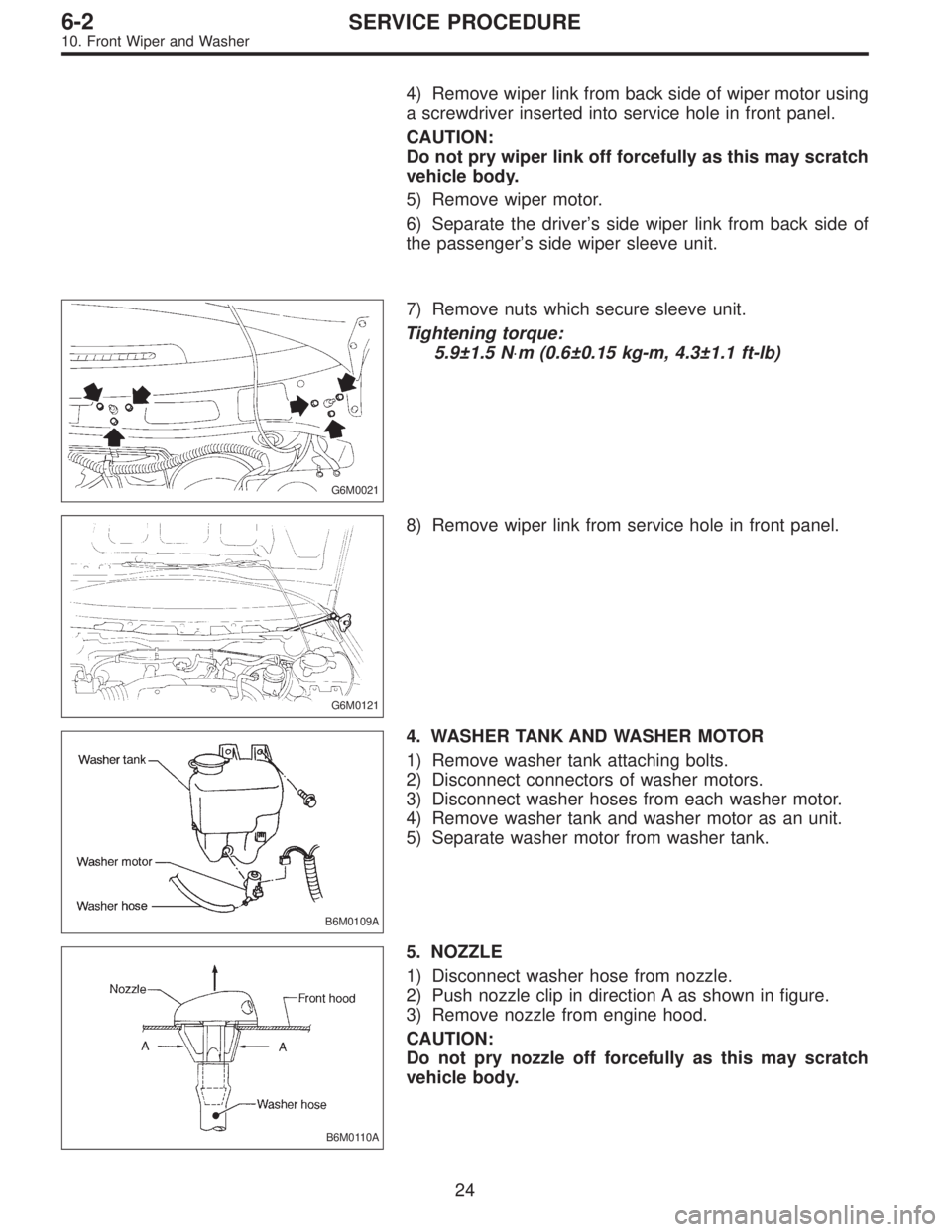

SUBARU LEGACY 1995 Service Repair Manual 4) Remove wiper link from back side of wiper motor using a screwdriver inserted into service hole in front panel. CAUTION: Do not pry wiper link off forcefully as this may scratch vehicle body. 5) Rem

Page 1123 of 2248

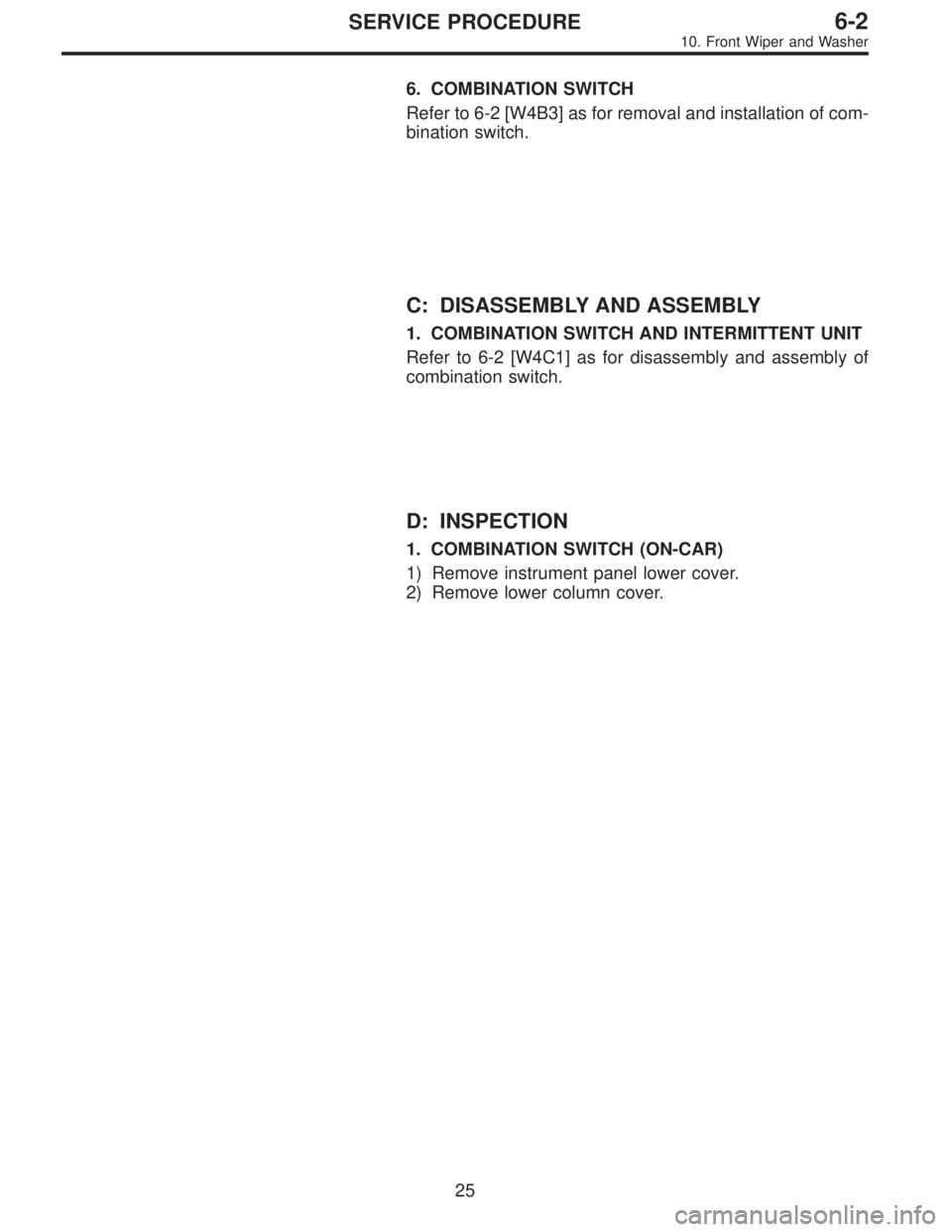

SUBARU LEGACY 1995 Service Repair Manual 6. COMBINATION SWITCH Refer to 6-2 [W4B3] as for removal and installation of com- bination switch. C: DISASSEMBLY AND ASSEMBLY 1. COMBINATION SWITCH AND INTERMITTENT UNIT Refer to 6-2 [W4C1] as for di

Page 1124 of 2248

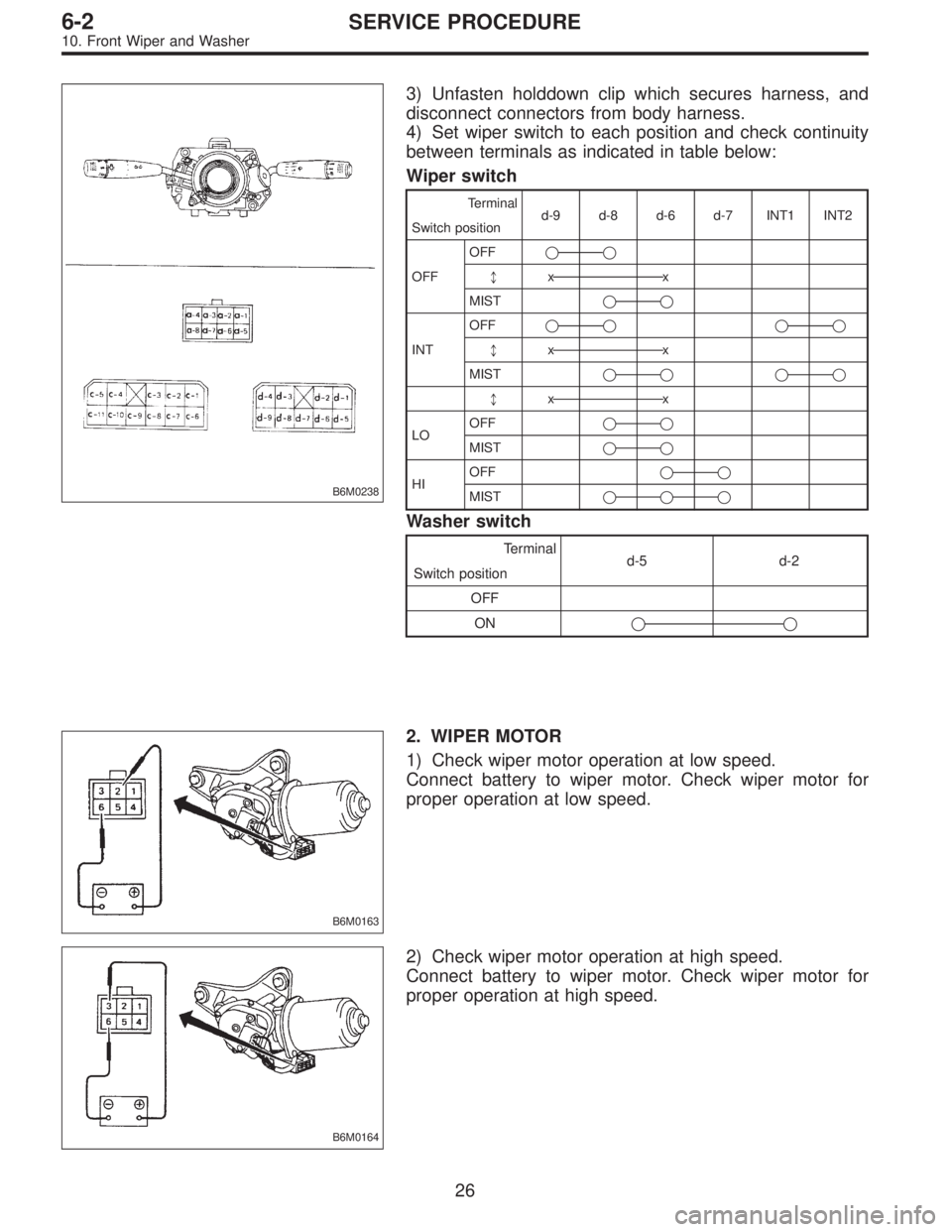

SUBARU LEGACY 1995 Service Repair Manual B6M0238 3) Unfasten holddown clip which secures harness, and disconnect connectors from body harness. 4) Set wiper switch to each position and check continuity between terminals as indicated in table

Page 1125 of 2248

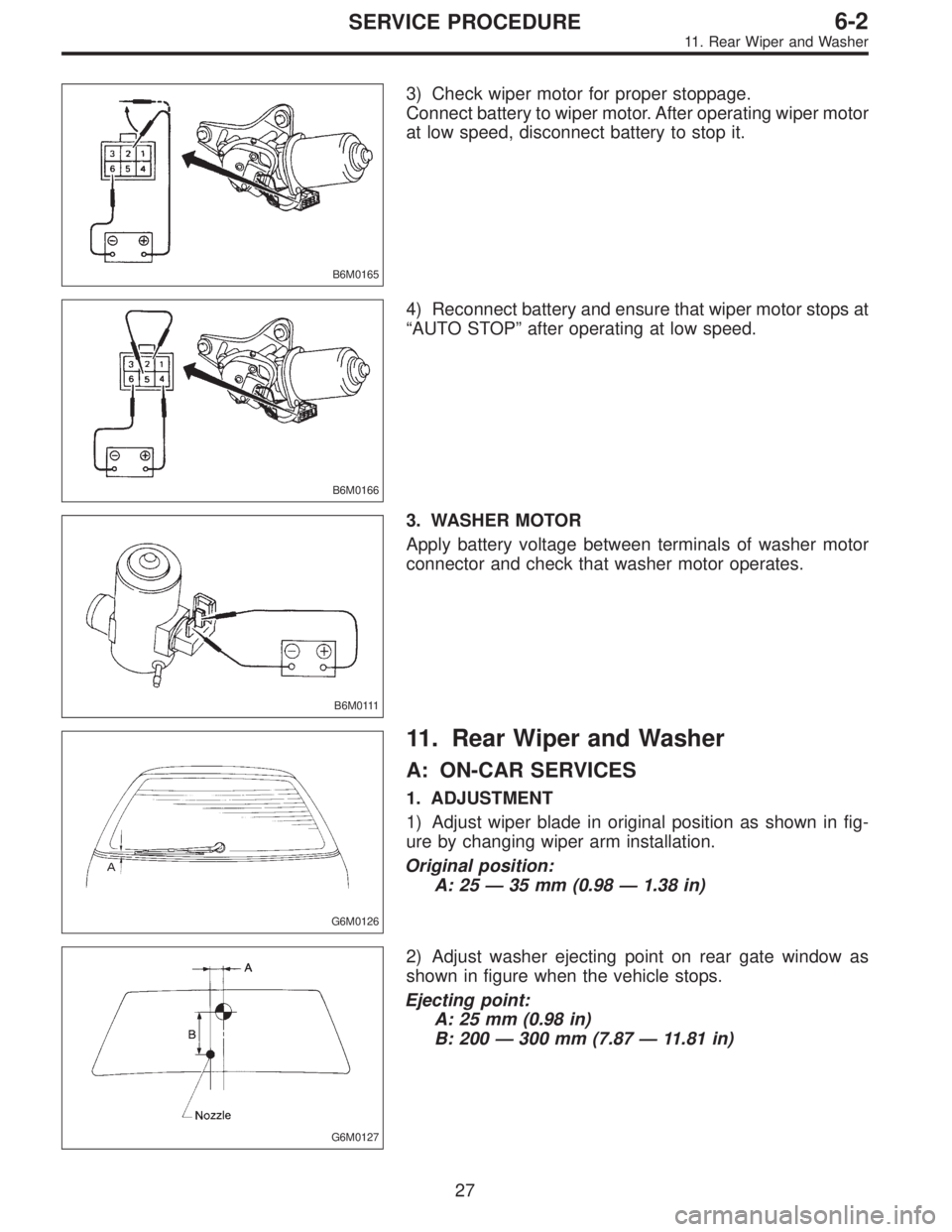

SUBARU LEGACY 1995 Service Repair Manual B6M0165 3) Check wiper motor for proper stoppage. Connect battery to wiper motor. After operating wiper motor at low speed, disconnect battery to stop it. B6M0166 4) Reconnect battery and ensure that

Page 1126 of 2248

SUBARU LEGACY 1995 Service Repair Manual B6M0165 3) Check wiper motor for proper stoppage. Connect battery to wiper motor. After operating wiper motor at low speed, disconnect battery to stop it. B6M0166 4) Reconnect battery and ensure that

Page 1127 of 2248

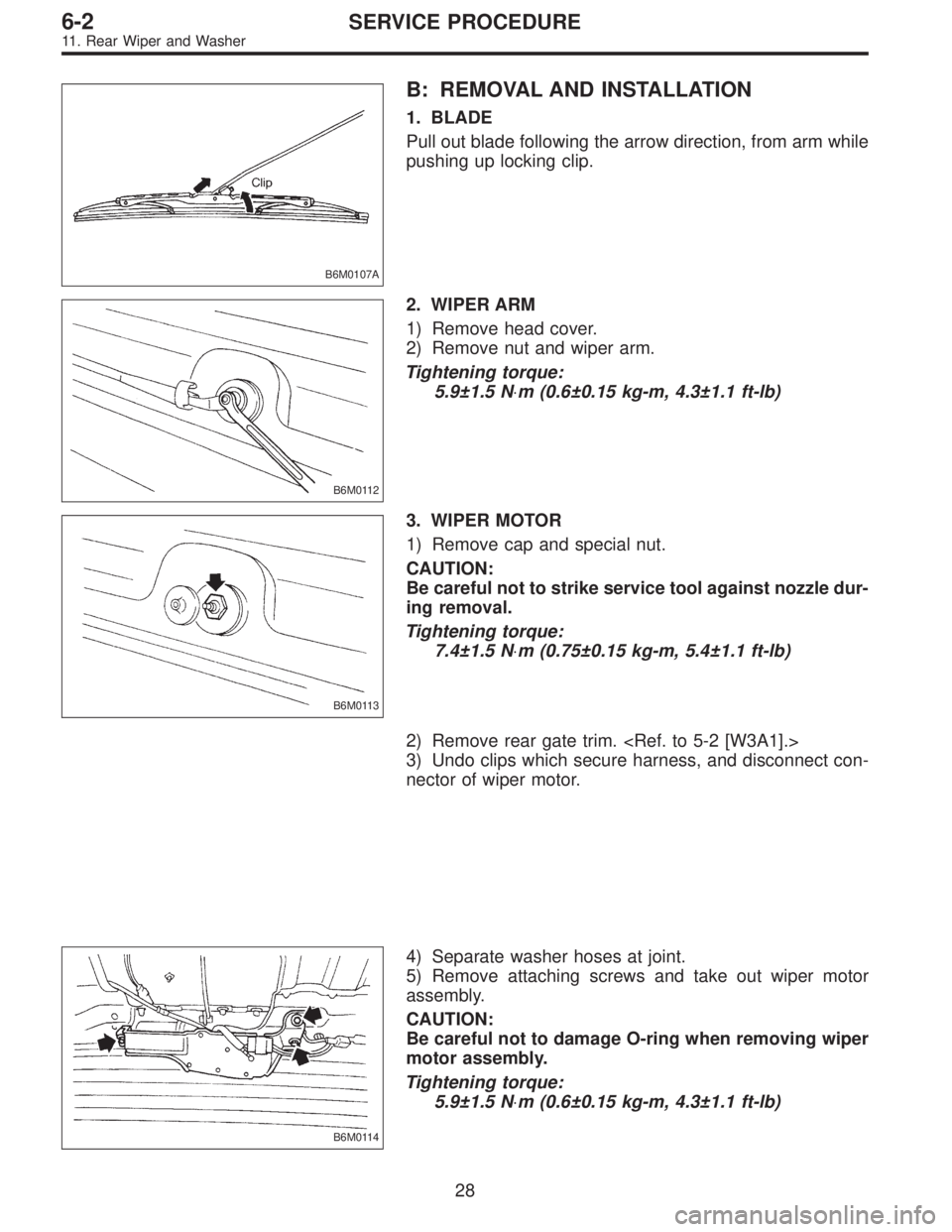

SUBARU LEGACY 1995 Service Repair Manual B6M0107A B: REMOVAL AND INSTALLATION 1. BLADE Pull out blade following the arrow direction, from arm while pushing up locking clip. B6M0112 2. WIPER ARM 1) Remove head cover. 2) Remove nut and wiper a

Page 1128 of 2248

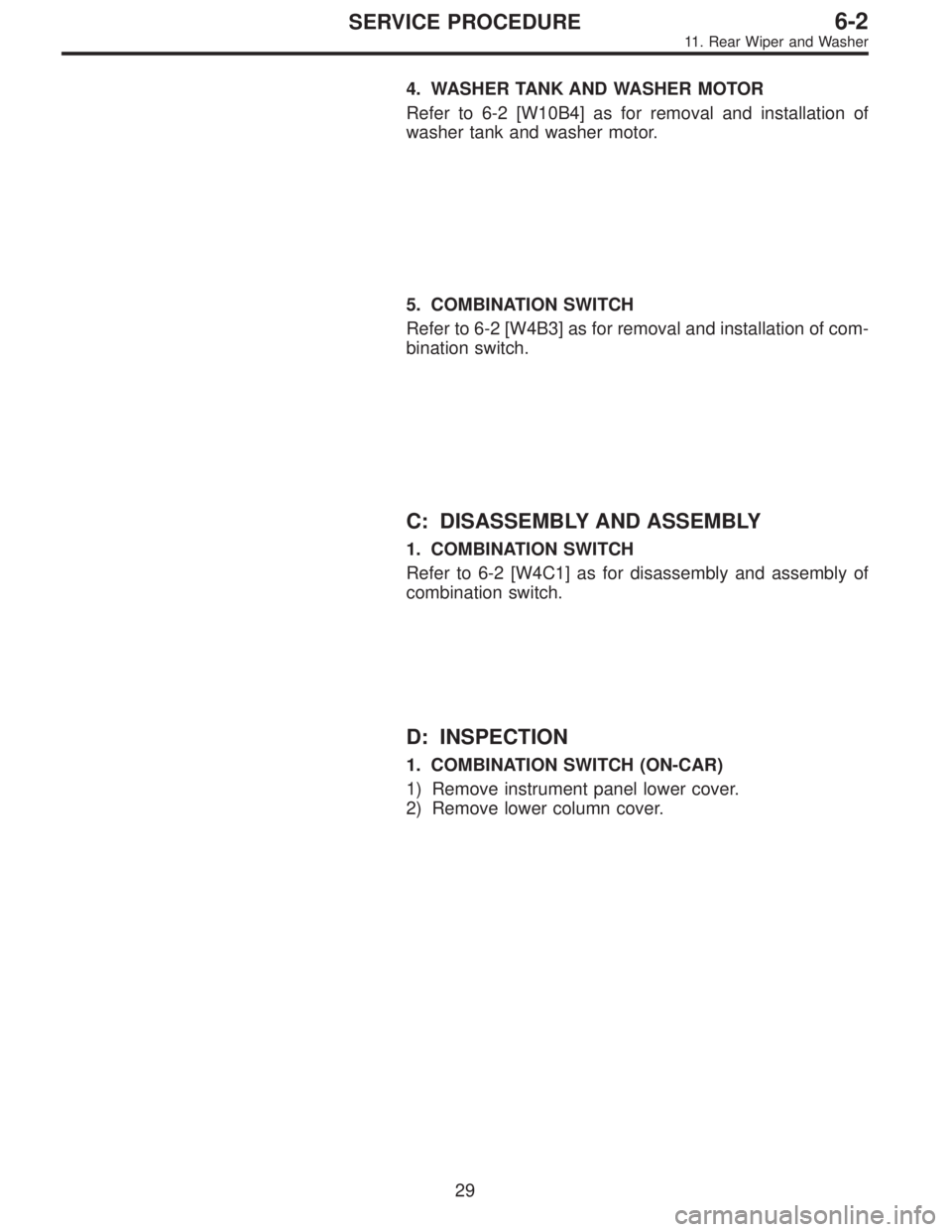

SUBARU LEGACY 1995 Service Repair Manual 4. WASHER TANK AND WASHER MOTOR Refer to 6-2 [W10B4] as for removal and installation of washer tank and washer motor. 5. COMBINATION SWITCH Refer to 6-2 [W4B3] as for removal and installation of com-
