Page 1769 of 2248

SUBARU LEGACY 1995 Service Repair Manual B4M0479

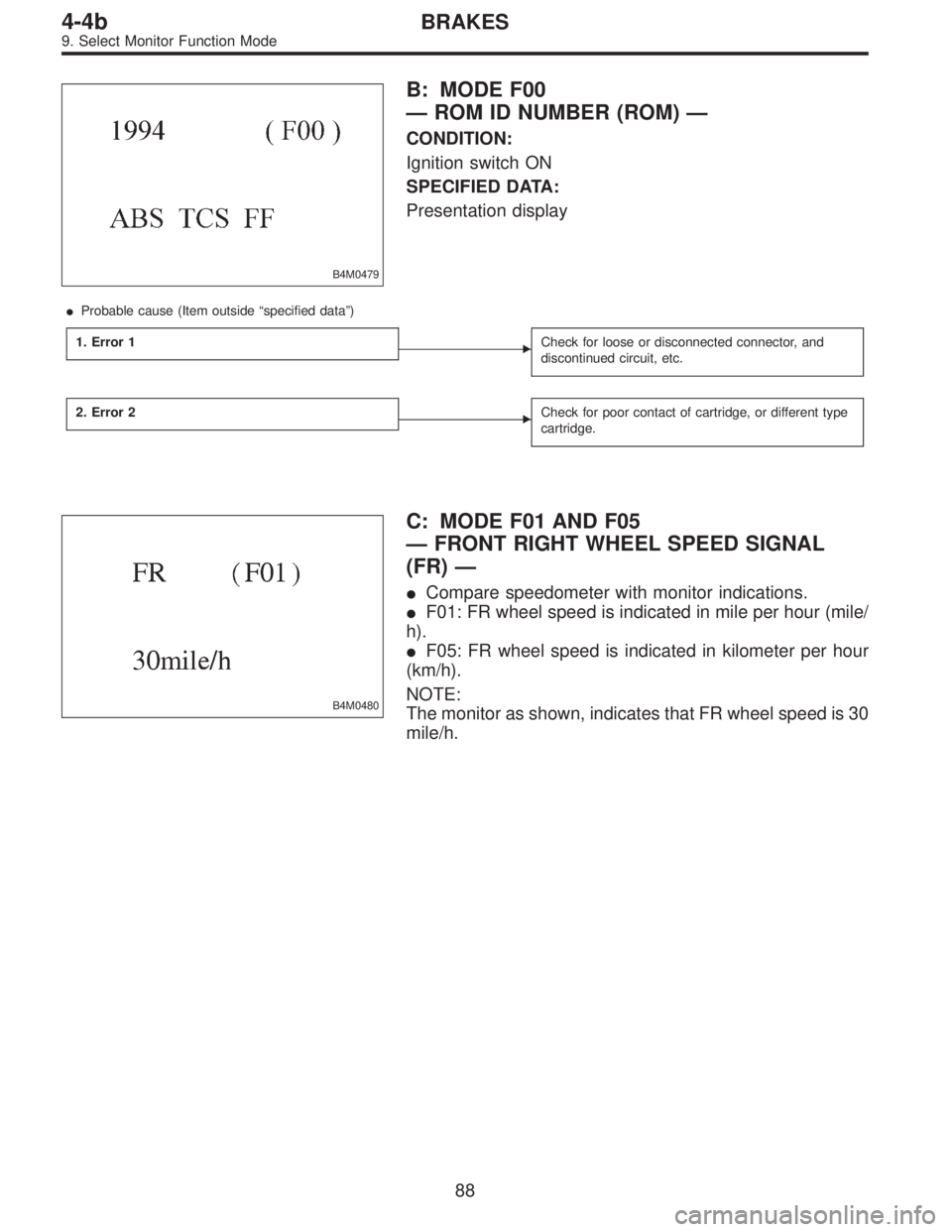

B: MODE F00
—ROM ID NUMBER (ROM)—
CONDITION:
Ignition switch ON
SPECIFIED DATA:
Presentation display
Probable cause (Item outside“specified data”)
1. Error 1
Check for loose or disco

Page 1770 of 2248

SUBARU LEGACY 1995 Service Repair Manual B4M0481

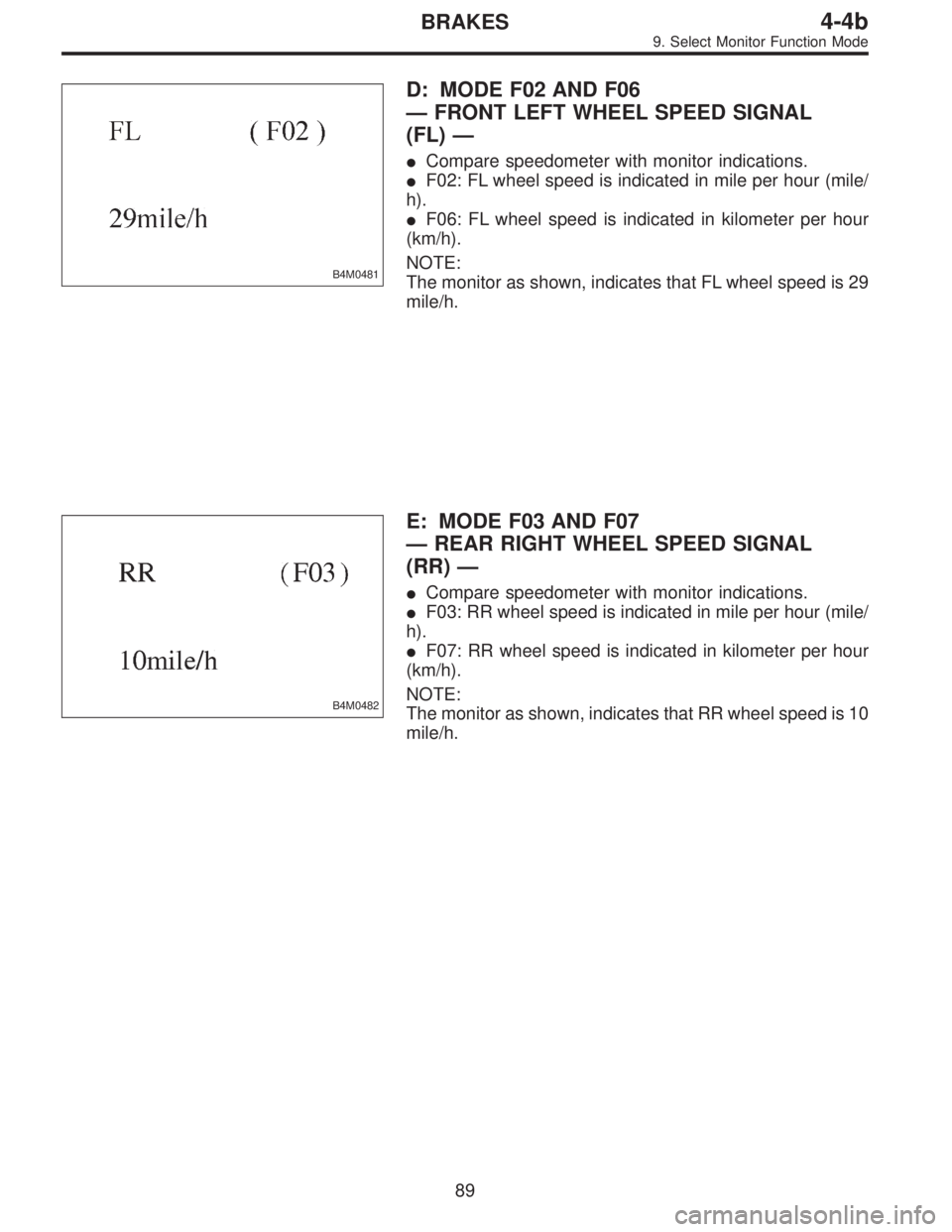

D: MODE F02 AND F06
—FRONT LEFT WHEEL SPEED SIGNAL
(FL)—
Compare speedometer with monitor indications.
F02: FL wheel speed is indicated in mile per hour (mile/
h).
F06: FL wheel speed i

Page 1771 of 2248

SUBARU LEGACY 1995 Service Repair Manual B4M0483

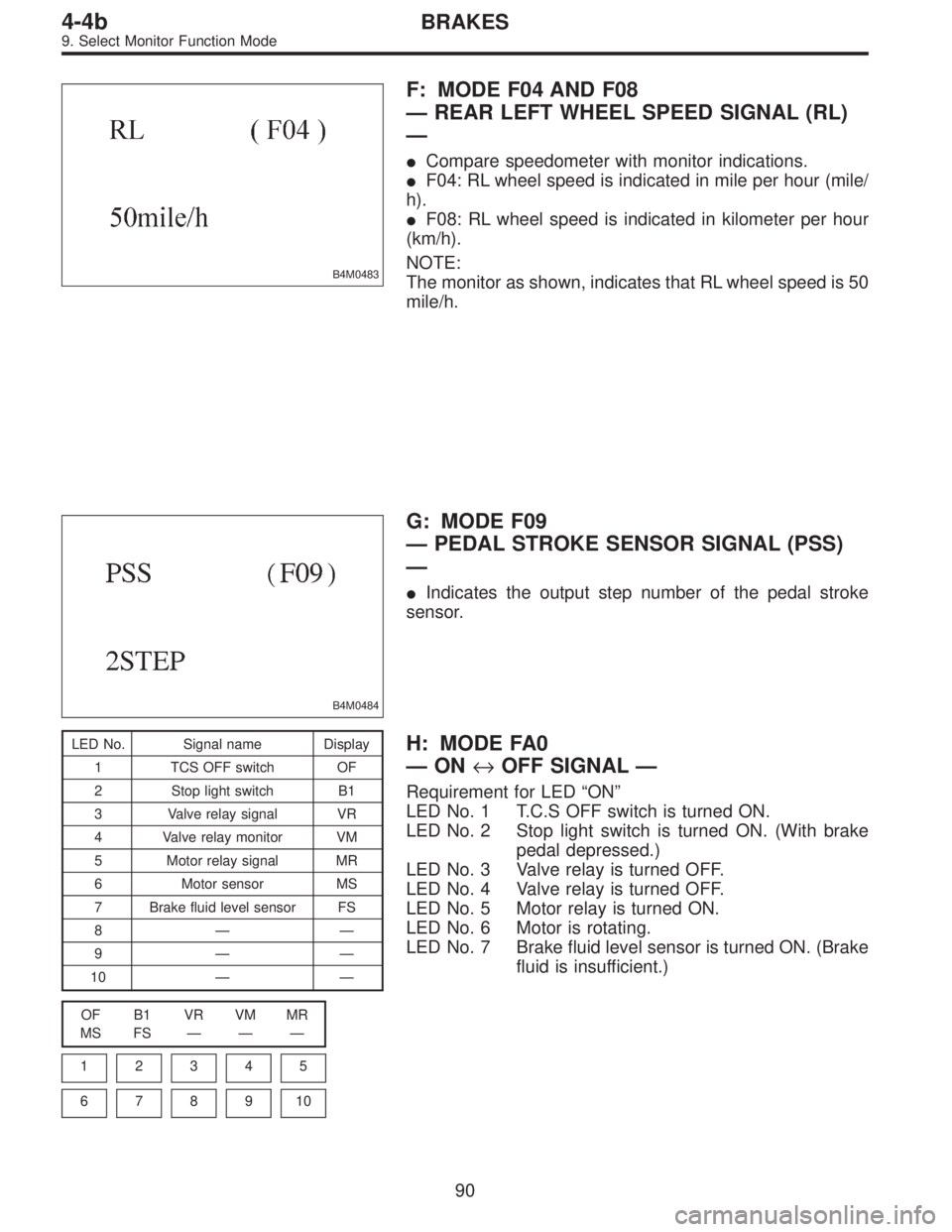

F: MODE F04 AND F08
—REAR LEFT WHEEL SPEED SIGNAL (RL)
—
Compare speedometer with monitor indications.
F04: RL wheel speed is indicated in mile per hour (mile/
h).
F08: RL wheel speed i

Page 1772 of 2248

SUBARU LEGACY 1995 Service Repair Manual LED No. Signal name Display
1Front right inlet solenoid
valveFI
2Front right outlet solenoid
valveRO
3Front left inlet solenoid
valveFI
4Front left outlet solenoid
valveLO
5Traction control solenoid
v

LED No. Signal name Display
1Front right inlet solenoid
valveFI
2Front right outlet solenoid
valveRO
3Front left inlet solenoid
valveFI
4Front left outlet solenoid
valveLO
5Traction control solenoid
valve 1T1
6Rear right inlet solenoid
valveRI
7Rear right outlet solenoid
valveRO
8Rear left inlet solenoid
valveRI
9Rear left outlet solenoid
valveLO
10Traction control solenoid
valve 2T2
FI RO FI LO T1
RI RO RI LO T2
1
2345
678910

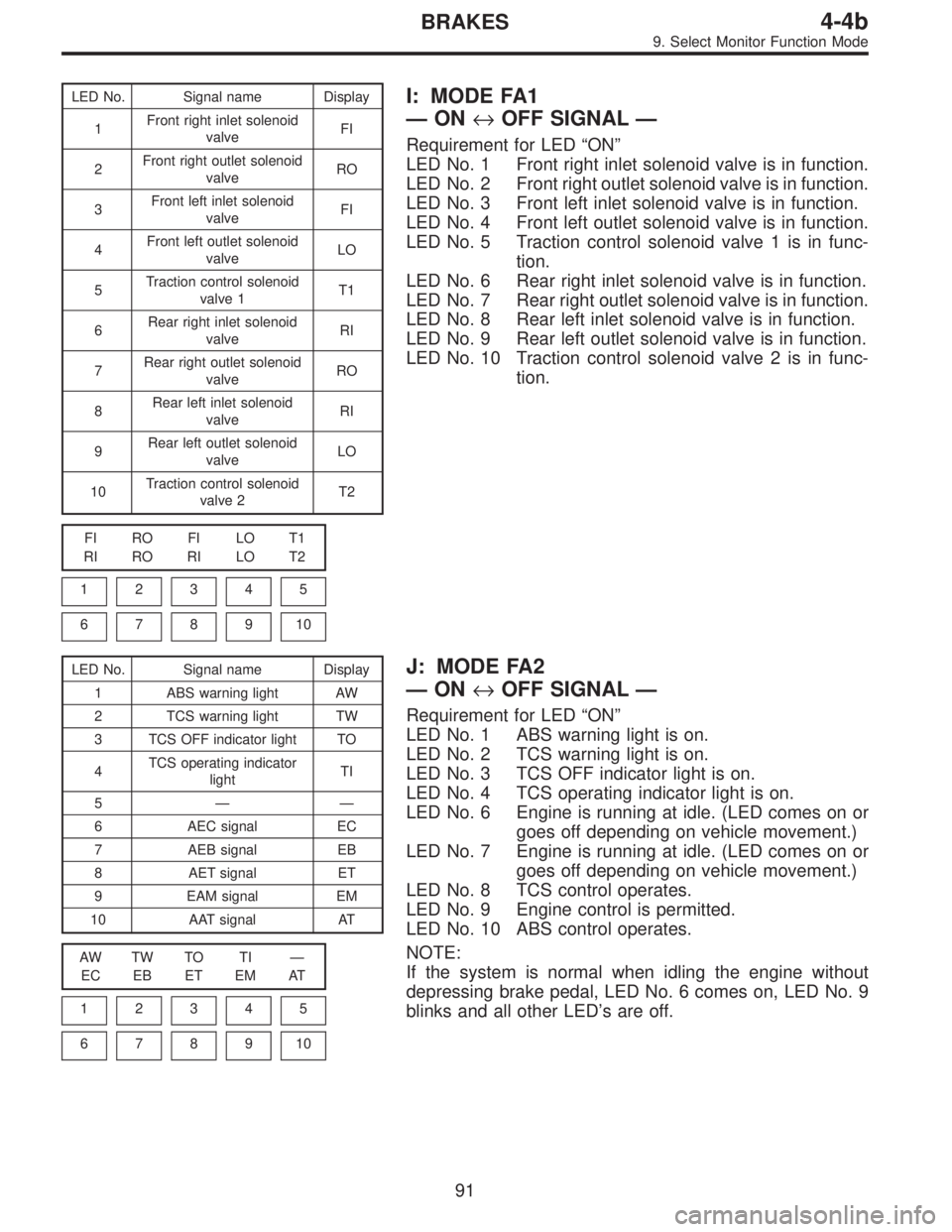

I: MODE FA1
—ON↔OFF SIGNAL—
Requirement for LED“ON”
LED No. 1 Front right inlet solenoid valve is in function.
LED No. 2 Front right outlet solenoid valve is in function.
LED No. 3 Front left inlet solenoid valve is in function.
LED No. 4 Front left outlet solenoid valve is in function.
LED No. 5 Traction control solenoid valve 1 is in func-
tion.
LED No. 6 Rear right inlet solenoid valve is in function.
LED No. 7 Rear right outlet solenoid valve is in function.
LED No. 8 Rear left inlet solenoid valve is in function.
LED No. 9 Rear left outlet solenoid valve is in function.
LED No. 10 Traction control solenoid valve 2 is in func-
tion.
LED No. Signal name Display
1 ABS warning light AW
2 TCS warning light TW
3 TCS OFF indicator light TO
4TCS operating indicator
lightTI
5——
6 AEC signal EC
7 AEB signal EB
8 AET signal ET
9 EAM signal EM
10 AAT signal AT
AW TW TO TI—
EC EB ET EM AT
1
2345
678910
J: MODE FA2
—ON↔OFF SIGNAL—
Requirement for LED“ON”
LED No. 1 ABS warning light is on.
LED No. 2 TCS warning light is on.
LED No. 3 TCS OFF indicator light is on.
LED No. 4 TCS operating indicator light is on.
LED No. 6 Engine is running at idle. (LED comes on or
goes off depending on vehicle movement.)
LED No. 7 Engine is running at idle. (LED comes on or
goes off depending on vehicle movement.)
LED No. 8 TCS control operates.
LED No. 9 Engine control is permitted.
LED No. 10 ABS control operates.
NOTE:
If the system is normal when idling the engine without
depressing brake pedal, LED No. 6 comes on, LED No. 9
blinks and all other LED’s are off.
91
4-4bBRAKES
9. Select Monitor Function Mode

Page 1773 of 2248

SUBARU LEGACY 1995 Service Repair Manual B4M0485

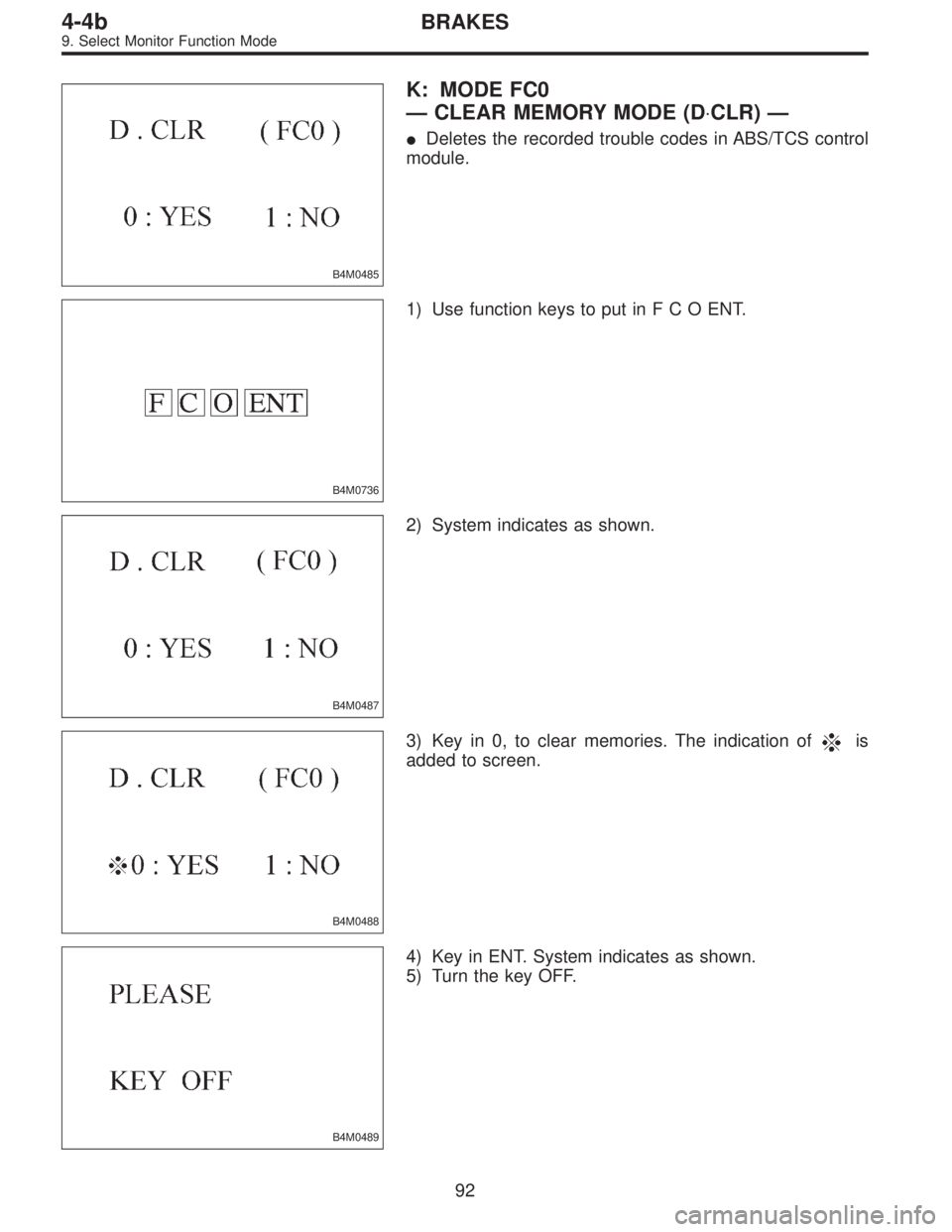

K: MODE FC0
—CLEAR MEMORY MODE (D⋅CLR)—
Deletes the recorded trouble codes in ABS/TCS control
module.
B4M0736
1) Use function keys to put inFCOENT.
B4M0487
2) System indicates as shown.

Page 1774 of 2248

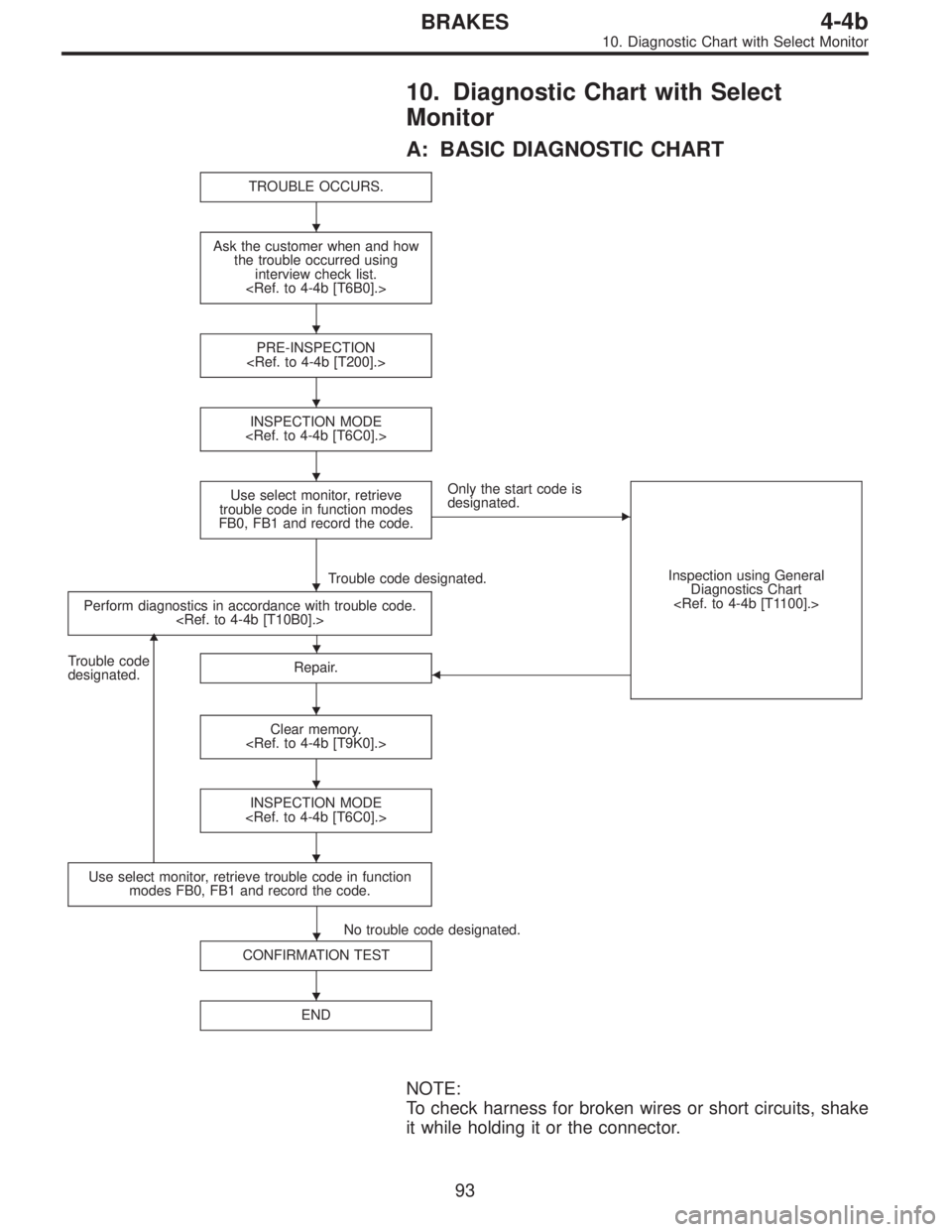

SUBARU LEGACY 1995 Service Repair Manual 10. Diagnostic Chart with Select
Monitor
A: BASIC DIAGNOSTIC CHART
TROUBLE OCCURS.
Ask the customer when and how
the trouble occurred using
interview check list.
<Ref. to 4-4b [T6B0].>
PRE-INSPECTION

Page 1775 of 2248

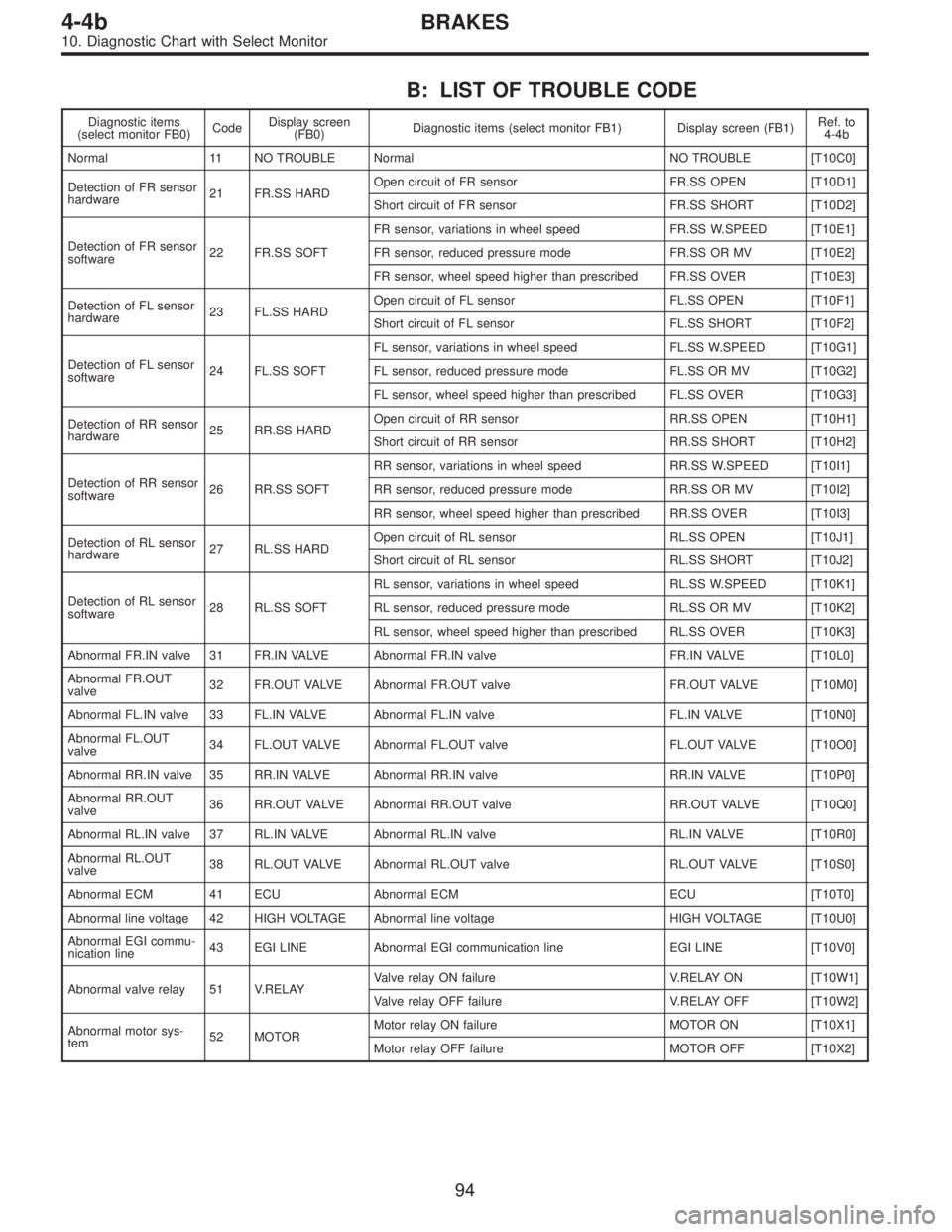

SUBARU LEGACY 1995 Service Repair Manual B: LIST OF TROUBLE CODE
Diagnostic items
(select monitor FB0)CodeDisplay screen
(FB0)Diagnostic items (select monitor FB1) Display screen (FB1)Ref. to
4-4b
Normal 11 NO TROUBLE Normal NO TROUBLE [T10C

B: LIST OF TROUBLE CODE
Diagnostic items
(select monitor FB0)CodeDisplay screen
(FB0)Diagnostic items (select monitor FB1) Display screen (FB1)Ref. to
4-4b
Normal 11 NO TROUBLE Normal NO TROUBLE [T10C0]
Detection of FR sensor
hardware21 FR.SS HARDOpen circuit of FR sensor FR.SS OPEN [T10D1]
Short circuit of FR sensor FR.SS SHORT [T10D2]
Detection of FR sensor
software22 FR.SS SOFTFR sensor, variations in wheel speed FR.SS W.SPEED [T10E1]
FR sensor, reduced pressure mode FR.SS OR MV [T10E2]
FR sensor, wheel speed higher than prescribed FR.SS OVER [T10E3]
Detection of FL sensor
hardware23 FL.SS HARDOpen circuit of FL sensor FL.SS OPEN [T10F1]
Short circuit of FL sensor FL.SS SHORT [T10F2]
Detection of FL sensor
software24 FL.SS SOFTFL sensor, variations in wheel speed FL.SS W.SPEED [T10G1]
FL sensor, reduced pressure mode FL.SS OR MV [T10G2]
FL sensor, wheel speed higher than prescribed FL.SS OVER [T10G3]
Detection of RR sensor
hardware25 RR.SS HARDOpen circuit of RR sensor RR.SS OPEN [T10H1]
Short circuit of RR sensor RR.SS SHORT [T10H2]
Detection of RR sensor
software26 RR.SS SOFTRR sensor, variations in wheel speed RR.SS W.SPEED [T10I1]
RR sensor, reduced pressure mode RR.SS OR MV [T10I2]
RR sensor, wheel speed higher than prescribed RR.SS OVER [T10I3]
Detection of RL sensor
hardware27 RL.SS HARDOpen circuit of RL sensor RL.SS OPEN [T10J1]
Short circuit of RL sensor RL.SS SHORT [T10J2]
Detection of RL sensor
software28 RL.SS SOFTRL sensor, variations in wheel speed RL.SS W.SPEED [T10K1]
RL sensor, reduced pressure mode RL.SS OR MV [T10K2]
RL sensor, wheel speed higher than prescribed RL.SS OVER [T10K3]
Abnormal FR.IN valve 31 FR.IN VALVE Abnormal FR.IN valve FR.IN VALVE [T10L0]
Abnormal FR.OUT
valve32 FR.OUT VALVE Abnormal FR.OUT valve FR.OUT VALVE [T10M0]
Abnormal FL.IN valve 33 FL.IN VALVE Abnormal FL.IN valve FL.IN VALVE [T10N0]
Abnormal FL.OUT
valve34 FL.OUT VALVE Abnormal FL.OUT valve FL.OUT VALVE [T10O0]
Abnormal RR.IN valve 35 RR.IN VALVE Abnormal RR.IN valve RR.IN VALVE [T10P0]
Abnormal RR.OUT
valve36 RR.OUT VALVE Abnormal RR.OUT valve RR.OUT VALVE [T10Q0]
Abnormal RL.IN valve 37 RL.IN VALVE Abnormal RL.IN valve RL.IN VALVE [T10R0]
Abnormal RL.OUT
valve38 RL.OUT VALVE Abnormal RL.OUT valve RL.OUT VALVE [T10S0]
Abnormal ECM 41 ECU Abnormal ECM ECU [T10T0]
Abnormal line voltage 42 HIGH VOLTAGE Abnormal line voltage HIGH VOLTAGE [T10U0]
Abnormal EGI commu-
nication line43 EGI LINE Abnormal EGI communication line EGI LINE [T10V0]
Abnormal valve relay 51 V.RELAYValve relay ON failure V.RELAY ON [T10W1]
Valve relay OFF failure V.RELAY OFF [T10W2]
Abnormal motor sys-
tem52 MOTORMotor relay ON failure MOTOR ON [T10X1]
Motor relay OFF failure MOTOR OFF [T10X2]
94
4-4bBRAKES
10. Diagnostic Chart with Select Monitor

Page 1776 of 2248

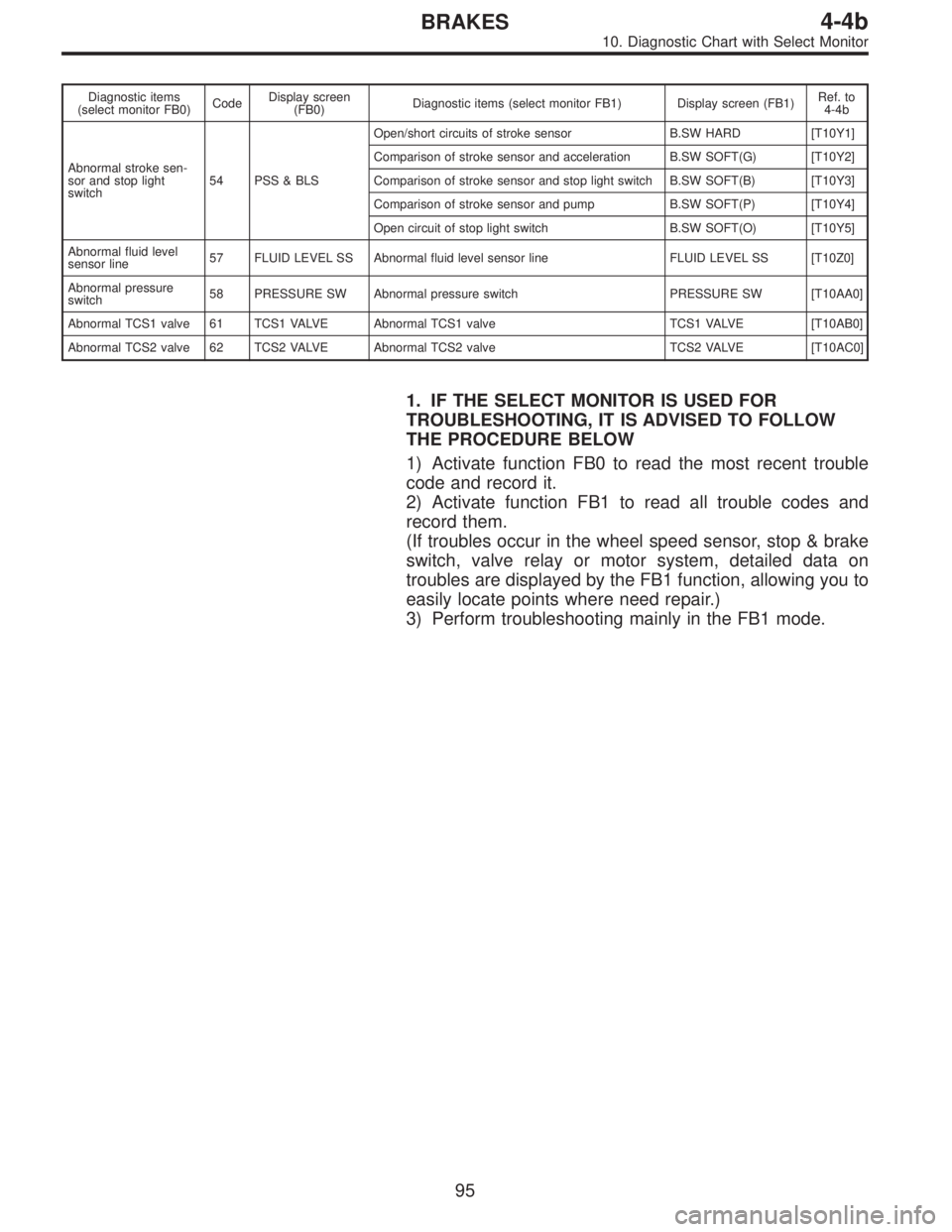

SUBARU LEGACY 1995 Service Repair Manual Diagnostic items
(select monitor FB0)CodeDisplay screen
(FB0)Diagnostic items (select monitor FB1) Display screen (FB1)Ref. to
4-4b
Abnormal stroke sen-
sor and stop light
switch54 PSS & BLSOpen/short
