SUBARU LEGACY 1995 Service Repair Manual 2. FRONT WIRING HARNESS AND GROUND POINT (RHD MODEL)
11 5
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

Page 2202 of 2248

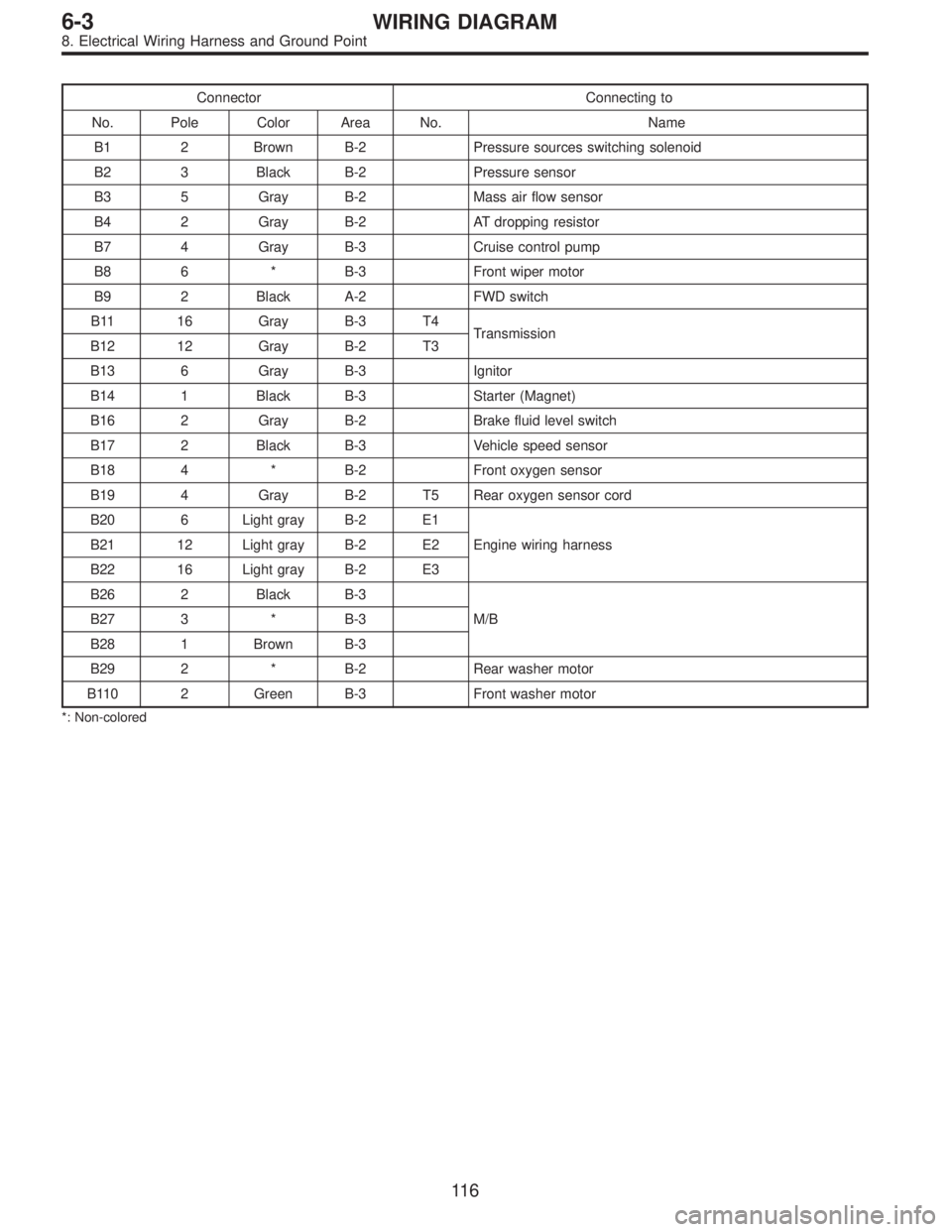

SUBARU LEGACY 1995 Service Repair Manual Connector Connecting to
No. Pole Color Area No. Name
B1 2 Brown B-2 Pressure sources switching solenoid
B2 3 Black B-2 Pressure sensor
B3 5 Gray B-2 Mass air flow sensor
B4 2 Gray B-2 AT dropping resi

Page 2203 of 2248

SUBARU LEGACY 1995 Service Repair Manual 3. BULKHEAD WIRING HARNESS AND GROUND POINT (IN ENGINE ROOM) (LHD MODEL)
B6M0256A
11 7
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

Page 2204 of 2248

SUBARU LEGACY 1995 Service Repair Manual Connector Connecting to
No. Pole Color Area No. Name
E1 6 * A-3 B20
Bulkhead wiring harness E2 12 Gray A-3 B21
E3 16 Gray A-3 B22
E4 2 Blue A-2 Purge control solenoid valve
E5 2 Light gray A-2 Injecto

Page 2205 of 2248

SUBARU LEGACY 1995 Service Repair Manual 4. BULKHEAD WIRING HARNESS AND GROUND POINT (IN ENGINE ROOM) (RHD MODEL)
11 9
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

Page 2206 of 2248

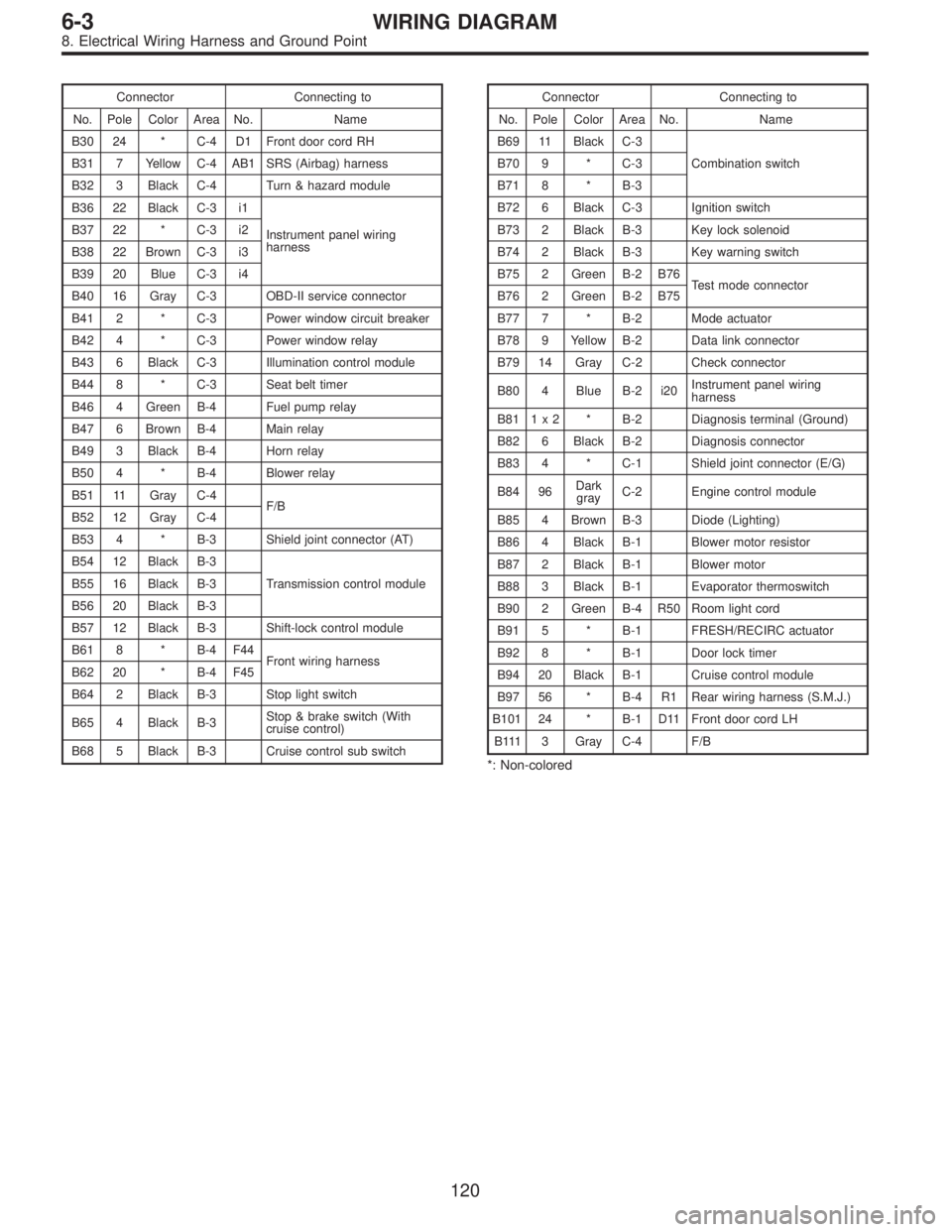

SUBARU LEGACY 1995 Service Repair Manual Connector Connecting to
No. Pole Color Area No. Name
B30 24 * C-4 D1 Front door cord RH
B31 7 Yellow C-4 AB1 SRS (Airbag) harness
B32 3 Black C-4 Turn & hazard module
B36 22 Black C-3 i1
Instrument pa

Page 2207 of 2248

SUBARU LEGACY 1995 Service Repair Manual 5. ENGINE WIRING HARNESS, TRANSMISSION CORD AND GROUND POINT
EPA0033
121
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

Page 2208 of 2248

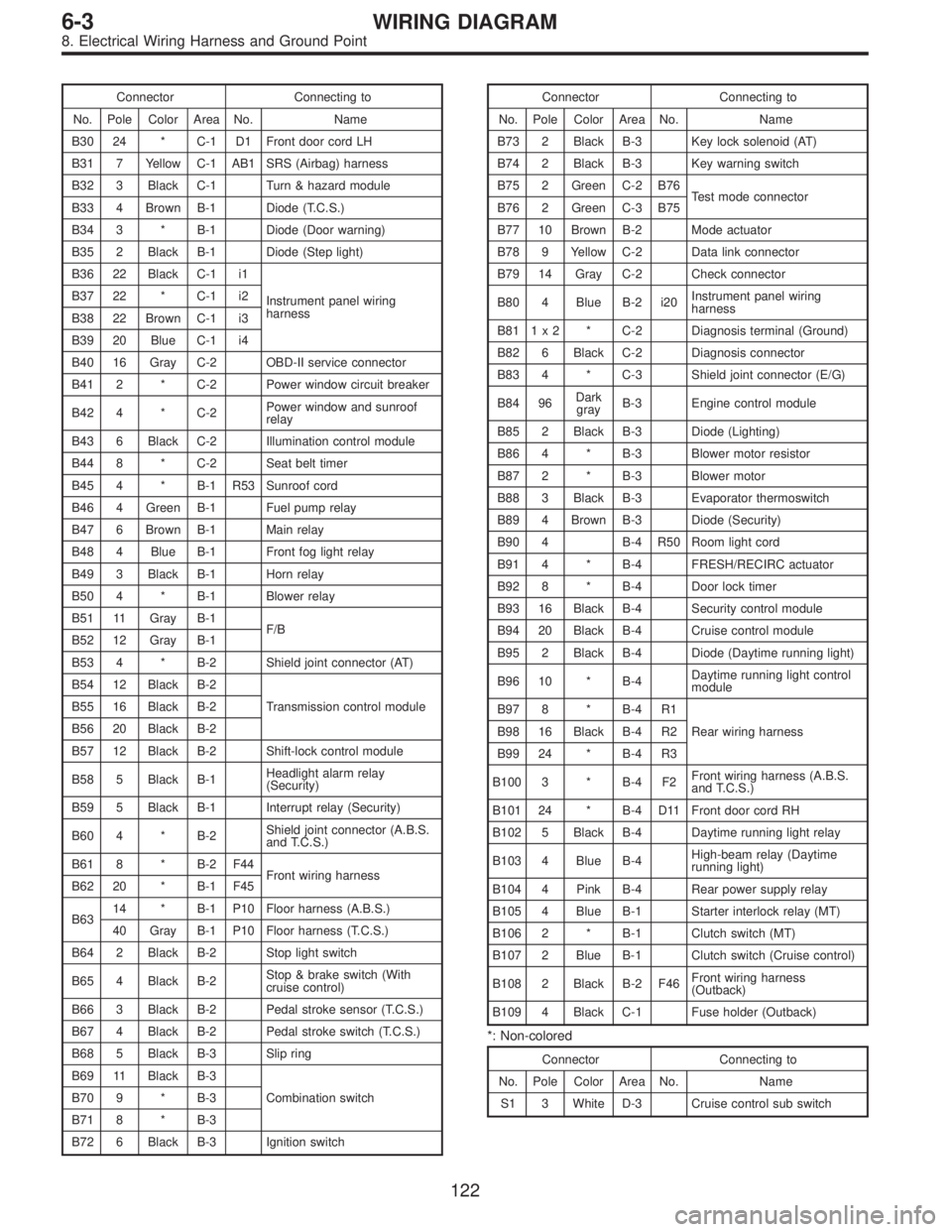

SUBARU LEGACY 1995 Service Repair Manual Connector Connecting to
No. Pole Color Area No. Name
B30 24 * C-1 D1 Front door cord LH
B31 7 Yellow C-1 AB1 SRS (Airbag) harness
B32 3 Black C-1 Turn & hazard module
B33 4 Brown B-1 Diode (T.C.S.)
B3

Connector Connecting to
No. Pole Color Area No. Name
B30 24 * C-1 D1 Front door cord LH
B31 7 Yellow C-1 AB1 SRS (Airbag) harness
B32 3 Black C-1 Turn & hazard module
B33 4 Brown B-1 Diode (T.C.S.)
B34 3 * B-1 Diode (Door warning)
B35 2 Black B-1 Diode (Step light)
B36 22 Black C-1 i1
Instrument panel wiring
harness B37 22 * C-1 i2
B38 22 Brown C-1 i3
B39 20 Blue C-1 i4
B40 16 Gray C-2 OBD-II service connector
B41 2 * C-2 Power window circuit breaker
B42 4 * C-2Power window and sunroof
relay
B43 6 Black C-2 Illumination control module
B44 8 * C-2 Seat belt timer
B45 4 * B-1 R53 Sunroof cord
B46 4 Green B-1 Fuel pump relay
B47 6 Brown B-1 Main relay
B48 4 Blue B-1 Front fog light relay
B49 3 Black B-1 Horn relay
B50 4 * B-1 Blower relay
B51 11 Gray B-1
F/B
B52 12 Gray B-1
B53 4 * B-2 Shield joint connector (AT)
B54 12 Black B-2
Transmission control module B55 16 Black B-2
B56 20 Black B-2
B57 12 Black B-2 Shift-lock control module
B58 5 Black B-1Headlight alarm relay
(Security)
B59 5 Black B-1 Interrupt relay (Security)
B60 4 * B-2Shield joint connector (A.B.S.
and T.C.S.)
B61 8 * B-2 F44
Front wiring harness
B62 20 * B-1 F45
B6314 * B-1 P10 Floor harness (A.B.S.)
40 Gray B-1 P10 Floor harness (T.C.S.)
B64 2 Black B-2 Stop light switch
B65 4 Black B-2Stop & brake switch (With
cruise control)
B66 3 Black B-2 Pedal stroke sensor (T.C.S.)
B67 4 Black B-2 Pedal stroke switch (T.C.S.)
B68 5 Black B-3 Slip ring
B69 11 Black B-3
Combination switch B70 9 * B-3
B71 8 * B-3
B72 6 Black B-3 Ignition switchConnector Connecting to
No. Pole Color Area No. Name
B73 2 Black B-3 Key lock solenoid (AT)
B74 2 Black B-3 Key warning switch
B75 2 Green C-2 B76
Test mode connector
B76 2 Green C-3 B75
B77 10 Brown B-2 Mode actuator
B78 9 Yellow C-2 Data link connector
B79 14 Gray C-2 Check connector
B80 4 Blue B-2 i20Instrument panel wiring
harness
B81 1 x 2 * C-2 Diagnosis terminal (Ground)
B82 6 Black C-2 Diagnosis connector
B83 4 * C-3 Shield joint connector (E/G)
B84 96Dark
grayB-3 Engine control module
B85 2 Black B-3 Diode (Lighting)
B86 4 * B-3 Blower motor resistor
B87 2 * B-3 Blower motor
B88 3 Black B-3 Evaporator thermoswitch
B89 4 Brown B-3 Diode (Security)
B90 4 B-4 R50 Room light cord
B91 4 * B-4 FRESH/RECIRC actuator
B92 8 * B-4 Door lock timer
B93 16 Black B-4 Security control module
B94 20 Black B-4 Cruise control module
B95 2 Black B-4 Diode (Daytime running light)
B96 10 * B-4Daytime running light control
module
B97 8 * B-4 R1
Rear wiring harness B98 16 Black B-4 R2
B99 24 * B-4 R3
B100 3 * B-4 F2Front wiring harness (A.B.S.
and T.C.S.)
B101 24 * B-4 D11 Front door cord RH
B102 5 Black B-4 Daytime running light relay
B103 4 Blue B-4High-beam relay (Daytime
running light)
B104 4 Pink B-4 Rear power supply relay
B105 4 Blue B-1 Starter interlock relay (MT)
B106 2 * B-1 Clutch switch (MT)
B107 2 Blue B-1 Clutch switch (Cruise control)
B108 2 Black B-2 F46Front wiring harness
(Outback)
B109 4 Black C-1 Fuse holder (Outback)
*: Non-colored
Connector Connecting to
No. Pole Color Area No. Name
S1 3 White D-3 Cruise control sub switch
122
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point
