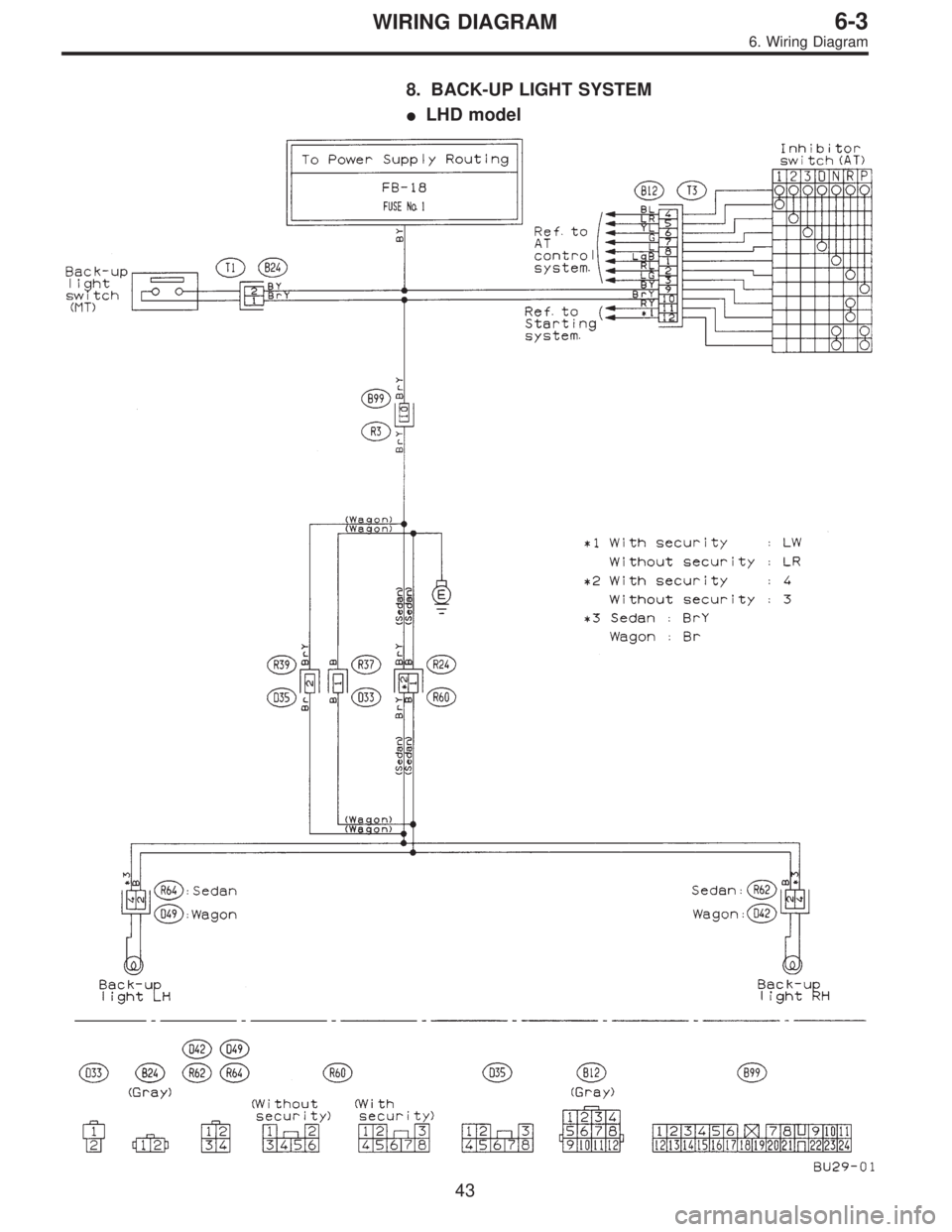

SUBARU LEGACY 1995  Service Repair Manual 8. BACK-UP LIGHT SYSTEM
LHD model
43
6-3WIRING DIAGRAM
6. Wiring Diagram

Page 2130 of 2248

SUBARU LEGACY 1995  Service Repair Manual 8. BACK-UP LIGHT SYSTEM
RHD model
BUR29-01
44
6-3WIRING DIAGRAM
6. Wiring Diagram

Page 2131 of 2248

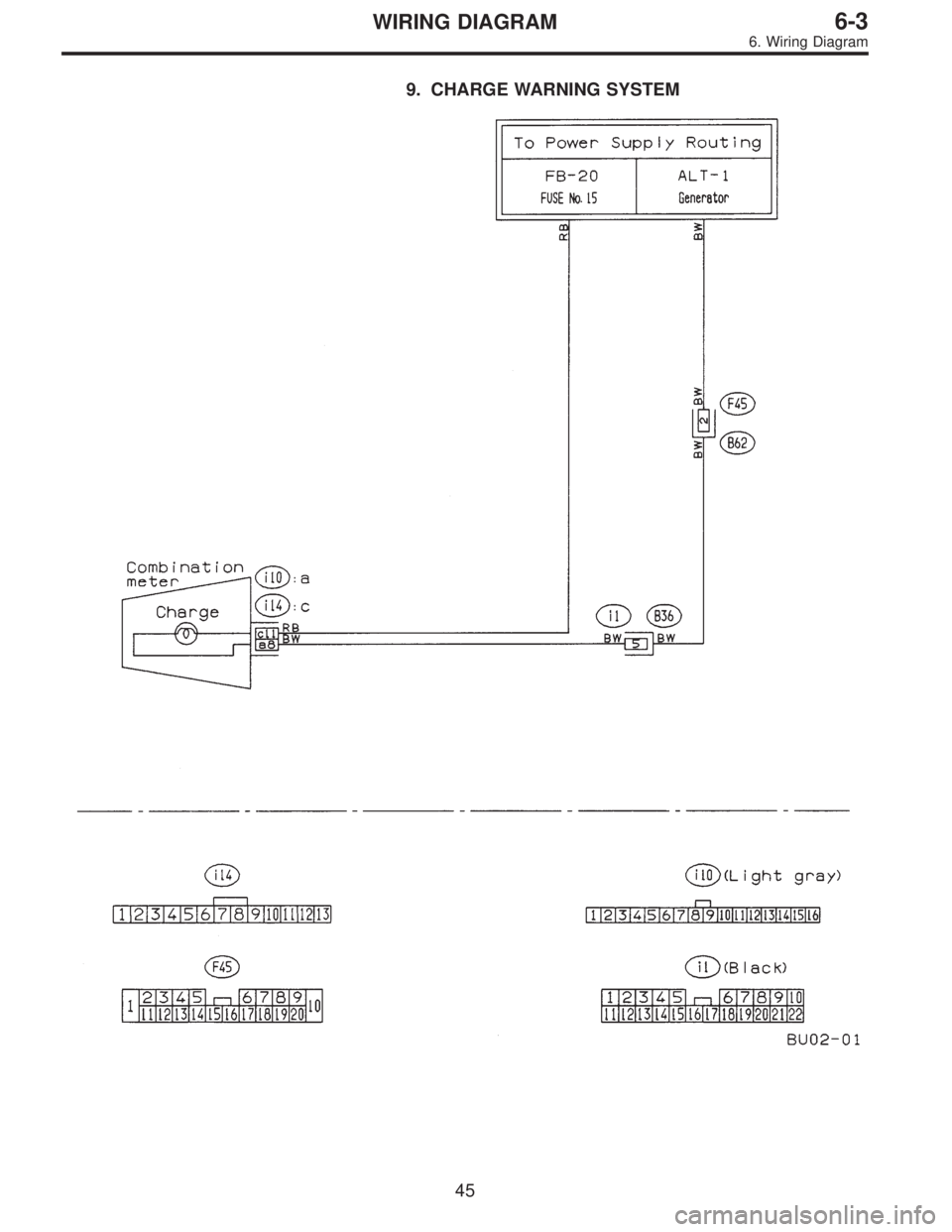

SUBARU LEGACY 1995  Service Repair Manual 9. CHARGE WARNING SYSTEM
45
6-3WIRING DIAGRAM
6. Wiring Diagram

Page 2132 of 2248

SUBARU LEGACY 1995  Service Repair Manual 10. COMBINATION METER
BU65-01A
46
6-3WIRING DIAGRAM
6. Wiring Diagram

Page 2133 of 2248

SUBARU LEGACY 1995  Service Repair Manual BU65-01B
47
6-3WIRING DIAGRAM
6. Wiring Diagram

Page 2134 of 2248

SUBARU LEGACY 1995  Service Repair Manual 11. CRUISE CONTROL SYSTEM
BU71-02
48
6-3WIRING DIAGRAM
6. Wiring Diagram

Page 2135 of 2248

SUBARU LEGACY 1995  Service Repair Manual 12. DOOR LOCK SYSTEM
LHD model
BU73-01
49
6-3WIRING DIAGRAM
6. Wiring Diagram

Page 2136 of 2248

SUBARU LEGACY 1995  Service Repair Manual 12. DOOR LOCK SYSTEM
RHD model
BUR73-01
50
6-3WIRING DIAGRAM
6. Wiring Diagram
