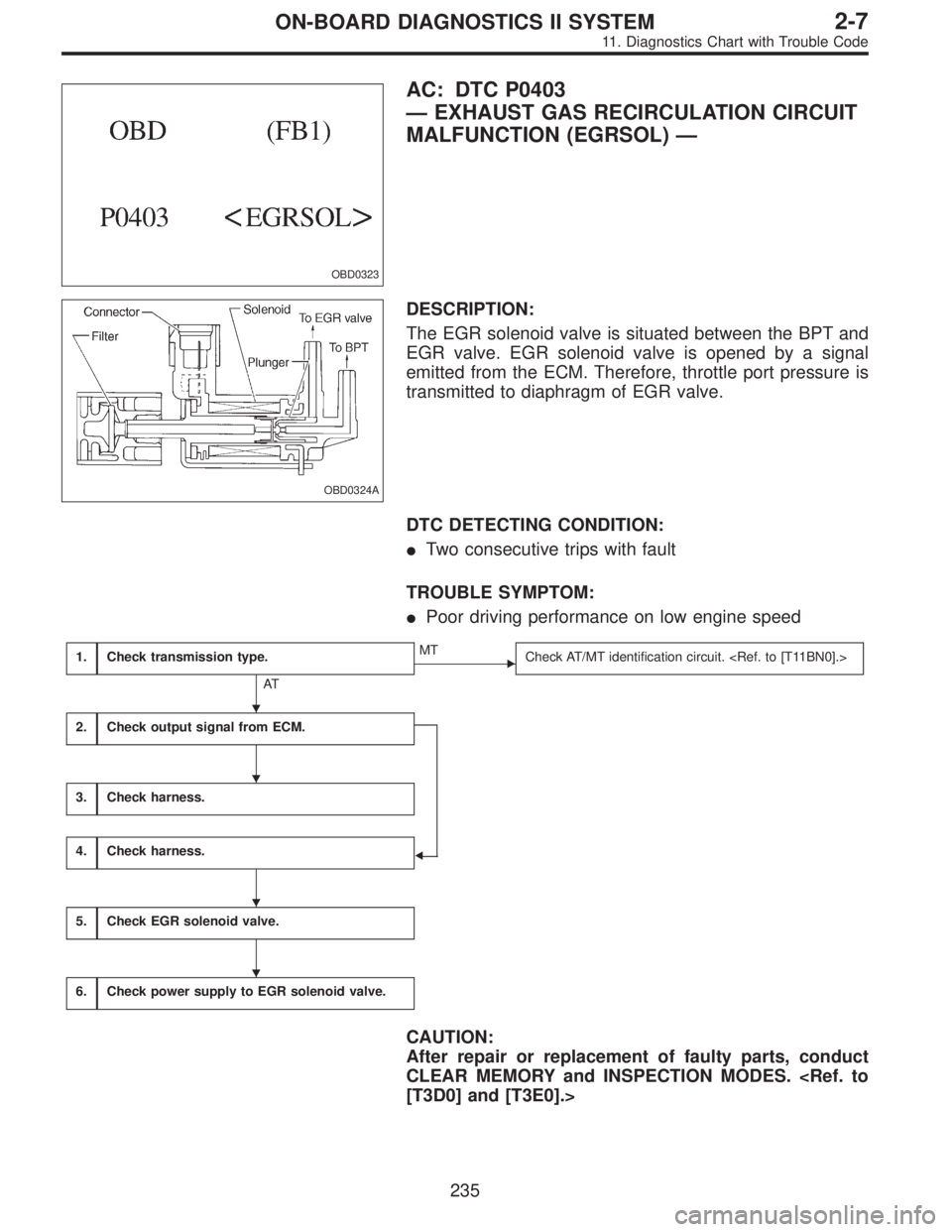

AC: DTC P0403
—EXHAUST GAS RECIRCULATION CIRCUIT
MALFUNCTION (EGRSOL)—
OBD0324A
DESCRIPTION:
The EGR solenoid valve is situated between the BPT and
EGR valve. EGR solenoid valve is opened by a signal
emitted from the ECM. Therefore, throttle port pressure is
transmitted to diaphragm of EGR valve.
DTC DETECTING CONDITION:
Two consecutive trips with fault
TROUBLE SYMPTOM:
Poor driving performance on low engine speed
1.Check transmission type.
AT
MT
Check AT/MT identification circuit.
2.Check output signal from ECM.
3.Check harness.
4.Check harness.
5.Check EGR solenoid valve.
6.Check power supply to EGR solenoid valve.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.
[T3D0] and [T3E0].>
235
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code
Page 1442 of 2248

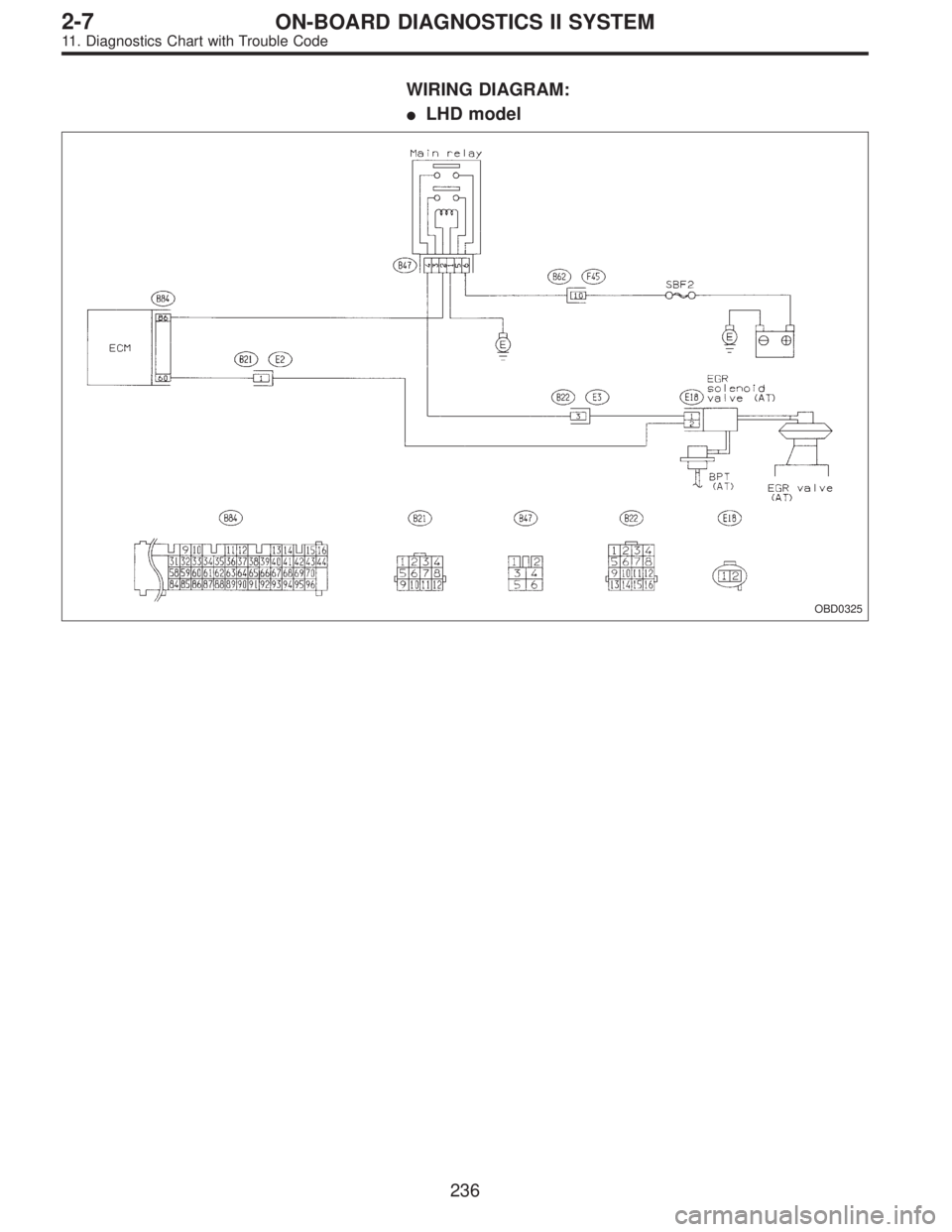

WIRING DIAGRAM:
LHD model
OBD0325
236
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code
Page 1443 of 2248

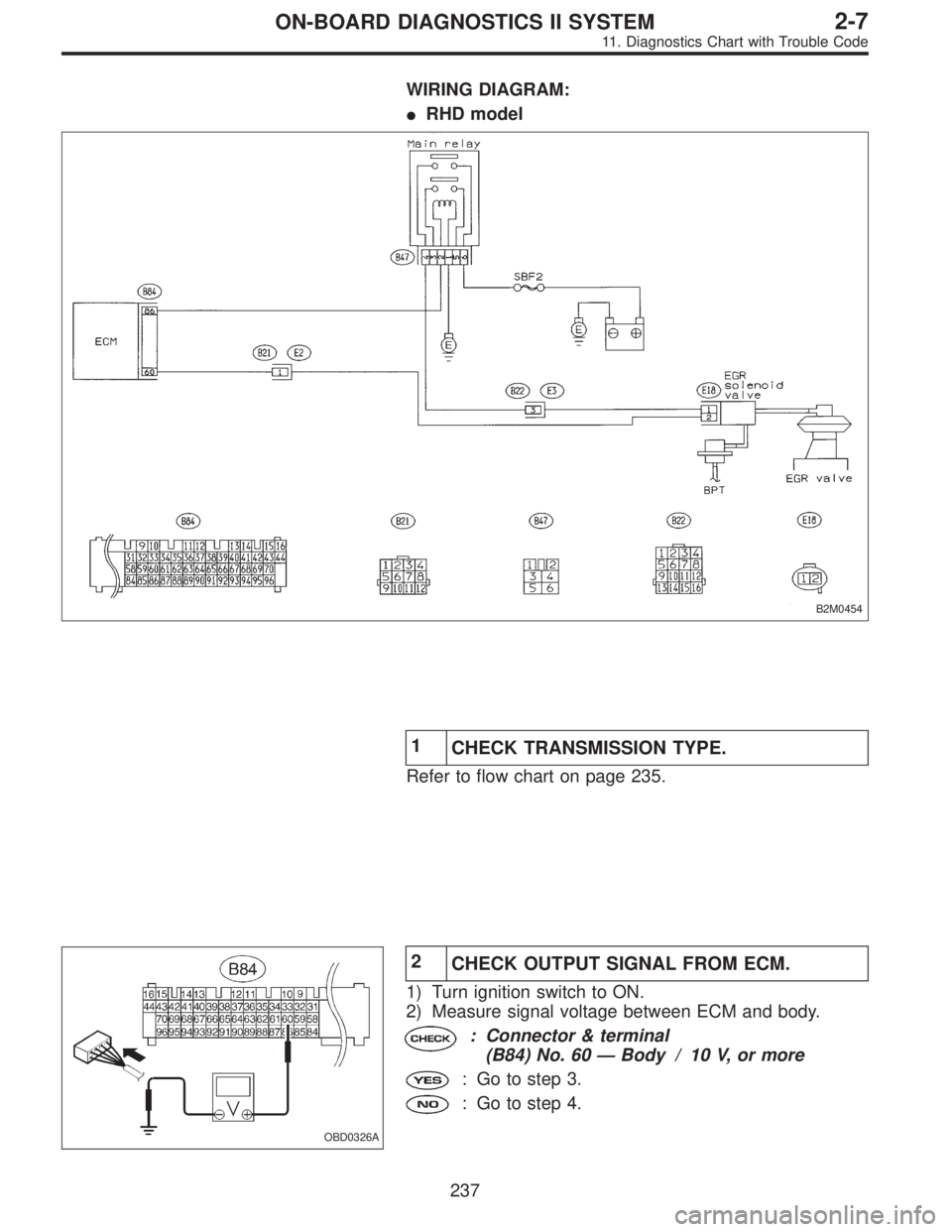

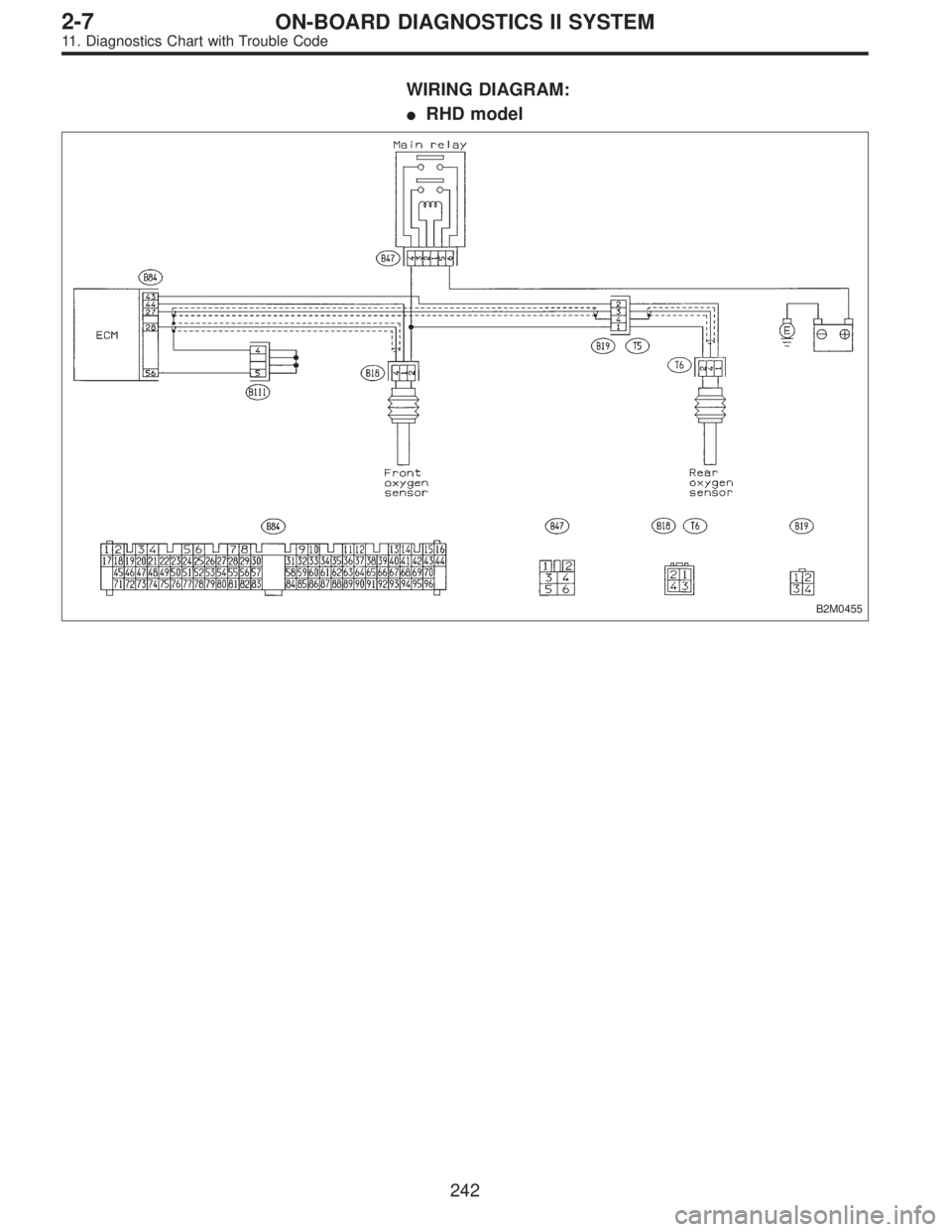

WIRING DIAGRAM:
RHD model
B2M0454
1
CHECK TRANSMISSION TYPE.
Refer to flow chart on page 235.
OBD0326A
2
CHECK OUTPUT SIGNAL FROM ECM.
1) Turn ignition switch to ON.
2) Measure signal voltage between ECM and body.
: Connector & terminal
(B84) No. 60—Body / 10 V, or more
: Go to step 3.
: Go to step 4.
237
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code
Page 1444 of 2248

OBD0326A
3

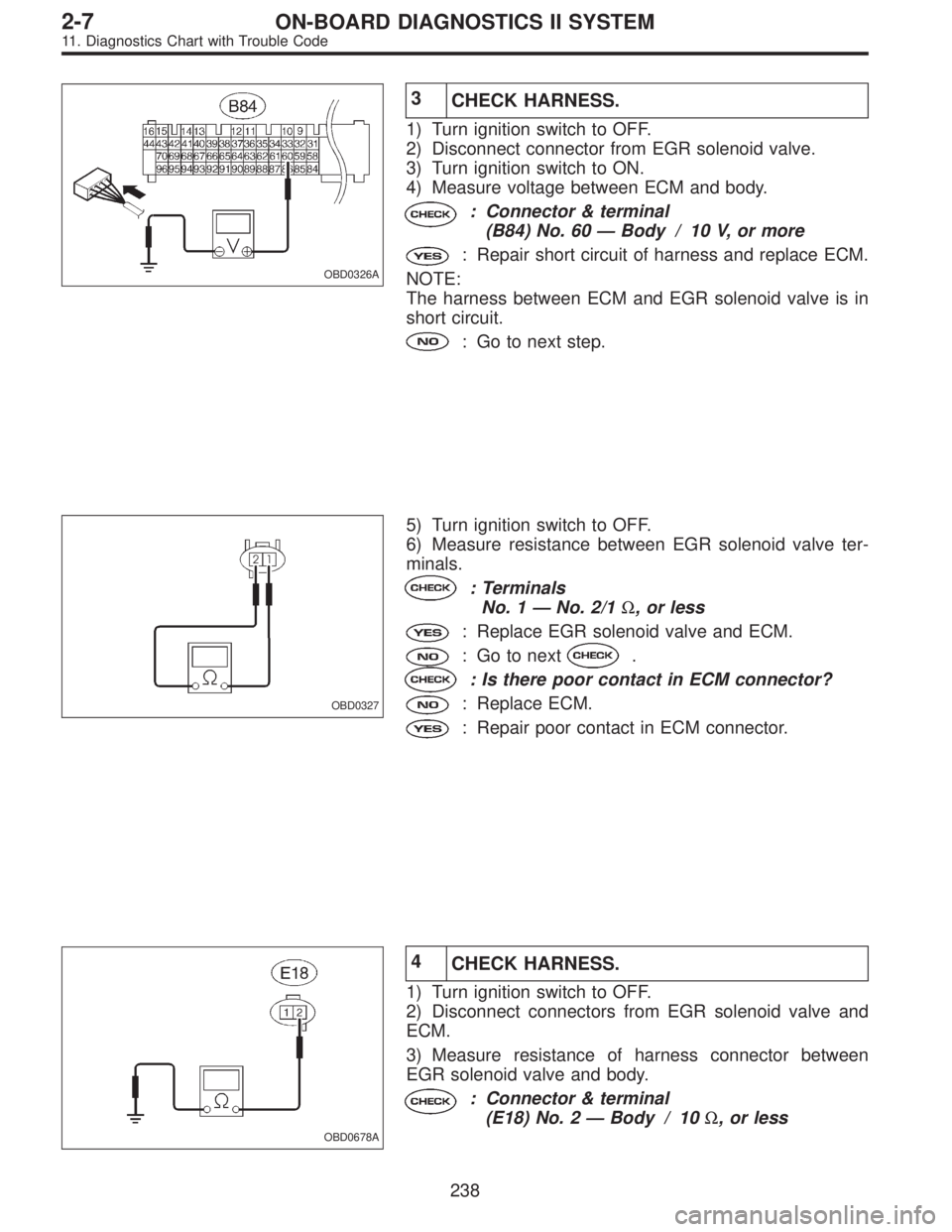

CHECK HARNESS.
1) Turn ignition switch to OFF.
2) Disconnect connector from EGR solenoid valve.
3) Turn ignition switch to ON.
4) Measure voltage between ECM and body.
: Connector & terminal
(B84) No. 60—Body / 10 V, or more
: Repair short circuit of harness and replace ECM.
NOTE:
The harness between ECM and EGR solenoid valve is in
short circuit.
: Go to next step.
OBD0327
5) Turn ignition switch to OFF.
6) Measure resistance between EGR solenoid valve ter-
minals.
: Terminals
No. 1—No. 2/1Ω, or less
: Replace EGR solenoid valve and ECM.
: Go to next.
: Is there poor contact in ECM connector?
: Replace ECM.
: Repair poor contact in ECM connector.
OBD0678A
4
CHECK HARNESS.
1) Turn ignition switch to OFF.
2) Disconnect connectors from EGR solenoid valve and
ECM.
3) Measure resistance of harness connector between
EGR solenoid valve and body.
: Connector & terminal
(E18) No. 2—Body / 10Ω, or less
238
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code
Page 1445 of 2248

: Repair short circuit of harness between ECM con-
nector and EGR solenoid valve connector.
: Go to the next step.
OBD0677A
4) Measure resistance of harness connector between
ECM and EGR solenoid valve.
: Connector & terminal
(B84) No. 60—(E18) No. 2 / 10Ω, or less
: Go to step 5.
: Repair open circuit of harness between ECM con-
nector and EGR solenoid valve connector.
OBD0327
5
CHECK EGR SOLENOID VALVE.
Measure resistance between connector terminals of EGR
solenoid valve.
: Terminals
No. 1—No. 2 / 10—100Ω
: Go to step 6.
: Replace EGR solenoid valve.
OBD0328A
6CHECK POWER SUPPLY TO EGR SOLENOID
VA LV E .
1) Turn ignition switch to ON.
2) Measure voltage between EGR solenoid valve harness
connector and body.
: Connector & terminal
(E18) No. 1—Body / 10 V, or more
: Confirm good connection at EGR solenoid valve
connector.
: Repair open circuit of harness between main relay
connector and EGR solenoid valve connector.
239
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code
Page 1446 of 2248
OBD0329

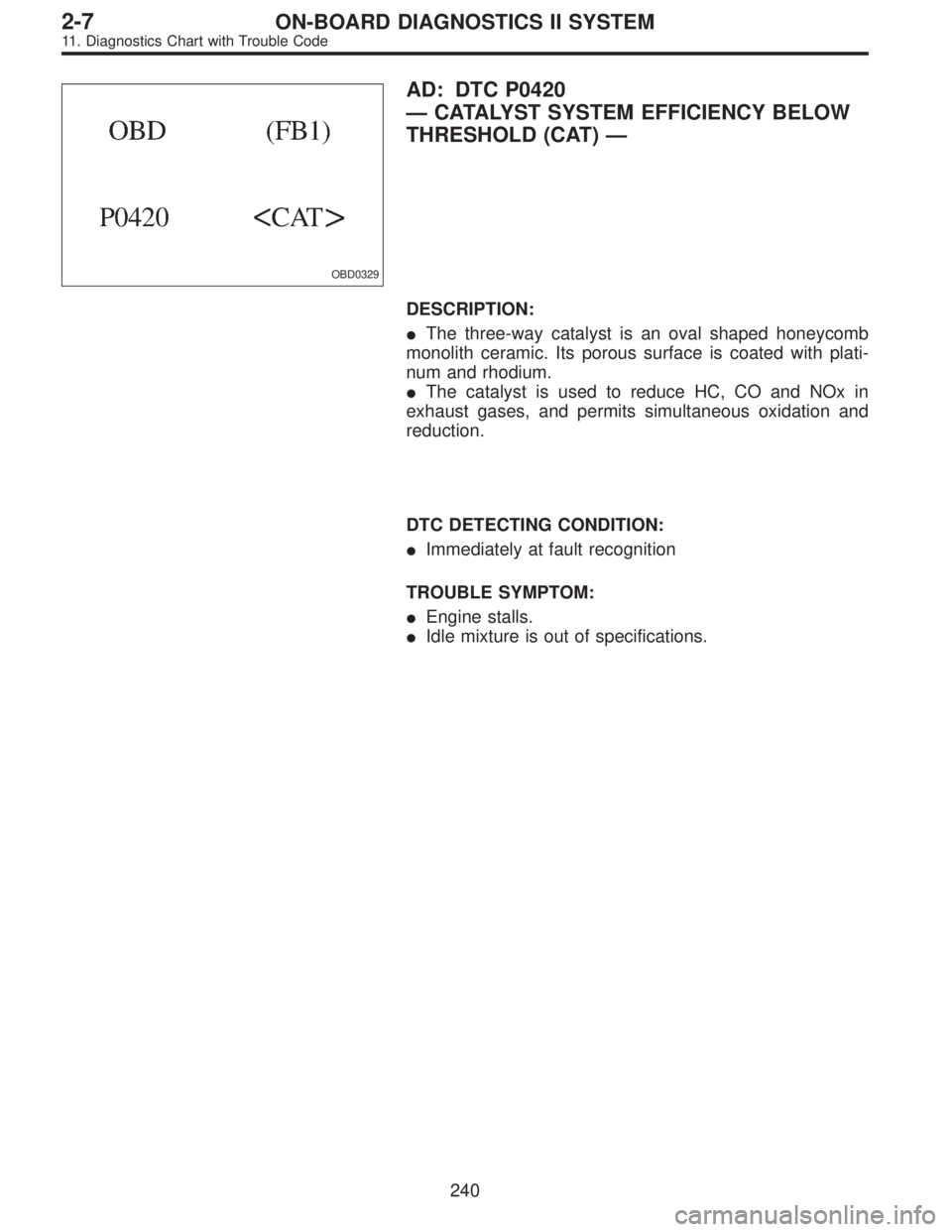

AD: DTC P0420
—CATALYST SYSTEM EFFICIENCY BELOW
THRESHOLD (CAT)—
DESCRIPTION:
The three-way catalyst is an oval shaped honeycomb
monolith ceramic. Its porous surface is coated with plati-
num and rhodium.
The catalyst is used to reduce HC, CO and NOx in
exhaust gases, and permits simultaneous oxidation and
reduction.
DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
Engine stalls.
Idle mixture is out of specifications.
240
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code
Page 1447 of 2248
1.Check any other DTC P0130, P0133, P0135,
P0136, P0139 and P0141 on display.
2.Check exhaust system.
3.Check rear catalytic converter.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.
[T3D0] and [T3E0].>

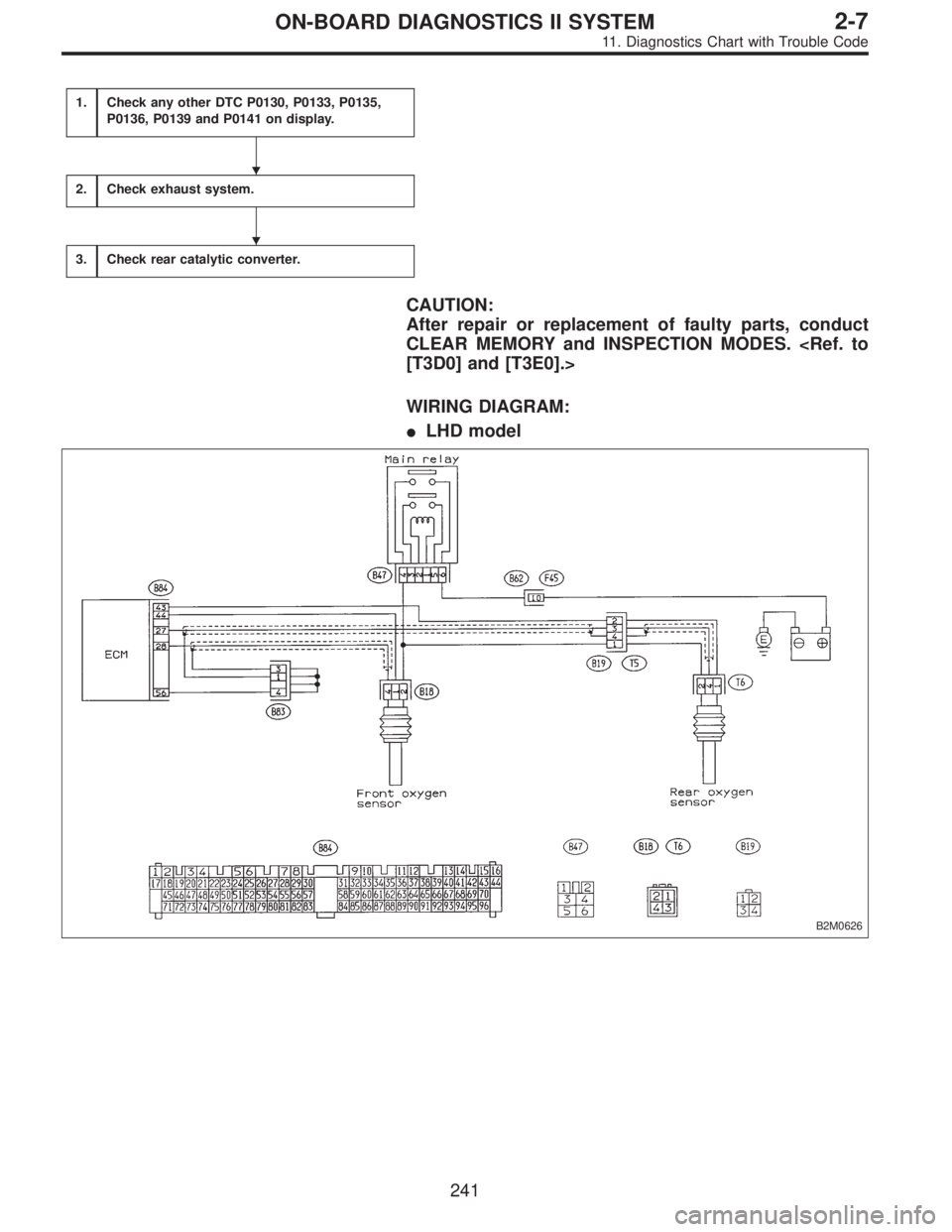

WIRING DIAGRAM:
LHD model
B2M0626
241
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code
Page 1448 of 2248
WIRING DIAGRAM:
RHD model
B2M0455
242
2-7ON-BOARD DIAGNOSTICS II SYSTEM
