Page 1833 of 2248

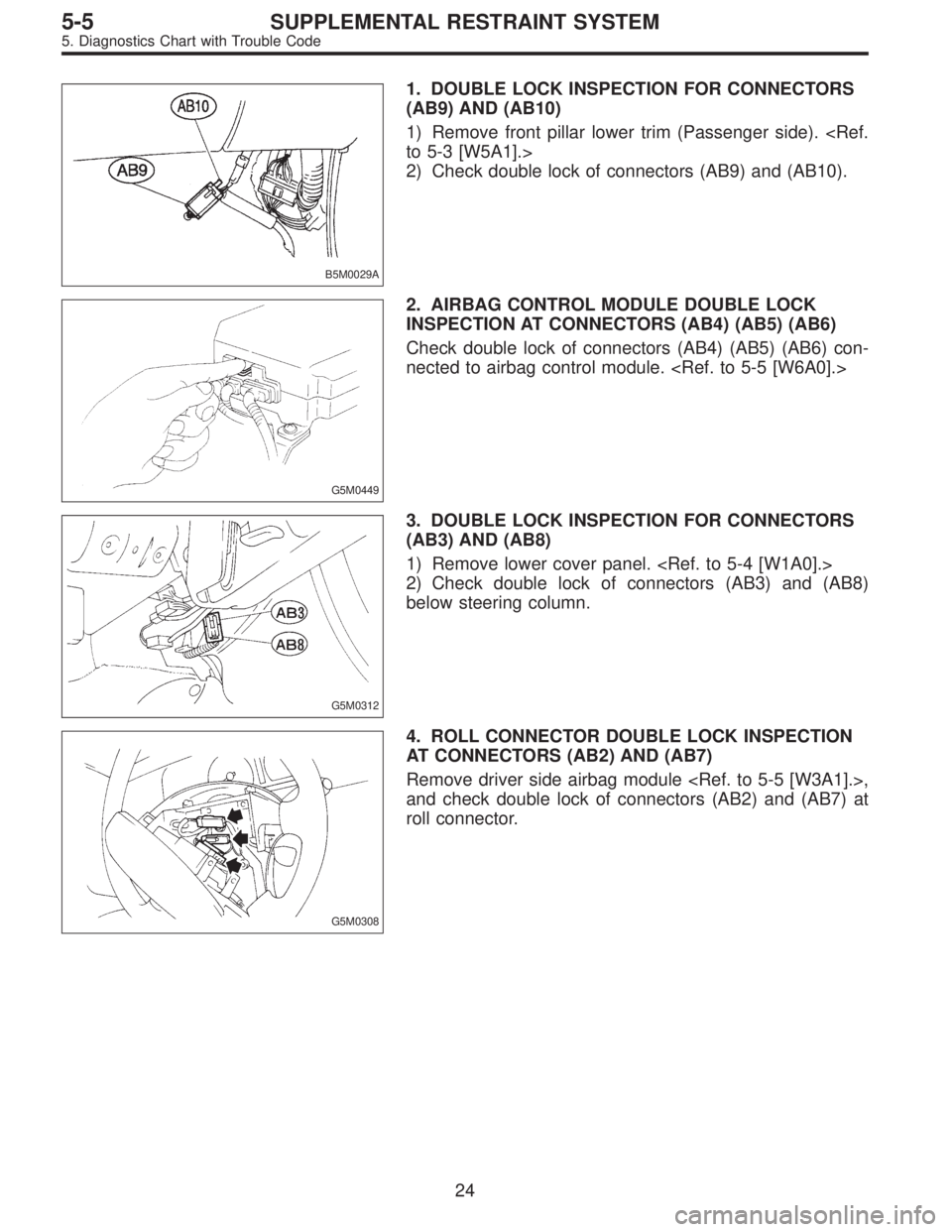

SUBARU LEGACY 1995 Service Repair Manual B5M0029A 1. DOUBLE LOCK INSPECTION FOR CONNECTORS (AB9) AND (AB10) 1) Remove front pillar lower trim (Passenger side). <Ref. to 5-3 [W5A1].> 2) Check double lock of connectors (AB9) and (AB10). G5M044

Page 1834 of 2248

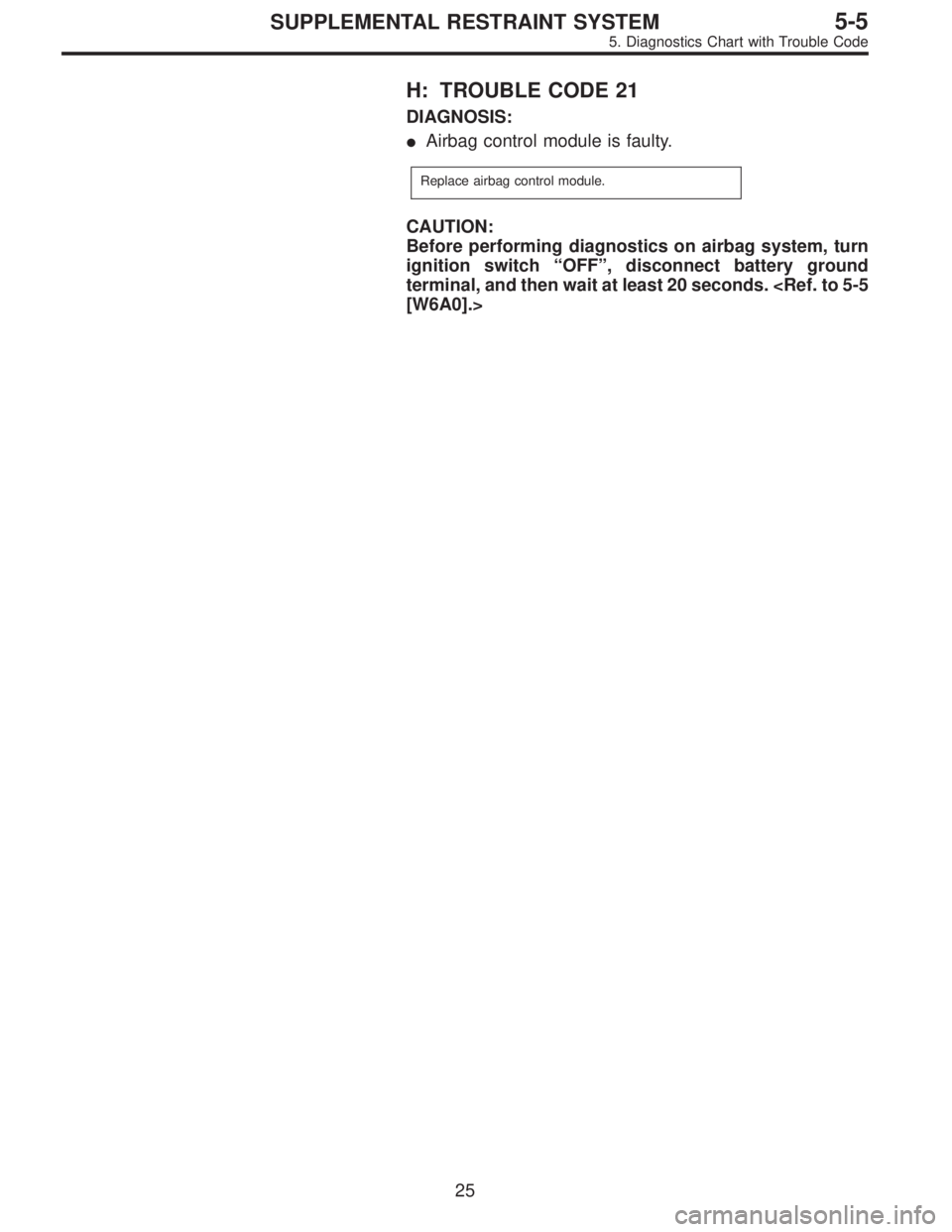

SUBARU LEGACY 1995 Service Repair Manual H: TROUBLE CODE 21 DIAGNOSIS: Airbag control module is faulty. Replace airbag control module. CAUTION: Before performing diagnostics on airbag system, turn ignition switch“OFF”, disconnect batter

Page 1835 of 2248

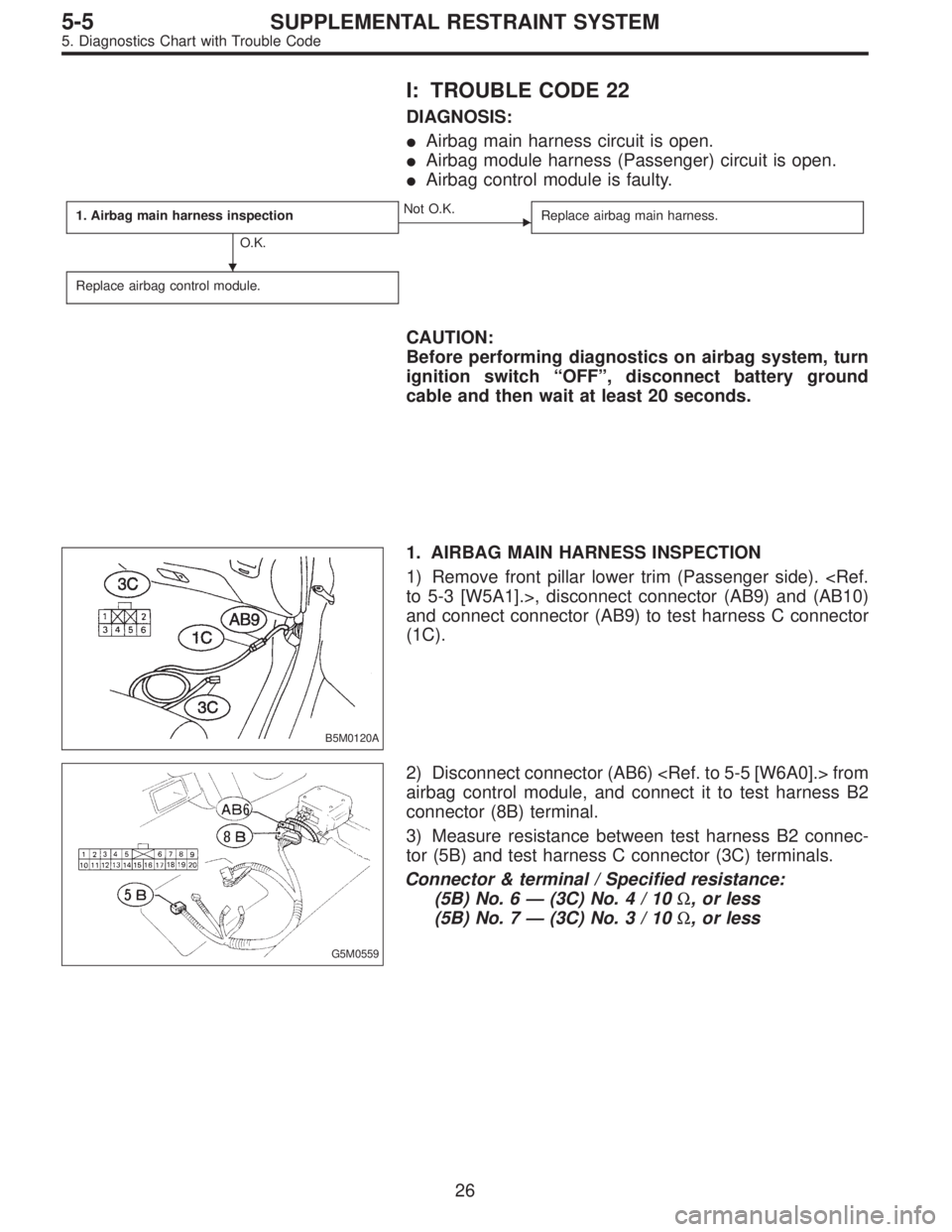

SUBARU LEGACY 1995 Service Repair Manual I: TROUBLE CODE 22 DIAGNOSIS: Airbag main harness circuit is open. Airbag module harness (Passenger) circuit is open. Airbag control module is faulty. 1. Airbag main harness inspection O.K. Not O.

Page 1836 of 2248

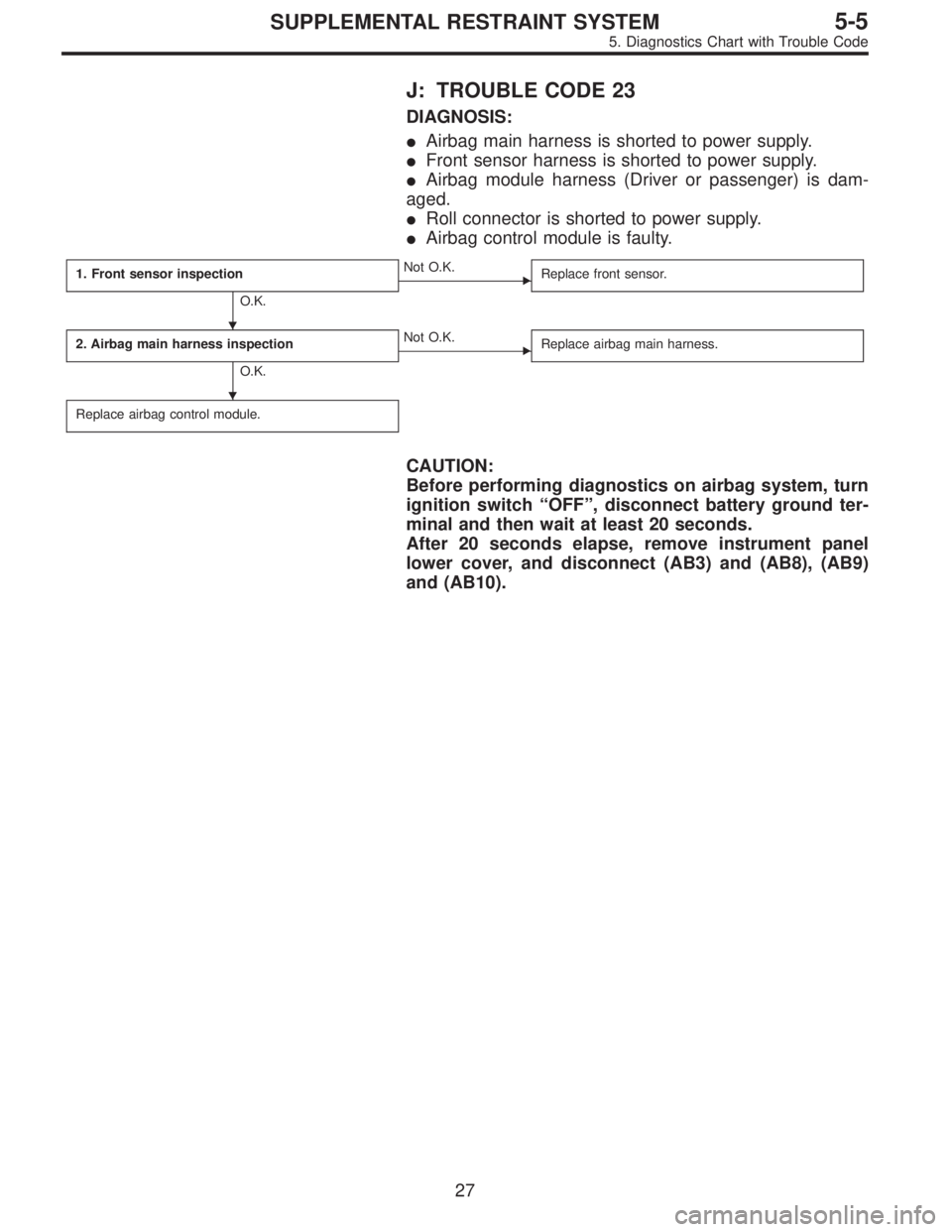

SUBARU LEGACY 1995 Service Repair Manual J: TROUBLE CODE 23 DIAGNOSIS: Airbag main harness is shorted to power supply. Front sensor harness is shorted to power supply. Airbag module harness (Driver or passenger) is dam- aged. Roll connec

Page 1837 of 2248

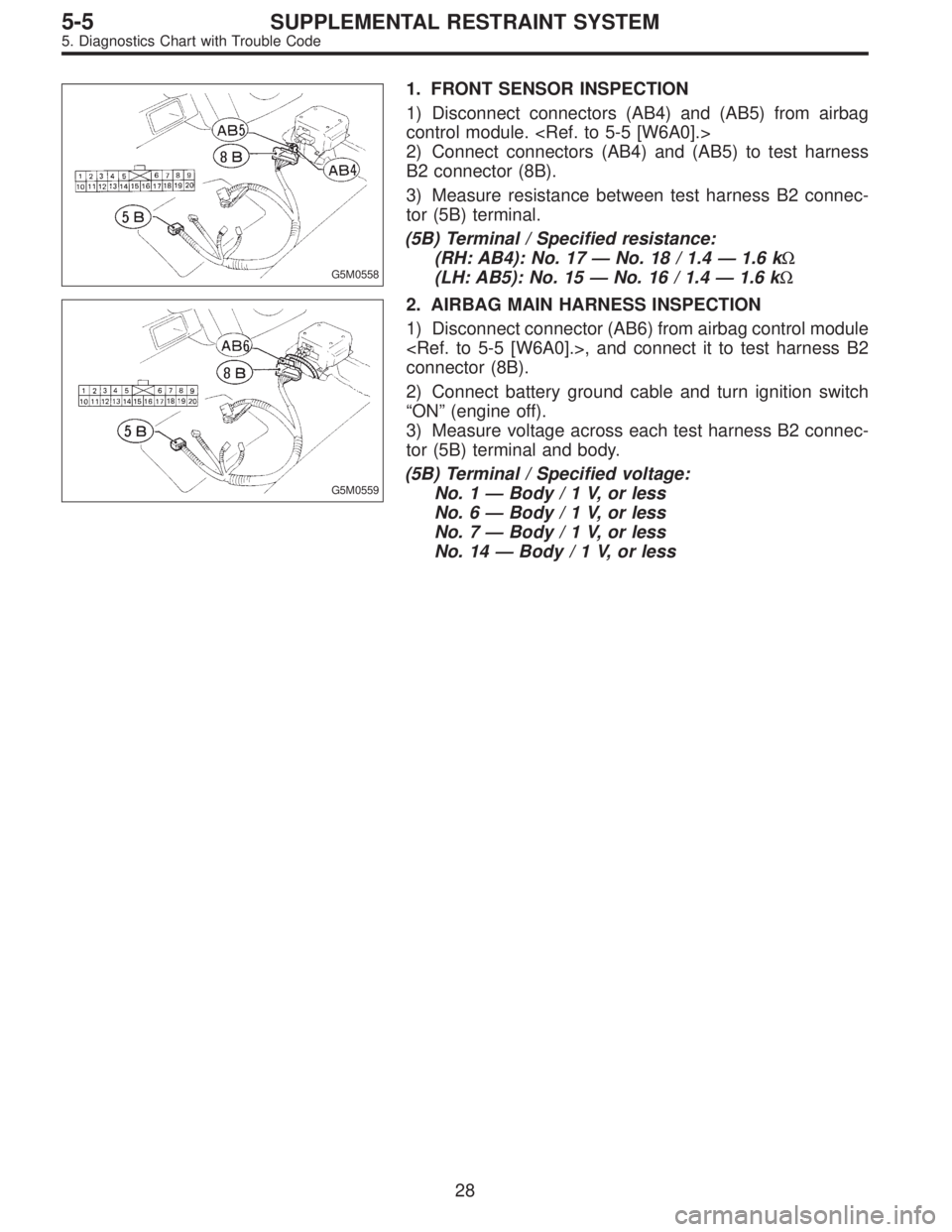

SUBARU LEGACY 1995 Service Repair Manual G5M0558 1. FRONT SENSOR INSPECTION 1) Disconnect connectors (AB4) and (AB5) from airbag control module. <Ref. to 5-5 [W6A0].> 2) Connect connectors (AB4) and (AB5) to test harness B2 connector (8B). 3

Page 1838 of 2248

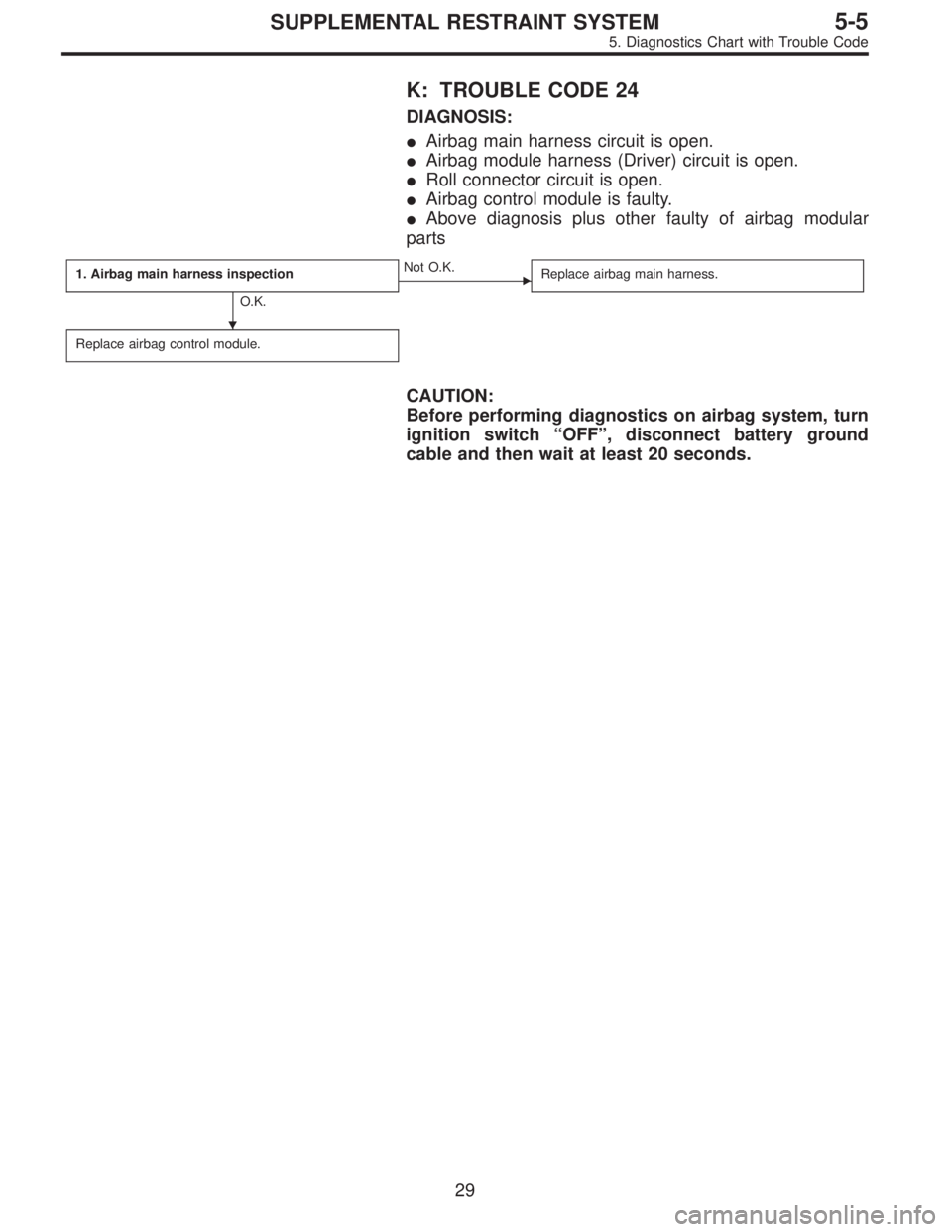

SUBARU LEGACY 1995 Service Repair Manual K: TROUBLE CODE 24 DIAGNOSIS: Airbag main harness circuit is open. Airbag module harness (Driver) circuit is open. Roll connector circuit is open. Airbag control module is faulty. Above diagnosis

Page 1839 of 2248

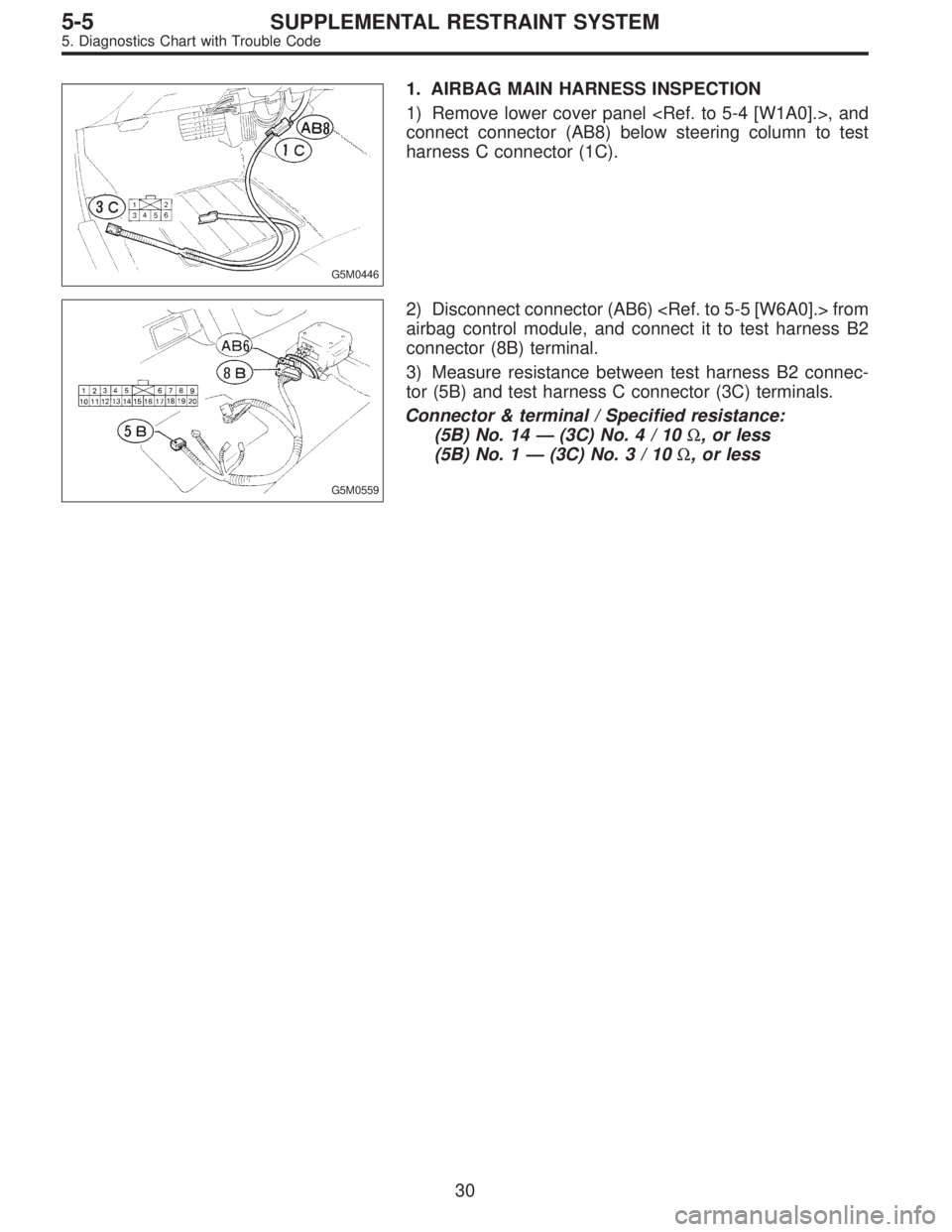

SUBARU LEGACY 1995 Service Repair Manual G5M0446 1. AIRBAG MAIN HARNESS INSPECTION 1) Remove lower cover panel <Ref. to 5-4 [W1A0].>, and connect connector (AB8) below steering column to test harness C connector (1C). G5M0559 2) Disconnect c

Page 1840 of 2248

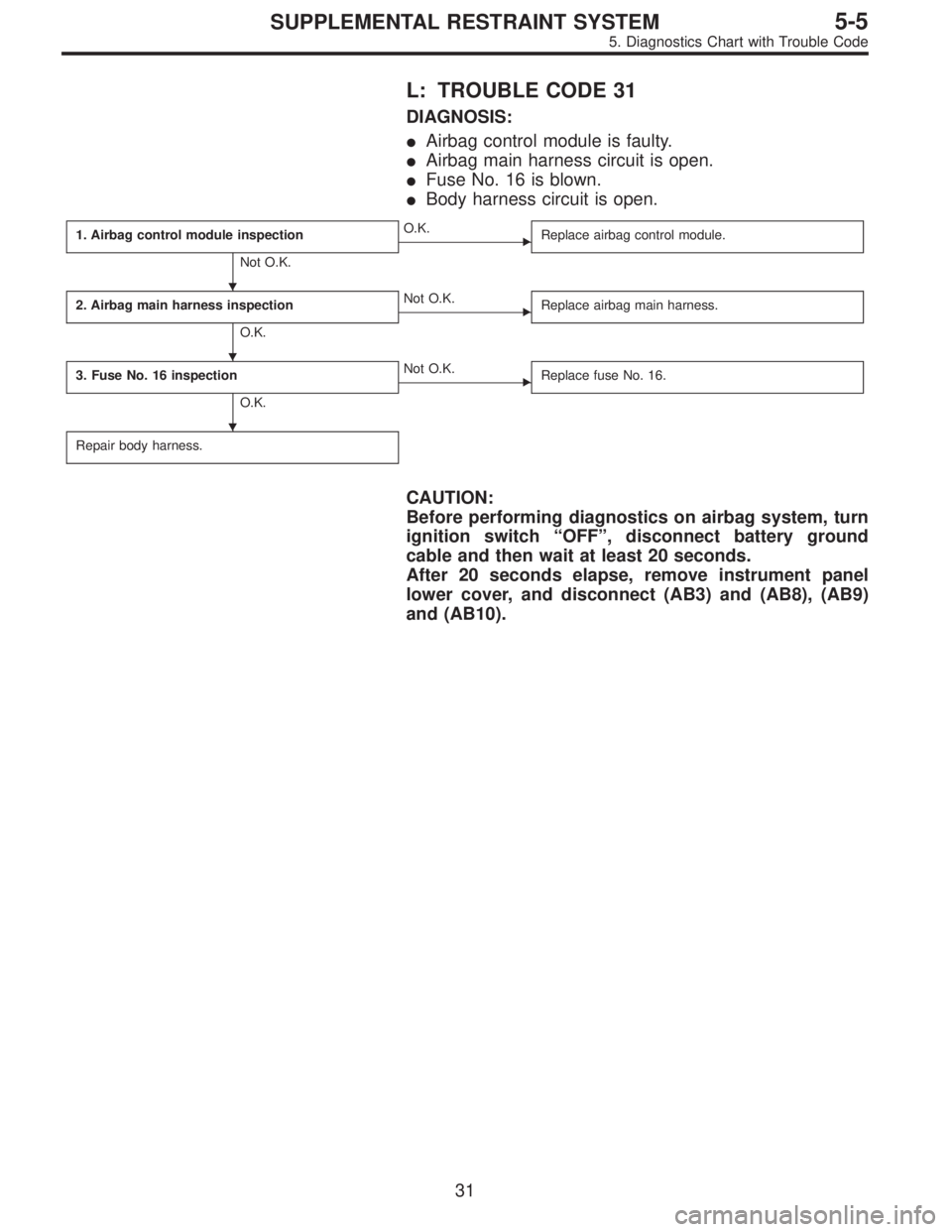

SUBARU LEGACY 1995 Service Repair Manual L: TROUBLE CODE 31 DIAGNOSIS: Airbag control module is faulty. Airbag main harness circuit is open. Fuse No. 16 is blown. Body harness circuit is open. 1. Airbag control module inspection Not O.K.
