Page 929 of 2248

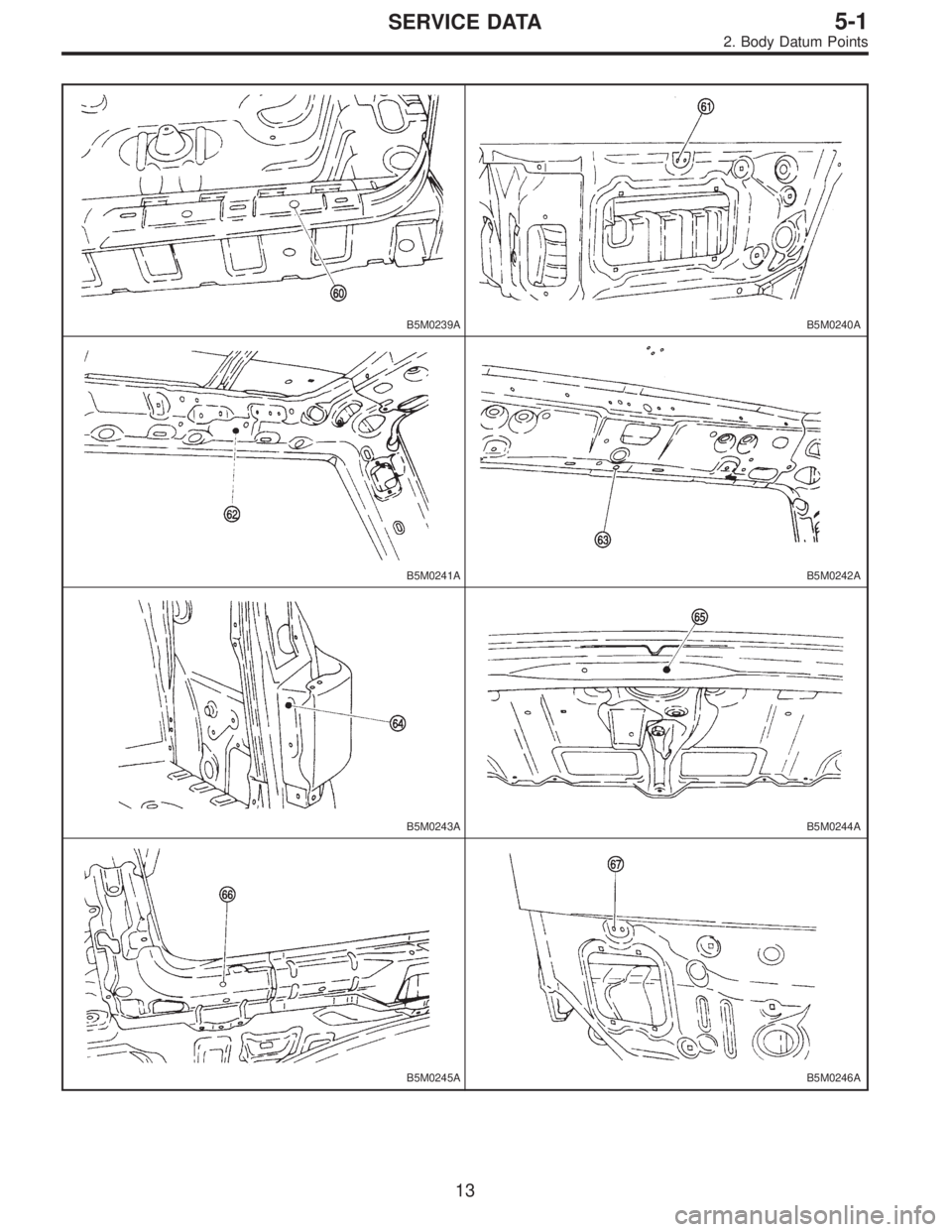

SUBARU LEGACY 1995 Service Repair Manual B5M0239AB5M0240A B5M0241AB5M0242A B5M0243AB5M0244A B5M0245AB5M0246A 13 5-1SERVICE DATA 2. Body Datum Points

Page 930 of 2248

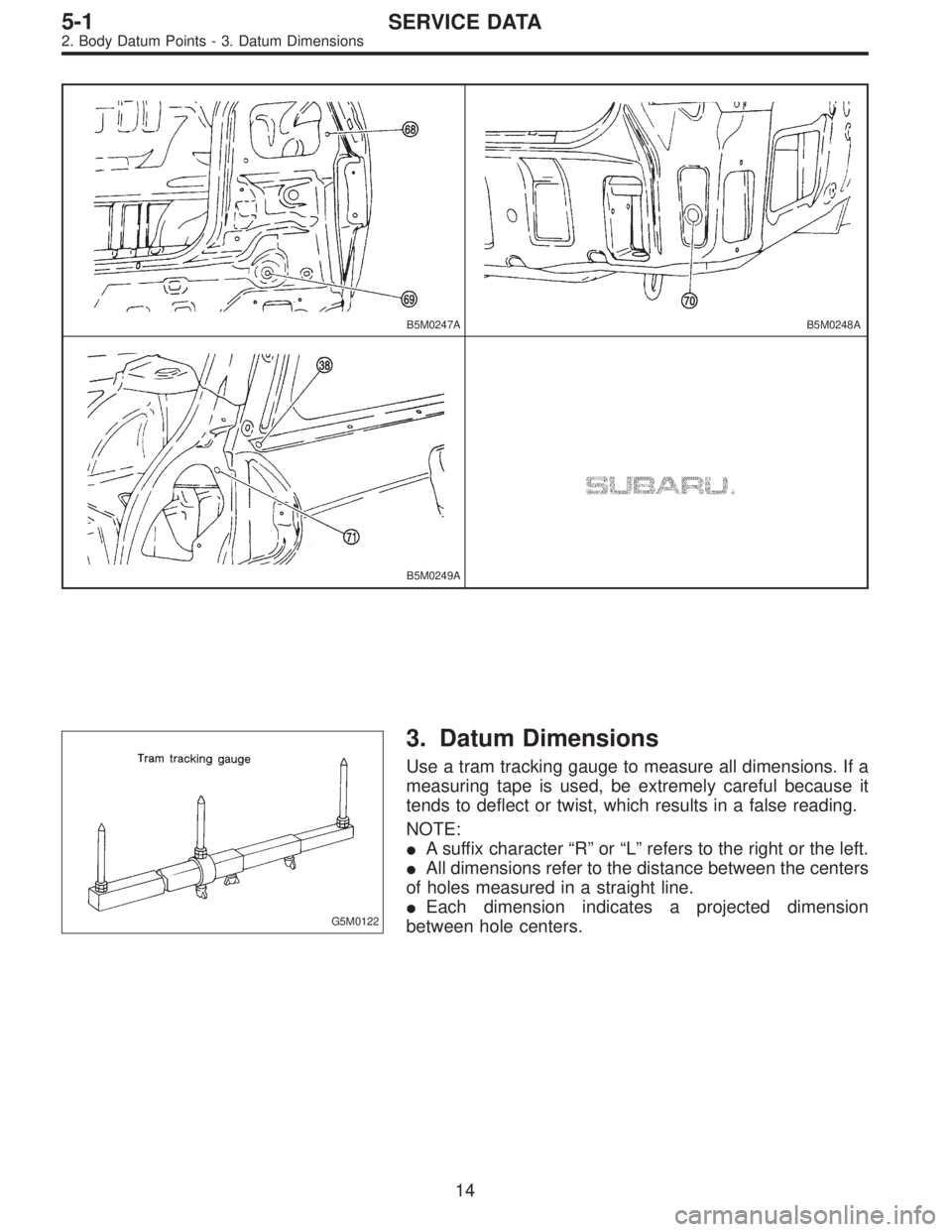

SUBARU LEGACY 1995 Service Repair Manual B5M0247AB5M0248A B5M0249A G5M0122 3. Datum Dimensions Use a tram tracking gauge to measure all dimensions. If a measuring tape is used, be extremely careful because it tends to deflect or twist, which

Page 931 of 2248

SUBARU LEGACY 1995 Service Repair Manual B5M0247AB5M0248A B5M0249A G5M0122 3. Datum Dimensions Use a tram tracking gauge to measure all dimensions. If a measuring tape is used, be extremely careful because it tends to deflect or twist, which

Page 932 of 2248

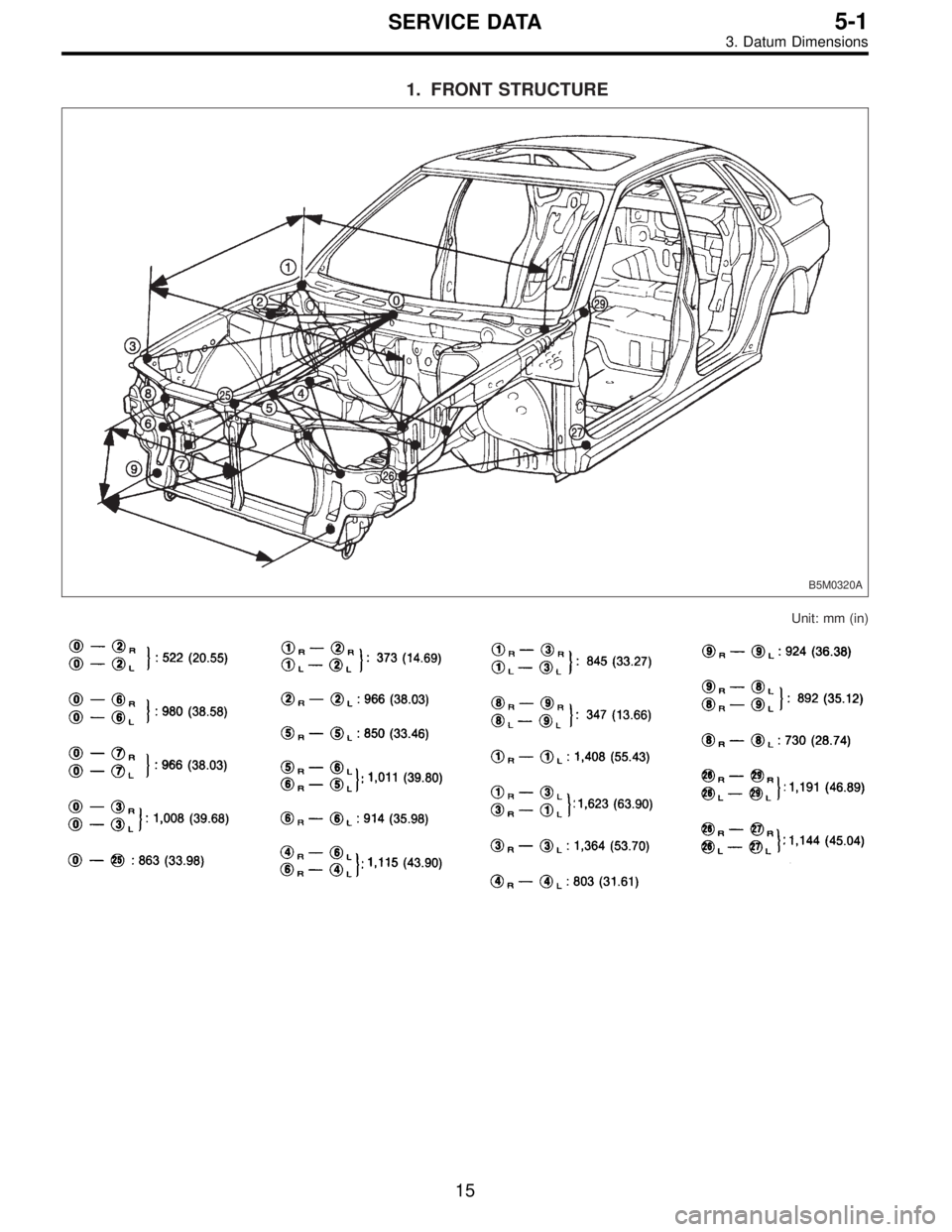

SUBARU LEGACY 1995 Service Repair Manual 1. FRONT STRUCTURE B5M0320A Unit: mm (in) 15 5-1SERVICE DATA 3. Datum Dimensions

Page 933 of 2248

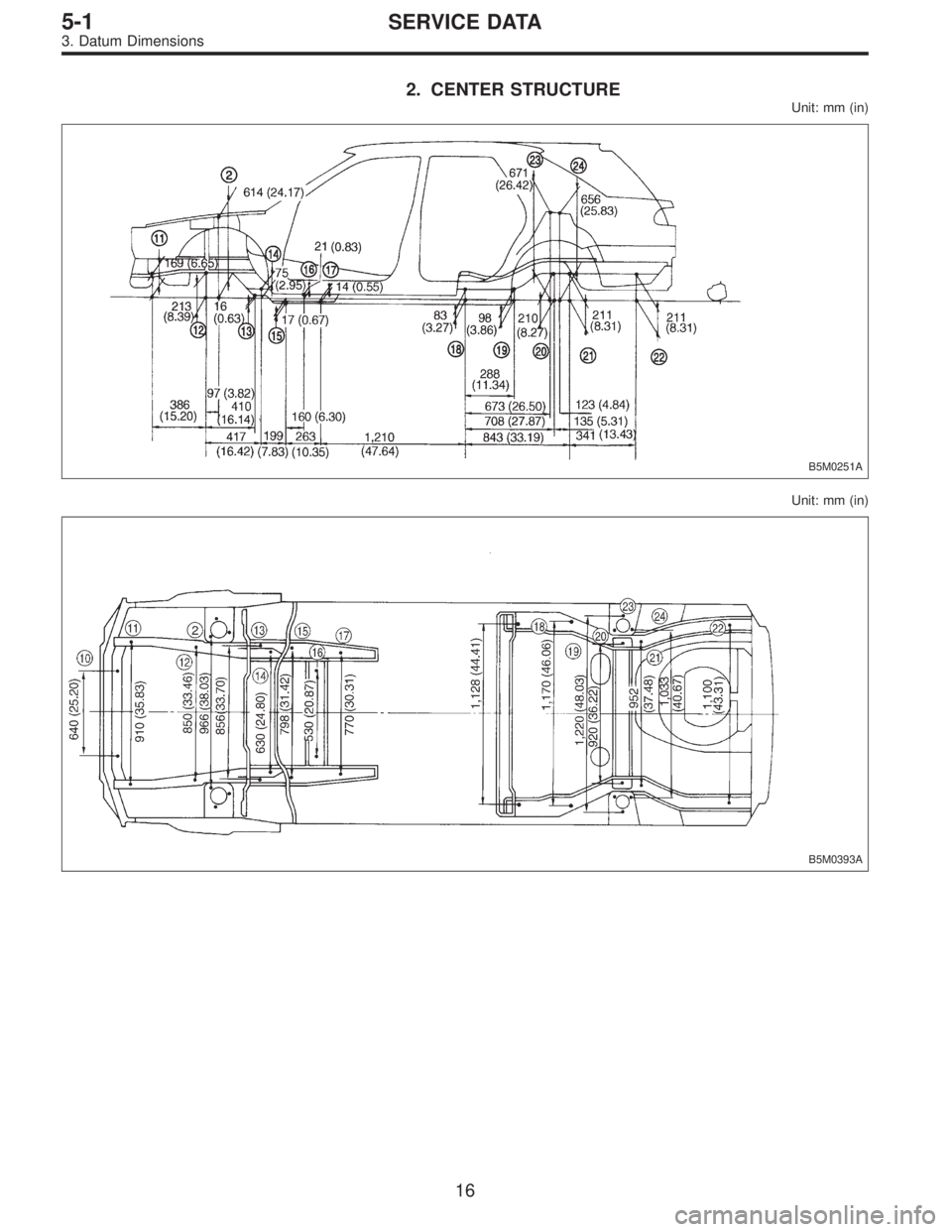

SUBARU LEGACY 1995 Service Repair Manual 2. CENTER STRUCTURE Unit: mm (in) B5M0251A Unit: mm (in) B5M0393A 16 5-1SERVICE DATA 3. Datum Dimensions

Page 934 of 2248

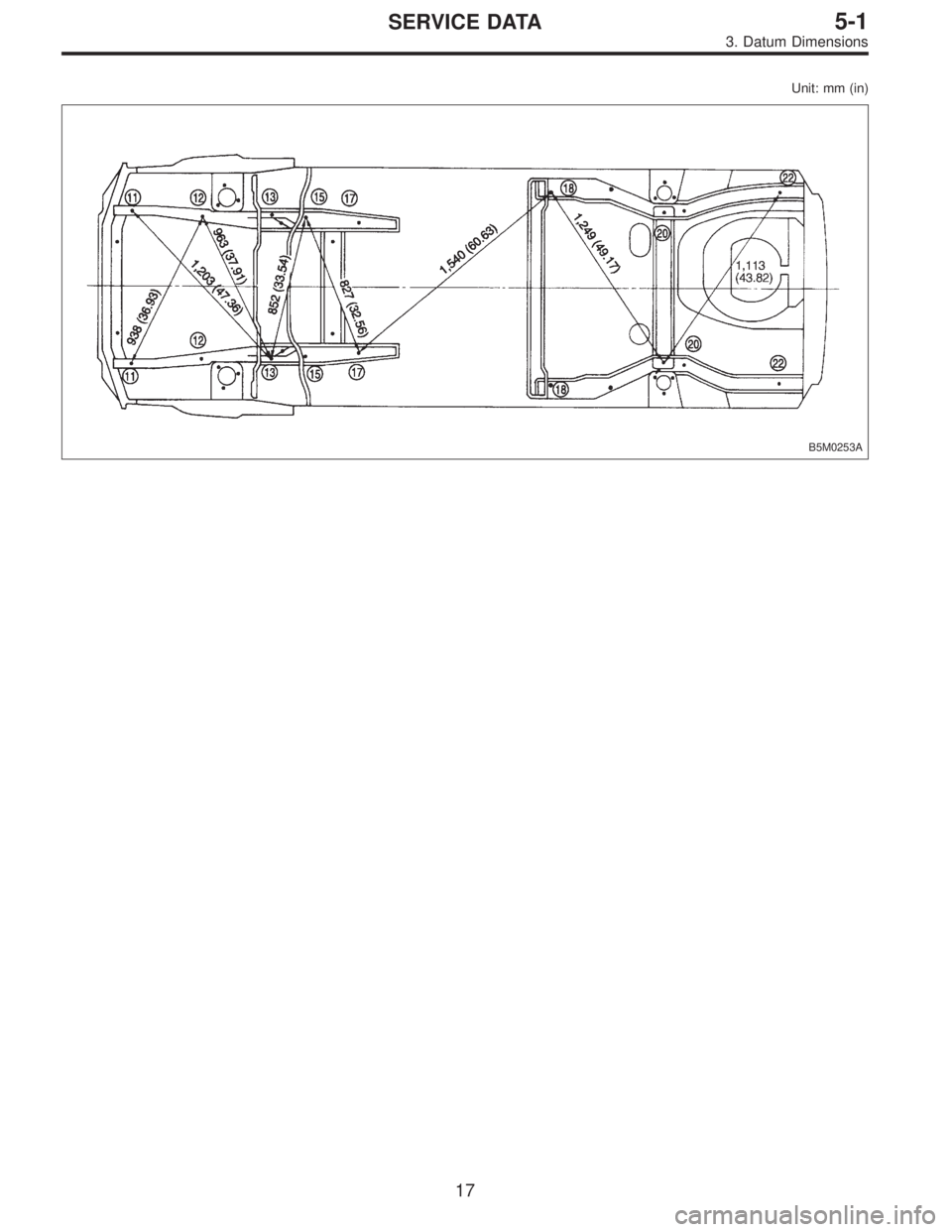

SUBARU LEGACY 1995 Service Repair Manual Unit: mm (in) B5M0253A 17 5-1SERVICE DATA 3. Datum Dimensions

Page 935 of 2248

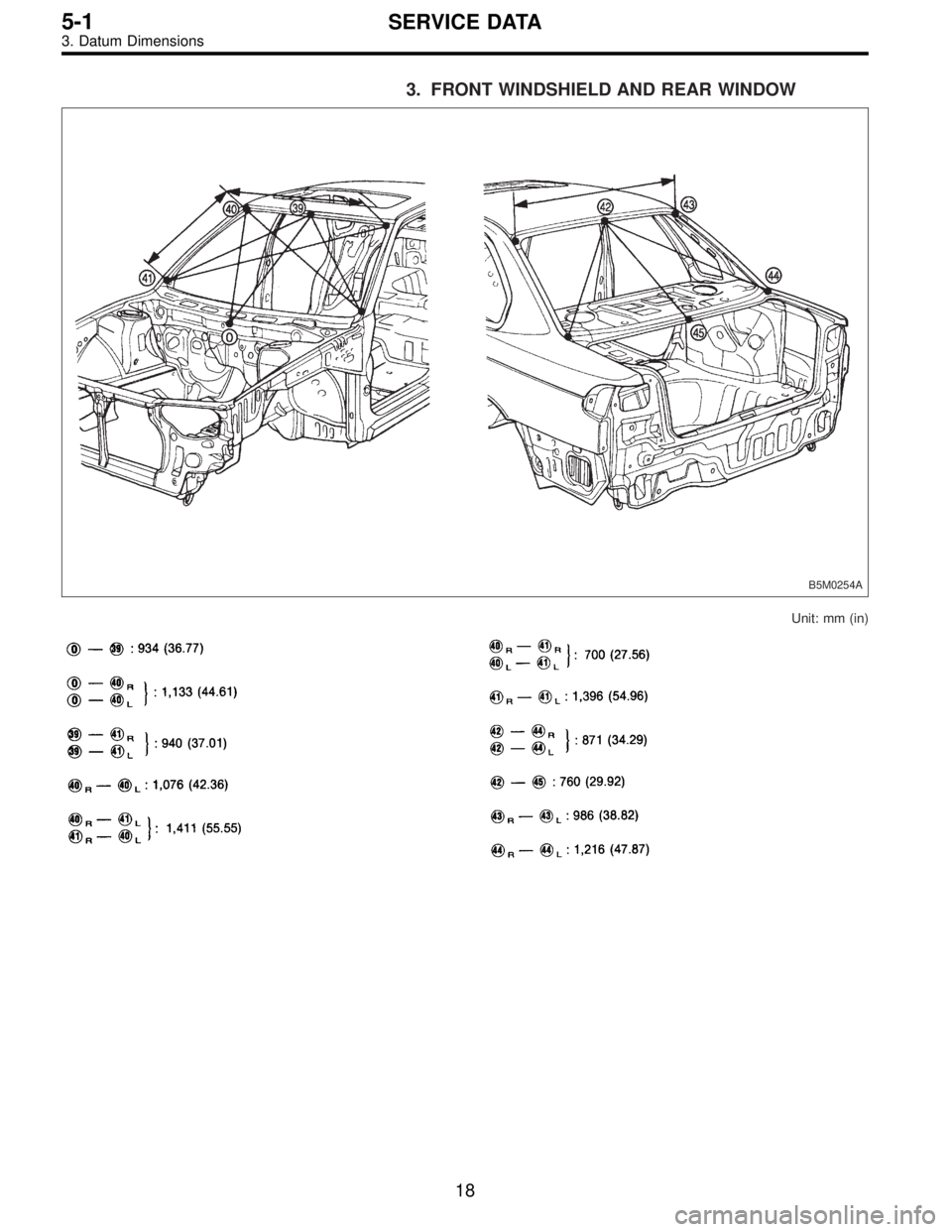

SUBARU LEGACY 1995 Service Repair Manual 3. FRONT WINDSHIELD AND REAR WINDOW B5M0254A Unit: mm (in) 18 5-1SERVICE DATA 3. Datum Dimensions

Page 936 of 2248

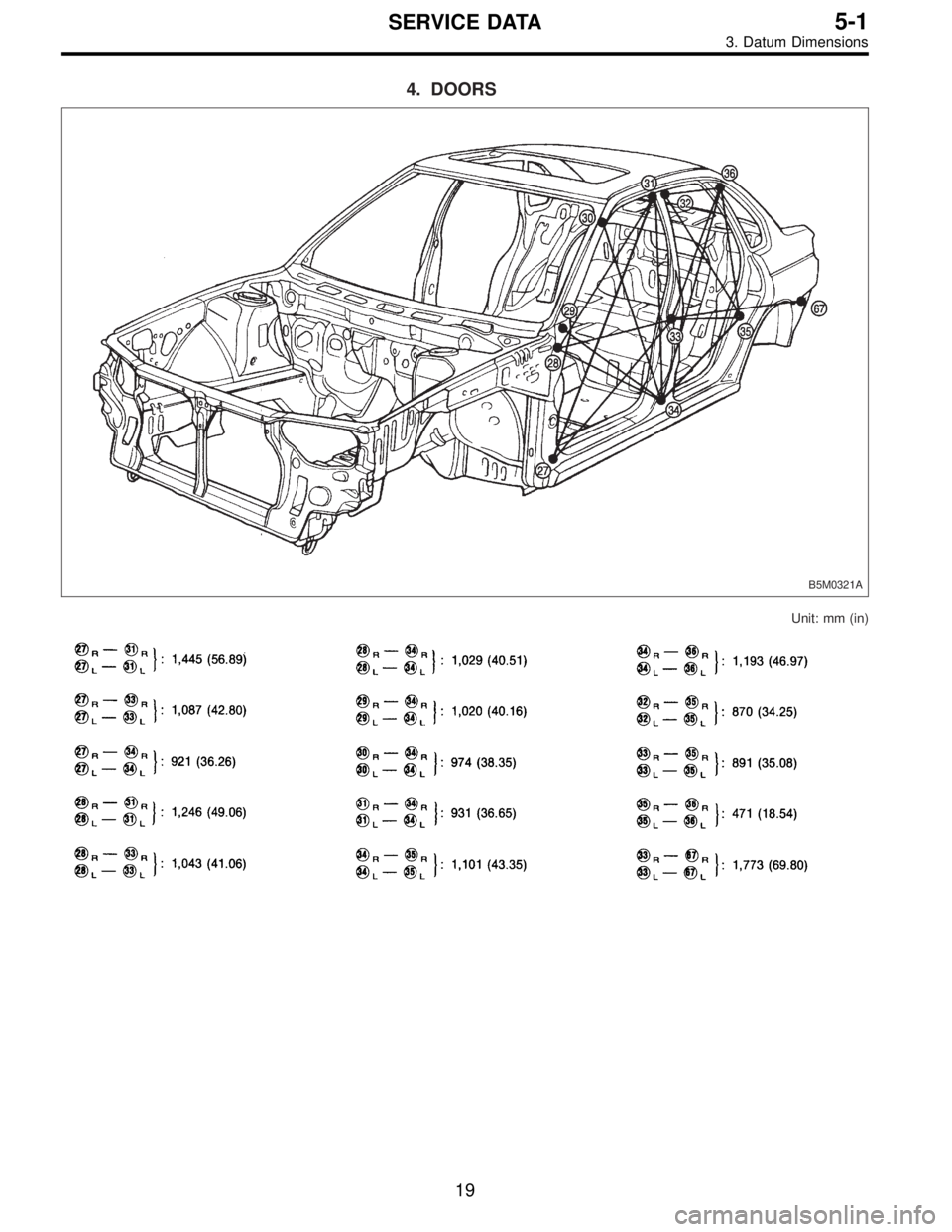

SUBARU LEGACY 1995 Service Repair Manual 4. DOORS B5M0321A Unit: mm (in) 19 5-1SERVICE DATA 3. Datum Dimensions
