Page 1505 of 2248

SUBARU LEGACY 1995 Service Repair Manual 1.Check harness connector between TCM and shift solenoid 1. 2.Check shift solenoid 1’s ground line. 3.Check shift solenoid 1. 4.Check output signal emitted from TCM. CAUTION: After repair or replace

Page 1506 of 2248

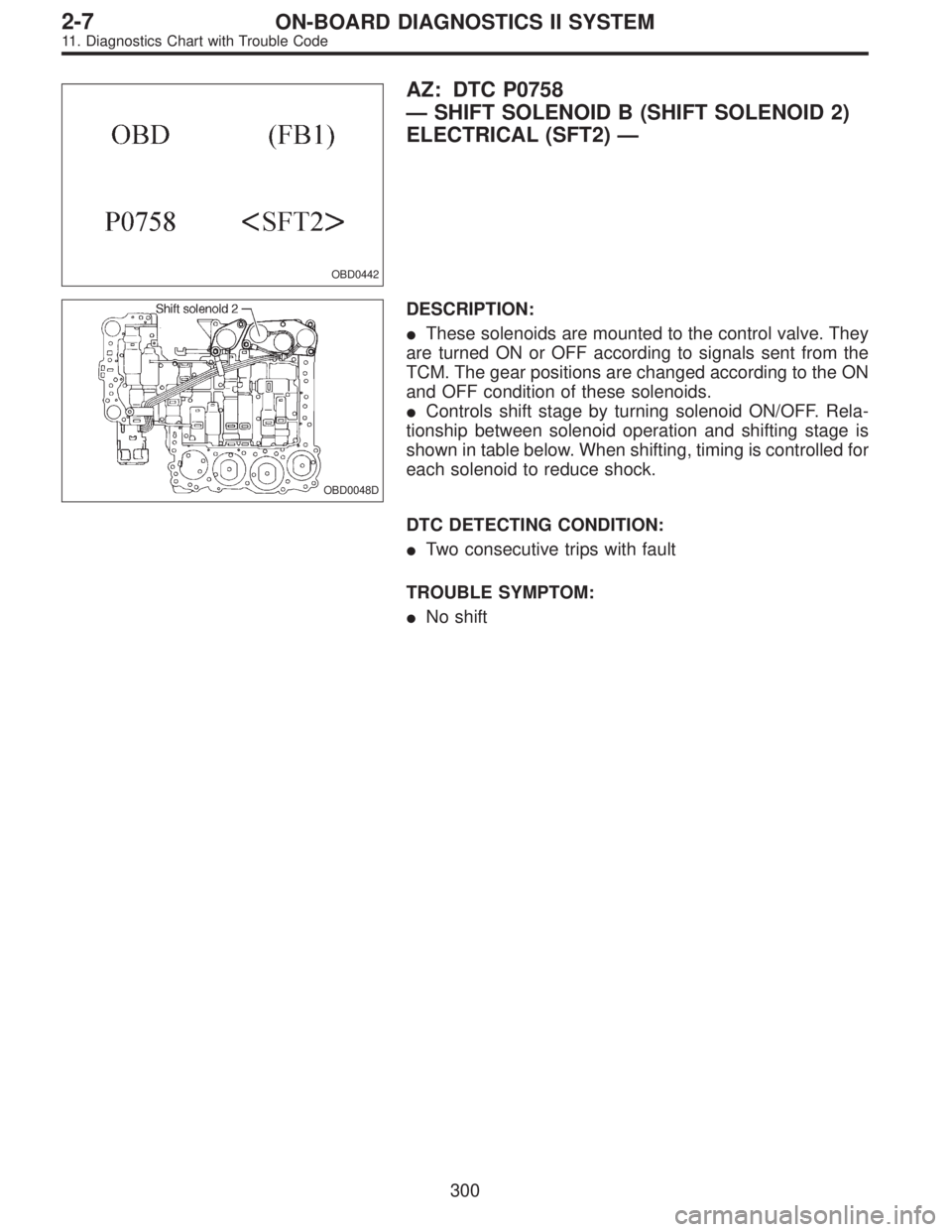

SUBARU LEGACY 1995 Service Repair Manual OBD0442 AZ: DTC P0758 —SHIFT SOLENOID B (SHIFT SOLENOID 2) ELECTRICAL (SFT2)— OBD0048D DESCRIPTION: These solenoids are mounted to the control valve. They are turned ON or OFF according to signal

Page 1507 of 2248

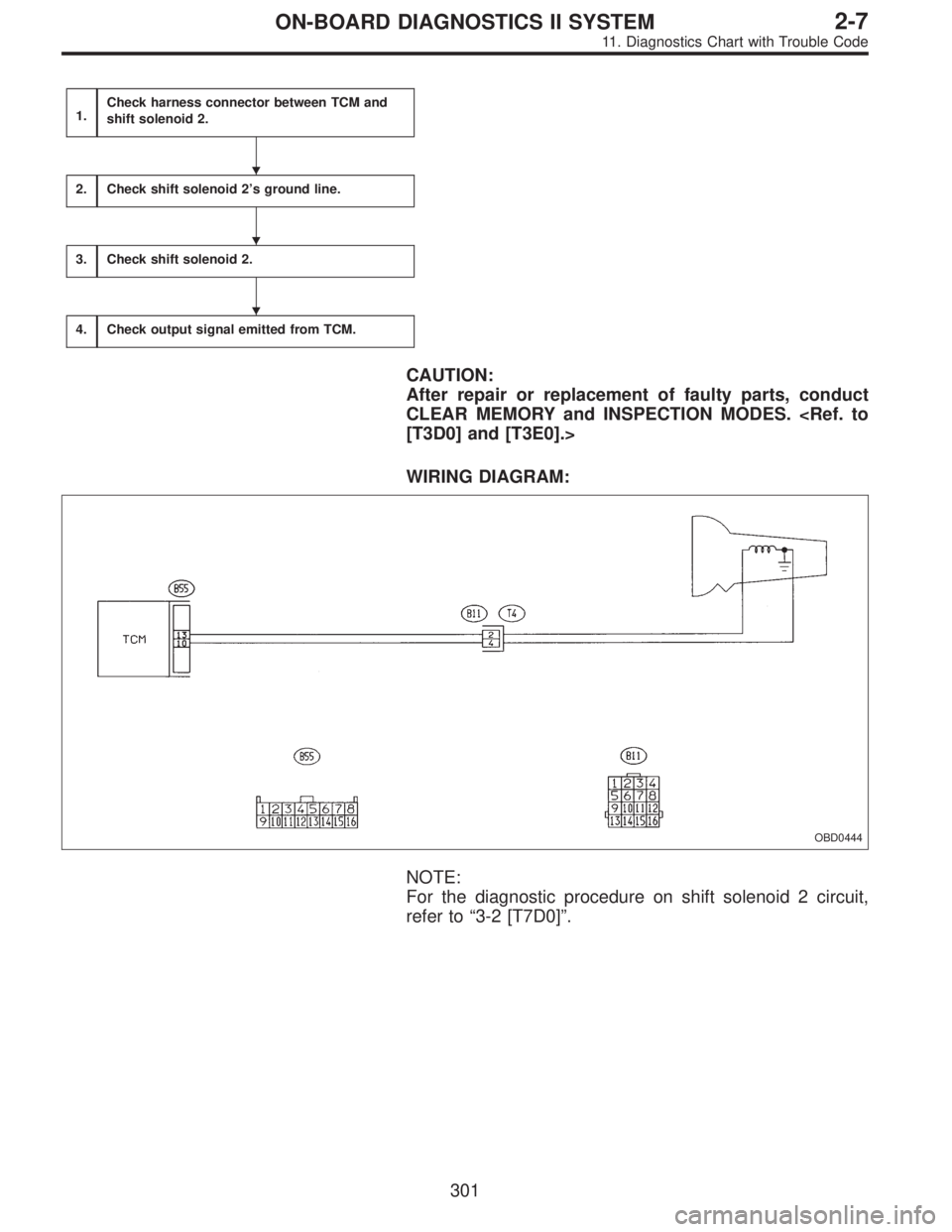

SUBARU LEGACY 1995 Service Repair Manual 1.Check harness connector between TCM and shift solenoid 2. 2.Check shift solenoid 2’s ground line. 3.Check shift solenoid 2. 4.Check output signal emitted from TCM. CAUTION: After repair or replace

Page 1508 of 2248

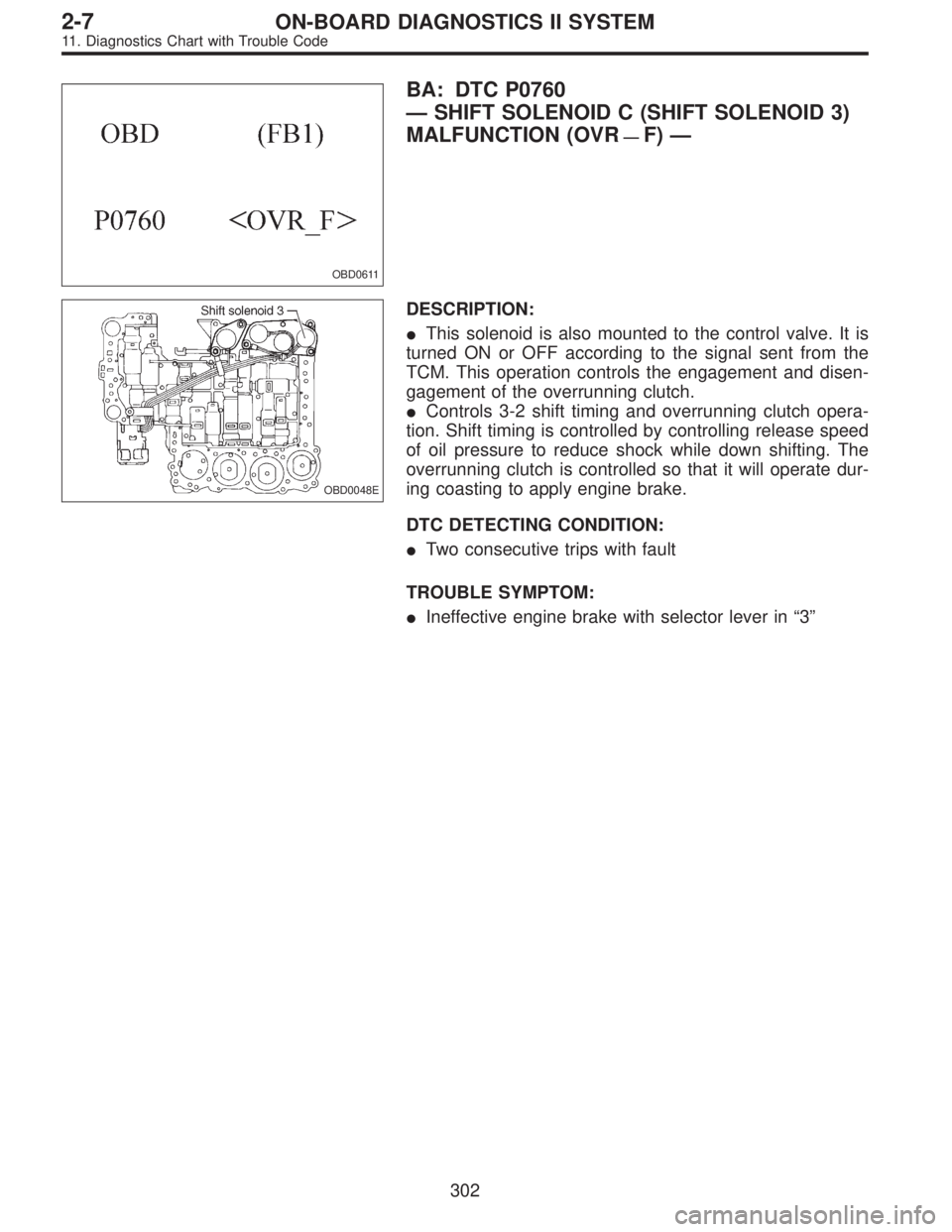

SUBARU LEGACY 1995 Service Repair Manual OBD0611 BA: DTC P0760 —SHIFT SOLENOID C (SHIFT SOLENOID 3) MALFUNCTION (OVR —F)— OBD0048E DESCRIPTION: This solenoid is also mounted to the control valve. It is turned ON or OFF according to th

Page 1509 of 2248

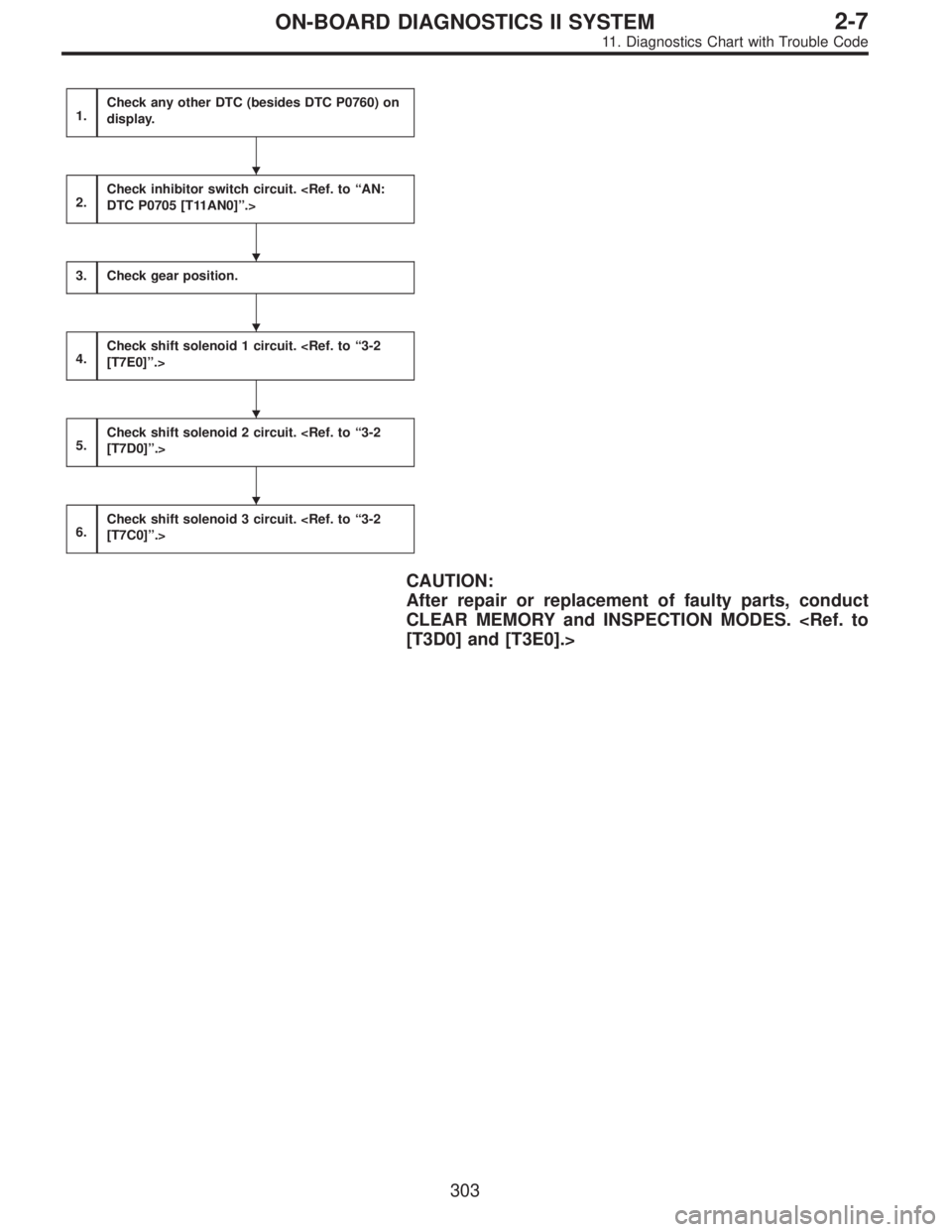

SUBARU LEGACY 1995 Service Repair Manual 1.Check any other DTC (besides DTC P0760) on display. 2.Check inhibitor switch circuit. <Ref. to“AN: DTC P0705 [T11AN0]”.> 3.Check gear position. 4.Check shift solenoid 1 circuit. <Ref. to“3-2 [

Page 1510 of 2248

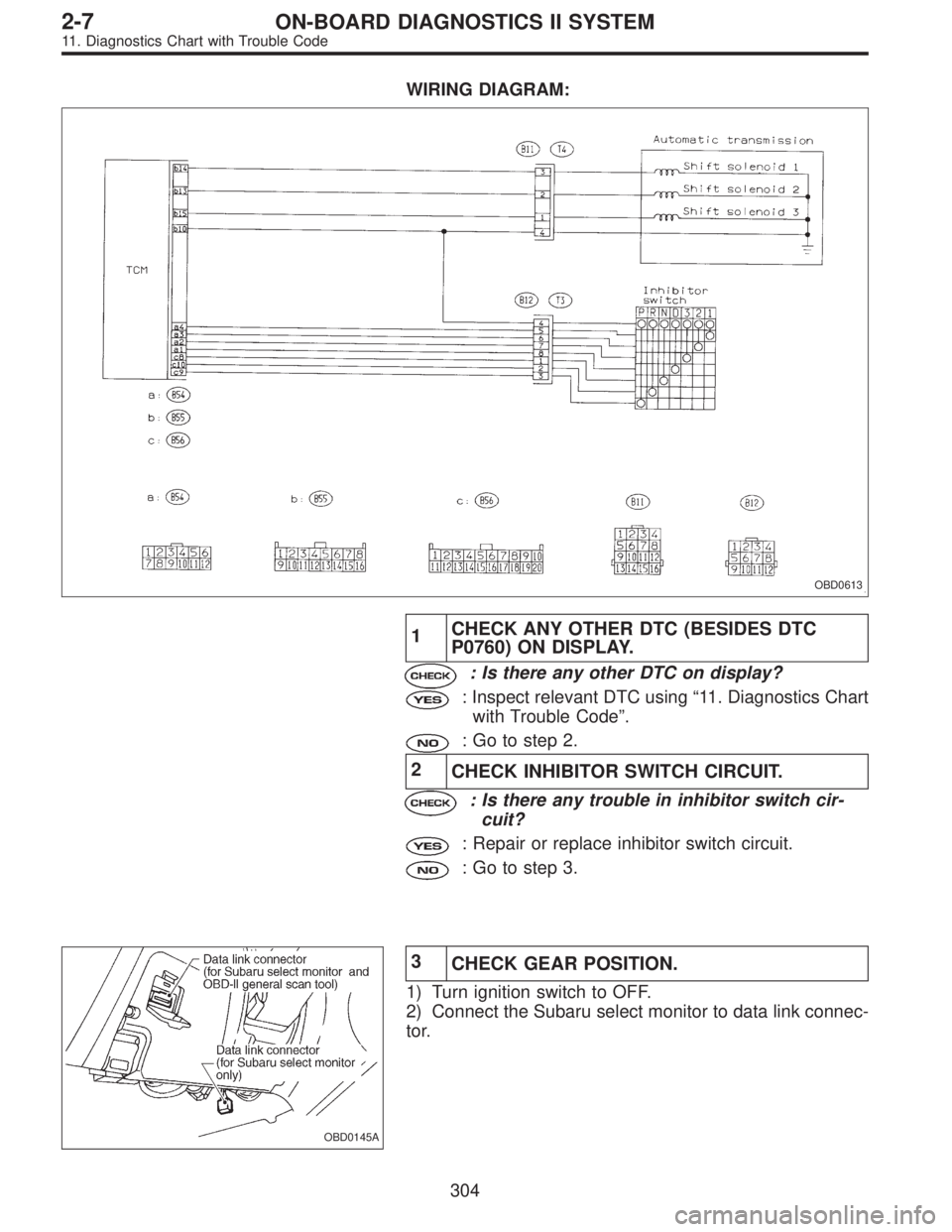

SUBARU LEGACY 1995 Service Repair Manual WIRING DIAGRAM: OBD0613 1CHECK ANY OTHER DTC (BESIDES DTC P0760) ON DISPLAY. : Is there any other DTC on display? : Inspect relevant DTC using“11. Diagnostics Chart with Trouble Code”. : Go to ste

Page 1511 of 2248

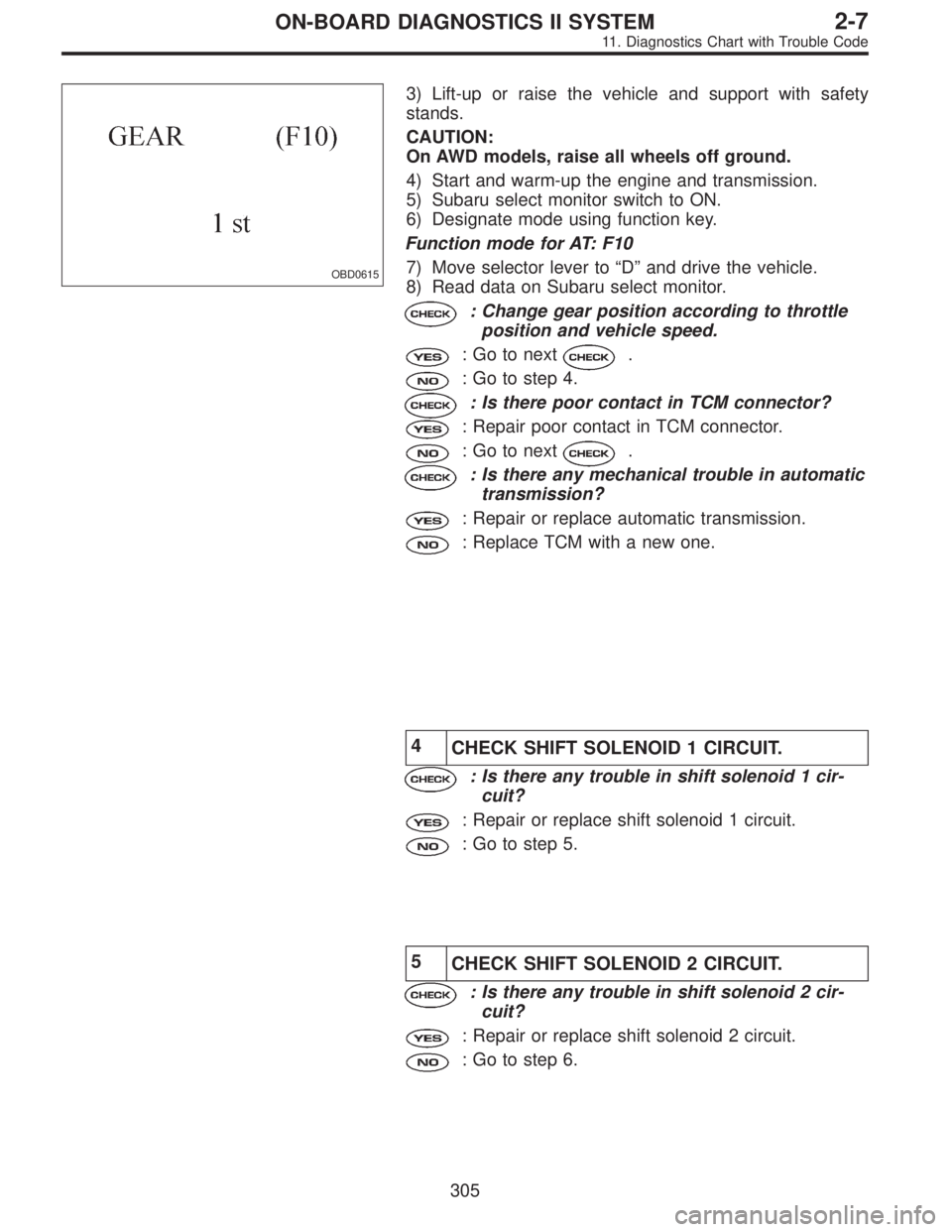

SUBARU LEGACY 1995 Service Repair Manual OBD0615 3) Lift-up or raise the vehicle and support with safety stands. CAUTION: On AWD models, raise all wheels off ground. 4) Start and warm-up the engine and transmission. 5) Subaru select monitor

Page 1512 of 2248

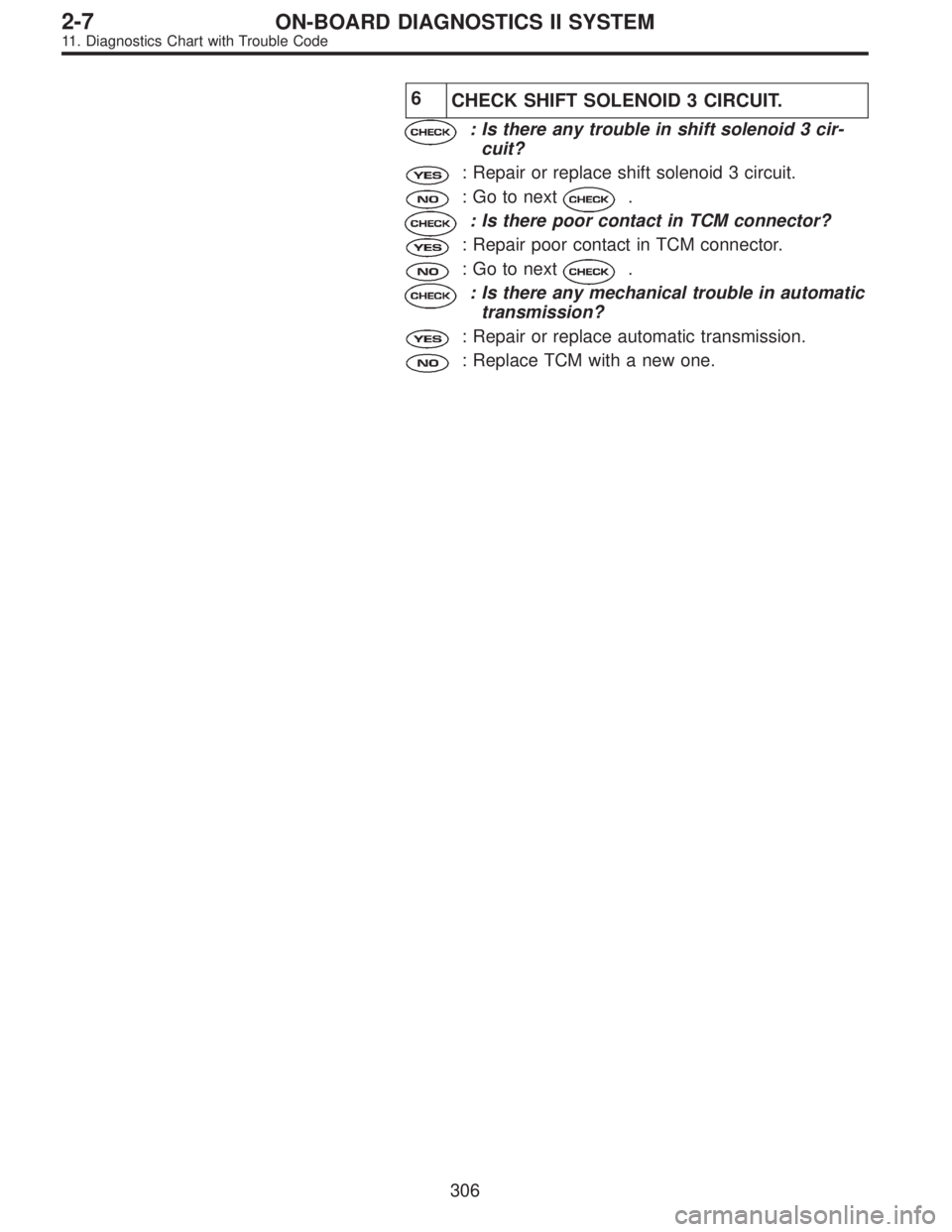

SUBARU LEGACY 1995 Service Repair Manual 6 CHECK SHIFT SOLENOID 3 CIRCUIT. : Is there any trouble in shift solenoid 3 cir- cuit? : Repair or replace shift solenoid 3 circuit. : Go to next. : Is there poor contact in TCM connector? : Repair p
