Page 1329 of 2248
G2M0461
5

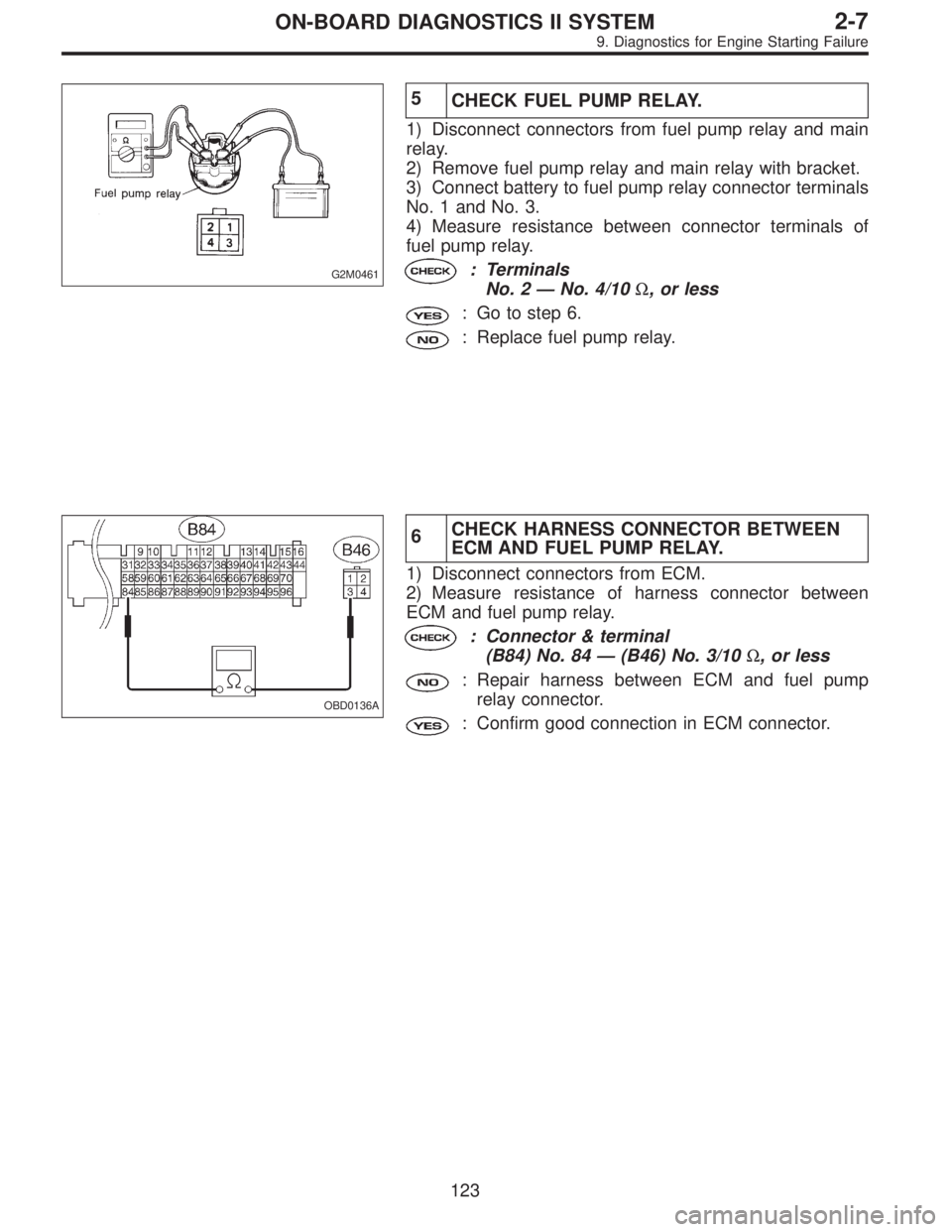

CHECK FUEL PUMP RELAY.
1) Disconnect connectors from fuel pump relay and main
relay.
2) Remove fuel pump relay and main relay with bracket.
3) Connect battery to fuel pump relay connector terminals
No. 1 and No. 3.
4) Measure resistance between connector terminals of
fuel pump relay.
: Terminals
No. 2—No. 4/10Ω, or less
: Go to step 6.
: Replace fuel pump relay.
OBD0136A
6CHECK HARNESS CONNECTOR BETWEEN
ECM AND FUEL PUMP RELAY.
1) Disconnect connectors from ECM.
2) Measure resistance of harness connector between
ECM and fuel pump relay.
: Connector & terminal
(B84) No. 84—(B46) No. 3/10Ω, or less
: Repair harness between ECM and fuel pump
relay connector.
: Confirm good connection in ECM connector.
123
2-7ON-BOARD DIAGNOSTICS II SYSTEM
9. Diagnostics for Engine Starting Failure
Page 1330 of 2248

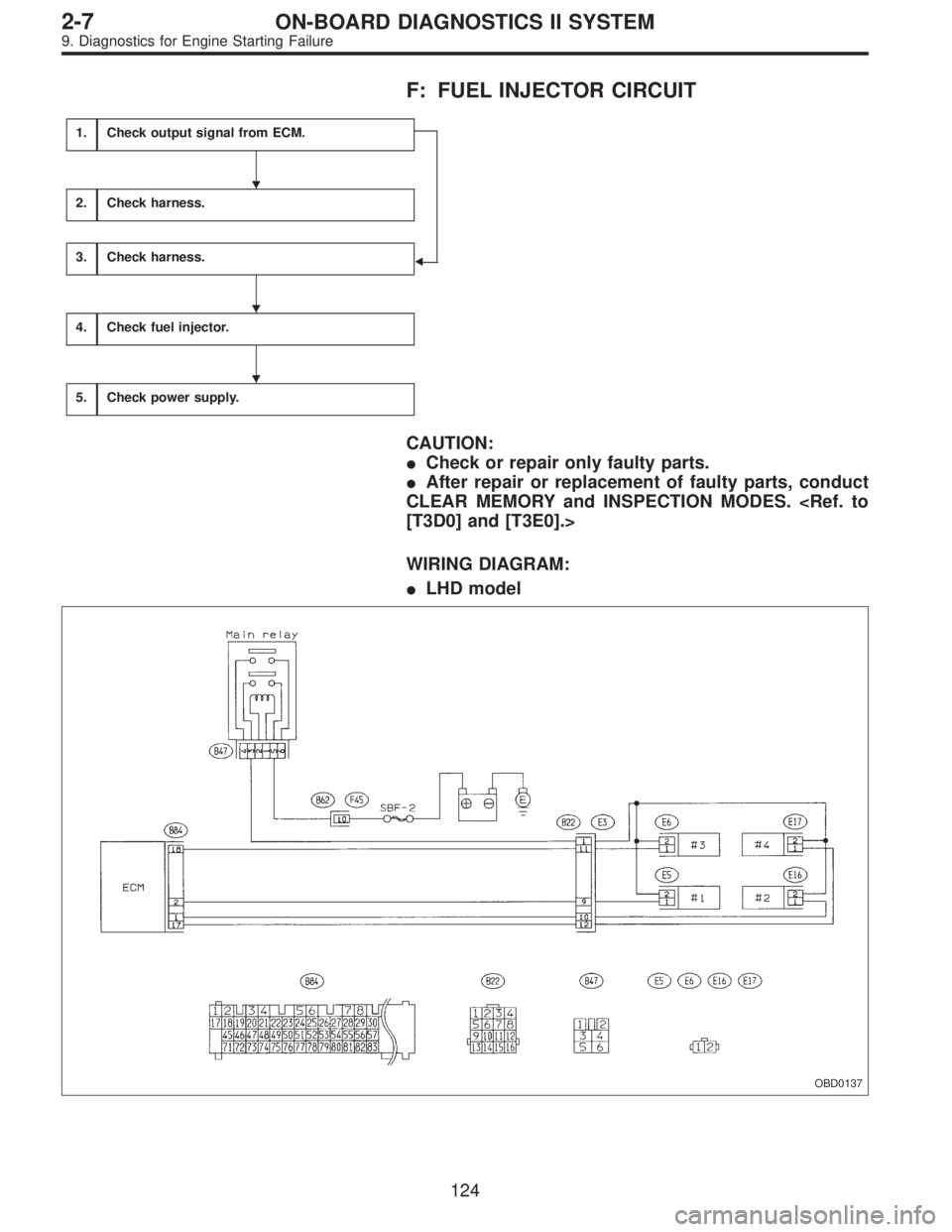

F: FUEL INJECTOR CIRCUIT
1.Check output signal from ECM.
2.Check harness.
3.Check harness.
4.Check fuel injector.
5.Check power supply.
CAUTION:
Check or repair only faulty parts.
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.
[T3D0] and [T3E0].>
WIRING DIAGRAM:
LHD model
OBD0137
124
2-7ON-BOARD DIAGNOSTICS II SYSTEM
9. Diagnostics for Engine Starting Failure
Page 1331 of 2248

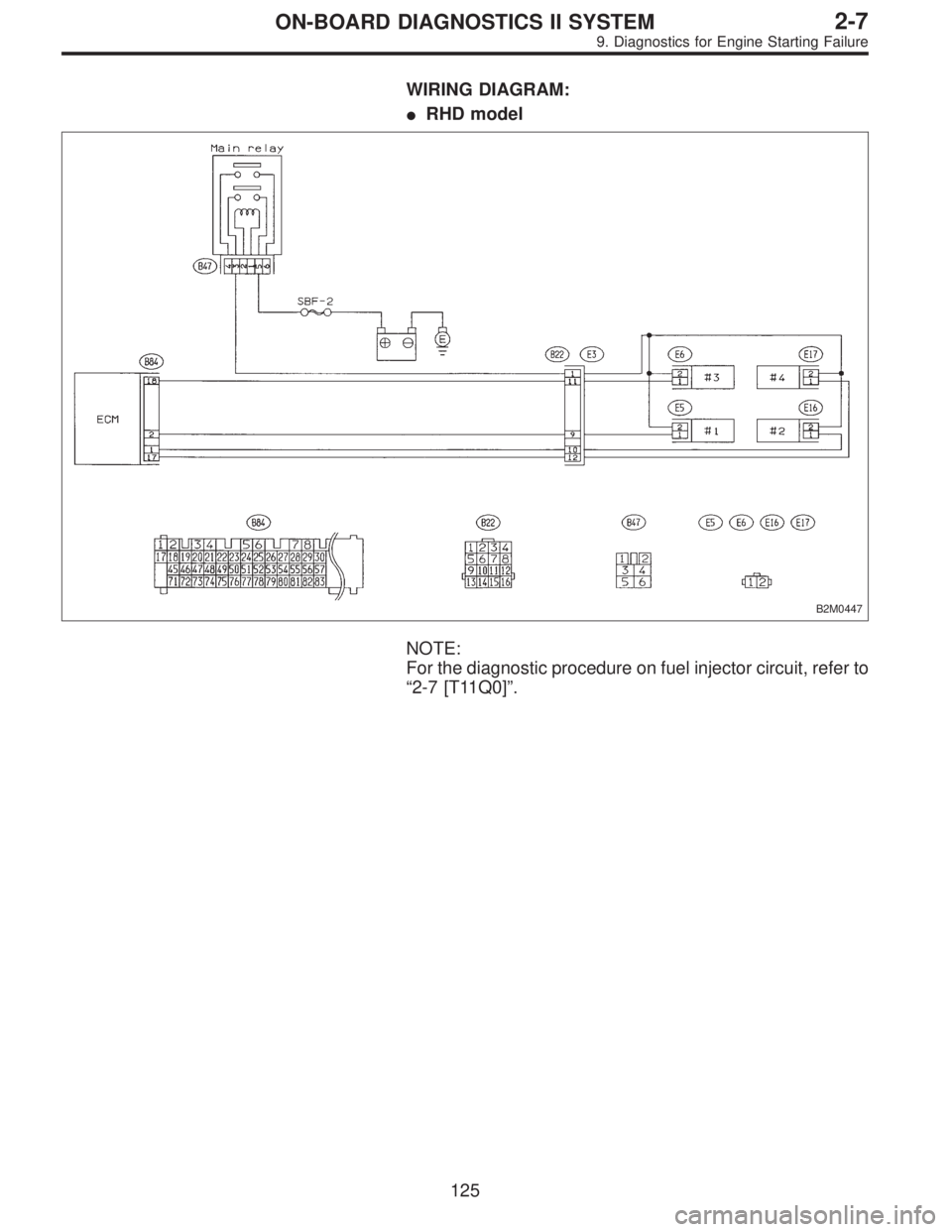

WIRING DIAGRAM:
RHD model
B2M0447
NOTE:
For the diagnostic procedure on fuel injector circuit, refer to
“2-7 [T11Q0]”.
125
2-7ON-BOARD DIAGNOSTICS II SYSTEM
9. Diagnostics for Engine Starting Failure
Page 1332 of 2248

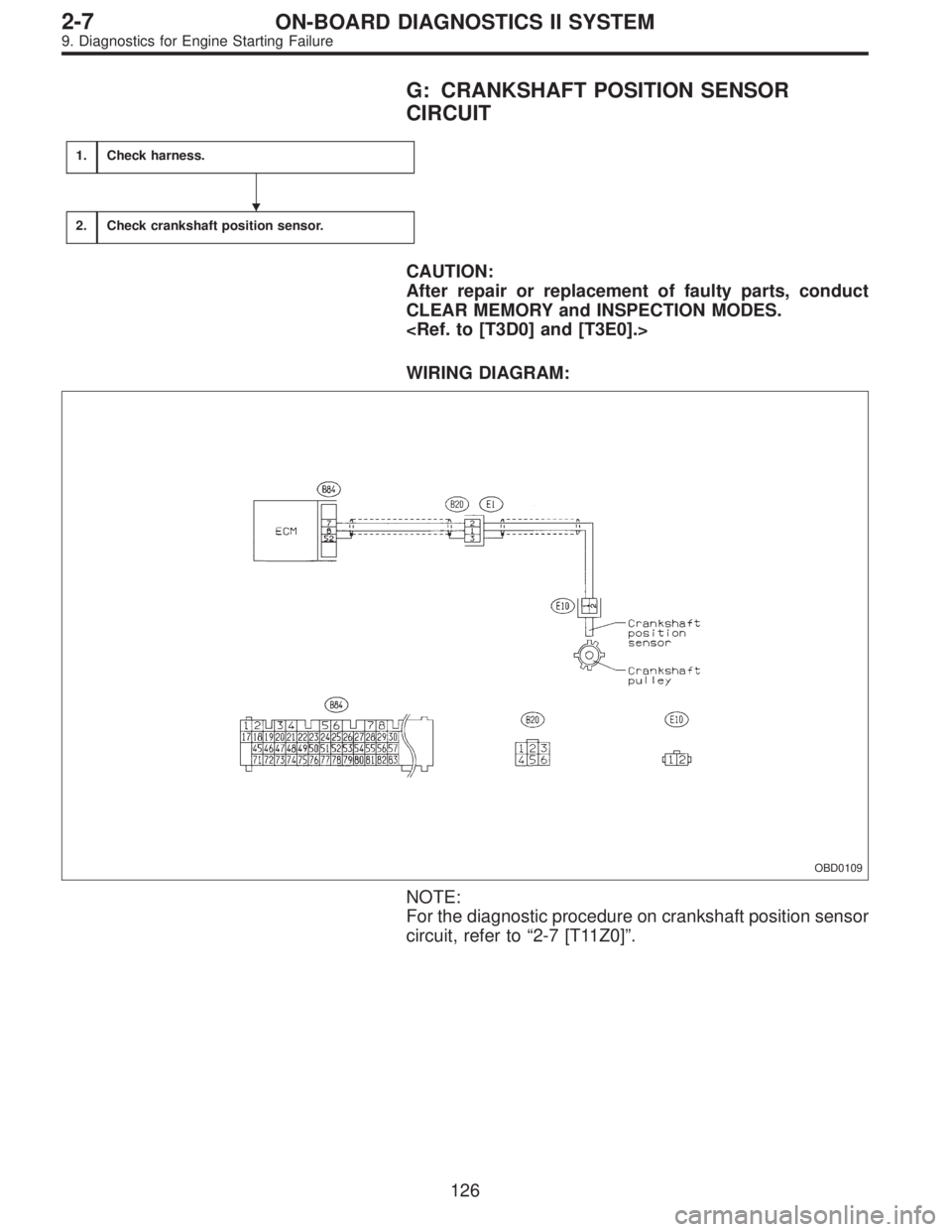

G: CRANKSHAFT POSITION SENSOR
CIRCUIT
1.Check harness.
2.Check crankshaft position sensor.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.
WIRING DIAGRAM:
OBD0109
NOTE:
For the diagnostic procedure on crankshaft position sensor
circuit, refer to“2-7 [T11Z0]”.
126
2-7ON-BOARD DIAGNOSTICS II SYSTEM
9. Diagnostics for Engine Starting Failure
Page 1333 of 2248
H: CAMSHAFT POSITION SENSOR CIRCUIT
1.Check harness.
2.Check camshaft position sensor.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.
WIRING DIAGRAM:
OBD0115
NOTE:
For the diagnostic procedure on crankshaft position sensor
circuit, refer to“2-7 [T11AA]”.
127
2-7ON-BOARD DIAGNOSTICS II SYSTEM
9. Diagnostics for Engine Starting Failure
Page 1334 of 2248

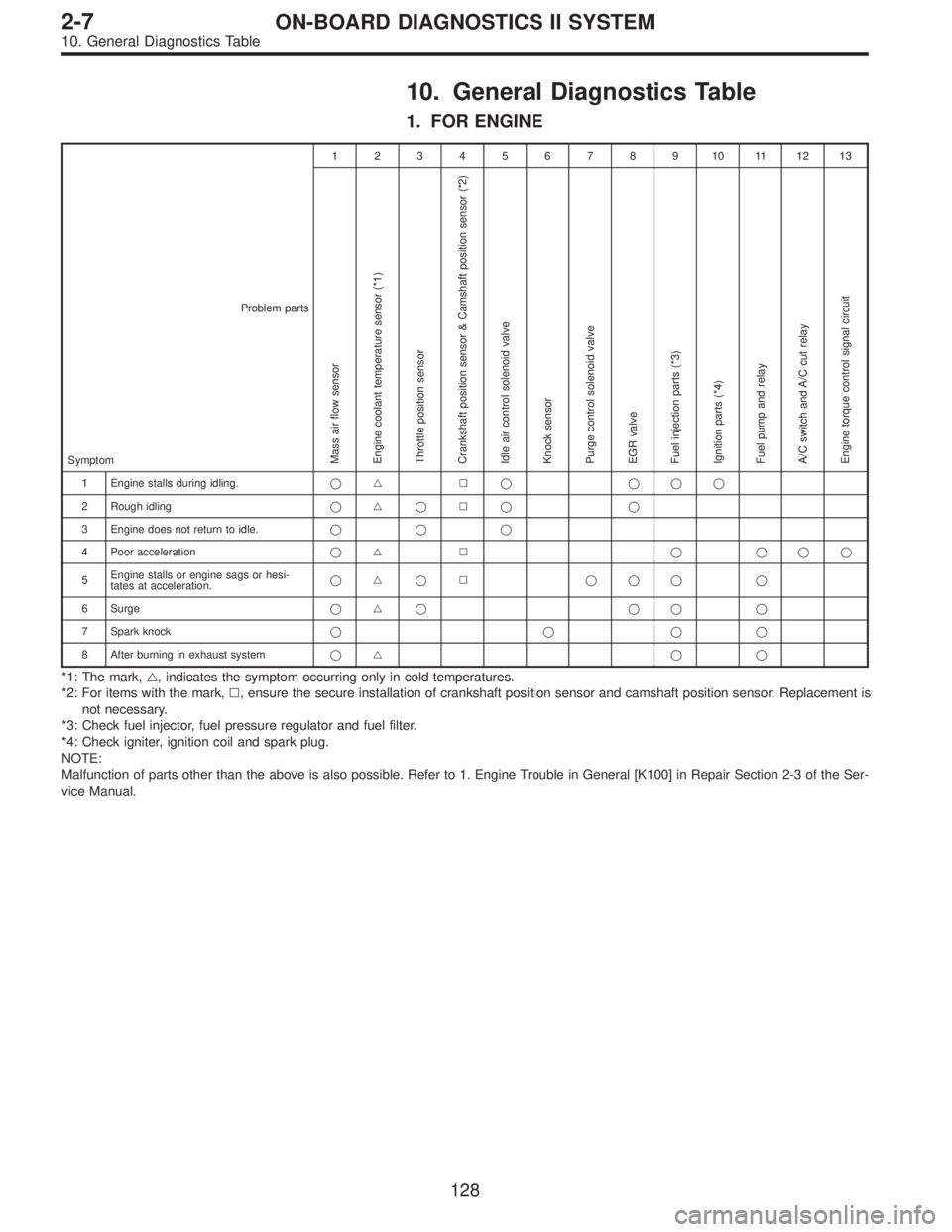

10. General Diagnostics Table
1. FOR ENGINE
12345678910111213
Problem parts
Mass air flow sensor
Engine coolant temperature sensor (*1)
Throttle position sensor
Crankshaft position sensor & Camshaft position sensor (*2)
Idle air control solenoid valve
Knock sensor
Purge control solenoid valve
EGR valve
Fuel injection parts (*3)
Ignition parts (*4)
Fuel pump and relay
A/C switch and A/C cut relay
Engine torque control signal circuitSymptom
1 Engine stalls during idling.
2 Rough idling
3 Engine does not return to idle.
4 Poor acceleration
5Engine stalls or engine sags or hesi-
tates at acceleration.
6 Surge
7 Spark knock
8 After burning in exhaust system
*1: The mark,, indicates the symptom occurring only in cold temperatures.
*2: For items with the mark,, ensure the secure installation of crankshaft position sensor and camshaft position sensor. Replacement is
not necessary.
*3: Check fuel injector, fuel pressure regulator and fuel filter.
*4: Check igniter, ignition coil and spark plug.
NOTE:
Malfunction of parts other than the above is also possible. Refer to 1. Engine Trouble in General [K100] in Repair Section 2-3 of the Ser-
vice Manual.
128
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. General Diagnostics Table
Page 1335 of 2248

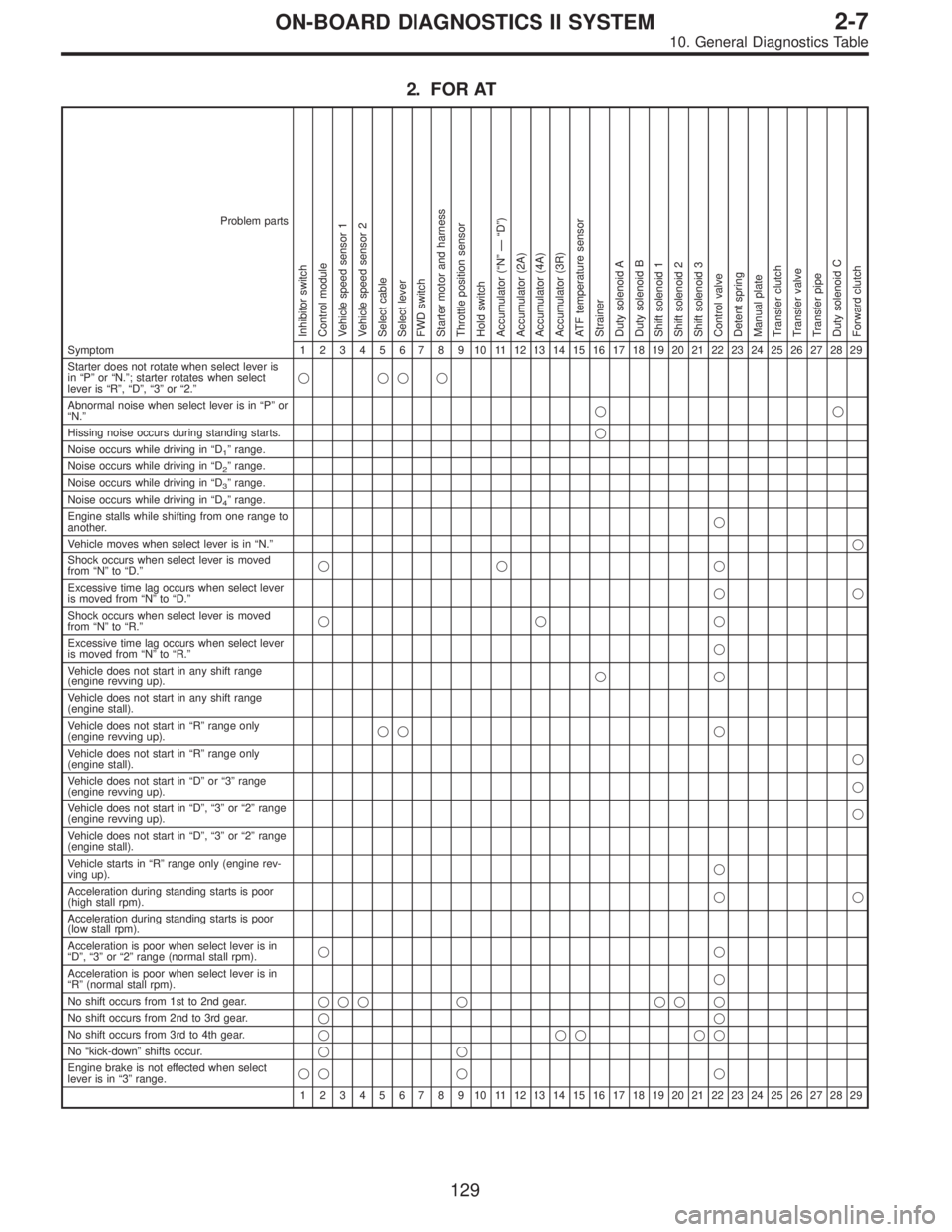

2. FOR AT
Problem parts
Inhibitor switch
Control module
Vehicle speed sensor 1
Vehicle speed sensor 2
Select cable
Select lever
FWD switch
Starter motor and harness
Throttle position sensor
Hold switch
Accumulator (“N”—“D”)
Accumulator (2A)
Accumulator (4A)
Accumulator (3R)
ATF temperature sensor
Strainer
Duty solenoid A
Duty solenoid B
Shift solenoid 1
Shift solenoid 2
Shift solenoid 3
Control valve
Detent spring
Manual plate
Transfer clutch
Transfer valve
Transfer pipe
Duty solenoid C
Forward clutch
Symptom1234567891011121314151617181920212223242526272829
Starter does not rotate when select lever is
in“P”or“N.”; starter rotates when select
lever is“R”,“D”,“3”or“2.”
Abnormal noise when select lever is in“P”or
“N.”
Hissing noise occurs during standing starts.
Noise occurs while driving in“D
1”range.
Noise occurs while driving in“D
2”range.
Noise occurs while driving in“D
3”range.
Noise occurs while driving in“D
4”range.
Engine stalls while shifting from one range to
another.
Vehicle moves when select lever is in“N.”
Shock occurs when select lever is moved
from“N”to“D.”
Excessive time lag occurs when select lever
is moved from“N”to“D.”
Shock occurs when select lever is moved
from“N”to“R.”
Excessive time lag occurs when select lever
is moved from“N”to“R.”
Vehicle does not start in any shift range
(engine revving up).
Vehicle does not start in any shift range
(engine stall).
Vehicle does not start in“R”range only
(engine revving up).
Vehicle does not start in“R”range only
(engine stall).
Vehicle does not start in“D”or“3”range
(engine revving up).
Vehicle does not start in“D”,“3”or“2”range
(engine revving up).
Vehicle does not start in“D”,“3”or“2”range
(engine stall).
Vehicle starts in“R”range only (engine rev-
ving up).
Acceleration during standing starts is poor
(high stall rpm).
Acceleration during standing starts is poor
(low stall rpm).
Acceleration is poor when select lever is in
“D”,“3”or“2”range (normal stall rpm).
Acceleration is poor when select lever is in
“R”(normal stall rpm).
No shift occurs from 1st to 2nd gear.
No shift occurs from 2nd to 3rd gear.
No shift occurs from 3rd to 4th gear.
No“kick-down”shifts occur.
Engine brake is not effected when select
lever is in“3”range.
1234567891011121314151617181920212223242526272829
129
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. General Diagnostics Table
Page 1336 of 2248

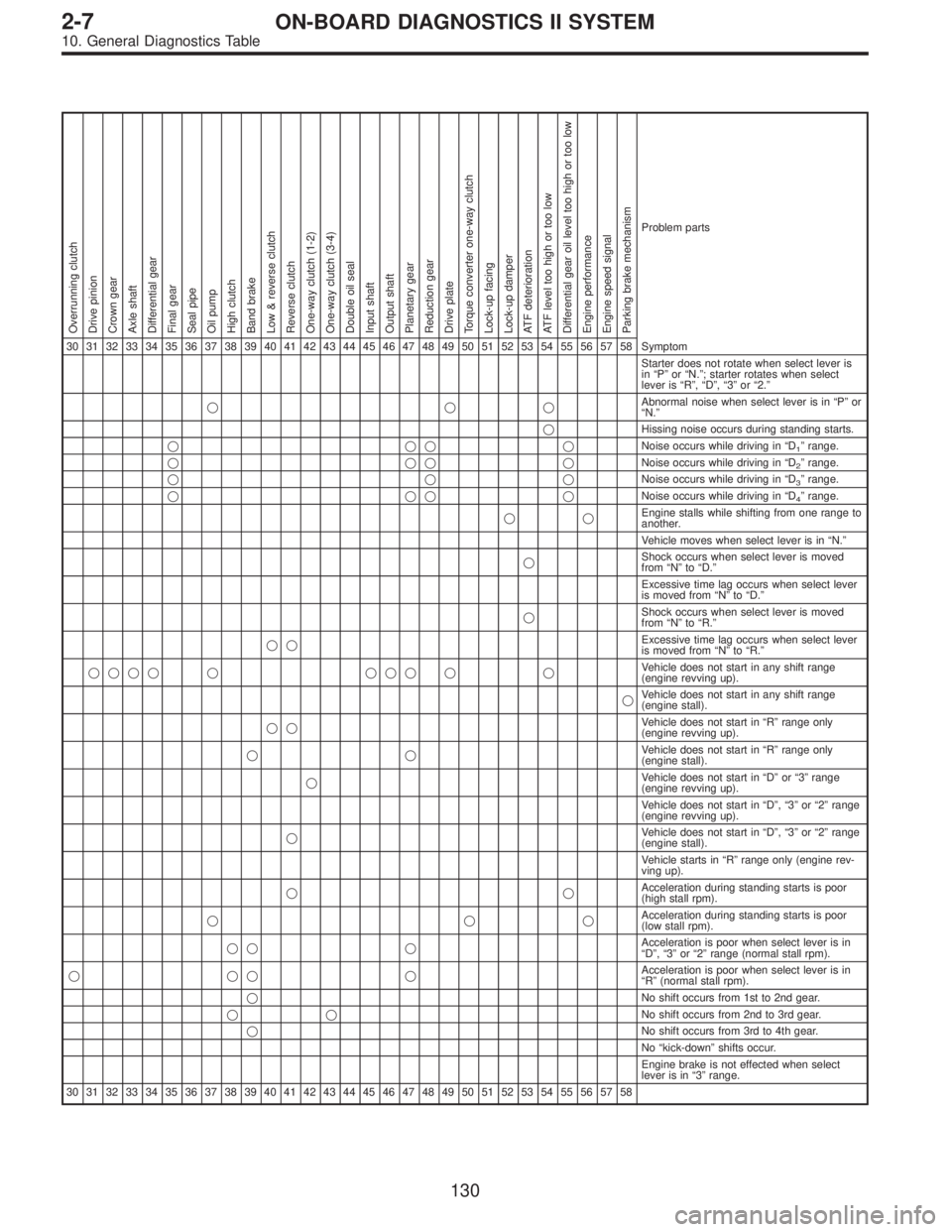

Overrunning clutch
Drive pinion
Crown gear
Axle shaft
Differential gear
Final gear
Seal pipe
Oil pump
High clutch
Band brake
Low & reverse clutch
Reverse clutch
One-way clutch (1-2)
One-way clutch (3-4)
Double oil seal
Input shaft
Output shaft
Planetary gear
Reduction gear
Drive plate
Torque converter one-way clutch
Lock-up facing
Lock-up damper
ATF deterioration
ATF level too high or too low
Differential gear oil level too high or too low
Engine performance
Engine speed signal
Parking brake mechanism
Problem parts
30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 Symptom
Starter does not rotate when select lever is
in“P”or“N.”; starter rotates when select
lever is“R”,“D”,“3”or“2.”
Abnormal noise when select lever is in“P”or
“N.”
Hissing noise occurs during standing starts.
Noise occurs while driving in“D
1”range.
Noise occurs while driving in“D
2”range.
Noise occurs while driving in“D
3”range.
Noise occurs while driving in“D
4”range.
Engine stalls while shifting from one range to
another.
Vehicle moves when select lever is in“N.”
Shock occurs when select lever is moved
from“N”to“D.”
Excessive time lag occurs when select lever
is moved from“N”to“D.”
Shock occurs when select lever is moved
from“N”to“R.”
Excessive time lag occurs when select lever
is moved from“N”to“R.”
Vehicle does not start in any shift range
(engine revving up).
Vehicle does not start in any shift range
(engine stall).
Vehicle does not start in“R”range only
(engine revving up).
Vehicle does not start in“R”range only
(engine stall).
Vehicle does not start in“D”or“3”range
(engine revving up).
Vehicle does not start in“D”,“3”or“2”range
(engine revving up).
Vehicle does not start in“D”,“3”or“2”range
(engine stall).
Vehicle starts in“R”range only (engine rev-
ving up).
Acceleration during standing starts is poor
(high stall rpm).
Acceleration during standing starts is poor
(low stall rpm).
Acceleration is poor when select lever is in
“D”,“3”or“2”range (normal stall rpm).
Acceleration is poor when select lever is in
“R”(normal stall rpm).
No shift occurs from 1st to 2nd gear.
No shift occurs from 2nd to 3rd gear.
No shift occurs from 3rd to 4th gear.
No“kick-down”shifts occur.
Engine brake is not effected when select
lever is in“3”range.
30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58
