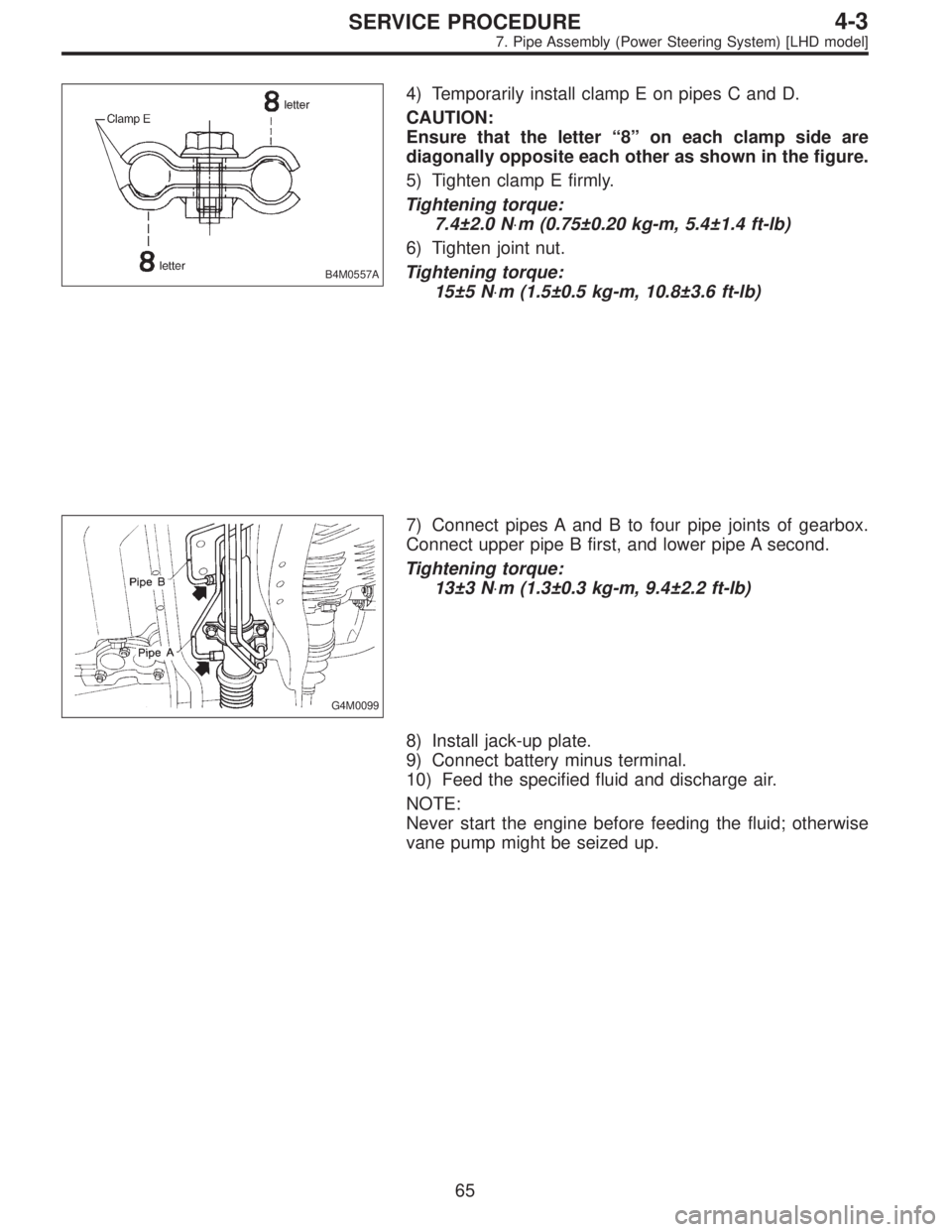

SUBARU LEGACY 1995 Service Repair Manual B4M0557A 4) Temporarily install clamp E on pipes C and D. CAUTION: Ensure that the letter“8”on each clamp side are diagonally opposite each other as shown in the figure. 5) Tighten clamp E firmly.

Page 682 of 2248

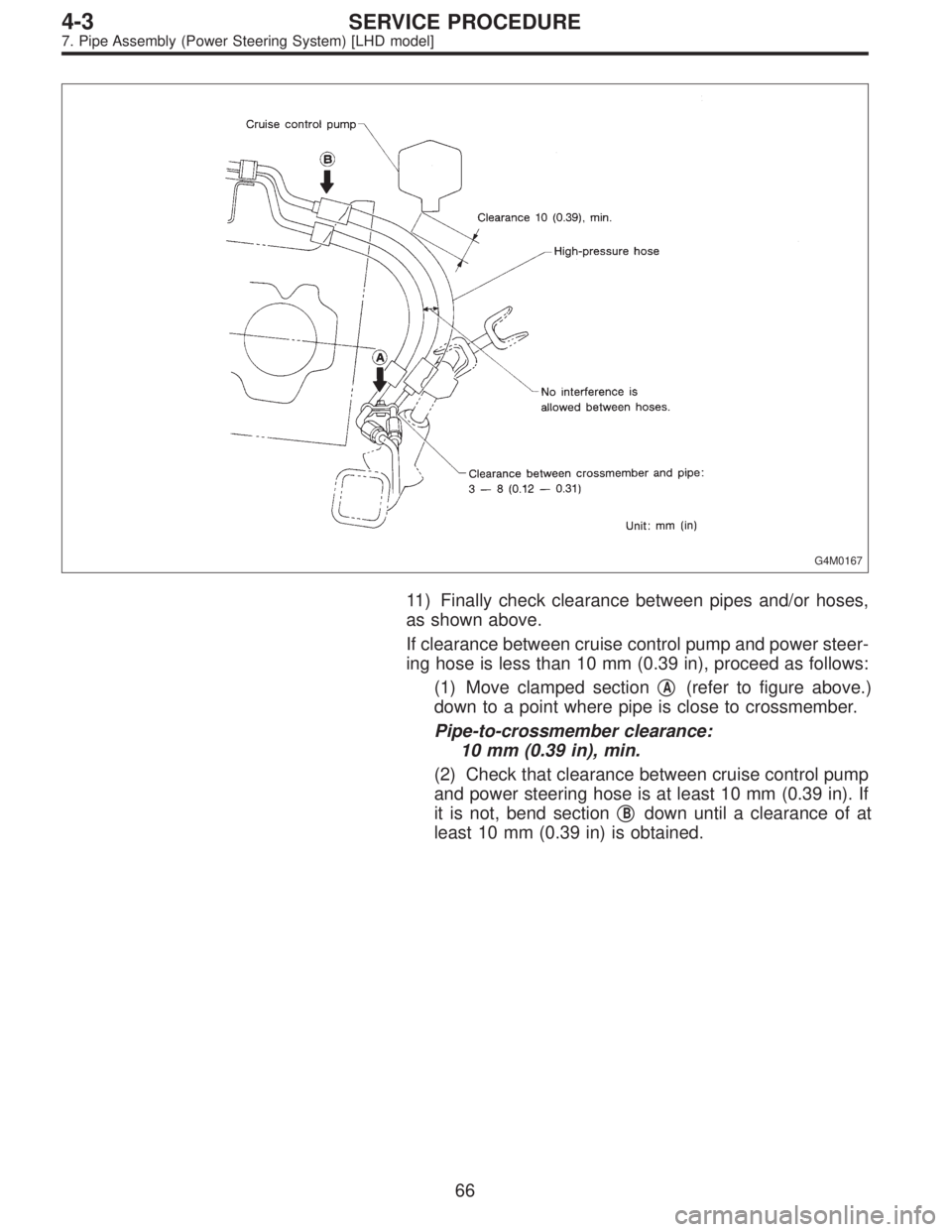

SUBARU LEGACY 1995 Service Repair Manual G4M0167 11) Finally check clearance between pipes and/or hoses, as shown above. If clearance between cruise control pump and power steer- ing hose is less than 10 mm (0.39 in), proceed as follows: (1)

Page 683 of 2248

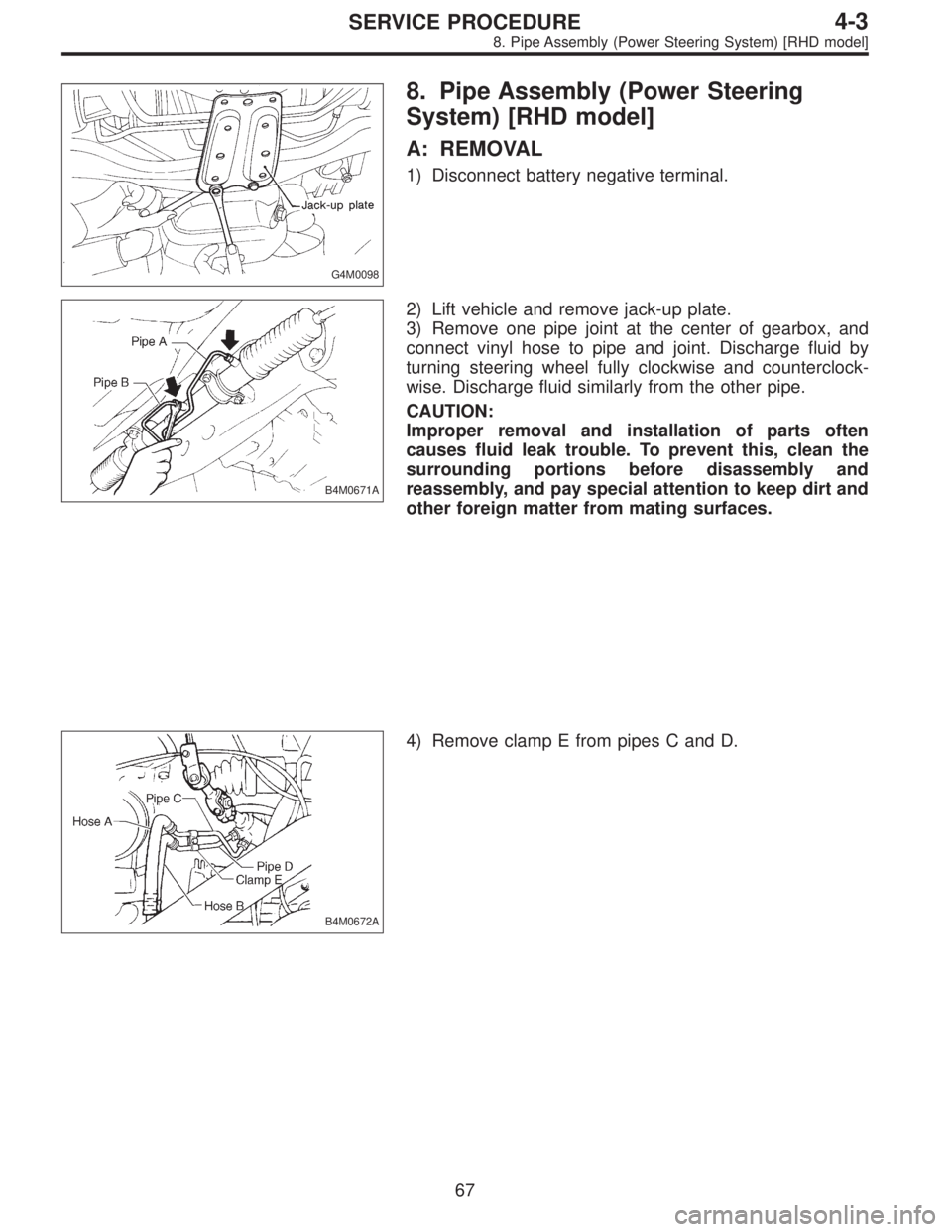

SUBARU LEGACY 1995 Service Repair Manual G4M0098 8. Pipe Assembly (Power Steering System) [RHD model] A: REMOVAL 1) Disconnect battery negative terminal. B4M0671A 2) Lift vehicle and remove jack-up plate. 3) Remove one pipe joint at the cent

Page 684 of 2248

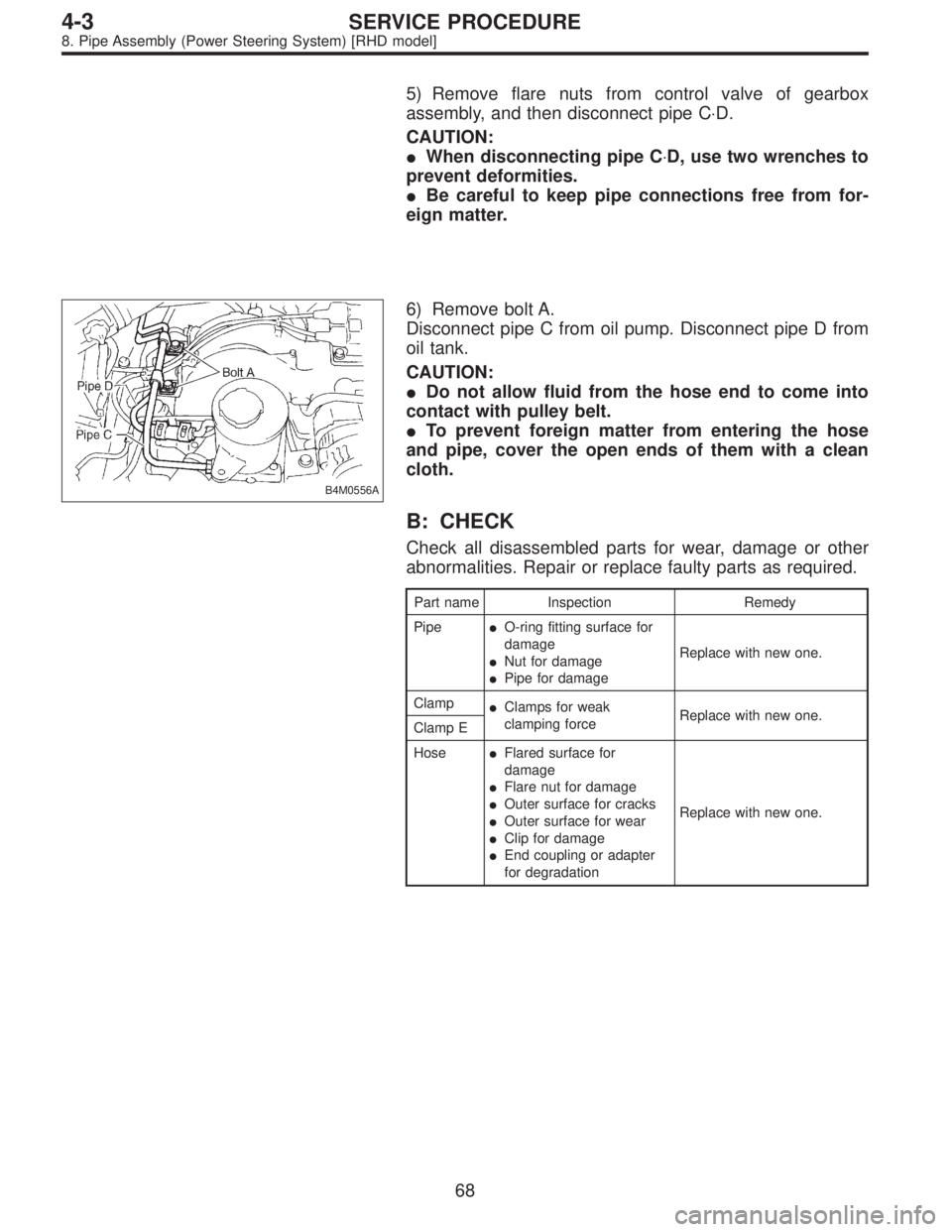

SUBARU LEGACY 1995 Service Repair Manual 5) Remove flare nuts from control valve of gearbox assembly, and then disconnect pipe C⋅D. CAUTION: When disconnecting pipe C⋅D, use two wrenches to prevent deformities. Be careful to keep pipe

Page 685 of 2248

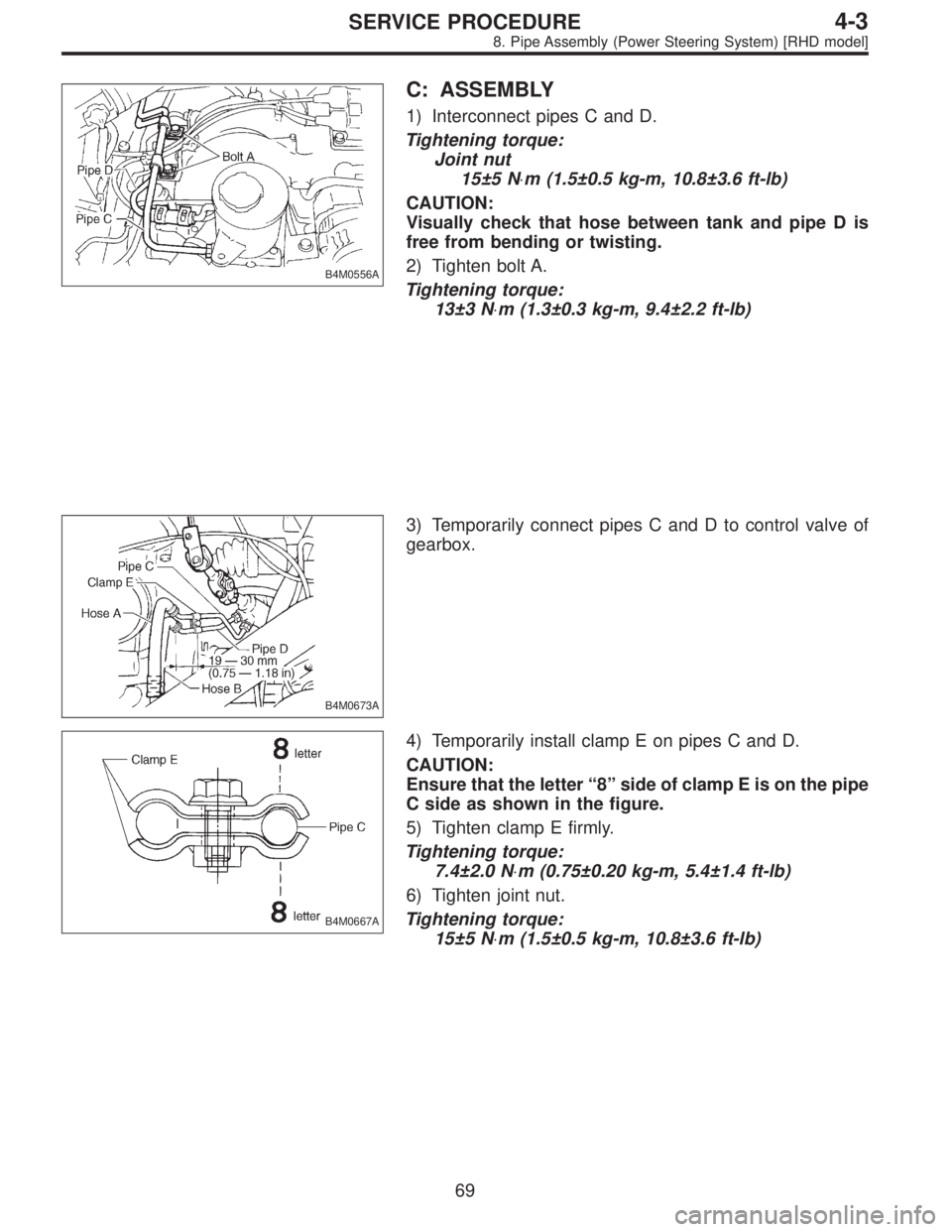

SUBARU LEGACY 1995 Service Repair Manual B4M0556A C: ASSEMBLY 1) Interconnect pipes C and D. Tightening torque: Joint nut 15±5 N⋅m (1.5±0.5 kg-m, 10.8±3.6 ft-lb) CAUTION: Visually check that hose between tank and pipe D is free from ben

Page 686 of 2248

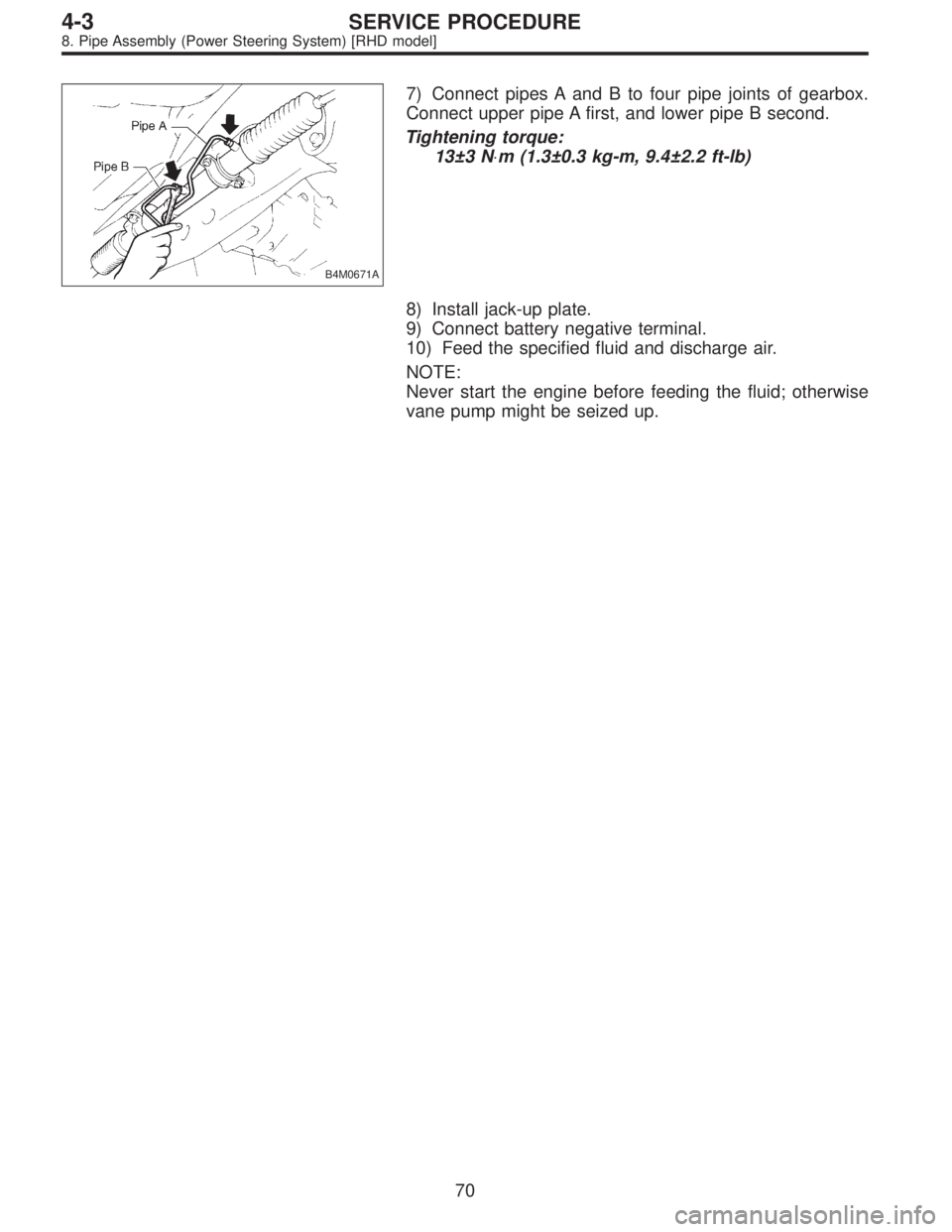

SUBARU LEGACY 1995 Service Repair Manual B4M0671A 7) Connect pipes A and B to four pipe joints of gearbox. Connect upper pipe A first, and lower pipe B second. Tightening torque: 13±3 N⋅m (1.3±0.3 kg-m, 9.4±2.2 ft-lb) 8) Install jack-up

Page 687 of 2248

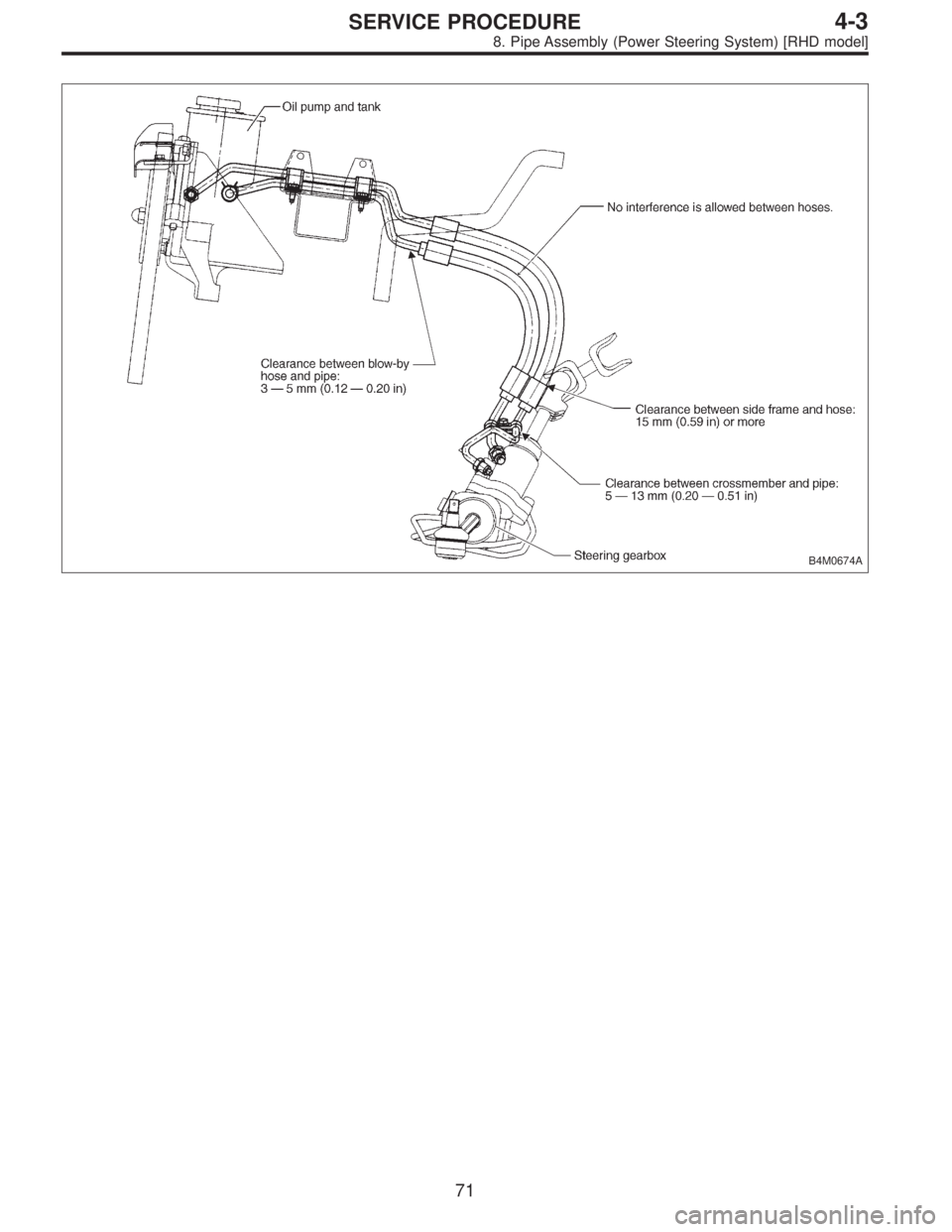

SUBARU LEGACY 1995 Service Repair Manual B4M0674A 71 4-3SERVICE PROCEDURE 8. Pipe Assembly (Power Steering System) [RHD model]

Page 688 of 2248

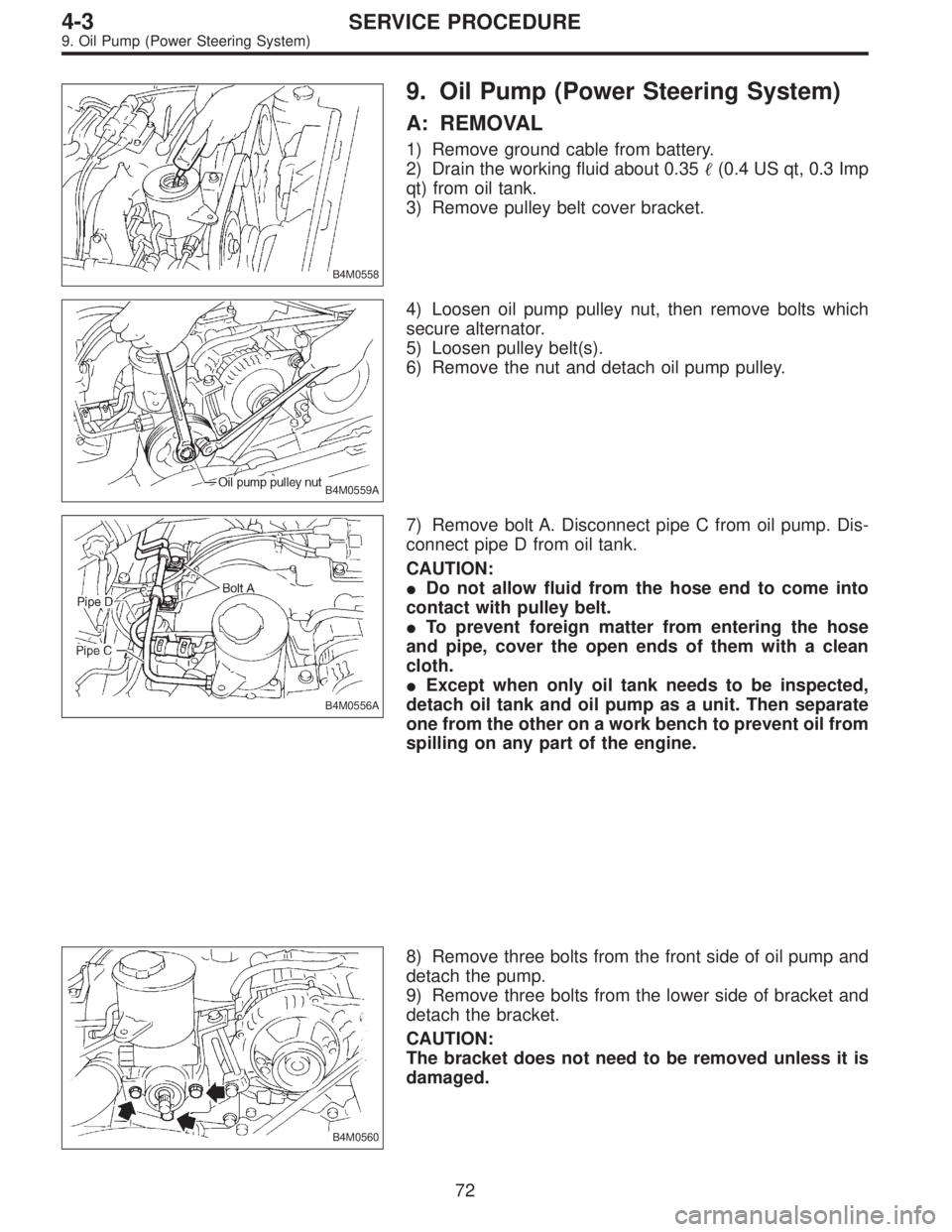

SUBARU LEGACY 1995 Service Repair Manual B4M0558 9. Oil Pump (Power Steering System) A: REMOVAL 1) Remove ground cable from battery. 2) Drain the working fluid about 0.35(0.4 US qt, 0.3 Imp qt) from oil tank. 3) Remove pulley belt cover bra
