Page 81 of 2248

SUBARU LEGACY 1995 Service Repair Manual G2M0175 3) Measure the clearance between piston ring and piston ring groove with a thickness gauge. CAUTION: Before measuring the clearance, clean the piston ring groove and piston ring. Unit: mm (in)

Page 82 of 2248

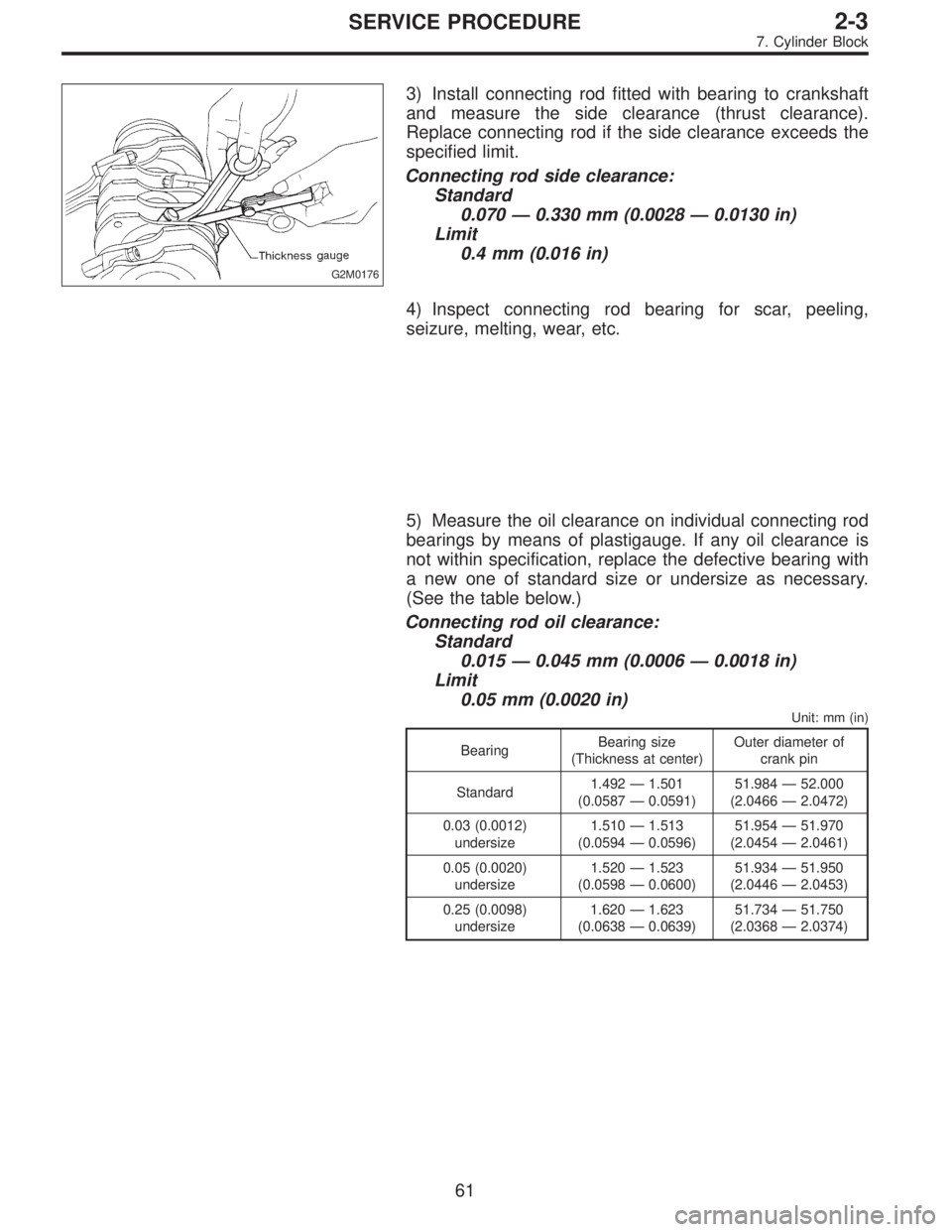

SUBARU LEGACY 1995 Service Repair Manual G2M0176 3) Install connecting rod fitted with bearing to crankshaft and measure the side clearance (thrust clearance). Replace connecting rod if the side clearance exceeds the specified limit. Connect

Page 83 of 2248

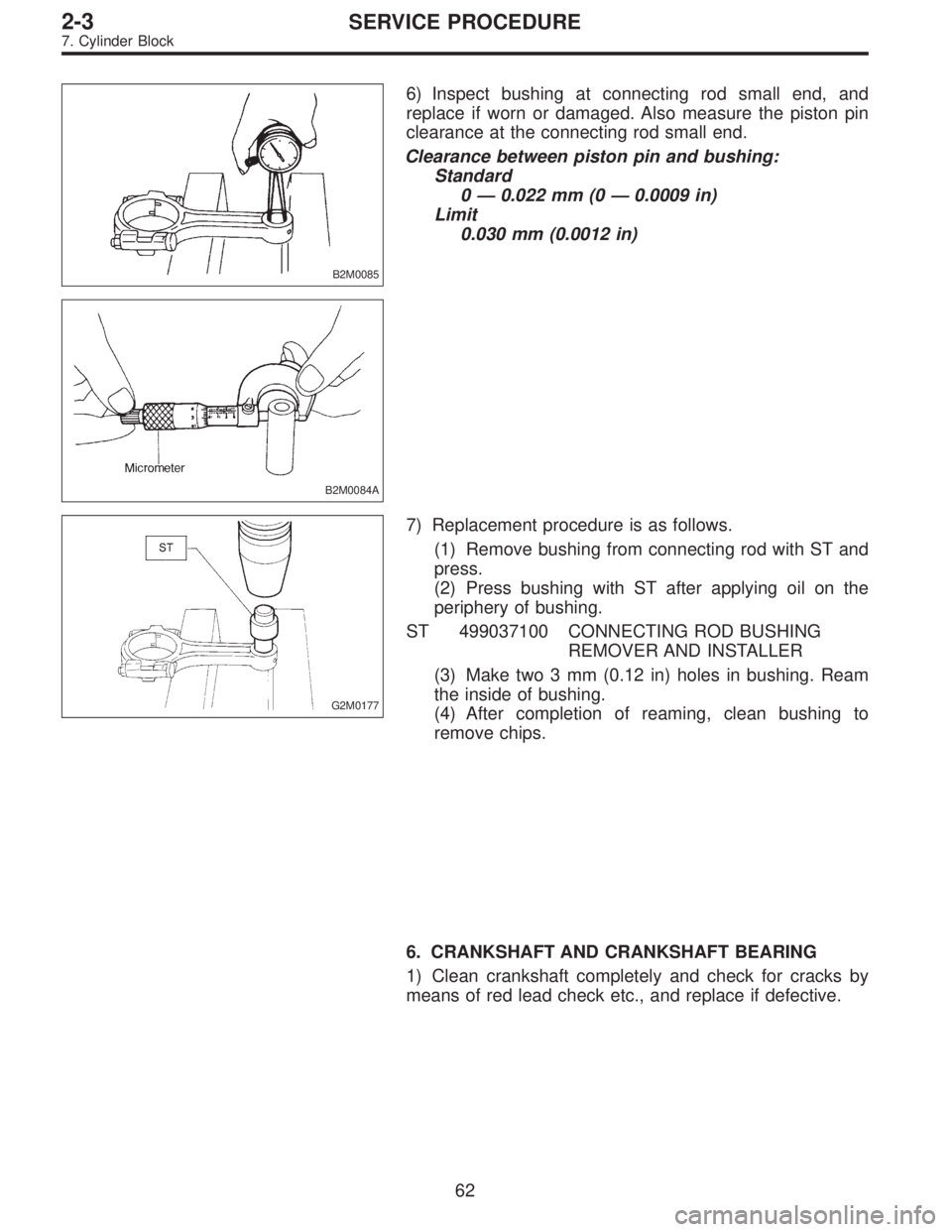

SUBARU LEGACY 1995 Service Repair Manual B2M0085 6) Inspect bushing at connecting rod small end, and replace if worn or damaged. Also measure the piston pin clearance at the connecting rod small end. Clearance between piston pin and bushing:

Page 84 of 2248

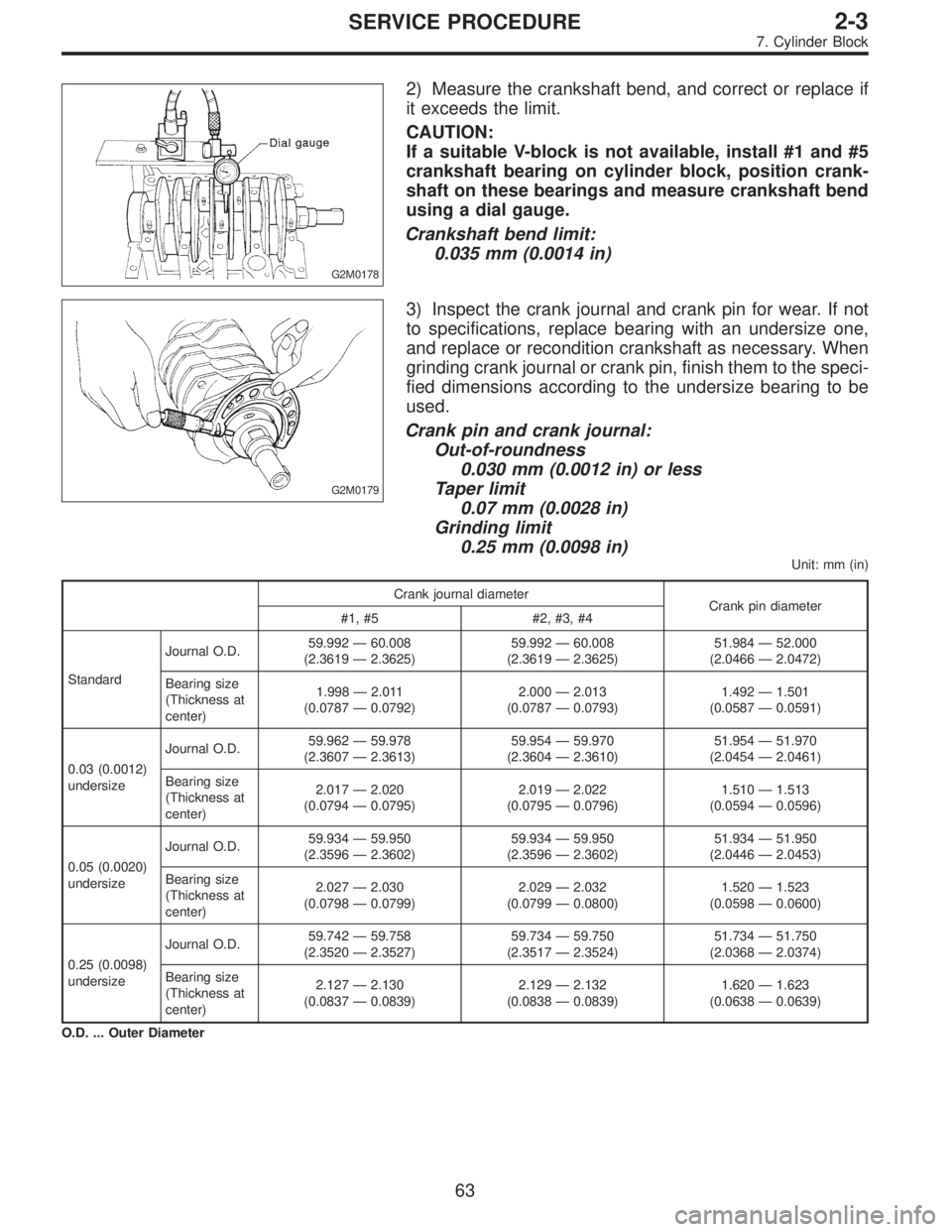

SUBARU LEGACY 1995 Service Repair Manual G2M0178 2) Measure the crankshaft bend, and correct or replace if it exceeds the limit. CAUTION: If a suitable V-block is not available, install #1 and #5 crankshaft bearing on cylinder block, positio

Page 85 of 2248

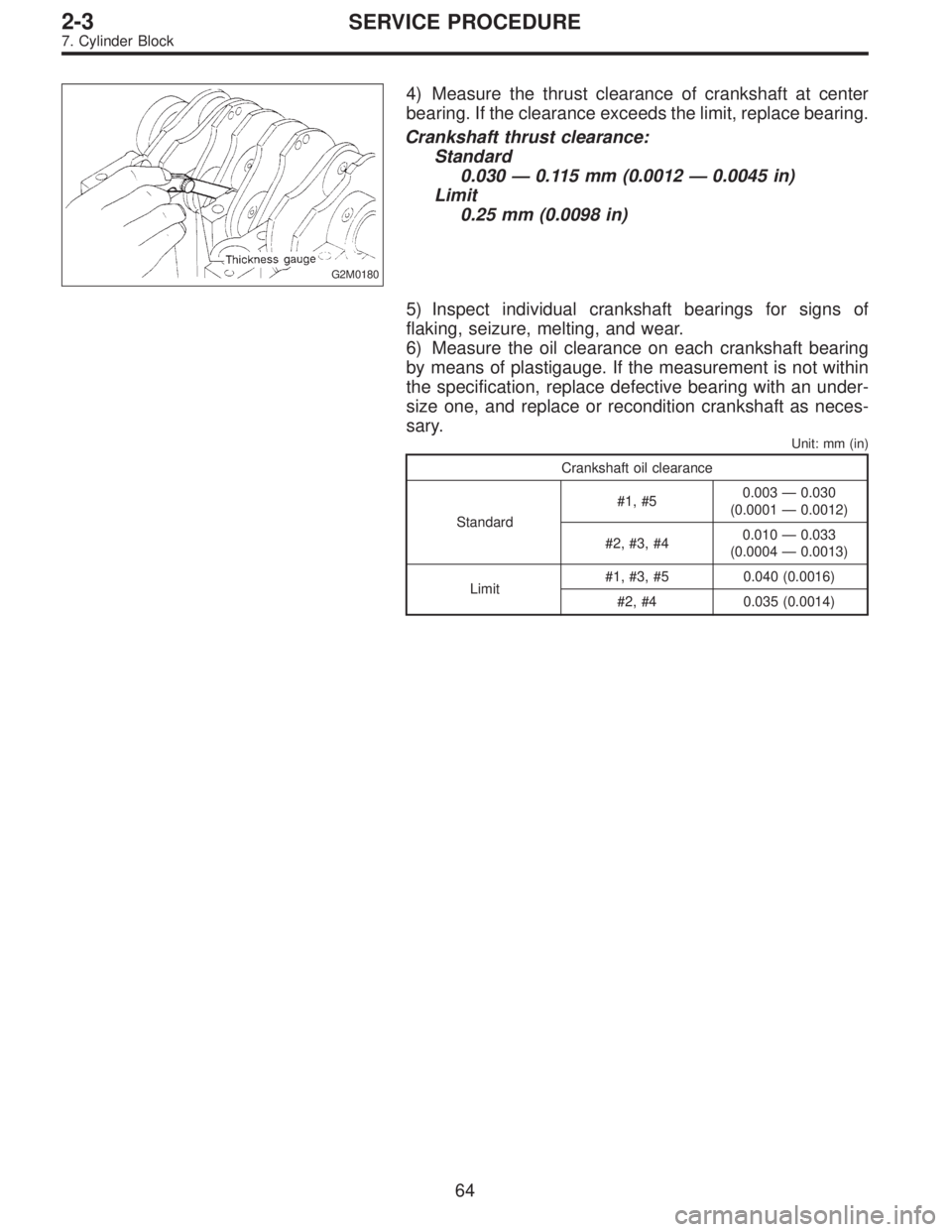

SUBARU LEGACY 1995 Service Repair Manual G2M0180 4) Measure the thrust clearance of crankshaft at center bearing. If the clearance exceeds the limit, replace bearing. Crankshaft thrust clearance: Standard 0.030—0.115 mm (0.0012—0.0045 in

Page 86 of 2248

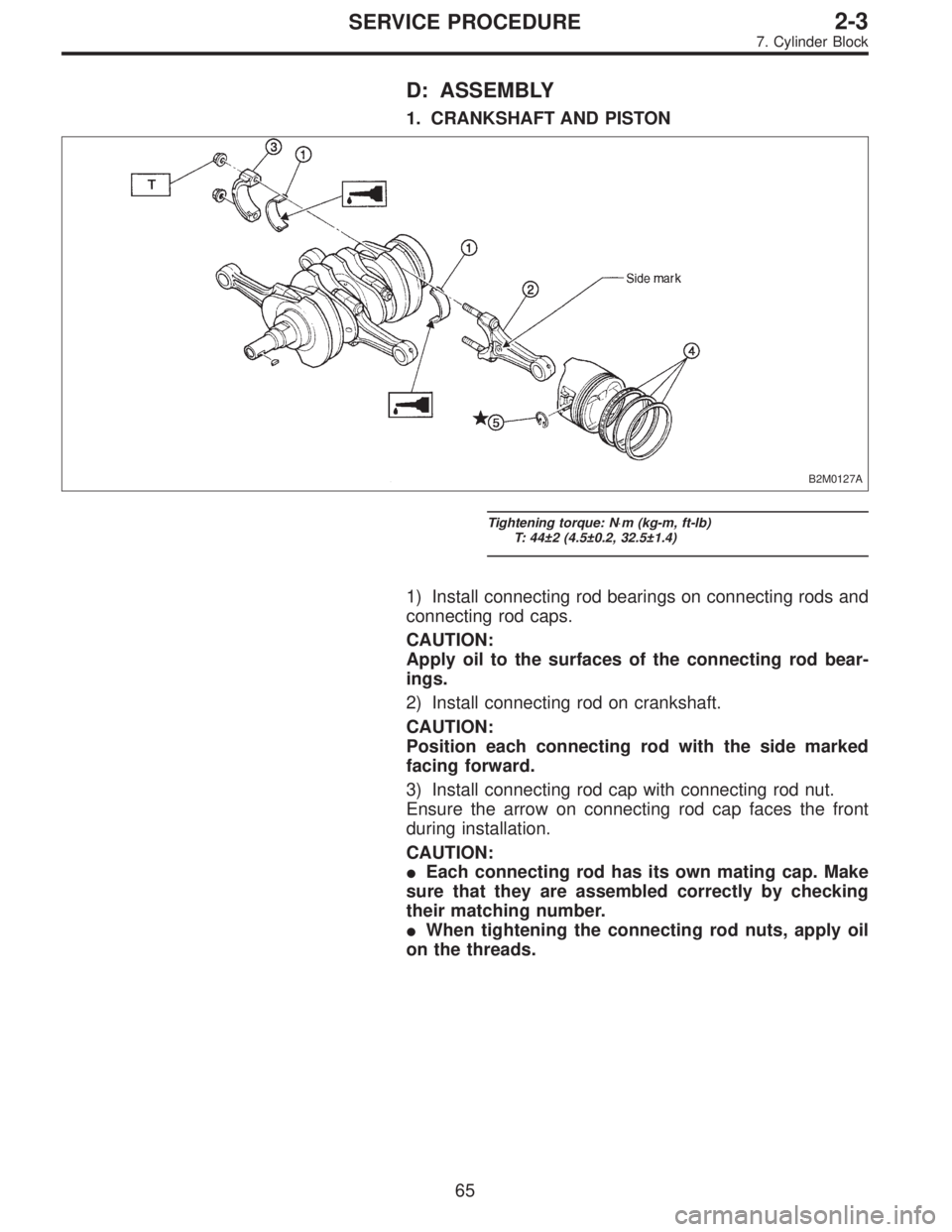

SUBARU LEGACY 1995 Service Repair Manual D: ASSEMBLY 1. CRANKSHAFT AND PISTON B2M0127A Tightening torque: N⋅m (kg-m, ft-lb) T: 44±2 (4.5±0.2, 32.5±1.4) 1) Install connecting rod bearings on connecting rods and connecting rod caps. CAUTI

Page 87 of 2248

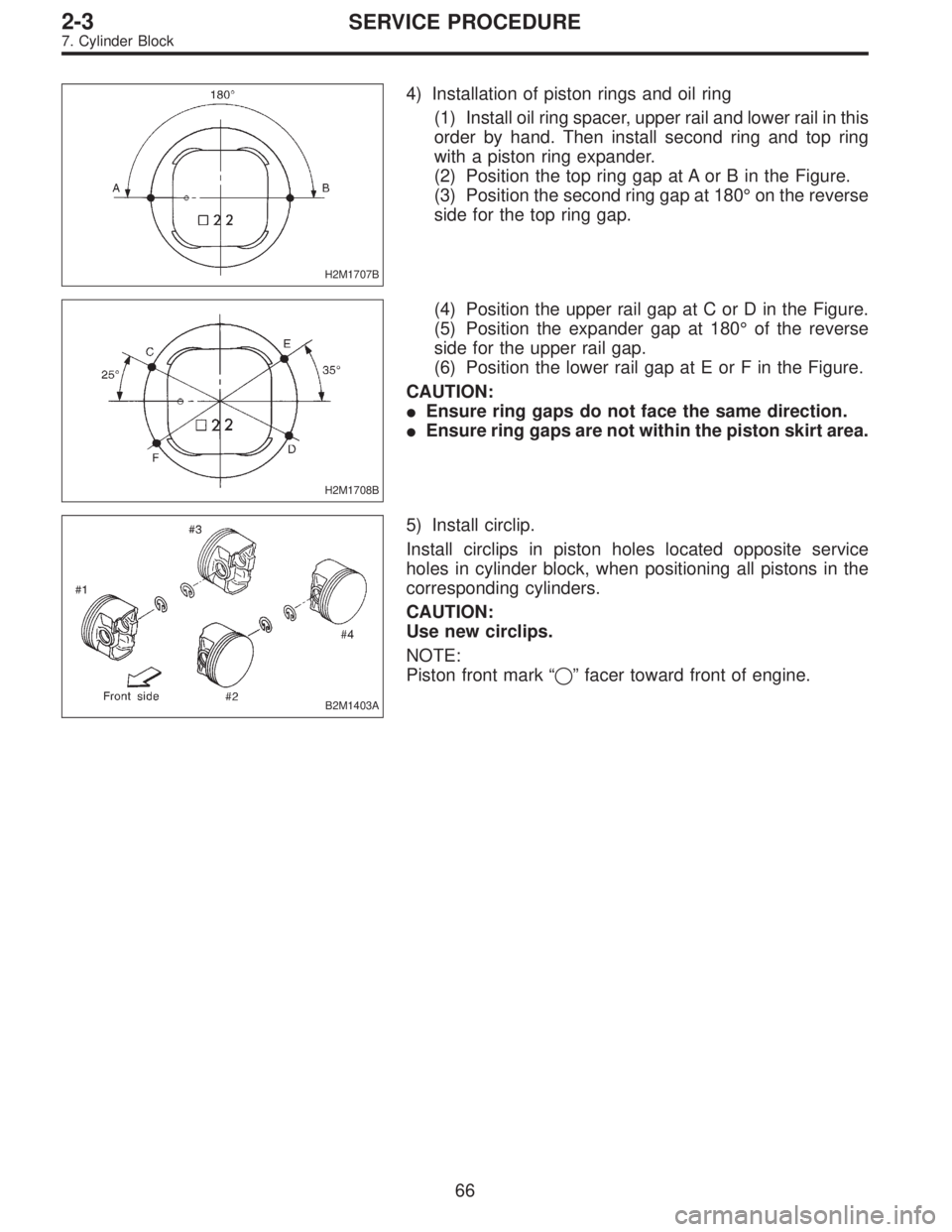

SUBARU LEGACY 1995 Service Repair Manual H2M1707B 4) Installation of piston rings and oil ring (1) Install oil ring spacer, upper rail and lower rail in this order by hand. Then install second ring and top ring with a piston ring expander. (

Page 88 of 2248

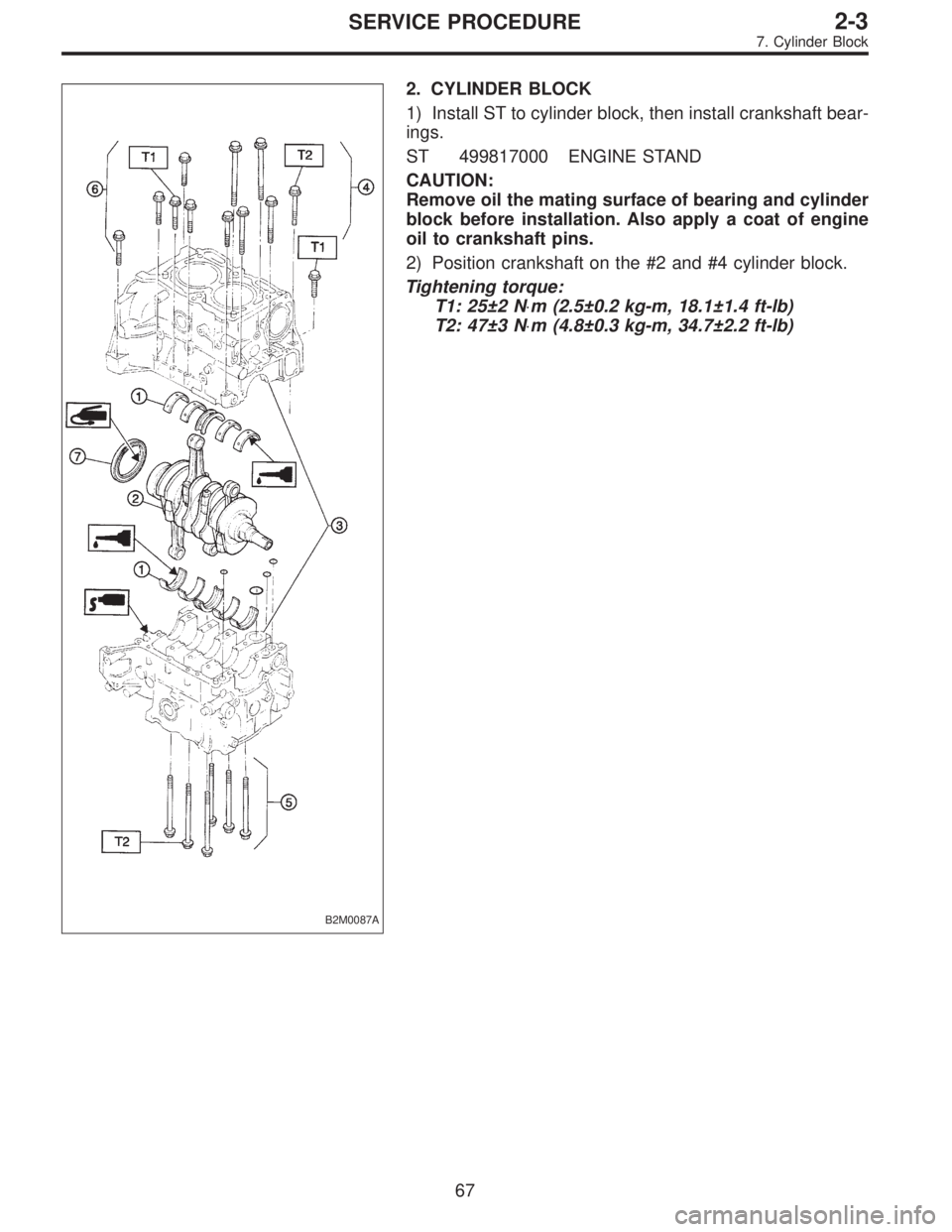

SUBARU LEGACY 1995 Service Repair Manual B2M0087A 2. CYLINDER BLOCK 1) Install ST to cylinder block, then install crankshaft bear- ings. ST 499817000 ENGINE STAND CAUTION: Remove oil the mating surface of bearing and cylinder block before in
