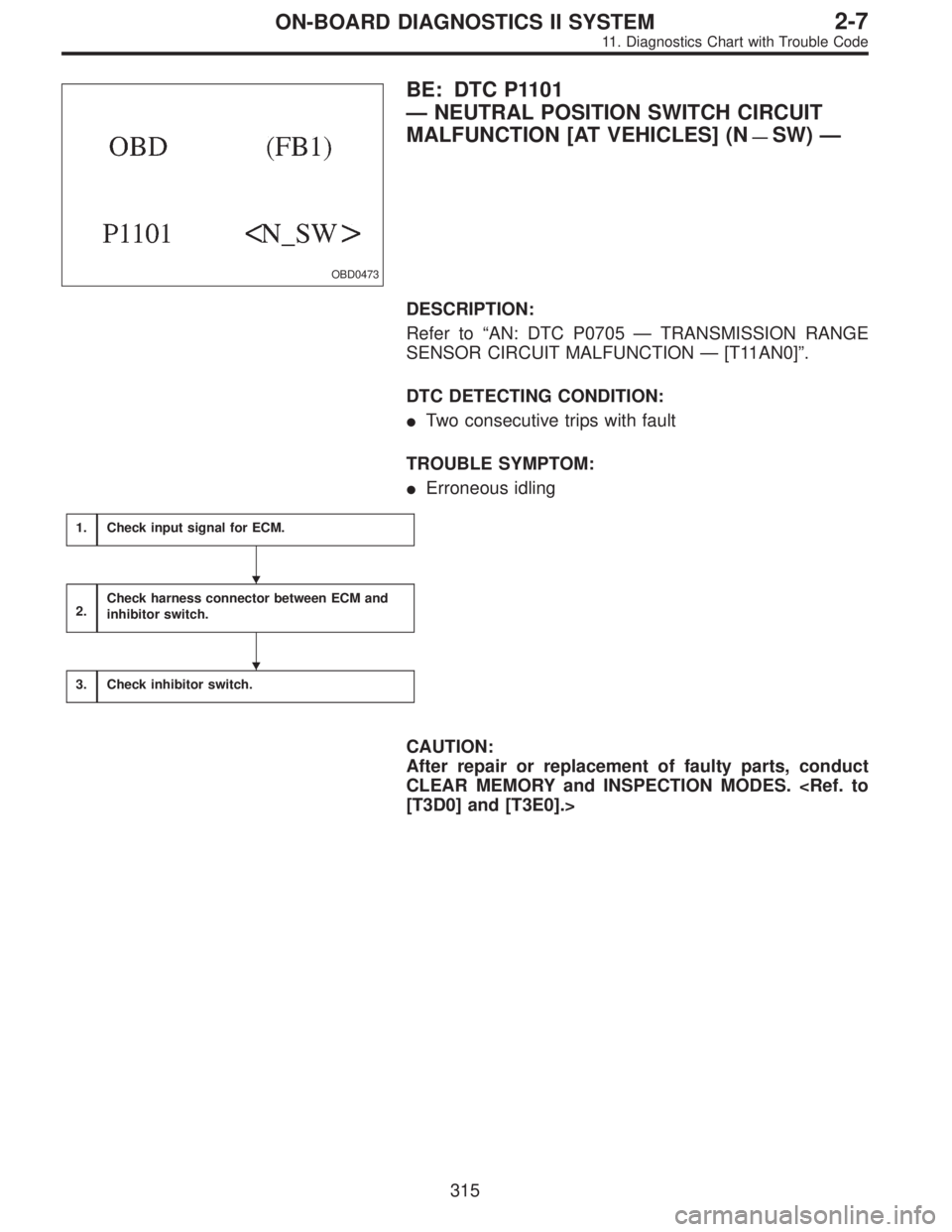

SUBARU LEGACY 1995 Service Repair Manual OBD0473 BE: DTC P1101 —NEUTRAL POSITION SWITCH CIRCUIT MALFUNCTION [AT VEHICLES] (N —SW)— DESCRIPTION: Refer to“AN: DTC P0705—TRANSMISSION RANGE SENSOR CIRCUIT MALFUNCTION—[T11AN0]”. DTC

Page 1522 of 2248

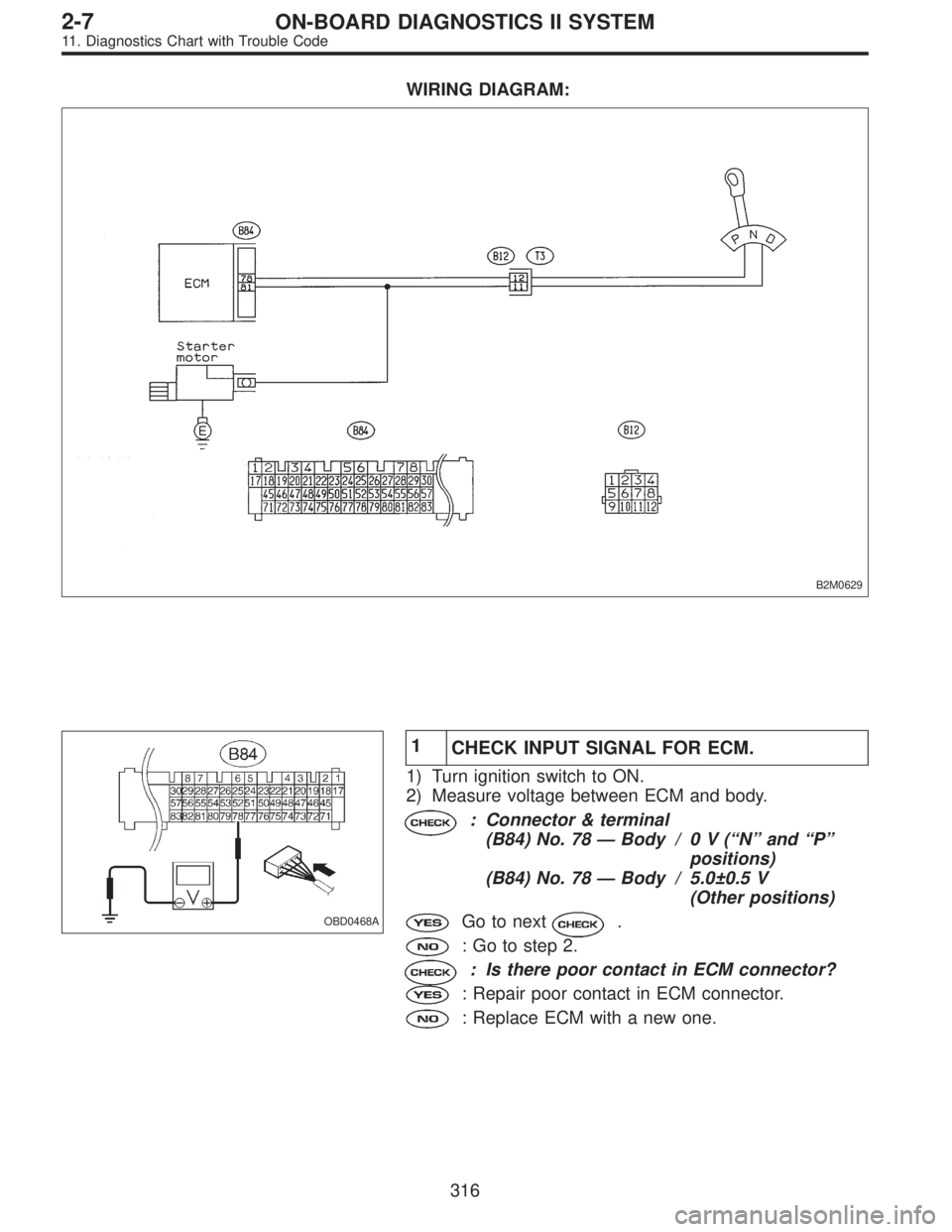

SUBARU LEGACY 1995 Service Repair Manual WIRING DIAGRAM: B2M0629 OBD0468A 1 CHECK INPUT SIGNAL FOR ECM. 1) Turn ignition switch to ON. 2) Measure voltage between ECM and body. : Connector & terminal (B84) No. 78—Body / 0 V (“N”and“P

Page 1523 of 2248

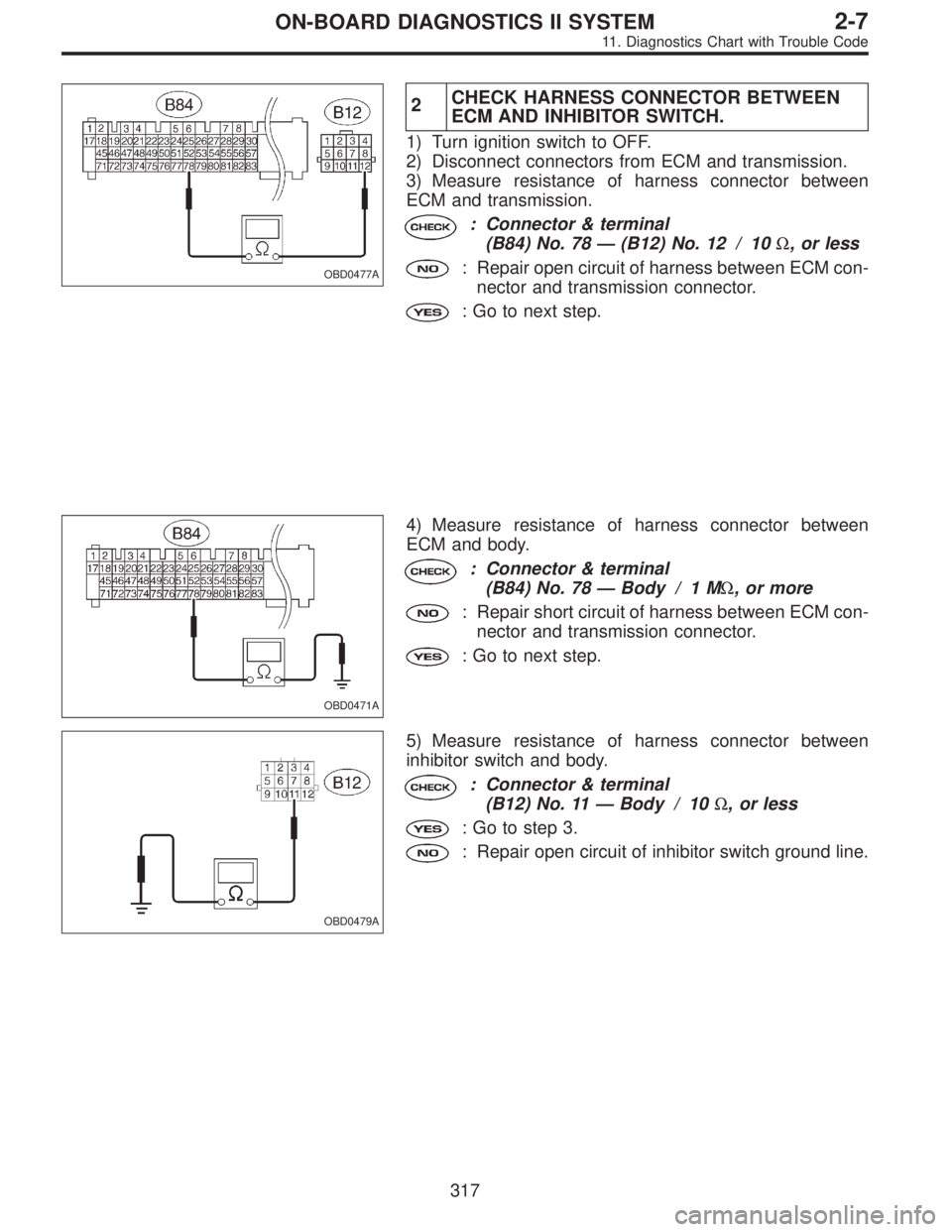

SUBARU LEGACY 1995 Service Repair Manual OBD0477A 2CHECK HARNESS CONNECTOR BETWEEN ECM AND INHIBITOR SWITCH. 1) Turn ignition switch to OFF. 2) Disconnect connectors from ECM and transmission. 3) Measure resistance of harness connector betwe

Page 1524 of 2248

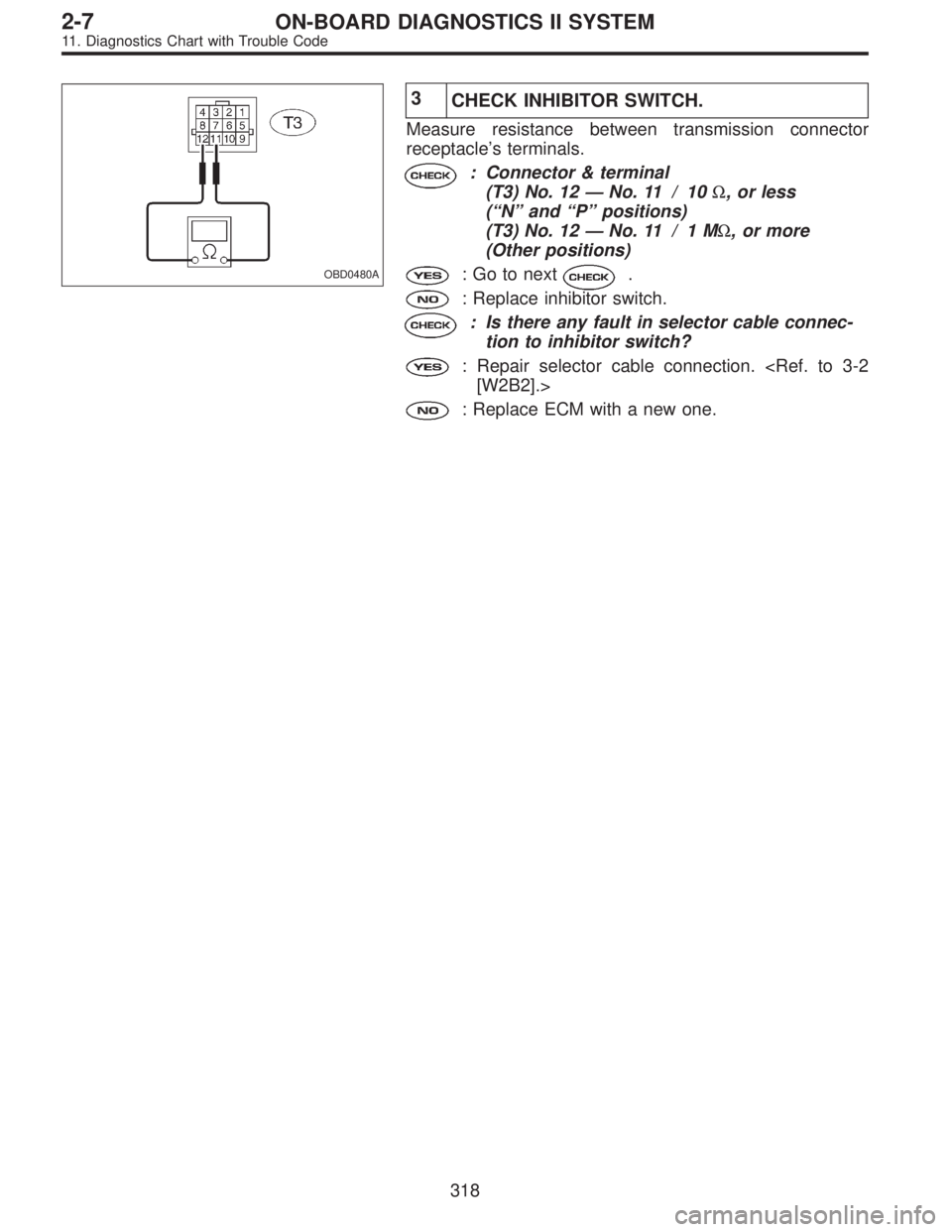

SUBARU LEGACY 1995 Service Repair Manual OBD0480A 3 CHECK INHIBITOR SWITCH. Measure resistance between transmission connector receptacle’s terminals. : Connector & terminal (T3) No. 12—No. 11 / 10Ω, or less (“N”and“P”positions)

Page 1525 of 2248

SUBARU LEGACY 1995 Service Repair Manual OBD0481 BF: DTC P1102 —PRESSURE SOURCES SWITCHING SOLENOID VALVE CIRCUIT MALFUNCTION (BR)— DESCRIPTION: Refer to“D: DTC P0105—PRESSURE SENSOR CIR- CUIT MALFUNCTION—[T11D0]”. DTC DETECTING

Page 1526 of 2248

SUBARU LEGACY 1995 Service Repair Manual 1.Check transmission type. AT MT Check AT/MT identification circuit. <Ref. to [T11BN0].> 2.Check output signal from ECM.  3.Check harness connector. 4.Check harness connector. 5.Check pressure sourc

Page 1527 of 2248

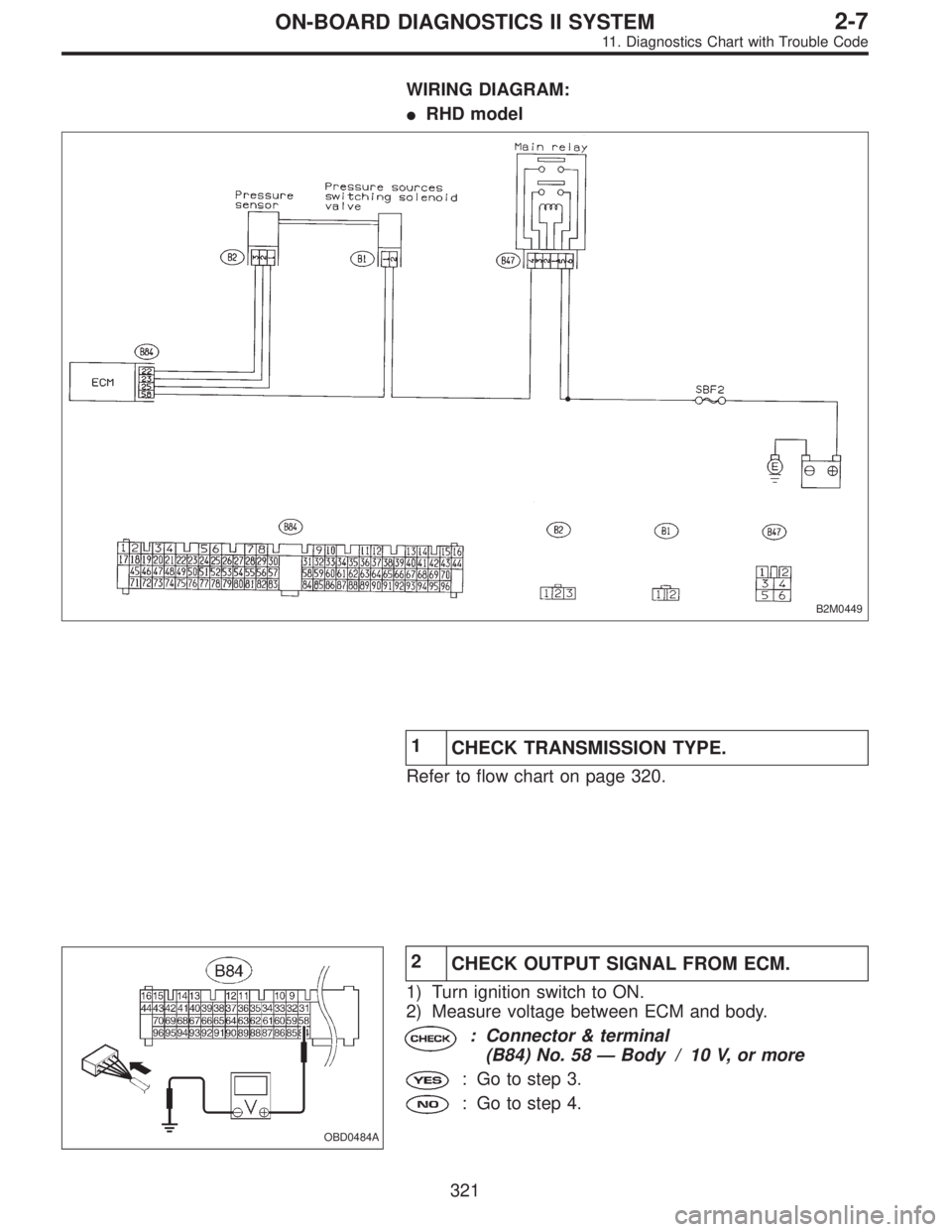

SUBARU LEGACY 1995 Service Repair Manual WIRING DIAGRAM: RHD model B2M0449 1 CHECK TRANSMISSION TYPE. Refer to flow chart on page 320. OBD0484A 2 CHECK OUTPUT SIGNAL FROM ECM. 1) Turn ignition switch to ON. 2) Measure voltage between ECM an

Page 1528 of 2248

SUBARU LEGACY 1995 Service Repair Manual OBD0484A 3 CHECK HARNESS CONNECTOR. 1) Turn ignition switch to OFF. 2) Disconnect connector from pressure sources switching solenoid valve. 3) Turn ignition switch to ON. 4) Measure voltage between EC
