Page 345 of 2248

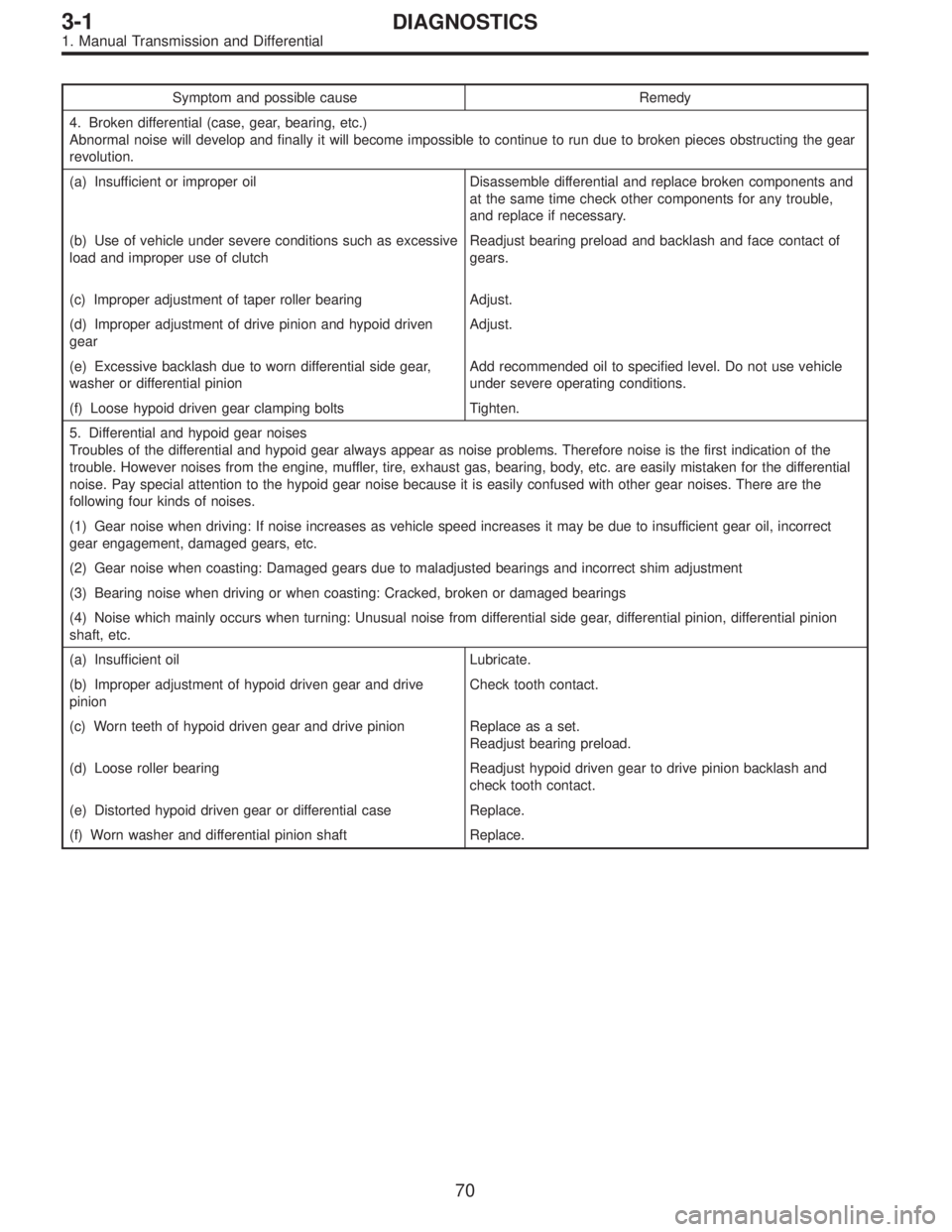

SUBARU LEGACY 1995 Service Repair Manual Symptom and possible cause Remedy
4. Broken differential (case, gear, bearing, etc.)
Abnormal noise will develop and finally it will become impossible to continue to run due to broken pieces obstructi

Symptom and possible cause Remedy
4. Broken differential (case, gear, bearing, etc.)
Abnormal noise will develop and finally it will become impossible to continue to run due to broken pieces obstructing the gear
revolution.
(a) Insufficient or improper oil Disassemble differential and replace broken components and
at the same time check other components for any trouble,
and replace if necessary.
(b) Use of vehicle under severe conditions such as excessive
load and improper use of clutchReadjust bearing preload and backlash and face contact of
gears.
(c) Improper adjustment of taper roller bearing Adjust.
(d) Improper adjustment of drive pinion and hypoid driven
gearAdjust.
(e) Excessive backlash due to worn differential side gear,
washer or differential pinionAdd recommended oil to specified level. Do not use vehicle
under severe operating conditions.
(f) Loose hypoid driven gear clamping bolts Tighten.
5. Differential and hypoid gear noises
Troubles of the differential and hypoid gear always appear as noise problems. Therefore noise is the first indication of the
trouble. However noises from the engine, muffler, tire, exhaust gas, bearing, body, etc. are easily mistaken for the differential
noise. Pay special attention to the hypoid gear noise because it is easily confused with other gear noises. There are the
following four kinds of noises.
(1) Gear noise when driving: If noise increases as vehicle speed increases it may be due to insufficient gear oil, incorrect
gear engagement, damaged gears, etc.
(2) Gear noise when coasting: Damaged gears due to maladjusted bearings and incorrect shim adjustment
(3) Bearing noise when driving or when coasting: Cracked, broken or damaged bearings
(4) Noise which mainly occurs when turning: Unusual noise from differential side gear, differential pinion, differential pinion
shaft, etc.
(a) Insufficient oil Lubricate.
(b) Improper adjustment of hypoid driven gear and drive
pinionCheck tooth contact.
(c) Worn teeth of hypoid driven gear and drive pinion Replace as a set.
Readjust bearing preload.
(d) Loose roller bearing Readjust hypoid driven gear to drive pinion backlash and
check tooth contact.
(e) Distorted hypoid driven gear or differential case Replace.
(f) Worn washer and differential pinion shaft Replace.
70
3-1DIAGNOSTICS
1. Manual Transmission and Differential

Page 346 of 2248

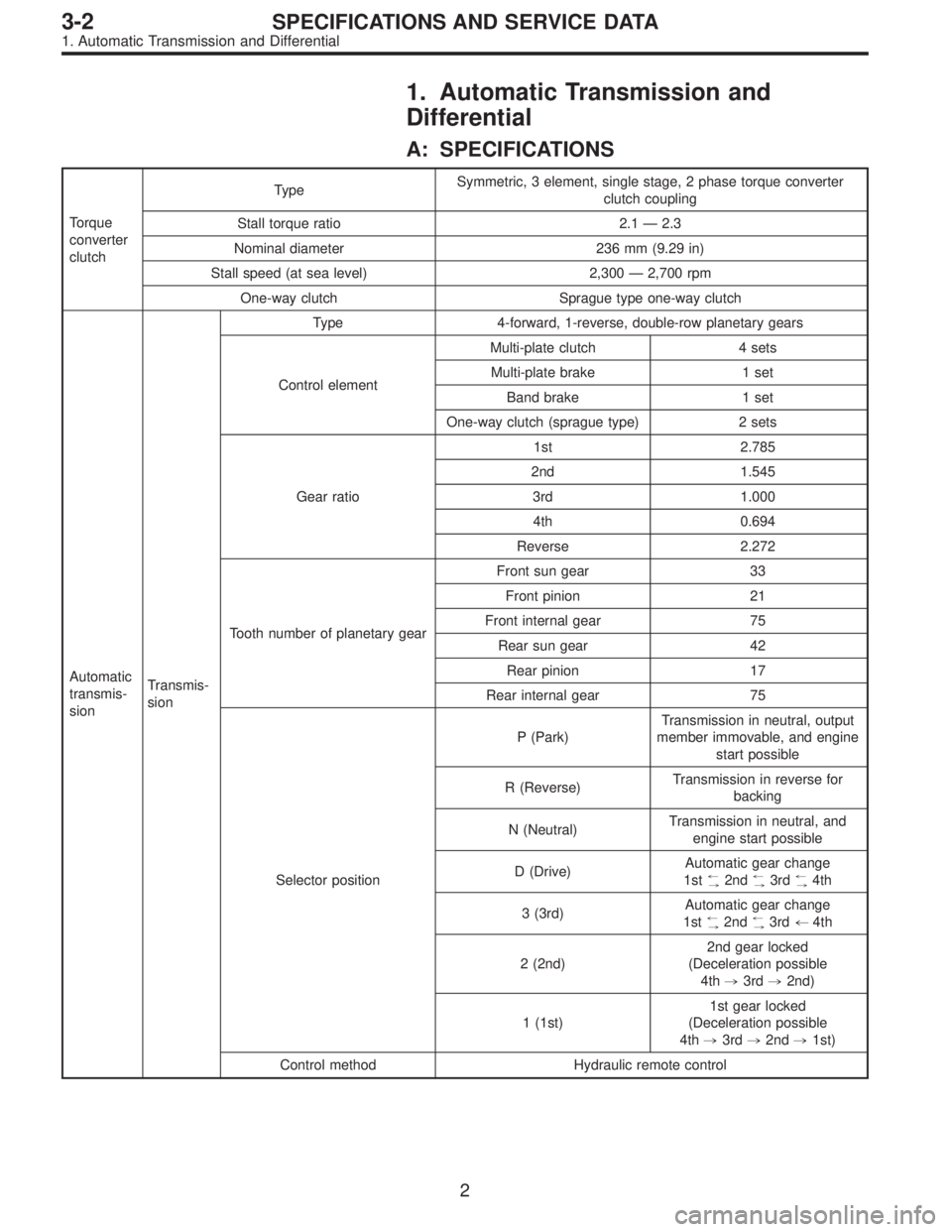

SUBARU LEGACY 1995 Service Repair Manual 1. Automatic Transmission and
Differential
A: SPECIFICATIONS
Torque
converter
clutchTypeSymmetric, 3 element, single stage, 2 phase torque converter
clutch coupling
Stall torque ratio 2.1 — 2.3
Nomi

Page 347 of 2248

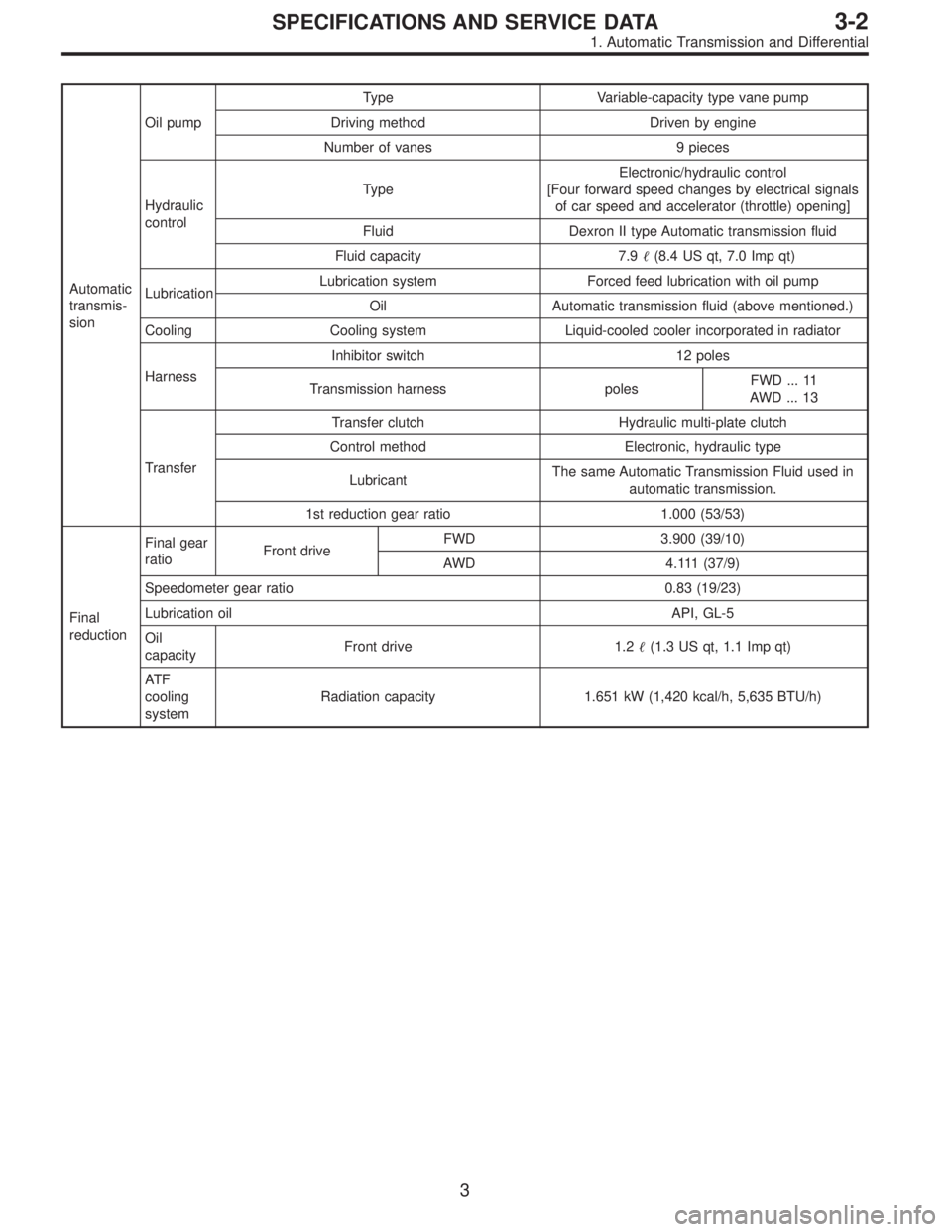

SUBARU LEGACY 1995 Service Repair Manual Automatic
transmis-
sionOil pumpType Variable-capacity type vane pump
Driving method Driven by engine
Number of vanes 9 pieces
Hydraulic
controlTypeElectronic/hydraulic control
[Four forward speed cha

Page 348 of 2248

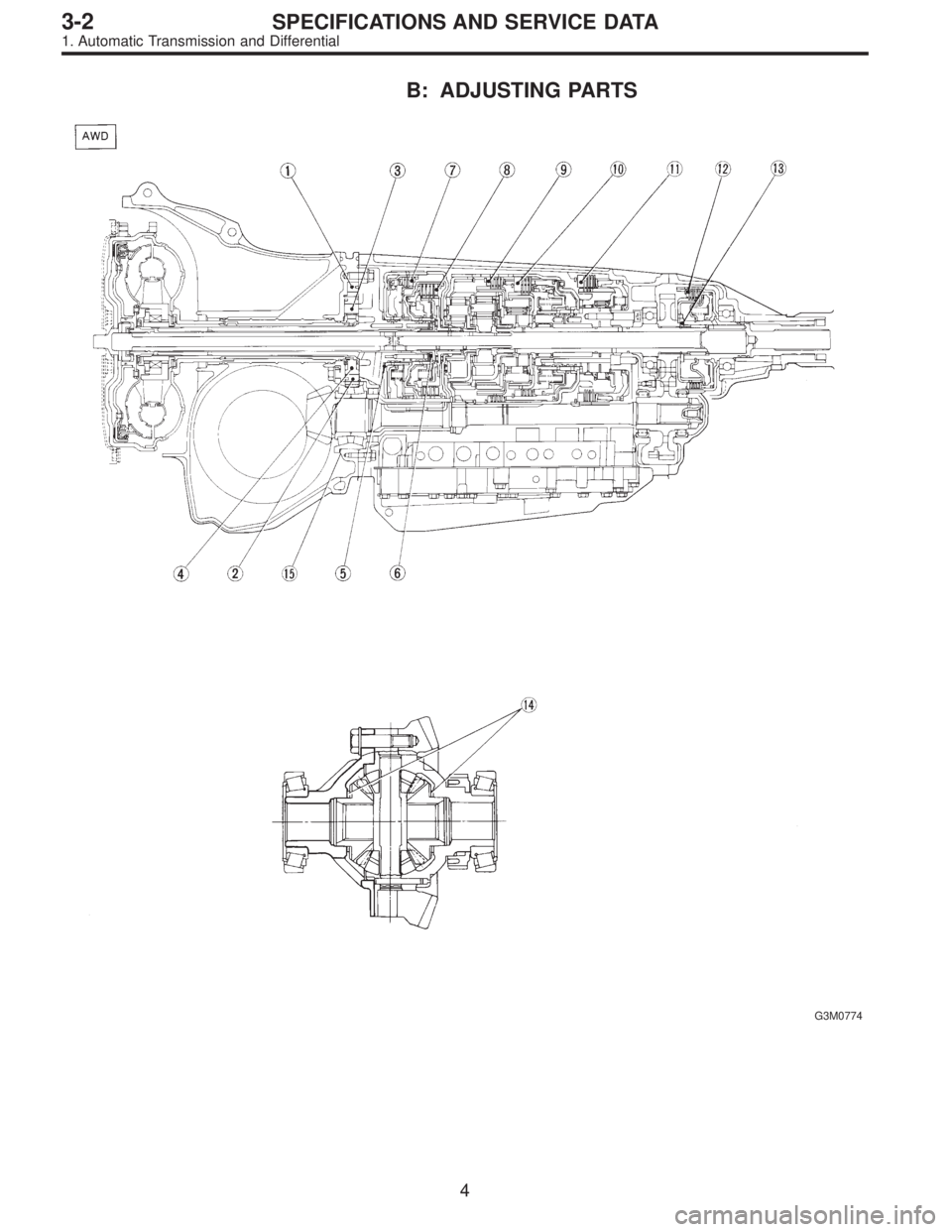

SUBARU LEGACY 1995 Service Repair Manual B: ADJUSTING PARTS
G3M0774
4
3-2SPECIFICATIONS AND SERVICE DATA
1. Automatic Transmission and Differential

Page 349 of 2248

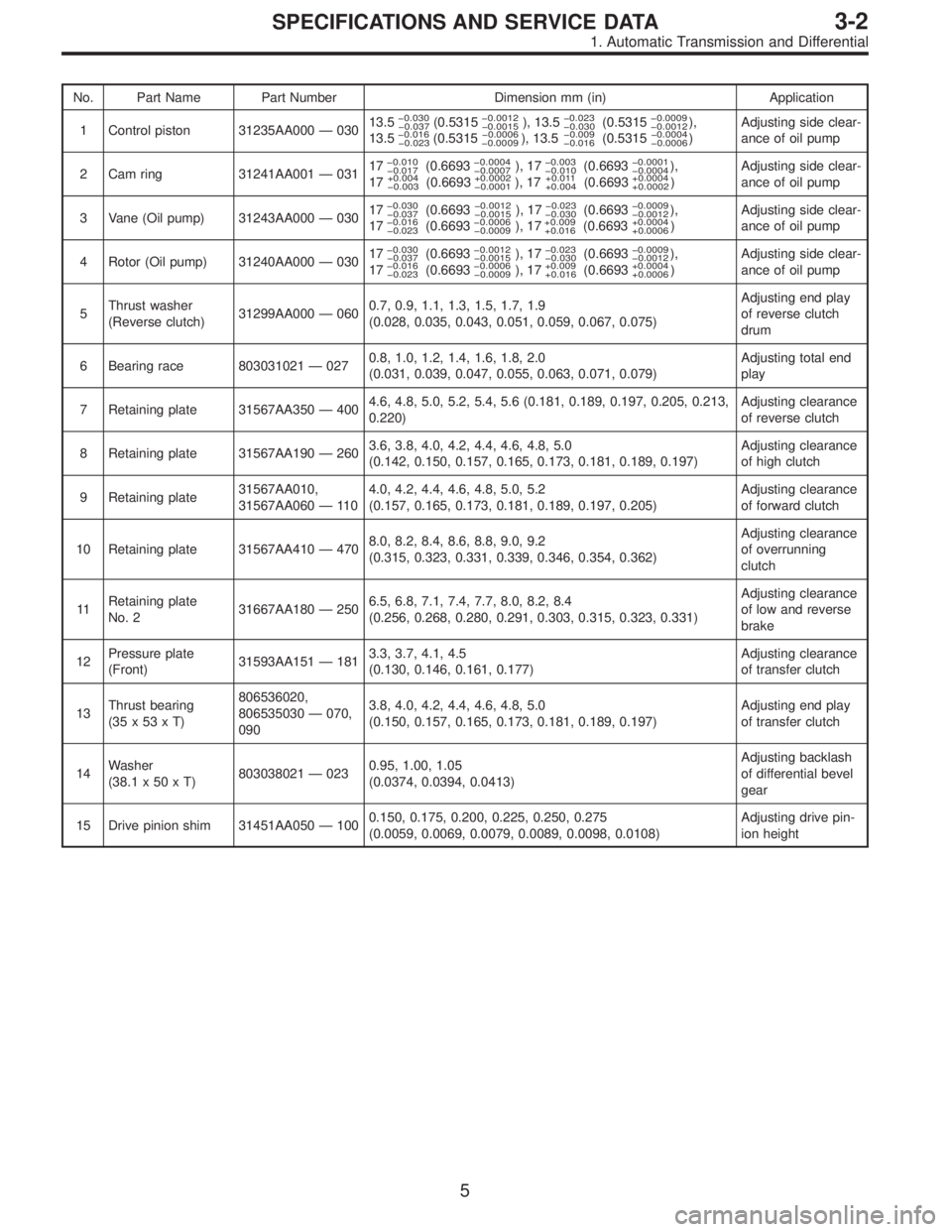

SUBARU LEGACY 1995 Service Repair Manual No. Part Name Part Number Dimension mm (in) Application
1 Control piston 31235AA000—03013.5
�0.030
�0.037(0.5315�0.0012
�0.0015), 13.5�0.023
�0.030(0.5315�0.0009
�0.0012),
13.5�0.016
�0.023(0.5315�0

No. Part Name Part Number Dimension mm (in) Application
1 Control piston 31235AA000—03013.5
0.030
0.037(0.53150.0012
0.0015), 13.50.023
0.030(0.53150.0009
0.0012),
13.50.016
0.023(0.53150.0006
0.0009), 13.50.009
0.016(0.53150.0004
0.0006)Adjusting side clear-
ance of oil pump
2 Cam ring 31241AA001 — 03117
0.010
0.017(0.66930.0004
0.0007), 170.003
0.010(0.66930.0001
0.0004),
17+0.004
0.003(0.6693+0.0002
0.0001), 17+0.011
+0.004(0.6693+0.0004
+0.0002)Adjusting side clear-
ance of oil pump
3 Vane (Oil pump) 31243AA000 — 03017
0.030
0.037(0.66930.0012
0.0015), 170.023
0.030(0.66930.0009
0.0012),
170.016
0.023(0.66930.0006
0.0009), 17+0.009
+0.016(0.6693+0.0004
+0.0006)Adjusting side clear-
ance of oil pump
4 Rotor (Oil pump) 31240AA000 — 03017
0.030
0.037(0.66930.0012
0.0015), 170.023
0.030(0.66930.0009
0.0012),
170.016
0.023(0.66930.0006
0.0009), 17+0.009
+0.016(0.6693+0.0004
+0.0006)Adjusting side clear-
ance of oil pump
5Thrust washer
(Reverse clutch)31299AA000 — 0600.7, 0.9, 1.1, 1.3, 1.5, 1.7, 1.9
(0.028, 0.035, 0.043, 0.051, 0.059, 0.067, 0.075)Adjusting end play
of reverse clutch
drum
6 Bearing race 803031021 — 0270.8, 1.0, 1.2, 1.4, 1.6, 1.8, 2.0
(0.031, 0.039, 0.047, 0.055, 0.063, 0.071, 0.079)Adjusting total end
play
7 Retaining plate 31567AA350 — 4004.6, 4.8, 5.0, 5.2, 5.4, 5.6 (0.181, 0.189, 0.197, 0.205, 0.213,
0.220)Adjusting clearance
of reverse clutch
8 Retaining plate 31567AA190 — 2603.6, 3.8, 4.0, 4.2, 4.4, 4.6, 4.8, 5.0
(0.142, 0.150, 0.157, 0.165, 0.173, 0.181, 0.189, 0.197)Adjusting clearance
of high clutch
9 Retaining plate31567AA010,
31567AA060 — 1104.0, 4.2, 4.4, 4.6, 4.8, 5.0, 5.2
(0.157, 0.165, 0.173, 0.181, 0.189, 0.197, 0.205)Adjusting clearance
of forward clutch
10 Retaining plate 31567AA410 — 4708.0, 8.2, 8.4, 8.6, 8.8, 9.0, 9.2
(0.315, 0.323, 0.331, 0.339, 0.346, 0.354, 0.362)Adjusting clearance
of overrunning
clutch
11Retaining plate
No. 231667AA180 — 2506.5, 6.8, 7.1, 7.4, 7.7, 8.0, 8.2, 8.4
(0.256, 0.268, 0.280, 0.291, 0.303, 0.315, 0.323, 0.331)Adjusting clearance
of low and reverse
brake
12Pressure plate
(Front)31593AA151 — 1813.3, 3.7, 4.1, 4.5
(0.130, 0.146, 0.161, 0.177)Adjusting clearance
of transfer clutch
13Thrust bearing
(35x53xT)806536020,
806535030 — 070,
0903.8, 4.0, 4.2, 4.4, 4.6, 4.8, 5.0
(0.150, 0.157, 0.165, 0.173, 0.181, 0.189, 0.197)Adjusting end play
of transfer clutch
14Washer
(38.1 x 50 x T)803038021 — 0230.95, 1.00, 1.05
(0.0374, 0.0394, 0.0413)Adjusting backlash
of differential bevel
gear
15 Drive pinion shim 31451AA050 — 1000.150, 0.175, 0.200, 0.225, 0.250, 0.275
(0.0059, 0.0069, 0.0079, 0.0089, 0.0098, 0.0108)Adjusting drive pin-
ion height
5
3-2SPECIFICATIONS AND SERVICE DATA
1. Automatic Transmission and Differential

Page 350 of 2248

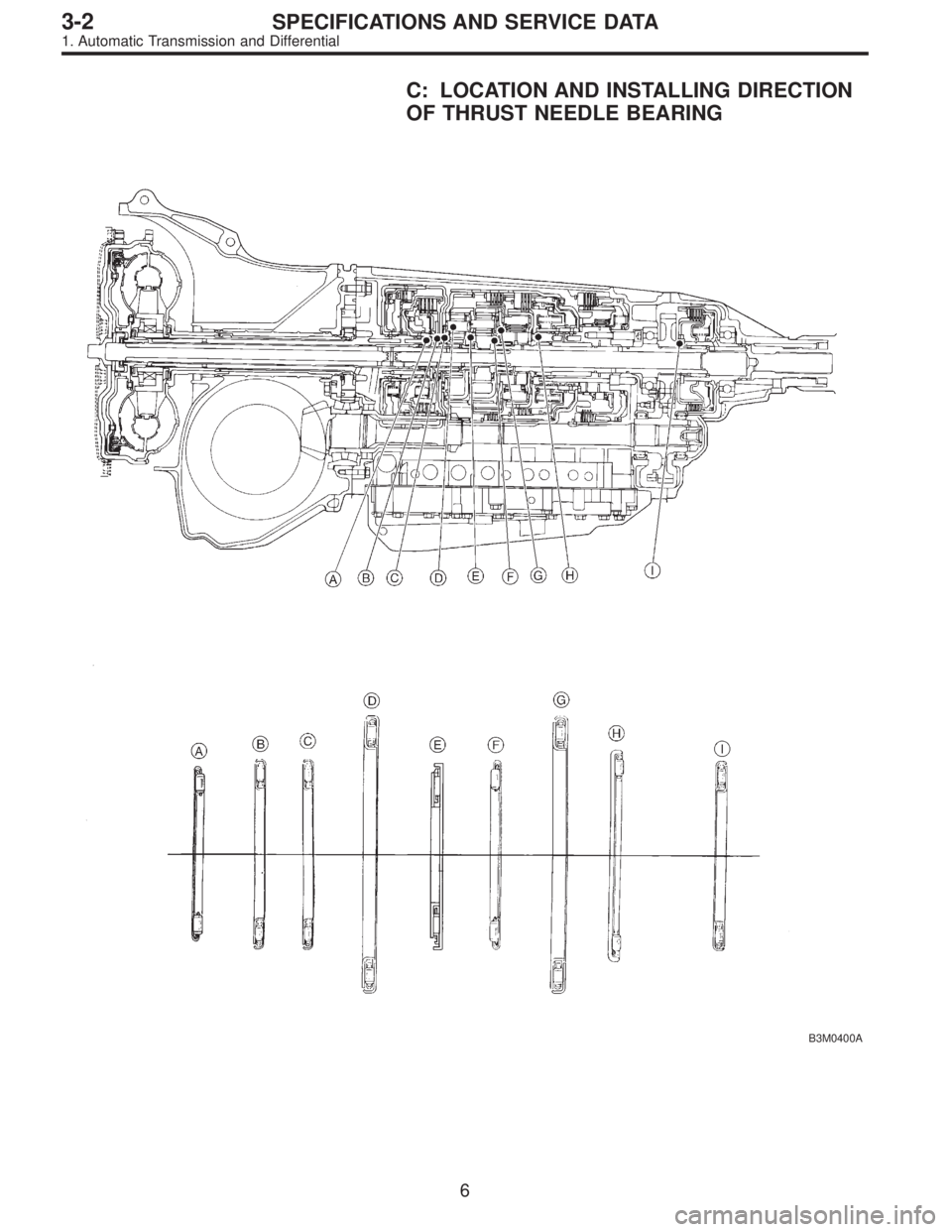

SUBARU LEGACY 1995 Service Repair Manual C: LOCATION AND INSTALLING DIRECTION
OF THRUST NEEDLE BEARING
B3M0400A
6
3-2SPECIFICATIONS AND SERVICE DATA
1. Automatic Transmission and Differential

Page 351 of 2248

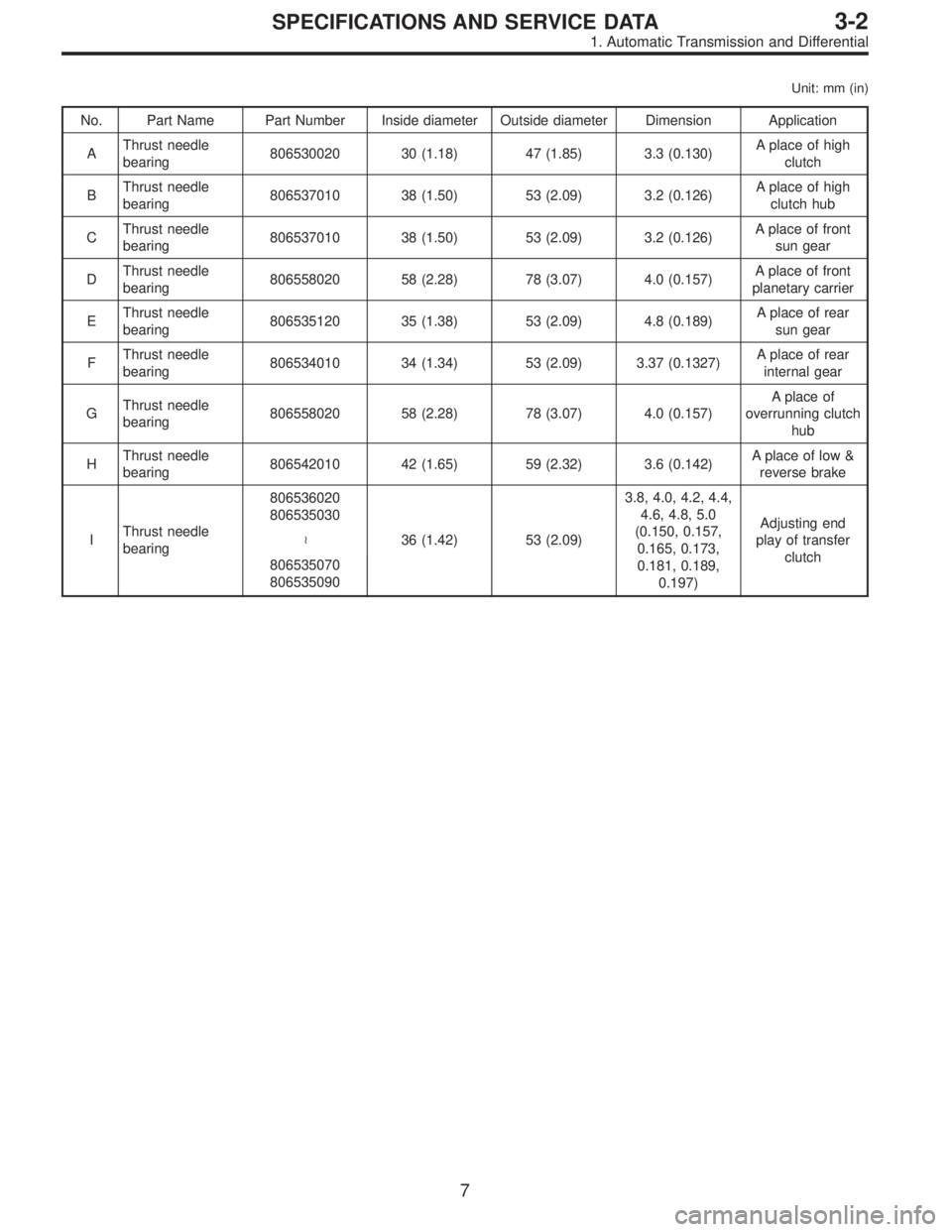

SUBARU LEGACY 1995 Service Repair Manual Unit: mm (in)
No. Part Name Part Number Inside diameter Outside diameter Dimension Application
AThrust needle
bearing806530020 30 (1.18) 47 (1.85) 3.3 (0.130)A place of high
clutch
BThrust needle
bear

Page 352 of 2248

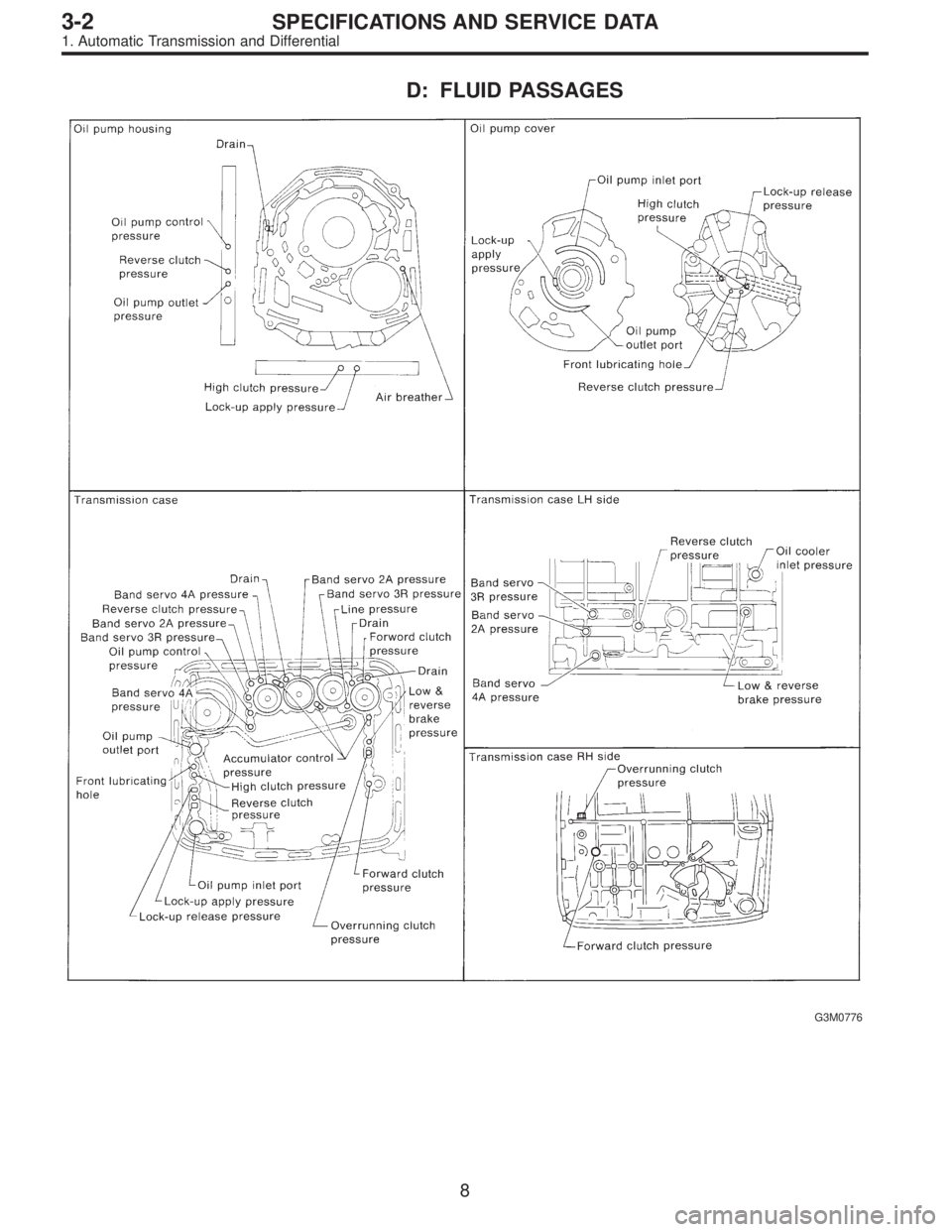

SUBARU LEGACY 1995 Service Repair Manual D: FLUID PASSAGES
G3M0776
8
3-2SPECIFICATIONS AND SERVICE DATA
1. Automatic Transmission and Differential
