Page 1761 of 2248

B4M0733A

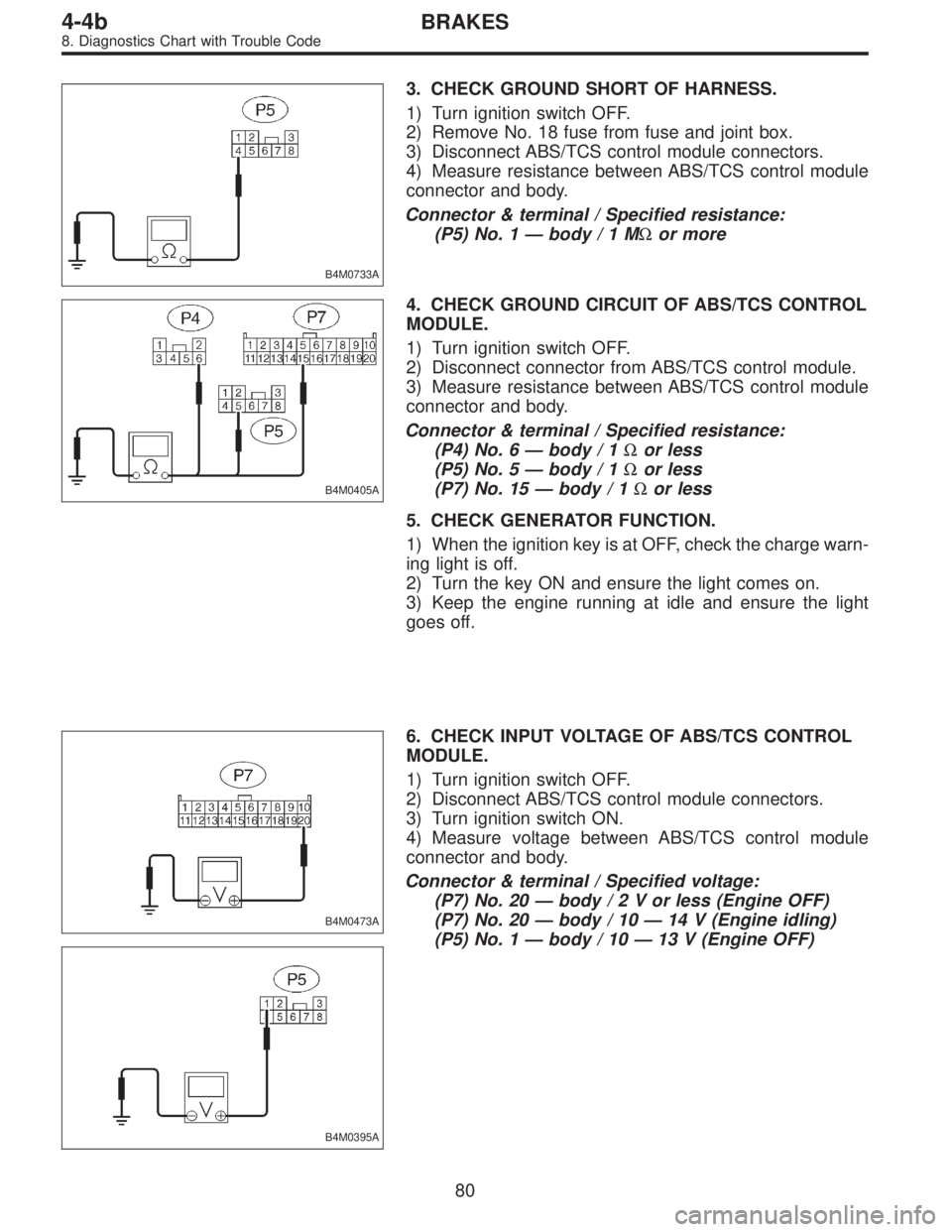

3. CHECK GROUND SHORT OF HARNESS.
1) Turn ignition switch OFF.
2) Remove No. 18 fuse from fuse and joint box.
3) Disconnect ABS/TCS control module connectors.
4) Measure resistance between ABS/TCS control module
connector and body.
Connector & terminal / Specified resistance:
(P5) No. 1—body/1MΩor more
B4M0405A
4. CHECK GROUND CIRCUIT OF ABS/TCS CONTROL
MODULE.
1) Turn ignition switch OFF.
2) Disconnect connector from ABS/TCS control module.
3) Measure resistance between ABS/TCS control module
connector and body.
Connector & terminal / Specified resistance:
(P4) No. 6—body / 1Ωor less
(P5) No. 5—body / 1Ωor less
(P7) No. 15—body / 1Ωor less
5. CHECK GENERATOR FUNCTION.
1) When the ignition key is at OFF, check the charge warn-
ing light is off.
2) Turn the key ON and ensure the light comes on.
3) Keep the engine running at idle and ensure the light
goes off.
B4M0473A
B4M0395A
6. CHECK INPUT VOLTAGE OF ABS/TCS CONTROL
MODULE.
1) Turn ignition switch OFF.
2) Disconnect ABS/TCS control module connectors.
3) Turn ignition switch ON.
4) Measure voltage between ABS/TCS control module
connector and body.
Connector & terminal / Specified voltage:
(P7) No. 20—body/2Vorless (Engine OFF)
(P7) No. 20—body / 10—14 V (Engine idling)
(P5) No. 1—body / 10—13 V (Engine OFF)
80
4-4bBRAKES
8. Diagnostics Chart with Trouble Code
Page 1762 of 2248

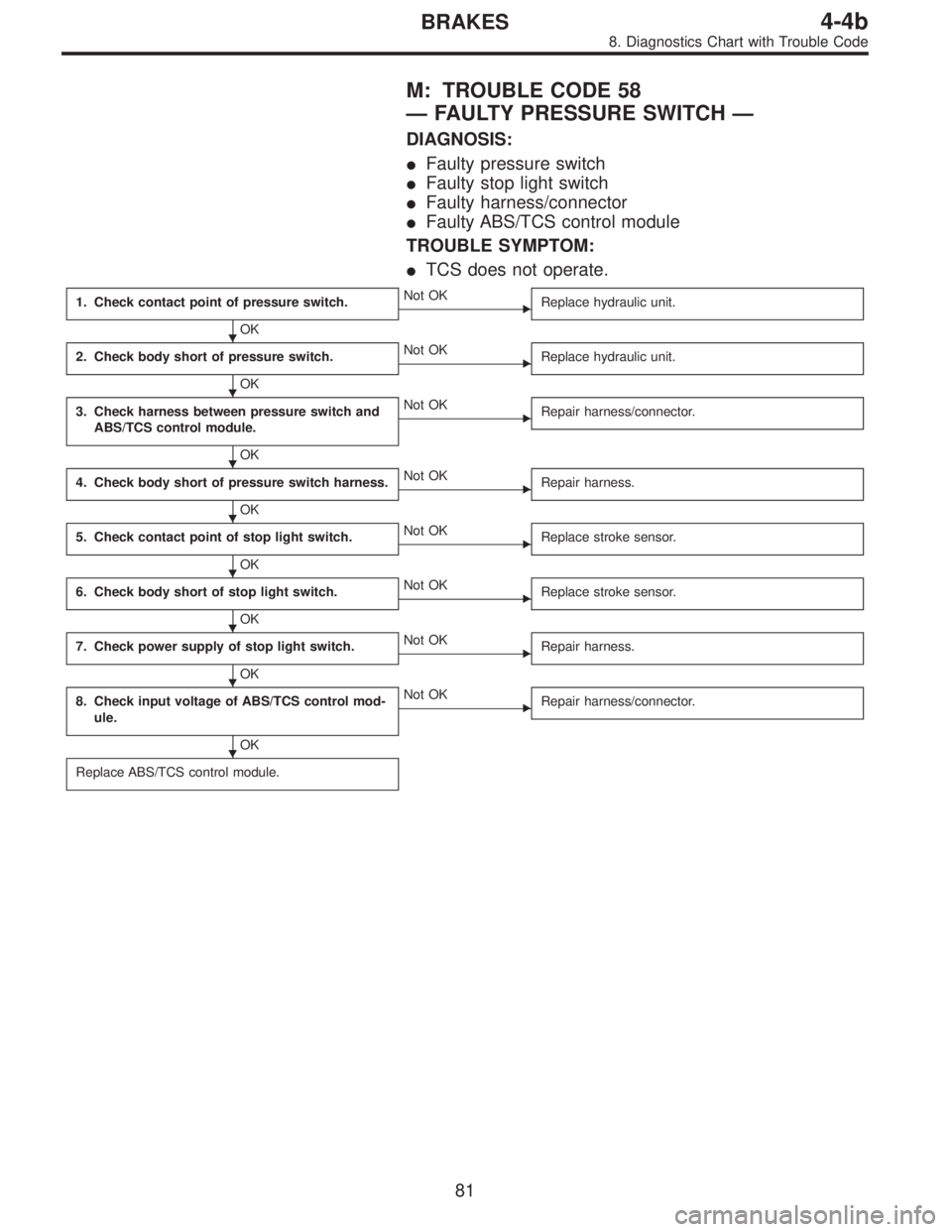

M: TROUBLE CODE 58
—FAULTY PRESSURE SWITCH—
DIAGNOSIS:
Faulty pressure switch
Faulty stop light switch
Faulty harness/connector
Faulty ABS/TCS control module
TROUBLE SYMPTOM:
TCS does not operate.
1. Check contact point of pressure switch.
OK
Not OK
Replace hydraulic unit.
2. Check body short of pressure switch.
OK
Not OK
Replace hydraulic unit.
3. Check harness between pressure switch and
ABS/TCS control module.
OK
Not OK
Repair harness/connector.
4. Check body short of pressure switch harness.
OK
Not OK
Repair harness.
5. Check contact point of stop light switch.
OK
Not OK
Replace stroke sensor.
6. Check body short of stop light switch.
OK
Not OK
Replace stroke sensor.
7. Check power supply of stop light switch.
OK
Not OK
Repair harness.
8. Check input voltage of ABS/TCS control mod-
ule.
OK
Not OK
Repair harness/connector.
Replace ABS/TCS control module.
81
4-4bBRAKES
8. Diagnostics Chart with Trouble Code
Page 1763 of 2248
B4M0742
B4M0734A

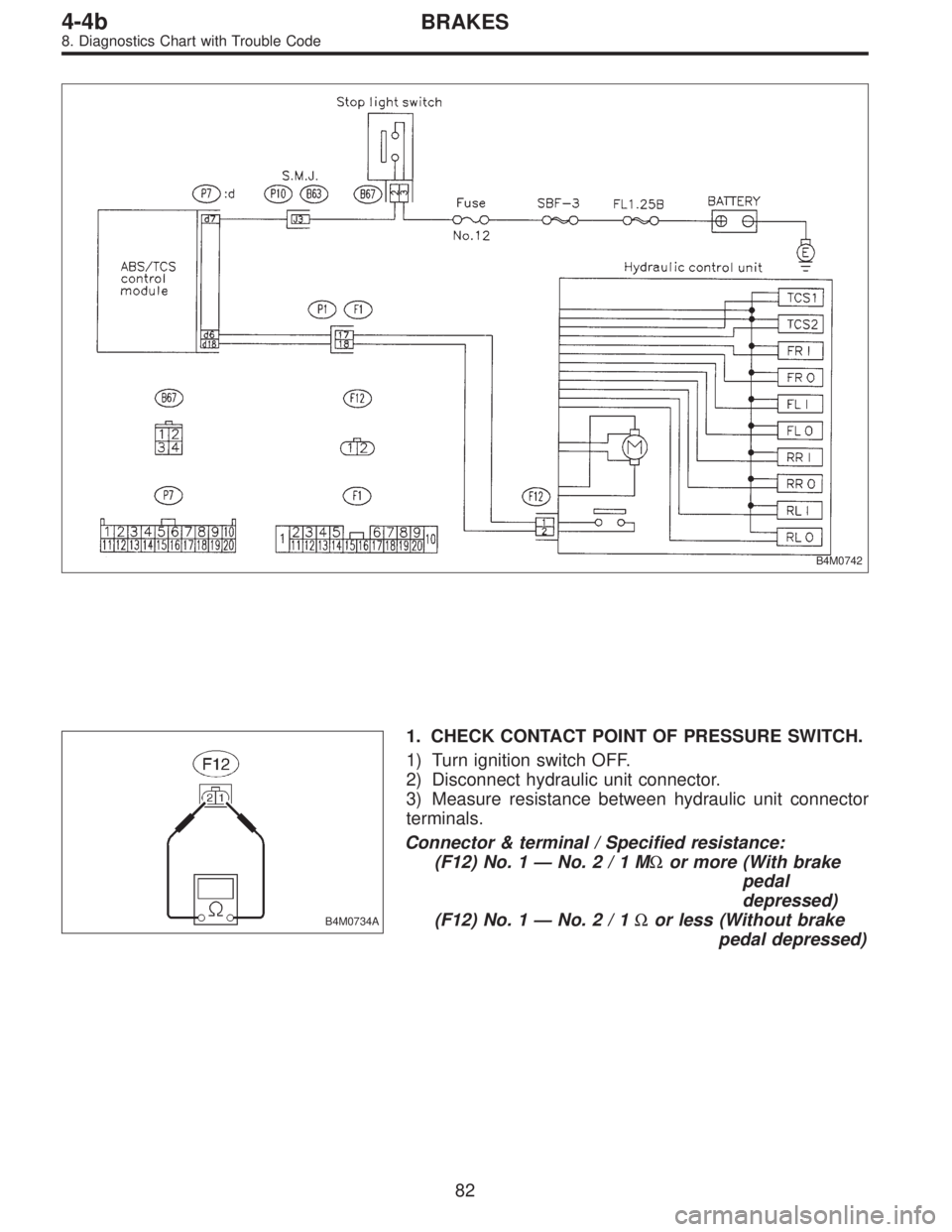

1. CHECK CONTACT POINT OF PRESSURE SWITCH.
1) Turn ignition switch OFF.
2) Disconnect hydraulic unit connector.
3) Measure resistance between hydraulic unit connector
terminals.
Connector & terminal / Specified resistance:
(F12) No. 1—No.2/1MΩor more (With brake
pedal
depressed)
(F12) No. 1—No.2/1Ωor less (Without brake
pedal depressed)
82
4-4bBRAKES
8. Diagnostics Chart with Trouble Code
Page 1764 of 2248

B4M0735A

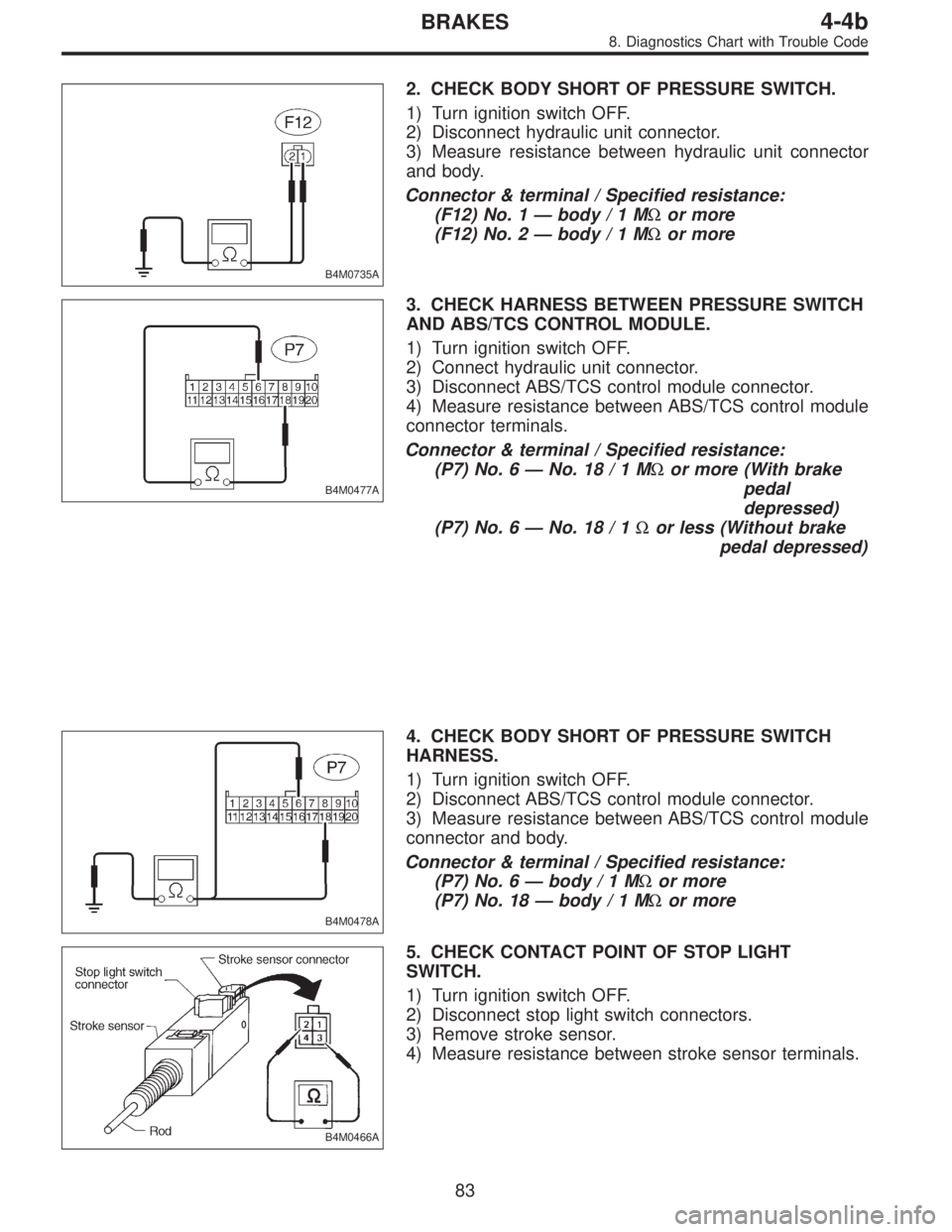

2. CHECK BODY SHORT OF PRESSURE SWITCH.
1) Turn ignition switch OFF.
2) Disconnect hydraulic unit connector.
3) Measure resistance between hydraulic unit connector
and body.
Connector & terminal / Specified resistance:
(F12) No. 1—body/1MΩor more
(F12) No. 2—body/1MΩor more
B4M0477A
3. CHECK HARNESS BETWEEN PRESSURE SWITCH
AND ABS/TCS CONTROL MODULE.
1) Turn ignition switch OFF.
2) Connect hydraulic unit connector.
3) Disconnect ABS/TCS control module connector.
4) Measure resistance between ABS/TCS control module
connector terminals.
Connector & terminal / Specified resistance:
(P7) No. 6—No.18/1MΩor more (With brake
pedal
depressed)
(P7) No. 6—No. 18 / 1Ωor less (Without brake
pedal depressed)
B4M0478A
4. CHECK BODY SHORT OF PRESSURE SWITCH
HARNESS.
1) Turn ignition switch OFF.
2) Disconnect ABS/TCS control module connector.
3) Measure resistance between ABS/TCS control module
connector and body.
Connector & terminal / Specified resistance:
(P7) No. 6—body/1MΩor more
(P7) No. 18—body/1MΩor more
B4M0466A
5. CHECK CONTACT POINT OF STOP LIGHT
SWITCH.
1) Turn ignition switch OFF.
2) Disconnect stop light switch connectors.
3) Remove stroke sensor.
4) Measure resistance between stroke sensor terminals.
83
4-4bBRAKES
8. Diagnostics Chart with Trouble Code
Page 1765 of 2248

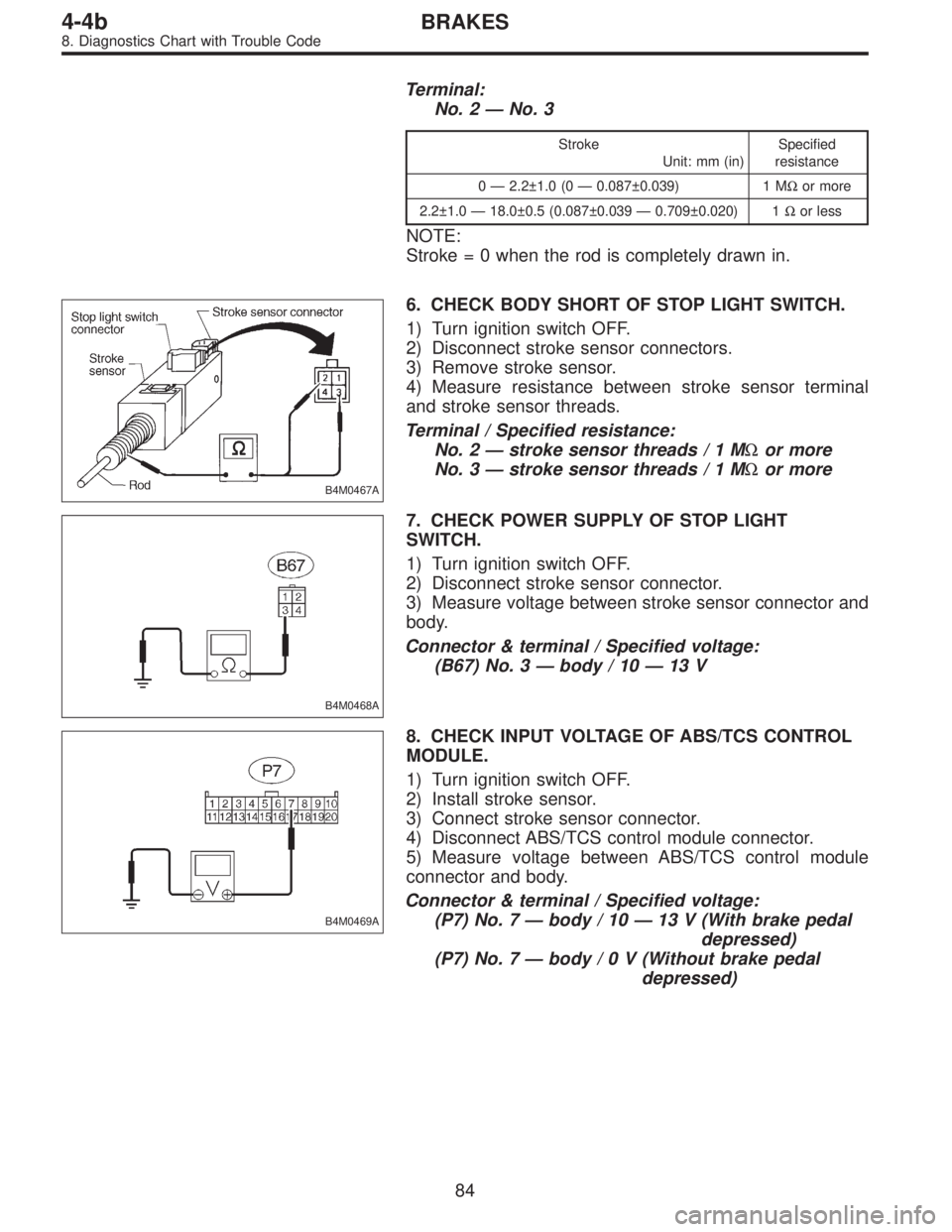

Terminal:
No. 2—No. 3
Stroke
Unit: mm (in)Specified
resistance
0—2.2±1.0 (0—0.087±0.039) 1 MΩor more
2.2±1.0—18.0±0.5 (0.087±0.039—0.709±0.020) 1Ωor less
NOTE:
Stroke = 0 when the rod is completely drawn in.
B4M0467A
6. CHECK BODY SHORT OF STOP LIGHT SWITCH.
1) Turn ignition switch OFF.
2) Disconnect stroke sensor connectors.
3) Remove stroke sensor.
4) Measure resistance between stroke sensor terminal
and stroke sensor threads.
Terminal / Specified resistance:
No. 2—stroke sensor threads/1MΩor more
No. 3—stroke sensor threads/1MΩor more
B4M0468A
7. CHECK POWER SUPPLY OF STOP LIGHT
SWITCH.
1) Turn ignition switch OFF.
2) Disconnect stroke sensor connector.
3) Measure voltage between stroke sensor connector and
body.
Connector & terminal / Specified voltage:
(B67) No. 3—body / 10—13 V
B4M0469A
8. CHECK INPUT VOLTAGE OF ABS/TCS CONTROL
MODULE.
1) Turn ignition switch OFF.
2) Install stroke sensor.
3) Connect stroke sensor connector.
4) Disconnect ABS/TCS control module connector.
5) Measure voltage between ABS/TCS control module
connector and body.
Connector & terminal / Specified voltage:
(P7) No. 7—body / 10—13 V (With brake pedal
depressed)
(P7) No. 7—body/0V(Without brake pedal
depressed)
84
4-4bBRAKES
8. Diagnostics Chart with Trouble Code
Page 1766 of 2248

G2M0096

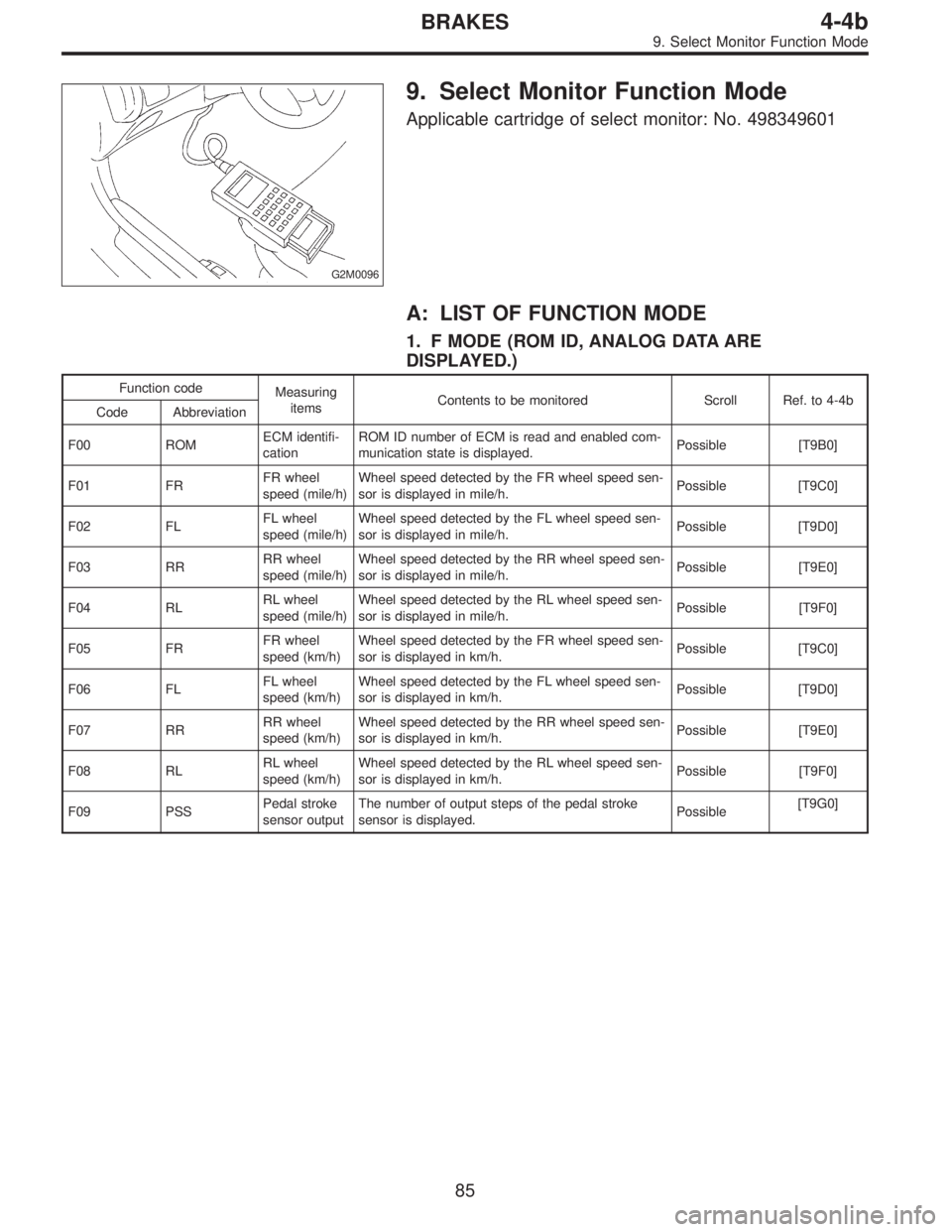

9. Select Monitor Function Mode
Applicable cartridge of select monitor: No. 498349601
A: LIST OF FUNCTION MODE
1. F MODE (ROM ID, ANALOG DATA ARE
DISPLAYED.)
Function code
Measuring
itemsContents to be monitored Scroll Ref. to 4-4b
Code Abbreviation
F00 ROMECM identifi-
cationROM ID number of ECM is read and enabled com-
munication state is displayed.Possible [T9B0]
F01 FRFR wheel
speed (mile/h)Wheel speed detected by the FR wheel speed sen-
sor is displayed in mile/h.Possible [T9C0]
F02 FLFL wheel
speed (mile/h)Wheel speed detected by the FL wheel speed sen-
sor is displayed in mile/h.Possible [T9D0]
F03 RRRR wheel
speed (mile/h)Wheel speed detected by the RR wheel speed sen-
sor is displayed in mile/h.Possible [T9E0]
F04 RLRL wheel
speed (mile/h)Wheel speed detected by the RL wheel speed sen-
sor is displayed in mile/h.Possible [T9F0]
F05 FRFR wheel
speed (km/h)Wheel speed detected by the FR wheel speed sen-
sor is displayed in km/h.Possible [T9C0]
F06 FLFL wheel
speed (km/h)Wheel speed detected by the FL wheel speed sen-
sor is displayed in km/h.Possible [T9D0]
F07 RRRR wheel
speed (km/h)Wheel speed detected by the RR wheel speed sen-
sor is displayed in km/h.Possible [T9E0]
F08 RLRL wheel
speed (km/h)Wheel speed detected by the RL wheel speed sen-
sor is displayed in km/h.Possible [T9F0]
F09 PSSPedal stroke
sensor outputThe number of output steps of the pedal stroke
sensor is displayed.Possible[T9G0]
85
4-4bBRAKES
9. Select Monitor Function Mode
Page 1767 of 2248

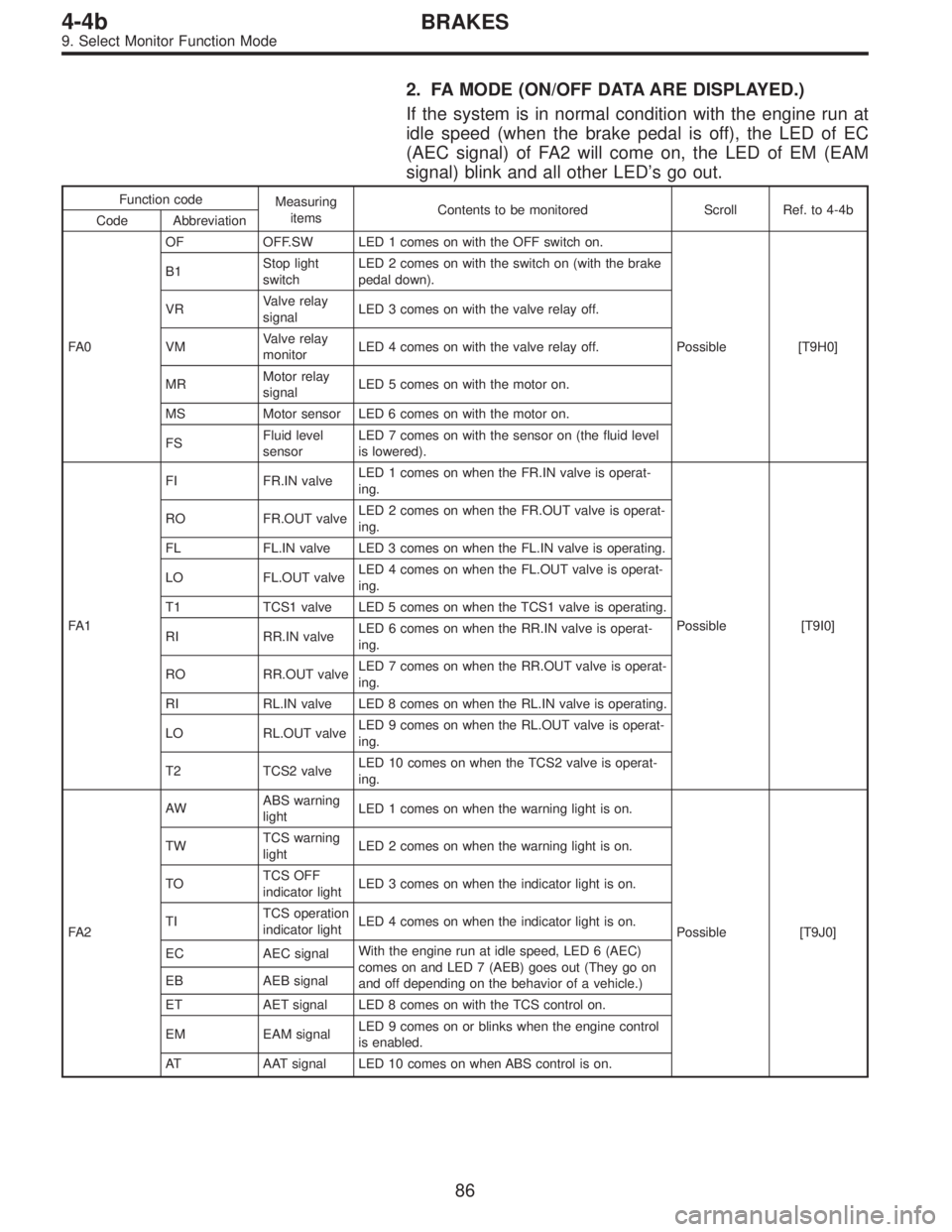

2. FA MODE (ON/OFF DATA ARE DISPLAYED.)
If the system is in normal condition with the engine run at
idle speed (when the brake pedal is off), the LED of EC
(AEC signal) of FA2 will come on, the LED of EM (EAM
signal) blink and all other LED’s go out.
Function code
Measuring
itemsContents to be monitored Scroll Ref. to 4-4b
Code Abbreviation
FA 0OF OFF.SW LED 1 comes on with the OFF switch on.
Possible [T9H0] B1Stop light
switchLED 2 comes on with the switch on (with the brake
pedal down).
VRValve relay
signalLED 3 comes on with the valve relay off.
VMValve relay
monitorLED 4 comes on with the valve relay off.
MRMotor relay
signalLED 5 comes on with the motor on.
MS Motor sensor LED 6 comes on with the motor on.
FSFluid level
sensorLED 7 comes on with the sensor on (the fluid level
is lowered).
FA 1FI FR.IN valveLED 1 comes on when the FR.IN valve is operat-
ing.
Possible [T9I0] RO FR.OUT valveLED 2 comes on when the FR.OUT valve is operat-
ing.
FL FL.IN valve LED 3 comes on when the FL.IN valve is operating.
LO FL.OUT valveLED 4 comes on when the FL.OUT valve is operat-
ing.
T1 TCS1 valve LED 5 comes on when the TCS1 valve is operating.
RI RR.IN valveLED 6 comes on when the RR.IN valve is operat-
ing.
RO RR.OUT valveLED 7 comes on when the RR.OUT valve is operat-
ing.
RI RL.IN valve LED 8 comes on when the RL.IN valve is operating.
LO RL.OUT valveLED 9 comes on when the RL.OUT valve is operat-
ing.
T2 TCS2 valveLED 10 comes on when the TCS2 valve is operat-
ing.
FA 2AWABS warning
lightLED 1 comes on when the warning light is on.
Possible [T9J0] TWTCS warning
lightLED 2 comes on when the warning light is on.
TOTCS OFF
indicator lightLED 3 comes on when the indicator light is on.
TITCS operation
indicator lightLED 4 comes on when the indicator light is on.
EC AEC signalWith the engine run at idle speed, LED 6 (AEC)
comes on and LED 7 (AEB) goes out (They go on
and off depending on the behavior of a vehicle.) EB AEB signal
ET AET signal LED 8 comes on with the TCS control on.
EM EAM signalLED 9 comes on or blinks when the engine control
is enabled.
AT AAT signal LED 10 comes on when ABS control is on.
86
4-4bBRAKES
9. Select Monitor Function Mode
Page 1768 of 2248

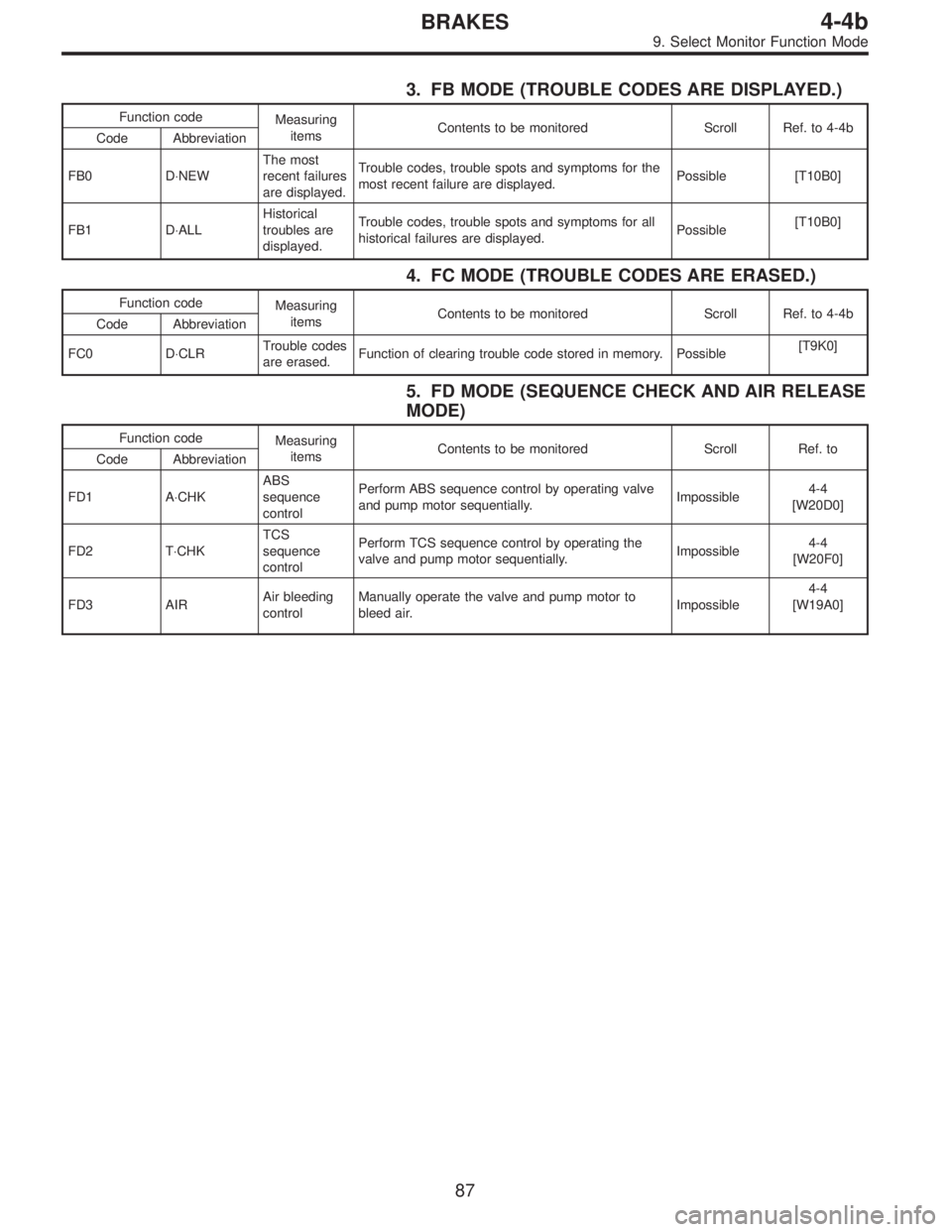

3. FB MODE (TROUBLE CODES ARE DISPLAYED.)
Function code
Measuring
itemsContents to be monitored Scroll Ref. to 4-4b
Code Abbreviation
FB0 D⋅NEWThe most
recent failures
are displayed.Trouble codes, trouble spots and symptoms for the
most recent failure are displayed.Possible [T10B0]
FB1 D⋅ALLHistorical
troubles are
displayed.Trouble codes, trouble spots and symptoms for all
historical failures are displayed.Possible[T10B0]
4. FC MODE (TROUBLE CODES ARE ERASED.)
Function code
Measuring
itemsContents to be monitored Scroll Ref. to 4-4b
Code Abbreviation
FC0 D⋅CLRTrouble codes
are erased.Function of clearing trouble code stored in memory. Possible[T9K0]
5. FD MODE (SEQUENCE CHECK AND AIR RELEASE
MODE)
Function code
Measuring
itemsContents to be monitored Scroll Ref. to
Code Abbreviation
FD1 A⋅CHKABS
sequence
controlPerform ABS sequence control by operating valve
and pump motor sequentially.Impossible4-4
[W20D0]
FD2 T⋅CHKTCS
sequence
controlPerform TCS sequence control by operating the
valve and pump motor sequentially.Impossible4-4
[W20F0]
FD3 AIRAir bleeding
controlManually operate the valve and pump motor to
bleed air.Impossible4-4
[W19A0]
87
4-4bBRAKES
9. Select Monitor Function Mode
