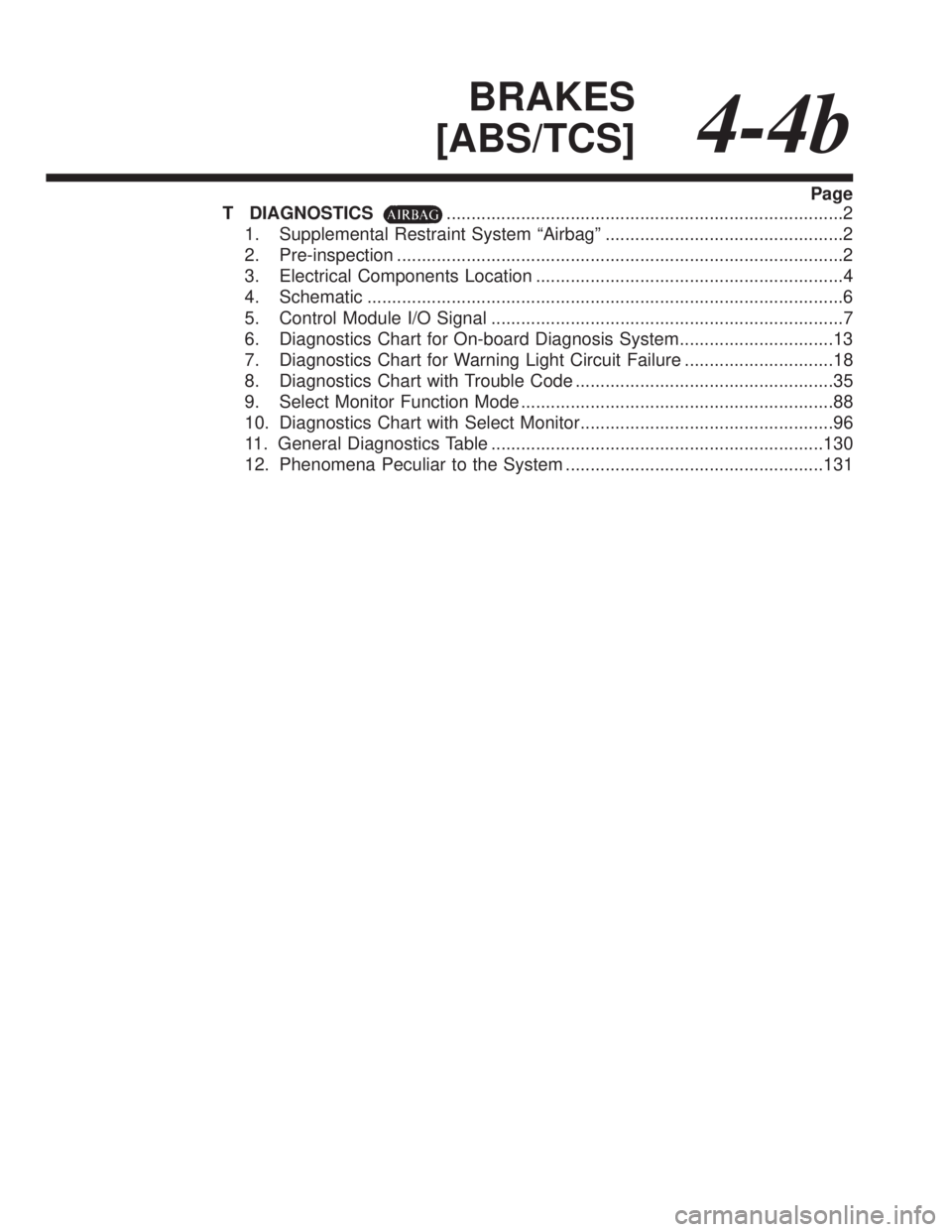

SUBARU LEGACY 1995 Service Repair Manual BRAKES
[ABS/TCS]
4-4b
Page
T DIAGNOSTICS
................................................................................2
1. Supplemental Restraint System “Airbag” ...............................

Page 1682 of 2248

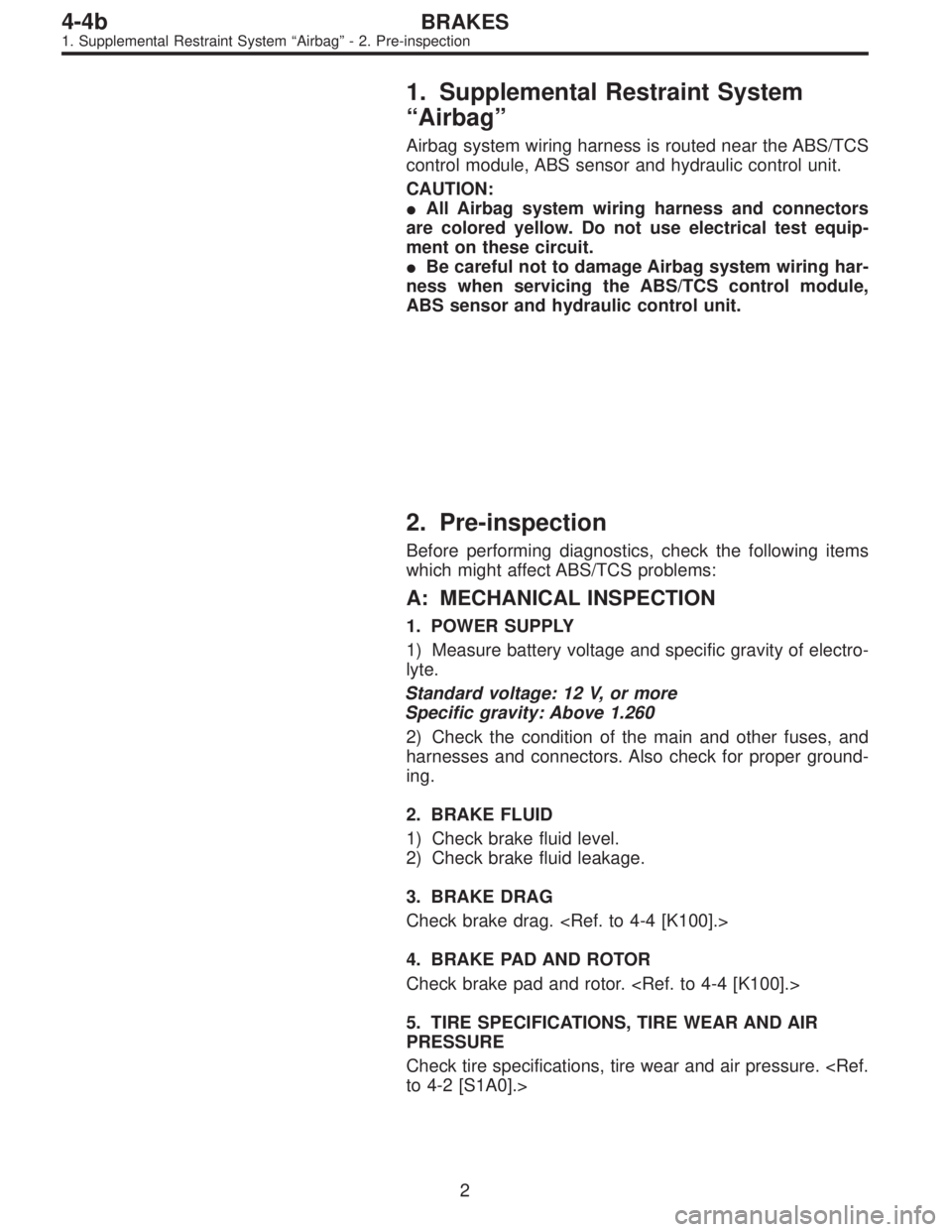

SUBARU LEGACY 1995 Service Repair Manual 1. Supplemental Restraint System
“Airbag”
Airbag system wiring harness is routed near the ABS/TCS
control module, ABS sensor and hydraulic control unit.
CAUTION:
All Airbag system wiring harness

Page 1683 of 2248

Page 1684 of 2248

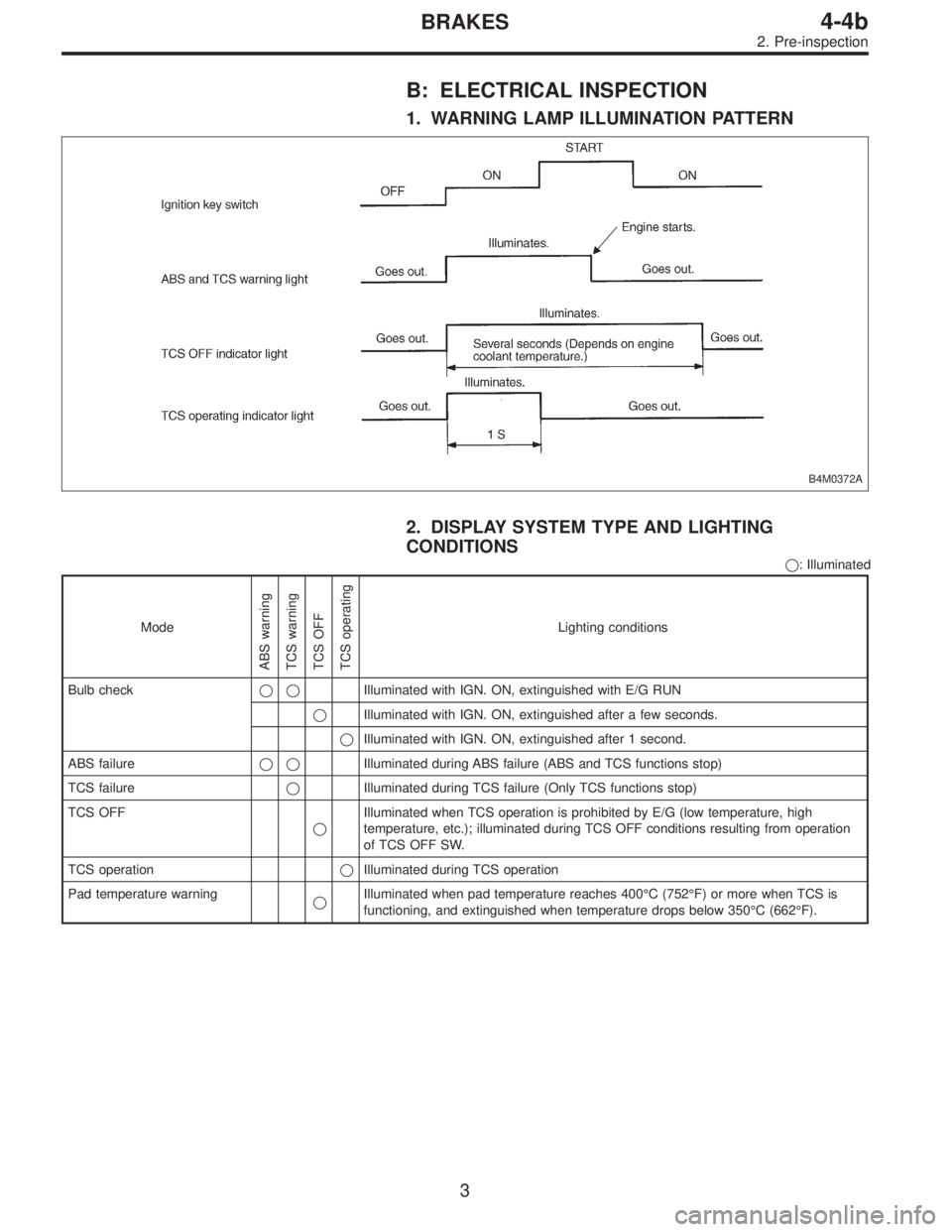

SUBARU LEGACY 1995 Service Repair Manual B: ELECTRICAL INSPECTION
1. WARNING LAMP ILLUMINATION PATTERN
B4M0372A
2. DISPLAY SYSTEM TYPE AND LIGHTING
CONDITIONS
: Illuminated
Mode
ABS warning
TCS warning
TCS OFF
TCS operating
Lighting conditi

Page 1685 of 2248

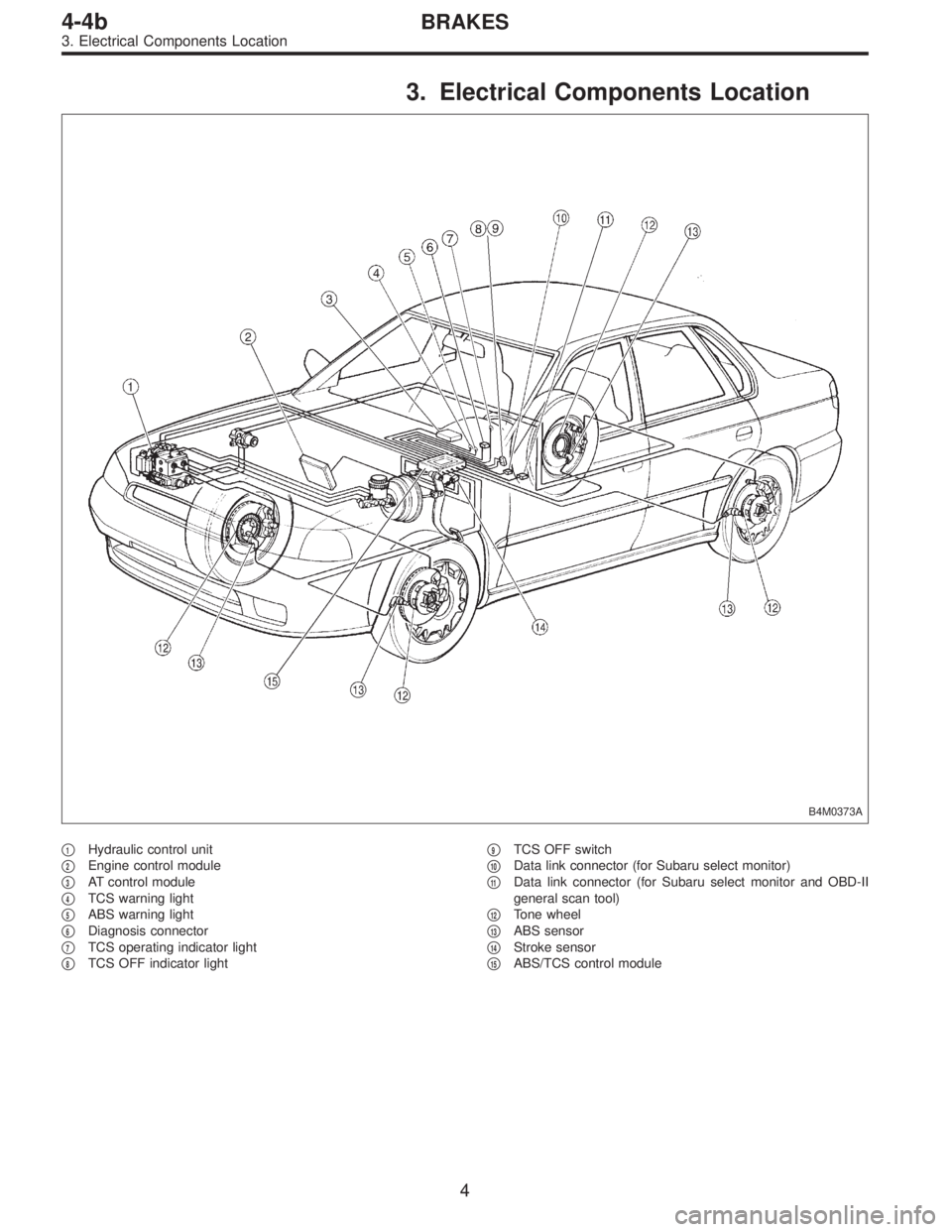

SUBARU LEGACY 1995 Service Repair Manual 3. Electrical Components Location
B4M0373A
1Hydraulic control unit

2Engine control module

3AT control module

4TCS warning light

5ABS warning light

6Diagnosis connector

7TCS operating indi

Page 1686 of 2248

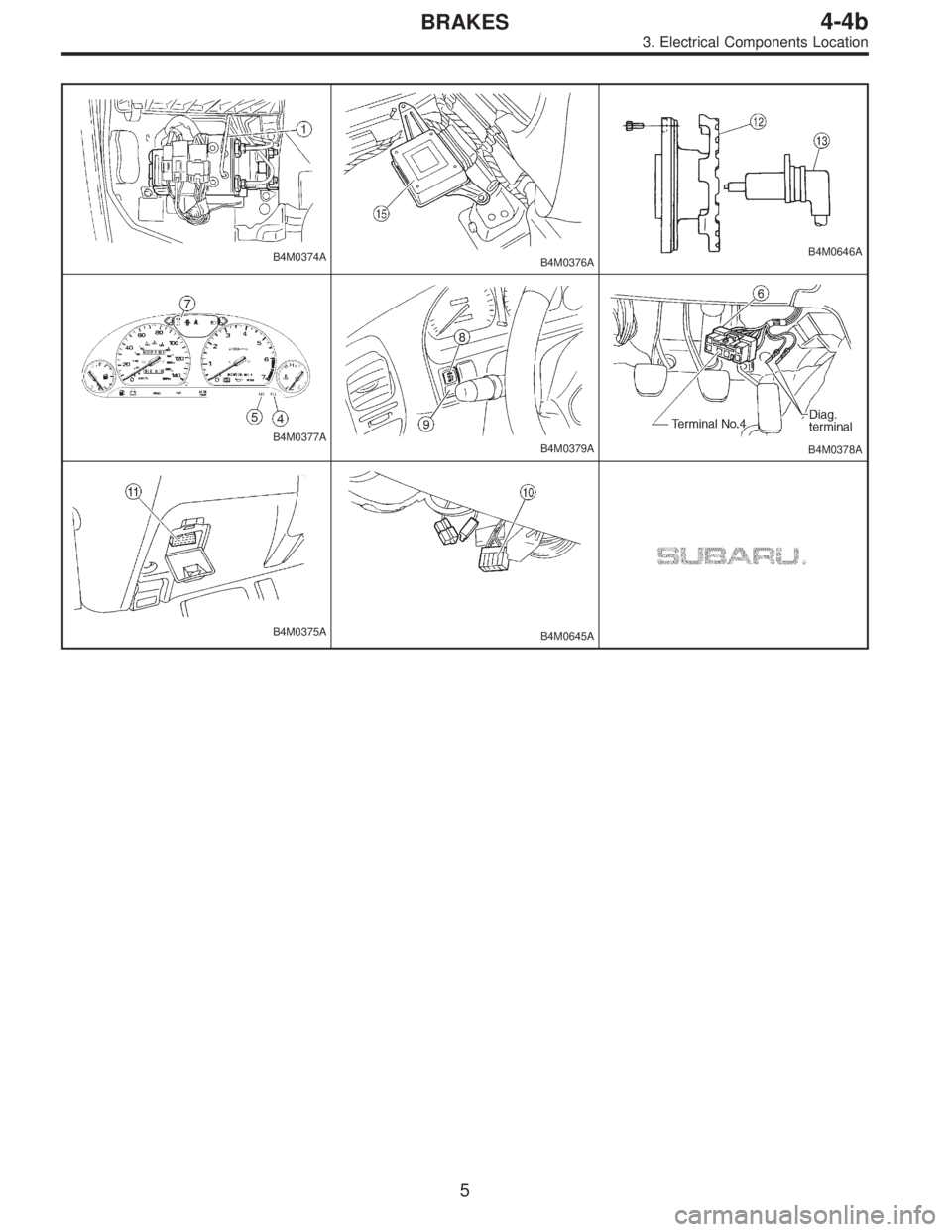

SUBARU LEGACY 1995 Service Repair Manual B4M0374AB4M0376AB4M0646A
B4M0377AB4M0379AB4M0378A
B4M0375AB4M0645A
5
4-4bBRAKES
3. Electrical Components Location

Page 1687 of 2248

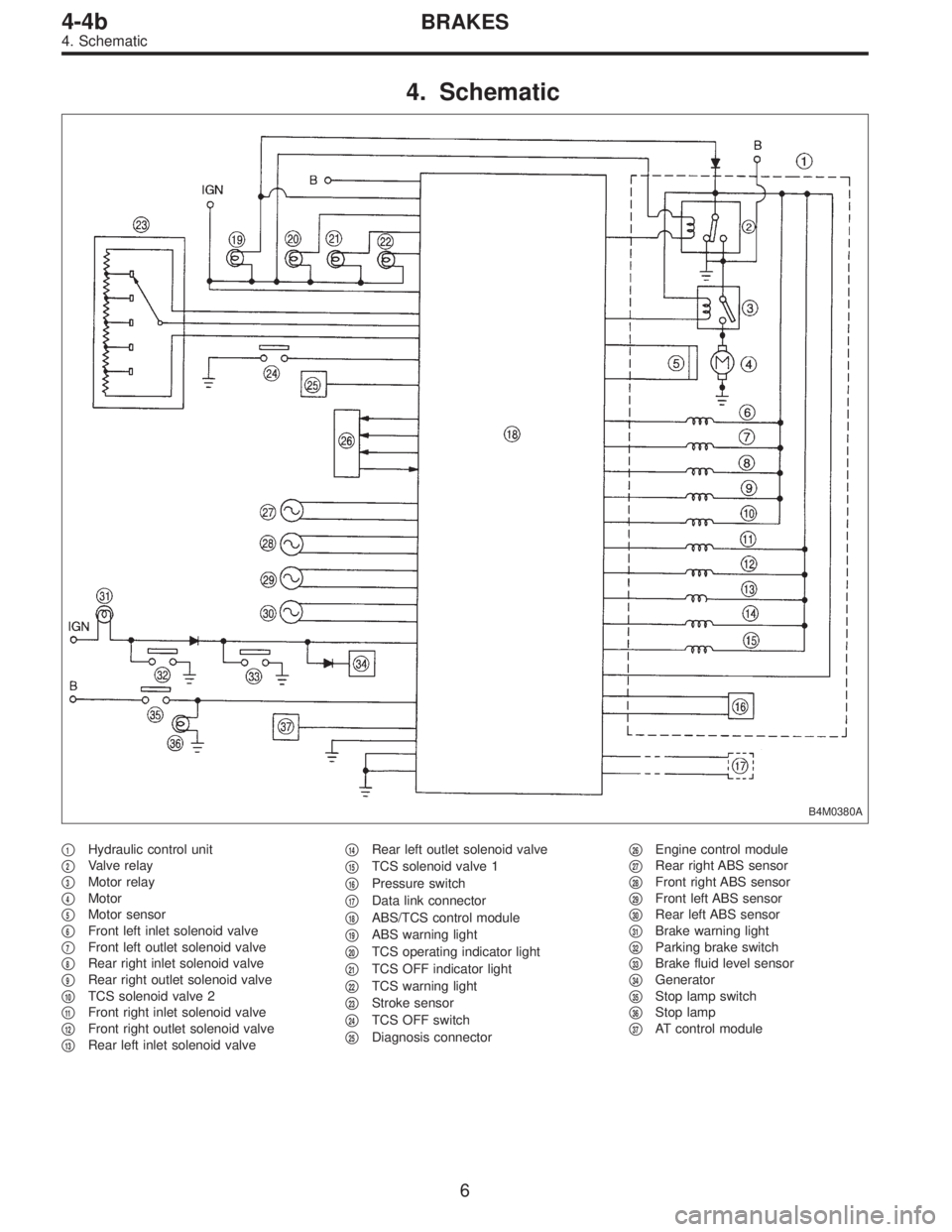

SUBARU LEGACY 1995 Service Repair Manual 4. Schematic
B4M0380A
1Hydraulic control unit

2Valve relay

3Motor relay

4Motor

5Motor sensor

6Front left inlet solenoid valve

7Front left outlet solenoid valve

8Rear right inlet solenoi

Page 1688 of 2248

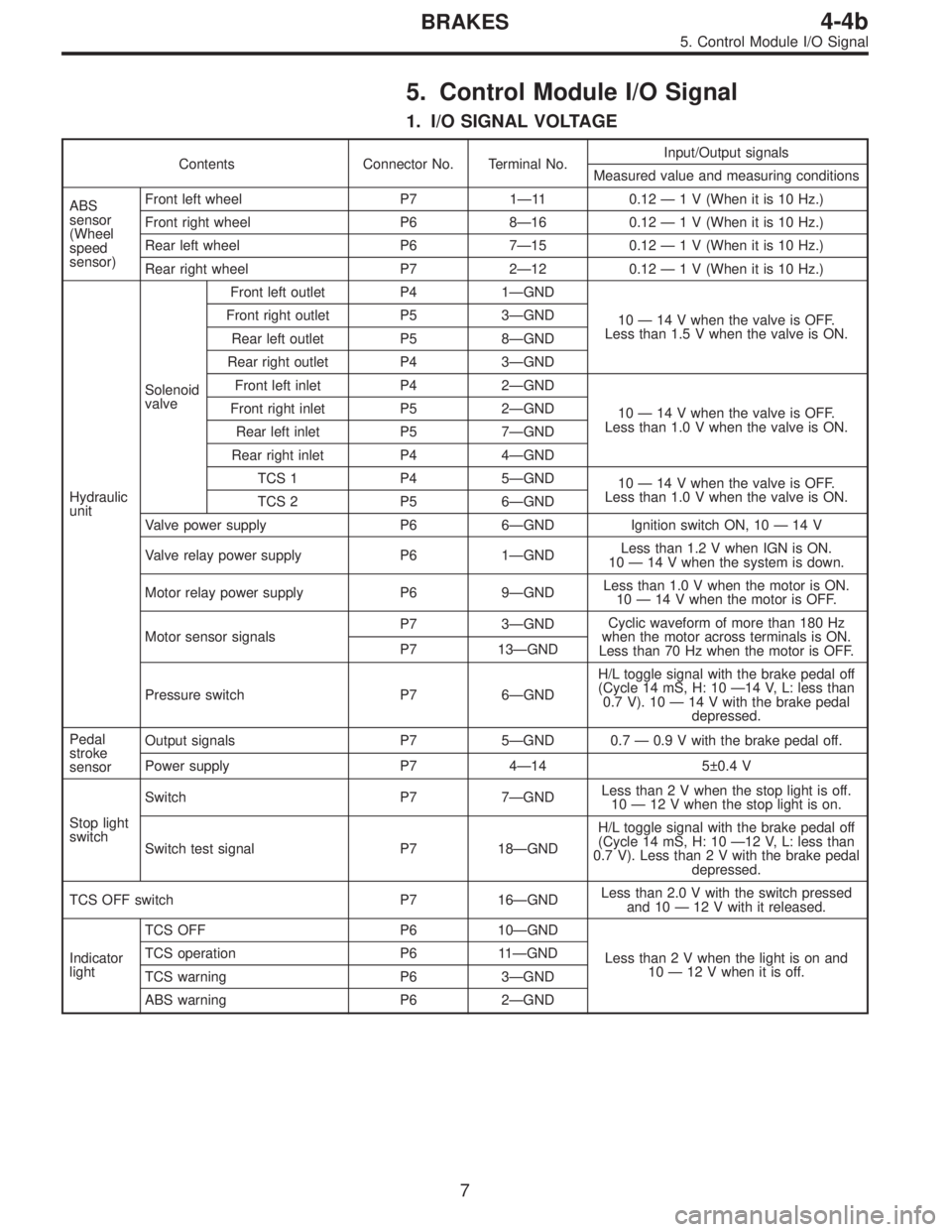

SUBARU LEGACY 1995 Service Repair Manual 5. Control Module I/O Signal
1. I/O SIGNAL VOLTAGE
Contents Connector No. Terminal No.Input/Output signals
Measured value and measuring conditions
ABS
sensor
(Wheel
speed
sensor)Front left wheel P7 1�

5. Control Module I/O Signal
1. I/O SIGNAL VOLTAGE
Contents Connector No. Terminal No.Input/Output signals
Measured value and measuring conditions
ABS
sensor
(Wheel
speed
sensor)Front left wheel P7 1—11 0.12—1 V (When it is 10 Hz.)
Front right wheel P6 8—16 0.12—1 V (When it is 10 Hz.)
Rear left wheel P6 7—15 0.12—1 V (When it is 10 Hz.)
Rear right wheel P7 2—12 0.12—1 V (When it is 10 Hz.)
Hydraulic
unitSolenoid
valveFront left outlet P4 1—GND
10—14 V when the valve is OFF.
Less than 1.5 V when the valve is ON. Front right outlet P5 3—GND
Rear left outlet P5 8—GND
Rear right outlet P4 3—GND
Front left inlet P4 2—GND
10—14 V when the valve is OFF.
Less than 1.0 V when the valve is ON. Front right inlet P5 2—GND
Rear left inlet P5 7—GND
Rear right inlet P4 4—GND
TCS 1 P4 5—GND
10—14 V when the valve is OFF.
Less than 1.0 V when the valve is ON.
TCS 2 P5 6—GND
Valve power supply P6 6—GND Ignition switch ON, 10—14 V
Valve relay power supply P6 1—GNDLess than 1.2 V when IGN is ON.
10—14 V when the system is down.
Motor relay power supply P6 9—GNDLess than 1.0 V when the motor is ON.
10—14 V when the motor is OFF.
Motor sensor signalsP7 3—GNDCyclic waveform of more than 180 Hz
when the motor across terminals is ON.
Less than 70 Hz when the motor is OFF. P7 13—GND
Pressure switch P7 6—GNDH/L toggle signal with the brake pedal off
(Cycle 14 mS, H: 10—14 V, L: less than
0.7 V). 10—14 V with the brake pedal
depressed.
Pedal
stroke
sensorOutput signals P7 5—GND 0.7—0.9 V with the brake pedal off.
Power supply P7 4—14 5±0.4 V
Stop light
switchSwitch P7 7—GNDLess than 2 V when the stop light is off.
10—12 V when the stop light is on.
Switch test signal P7 18—GNDH/L toggle signal with the brake pedal off
(Cycle 14 mS, H: 10—12 V, L: less than
0.7 V). Less than 2 V with the brake pedal
depressed.
TCS OFF switch P7 16—GNDLess than 2.0 V with the switch pressed
and 10—12 V with it released.
Indicator
lightTCS OFF P6 10—GND
Less than2Vwhenthelight is on and
10—12 V when it is off. TCS operation P6 11—GND
TCS warning P6 3—GND
ABS warning P6 2—GND
7
4-4bBRAKES
5. Control Module I/O Signal
