Page 841 of 2248

SUBARU LEGACY 1995 Service Repair Manual 1. Pedal System and Control Cables Trouble Corrective action Excessively worn brake pedal pad Replace. Failure of clutch and/or accelerator pedals to operate Connect cables correctly. Stop light switc

Page 842 of 2248

SUBARU LEGACY 1995 Service Repair Manual 1. Heater System A: SPECIFICATIONS ItemSpecifications Condition LHD model RHD model Heating capacity4.652 kW (4,000 kcal/h, 15,872 BTU/h) or more ... When 300 m 3(10,593 cu ft)/hMode selector switch:

Page 843 of 2248

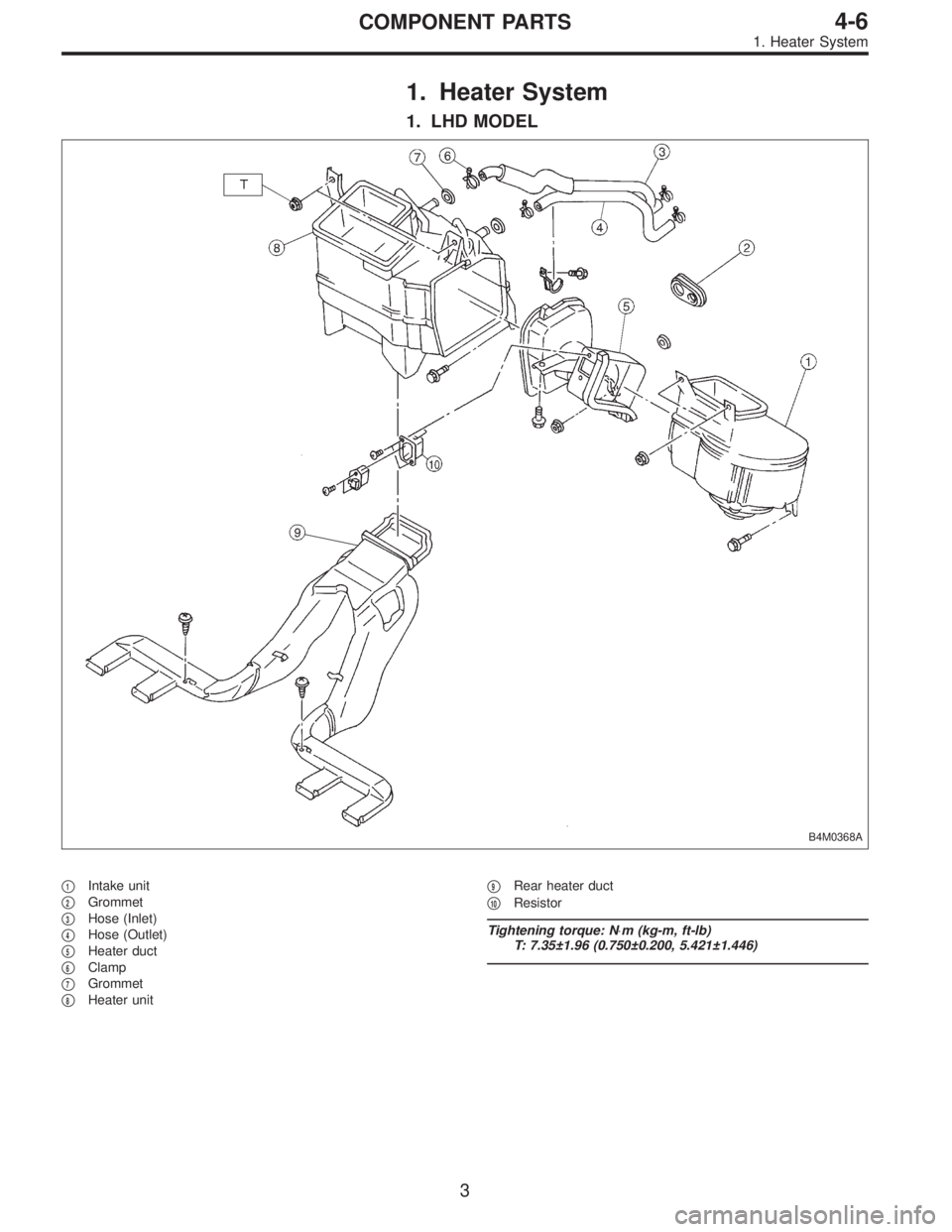

SUBARU LEGACY 1995 Service Repair Manual 1. Heater System 1. LHD MODEL B4M0368A 1Intake unit  2Grommet  3Hose (Inlet)  4Hose (Outlet)  5Heater duct  6Clamp  7Grommet  8Heater unit 9Rear heater duct  10Resistor Tightening torque: N

Page 844 of 2248

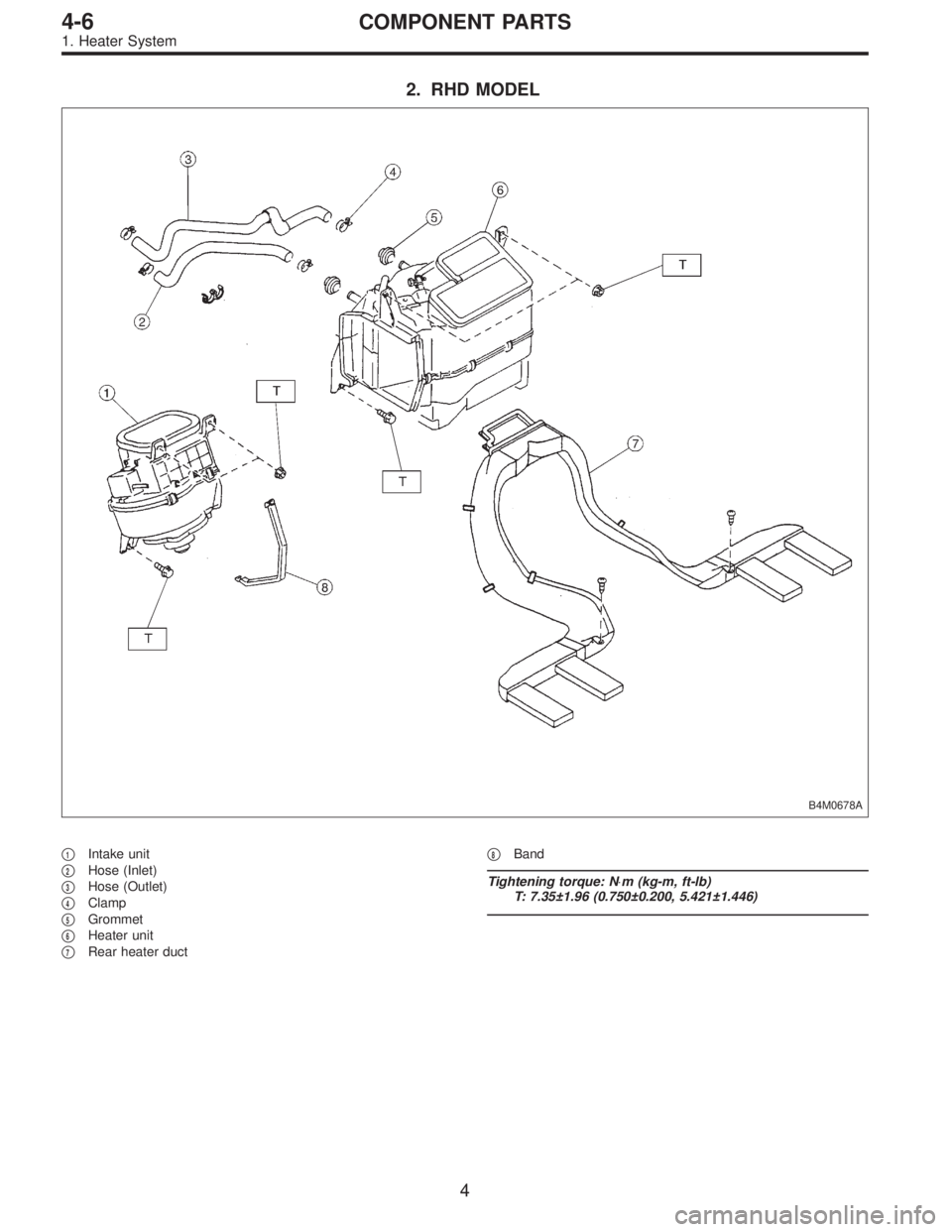

SUBARU LEGACY 1995 Service Repair Manual 2. RHD MODEL B4M0678A 1Intake unit  2Hose (Inlet)  3Hose (Outlet)  4Clamp  5Grommet  6Heater unit  7Rear heater duct 8Band Tightening torque: N⋅m (kg-m, ft-lb) T: 7.35±1.96 (0.750±0.200, 5

Page 845 of 2248

SUBARU LEGACY 1995 Service Repair Manual 2. Heater Unit 1. LHD MODEL G4M0551 1Vent lever  2Side link  3DEF. lever  4Heater case upper  5Heater grommet  6Heater core  7Mix door  8Heater case lower 9Mix rod  10Mix link  11Mix lever

Page 846 of 2248

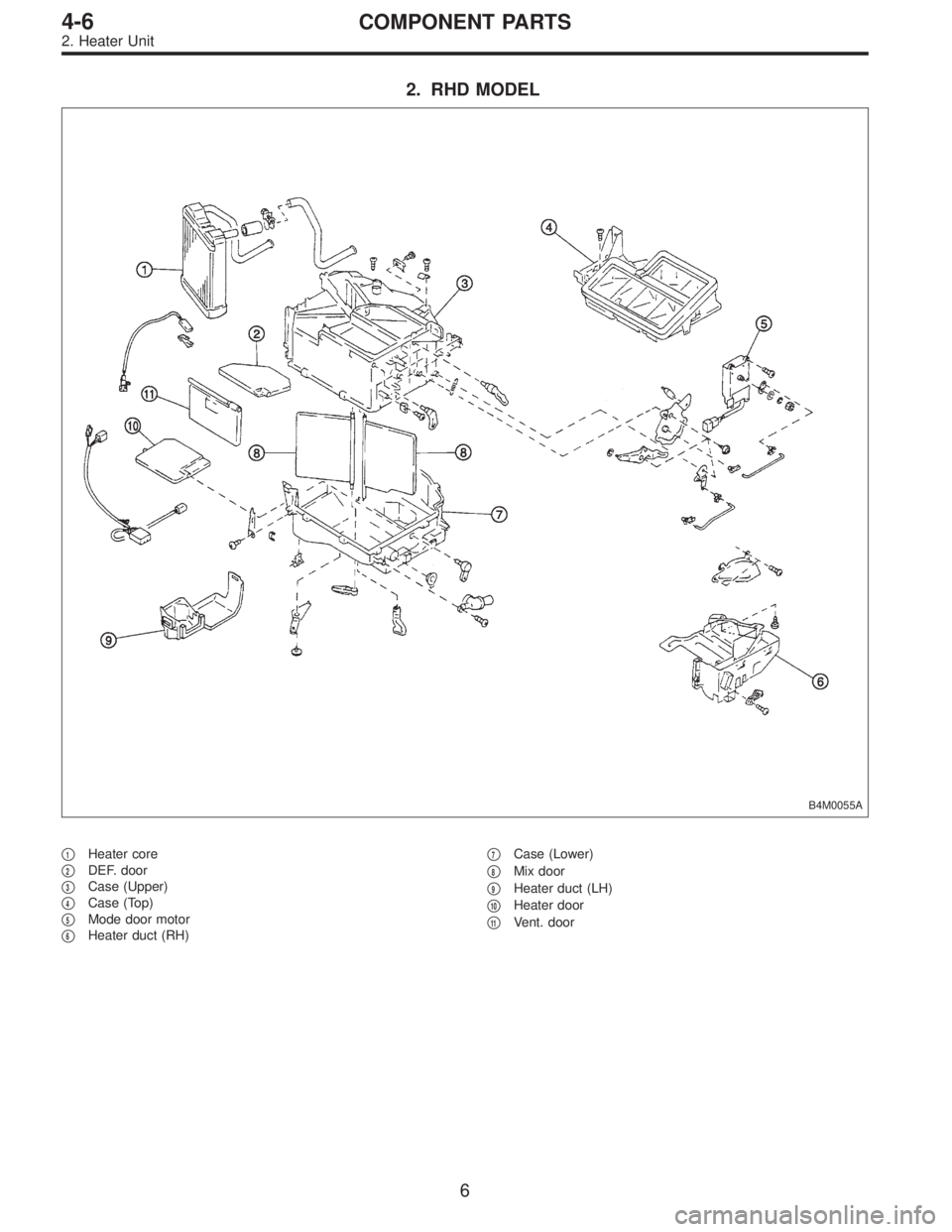

SUBARU LEGACY 1995 Service Repair Manual 2. RHD MODEL B4M0055A 1Heater core  2DEF. door  3Case (Upper)  4Case (Top)  5Mode door motor  6Heater duct (RH) 7Case (Lower)  8Mix door  9Heater duct (LH)  10Heater door  11Vent. door 6 4-

Page 847 of 2248

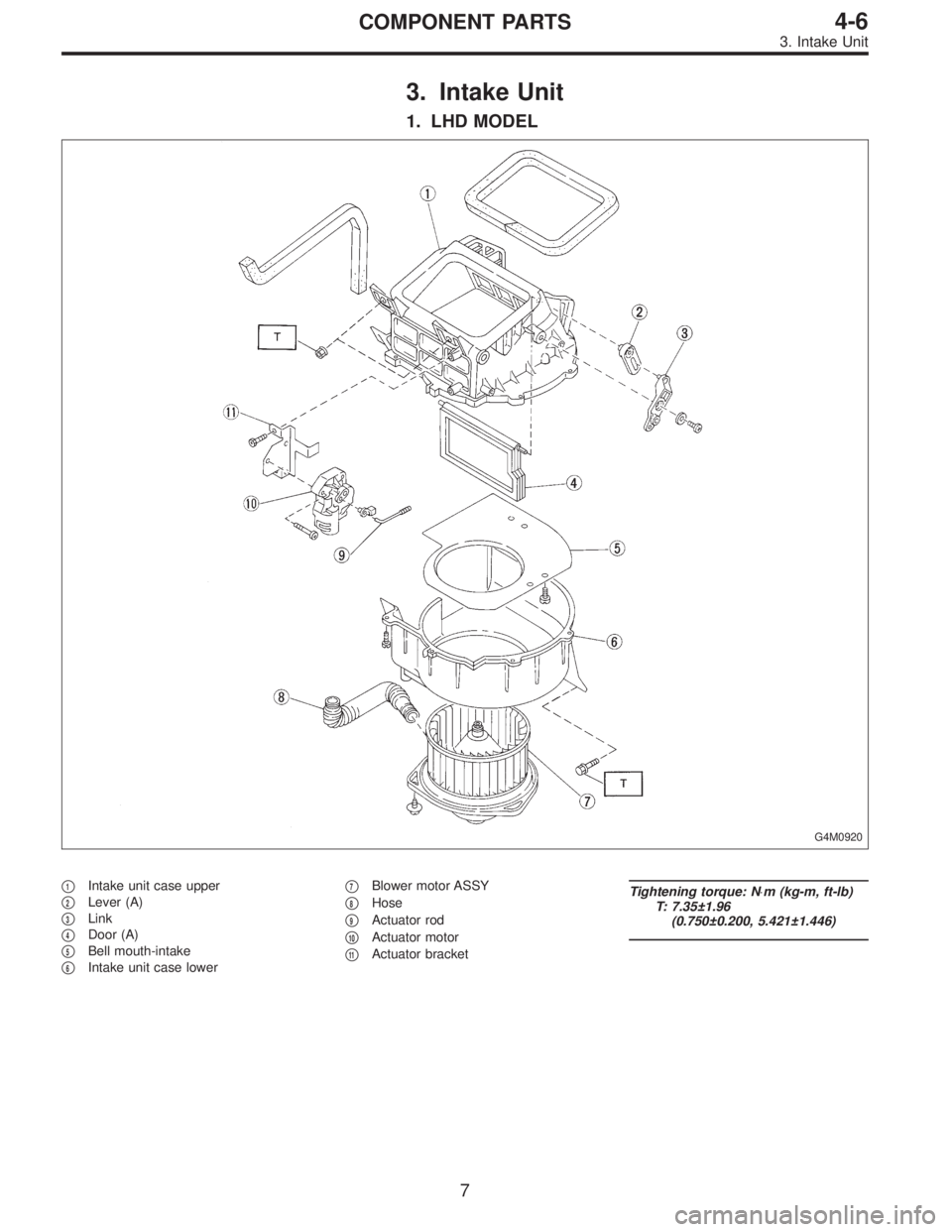

SUBARU LEGACY 1995 Service Repair Manual 3. Intake Unit 1. LHD MODEL G4M0920 1Intake unit case upper  2Lever (A)  3Link  4Door (A)  5Bell mouth-intake  6Intake unit case lower 7Blower motor ASSY  8Hose  9Actuator rod  10Actuator mo

Page 848 of 2248

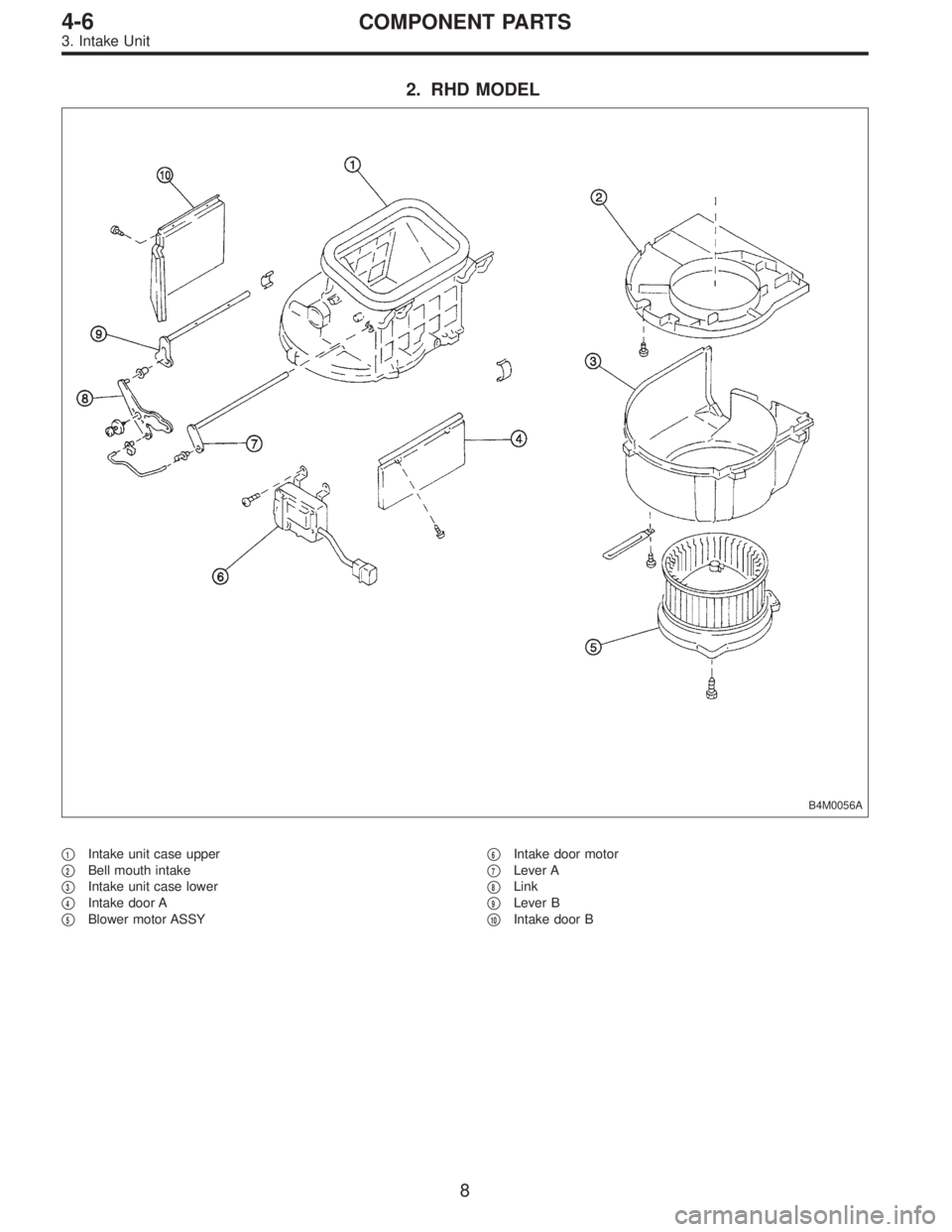

SUBARU LEGACY 1995 Service Repair Manual 2. RHD MODEL B4M0056A 1Intake unit case upper  2Bell mouth intake  3Intake unit case lower  4Intake door A  5Blower motor ASSY 6Intake door motor  7Lever A  8Link  9Lever B  10Intake door B
