Page 1129 of 2248

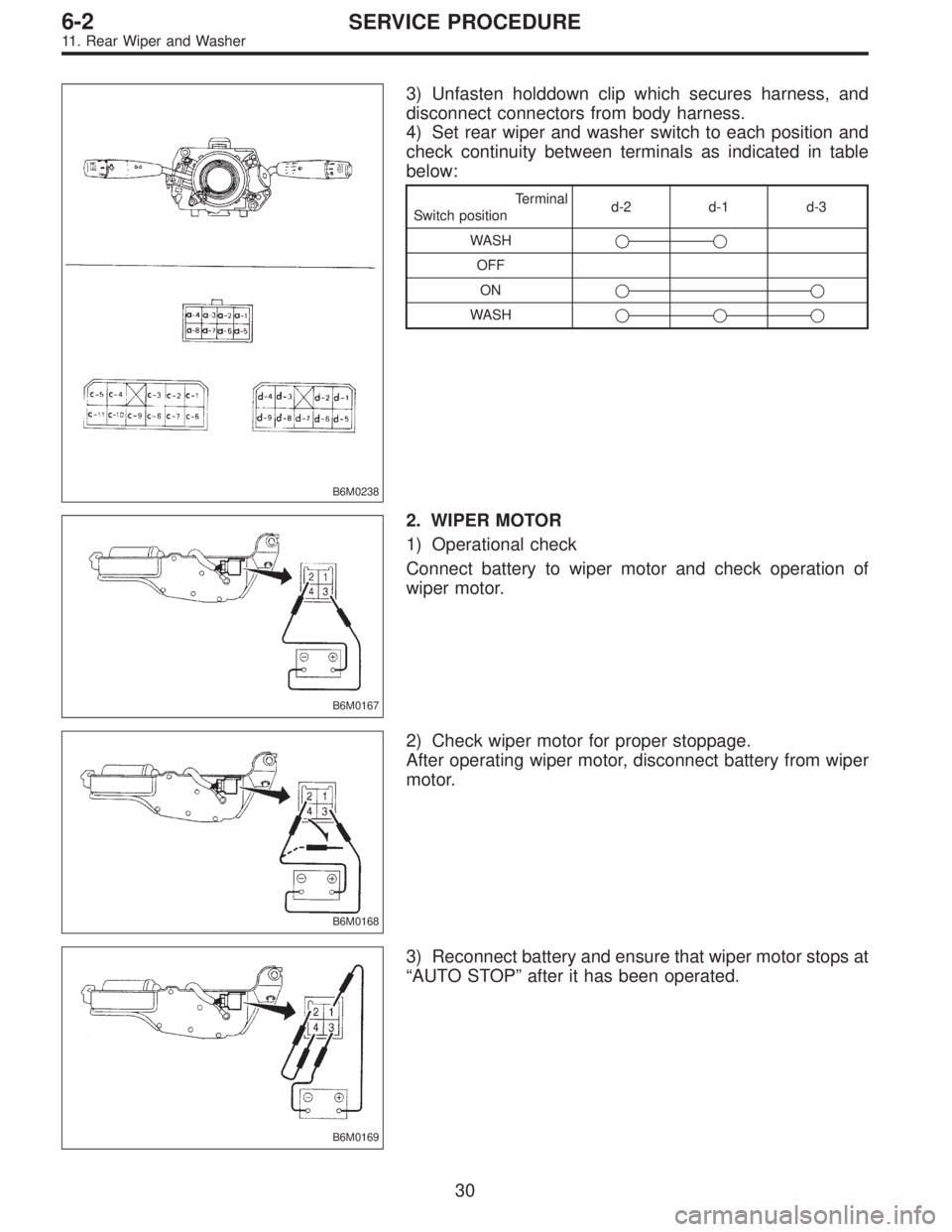

SUBARU LEGACY 1995 Service Repair Manual B6M0238 3) Unfasten holddown clip which secures harness, and disconnect connectors from body harness. 4) Set rear wiper and washer switch to each position and check continuity between terminals as ind

Page 1130 of 2248

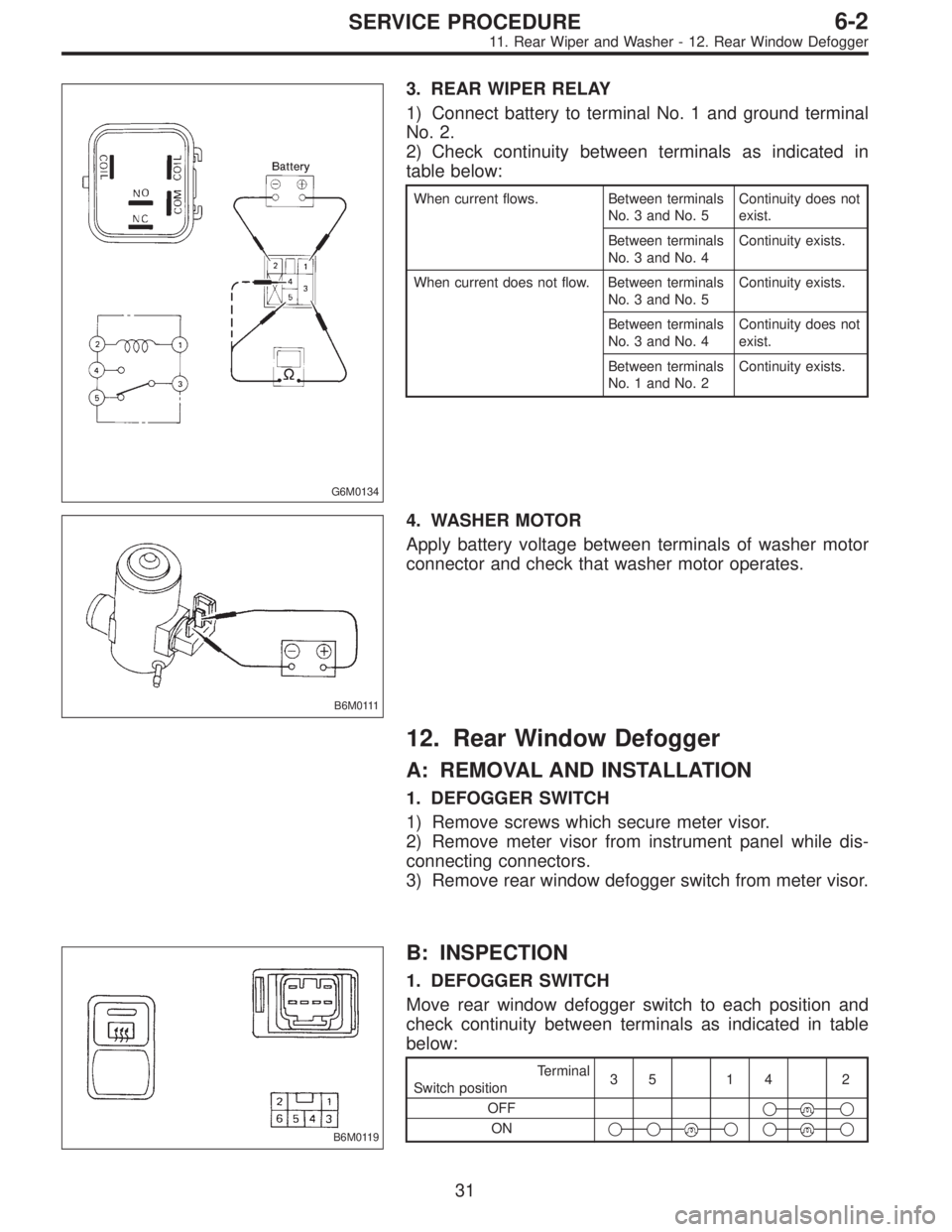

SUBARU LEGACY 1995 Service Repair Manual G6M0134 3. REAR WIPER RELAY 1) Connect battery to terminal No. 1 and ground terminal No. 2. 2) Check continuity between terminals as indicated in table below: When current flows. Between terminals No.

Page 1131 of 2248

SUBARU LEGACY 1995 Service Repair Manual G6M0134 3. REAR WIPER RELAY 1) Connect battery to terminal No. 1 and ground terminal No. 2. 2) Check continuity between terminals as indicated in table below: When current flows. Between terminals No.

Page 1132 of 2248

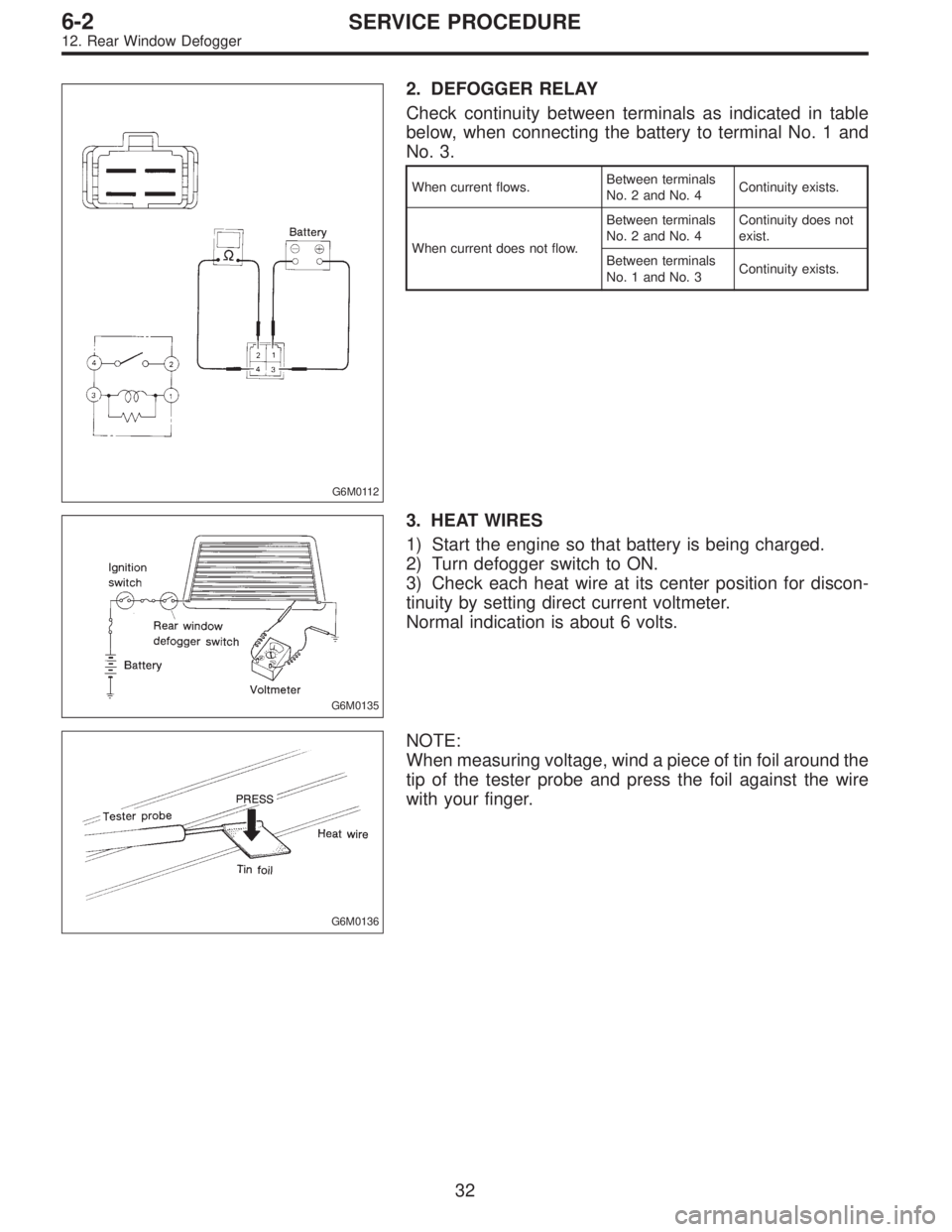

SUBARU LEGACY 1995 Service Repair Manual G6M0112 2. DEFOGGER RELAY Check continuity between terminals as indicated in table below, when connecting the battery to terminal No. 1 and No. 3. When current flows.Between terminals No. 2 and No. 4C

Page 1133 of 2248

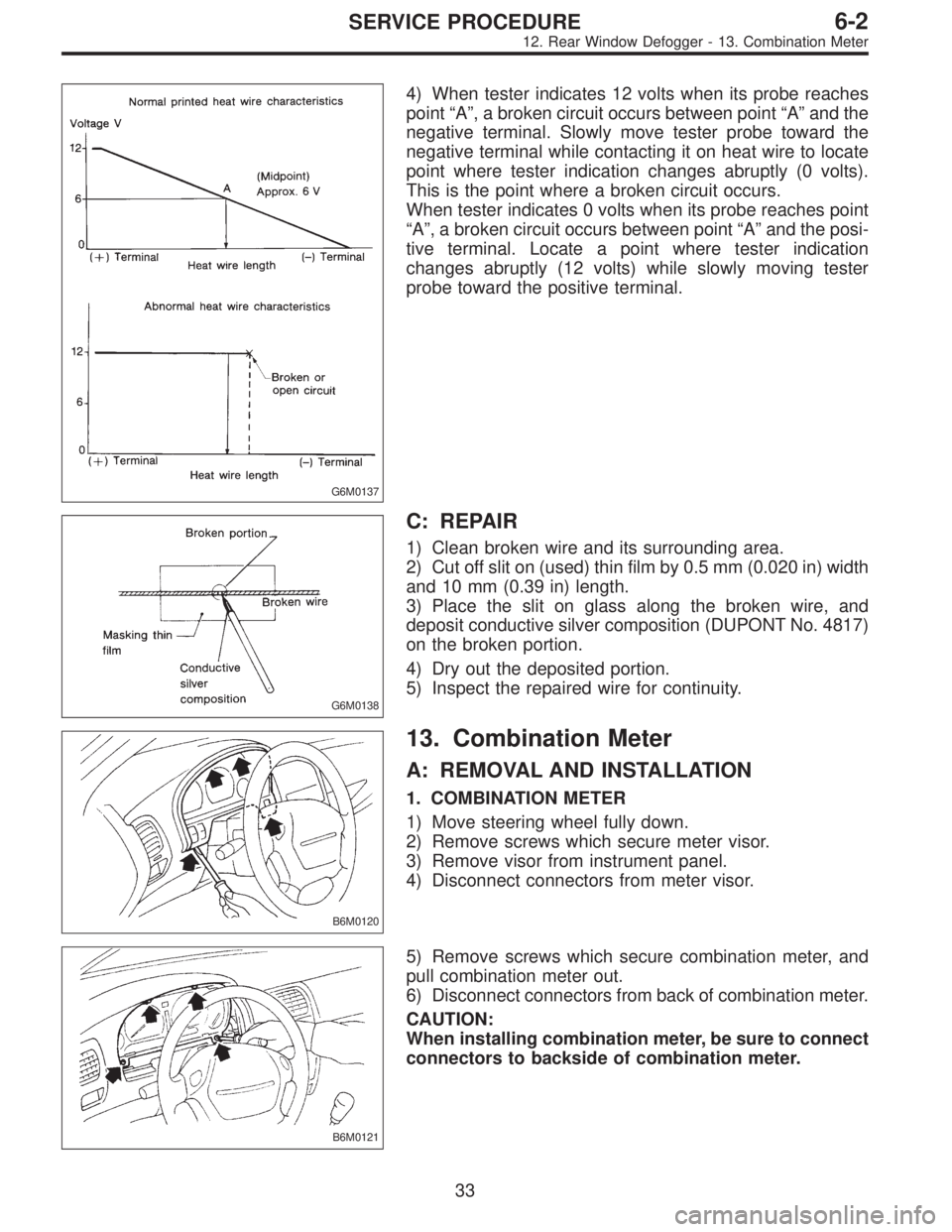

SUBARU LEGACY 1995 Service Repair Manual G6M0137 4) When tester indicates 12 volts when its probe reaches point“A”, a broken circuit occurs between point“A”and the negative terminal. Slowly move tester probe toward the negative termi

Page 1134 of 2248

SUBARU LEGACY 1995 Service Repair Manual G6M0137 4) When tester indicates 12 volts when its probe reaches point“A”, a broken circuit occurs between point“A”and the negative terminal. Slowly move tester probe toward the negative termi

Page 1135 of 2248

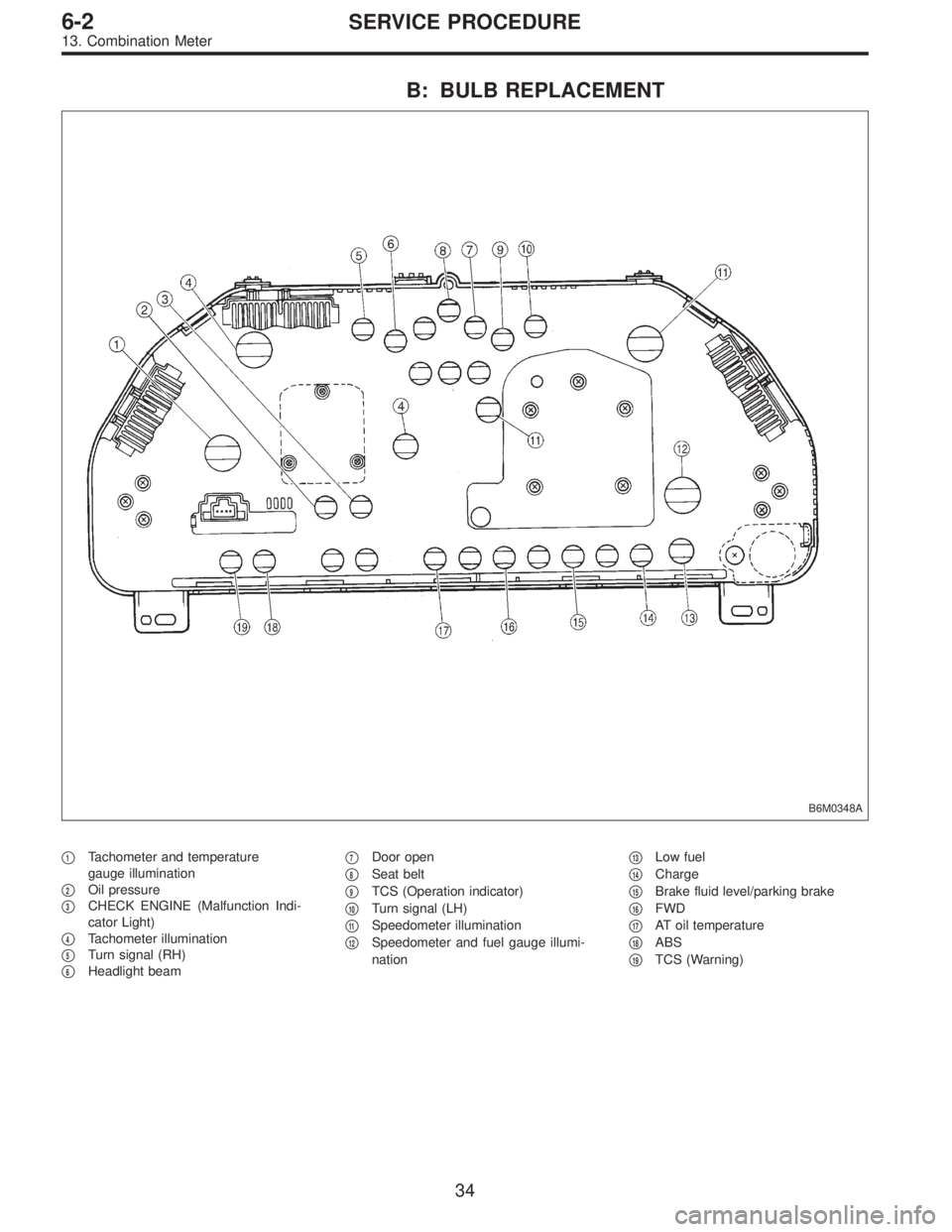

SUBARU LEGACY 1995 Service Repair Manual B: BULB REPLACEMENT B6M0348A 1Tachometer and temperature gauge illumination  2Oil pressure  3CHECK ENGINE (Malfunction Indi- cator Light)  4Tachometer illumination  5Turn signal (RH)  6Headlight

Page 1136 of 2248

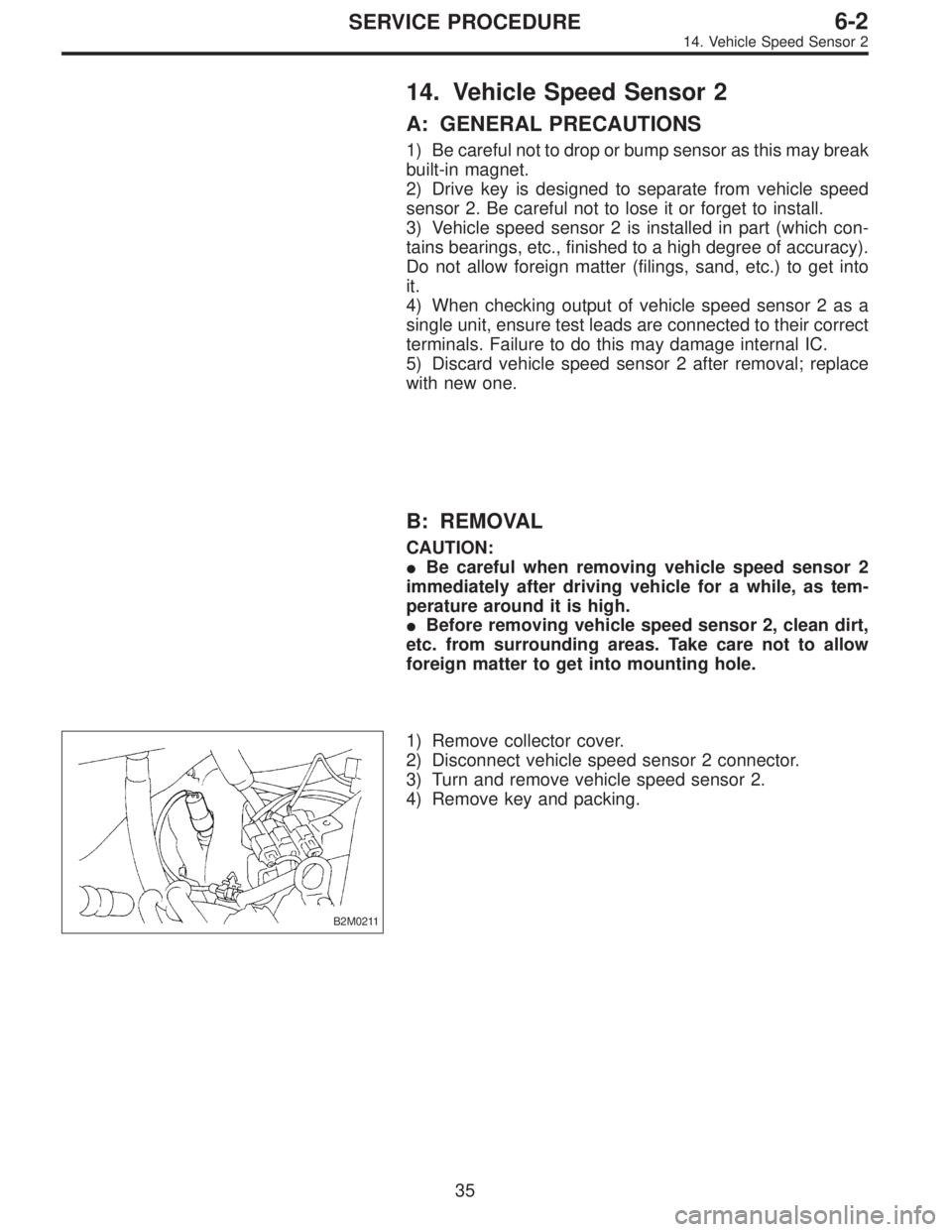

SUBARU LEGACY 1995 Service Repair Manual 14. Vehicle Speed Sensor 2 A: GENERAL PRECAUTIONS 1) Be careful not to drop or bump sensor as this may break built-in magnet. 2) Drive key is designed to separate from vehicle speed sensor 2. Be caref
