Page 2217 of 2248

SUBARU LEGACY 1995 Service Repair Manual 10. REAR WIRING HARNESS AND GROUND POINT (LHD MODEL) B6M0263A 131 6-3WIRING DIAGRAM 8. Electrical Wiring Harness and Ground Point

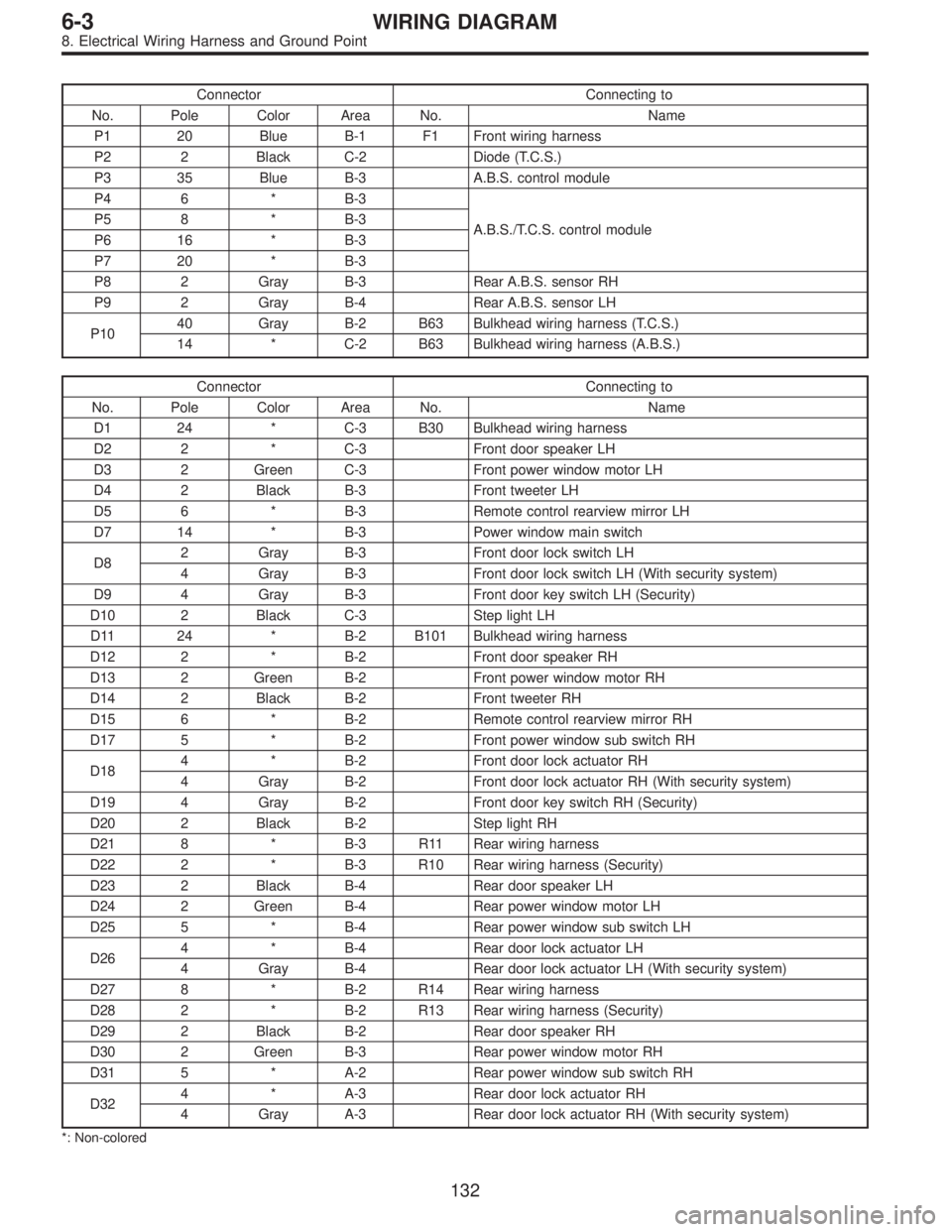

Page 2218 of 2248

SUBARU LEGACY 1995 Service Repair Manual Connector Connecting to No. Pole Color Area No. Name P1 20 Blue B-1 F1 Front wiring harness P2 2 Black C-2 Diode (T.C.S.) P3 35 Blue B-3 A.B.S. control module P4 6 * B-3 A.B.S./T.C.S. control module P

Page 2219 of 2248

SUBARU LEGACY 1995 Service Repair Manual 11. REAR WIRING HARNESS AND GROUND POINT (RHD MODEL) 133 6-3WIRING DIAGRAM 8. Electrical Wiring Harness and Ground Point

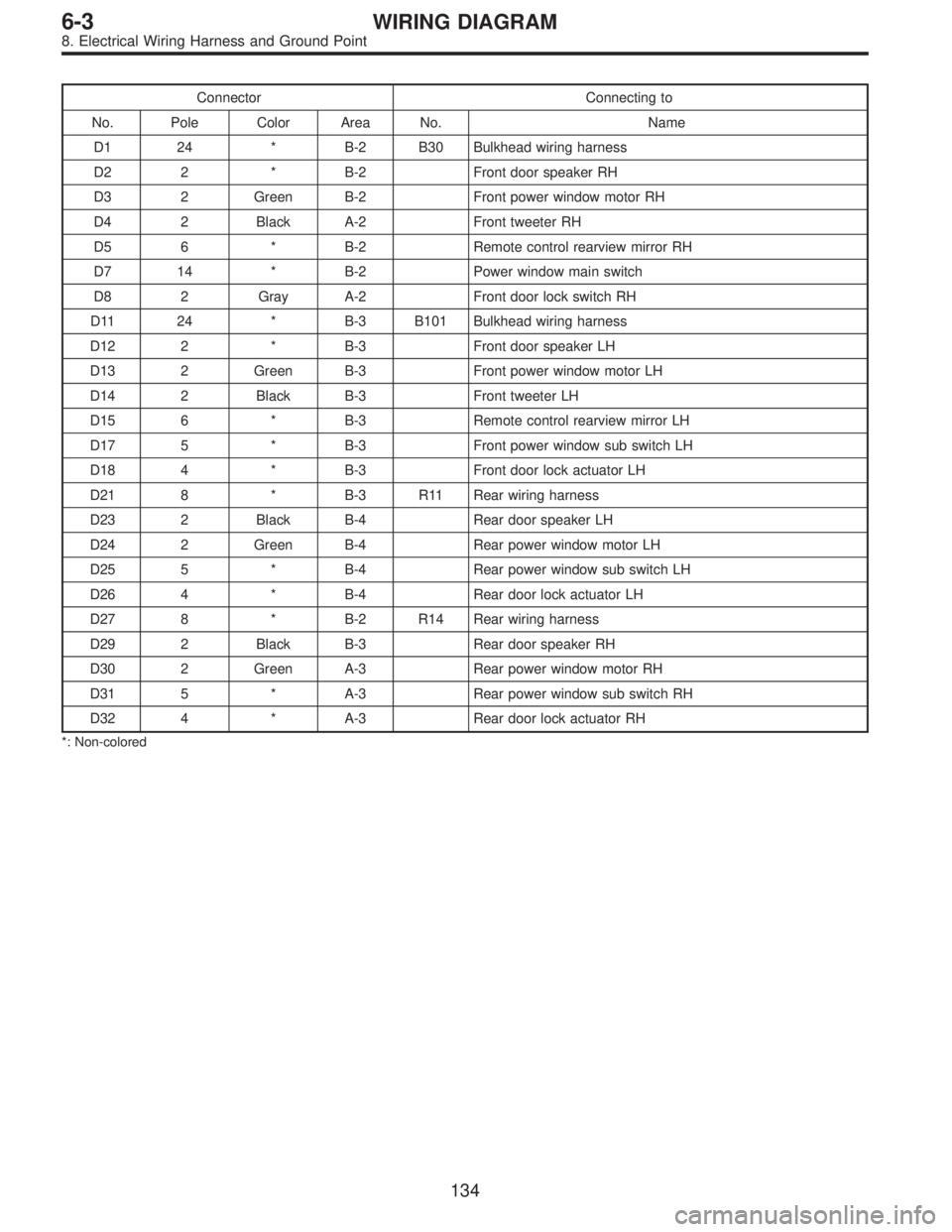

Page 2220 of 2248

SUBARU LEGACY 1995 Service Repair Manual Connector Connecting to No. Pole Color Area No. Name D1 24 * B-2 B30 Bulkhead wiring harness D2 2 * B-2 Front door speaker RH D3 2 Green B-2 Front power window motor RH D4 2 Black A-2 Front tweeter RH

Page 2221 of 2248

SUBARU LEGACY 1995 Service Repair Manual 12. FLOOR WIRING HARNESS, DOOR CORD AND GROUND POINT (LHD MODEL) B6M0264A 135 6-3WIRING DIAGRAM 8. Electrical Wiring Harness and Ground Point

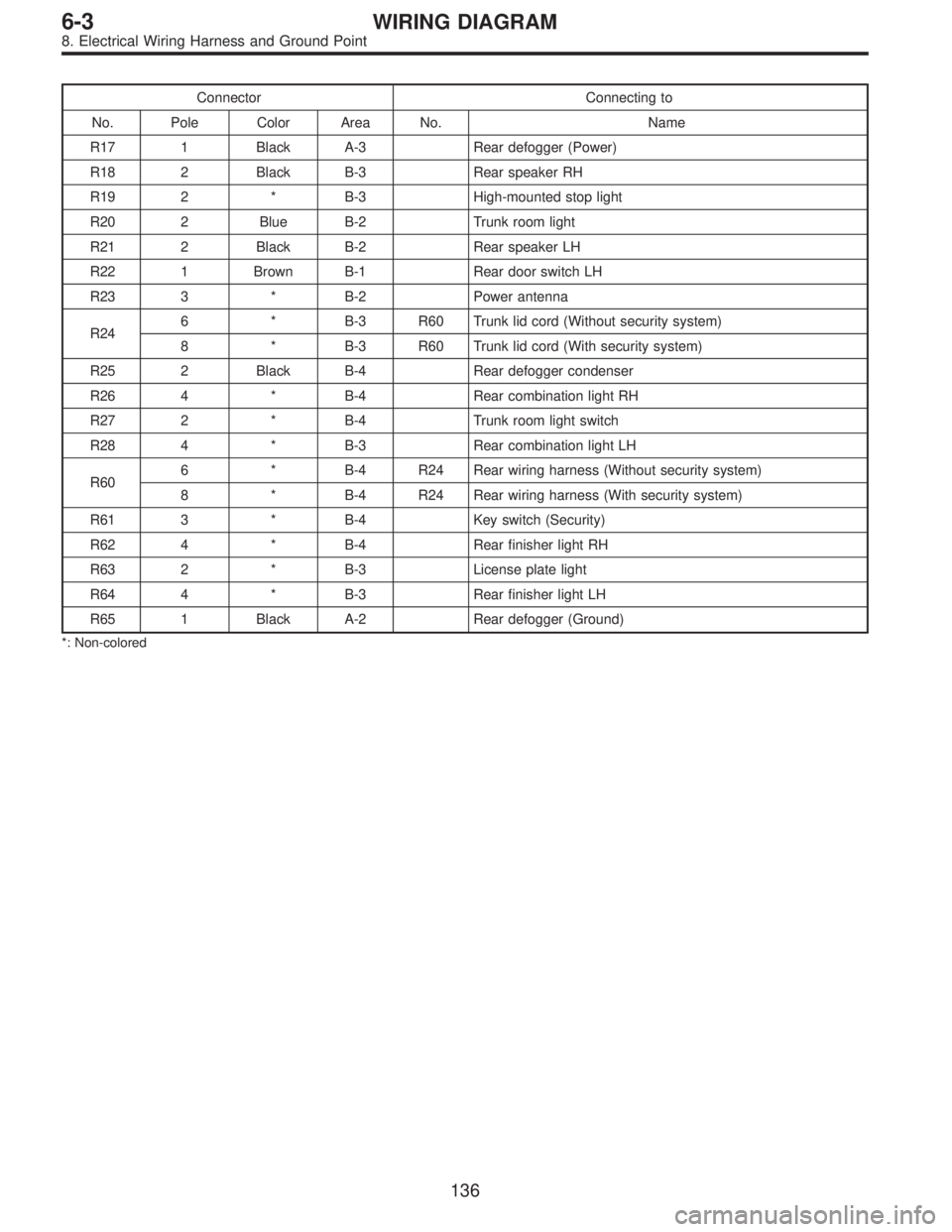

Page 2222 of 2248

SUBARU LEGACY 1995 Service Repair Manual Connector Connecting to No. Pole Color Area No. Name R17 1 Black A-3 Rear defogger (Power) R18 2 Black B-3 Rear speaker RH R19 2 * B-3 High-mounted stop light R20 2 Blue B-2 Trunk room light R21 2 Bla

Page 2223 of 2248

SUBARU LEGACY 1995 Service Repair Manual 13. FLOOR WIRING HARNESS, DOOR CORD AND GROUND POINT (RHD MODEL) 137 6-3WIRING DIAGRAM 8. Electrical Wiring Harness and Ground Point

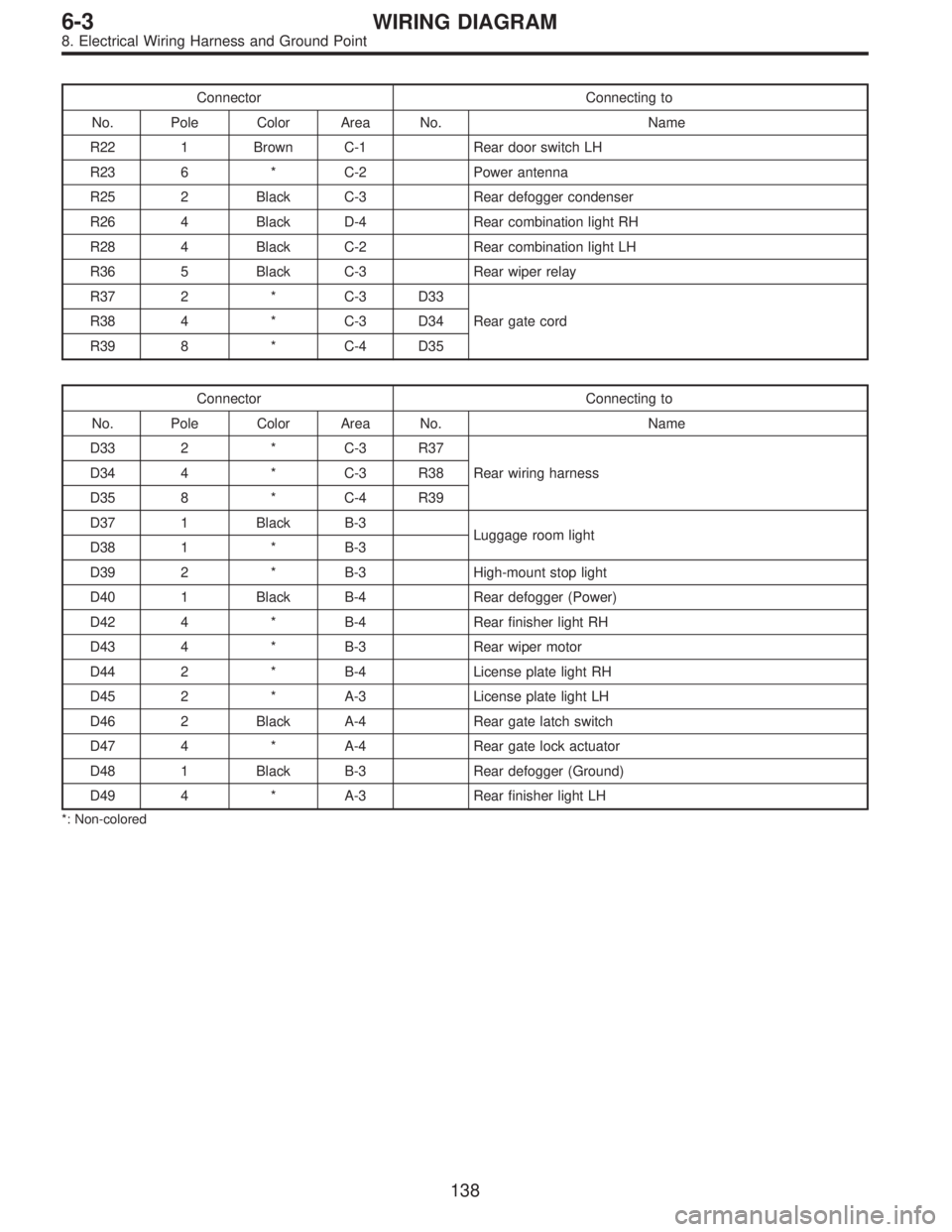

Page 2224 of 2248

SUBARU LEGACY 1995 Service Repair Manual Connector Connecting to No. Pole Color Area No. Name R22 1 Brown C-1 Rear door switch LH R23 6 * C-2 Power antenna R25 2 Black C-3 Rear defogger condenser R26 4 Black D-4 Rear combination light RH R28
