Page 145 of 2248

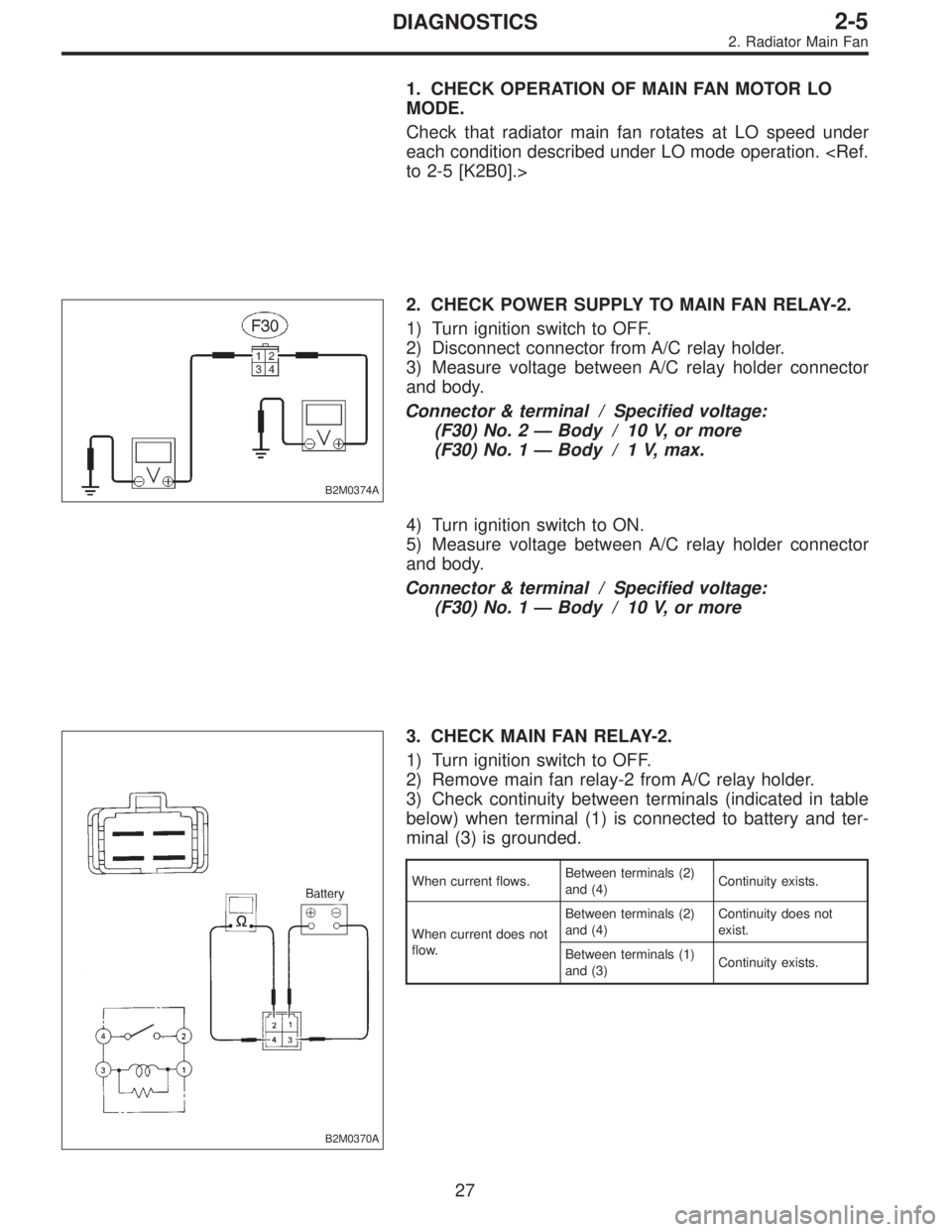

SUBARU LEGACY 1995 Service Repair Manual 1. CHECK OPERATION OF MAIN FAN MOTOR LO MODE. Check that radiator main fan rotates at LO speed under each condition described under LO mode operation. <Ref. to 2-5 [K2B0].> B2M0374A 2. CHECK POWER SUP

Page 146 of 2248

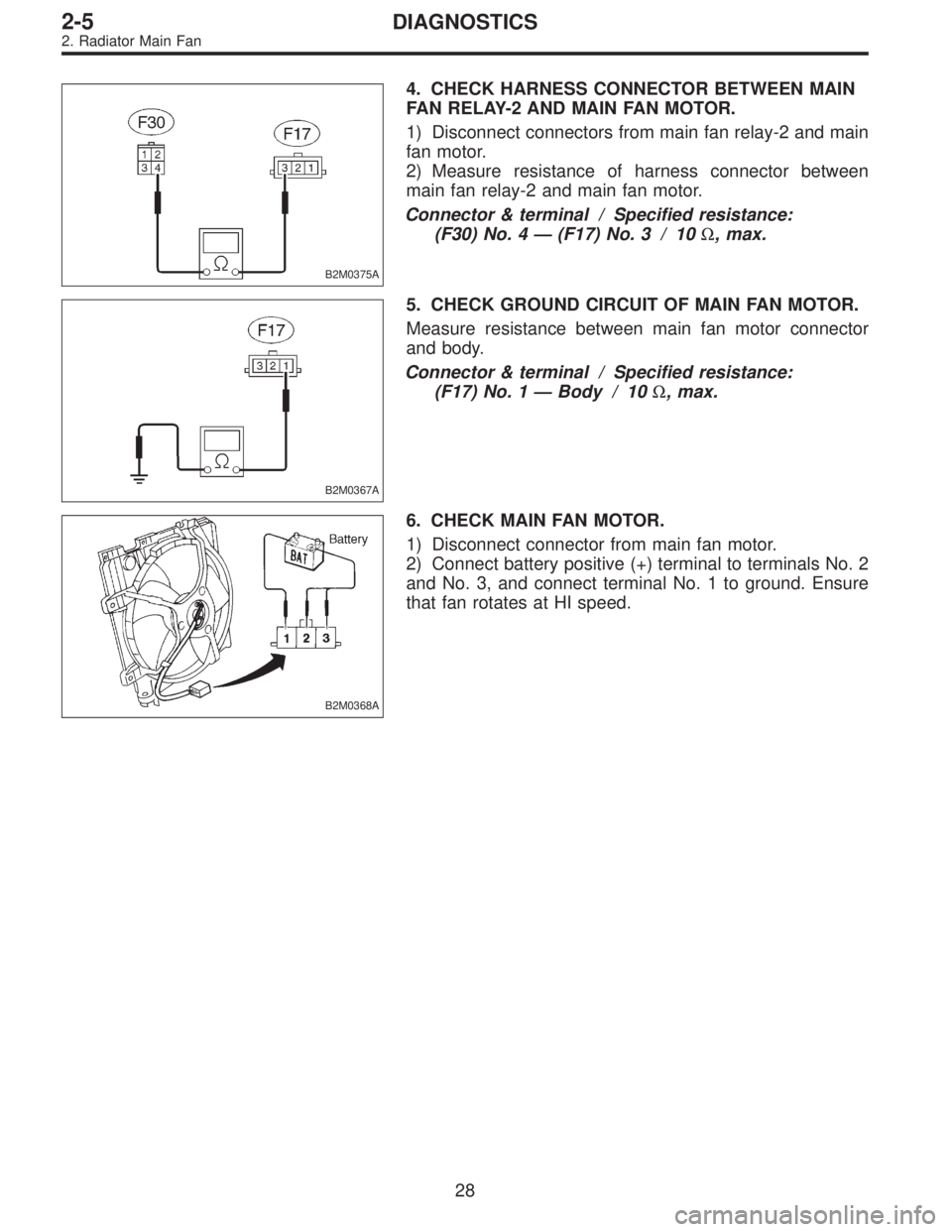

SUBARU LEGACY 1995 Service Repair Manual B2M0375A 4. CHECK HARNESS CONNECTOR BETWEEN MAIN FAN RELAY-2 AND MAIN FAN MOTOR. 1) Disconnect connectors from main fan relay-2 and main fan motor. 2) Measure resistance of harness connector between m

Page 147 of 2248

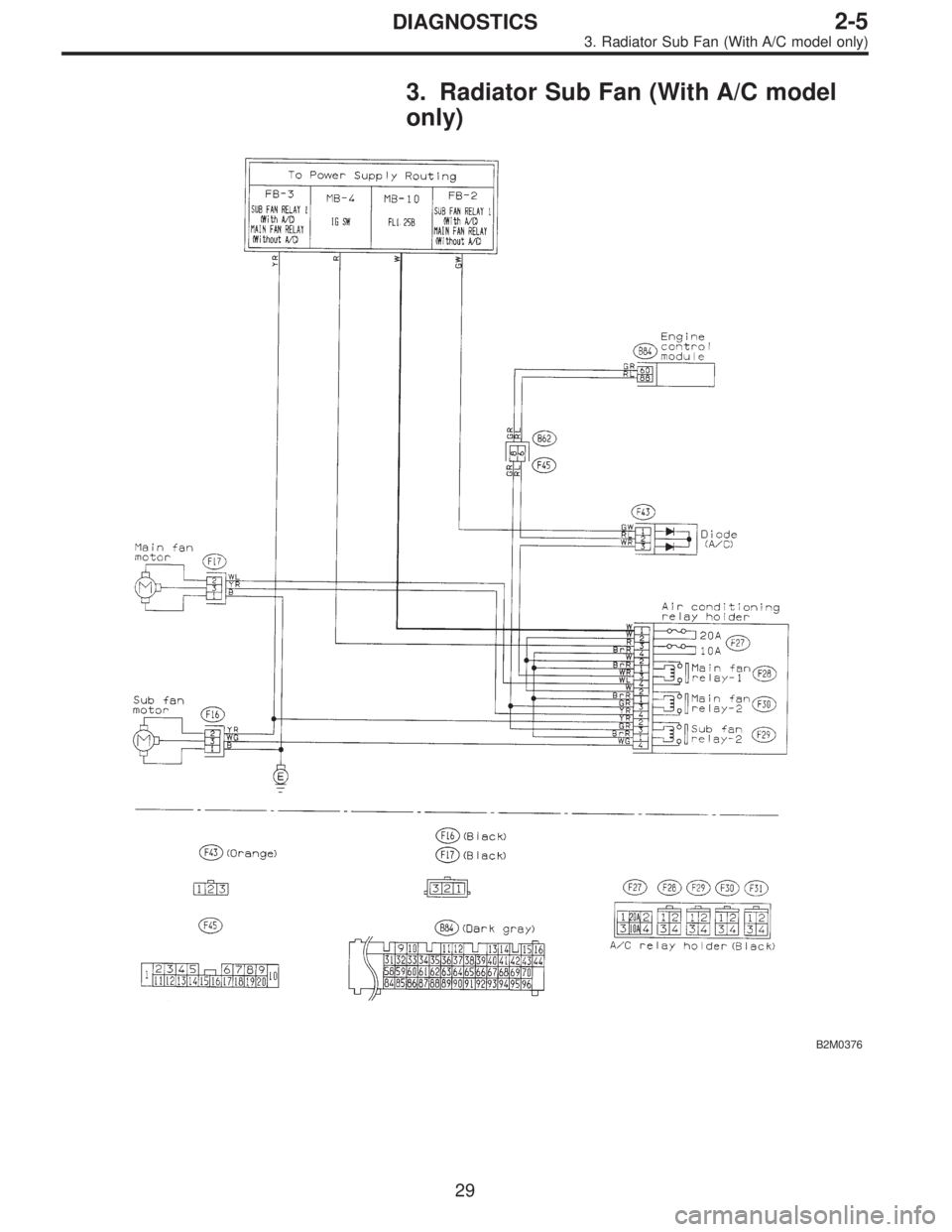

SUBARU LEGACY 1995 Service Repair Manual 3. Radiator Sub Fan (With A/C model only) B2M0376 29 2-5DIAGNOSTICS 3. Radiator Sub Fan (With A/C model only)

Page 148 of 2248

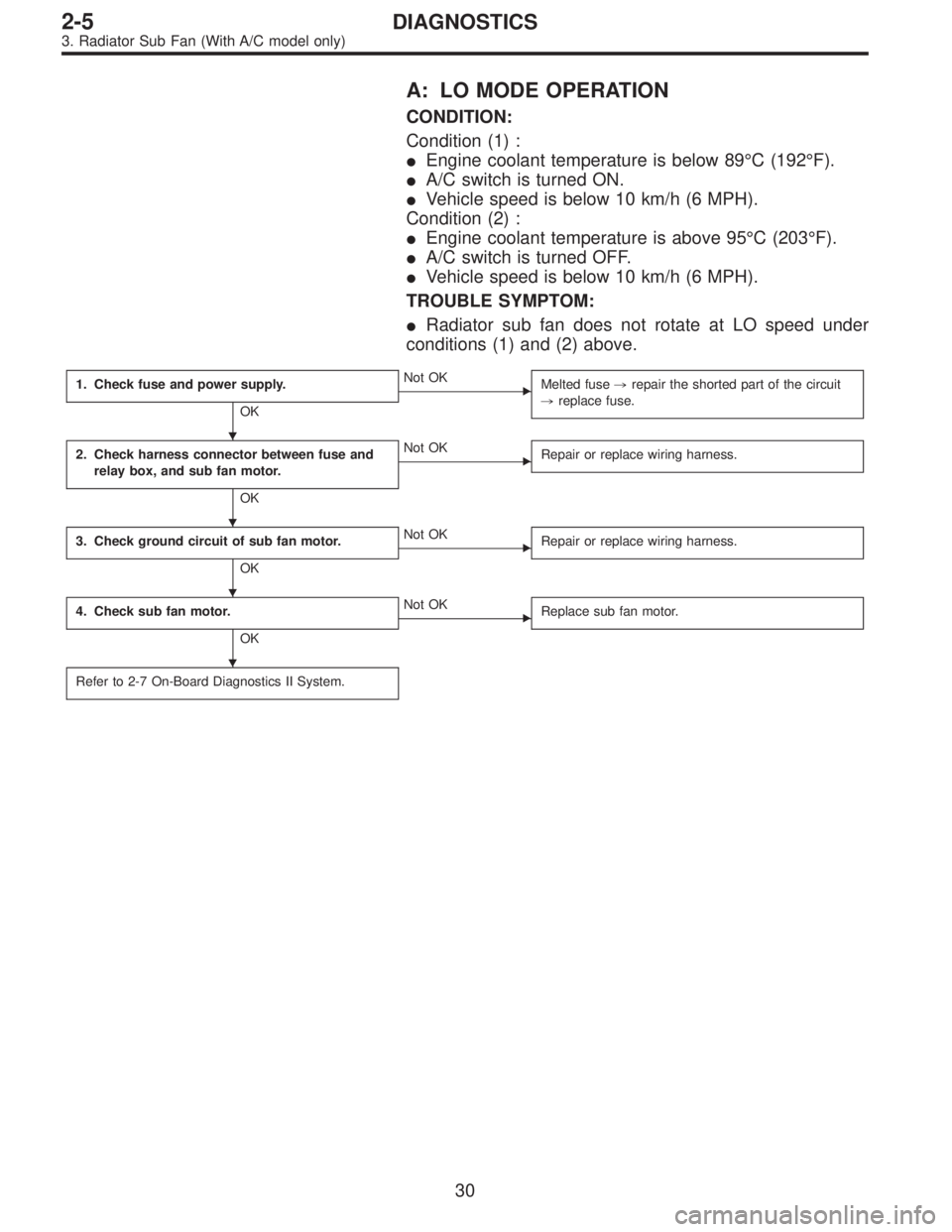

SUBARU LEGACY 1995 Service Repair Manual A: LO MODE OPERATION CONDITION: Condition (1) : Engine coolant temperature is below 89°C (192°F). A/C switch is turned ON. Vehicle speed is below 10 km/h (6 MPH). Condition (2) : Engine coolant

Page 149 of 2248

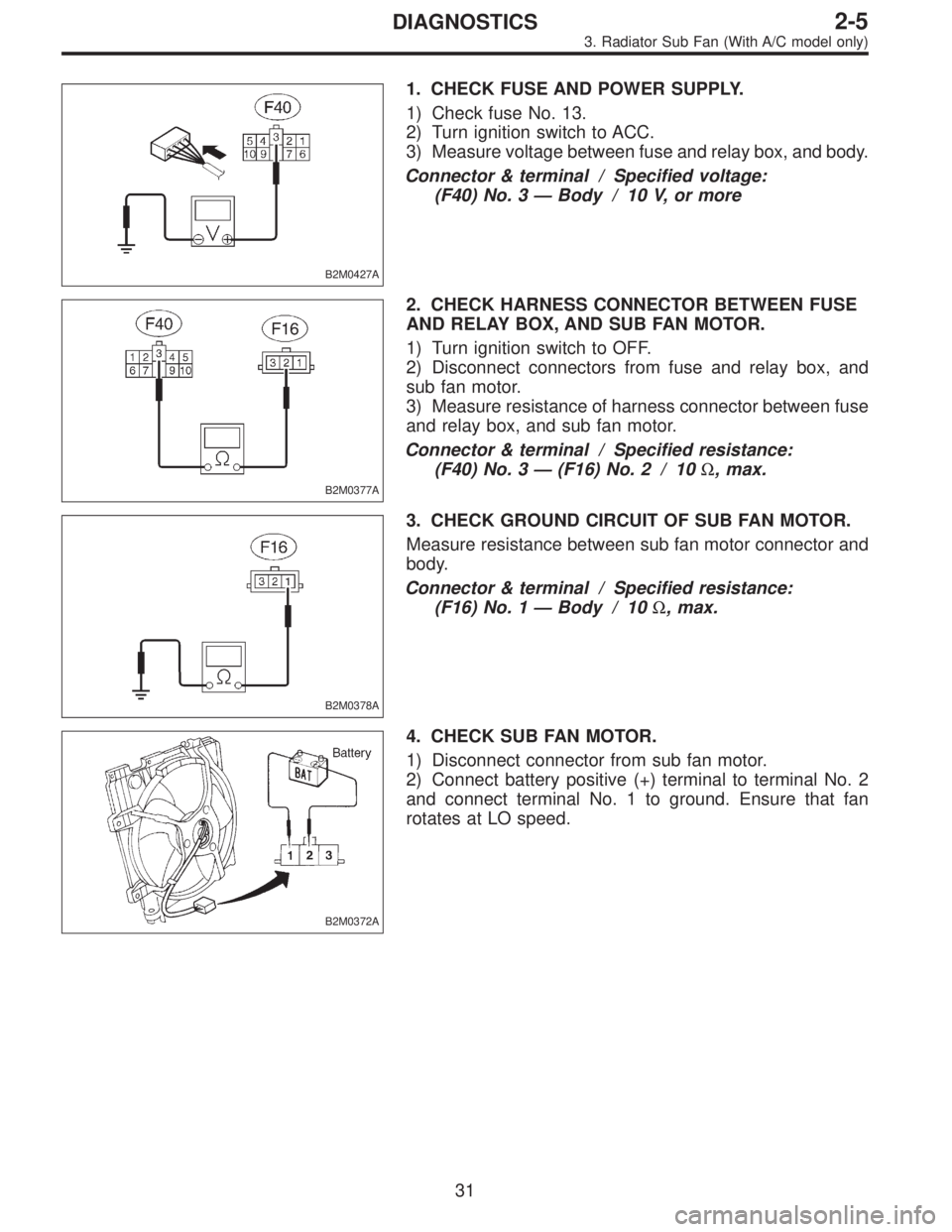

SUBARU LEGACY 1995 Service Repair Manual B2M0427A 1. CHECK FUSE AND POWER SUPPLY. 1) Check fuse No. 13. 2) Turn ignition switch to ACC. 3) Measure voltage between fuse and relay box, and body. Connector & terminal / Specified voltage: (F40)

Page 150 of 2248

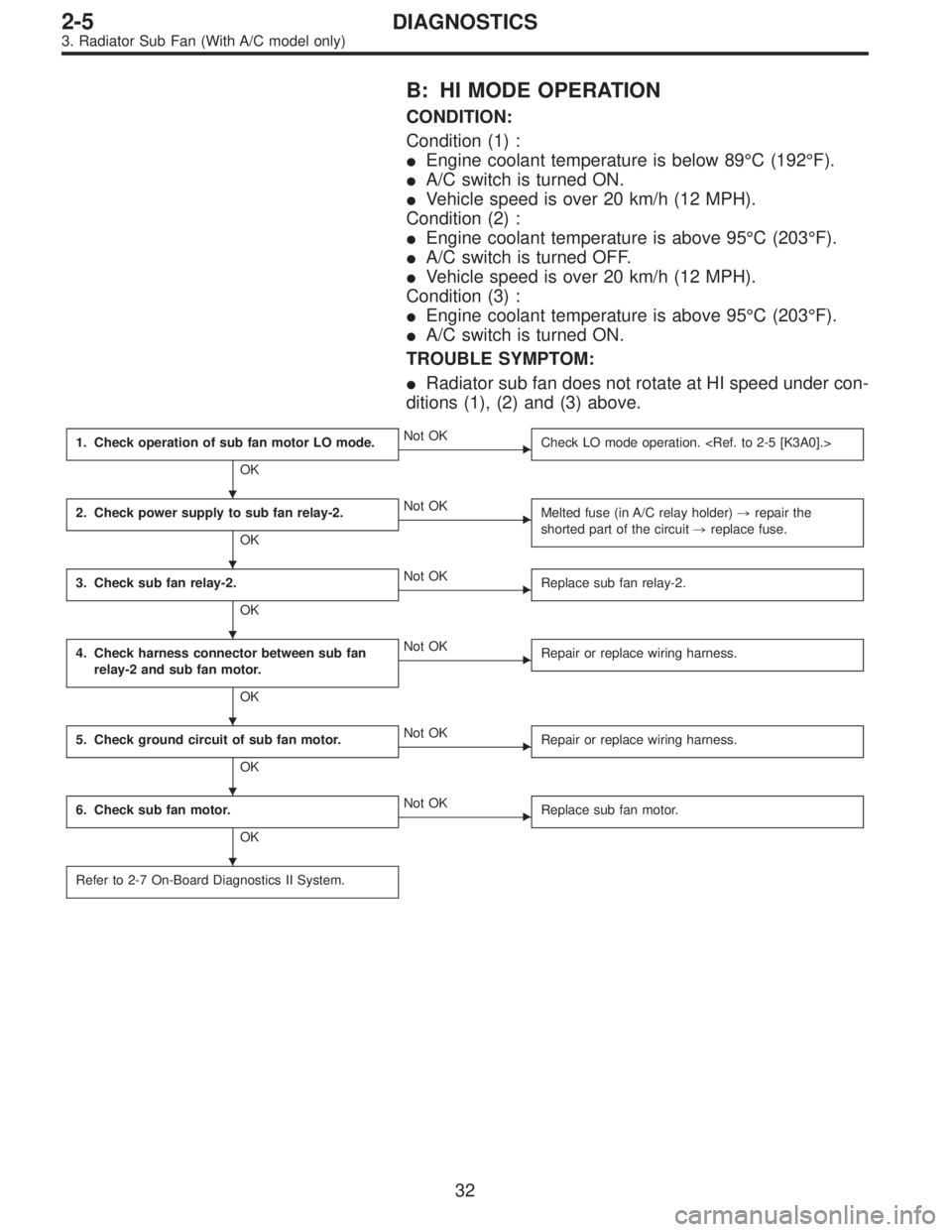

SUBARU LEGACY 1995 Service Repair Manual B: HI MODE OPERATION CONDITION: Condition (1) : Engine coolant temperature is below 89°C (192°F). A/C switch is turned ON. Vehicle speed is over 20 km/h (12 MPH). Condition (2) : Engine coolant

Page 151 of 2248

SUBARU LEGACY 1995 Service Repair Manual 1. CHECK OPERATION OF SUB FAN MOTOR LO MODE. Check that radiator sub fan rotates at LO speed under each condition described under LO mode operation. <Ref. to 2-5 [K3A0].> B2M0379A 2. CHECK POWER SUPPL

Page 152 of 2248

SUBARU LEGACY 1995 Service Repair Manual B2M0397A 4. CHECK HARNESS CONNECTOR BETWEEN SUB FAN RELAY-2 AND SUB FAN MOTOR. 1) Disconnect connectors from sub fan relay-2 and sub fan motor. 2) Measure resistance of harness connector between sub f
