Page 241 of 2248

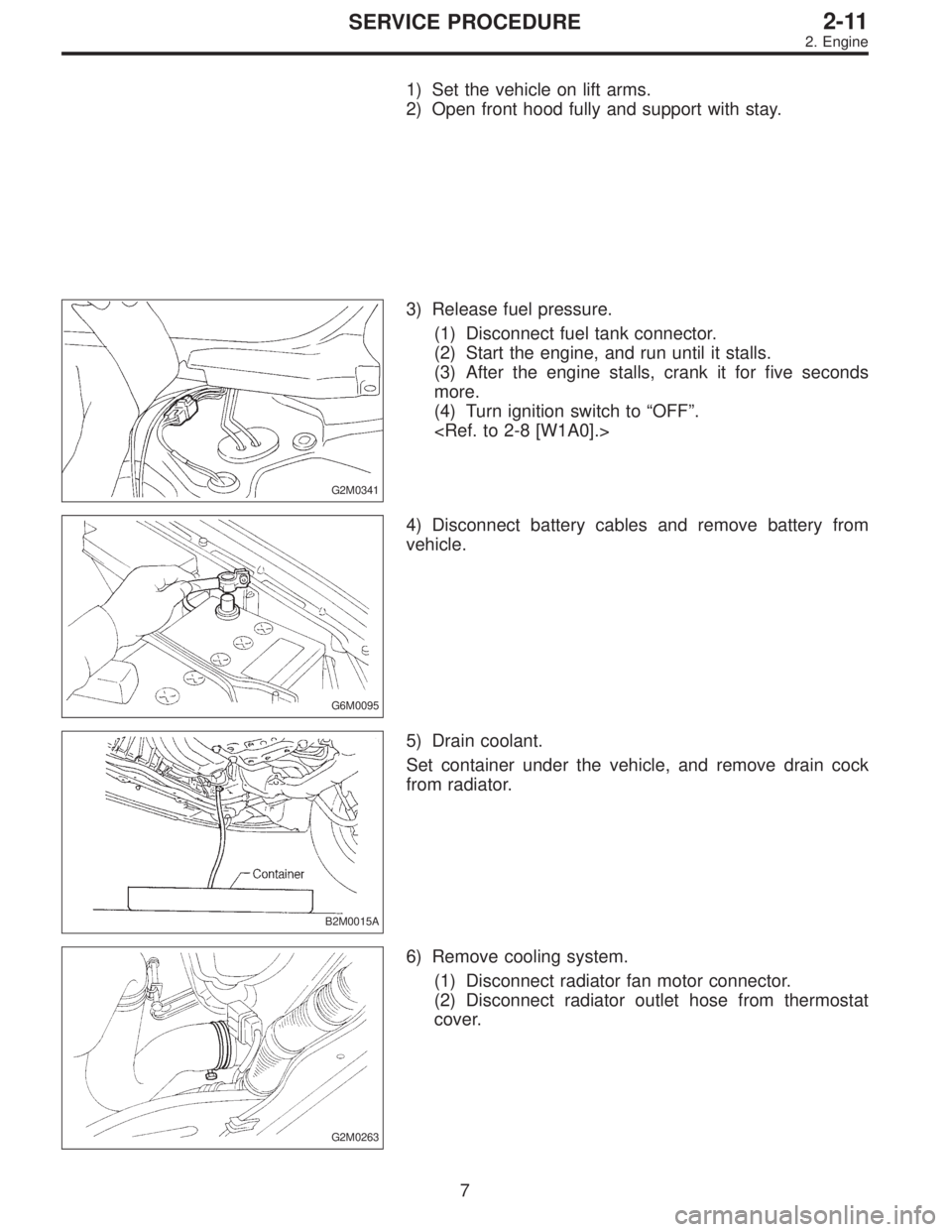

SUBARU LEGACY 1995 Service Repair Manual 1) Set the vehicle on lift arms. 2) Open front hood fully and support with stay. G2M0341 3) Release fuel pressure. (1) Disconnect fuel tank connector. (2) Start the engine, and run until it stalls. (3

Page 242 of 2248

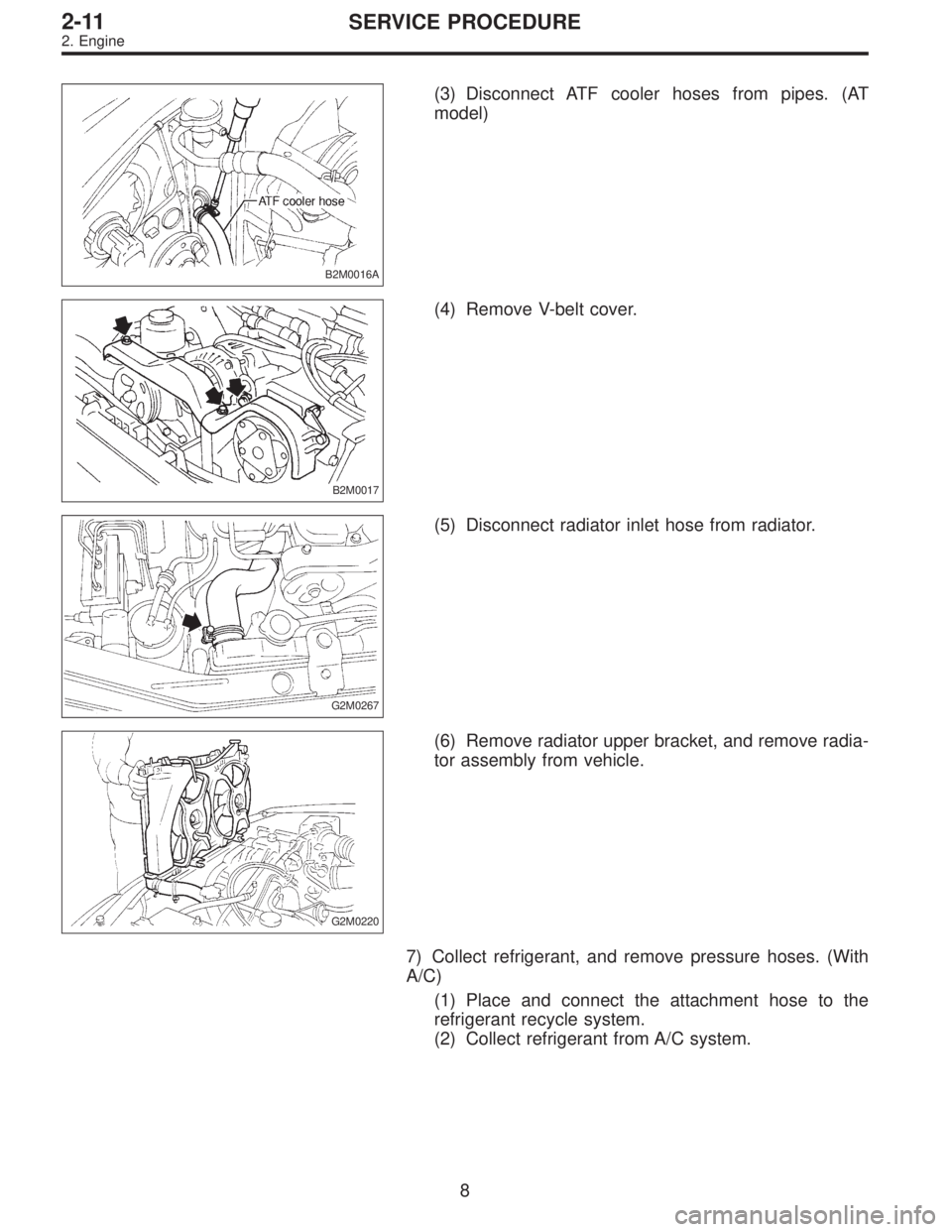

SUBARU LEGACY 1995 Service Repair Manual B2M0016A (3) Disconnect ATF cooler hoses from pipes. (AT model) B2M0017 (4) Remove V-belt cover. G2M0267 (5) Disconnect radiator inlet hose from radiator. G2M0220 (6) Remove radiator upper bracket, an

Page 243 of 2248

SUBARU LEGACY 1995 Service Repair Manual G2M0270 (3) Disconnect A/C pressure hoses from A/C compres- sor. G2M0271 8) Remove air intake system. (1) Disconnect connector from mass air flow sensor. (2) Remove air intake duct with air cleaner up

Page 244 of 2248

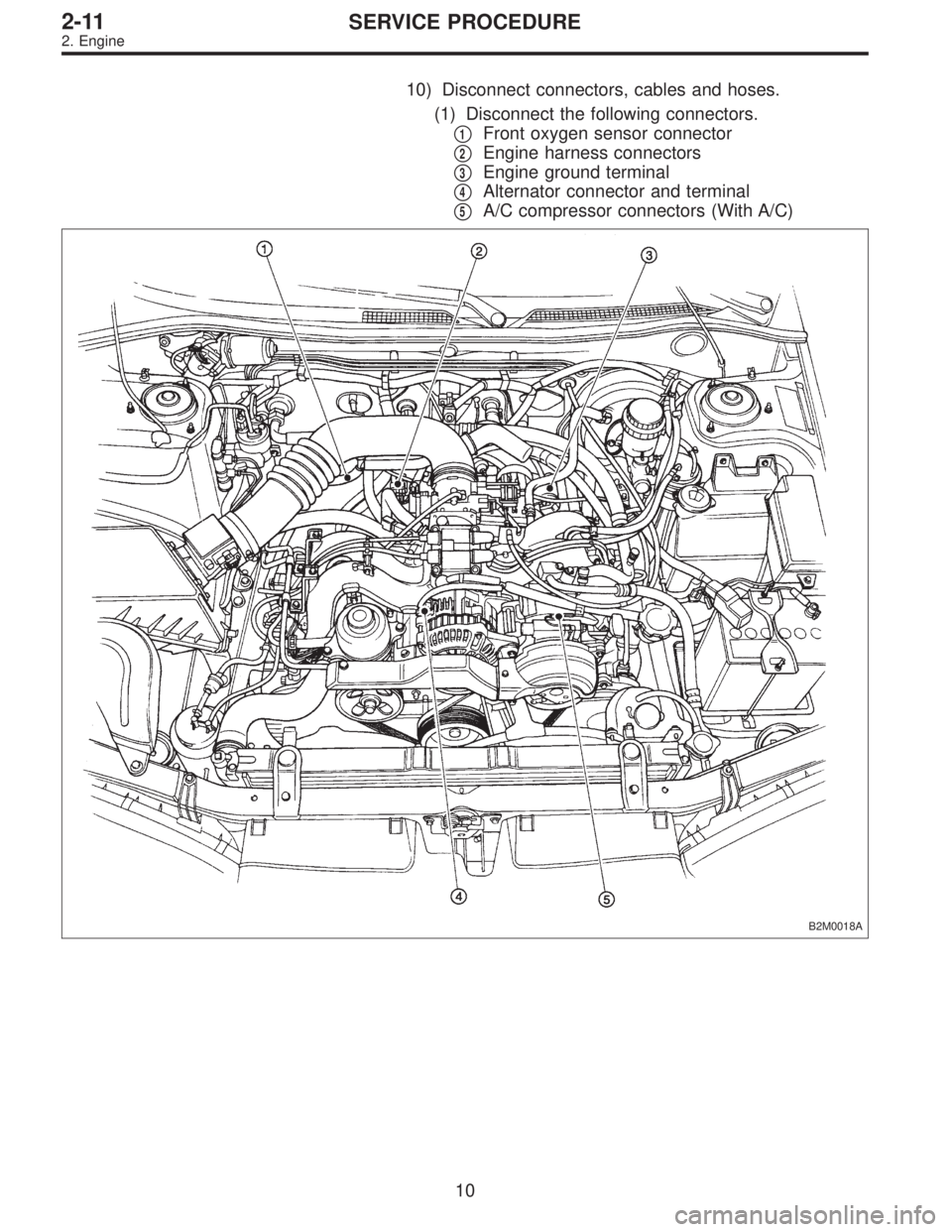

SUBARU LEGACY 1995 Service Repair Manual 10) Disconnect connectors, cables and hoses. (1) Disconnect the following connectors.  1Front oxygen sensor connector  2Engine harness connectors  3Engine ground terminal  4Alternator connector an

Page 245 of 2248

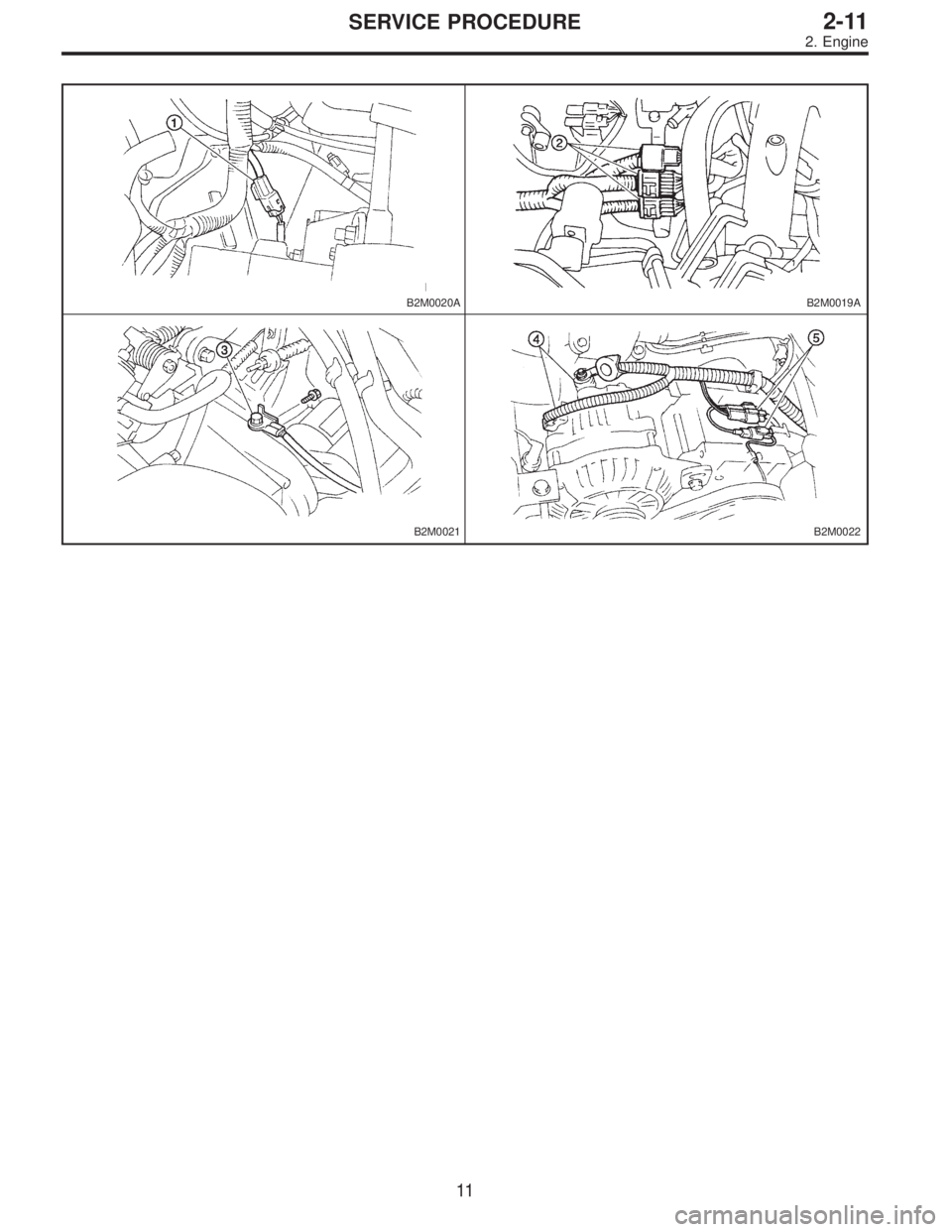

SUBARU LEGACY 1995 Service Repair Manual B2M0020AB2M0019A B2M0021B2M0022 11 2-11SERVICE PROCEDURE 2. Engine

Page 246 of 2248

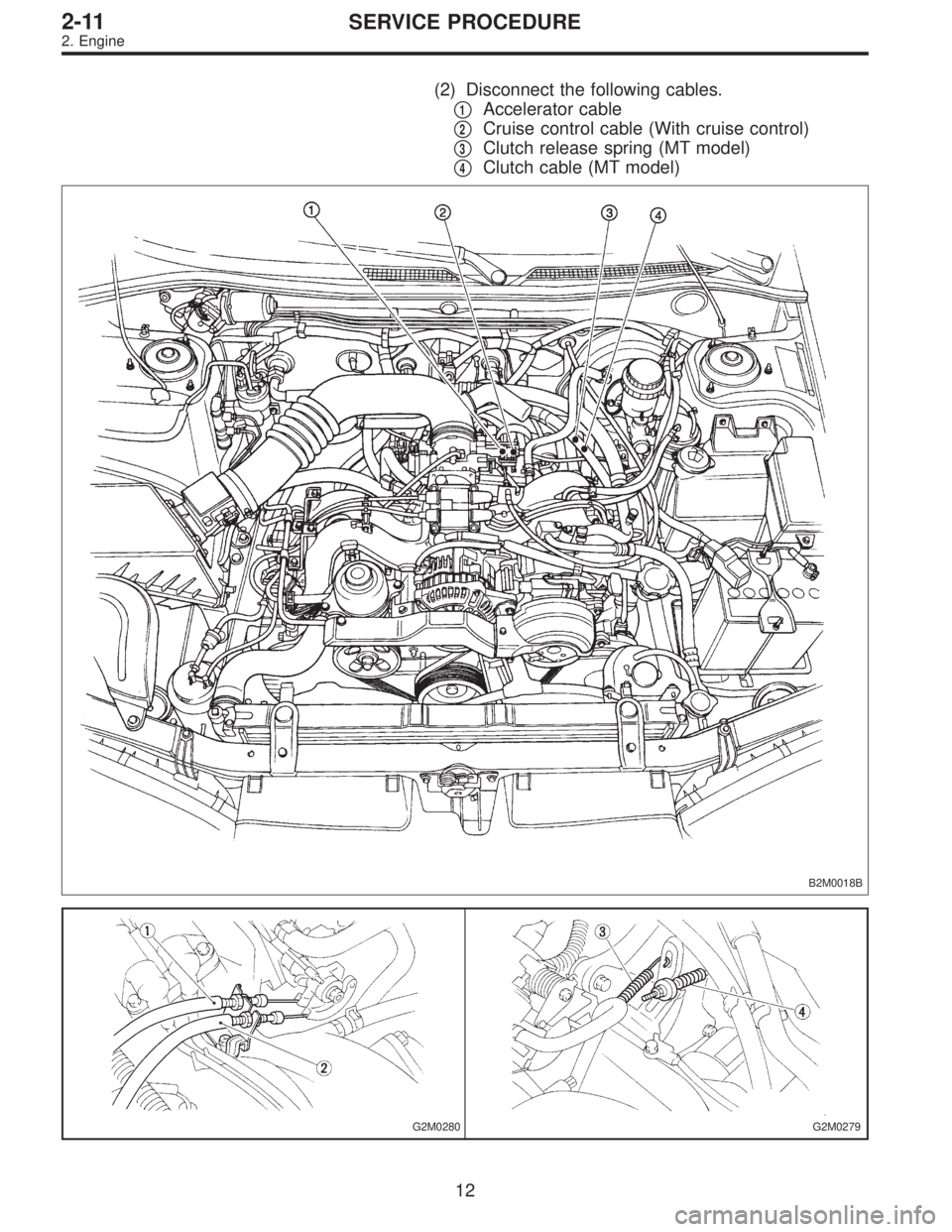

SUBARU LEGACY 1995 Service Repair Manual (2) Disconnect the following cables.  1Accelerator cable  2Cruise control cable (With cruise control)  3Clutch release spring (MT model)  4Clutch cable (MT model) B2M0018B G2M0280G2M0279 12 2-11SE

Page 247 of 2248

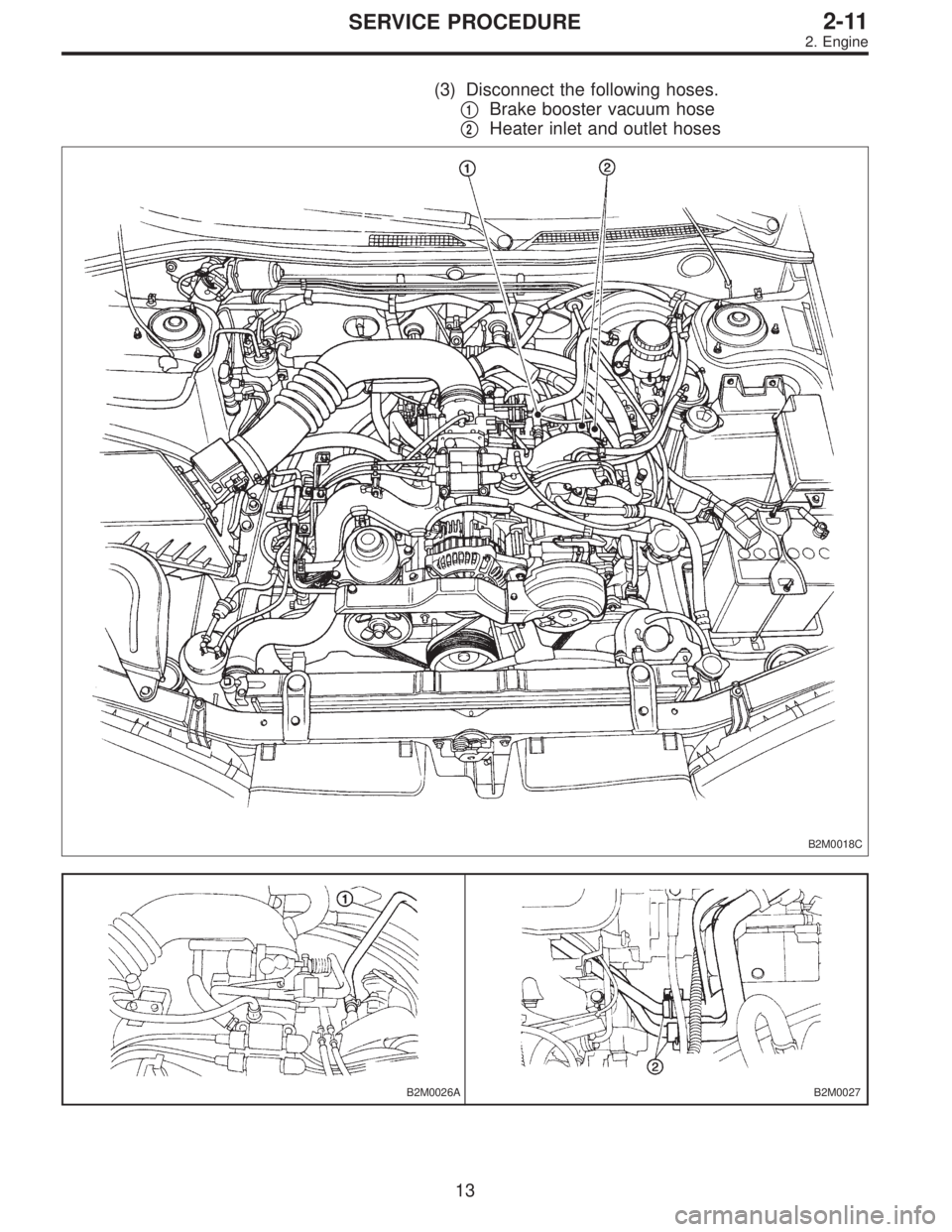

SUBARU LEGACY 1995 Service Repair Manual (3) Disconnect the following hoses.  1Brake booster vacuum hose  2Heater inlet and outlet hoses B2M0018C B2M0026AB2M0027 13 2-11SERVICE PROCEDURE 2. Engine

Page 248 of 2248

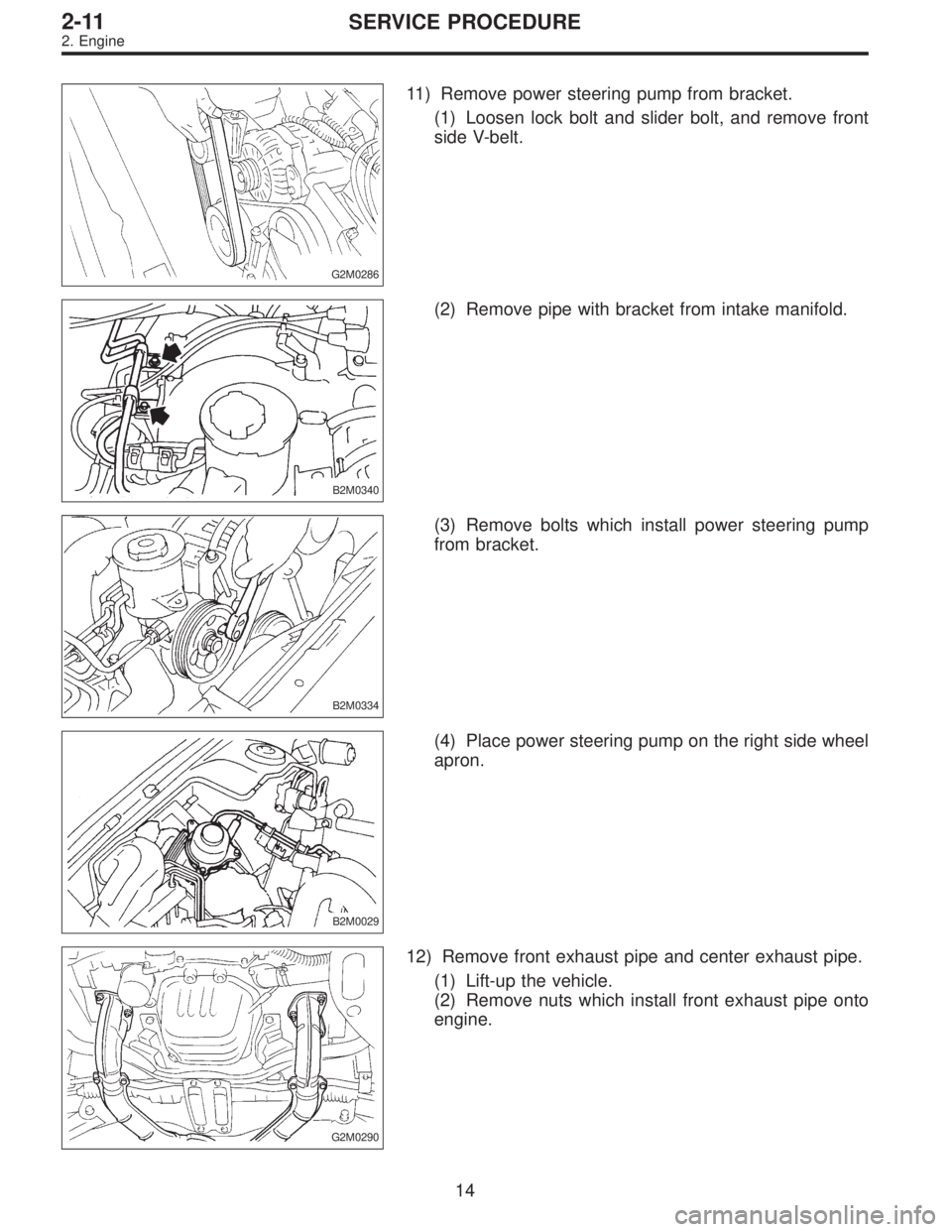

SUBARU LEGACY 1995 Service Repair Manual G2M0286 11) Remove power steering pump from bracket. (1) Loosen lock bolt and slider bolt, and remove front side V-belt. B2M0340 (2) Remove pipe with bracket from intake manifold. B2M0334 (3) Remove b
