Page 593 of 2248

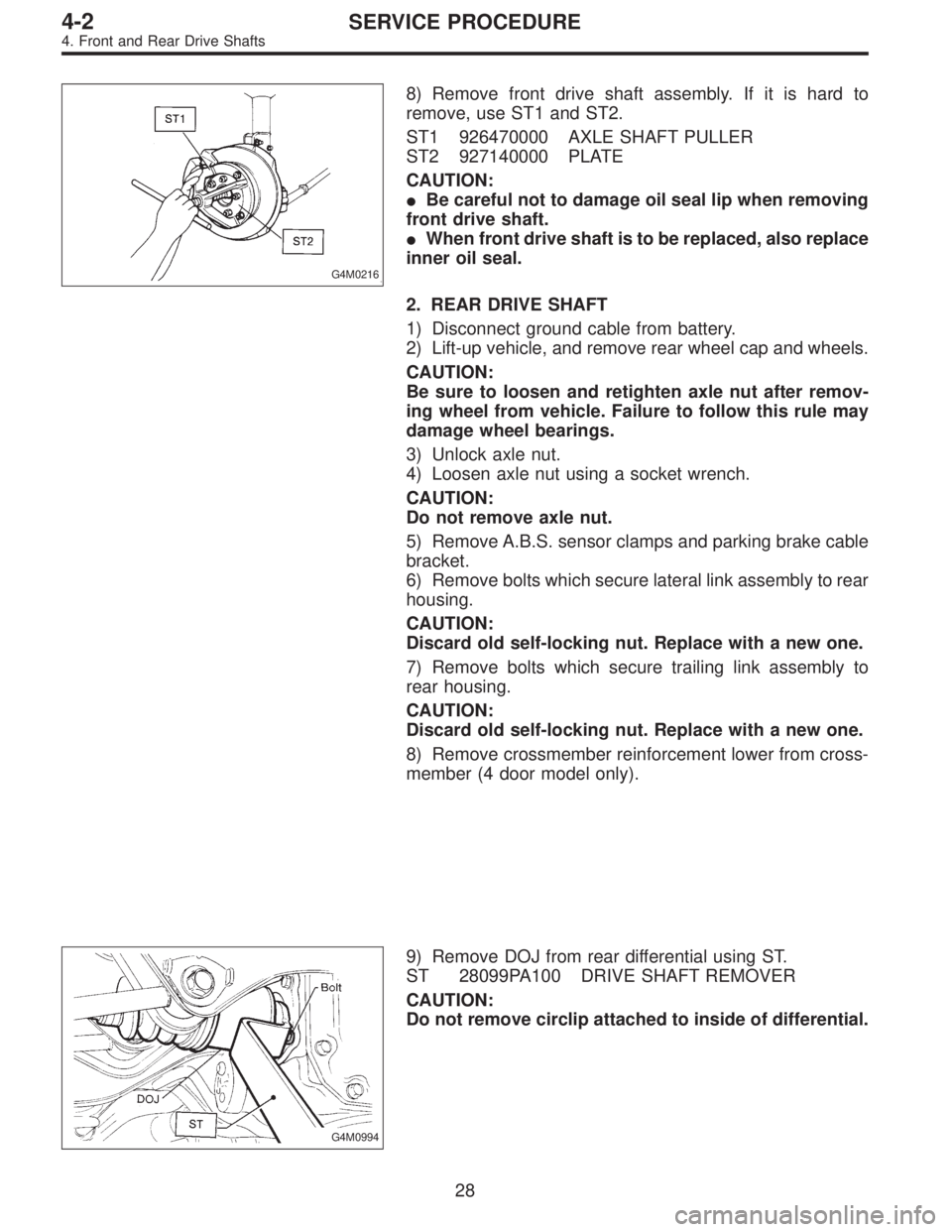

SUBARU LEGACY 1995 Service Repair Manual G4M0216 8) Remove front drive shaft assembly. If it is hard to remove, use ST1 and ST2. ST1 926470000 AXLE SHAFT PULLER ST2 927140000 PLATE CAUTION: Be careful not to damage oil seal lip when removin

Page 594 of 2248

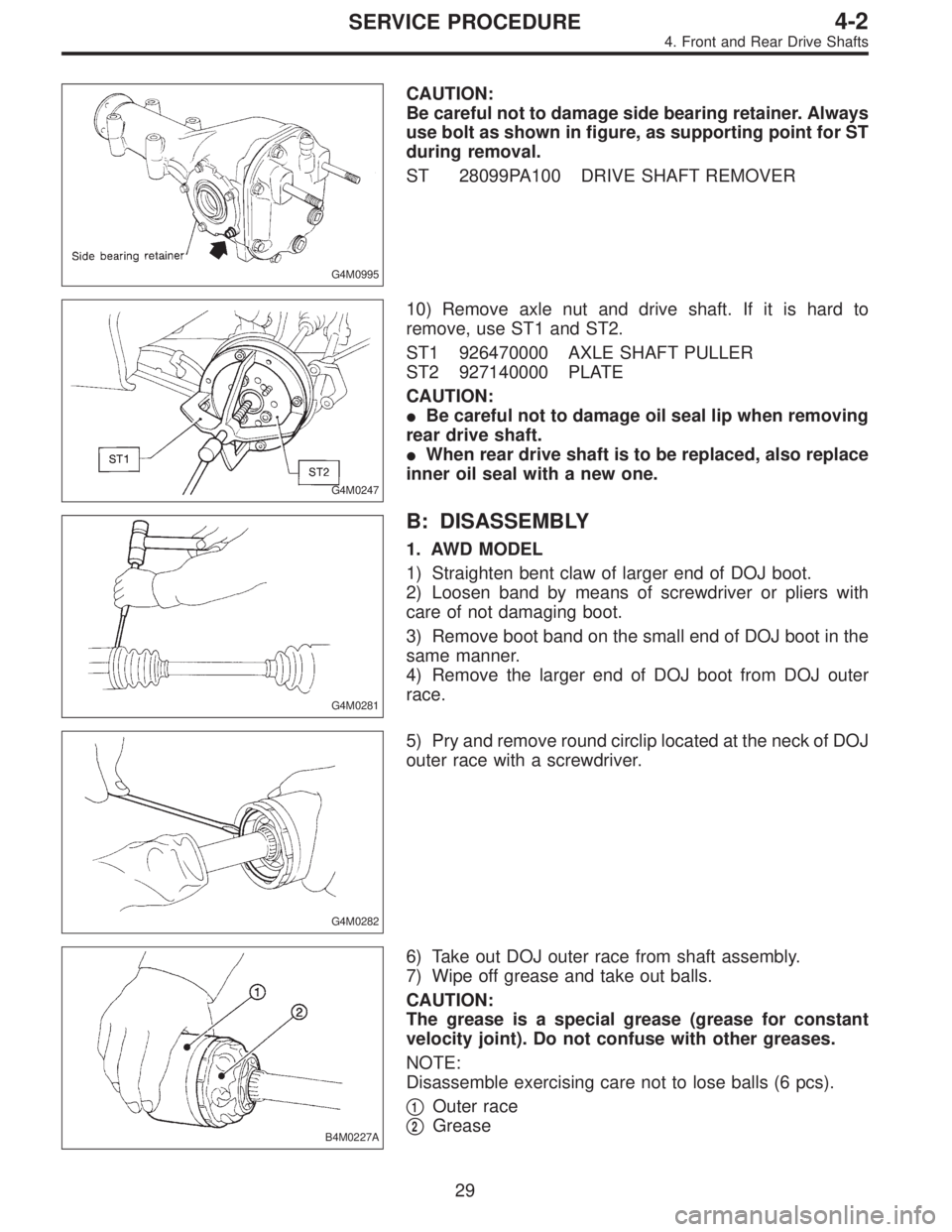

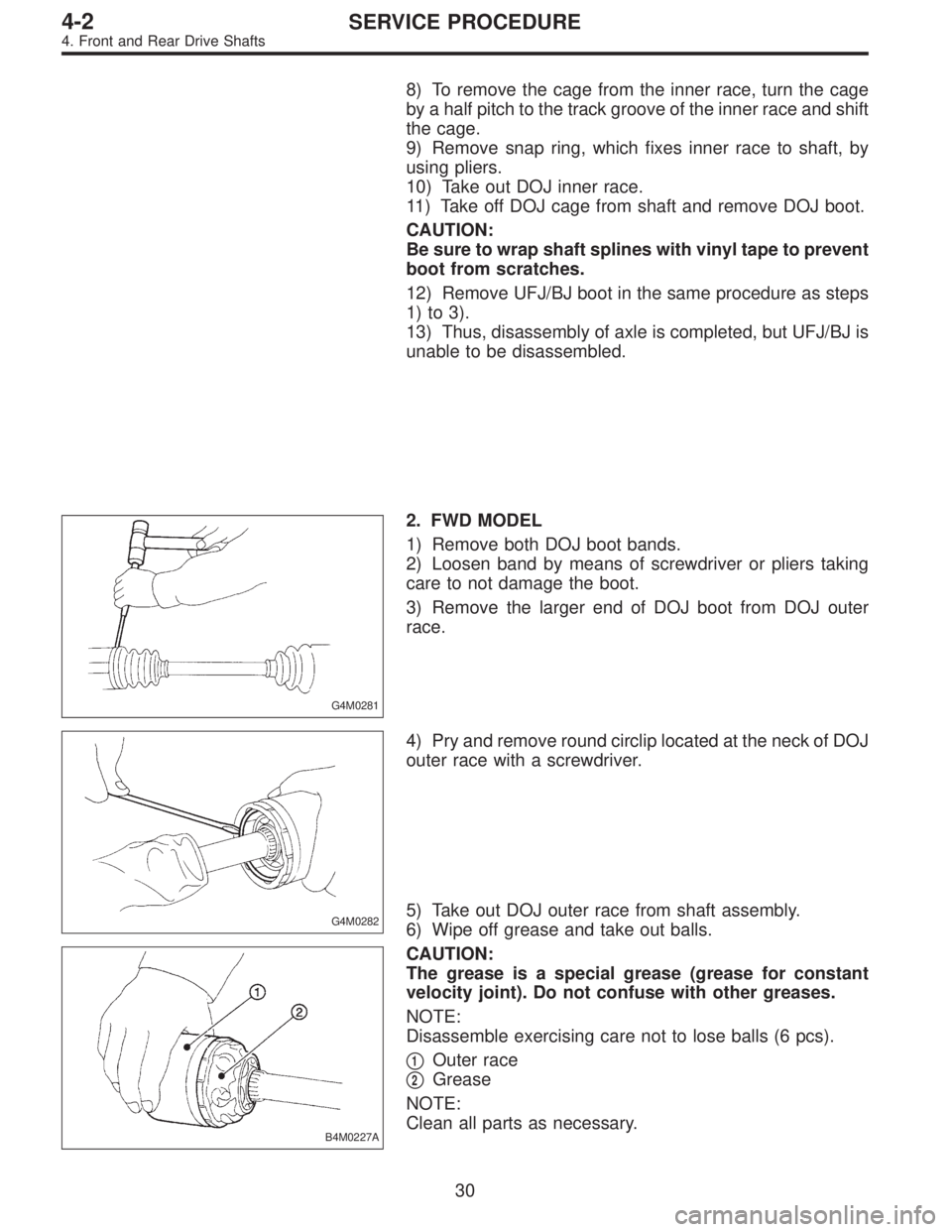

SUBARU LEGACY 1995 Service Repair Manual G4M0995 CAUTION: Be careful not to damage side bearing retainer. Always use bolt as shown in figure, as supporting point for ST during removal. ST 28099PA100 DRIVE SHAFT REMOVER G4M0247 10) Remove axl

Page 595 of 2248

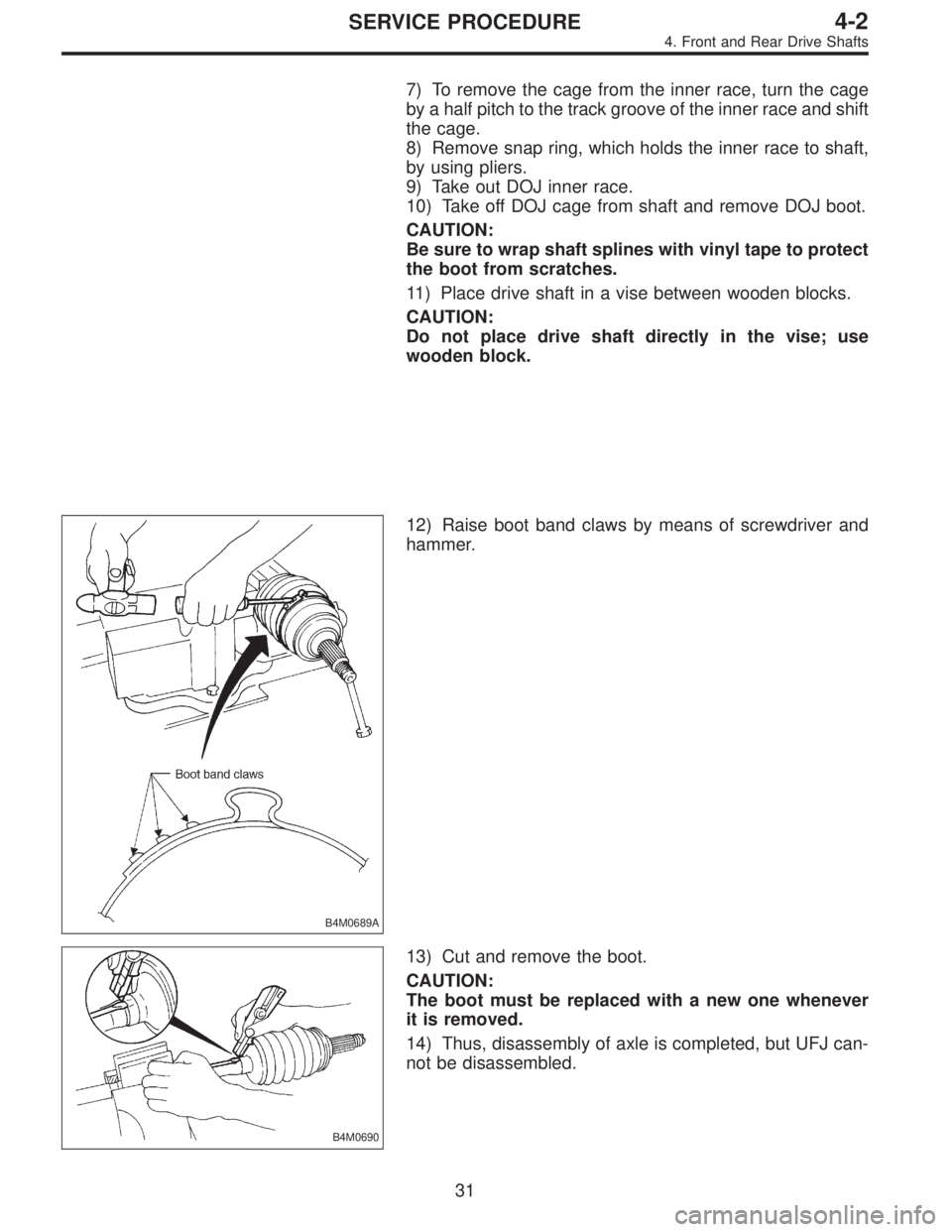

SUBARU LEGACY 1995 Service Repair Manual 8) To remove the cage from the inner race, turn the cage by a half pitch to the track groove of the inner race and shift the cage. 9) Remove snap ring, which fixes inner race to shaft, by using pliers

Page 596 of 2248

SUBARU LEGACY 1995 Service Repair Manual 7) To remove the cage from the inner race, turn the cage by a half pitch to the track groove of the inner race and shift the cage. 8) Remove snap ring, which holds the inner race to shaft, by using pl

Page 597 of 2248

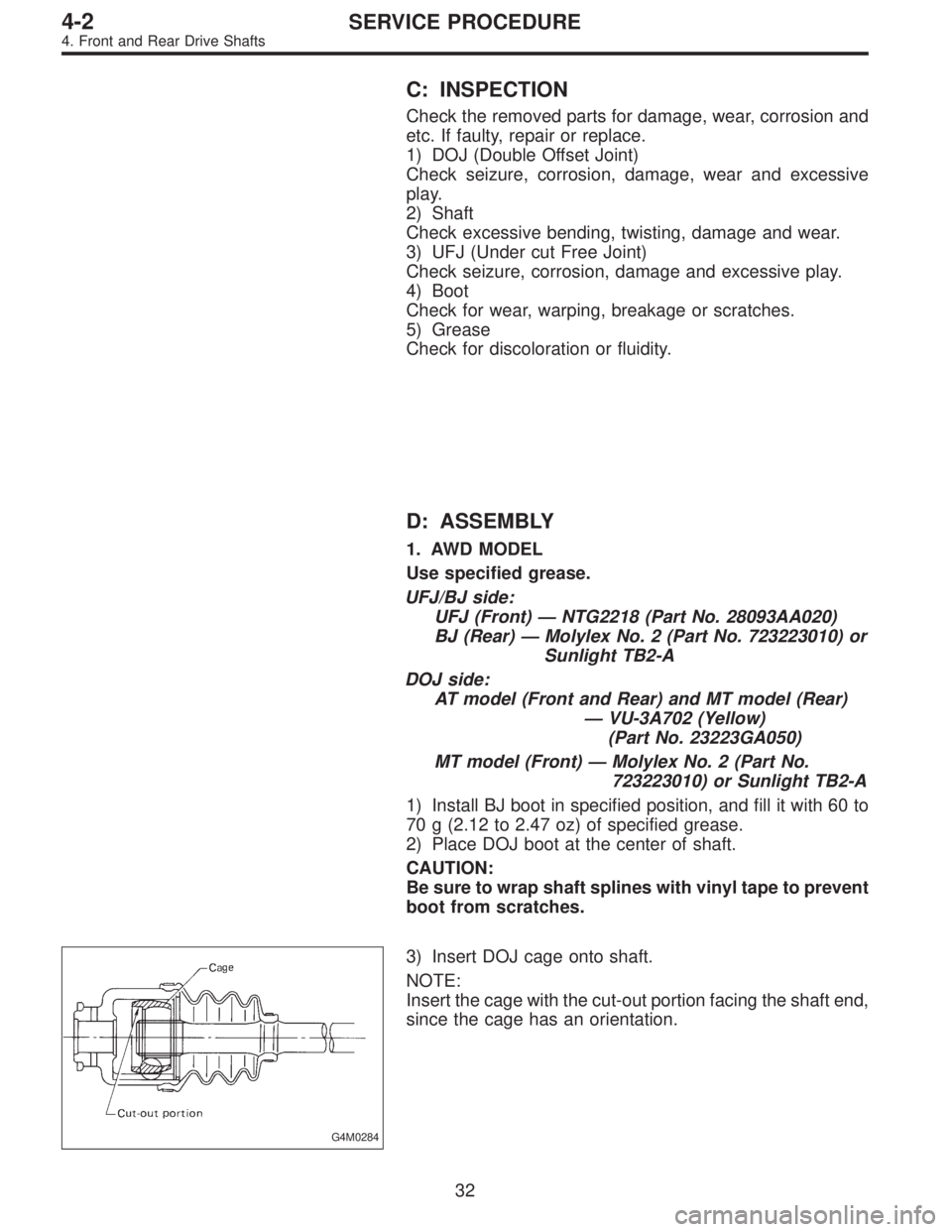

SUBARU LEGACY 1995 Service Repair Manual C: INSPECTION Check the removed parts for damage, wear, corrosion and etc. If faulty, repair or replace. 1) DOJ (Double Offset Joint) Check seizure, corrosion, damage, wear and excessive play. 2) Shaf

Page 598 of 2248

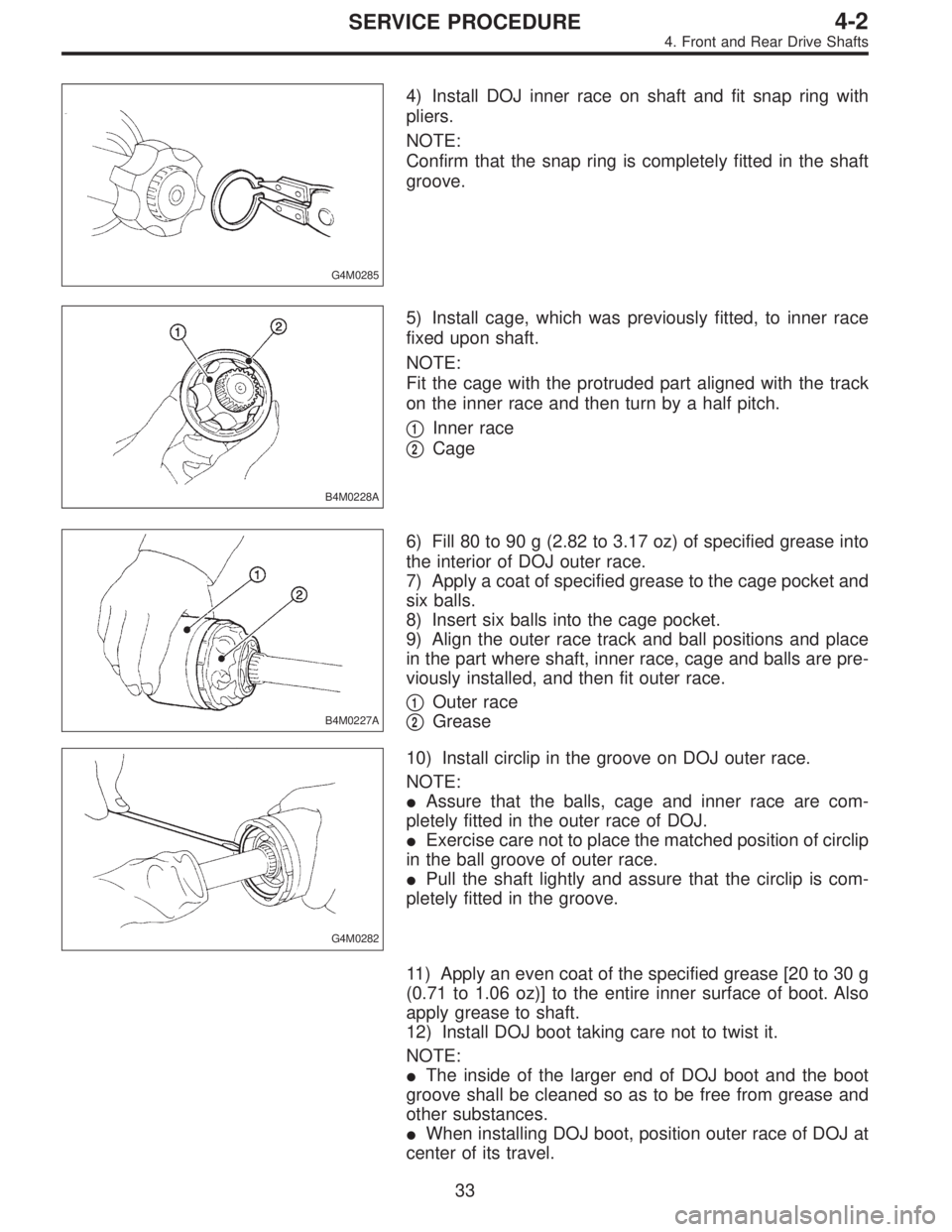

SUBARU LEGACY 1995 Service Repair Manual G4M0285 4) Install DOJ inner race on shaft and fit snap ring with pliers. NOTE: Confirm that the snap ring is completely fitted in the shaft groove. B4M0228A 5) Install cage, which was previously fitt

Page 599 of 2248

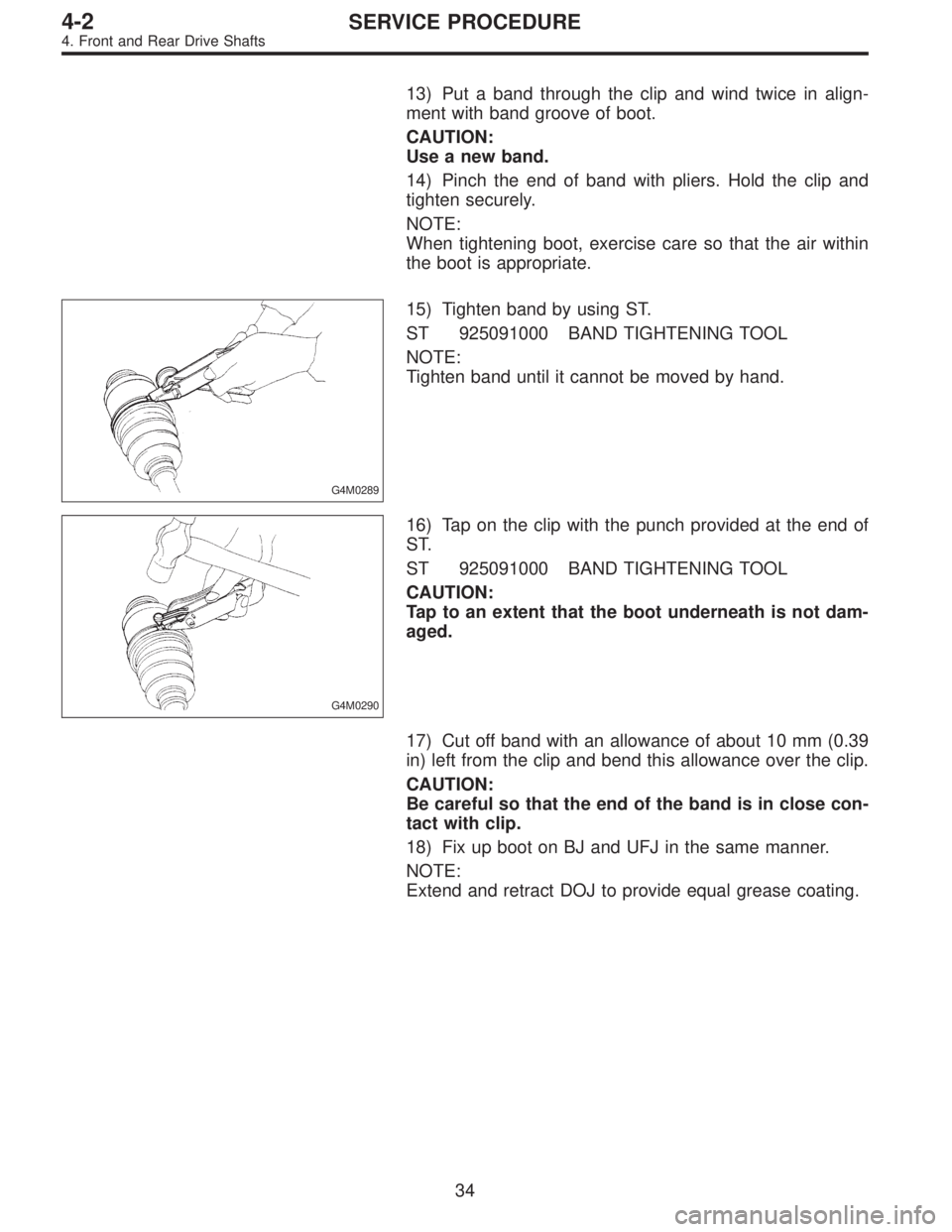

SUBARU LEGACY 1995 Service Repair Manual 13) Put a band through the clip and wind twice in align- ment with band groove of boot. CAUTION: Use a new band. 14) Pinch the end of band with pliers. Hold the clip and tighten securely. NOTE: When t

Page 600 of 2248

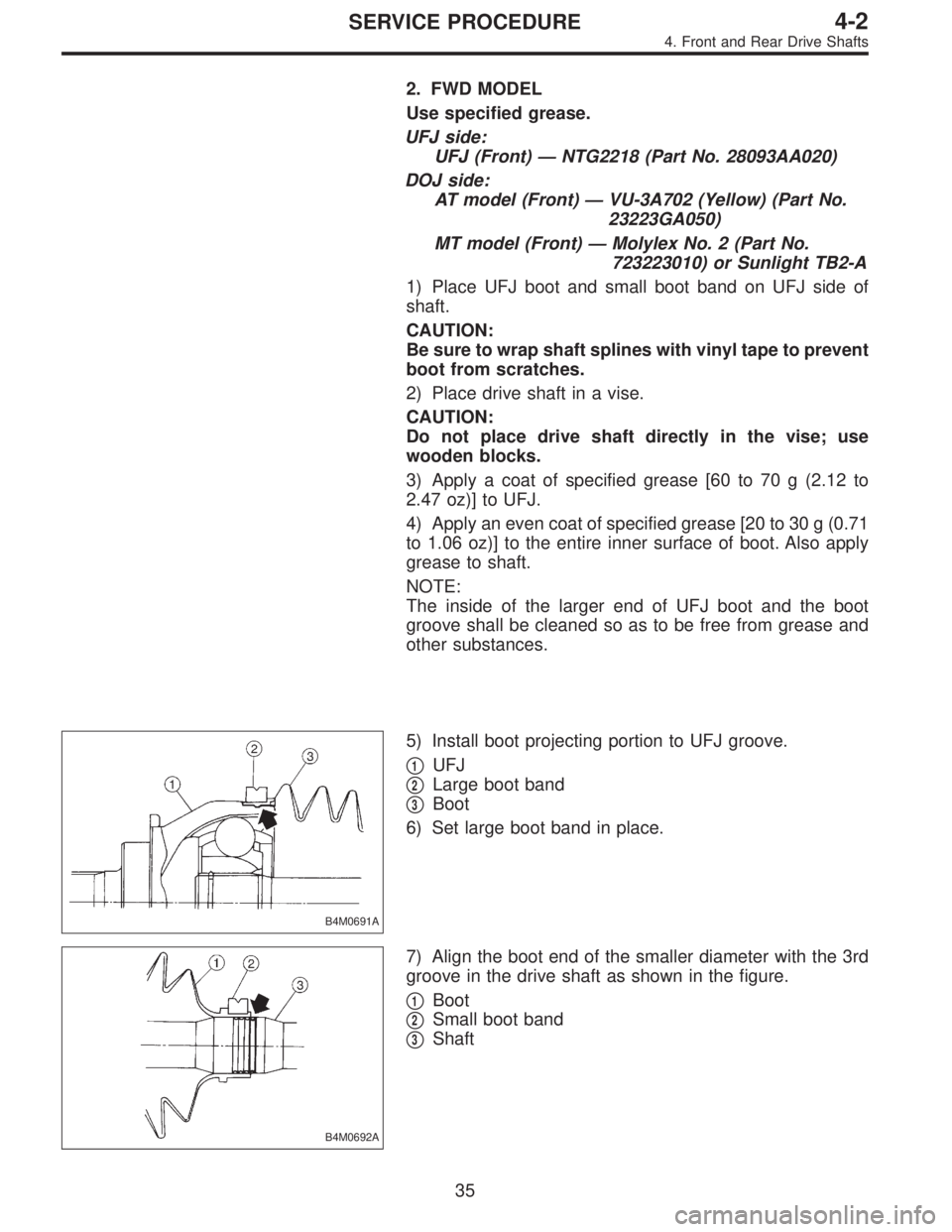

SUBARU LEGACY 1995 Service Repair Manual 2. FWD MODEL Use specified grease. UFJ side: UFJ (Front)—NTG2218 (Part No. 28093AA020) DOJ side: AT model (Front)—VU-3A702 (Yellow) (Part No. 23223GA050) MT model (Front)—Molylex No. 2 (Part No.
