CHECK TRANSMISSION TYPE.
Refer to flow chart on page 346.
OBD0737A
2

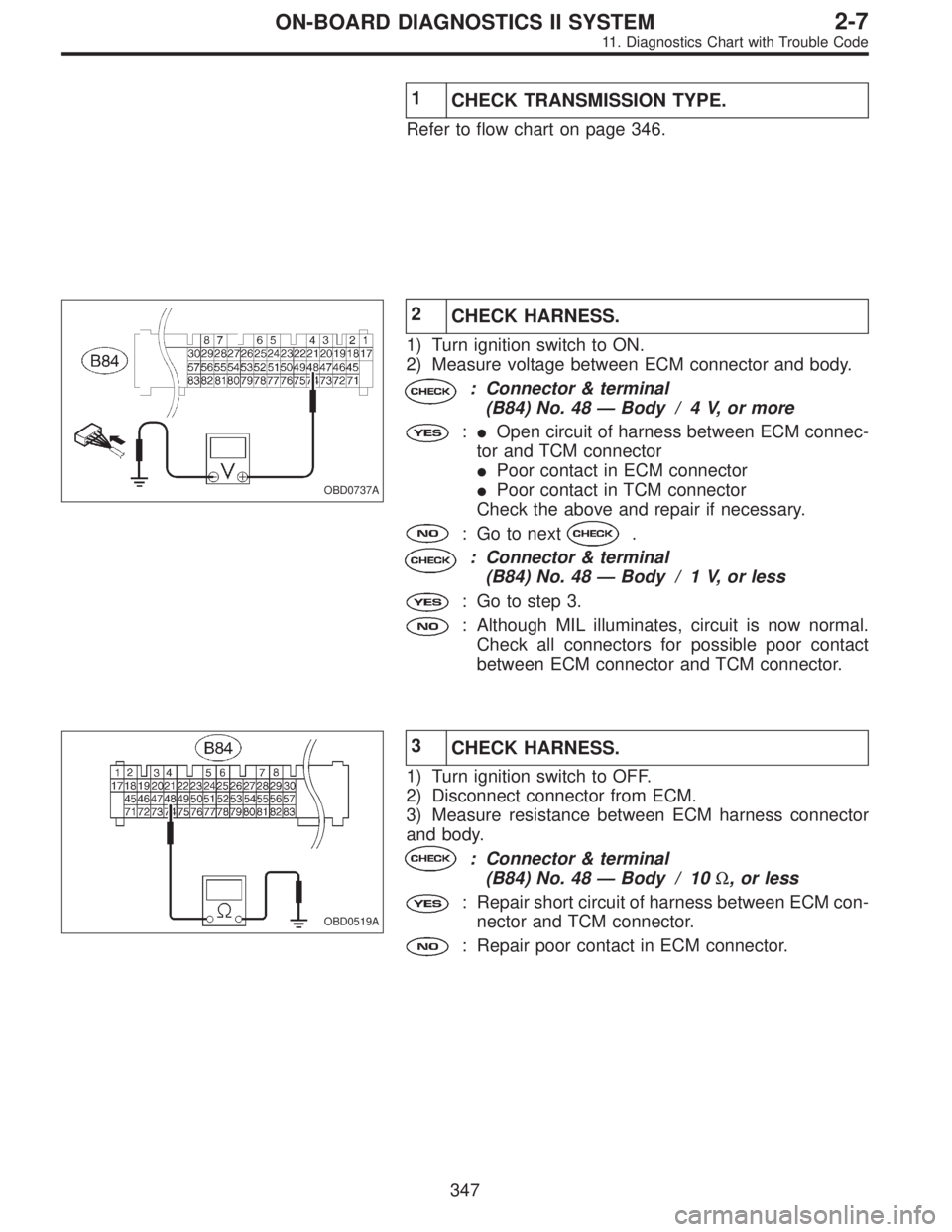

CHECK HARNESS.
1) Turn ignition switch to ON.
2) Measure voltage between ECM connector and body.
: Connector & terminal
(B84) No. 48—Body / 4 V, or more
:Open circuit of harness between ECM connec-
tor and TCM connector
Poor contact in ECM connector
Poor contact in TCM connector
Check the above and repair if necessary.
: Go to next.
: Connector & terminal
(B84) No. 48—Body / 1 V, or less
: Go to step 3.
: Although MIL illuminates, circuit is now normal.
Check all connectors for possible poor contact
between ECM connector and TCM connector.
OBD0519A
3
CHECK HARNESS.
1) Turn ignition switch to OFF.
2) Disconnect connector from ECM.
3) Measure resistance between ECM harness connector
and body.
: Connector & terminal
(B84) No. 48—Body / 10Ω, or less
: Repair short circuit of harness between ECM con-
nector and TCM connector.
: Repair poor contact in ECM connector.
347
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code
Page 1554 of 2248
BN:—AT/MT IDENTIFICATION CIRCUIT
MALFUNCTION [MT VEHICLES]—
DESCRIPTION:
The circuit allows the ECM to identify the vehicle as an AT
or MT vehicle.
1.Check harness connector.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.
[T3D0] and [T3E0].>
WIRING DIAGRAM:
OBD0521
OBD0522A
1
CHECK HARNESS CONNECTOR.
1) Turn ignition switch to ON.
2) Measure voltage between ECM and body.
: Connector & terminal
(B84) No. 50—Body / 2 V, or more
: Repair open circuit of harness between ECM con-
nector and body.
: Confirm good connection at ECM connector.
348
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code
Page 1555 of 2248

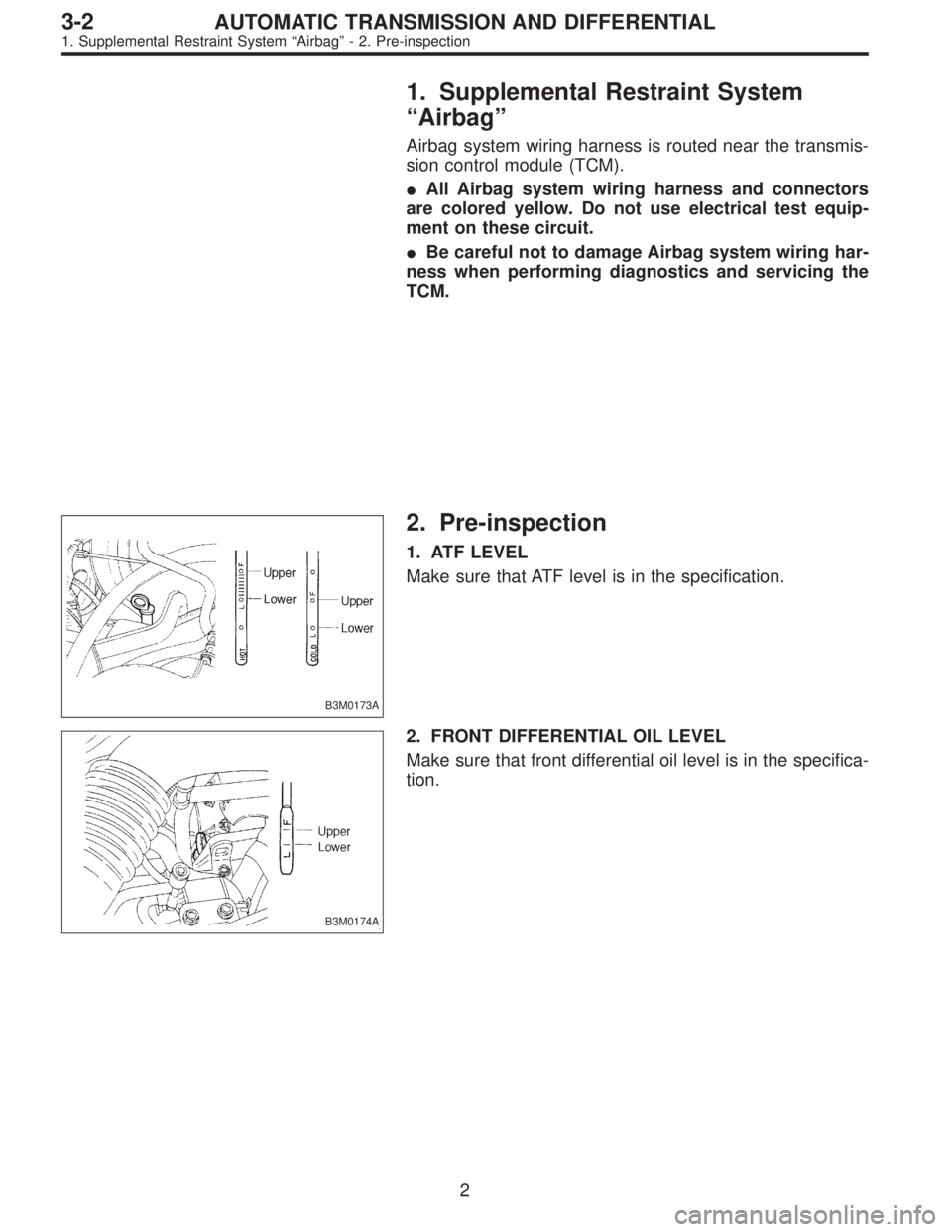

1. Supplemental Restraint System
“Airbag”
Airbag system wiring harness is routed near the transmis-
sion control module (TCM).
All Airbag system wiring harness and connectors
are colored yellow. Do not use electrical test equip-
ment on these circuit.
Be careful not to damage Airbag system wiring har-
ness when performing diagnostics and servicing the
TCM.
B3M0173A
2. Pre-inspection
1. ATF LEVEL
Make sure that ATF level is in the specification.
B3M0174A
2. FRONT DIFFERENTIAL OIL LEVEL
Make sure that front differential oil level is in the specifica-
tion.
2
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
1. Supplemental Restraint System“Airbag”- 2. Pre-inspection
Page 1556 of 2248
1. Supplemental Restraint System
“Airbag”
Airbag system wiring harness is routed near the transmis-
sion control module (TCM).
All Airbag system wiring harness and connectors
are colored yellow. Do not use electrical test equip-
ment on these circuit.
Be careful not to damage Airbag system wiring har-
ness when performing diagnostics and servicing the
TCM.
B3M0173A
2. Pre-inspection
1. ATF LEVEL
Make sure that ATF level is in the specification.
B3M0174A
2. FRONT DIFFERENTIAL OIL LEVEL
Make sure that front differential oil level is in the specifica-
tion.
2
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
1. Supplemental Restraint System“Airbag”- 2. Pre-inspection
Page 1557 of 2248

G3M0717
3. OPERATION OF SHIFT SELECTOR LEVER
WARNING:
Stop the engine while checking operation of selector
lever.
1) Check that selector lever does not move from“N”to“R”
without pushing the button.
2) Check that selector lever does not move from“R”to“P”
without pushing the button.
3) Check that selector lever does not move from“P”to“R”
without pushing the button.
4) Check that selector lever does not move from“3”to“2”
without pushing the button.

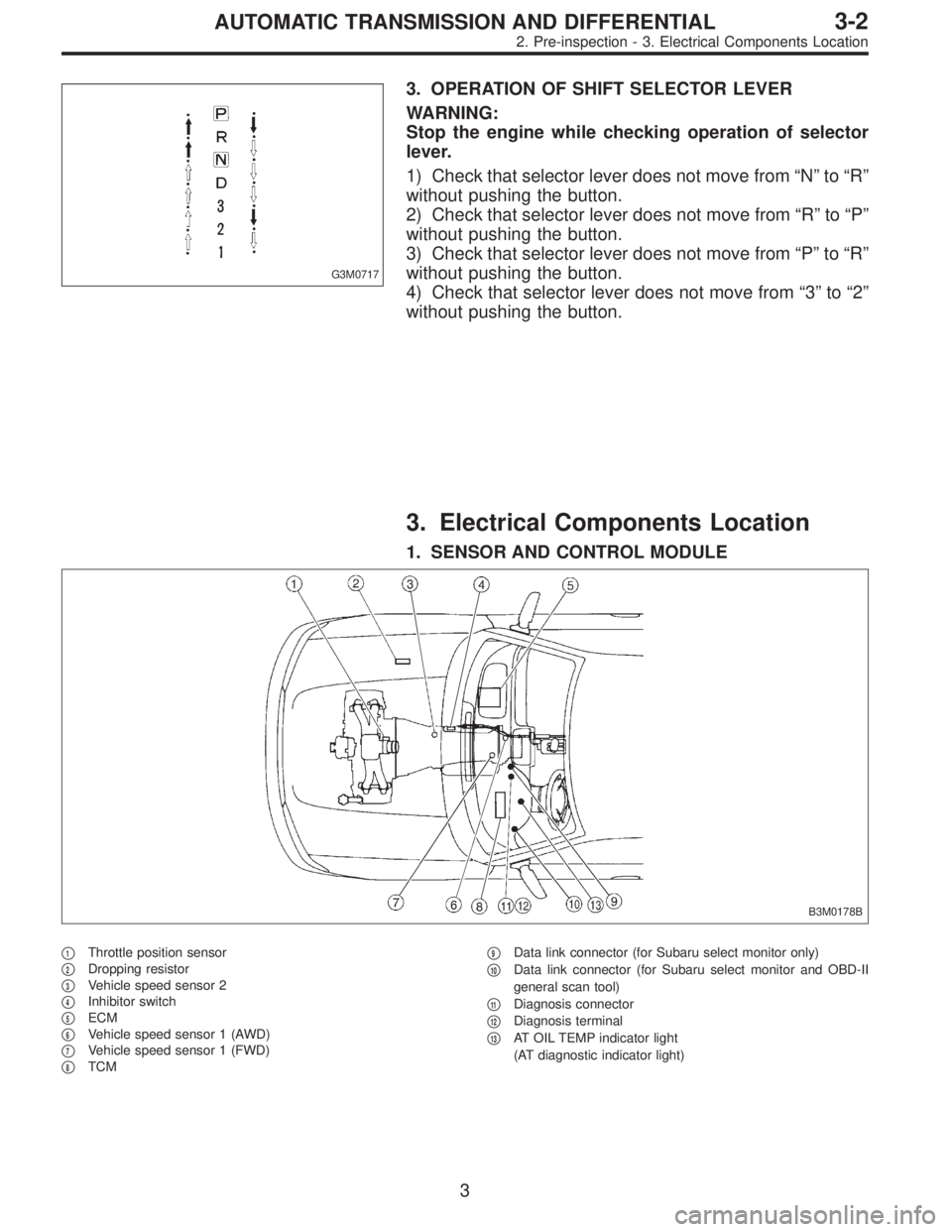

3. Electrical Components Location
1. SENSOR AND CONTROL MODULE
B3M0178B
1Throttle position sensor
2Dropping resistor
3Vehicle speed sensor 2
4Inhibitor switch
5ECM
6Vehicle speed sensor 1 (AWD)
7Vehicle speed sensor 1 (FWD)
8TCM
9Data link connector (for Subaru select monitor only)
10Data link connector (for Subaru select monitor and OBD-II
general scan tool)
11Diagnosis connector
12Diagnosis terminal
13AT OIL TEMP indicator light
(AT diagnostic indicator light)
3
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
2. Pre-inspection - 3. Electrical Components Location
Page 1558 of 2248

G3M0717
3. OPERATION OF SHIFT SELECTOR LEVER
WARNING:
Stop the engine while checking operation of selector
lever.
1) Check that selector lever does not move from“N”to“R”
without pushing the button.
2) Check that selector lever does not move from“R”to“P”
without pushing the button.
3) Check that selector lever does not move from“P”to“R”
without pushing the button.
4) Check that selector lever does not move from“3”to“2”
without pushing the button.
3. Electrical Components Location
1. SENSOR AND CONTROL MODULE
B3M0178B
1Throttle position sensor
2Dropping resistor
3Vehicle speed sensor 2
4Inhibitor switch
5ECM
6Vehicle speed sensor 1 (AWD)
7Vehicle speed sensor 1 (FWD)
8TCM
9Data link connector (for Subaru select monitor only)
10Data link connector (for Subaru select monitor and OBD-II
general scan tool)
11Diagnosis connector
12Diagnosis terminal
13AT OIL TEMP indicator light
(AT diagnostic indicator light)
3
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
2. Pre-inspection - 3. Electrical Components Location
Page 1559 of 2248

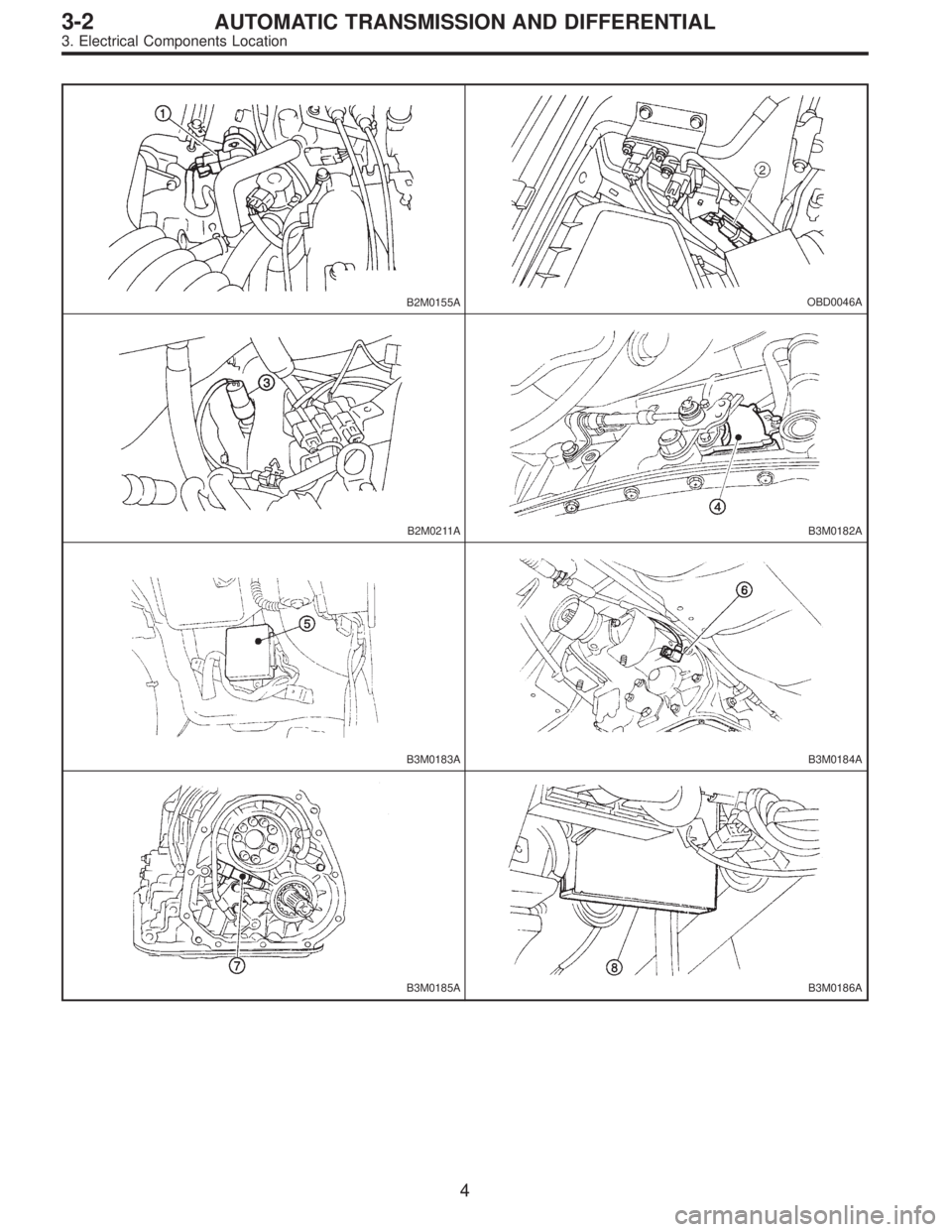

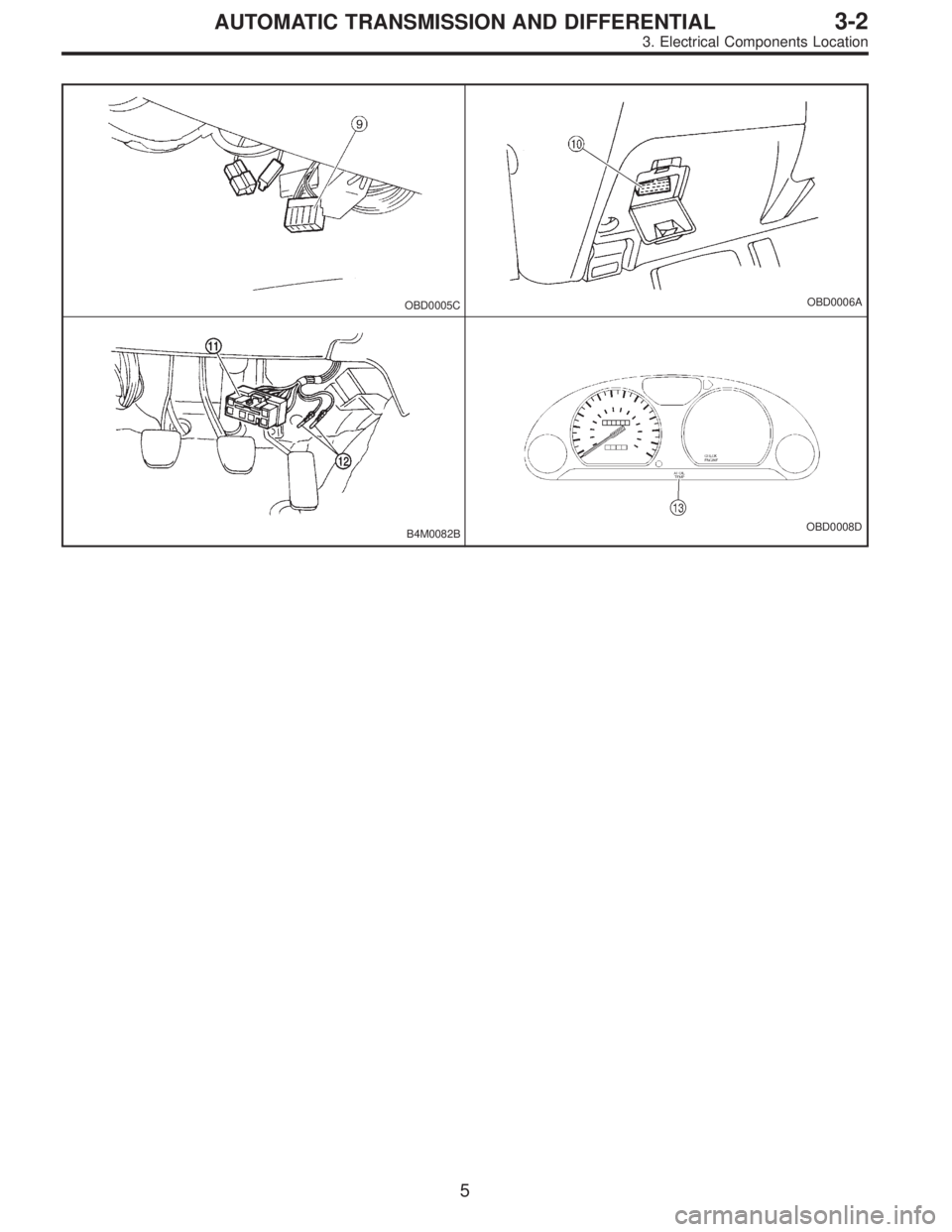

B2M0155AOBD0046A
