Page 1609 of 2248
G2M0931

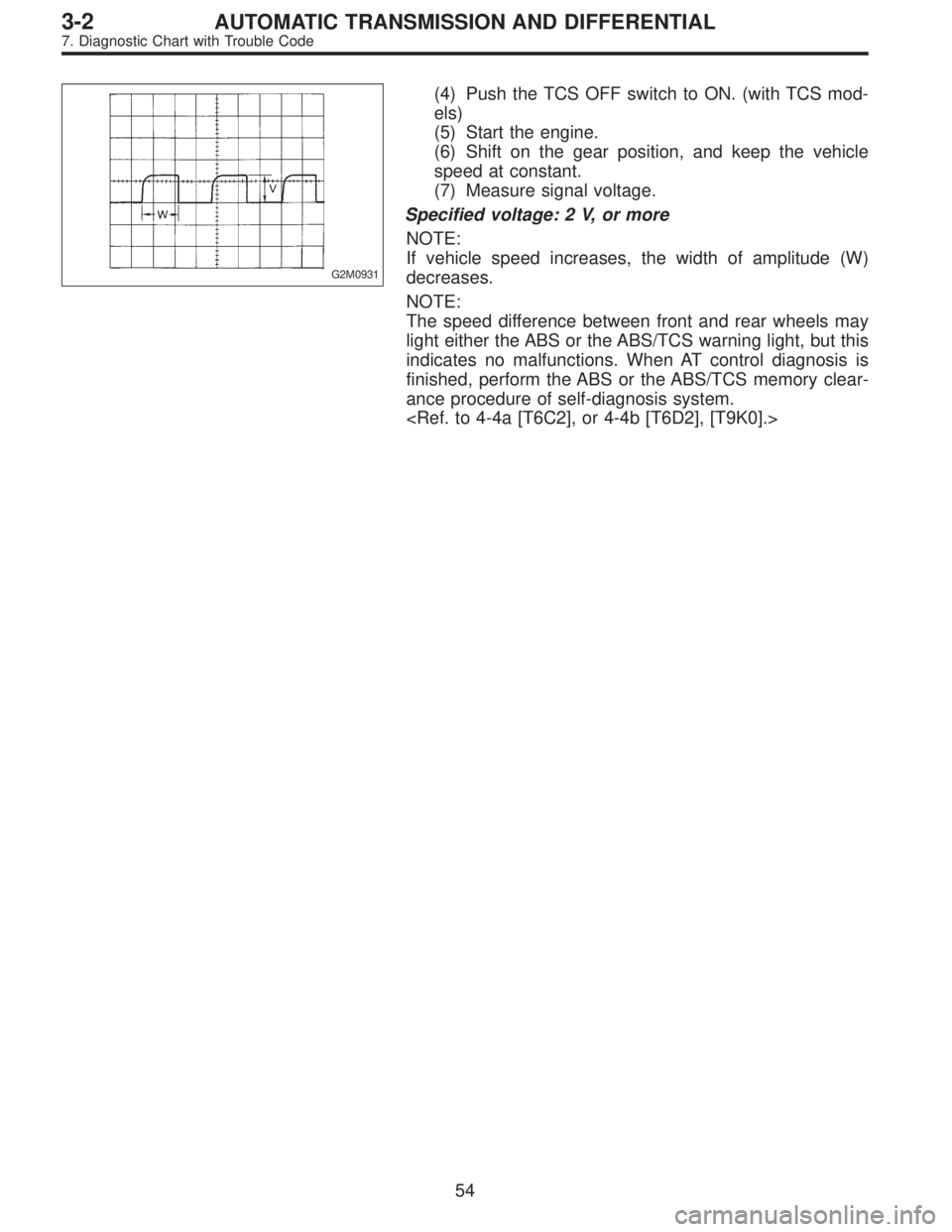

(4) Push the TCS OFF switch to ON. (with TCS mod-
els)
(5) Start the engine.
(6) Shift on the gear position, and keep the vehicle
speed at constant.
(7) Measure signal voltage.
Specified voltage: 2 V, or more
NOTE:
If vehicle speed increases, the width of amplitude (W)
decreases.
NOTE:
The speed difference between front and rear wheels may
light either the ABS or the ABS/TCS warning light, but this
indicates no malfunctions. When AT control diagnosis is
finished, perform the ABS or the ABS/TCS memory clear-
ance procedure of self-diagnosis system.
54
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
7. Diagnostic Chart with Trouble Code
Page 1610 of 2248

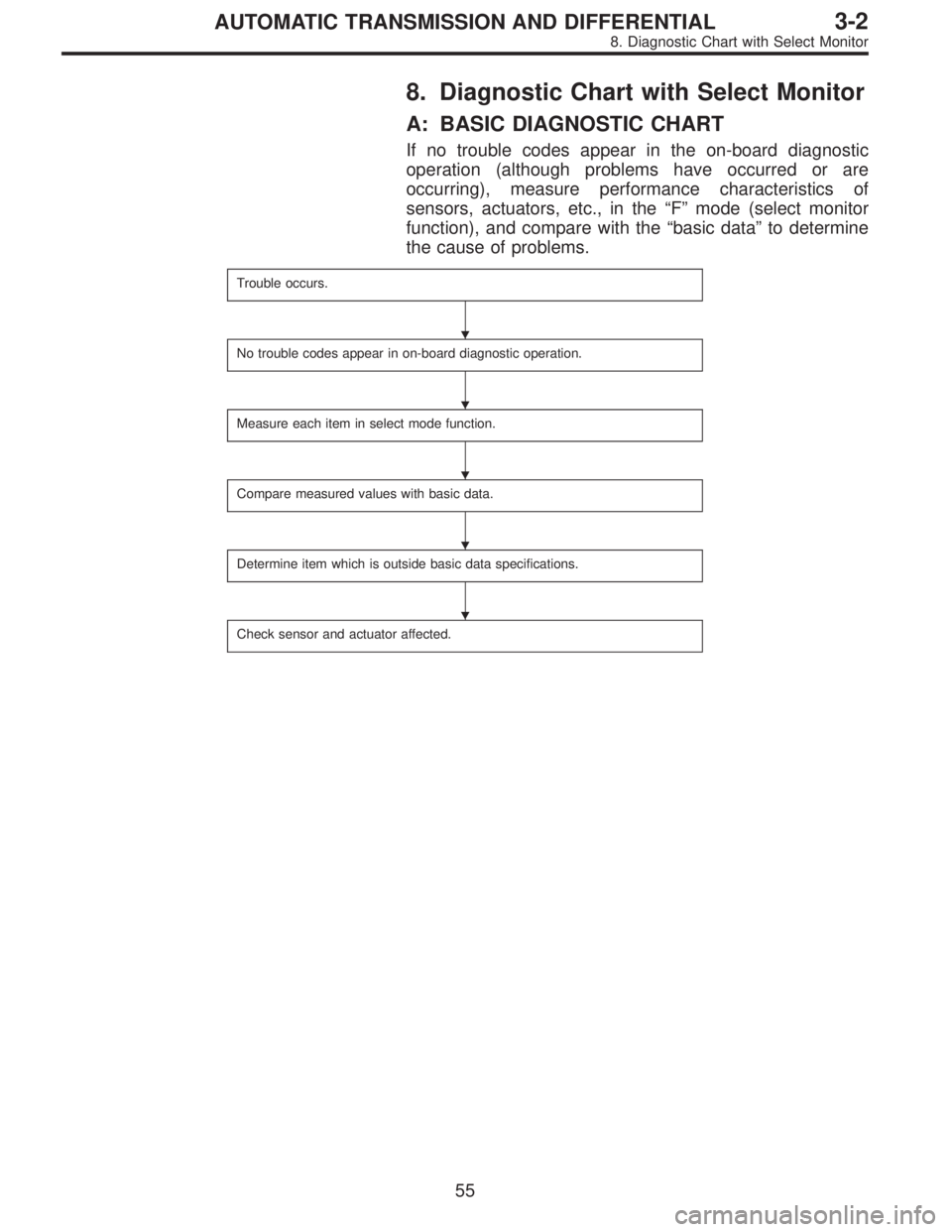

8. Diagnostic Chart with Select Monitor
A: BASIC DIAGNOSTIC CHART
If no trouble codes appear in the on-board diagnostic
operation (although problems have occurred or are
occurring), measure performance characteristics of
sensors, actuators, etc., in the“F”mode (select monitor
function), and compare with the“basic data”to determine
the cause of problems.
Trouble occurs.
No trouble codes appear in on-board diagnostic operation.
Measure each item in select mode function.
Compare measured values with basic data.
Determine item which is outside basic data specifications.
Check sensor and actuator affected.
55
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
8. Diagnostic Chart with Select Monitor
Page 1611 of 2248

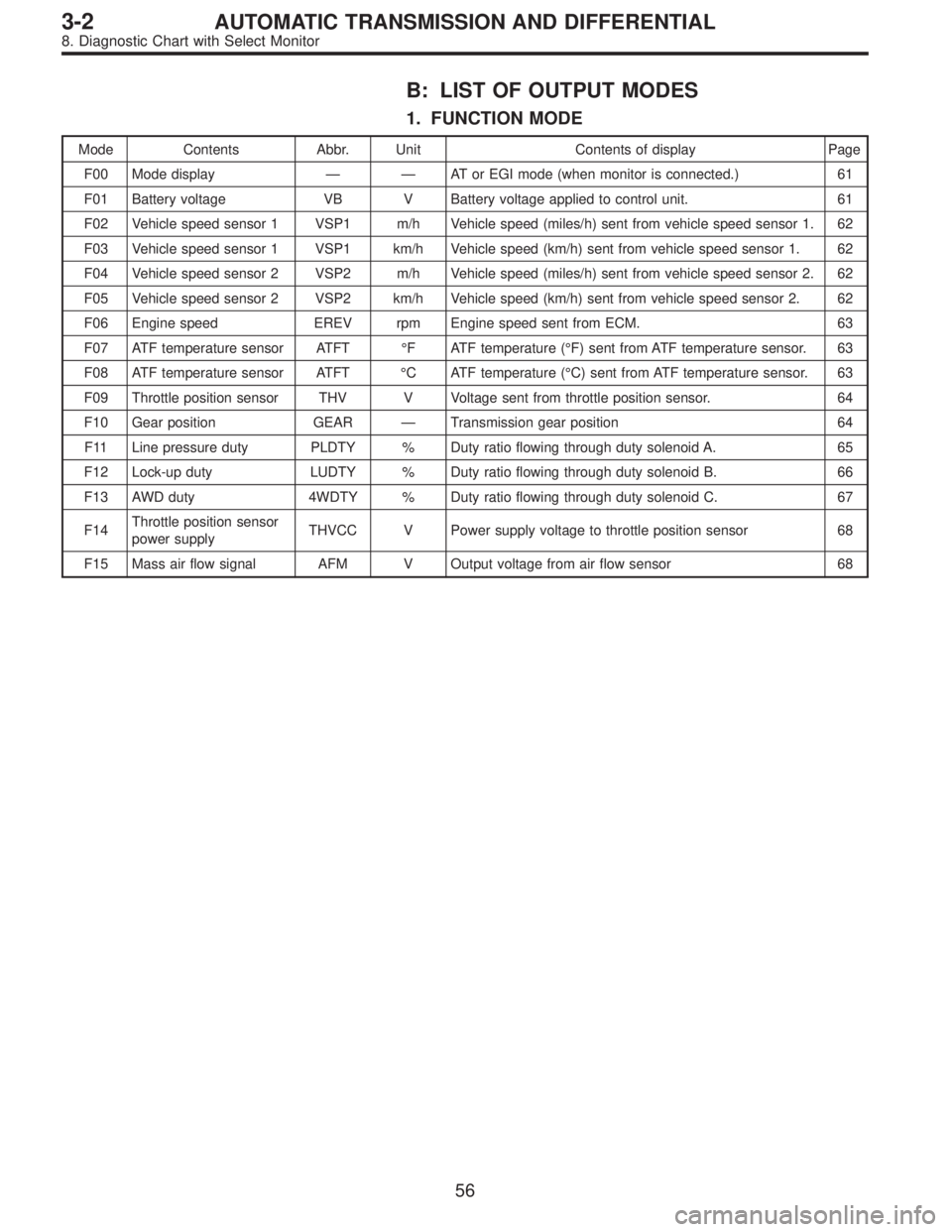

B: LIST OF OUTPUT MODES
1. FUNCTION MODE
Mode Contents Abbr. Unit Contents of display Page
F00 Mode display——AT or EGI mode (when monitor is connected.) 61
F01 Battery voltage VB V Battery voltage applied to control unit. 61
F02 Vehicle speed sensor 1 VSP1 m/h Vehicle speed (miles/h) sent from vehicle speed sensor 1. 62
F03 Vehicle speed sensor 1 VSP1 km/h Vehicle speed (km/h) sent from vehicle speed sensor 1. 62
F04 Vehicle speed sensor 2 VSP2 m/h Vehicle speed (miles/h) sent from vehicle speed sensor 2. 62
F05 Vehicle speed sensor 2 VSP2 km/h Vehicle speed (km/h) sent from vehicle speed sensor 2. 62
F06 Engine speed EREV rpm Engine speed sent from ECM. 63
F07 ATF temperature sensor ATFT°F ATF temperature (°F) sent from ATF temperature sensor. 63
F08 ATF temperature sensor ATFT°C ATF temperature (°C) sent from ATF temperature sensor. 63
F09 Throttle position sensor THV V Voltage sent from throttle position sensor. 64
F10 Gear position GEAR—Transmission gear position 64
F11 Line pressure duty PLDTY % Duty ratio flowing through duty solenoid A. 65
F12 Lock-up duty LUDTY % Duty ratio flowing through duty solenoid B. 66
F13 AWD duty 4WDTY % Duty ratio flowing through duty solenoid C. 67
F14Throttle position sensor
power supplyTHVCC V Power supply voltage to throttle position sensor 68
F15 Mass air flow signal AFM V Output voltage from air flow sensor 68
56
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
8. Diagnostic Chart with Select Monitor
Page 1612 of 2248

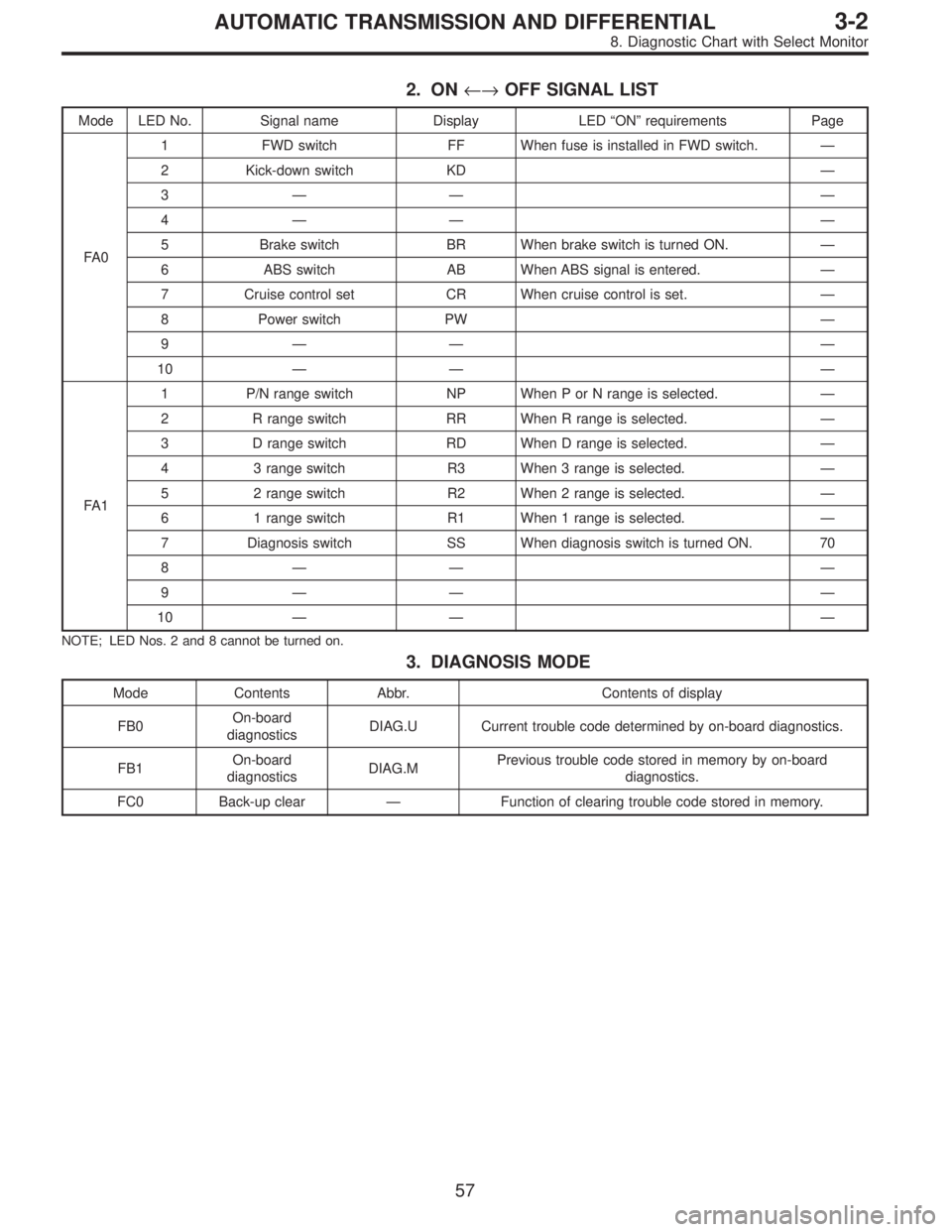

2. ON←→OFF SIGNAL LIST
Mode LED No. Signal name Display LED“ON”requirements Page
FA 01 FWD switch FF When fuse is installed in FWD switch.—
2 Kick-down switch KD—
3—— —
4—— —
5 Brake switch BR When brake switch is turned ON.—
6 ABS switch AB When ABS signal is entered.—
7 Cruise control set CR When cruise control is set.—
8 Power switch PW—
9—— —
10—— —
FA 11 P/N range switch NP When P or N range is selected.—
2 R range switch RR When R range is selected.—
3 D range switch RD When D range is selected.—
4 3 range switch R3 When 3 range is selected.—
5 2 range switch R2 When 2 range is selected.—
6 1 range switch R1 When 1 range is selected.—
7 Diagnosis switch SS When diagnosis switch is turned ON. 70
8—— —
9—— —
10—— —
NOTE; LED Nos. 2 and 8 cannot be turned on.
3. DIAGNOSIS MODE
Mode Contents Abbr. Contents of display
FB0On-board
diagnosticsDIAG.U Current trouble code determined by on-board diagnostics.
FB1On-board
diagnosticsDIAG.MPrevious trouble code stored in memory by on-board
diagnostics.
FC0 Back-up clear—Function of clearing trouble code stored in memory.
57
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
8. Diagnostic Chart with Select Monitor
Page 1613 of 2248
G3M0723

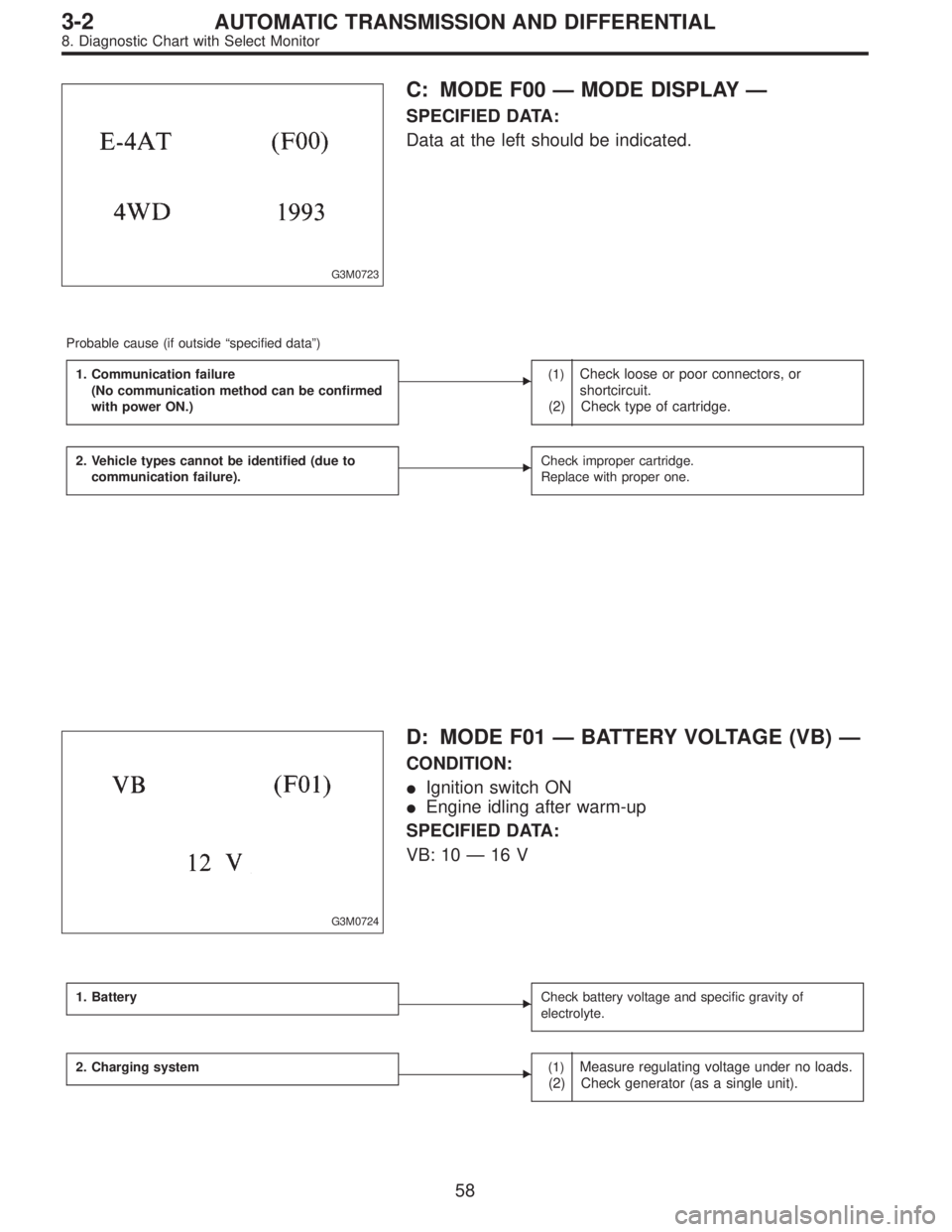

C: MODE F00—MODE DISPLAY—
SPECIFIED DATA:
Data at the left should be indicated.
Probable cause (if outside“specified data”)
1. Communication failure
(No communication method can be confirmed
with power ON.)
(1)Check loose or poor connectors, or
shortcircuit.
(2) Check type of cartridge.
2. Vehicle types cannot be identified (due to
communication failure).Check improper cartridge.
Replace with proper one.
G3M0724
D: MODE F01—BATTERY VOLTAGE (VB)—
CONDITION:
Ignition switch ON
Engine idling after warm-up
SPECIFIED DATA:
VB: 10—16 V
1. BatteryCheck battery voltage and specific gravity of
electrolyte.
2. Charging system(1)Measure regulating voltage under no loads.
(2) Check generator (as a single unit).
58
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
8. Diagnostic Chart with Select Monitor
Page 1614 of 2248
G3M0725

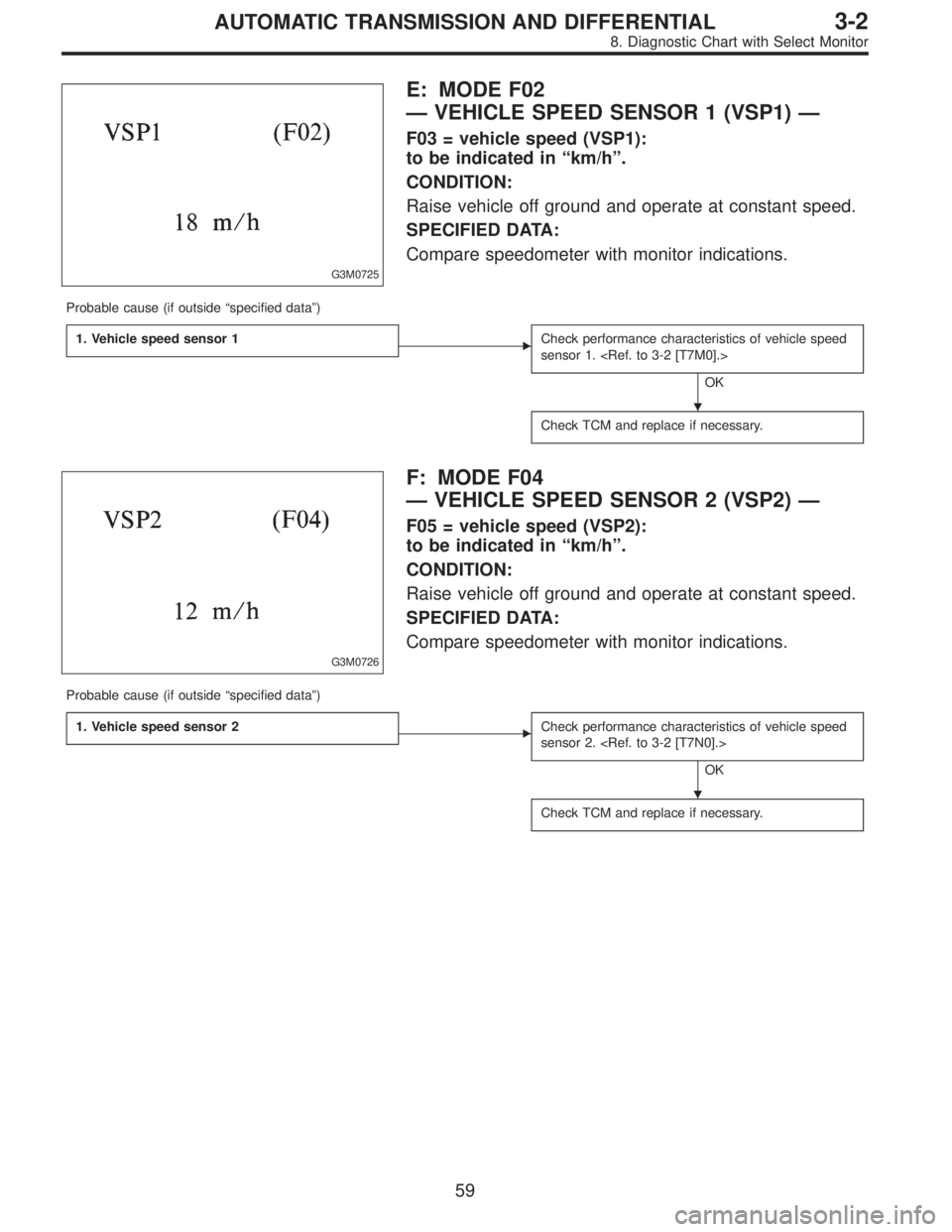

E: MODE F02
—VEHICLE SPEED SENSOR 1 (VSP1)—
F03 = vehicle speed (VSP1):
to be indicated in“km/h”.
CONDITION:
Raise vehicle off ground and operate at constant speed.
SPECIFIED DATA:
Compare speedometer with monitor indications.
Probable cause (if outside“specified data”)
1. Vehicle speed sensor 1
Check performance characteristics of vehicle speed
sensor 1.
OK
Check TCM and replace if necessary.
G3M0726
F: MODE F04
—VEHICLE SPEED SENSOR 2 (VSP2)—
F05 = vehicle speed (VSP2):
to be indicated in“km/h”.
CONDITION:
Raise vehicle off ground and operate at constant speed.
SPECIFIED DATA:
Compare speedometer with monitor indications.
Probable cause (if outside“specified data”)
1. Vehicle speed sensor 2
Check performance characteristics of vehicle speed
sensor 2.
OK
Check TCM and replace if necessary.
59
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
8. Diagnostic Chart with Select Monitor
Page 1615 of 2248

G3M0727

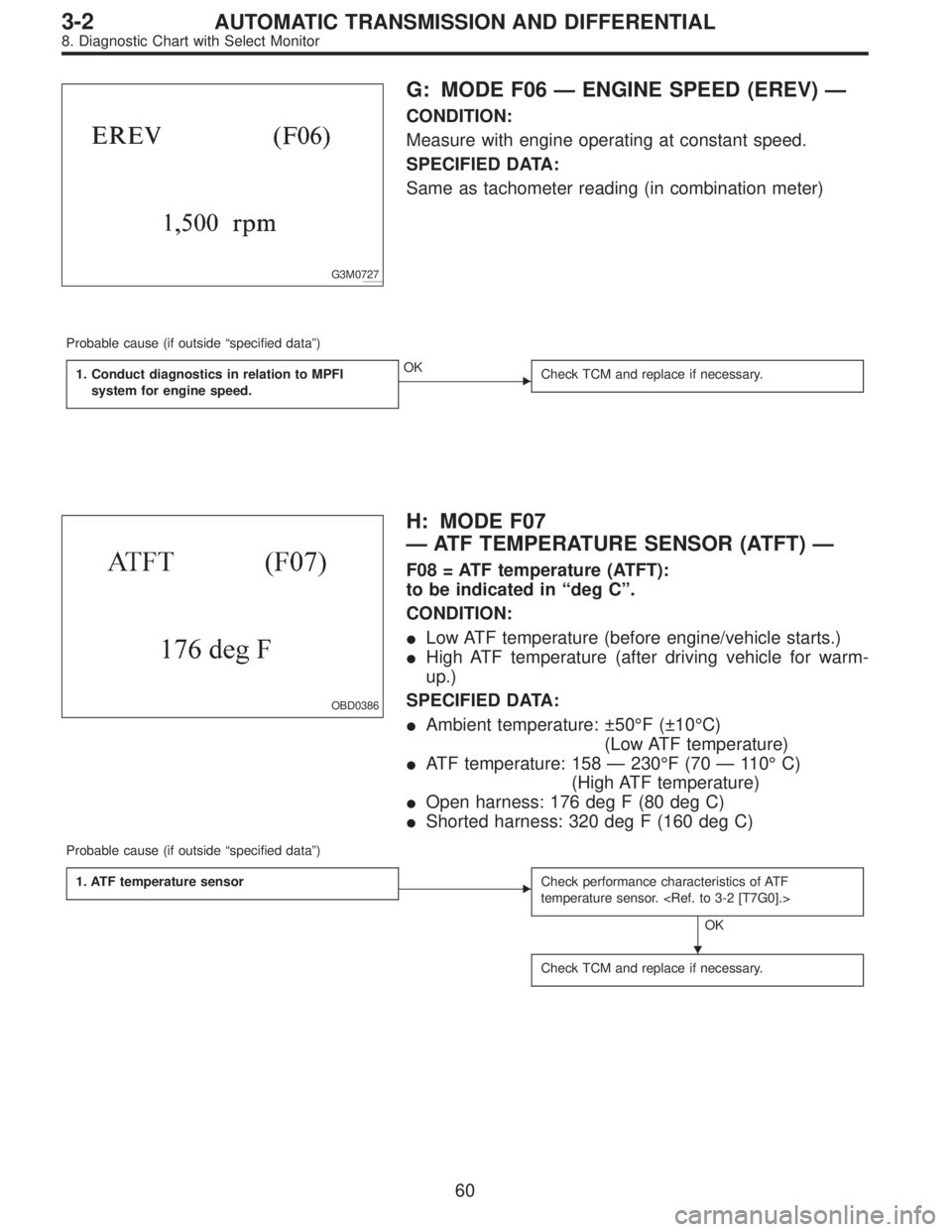

G: MODE F06—ENGINE SPEED (EREV)—
CONDITION:
Measure with engine operating at constant speed.
SPECIFIED DATA:
Same as tachometer reading (in combination meter)
Probable cause (if outside“specified data”)
1. Conduct diagnostics in relation to MPFI
system for engine speed.
OK
Check TCM and replace if necessary.
OBD0386
H: MODE F07
—ATF TEMPERATURE SENSOR (ATFT)—
F08 = ATF temperature (ATFT):
to be indicated in“deg C”.
CONDITION:
Low ATF temperature (before engine/vehicle starts.)
High ATF temperature (after driving vehicle for warm-
up.)
SPECIFIED DATA:
Ambient temperature: ±50°F (±10°C)
(Low ATF temperature)
ATF temperature: 158—230°F (70—11 0°C)
(High ATF temperature)
Open harness: 176 deg F (80 deg C)
Shorted harness: 320 deg F (160 deg C)
Probable cause (if outside“specified data”)
1. ATF temperature sensor
Check performance characteristics of ATF
temperature sensor.
OK
Check TCM and replace if necessary.
60
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
8. Diagnostic Chart with Select Monitor
Page 1616 of 2248

B3M0383
I: MODE F09
—THROTTLE POSITION SENSOR (THV)—
CONDITION:
Ignition switch ON (with engine OFF)
Measure voltage while operating throttle valve from a
fully closed position to a fully open position.
SPECIFIED DATA:
Fully closed position: 0.5±0.2 V
Fully open position: 4.6±0.3 V
From fully closed to fully open position:
Voltage must smoothly decrease.
Open harness: 5.0±0.3 V
Shorted harness: 0.00 V
Probable cause (if outside“specified data”)
1. Throttle position sensor
Check performance characteristics of throttle
position sensor.
OK
Check TCM and replace if necessary.
G3M0730
J: MODE F10—GEAR POSITION (GEAR)—
CONDITION:
Check while driving vehicle (after warm-up).
SPECIFIED DATA:
Gear position (Refer to shift performance characteristics
chart.)
Probable cause (item outside“specified data”)
1. Shift solenoid 1
Check performance characteristics of shift solenoid
1.
OK
2. Shift solenoid 2
Check performance characteristics of shift solenoid
2.
OK
3. Shift solenoid 3
Check performance characteristics of shift solenoid
3.
OK
Check TCM and replace as necessary.
61
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
8. Diagnostic Chart with Select Monitor
