Page 505 of 2248

G3M0083
3) Adjusting drive pinion height
Adjust drive pinion height with shim installed between rear
bearing cone and the back of pinion gear.
(1) Install ST1, ST2 and ST3, as shown in the figure,
and apply the specified preload on the bearings.
to 2).> Adjusting preload for front and rear bearings
NOTE:
At this time, install a pinion height adjusting shim which is
temporarily selected or the same as that used before.
G3M0263
(2) Measure the clearance N between the end of ST3
and the end surface of ST1 by using a thickness gauge.
NOTE:
Make sure there is no clearance between the case and
ST3.
ST1 398507702 DUMMY SHAFT
ST2 398507703 DUMMY COLLAR
ST3 398507701 DIFFERENTIAL CARRIER GAUGE
(3) Obtain the thickness of pinion height adjusting shim
to be inserted from the following formula, and replace
the temporarily installed shim with this one.
T=To+N (Hx0.01) 0.20 (mm)
Where:
T = Thickness of pinion height adjusting shim (mm)
To = Thickness of shim temporarily inserted (mm)
N = Reading of thickness gauge (mm)
H = Figure marked on drive pinion head
(Example of calculation)
To = 2.20 + 1.20 = 3.40 mm
N = 0.23 mmH=+1,
T = 3.40 + 0.23 0.01 0.20 = 3.42
Result: Thickness = 3.42 mm
Therefore use the shim 383605200.
Pinion height adjusting shim thicknessPart No. Thickness mm (in)
383495200
383505200
383515200
383525200
383535200
383545200
383555200
383565200
383575200
383585200
383595200
383605200
383615200
383625200
383635200
383645200
383655200
383665200
383675200
3836852003.09 (0.1217)
3.12 (0.1228)
3.15 (0.1240)
3.18 (0.1252)
3.21 (0.1264)
3.24 (0.1276)
3.27 (0.1287)
3.30 (0.1299)
3.33 (0.1311)
3.36 (0.1323)
3.39 (0.1335)
3.42 (0.1346)
3.45 (0.1358)
3.48 (0.1370)
3.51 (0.1382)
3.54 (0.1394)
3.57 (0.1406)
3.60 (0.1417)
3.63 (0.1429)
3.66 (0.1441)
29
3-4SERVICE PROCEDURE
2. Rear Differential
Page 506 of 2248
G3M0084

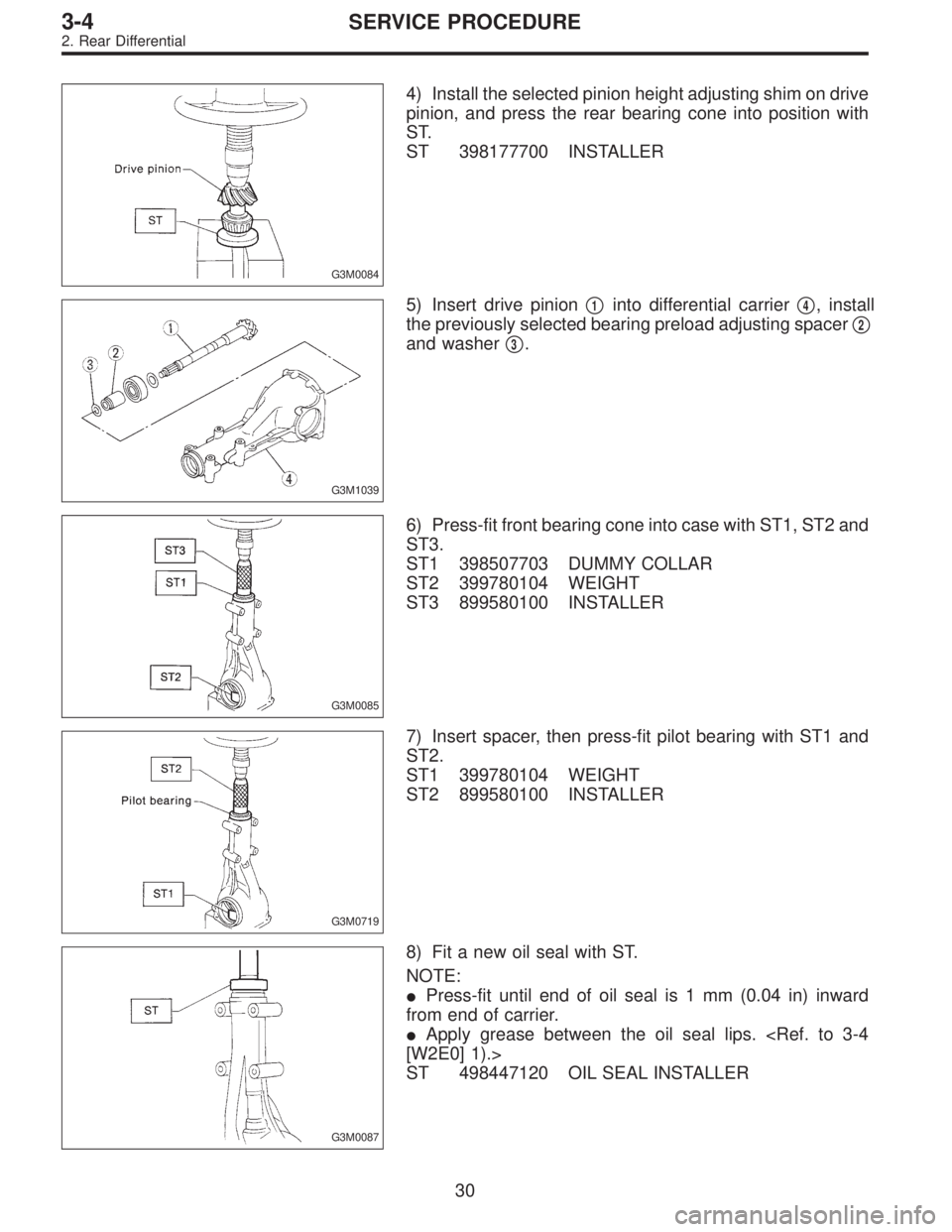

4) Install the selected pinion height adjusting shim on drive
pinion, and press the rear bearing cone into position with
ST.
ST 398177700 INSTALLER
G3M1039
5) Insert drive pinion1into differential carrier4, install
the previously selected bearing preload adjusting spacer
2
and washer3.
G3M0085
6) Press-fit front bearing cone into case with ST1, ST2 and
ST3.
ST1 398507703 DUMMY COLLAR
ST2 399780104 WEIGHT
ST3 899580100 INSTALLER
G3M0719
7) Insert spacer, then press-fit pilot bearing with ST1 and
ST2.
ST1 399780104 WEIGHT
ST2 899580100 INSTALLER
G3M0087
8) Fit a new oil seal with ST.
NOTE:
Press-fit until end of oil seal is 1 mm (0.04 in) inward
from end of carrier.
Apply grease between the oil seal lips.
[W2E0] 1).>
ST 498447120 OIL SEAL INSTALLER
30
3-4SERVICE PROCEDURE
2. Rear Differential
Page 507 of 2248
G3M0720

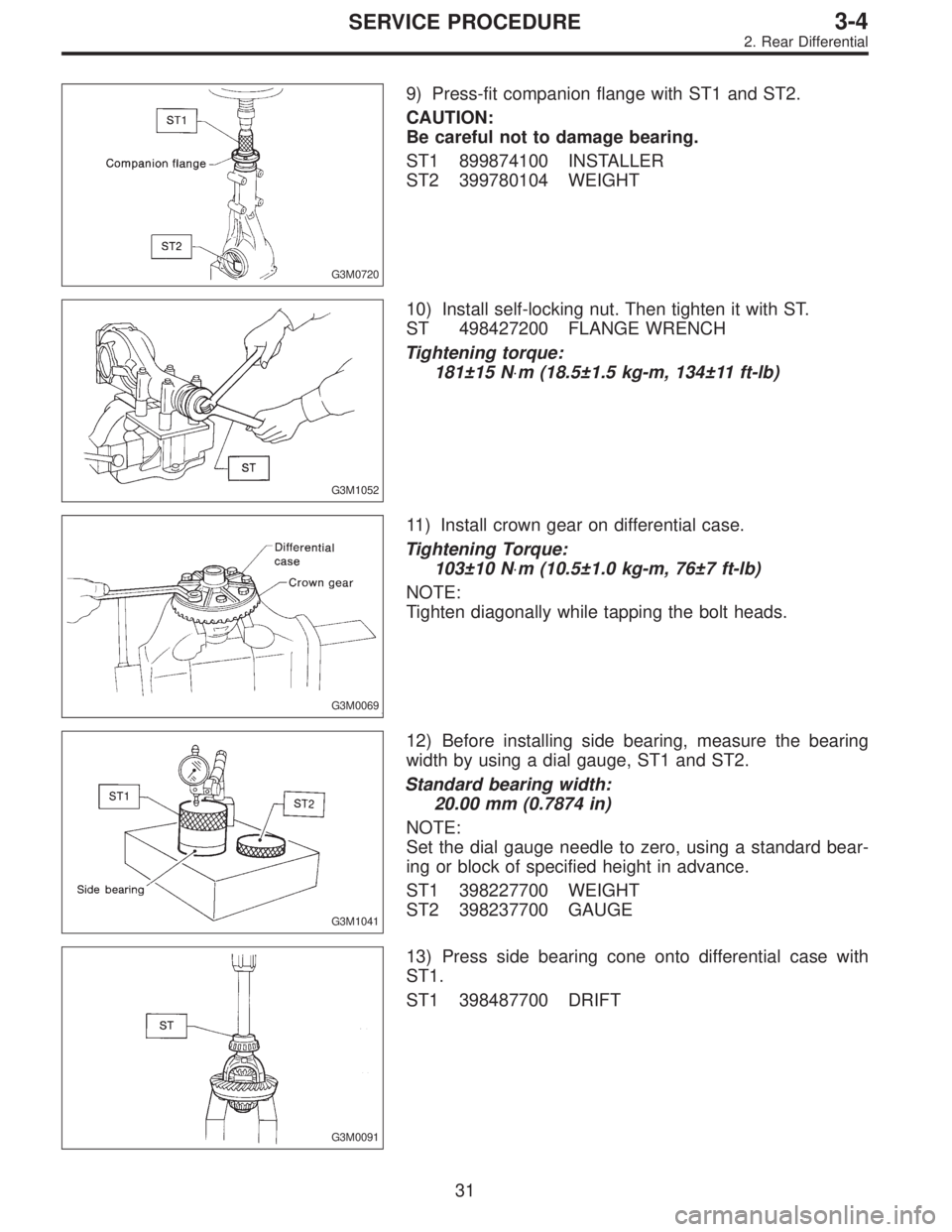

9) Press-fit companion flange with ST1 and ST2.
CAUTION:
Be careful not to damage bearing.
ST1 899874100 INSTALLER
ST2 399780104 WEIGHT
G3M1052
10) Install self-locking nut. Then tighten it with ST.
ST 498427200 FLANGE WRENCH
Tightening torque:
181±15 N⋅m (18.5±1.5 kg-m, 134±11 ft-lb)
G3M0069
11) Install crown gear on differential case.
Tightening Torque:
103±10 N⋅m (10.5±1.0 kg-m, 76±7 ft-lb)
NOTE:
Tighten diagonally while tapping the bolt heads.
G3M1041
12) Before installing side bearing, measure the bearing
width by using a dial gauge, ST1 and ST2.
Standard bearing width:
20.00 mm (0.7874 in)
NOTE:
Set the dial gauge needle to zero, using a standard bear-
ing or block of specified height in advance.
ST1 398227700 WEIGHT
ST2 398237700 GAUGE
G3M0091
13) Press side bearing cone onto differential case with
ST1.
ST1 398487700 DRIFT
31
3-4SERVICE PROCEDURE
2. Rear Differential
Page 508 of 2248

G3M1043
B3M0134A

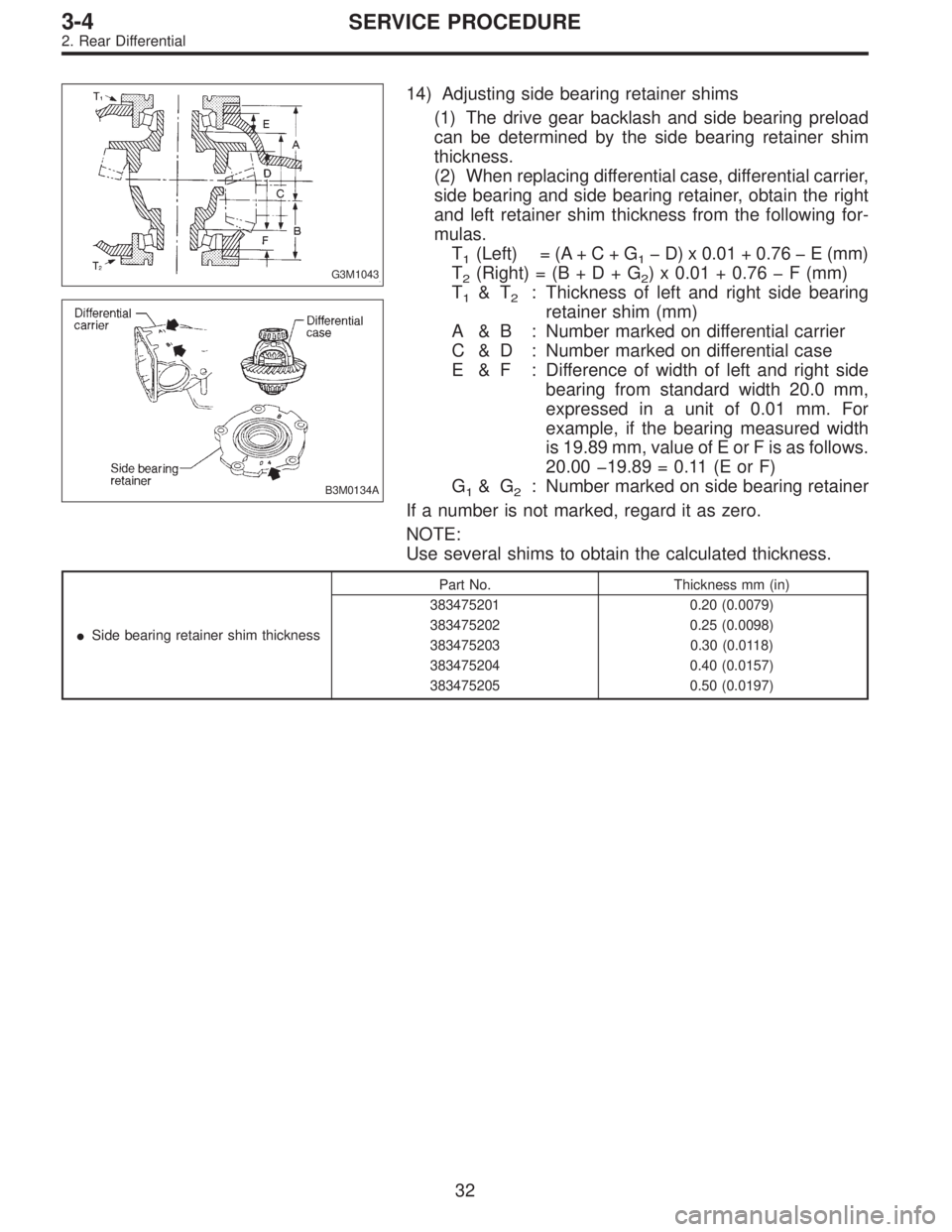

14) Adjusting side bearing retainer shims
(1) The drive gear backlash and side bearing preload
can be determined by the side bearing retainer shim
thickness.
(2) When replacing differential case, differential carrier,
side bearing and side bearing retainer, obtain the right
and left retainer shim thickness from the following for-
mulas.
T
1(Left) = (A + C + G1 D) x 0.01 + 0.76 E (mm)
T
2(Right) = (B+D+G2) x 0.01 + 0.76 F (mm)
T
1&T2: Thickness of left and right side bearing
retainer shim (mm)
A & B : Number marked on differential carrier
C & D : Number marked on differential case
E & F : Difference of width of left and right side
bearing from standard width 20.0 mm,
expressed in a unit of 0.01 mm. For
example, if the bearing measured width
is 19.89 mm, value of E or F is as follows.
20.00 19.89 = 0.11 (E or F)
G
1&G2: Number marked on side bearing retainer
If a number is not marked, regard it as zero.
NOTE:
Use several shims to obtain the calculated thickness.
Side bearing retainer shim thicknessPart No. Thickness mm (in)
383475201 0.20 (0.0079)
383475202 0.25 (0.0098)
383475203 0.30 (0.0118)
383475204 0.40 (0.0157)
383475205 0.50 (0.0197)
32
3-4SERVICE PROCEDURE
2. Rear Differential

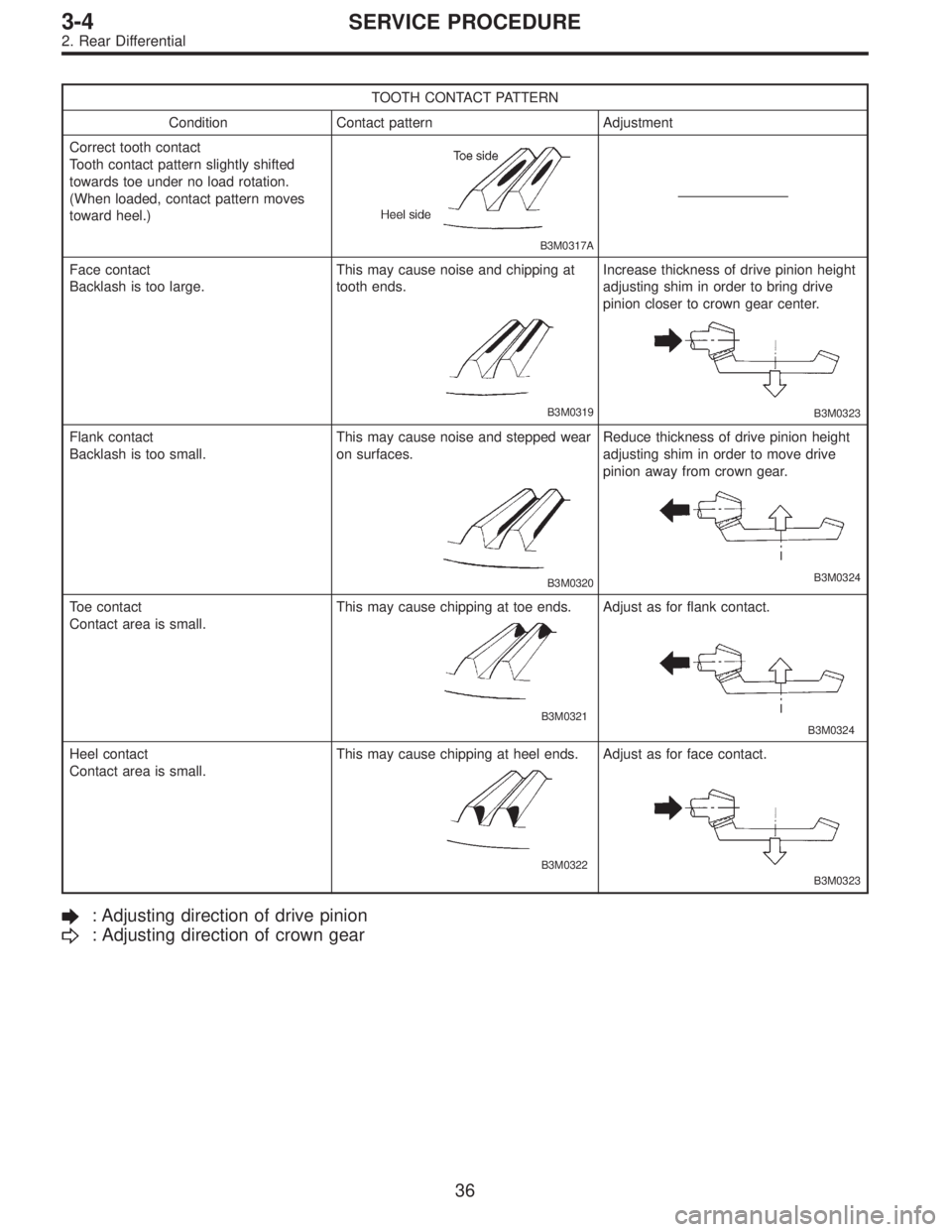

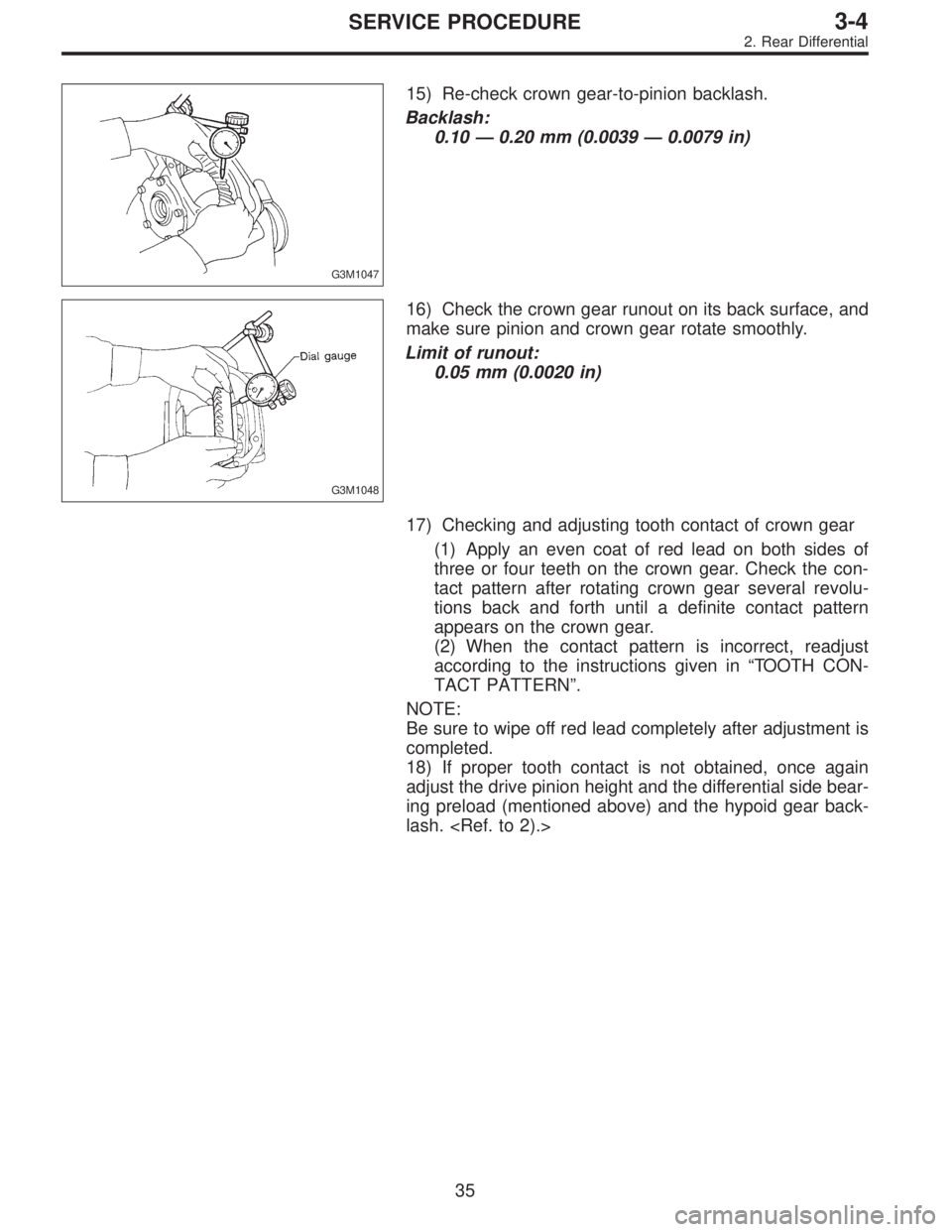

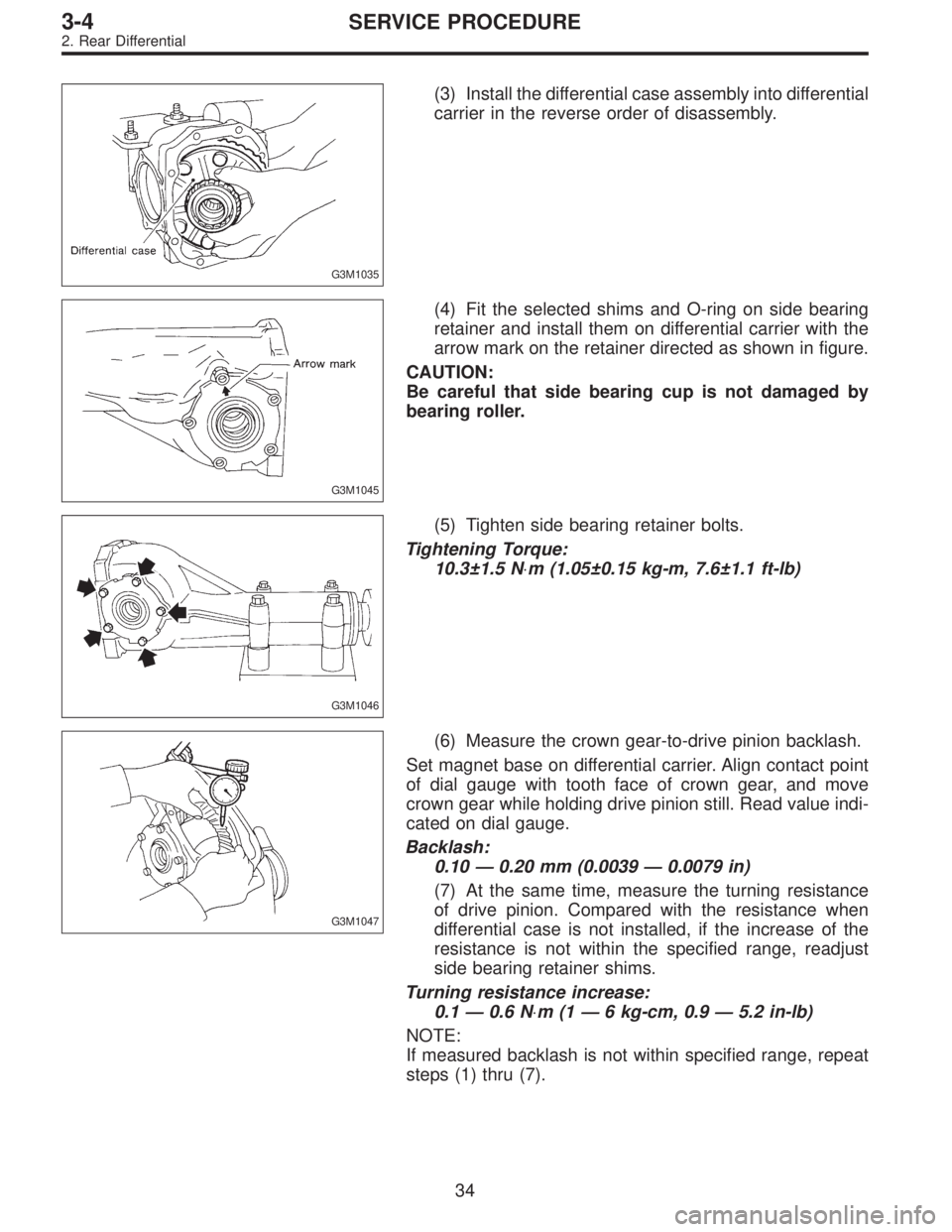

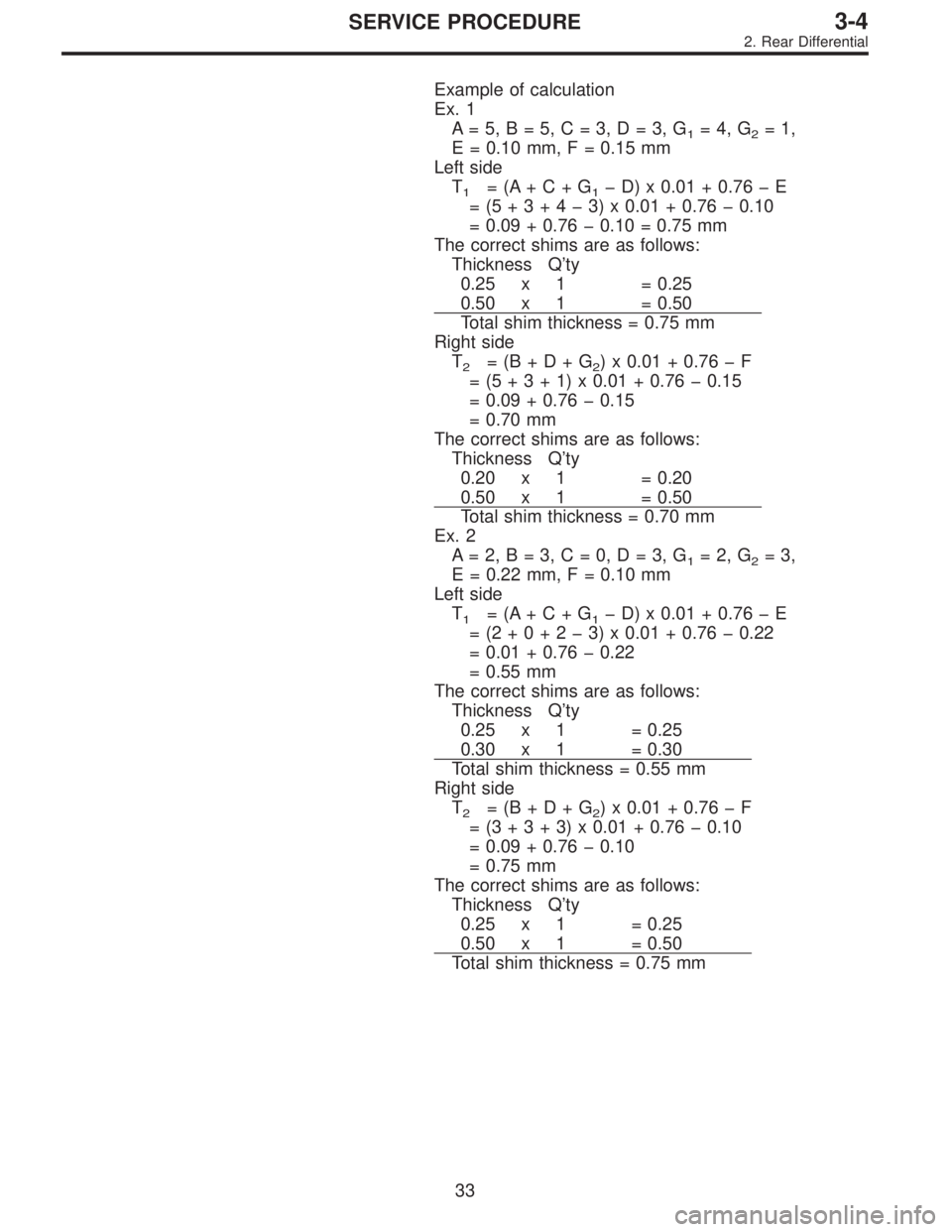

Page 509 of 2248
