Page 105 of 2248

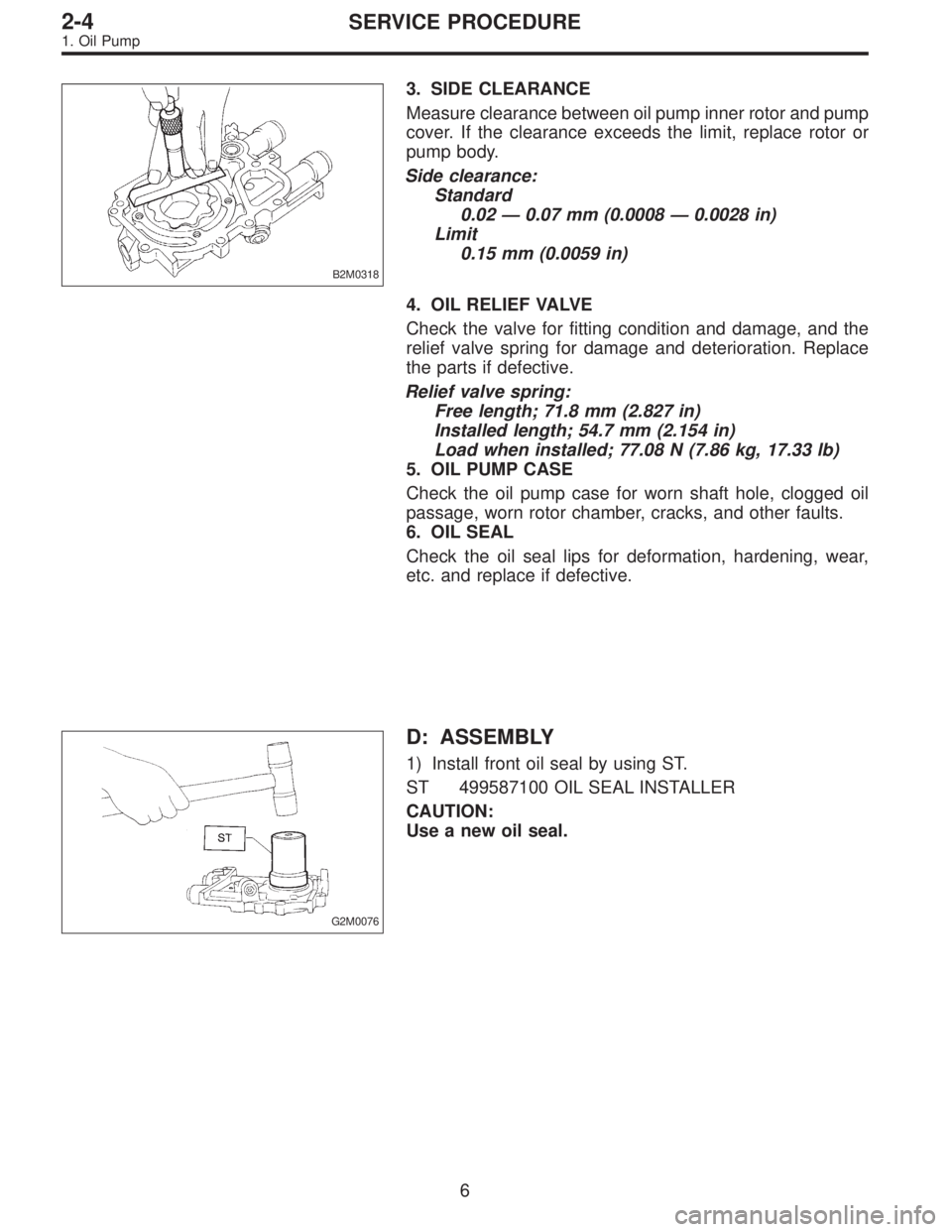

SUBARU LEGACY 1995 Service Repair Manual B2M0318 3. SIDE CLEARANCE Measure clearance between oil pump inner rotor and pump cover. If the clearance exceeds the limit, replace rotor or pump body. Side clearance: Standard 0.02—0.07 mm (0.0008

Page 106 of 2248

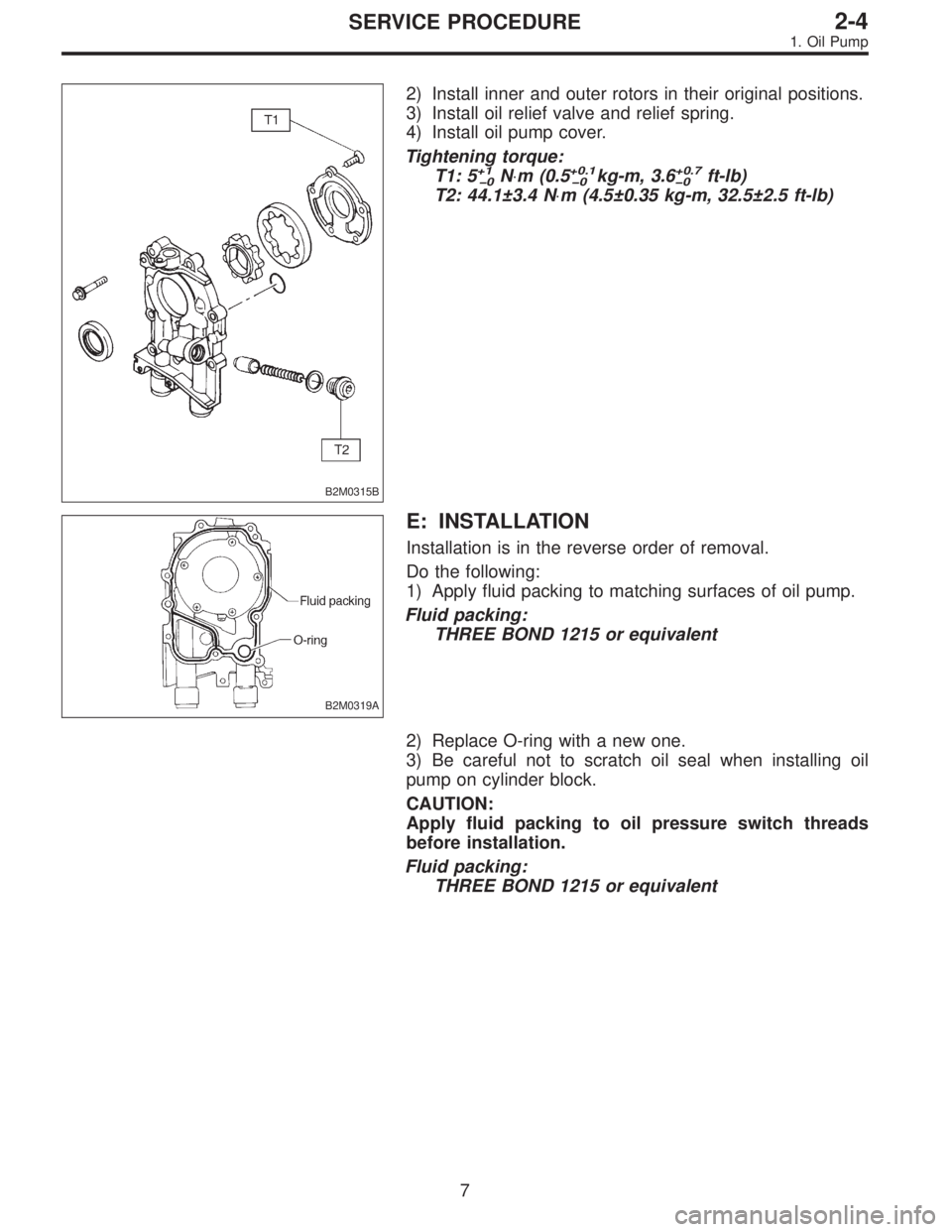

SUBARU LEGACY 1995 Service Repair Manual B2M0315B 2) Install inner and outer rotors in their original positions. 3) Install oil relief valve and relief spring. 4) Install oil pump cover. Tightening torque: T1: 5 +1 �0N⋅m (0.5+0.1 �0kg-m, 3

Page 107 of 2248

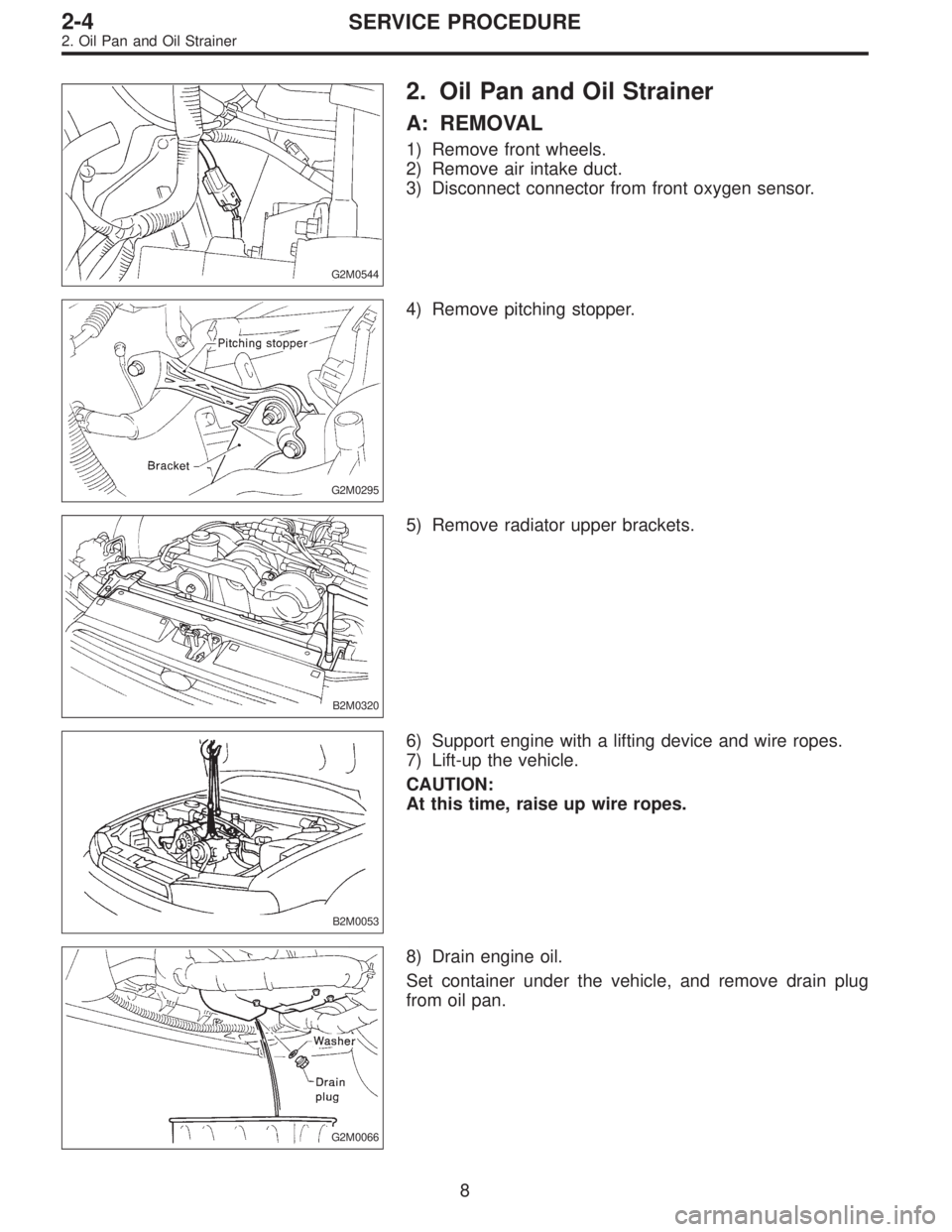

SUBARU LEGACY 1995 Service Repair Manual G2M0544 2. Oil Pan and Oil Strainer A: REMOVAL 1) Remove front wheels. 2) Remove air intake duct. 3) Disconnect connector from front oxygen sensor. G2M0295 4) Remove pitching stopper. B2M0320 5) Remov

Page 108 of 2248

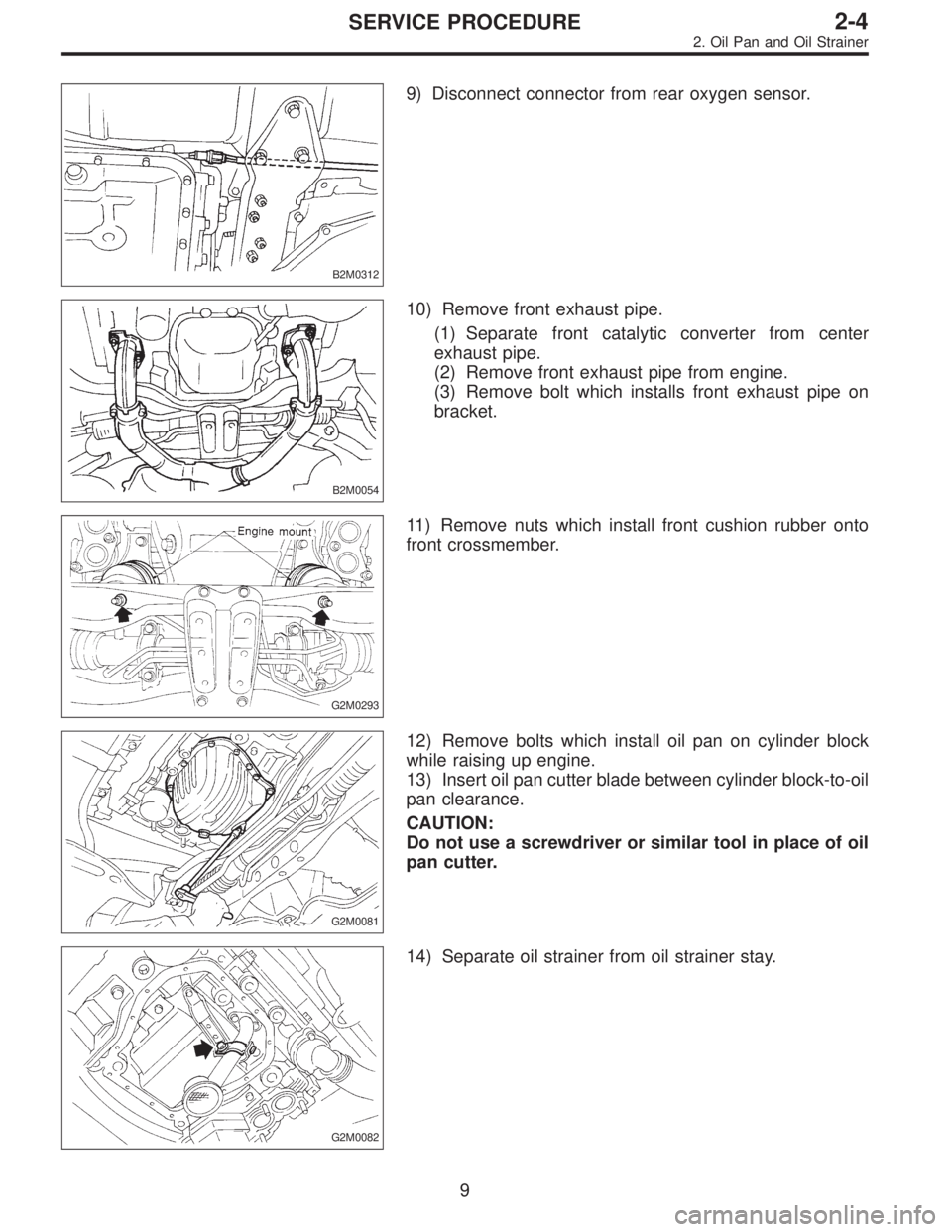

SUBARU LEGACY 1995 Service Repair Manual B2M0312 9) Disconnect connector from rear oxygen sensor. B2M0054 10) Remove front exhaust pipe. (1) Separate front catalytic converter from center exhaust pipe. (2) Remove front exhaust pipe from engi

Page 109 of 2248

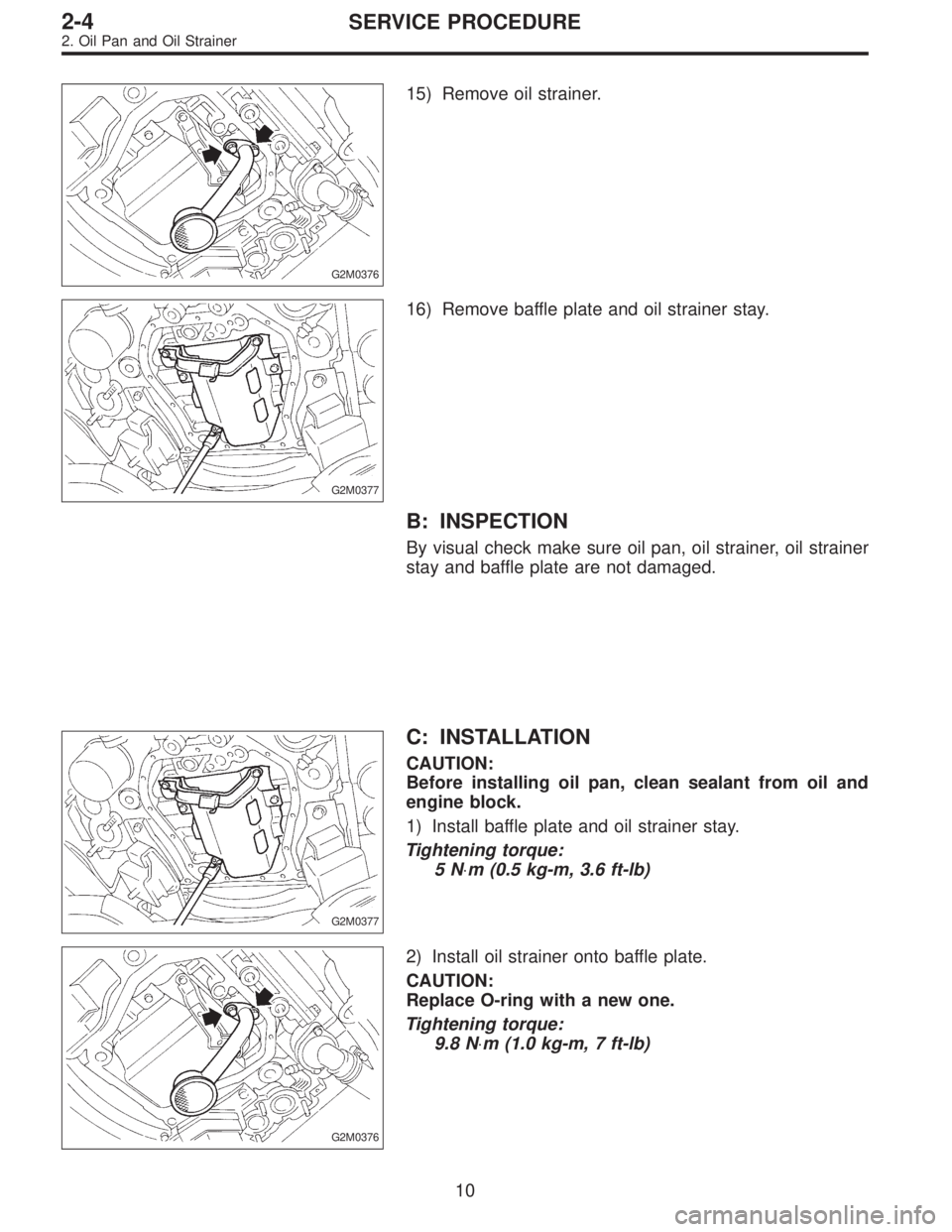

SUBARU LEGACY 1995 Service Repair Manual G2M0376 15) Remove oil strainer. G2M0377 16) Remove baffle plate and oil strainer stay. B: INSPECTION By visual check make sure oil pan, oil strainer, oil strainer stay and baffle plate are not damage

Page 110 of 2248

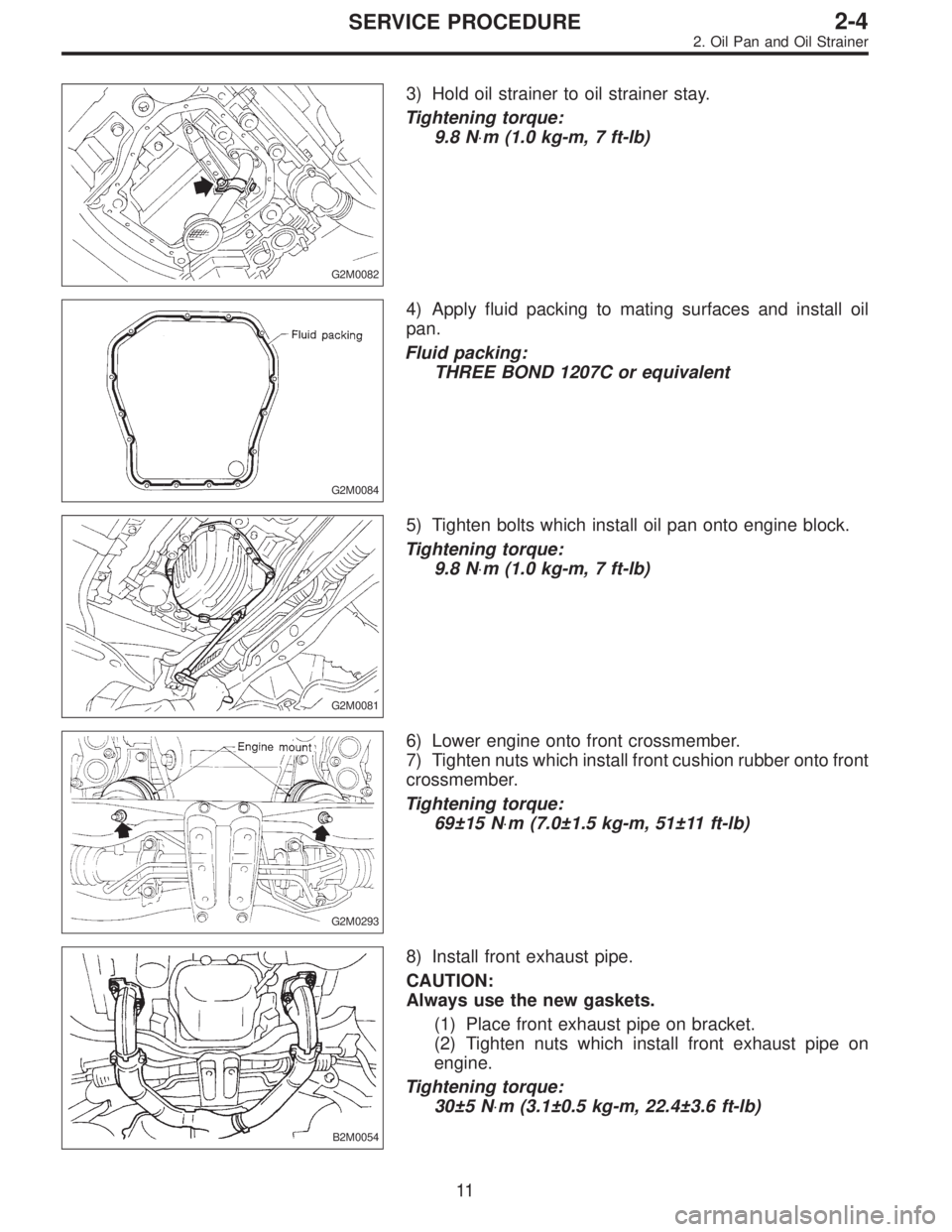

SUBARU LEGACY 1995 Service Repair Manual G2M0082 3) Hold oil strainer to oil strainer stay. Tightening torque: 9.8 N⋅m (1.0 kg-m, 7 ft-lb) G2M0084 4) Apply fluid packing to mating surfaces and install oil pan. Fluid packing: THREE BOND 120

Page 111 of 2248

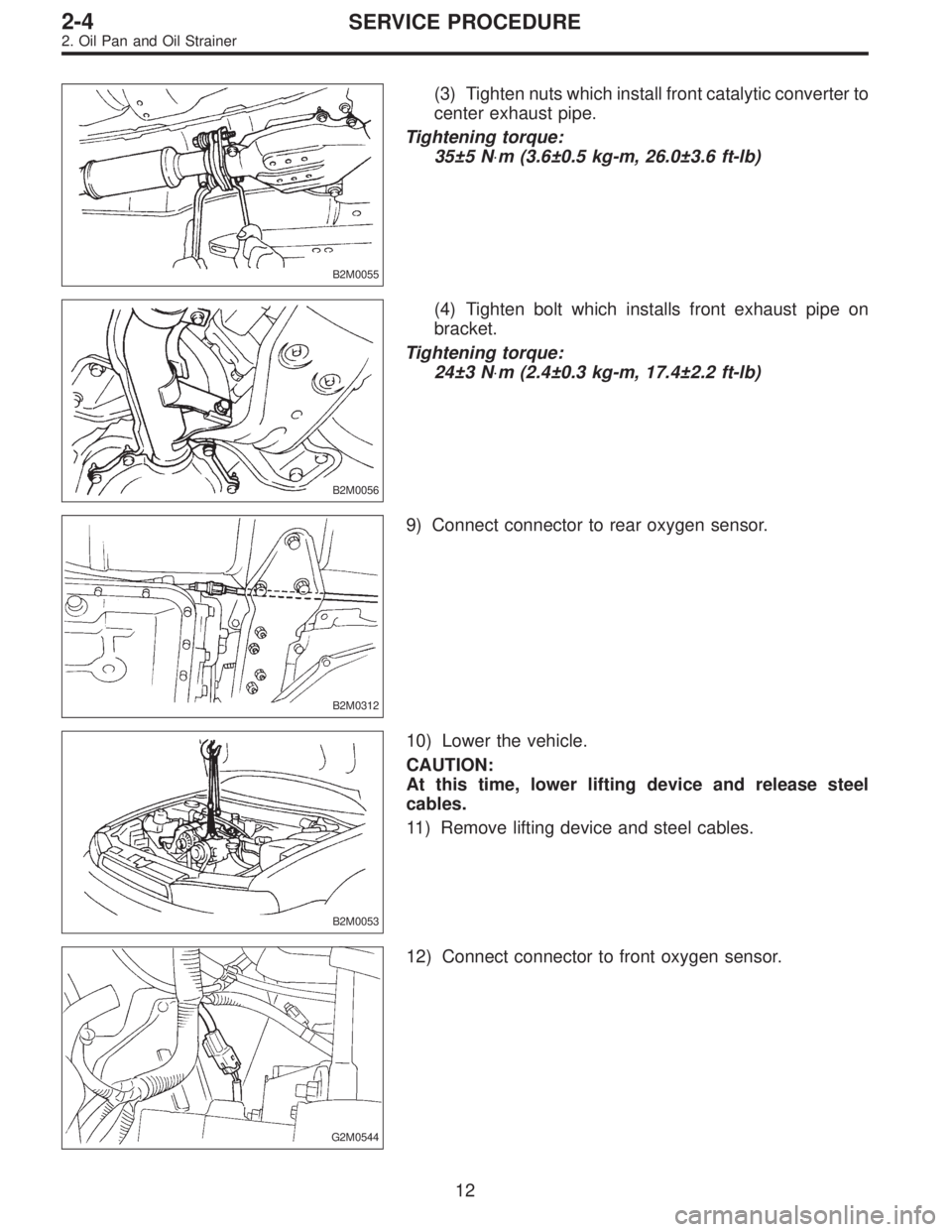

SUBARU LEGACY 1995 Service Repair Manual B2M0055 (3) Tighten nuts which install front catalytic converter to center exhaust pipe. Tightening torque: 35±5 N⋅m (3.6±0.5 kg-m, 26.0±3.6 ft-lb) B2M0056 (4) Tighten bolt which installs front e

Page 112 of 2248

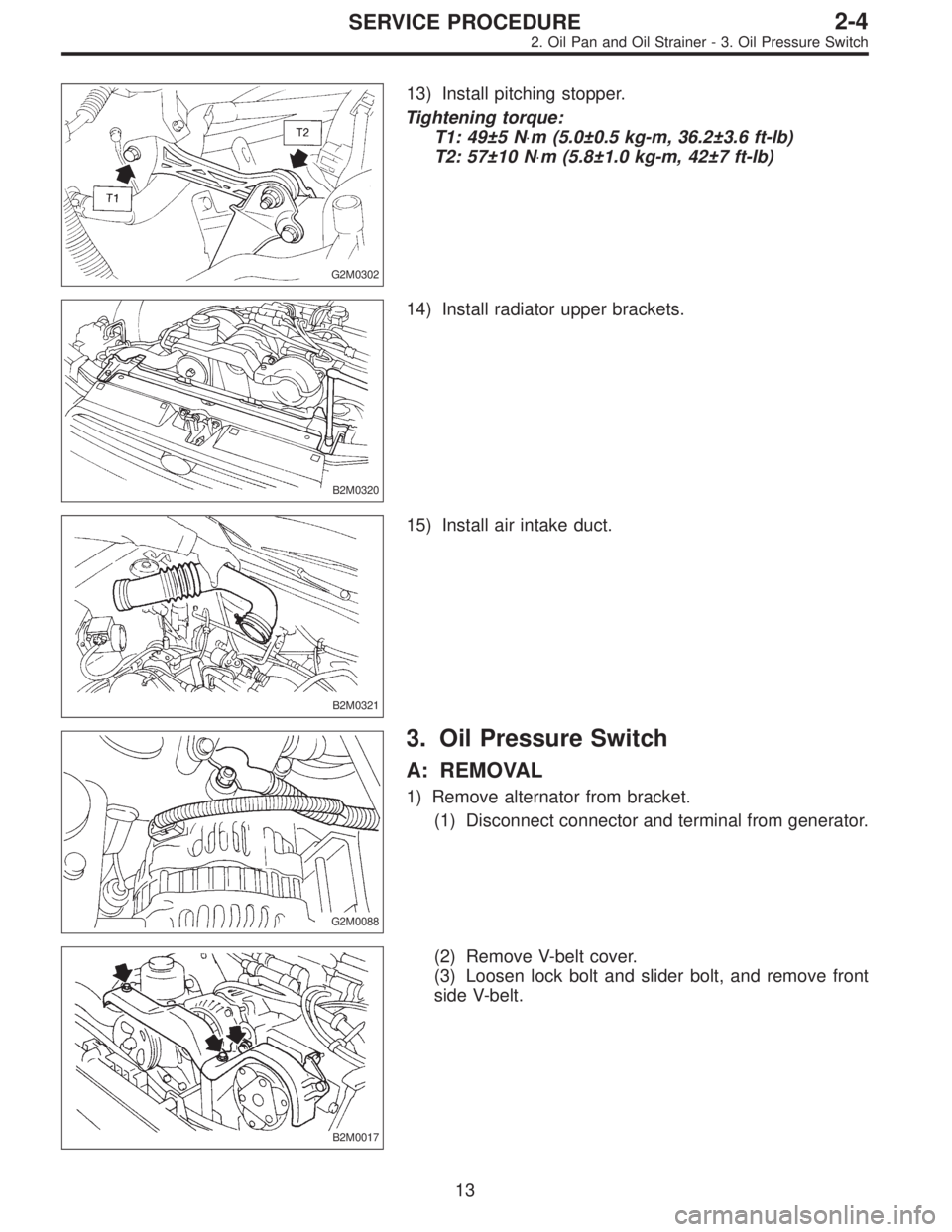

SUBARU LEGACY 1995 Service Repair Manual G2M0302 13) Install pitching stopper. Tightening torque: T1: 49±5 N⋅m (5.0±0.5 kg-m, 36.2±3.6 ft-lb) T2: 57±10 N⋅m (5.8±1.0 kg-m, 42±7 ft-lb) B2M0320 14) Install radiator upper brackets. B2M
