Page 697 of 2248
B4M0560

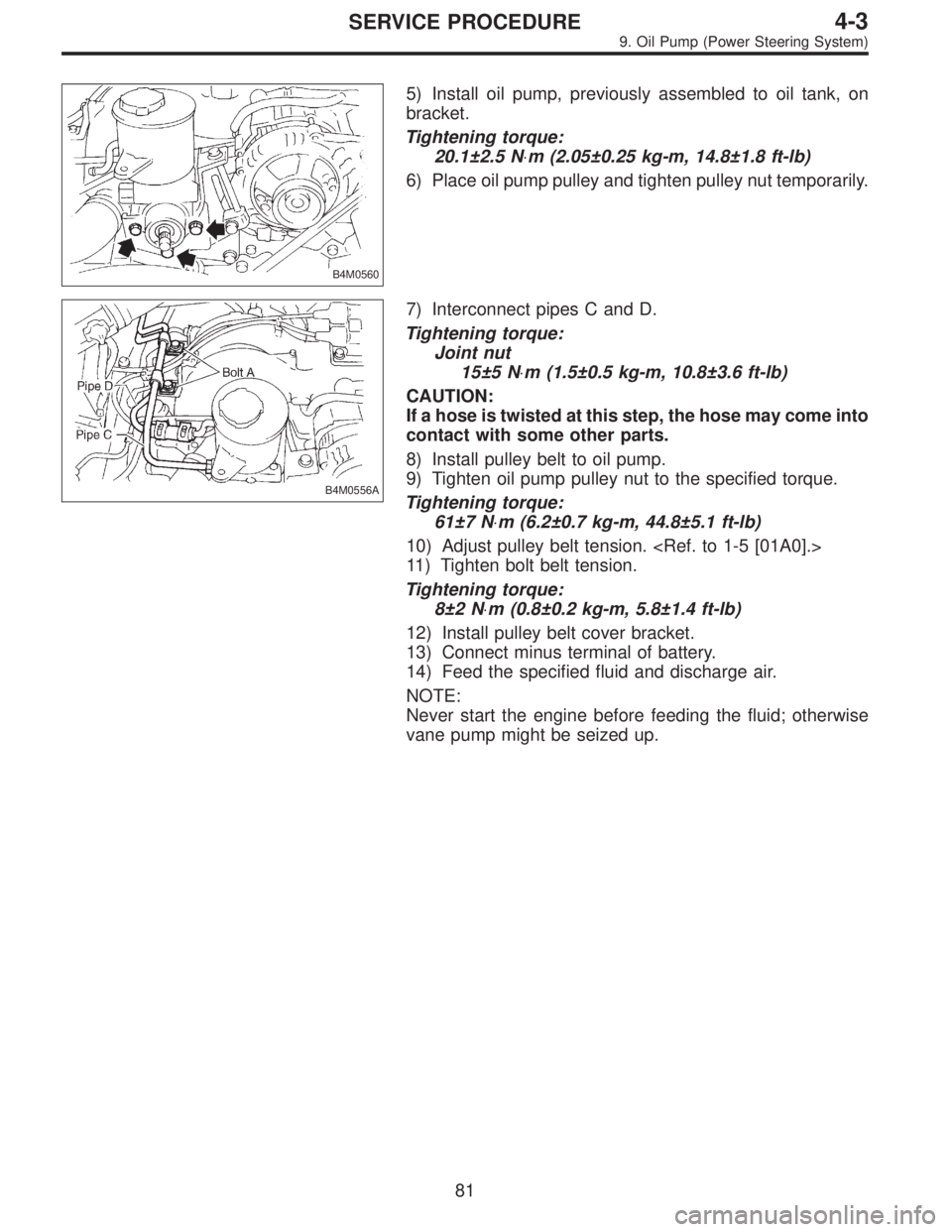

5) Install oil pump, previously assembled to oil tank, on
bracket.
Tightening torque:
20.1±2.5 N⋅m (2.05±0.25 kg-m, 14.8±1.8 ft-lb)
6) Place oil pump pulley and tighten pulley nut temporarily.
B4M0556A
7) Interconnect pipes C and D.
Tightening torque:
Joint nut
15±5 N⋅m (1.5±0.5 kg-m, 10.8±3.6 ft-lb)
CAUTION:
If a hose is twisted at this step, the hose may come into
contact with some other parts.
8) Install pulley belt to oil pump.
9) Tighten oil pump pulley nut to the specified torque.
Tightening torque:
61±7 N⋅m (6.2±0.7 kg-m, 44.8±5.1 ft-lb)
10) Adjust pulley belt tension.
11) Tighten bolt belt tension.
Tightening torque:
8±2 N⋅m (0.8±0.2 kg-m, 5.8±1.4 ft-lb)
12) Install pulley belt cover bracket.
13) Connect minus terminal of battery.
14) Feed the specified fluid and discharge air.
NOTE:
Never start the engine before feeding the fluid; otherwise
vane pump might be seized up.
81
4-3SERVICE PROCEDURE
9. Oil Pump (Power Steering System)
Page 698 of 2248

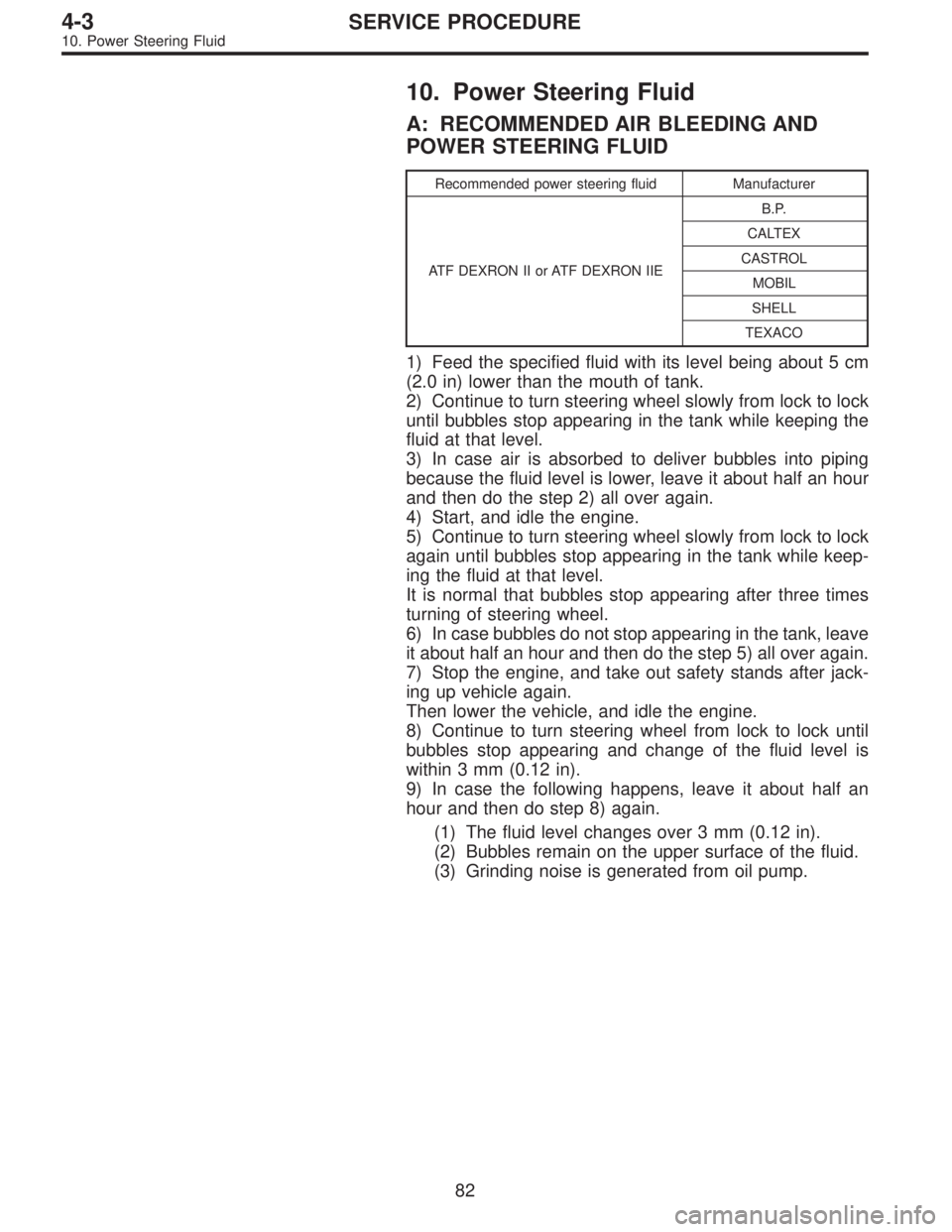

10. Power Steering Fluid
A: RECOMMENDED AIR BLEEDING AND
POWER STEERING FLUID
Recommended power steering fluid Manufacturer
ATF DEXRON II or ATF DEXRON IIEB.P.
CALTEX
CASTROL
MOBIL
SHELL
TEXACO
1) Feed the specified fluid with its level being about 5 cm
(2.0 in) lower than the mouth of tank.
2) Continue to turn steering wheel slowly from lock to lock
until bubbles stop appearing in the tank while keeping the
fluid at that level.
3) In case air is absorbed to deliver bubbles into piping
because the fluid level is lower, leave it about half an hour
and then do the step 2) all over again.
4) Start, and idle the engine.
5) Continue to turn steering wheel slowly from lock to lock
again until bubbles stop appearing in the tank while keep-
ing the fluid at that level.
It is normal that bubbles stop appearing after three times
turning of steering wheel.
6) In case bubbles do not stop appearing in the tank, leave
it about half an hour and then do the step 5) all over again.
7) Stop the engine, and take out safety stands after jack-
ing up vehicle again.
Then lower the vehicle, and idle the engine.
8) Continue to turn steering wheel from lock to lock until
bubbles stop appearing and change of the fluid level is
within 3 mm (0.12 in).
9) In case the following happens, leave it about half an
hour and then do step 8) again.
(1) The fluid level changes over 3 mm (0.12 in).
(2) Bubbles remain on the upper surface of the fluid.
(3) Grinding noise is generated from oil pump.
82
4-3SERVICE PROCEDURE
10. Power Steering Fluid
Page 699 of 2248

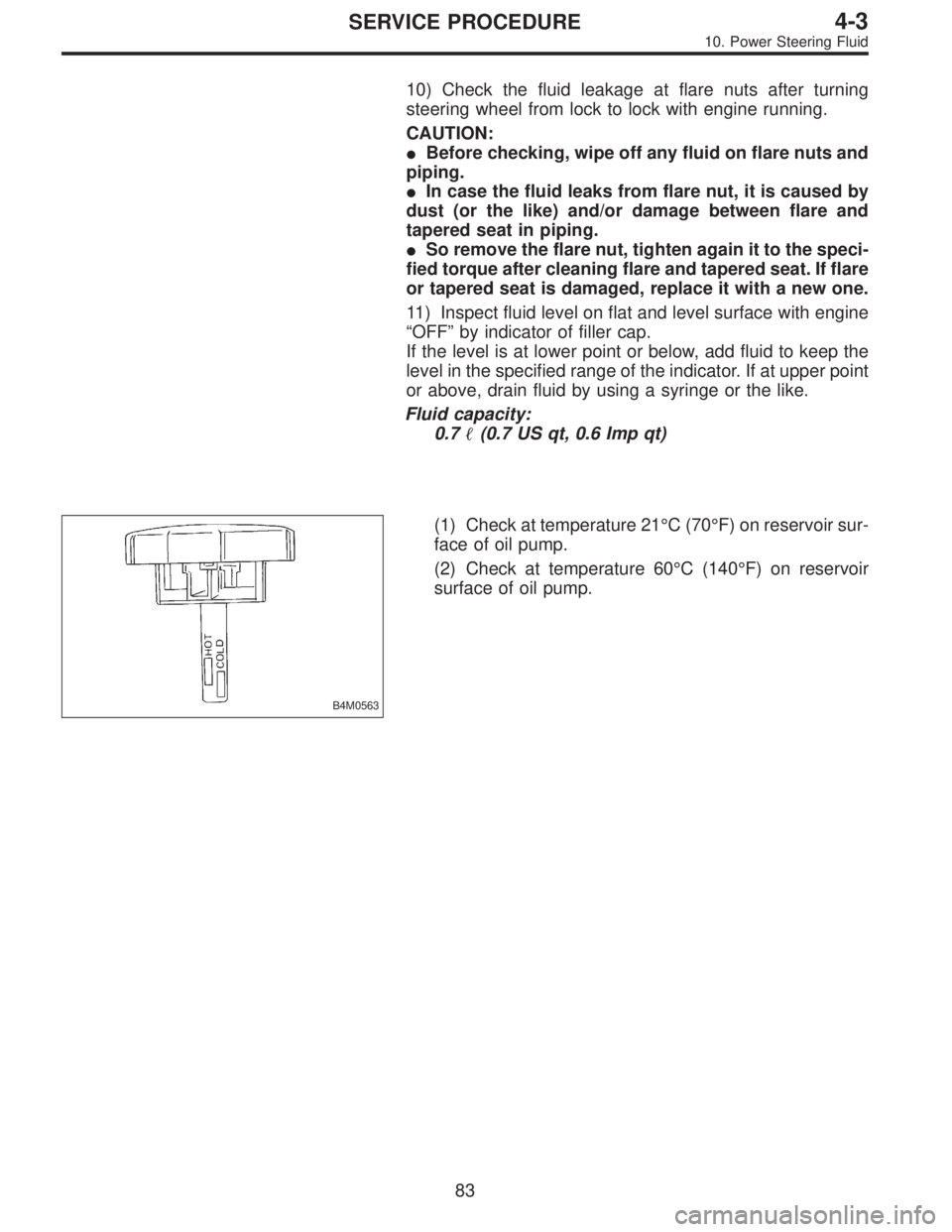

10) Check the fluid leakage at flare nuts after turning
steering wheel from lock to lock with engine running.
CAUTION:
Before checking, wipe off any fluid on flare nuts and
piping.
In case the fluid leaks from flare nut, it is caused by
dust (or the like) and/or damage between flare and
tapered seat in piping.
So remove the flare nut, tighten again it to the speci-
fied torque after cleaning flare and tapered seat. If flare
or tapered seat is damaged, replace it with a new one.
11) Inspect fluid level on flat and level surface with engine
“OFF”by indicator of filler cap.
If the level is at lower point or below, add fluid to keep the
level in the specified range of the indicator. If at upper point
or above, drain fluid by using a syringe or the like.
Fluid capacity:
0.7(0.7 US qt, 0.6 Imp qt)
B4M0563
(1) Check at temperature 21°C (70°F) on reservoir sur-
face of oil pump.
(2) Check at temperature 60°C (140°F) on reservoir
surface of oil pump.
83
4-3SERVICE PROCEDURE
10. Power Steering Fluid
Page 700 of 2248

1. Power Steering
1. STEERING CONDITION
Heavy steering
effort in all rangeHeavy steering
effort at stand stillSteering wheel
surges when turn-
ing.Vehicle leads to
one side or the
other.Poor return of
steering wheel to
center
Pulley belt
1. Unequal length of pulley
belts
2. Adhesion of oil and
grease
3. Loose or damage of pul-
ley belt
4. Poor uniformity of pulley
belt cross section
5. Pulley belt touches to
pulley bottom
6. Poor revolution of pulleys
except oil pump pulley
7. Poor revolution of oil
pump pulley
GOOD
NOT GOOD
Adjust or replace.Fluid line
1. Folded hose
2. Flattened pipe
GOOD
NOT
GOODReform or
replace.
Tire and rim
1. Flat tire
2. Mix use of different tires
3. Mix use of different rims
4. Abnormal wear of tire
5. Unbalance of remained
grooves
6. Unbalance of tire pres-
sure
GOOD
NOT
GOODFix or replace.
Tire and rim
1. Improper tires out of
specification
2. Improper rims out of
specification
3. Tires not properly
inflated*1
GOOD
NOT GOOD
Replace or reinflate.Front alignment
1. Improper or unbalance
caster
2. Improper or unbalance
toe-in
3. Loose connection of sus-
pension
GOOD
NOT
GOODAdjust or
retighten.
Fluid
1. Low fluid level
2. Aeration
3. Dust mix
4. Deterioration of fluid
5. Poor warming-up of fluid
*2
GOOD
NOT GOOD
Refill, bleed air, replace or
instruct customer.Others
1. Damaged joint assembly
2. Unbalanced height
3. One-sided weight
GOOD
Measure steering effort.
NOT
GOODReplace, adjust or
instruct customer.
Idling speed
1. Lower idling speed
2. Excessive drop of
idling speed at start
or at turning steering
wheel *3
GOOD
NOT GOOD
Adjust or instruct customer.
*1 If tires and/or rims are wider, the load to power steering system is the more. Accordingly, in a
condition, for example before fluid warms-up, relief valve may work before maximum turning angle.
In this case, steering effort may be heavy. When measured hydraulic pressure is normal, there is
no abnormal thing.
*2 In cold weather, steering effort may be heavy due to increased flow resistance of cold fluid. After
warming up engine, turn steering wheel from stop to stop several times to warm up fluid. Then if
steering effort reduces normally, there is no abnormal thing.
*3 In cold weather or with insufficient warm-up of engine, steering effort may be heavy due to exces-
sive drop of idling when turning steering wheel. In this case, it is recommended to start the vehicle
with increasing engine speed than usual. Then if steering effort reduces normally, there is no
abnormal thing. Measure hydraulic pressure.
GOOD
Measure steering effort.
84
4-3DIAGNOSTICS
1. Power Steering
Page 701 of 2248
![SUBARU LEGACY 1995 Service Repair Manual 2. MEASUREMENT OF HYDRAULIC PRESSURE
CAUTION:
Be sure to complete all items aforementioned in
“STEERING CONDITION”[K101], prior to measuring
hydraulic pressure. Otherwise, pressure can not be
meas SUBARU LEGACY 1995 Service Repair Manual 2. MEASUREMENT OF HYDRAULIC PRESSURE
CAUTION:
Be sure to complete all items aforementioned in
“STEERING CONDITION”[K101], prior to measuring
hydraulic pressure. Otherwise, pressure can not be
meas](/manual-img/17/57432/w960_57432-700.png)

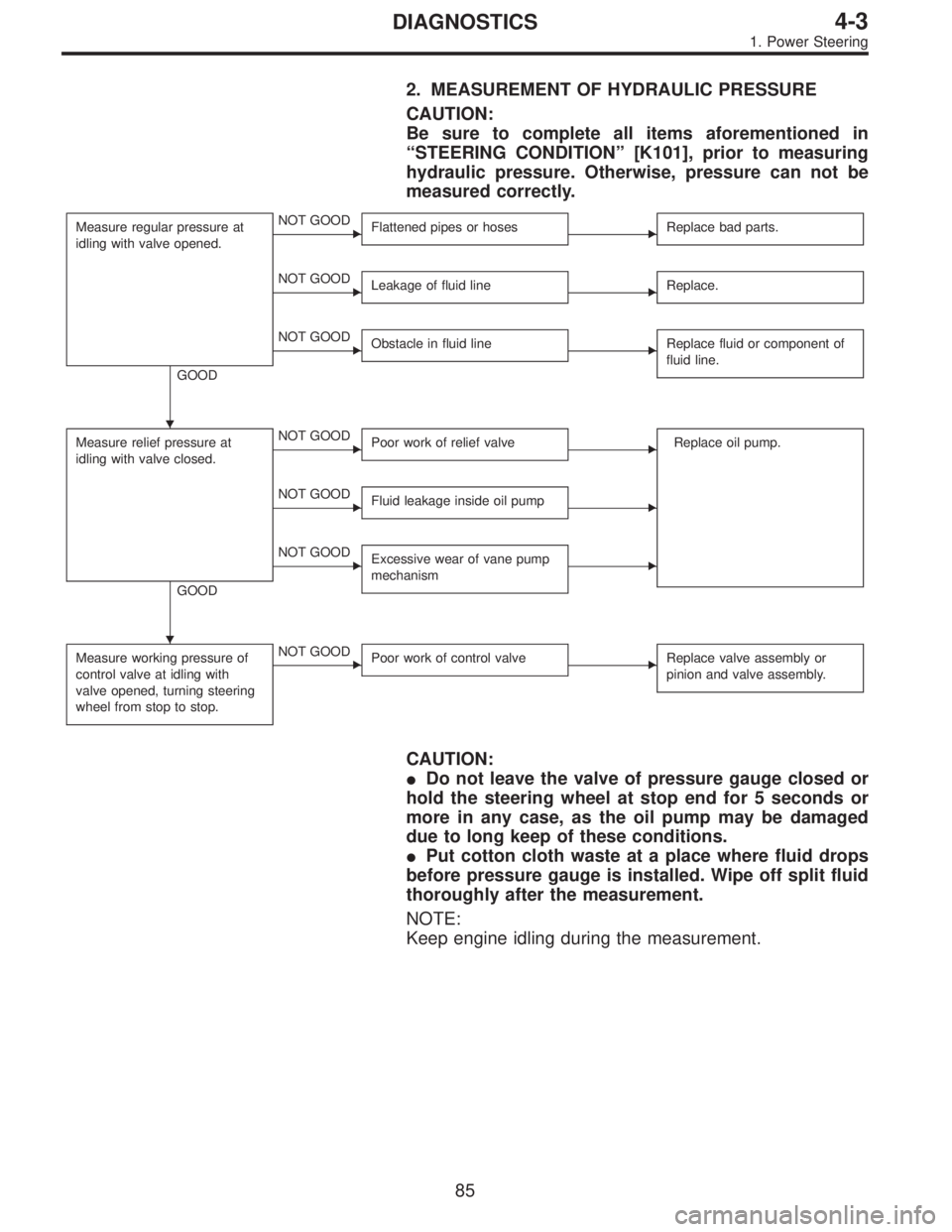

2. MEASUREMENT OF HYDRAULIC PRESSURE
CAUTION:
Be sure to complete all items aforementioned in
“STEERING CONDITION”[K101], prior to measuring
hydraulic pressure. Otherwise, pressure can not be
measured correctly.
Measure regular pressure at
idling with valve opened.
GOOD
NOT GOOD
Flattened pipes or hosesReplace bad parts.
NOT GOOD
Leakage of fluid lineReplace.
NOT GOOD
Obstacle in fluid lineReplace fluid or component of
fluid line.
Measure relief pressure at
idling with valve closed.
GOOD
NOT GOOD
Poor work of relief valveReplace oil pump.
NOT GOOD
Fluid leakage inside oil pump
NOT GOOD
Excessive wear of vane pump
mechanism
Measure working pressure of
control valve at idling with
valve opened, turning steering
wheel from stop to stop.NOT GOOD
Poor work of control valveReplace valve assembly or
pinion and valve assembly.
CAUTION:
Do not leave the valve of pressure gauge closed or
hold the steering wheel at stop end for 5 seconds or
more in any case, as the oil pump may be damaged
due to long keep of these conditions.
Put cotton cloth waste at a place where fluid drops
before pressure gauge is installed. Wipe off split fluid
thoroughly after the measurement.
NOTE:
Keep engine idling during the measurement.
85
4-3DIAGNOSTICS
1. Power Steering
Page 702 of 2248
G4M0195

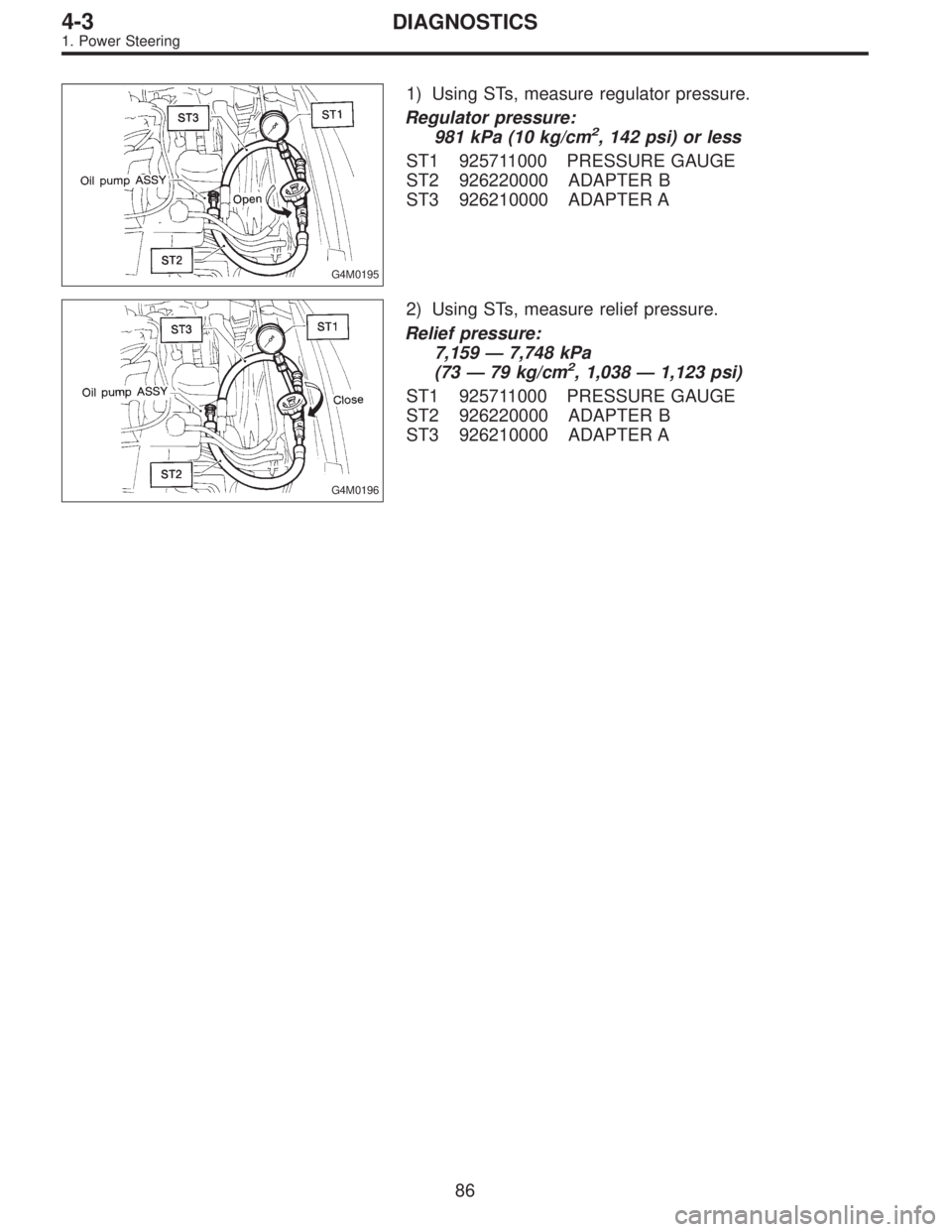

1) Using STs, measure regulator pressure.
Regulator pressure:
981 kPa (10 kg/cm
2, 142 psi) or less
ST1 925711000 PRESSURE GAUGE
ST2 926220000 ADAPTER B
ST3 926210000 ADAPTER A
G4M0196
2) Using STs, measure relief pressure.
Relief pressure:
7,159—7,748 kPa
(73—79 kg/cm
2, 1,038—1,123 psi)
ST1 925711000 PRESSURE GAUGE
ST2 926220000 ADAPTER B
ST3 926210000 ADAPTER A
86
4-3DIAGNOSTICS
1. Power Steering
Page 703 of 2248

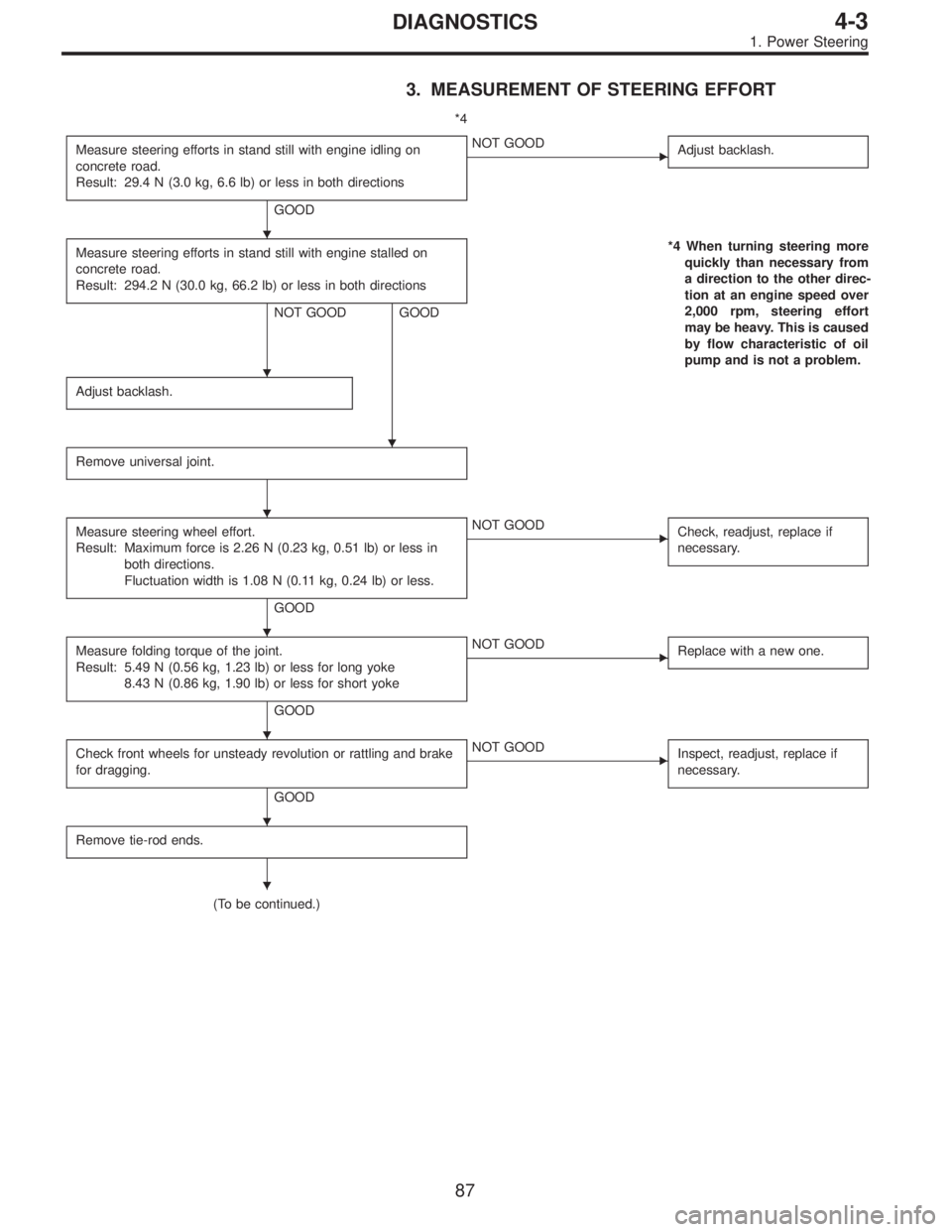

3. MEASUREMENT OF STEERING EFFORT
*4
Measure steering efforts in stand still with engine idling on
concrete road.
Result: 29.4 N (3.0 kg, 6.6 lb) or less in both directions
GOOD
NOT GOOD
Adjust backlash.
Measure steering efforts in stand still with engine stalled on
concrete road.
Result: 294.2 N (30.0 kg, 66.2 lb) or less in both directions
NOT GOOD GOOD*4 When turning steering more
quickly than necessary from
a direction to the other direc-
tion at an engine speed over
2,000 rpm, steering effort
may be heavy. This is caused
by flow characteristic of oil
pump and is not a problem.
Adjust backlash.
Remove universal joint.
Measure steering wheel effort.
Result: Maximum force is 2.26 N (0.23 kg, 0.51 lb) or less in
both directions.
Fluctuation width is 1.08 N (0.11 kg, 0.24 lb) or less.
GOOD
NOT GOOD
Check, readjust, replace if
necessary.
Measure folding torque of the joint.
Result: 5.49 N (0.56 kg, 1.23 lb) or less for long yoke
8.43 N (0.86 kg, 1.90 lb) or less for short yoke
GOOD
NOT GOOD
Replace with a new one.
Check front wheels for unsteady revolution or rattling and brake
for dragging.
GOOD
NOT GOOD
Inspect, readjust, replace if
necessary.
Remove tie-rod ends.
(To be continued.)
87
4-3DIAGNOSTICS
1. Power Steering
Page 704 of 2248

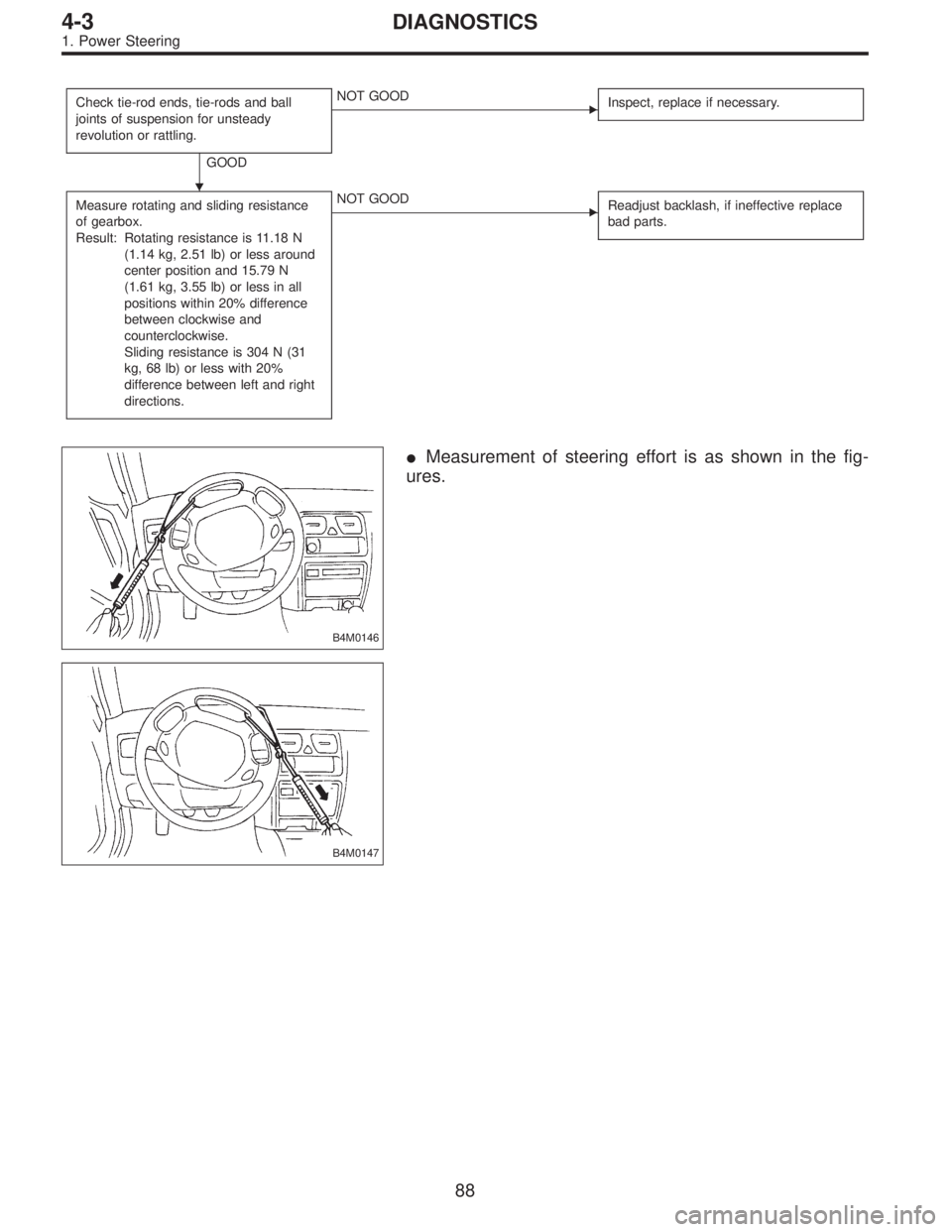

Check tie-rod ends, tie-rods and ball
joints of suspension for unsteady
revolution or rattling.
GOOD
NOT GOOD
Inspect, replace if necessary.
Measure rotating and sliding resistance
of gearbox.
Result: Rotating resistance is 11.18 N
(1.14 kg, 2.51 lb) or less around
center position and 15.79 N
(1.61 kg, 3.55 lb) or less in all
positions within 20% difference
between clockwise and
counterclockwise.
Sliding resistance is 304 N (31
kg, 68 lb) or less with 20%
difference between left and right
directions.NOT GOOD
Readjust backlash, if ineffective replace
bad parts.
B4M0146
Measurement of steering effort is as shown in the fig-
ures.
B4M0147
88
4-3DIAGNOSTICS
1. Power Steering
