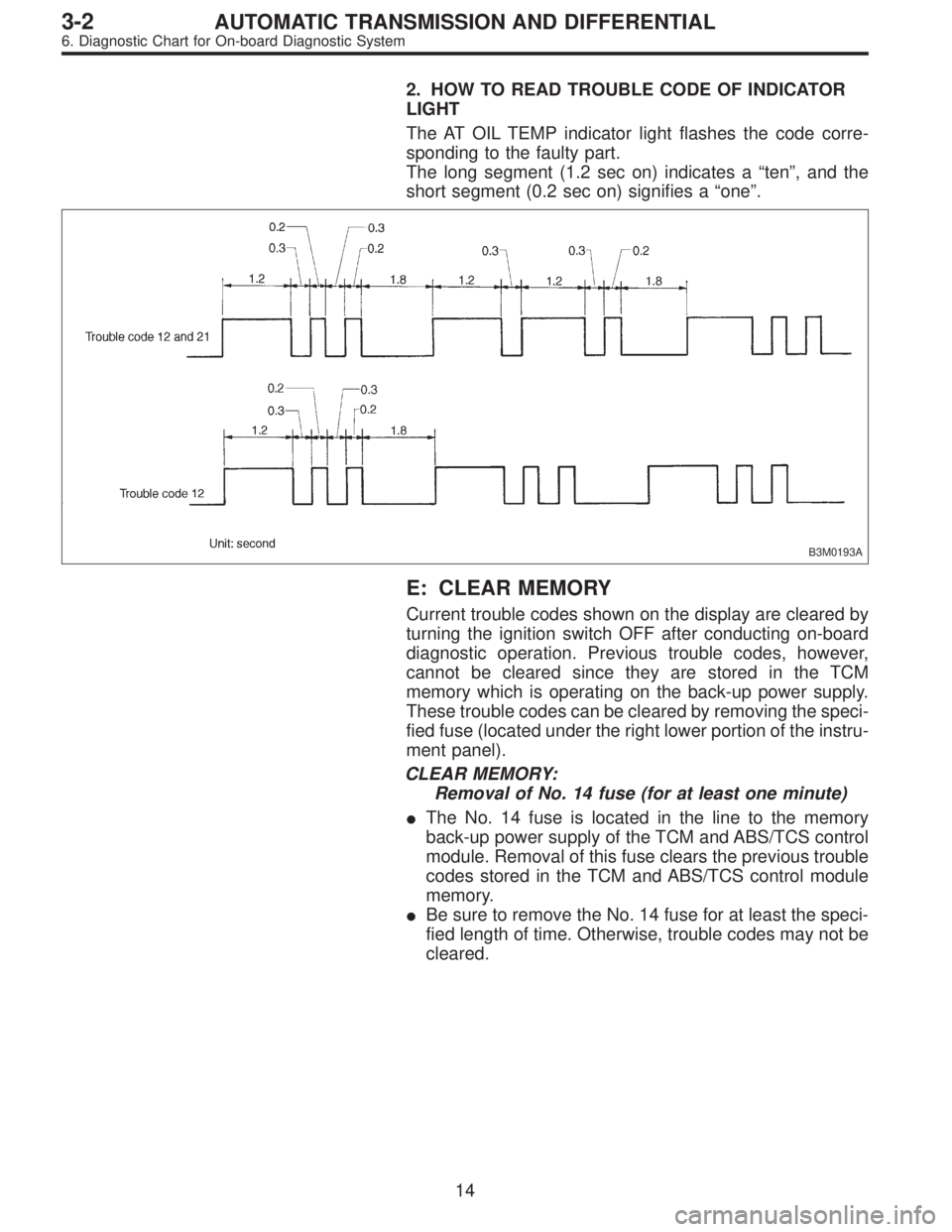

2. HOW TO READ TROUBLE CODE OF INDICATOR
LIGHT
The AT OIL TEMP indicator light flashes the code corre-
sponding to the faulty part.
The long segment (1.2 sec on) indicates a“ten”, and the
short segment (0.2 sec on) signifies a“one”.
B3M0193A
E: CLEAR MEMORY
Current trouble codes shown on the display are cleared by
turning the ignition switch OFF after conducting on-board
diagnostic operation. Previous trouble codes, however,
cannot be cleared since they are stored in the TCM
memory which is operating on the back-up power supply.
These trouble codes can be cleared by removing the speci-
fied fuse (located under the right lower portion of the instru-
ment panel).
CLEAR MEMORY:
Removal of No. 14 fuse (for at least one minute)
The No. 14 fuse is located in the line to the memory
back-up power supply of the TCM and ABS/TCS control
module. Removal of this fuse clears the previous trouble
codes stored in the TCM and ABS/TCS control module
memory.
Be sure to remove the No. 14 fuse for at least the speci-
fied length of time. Otherwise, trouble codes may not be
cleared.
14
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
6. Diagnostic Chart for On-board Diagnostic System
Page 1570 of 2248

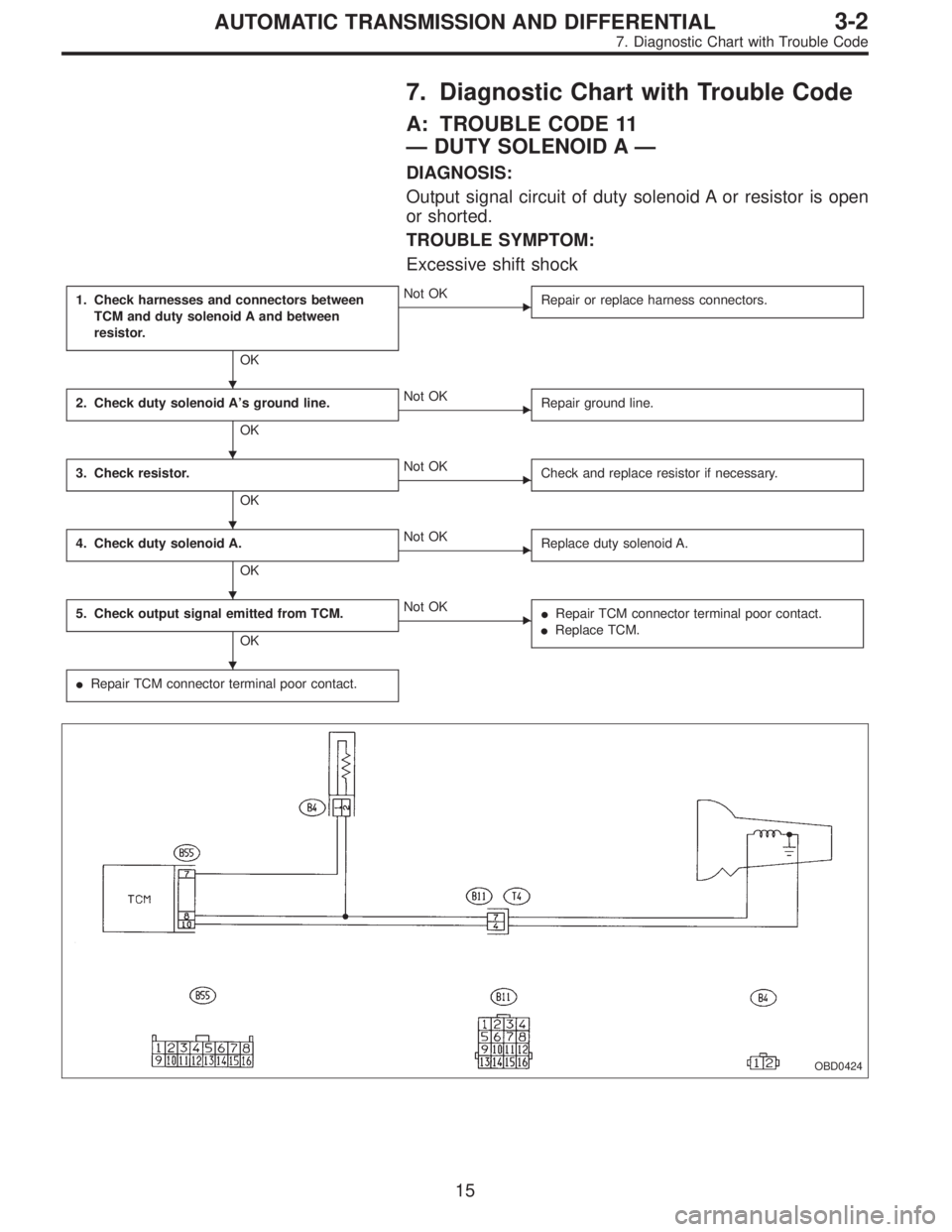

7. Diagnostic Chart with Trouble Code
A: TROUBLE CODE 11
—DUTY SOLENOID A—
DIAGNOSIS:
Output signal circuit of duty solenoid A or resistor is open
or shorted.
TROUBLE SYMPTOM:
Excessive shift shock
1. Check harnesses and connectors between
TCM and duty solenoid A and between
resistor.
OK
Not OK
Repair or replace harness connectors.
2. Check duty solenoid A’s ground line.
OK
Not OK
Repair ground line.
3. Check resistor.
OK
Not OK
Check and replace resistor if necessary.
4. Check duty solenoid A.
OK
Not OK
Replace duty solenoid A.
5. Check output signal emitted from TCM.
OK
Not OK
Repair TCM connector terminal poor contact.
Replace TCM.
Repair TCM connector terminal poor contact.
OBD0424
15
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
7. Diagnostic Chart with Trouble Code
Page 1571 of 2248

OBD0428A

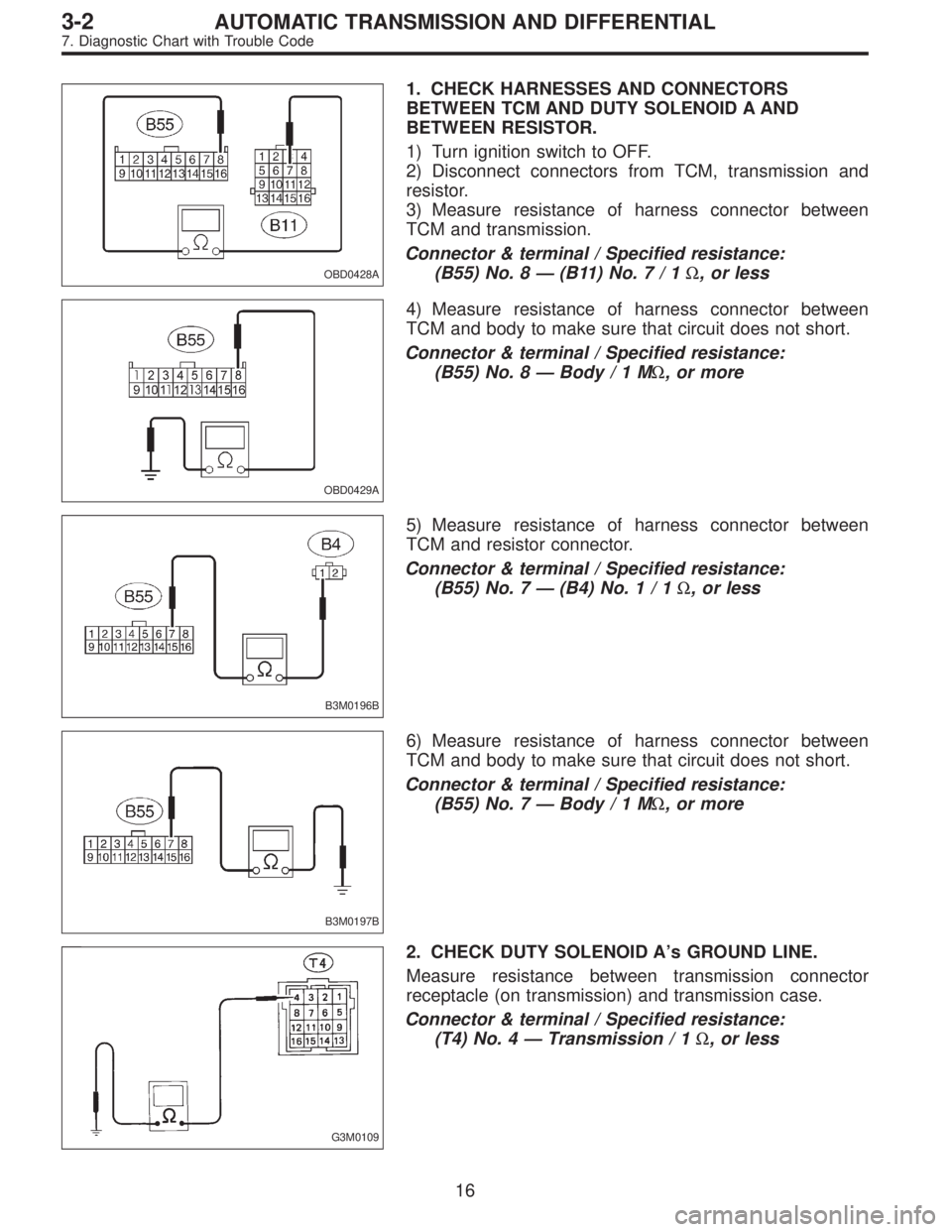

1. CHECK HARNESSES AND CONNECTORS
BETWEEN TCM AND DUTY SOLENOID A AND
BETWEEN RESISTOR.
1) Turn ignition switch to OFF.
2) Disconnect connectors from TCM, transmission and
resistor.
3) Measure resistance of harness connector between
TCM and transmission.
Connector & terminal / Specified resistance:
(B55) No. 8 — (B11) No.7/1Ω, or less
OBD0429A
4) Measure resistance of harness connector between
TCM and body to make sure that circuit does not short.
Connector & terminal / Specified resistance:
(B55) No. 8 — Body/1MΩ, or more
B3M0196B
5) Measure resistance of harness connector between
TCM and resistor connector.
Connector & terminal / Specified resistance:
(B55) No. 7 — (B4) No.1/1Ω, or less
B3M0197B
6) Measure resistance of harness connector between
TCM and body to make sure that circuit does not short.
Connector & terminal / Specified resistance:
(B55) No. 7 — Body/1MΩ, or more
G3M0109
2. CHECK DUTY SOLENOID A’s GROUND LINE.
Measure resistance between transmission connector
receptacle (on transmission) and transmission case.
Connector & terminal / Specified resistance:
(T4) No. 4 — Transmission / 1Ω, or less
16
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
7. Diagnostic Chart with Trouble Code
Page 1572 of 2248

OBD0432

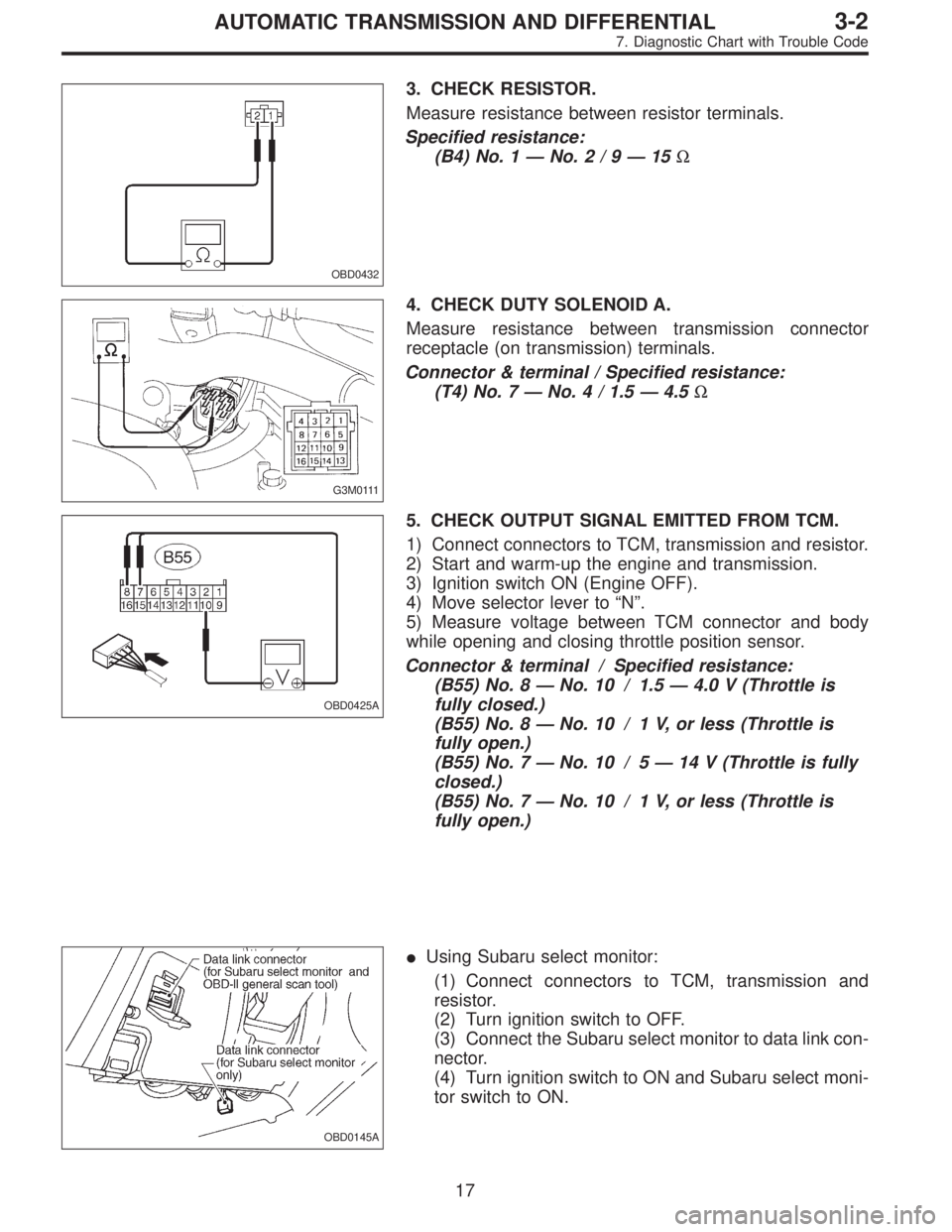

3. CHECK RESISTOR.
Measure resistance between resistor terminals.
Specified resistance:
(B4) No. 1—No.2/9—15Ω
G3M0111
4. CHECK DUTY SOLENOID A.
Measure resistance between transmission connector
receptacle (on transmission) terminals.
Connector & terminal / Specified resistance:
(T4) No. 7—No. 4 / 1.5—4.5Ω
OBD0425A
5. CHECK OUTPUT SIGNAL EMITTED FROM TCM.
1) Connect connectors to TCM, transmission and resistor.
2) Start and warm-up the engine and transmission.
3) Ignition switch ON (Engine OFF).
4) Move selector lever to“N”.
5) Measure voltage between TCM connector and body
while opening and closing throttle position sensor.
Connector & terminal / Specified resistance:
(B55) No. 8—No. 10 / 1.5—4.0 V (Throttle is
fully closed.)
(B55) No. 8—No. 10 / 1 V, or less (Throttle is
fully open.)
(B55) No. 7—No. 10 / 5—14 V (Throttle is fully
closed.)
(B55) No. 7—No. 10 / 1 V, or less (Throttle is
fully open.)
OBD0145A
Using Subaru select monitor:
(1) Connect connectors to TCM, transmission and
resistor.
(2) Turn ignition switch to OFF.
(3) Connect the Subaru select monitor to data link con-
nector.
(4) Turn ignition switch to ON and Subaru select moni-
tor switch to ON.
17
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
7. Diagnostic Chart with Trouble Code
Page 1573 of 2248
OBD0427

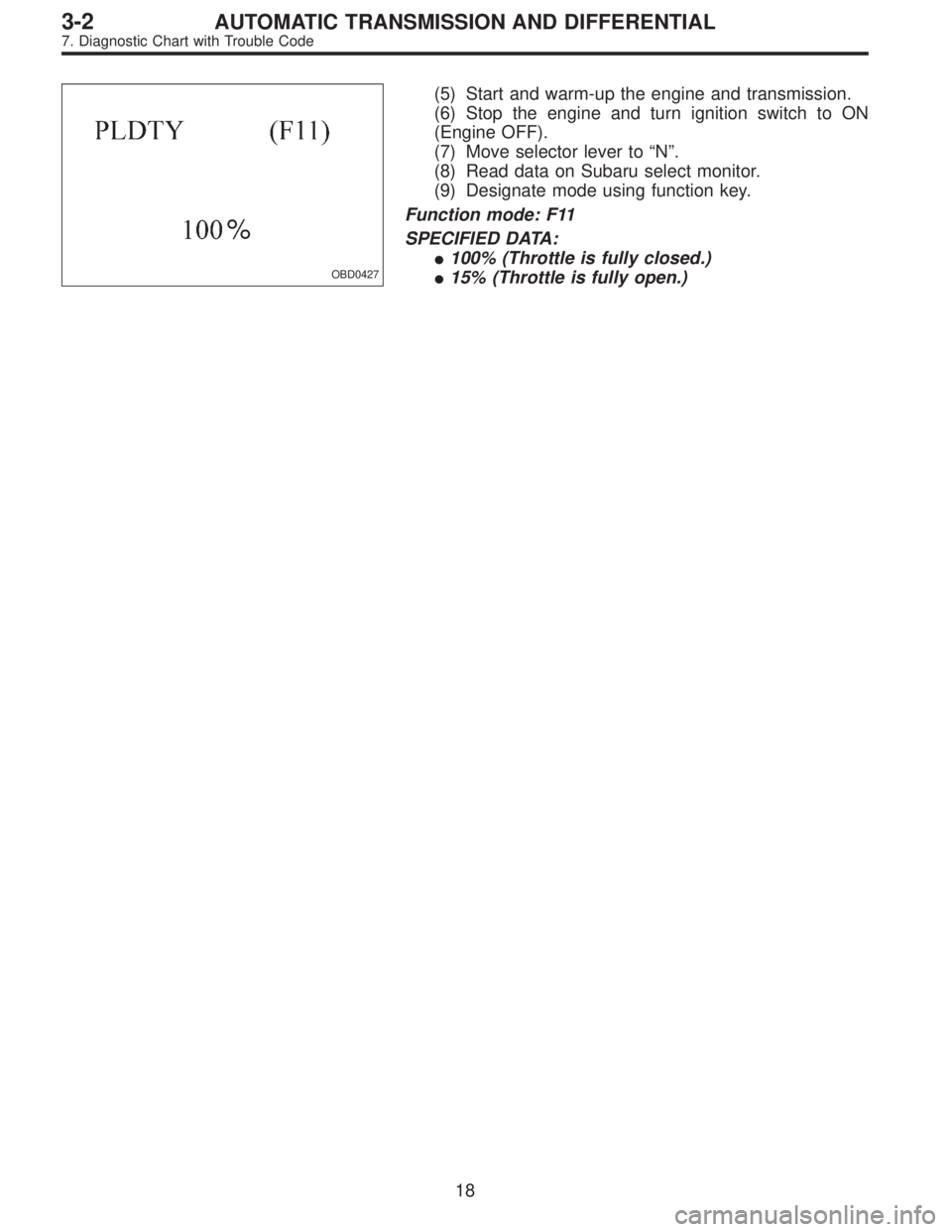

(5) Start and warm-up the engine and transmission.
(6) Stop the engine and turn ignition switch to ON
(Engine OFF).
(7) Move selector lever to“N”.
(8) Read data on Subaru select monitor.
(9) Designate mode using function key.
Function mode: F11
SPECIFIED DATA:
100% (Throttle is fully closed.)
15% (Throttle is fully open.)
18
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
7. Diagnostic Chart with Trouble Code
Page 1574 of 2248

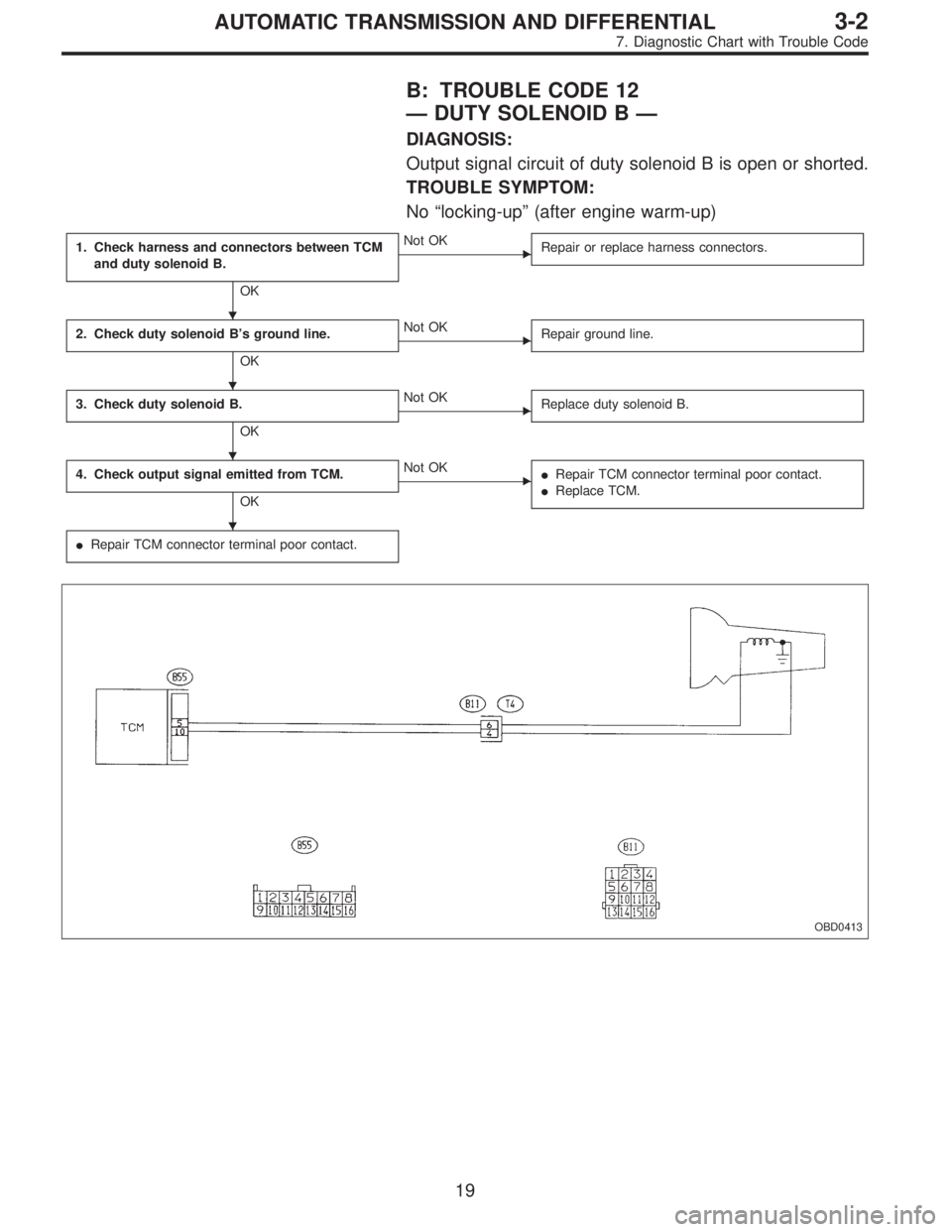

B: TROUBLE CODE 12
—DUTY SOLENOID B—
DIAGNOSIS:
Output signal circuit of duty solenoid B is open or shorted.
TROUBLE SYMPTOM:
No“locking-up”(after engine warm-up)
1. Check harness and connectors between TCM
and duty solenoid B.
OK
Not OK
Repair or replace harness connectors.
2. Check duty solenoid B’s ground line.
OK
Not OK
Repair ground line.
3. Check duty solenoid B.
OK
Not OK
Replace duty solenoid B.
4. Check output signal emitted from TCM.
OK
Not OK
Repair TCM connector terminal poor contact.
Replace TCM.
Repair TCM connector terminal poor contact.
OBD0413
19
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
7. Diagnostic Chart with Trouble Code
Page 1575 of 2248

OBD0418A

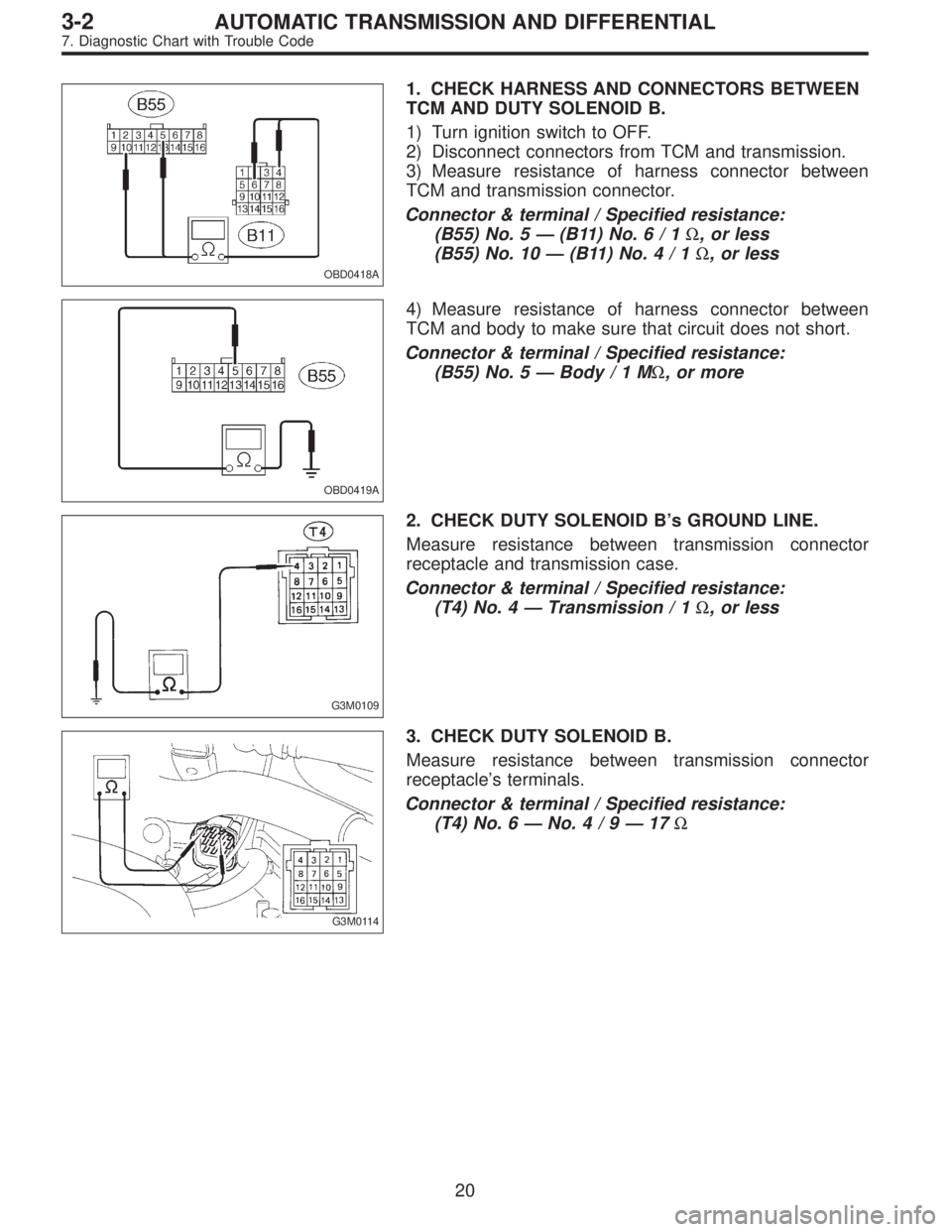

1. CHECK HARNESS AND CONNECTORS BETWEEN
TCM AND DUTY SOLENOID B.
1) Turn ignition switch to OFF.
2) Disconnect connectors from TCM and transmission.
3) Measure resistance of harness connector between
TCM and transmission connector.
Connector & terminal / Specified resistance:
(B55) No. 5—(B11)No.6/1Ω, or less
(B55) No. 10—(B11)No.4/1Ω, or less
OBD0419A
4) Measure resistance of harness connector between
TCM and body to make sure that circuit does not short.
Connector & terminal / Specified resistance:
(B55) No. 5—Body/1MΩ, or more
G3M0109
2. CHECK DUTY SOLENOID B’s GROUND LINE.
Measure resistance between transmission connector
receptacle and transmission case.
Connector & terminal / Specified resistance:
(T4) No. 4—Transmission / 1Ω, or less
G3M0114
3. CHECK DUTY SOLENOID B.
Measure resistance between transmission connector
receptacle’s terminals.
Connector & terminal / Specified resistance:
(T4) No. 6—No.4/9—17Ω
20
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
7. Diagnostic Chart with Trouble Code
Page 1576 of 2248

OBD0607A

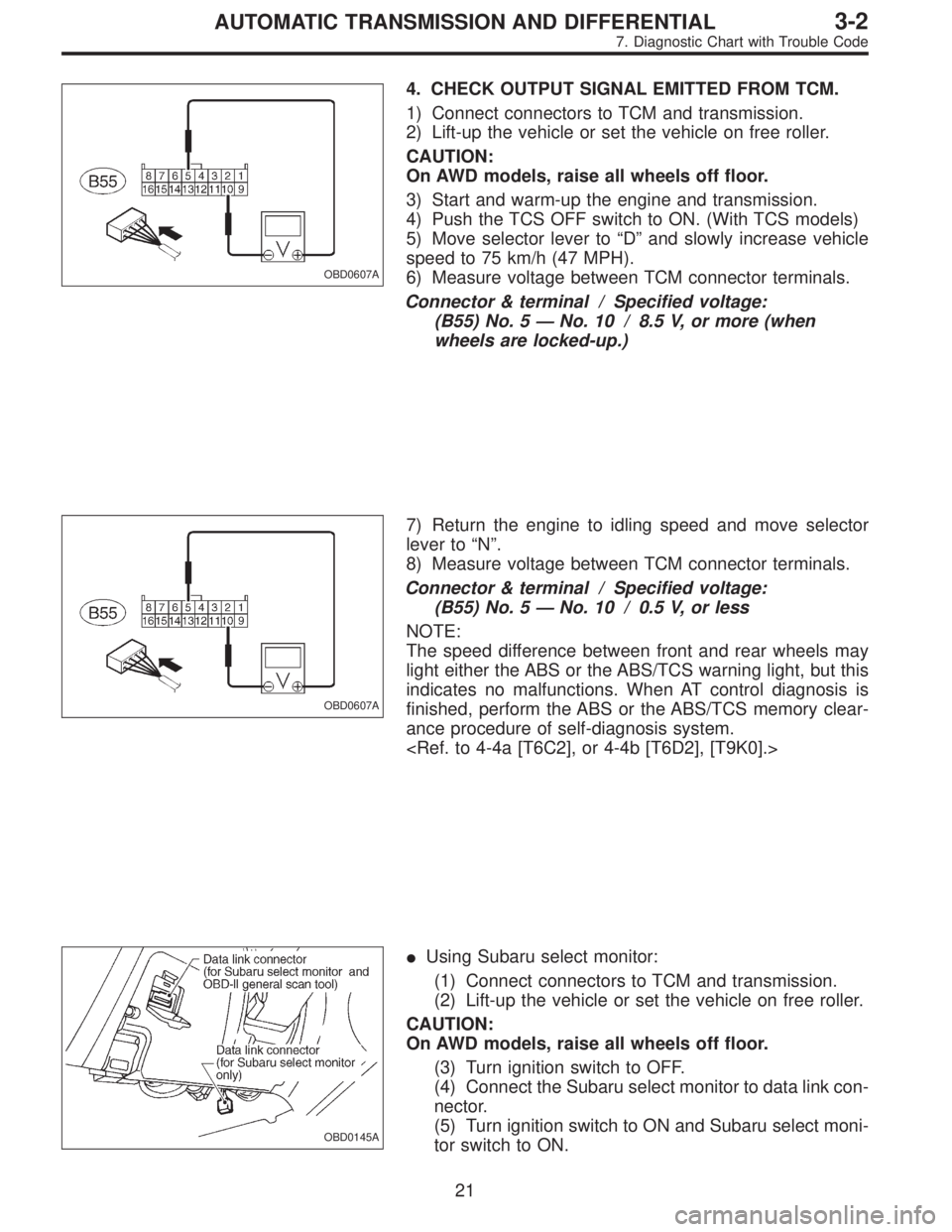

4. CHECK OUTPUT SIGNAL EMITTED FROM TCM.
1) Connect connectors to TCM and transmission.
2) Lift-up the vehicle or set the vehicle on free roller.
CAUTION:
On AWD models, raise all wheels off floor.
3) Start and warm-up the engine and transmission.
4) Push the TCS OFF switch to ON. (With TCS models)
5) Move selector lever to“D”and slowly increase vehicle
speed to 75 km/h (47 MPH).
6) Measure voltage between TCM connector terminals.
Connector & terminal / Specified voltage:
(B55) No. 5—No. 10 / 8.5 V, or more (when
wheels are locked-up.)
OBD0607A
7) Return the engine to idling speed and move selector
lever to“N”.
8) Measure voltage between TCM connector terminals.
Connector & terminal / Specified voltage:
(B55) No. 5—No. 10 / 0.5 V, or less
NOTE:
The speed difference between front and rear wheels may
light either the ABS or the ABS/TCS warning light, but this
indicates no malfunctions. When AT control diagnosis is
finished, perform the ABS or the ABS/TCS memory clear-
ance procedure of self-diagnosis system.
OBD0145A
Using Subaru select monitor:
(1) Connect connectors to TCM and transmission.
(2) Lift-up the vehicle or set the vehicle on free roller.
CAUTION:
On AWD models, raise all wheels off floor.
(3) Turn ignition switch to OFF.
(4) Connect the Subaru select monitor to data link con-
nector.
(5) Turn ignition switch to ON and Subaru select moni-
tor switch to ON.
