1995 SUBARU LEGACY Service Repair Manual

CD changerautomatic transmission fluidbatterycompression ratiosnow chainstechnical specifications
Popular search:
hood releaseradiofuseslightsfuel consumptionSafety switchwindow
Previous
Next
Load previous 8 pages

Page 129 of 2248

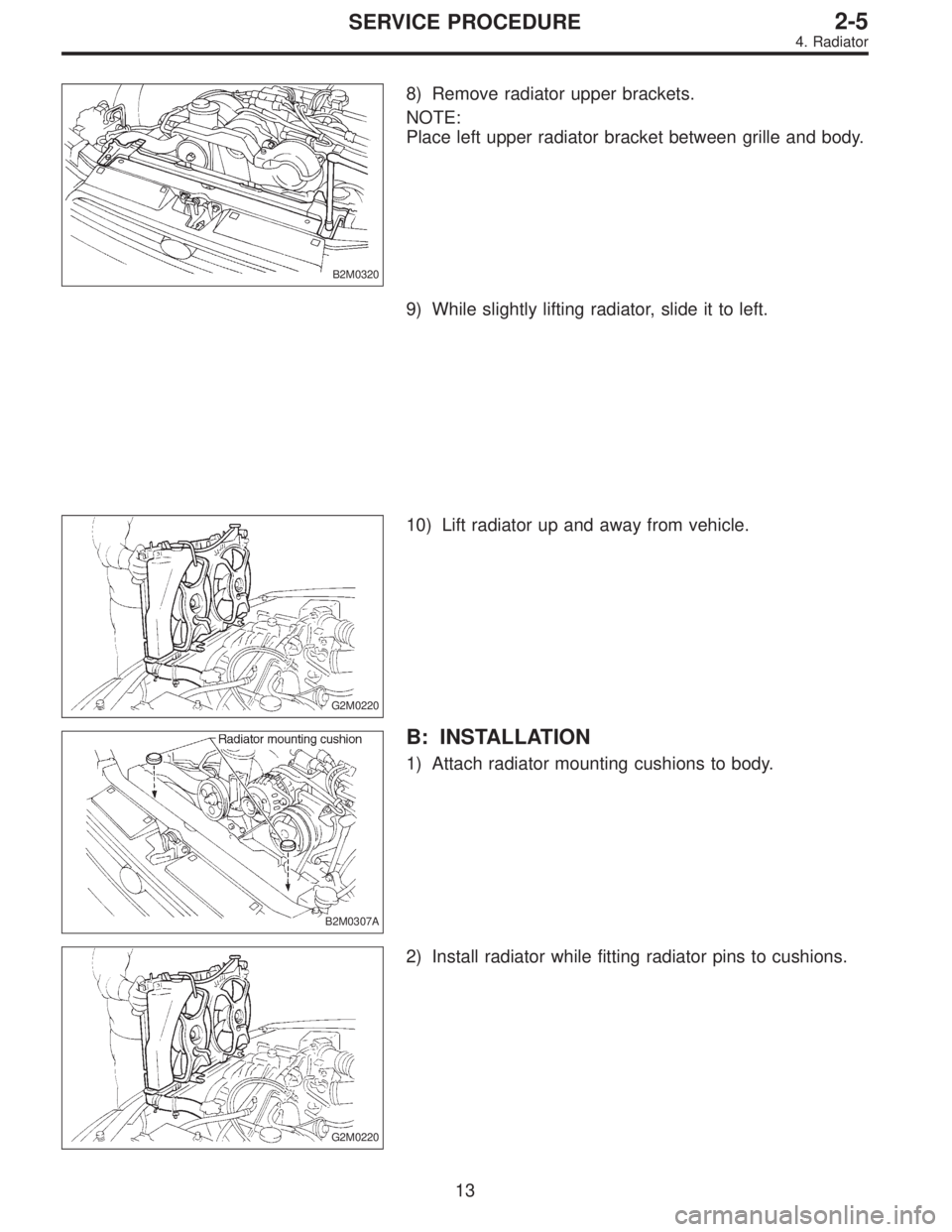

SUBARU LEGACY 1995 Service Repair Manual B2M0320 8) Remove radiator upper brackets. NOTE: Place left upper radiator bracket between grille and body. 9) While slightly lifting radiator, slide it to left. G2M0220 10) Lift radiator up and away

Page 130 of 2248

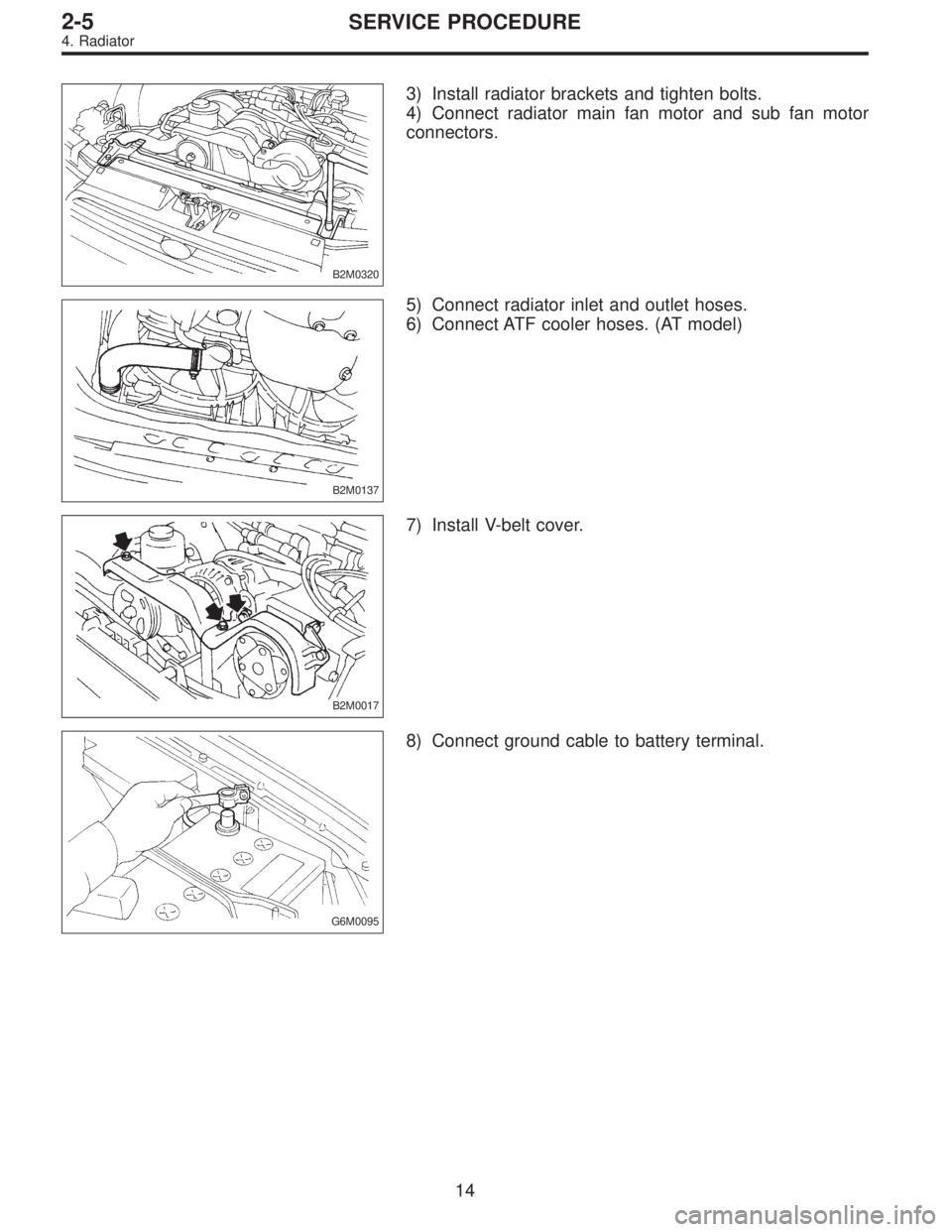

SUBARU LEGACY 1995 Service Repair Manual B2M0320 3) Install radiator brackets and tighten bolts. 4) Connect radiator main fan motor and sub fan motor connectors. B2M0137 5) Connect radiator inlet and outlet hoses. 6) Connect ATF cooler hoses

Page 131 of 2248

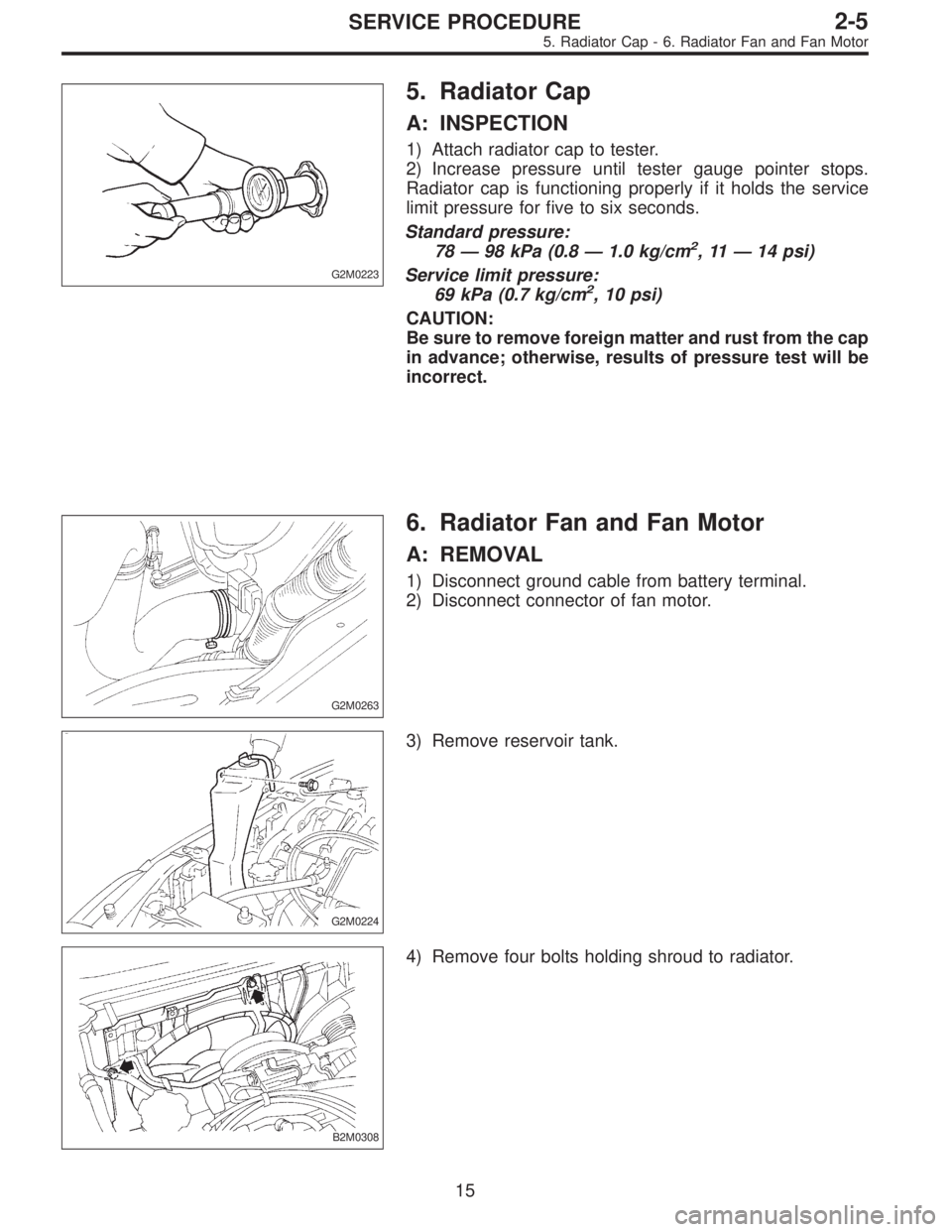

SUBARU LEGACY 1995 Service Repair Manual G2M0223 5. Radiator Cap A: INSPECTION 1) Attach radiator cap to tester. 2) Increase pressure until tester gauge pointer stops. Radiator cap is functioning properly if it holds the service limit pressu

Page 132 of 2248

SUBARU LEGACY 1995 Service Repair Manual G2M0223 5. Radiator Cap A: INSPECTION 1) Attach radiator cap to tester. 2) Increase pressure until tester gauge pointer stops. Radiator cap is functioning properly if it holds the service limit pressu

Page 133 of 2248

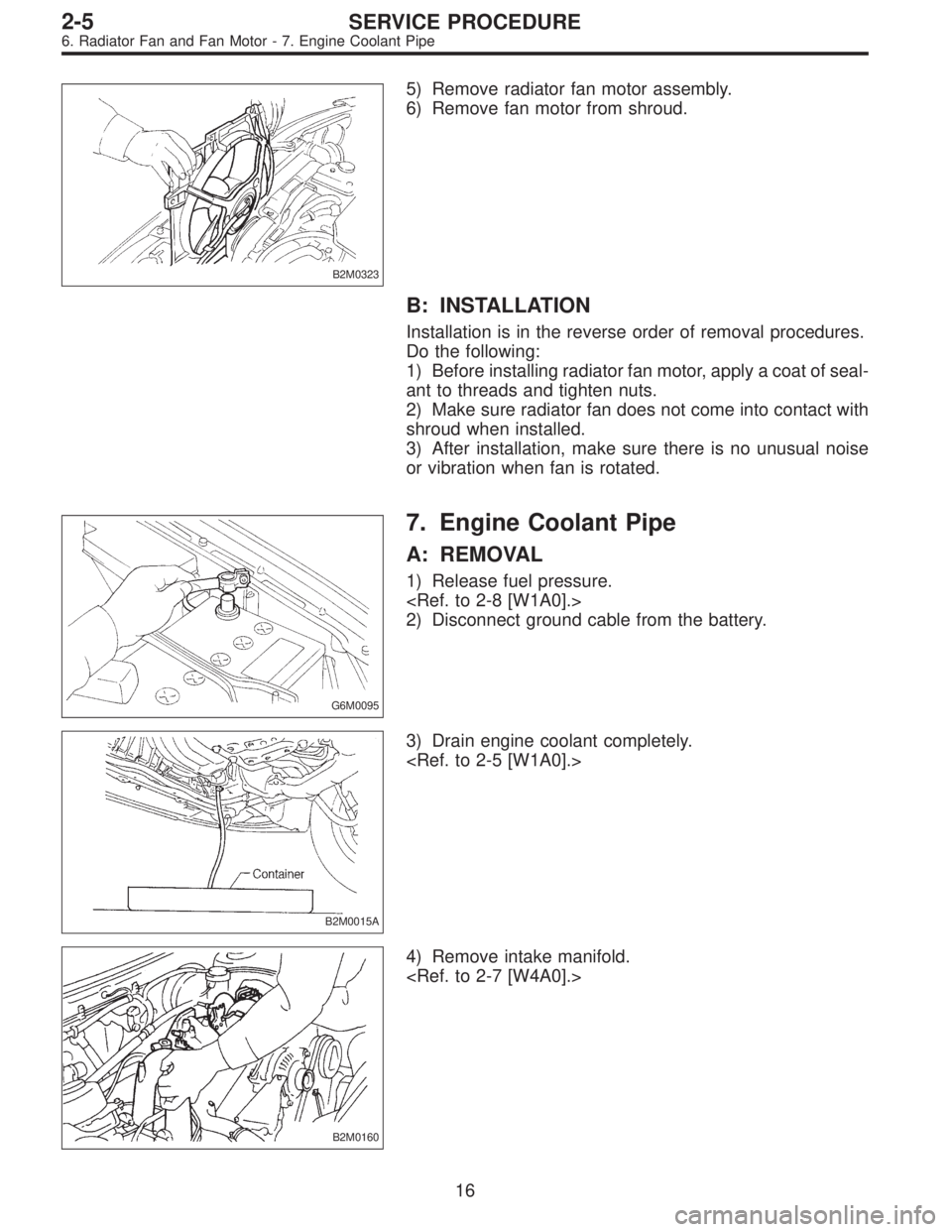

SUBARU LEGACY 1995 Service Repair Manual B2M0323 5) Remove radiator fan motor assembly. 6) Remove fan motor from shroud. B: INSTALLATION Installation is in the reverse order of removal procedures. Do the following: 1) Before installing radia

Page 134 of 2248

SUBARU LEGACY 1995 Service Repair Manual B2M0323 5) Remove radiator fan motor assembly. 6) Remove fan motor from shroud. B: INSTALLATION Installation is in the reverse order of removal procedures. Do the following: 1) Before installing radia

Page 135 of 2248

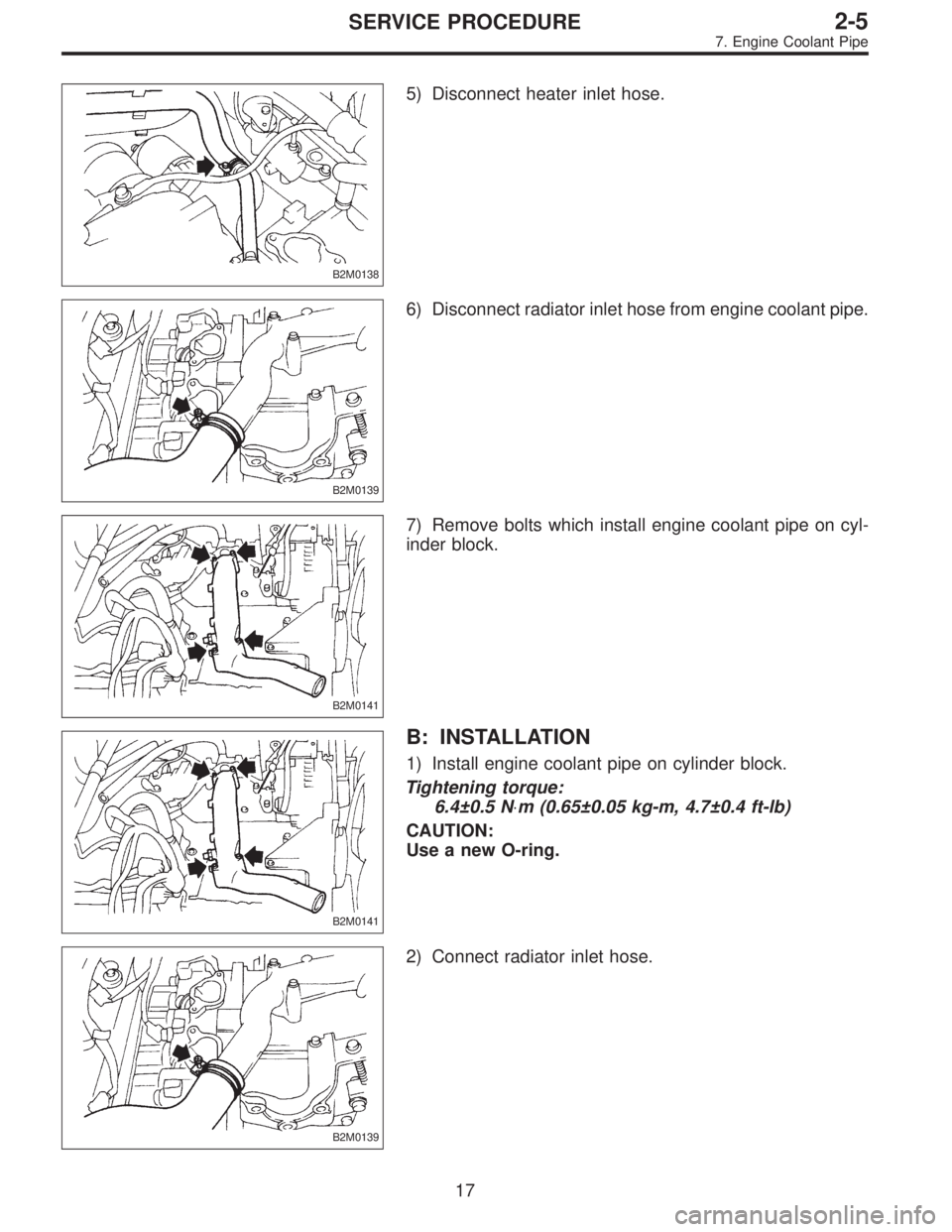

SUBARU LEGACY 1995 Service Repair Manual B2M0138 5) Disconnect heater inlet hose. B2M0139 6) Disconnect radiator inlet hose from engine coolant pipe. B2M0141 7) Remove bolts which install engine coolant pipe on cyl- inder block. B2M0141 B: I

Page 136 of 2248

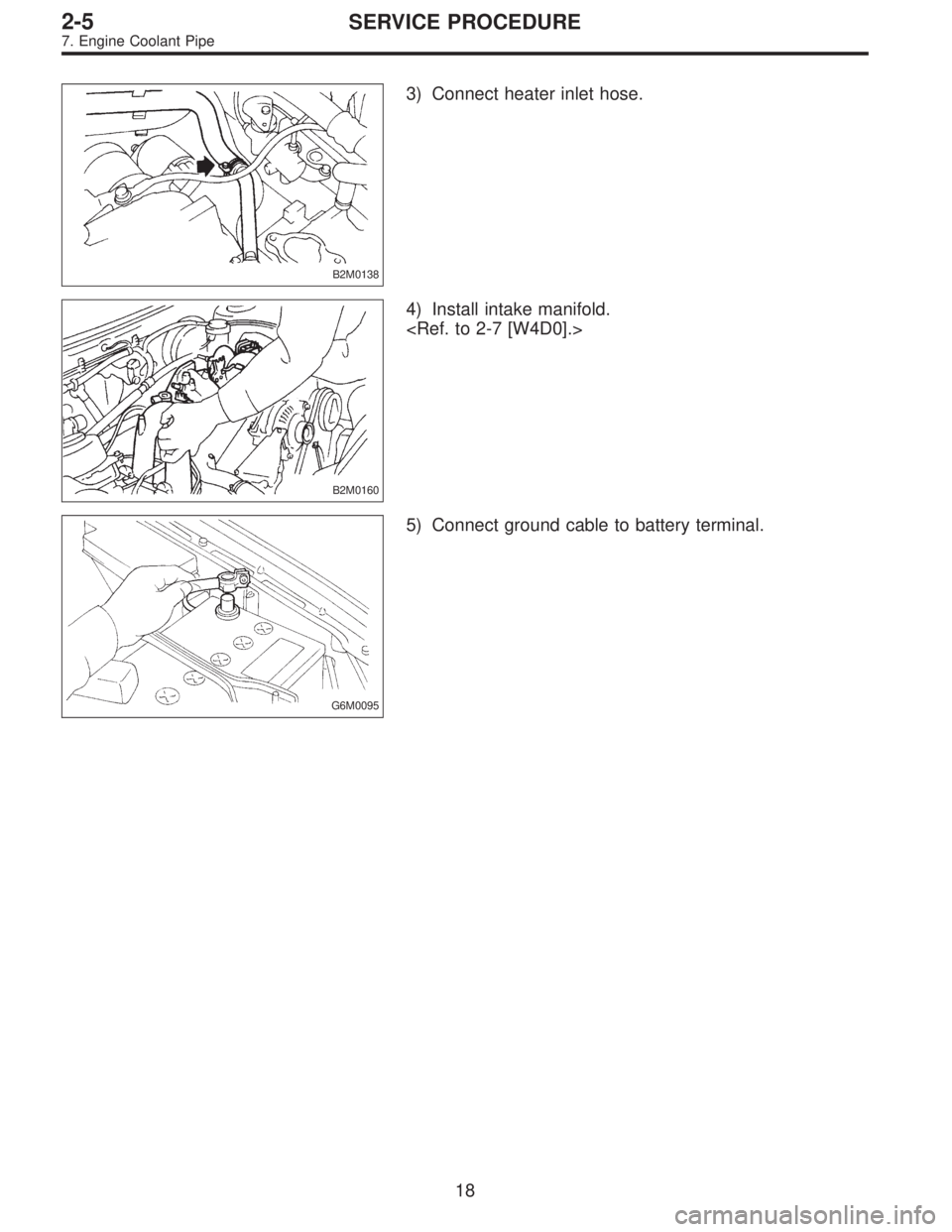

SUBARU LEGACY 1995 Service Repair Manual B2M0138 3) Connect heater inlet hose. B2M0160 4) Install intake manifold. <Ref. to 2-7 [W4D0].> G6M0095 5) Connect ground cable to battery terminal. 18 2-5SERVICE PROCEDURE 7. Engine Coolant Pipe
