Page 745 of 2248

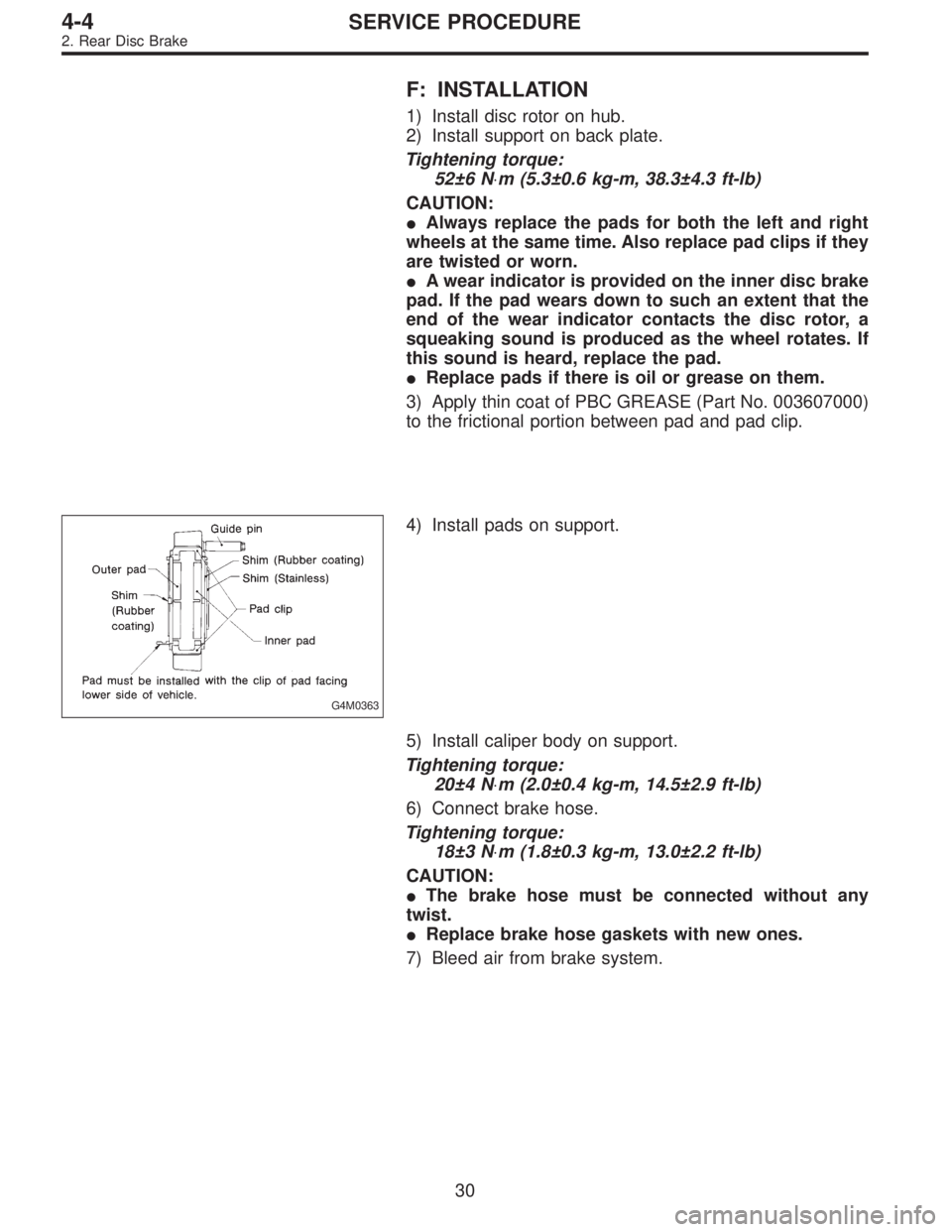

SUBARU LEGACY 1995 Service Repair Manual F: INSTALLATION 1) Install disc rotor on hub. 2) Install support on back plate. Tightening torque: 52±6 N⋅m (5.3±0.6 kg-m, 38.3±4.3 ft-lb) CAUTION: Always replace the pads for both the left and

Page 746 of 2248

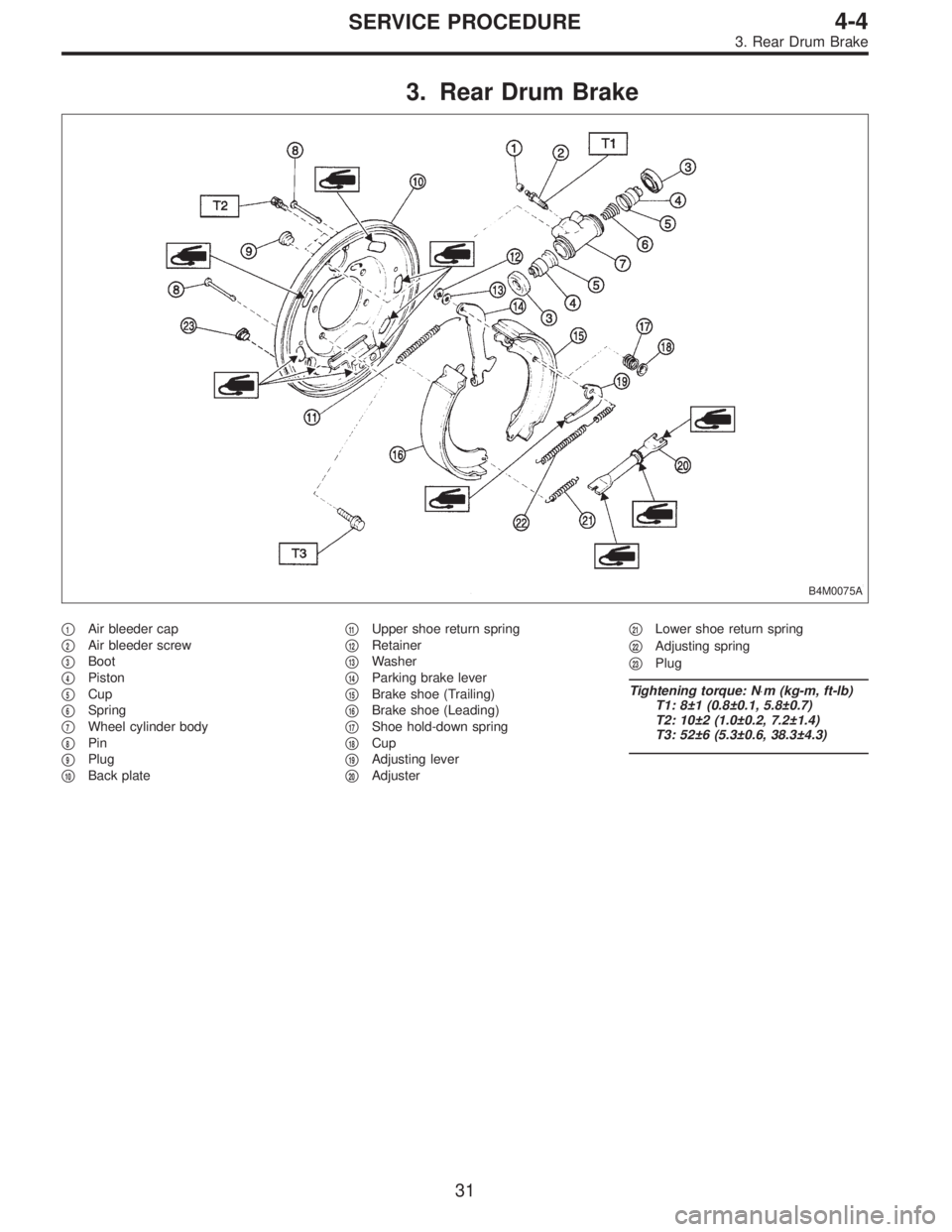

SUBARU LEGACY 1995 Service Repair Manual 3. Rear Drum Brake B4M0075A 1Air bleeder cap  2Air bleeder screw  3Boot  4Piston  5Cup  6Spring  7Wheel cylinder body  8Pin  9Plug  10Back plate 11Upper shoe return spring  12Retainer  13

Page 747 of 2248

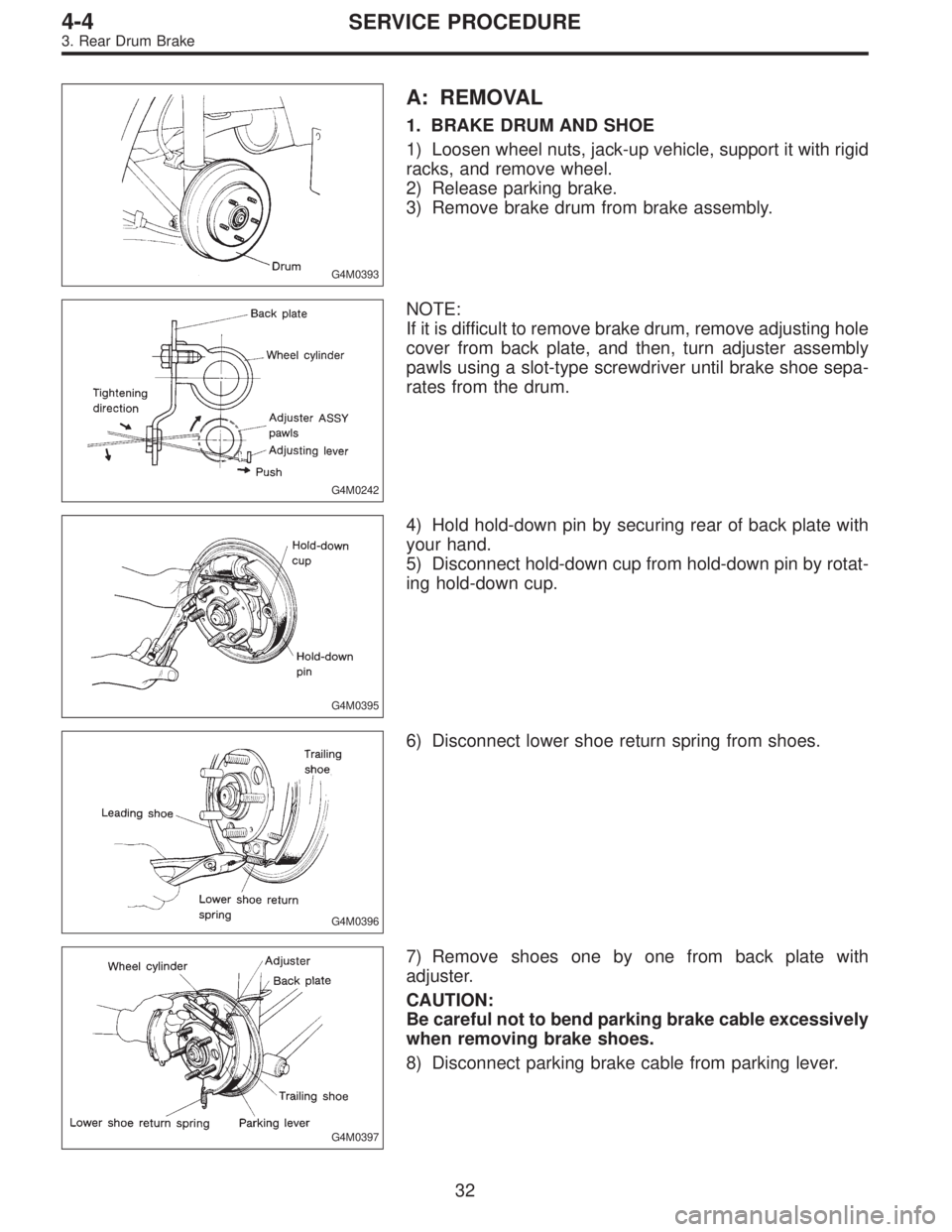

SUBARU LEGACY 1995 Service Repair Manual G4M0393 A: REMOVAL 1. BRAKE DRUM AND SHOE 1) Loosen wheel nuts, jack-up vehicle, support it with rigid racks, and remove wheel. 2) Release parking brake. 3) Remove brake drum from brake assembly. G4M0

Page 748 of 2248

SUBARU LEGACY 1995 Service Repair Manual G4M0398 9) Remove the following:  1Retainer  2Washer  3Parking lever  4Upper shoe return spring  5Trailing shoe  6Leading shoe  7Shoe hold-down spring  8Shoe hold-down cup  9Adjusting lever

Page 749 of 2248

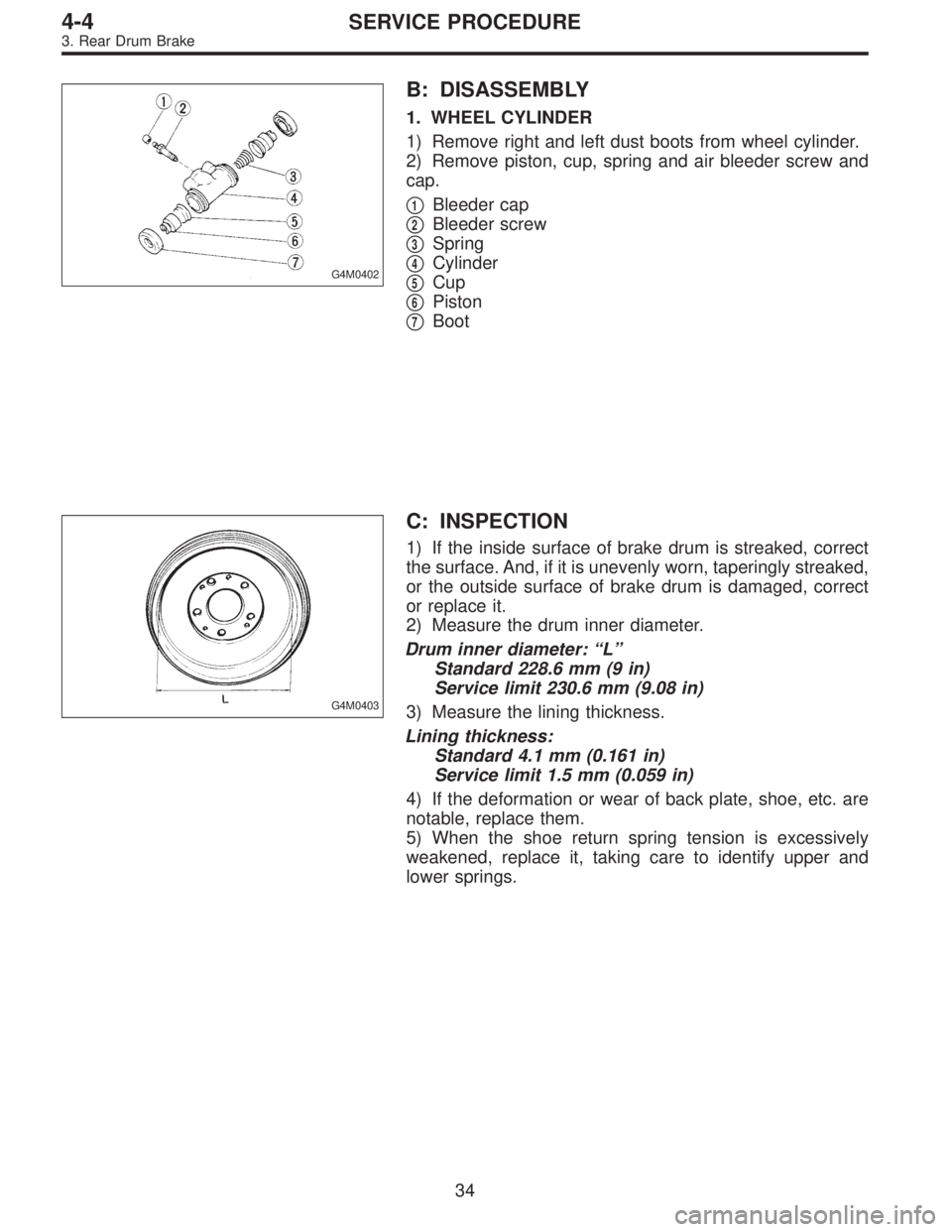

SUBARU LEGACY 1995 Service Repair Manual G4M0402 B: DISASSEMBLY 1. WHEEL CYLINDER 1) Remove right and left dust boots from wheel cylinder. 2) Remove piston, cup, spring and air bleeder screw and cap.  1Bleeder cap  2Bleeder screw  3Spring

Page 750 of 2248

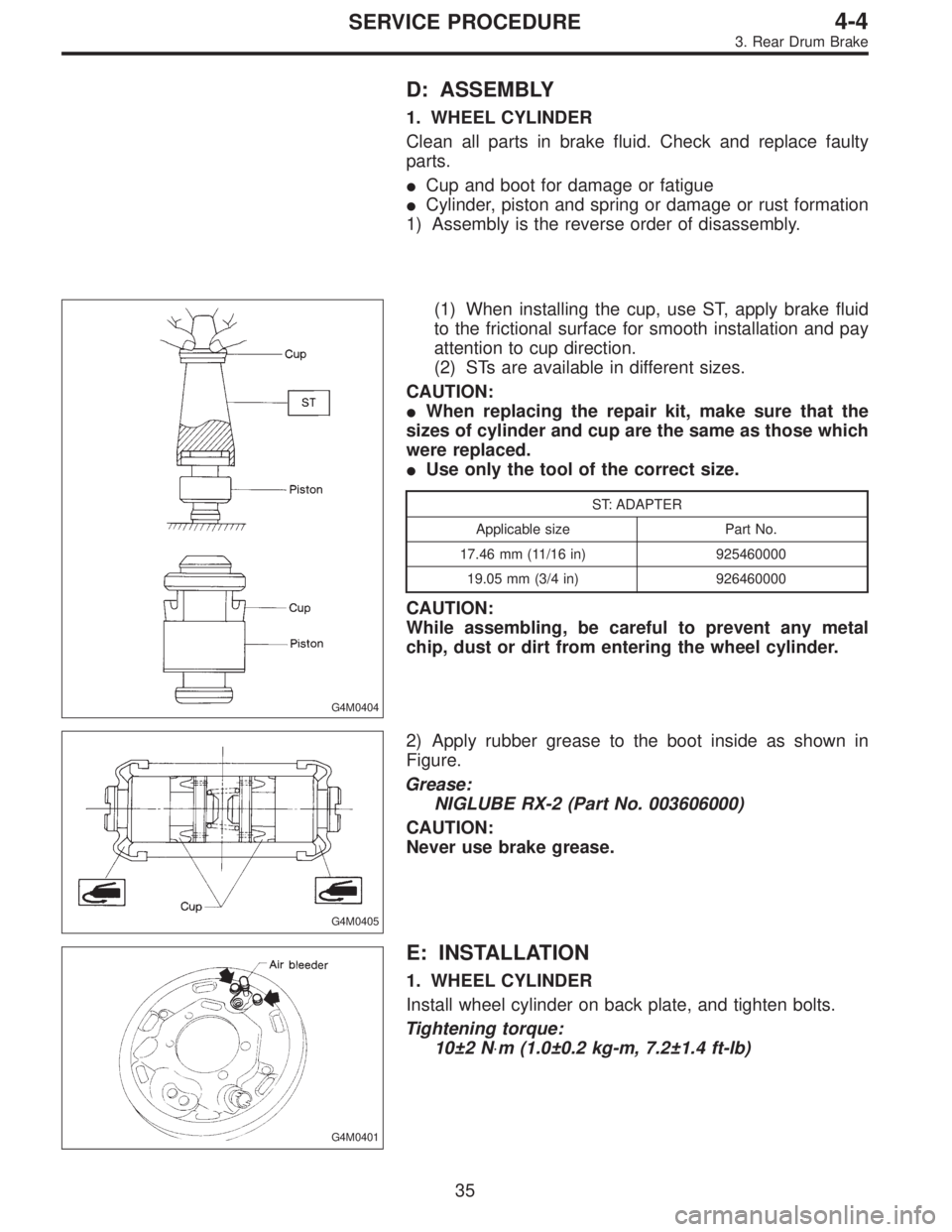

SUBARU LEGACY 1995 Service Repair Manual D: ASSEMBLY 1. WHEEL CYLINDER Clean all parts in brake fluid. Check and replace faulty parts. Cup and boot for damage or fatigue Cylinder, piston and spring or damage or rust formation 1) Assembly i

Page 751 of 2248

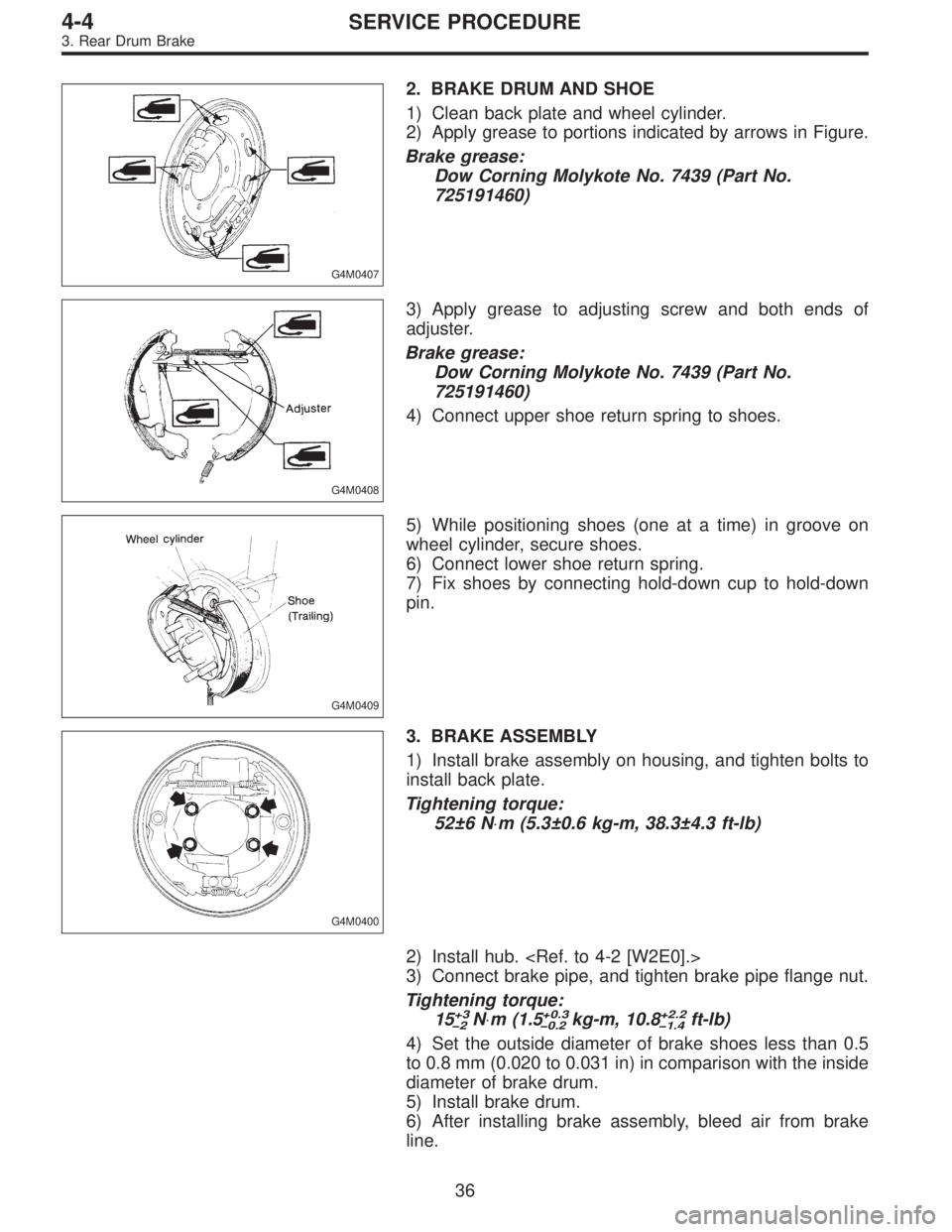

SUBARU LEGACY 1995 Service Repair Manual G4M0407 2. BRAKE DRUM AND SHOE 1) Clean back plate and wheel cylinder. 2) Apply grease to portions indicated by arrows in Figure. Brake grease: Dow Corning Molykote No. 7439 (Part No. 725191460) G4M04

Page 752 of 2248

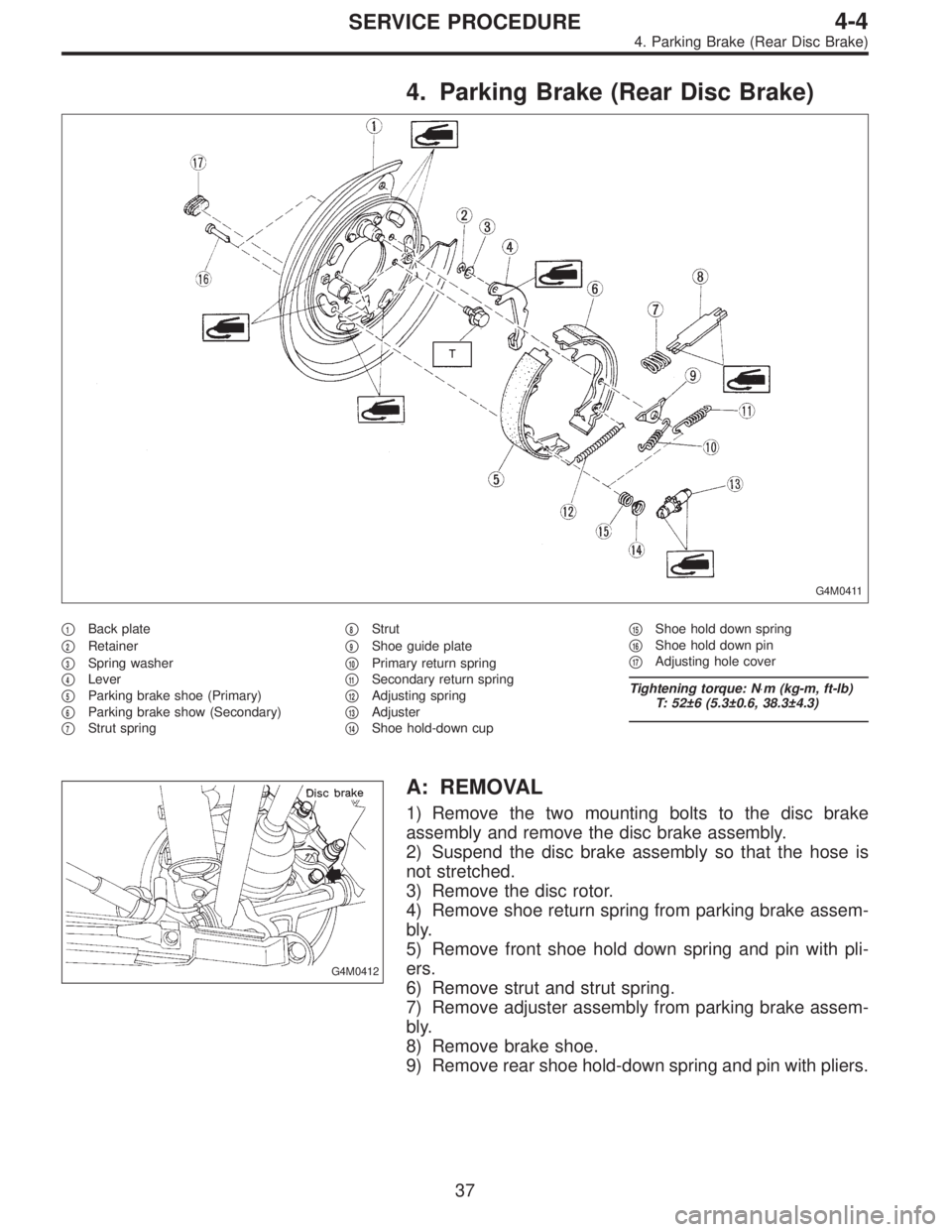

SUBARU LEGACY 1995 Service Repair Manual 4. Parking Brake (Rear Disc Brake) G4M0411 1Back plate  2Retainer  3Spring washer  4Lever  5Parking brake shoe (Primary)  6Parking brake show (Secondary)  7Strut spring 8Strut  9Shoe guide pl
