Page 1673 of 2248

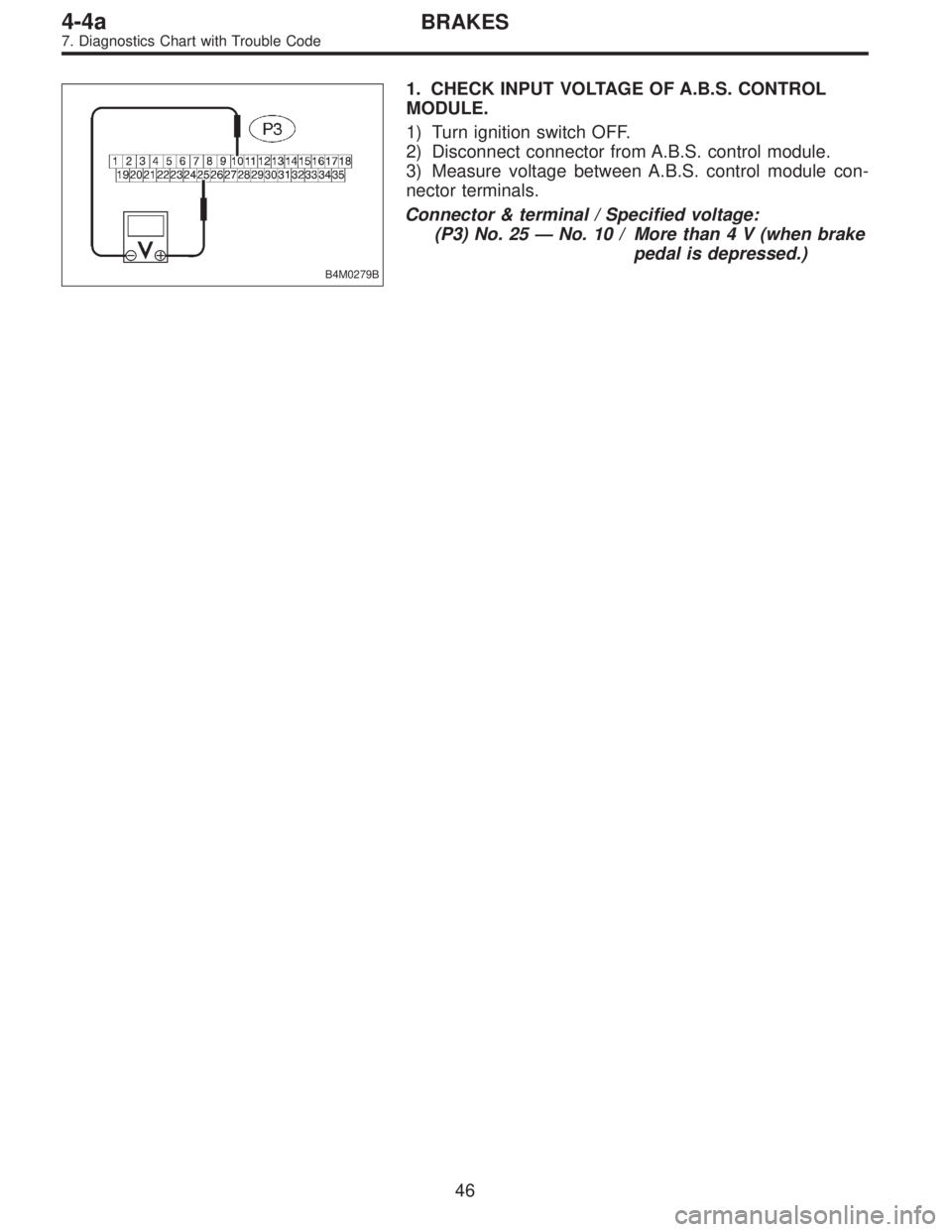

SUBARU LEGACY 1995 Service Repair Manual B4M0279B 1. CHECK INPUT VOLTAGE OF A.B.S. CONTROL MODULE. 1) Turn ignition switch OFF. 2) Disconnect connector from A.B.S. control module. 3) Measure voltage between A.B.S. control module con- nector

Page 1674 of 2248

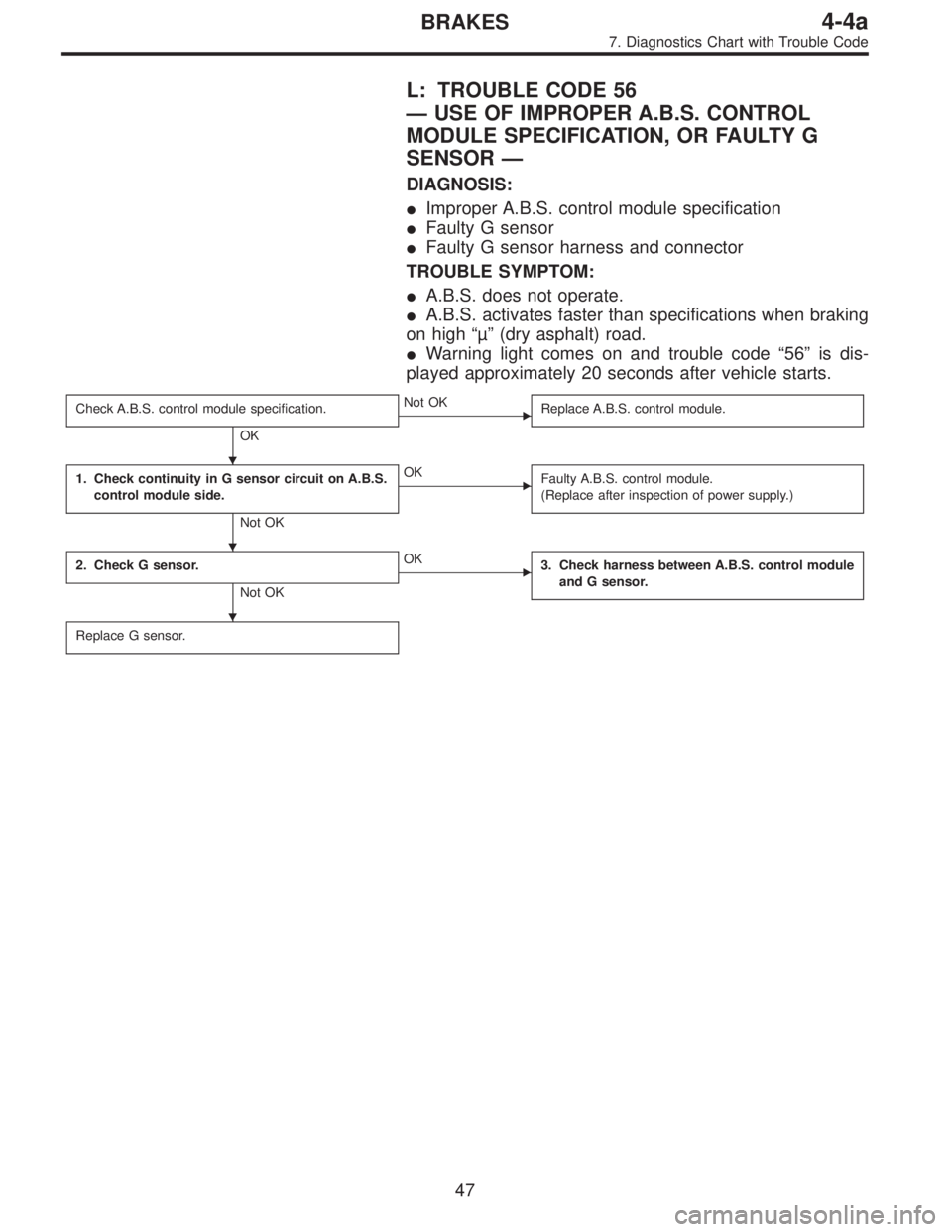

SUBARU LEGACY 1995 Service Repair Manual L: TROUBLE CODE 56 —USE OF IMPROPER A.B.S. CONTROL MODULE SPECIFICATION, OR FAULTY G SENSOR— DIAGNOSIS: Improper A.B.S. control module specification Faulty G sensor Faulty G sensor harness and

Page 1675 of 2248

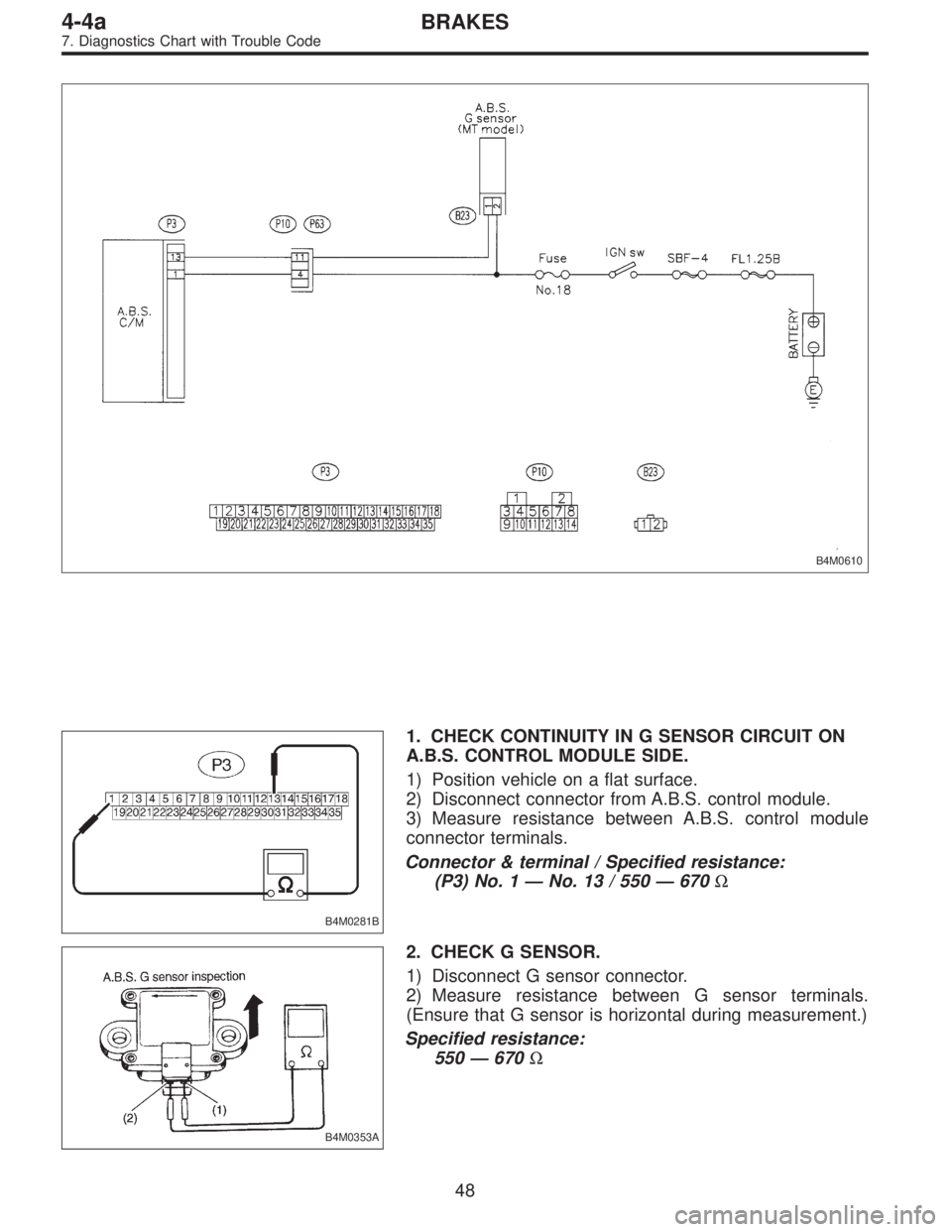

SUBARU LEGACY 1995 Service Repair Manual B4M0610 B4M0281B 1. CHECK CONTINUITY IN G SENSOR CIRCUIT ON A.B.S. CONTROL MODULE SIDE. 1) Position vehicle on a flat surface. 2) Disconnect connector from A.B.S. control module. 3) Measure resistance

Page 1676 of 2248

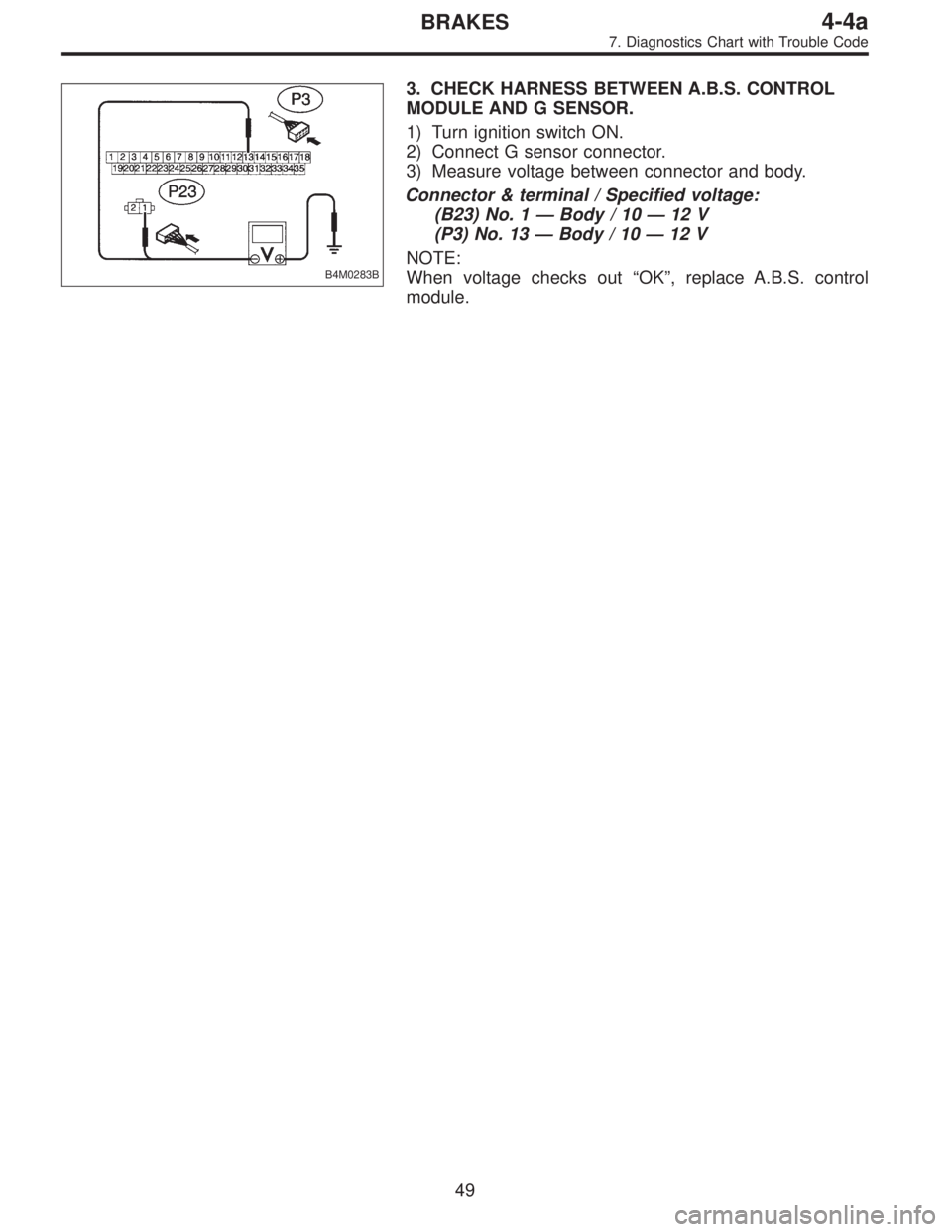

SUBARU LEGACY 1995 Service Repair Manual B4M0283B 3. CHECK HARNESS BETWEEN A.B.S. CONTROL MODULE AND G SENSOR. 1) Turn ignition switch ON. 2) Connect G sensor connector. 3) Measure voltage between connector and body. Connector & terminal / S

Page 1677 of 2248

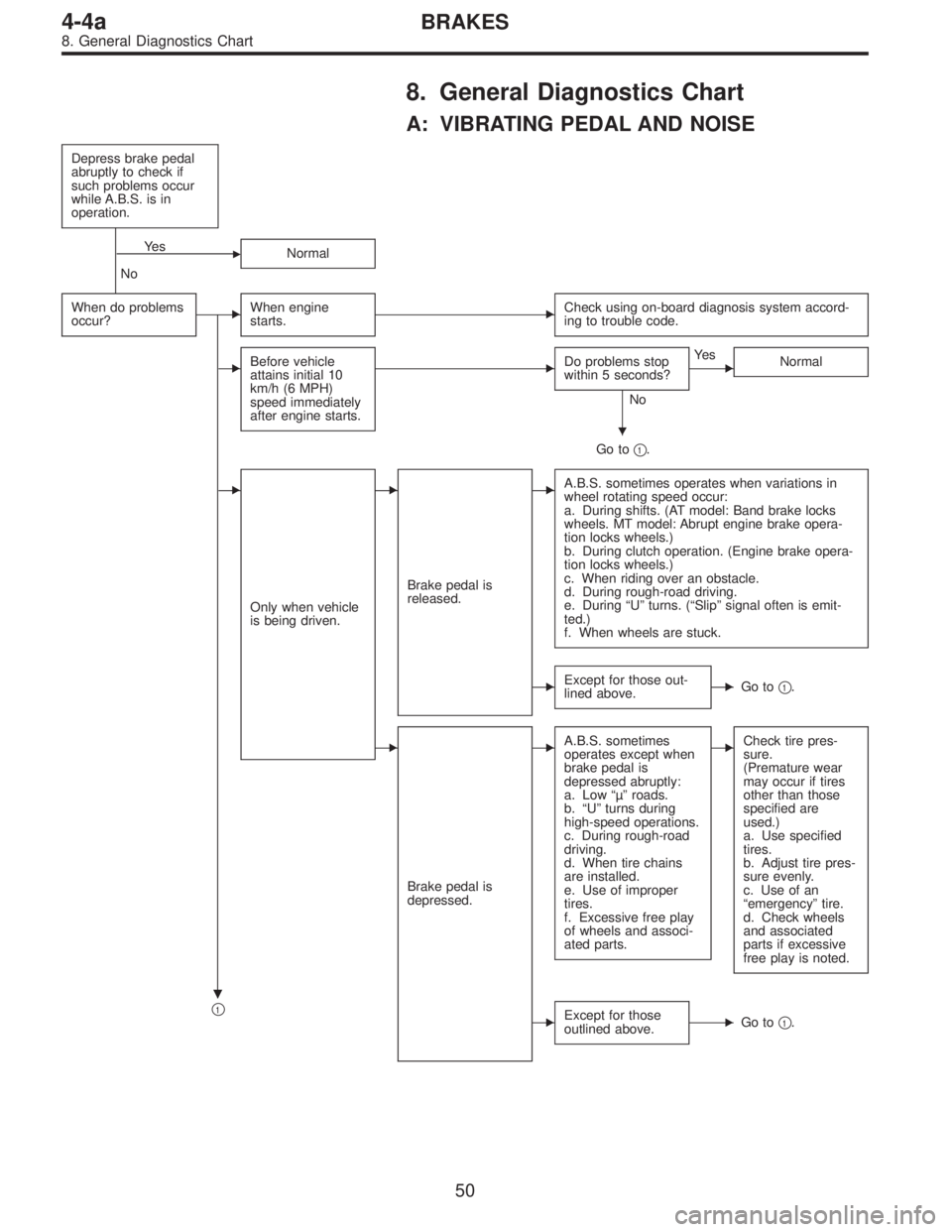

SUBARU LEGACY 1995 Service Repair Manual 8. General Diagnostics Chart A: VIBRATING PEDAL AND NOISE Depress brake pedal abruptly to check if such problems occur while A.B.S. is in operation. Ye s NoNormal When do problems occur?When engine

Page 1678 of 2248

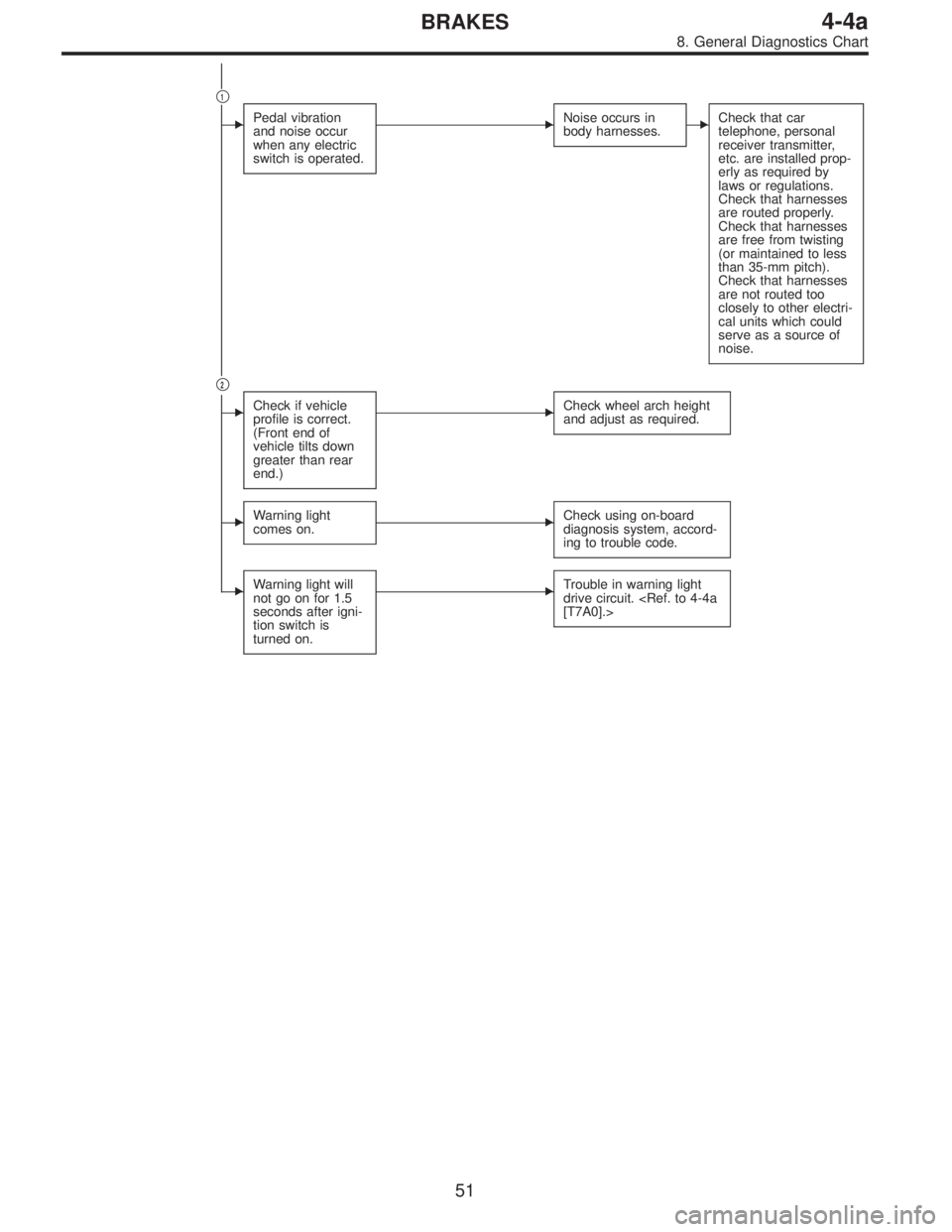

SUBARU LEGACY 1995 Service Repair Manual 1 Pedal vibration and noise occur when any electric switch is operated.Noise occurs in body harnesses.Check that car telephone, personal receiver transmitter, etc. are installed prop- erly as requ

Page 1679 of 2248

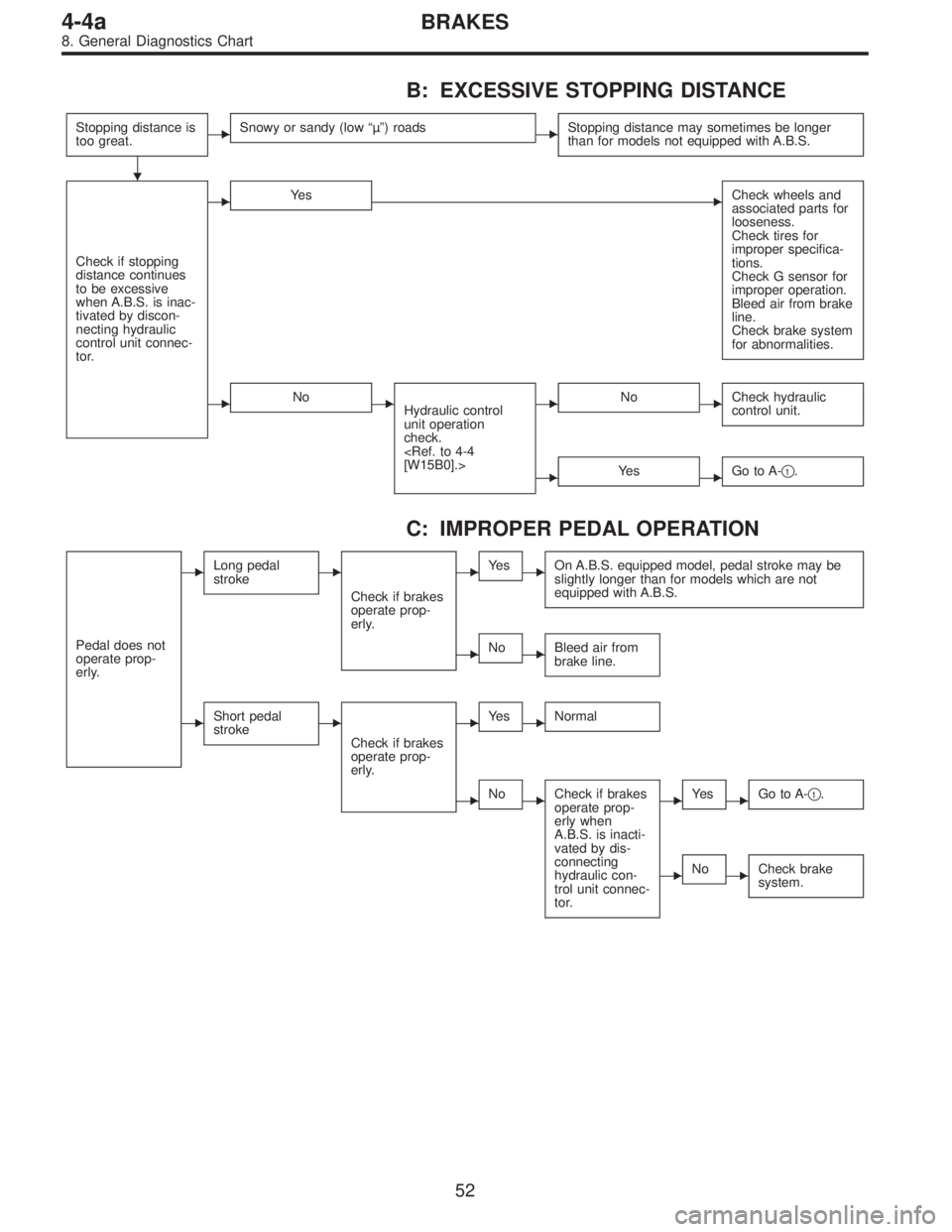

SUBARU LEGACY 1995 Service Repair Manual B: EXCESSIVE STOPPING DISTANCE Stopping distance is too great.Snowy or sandy (low“µ”) roadsStopping distance may sometimes be longer than for models not equipped with A.B.S. Check if stopping d

Page 1680 of 2248

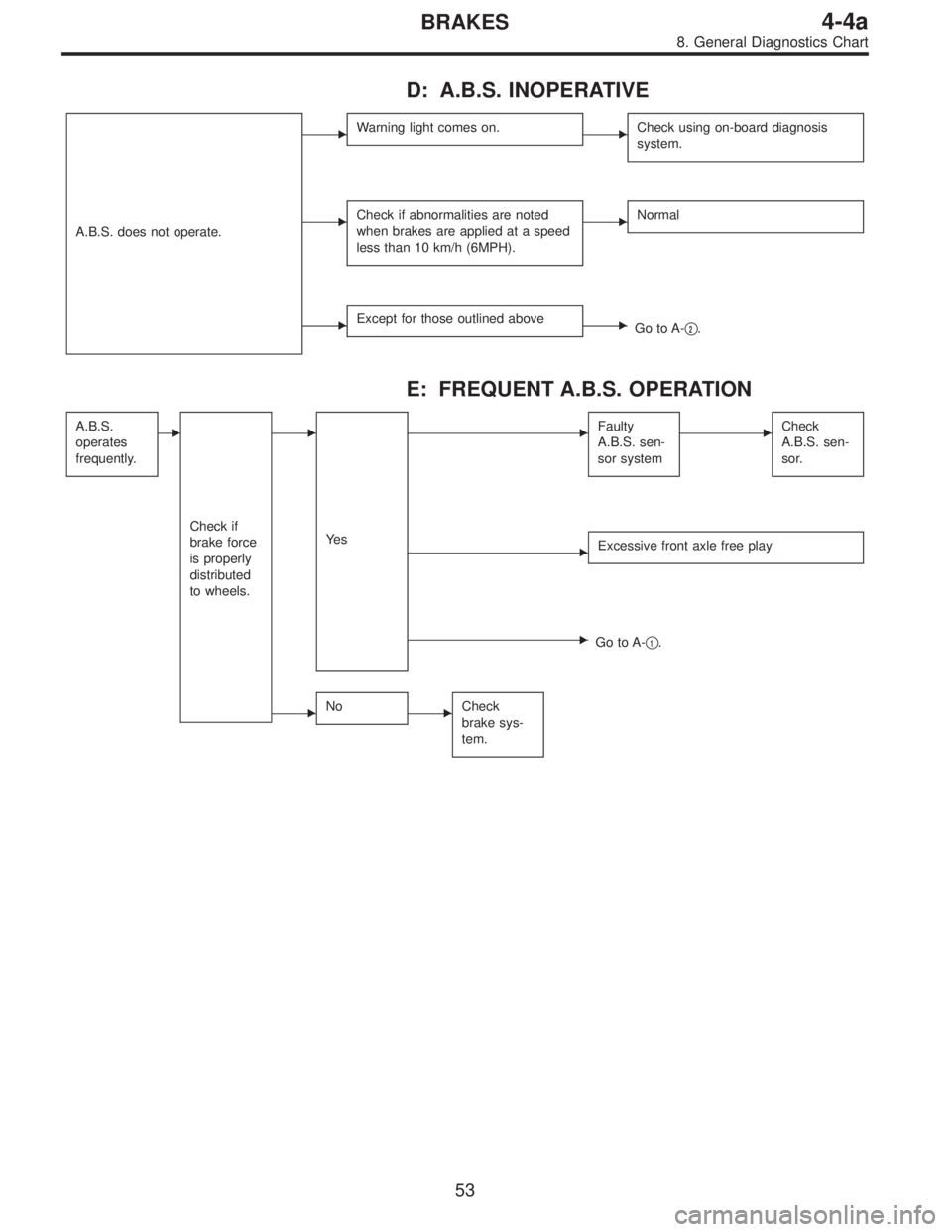

SUBARU LEGACY 1995 Service Repair Manual D: A.B.S. INOPERATIVE A.B.S. does not operate. Warning light comes on.Check using on-board diagnosis system. Check if abnormalities are noted when brakes are applied at a speed less than 10 km/h (6
