Page 1249 of 2248

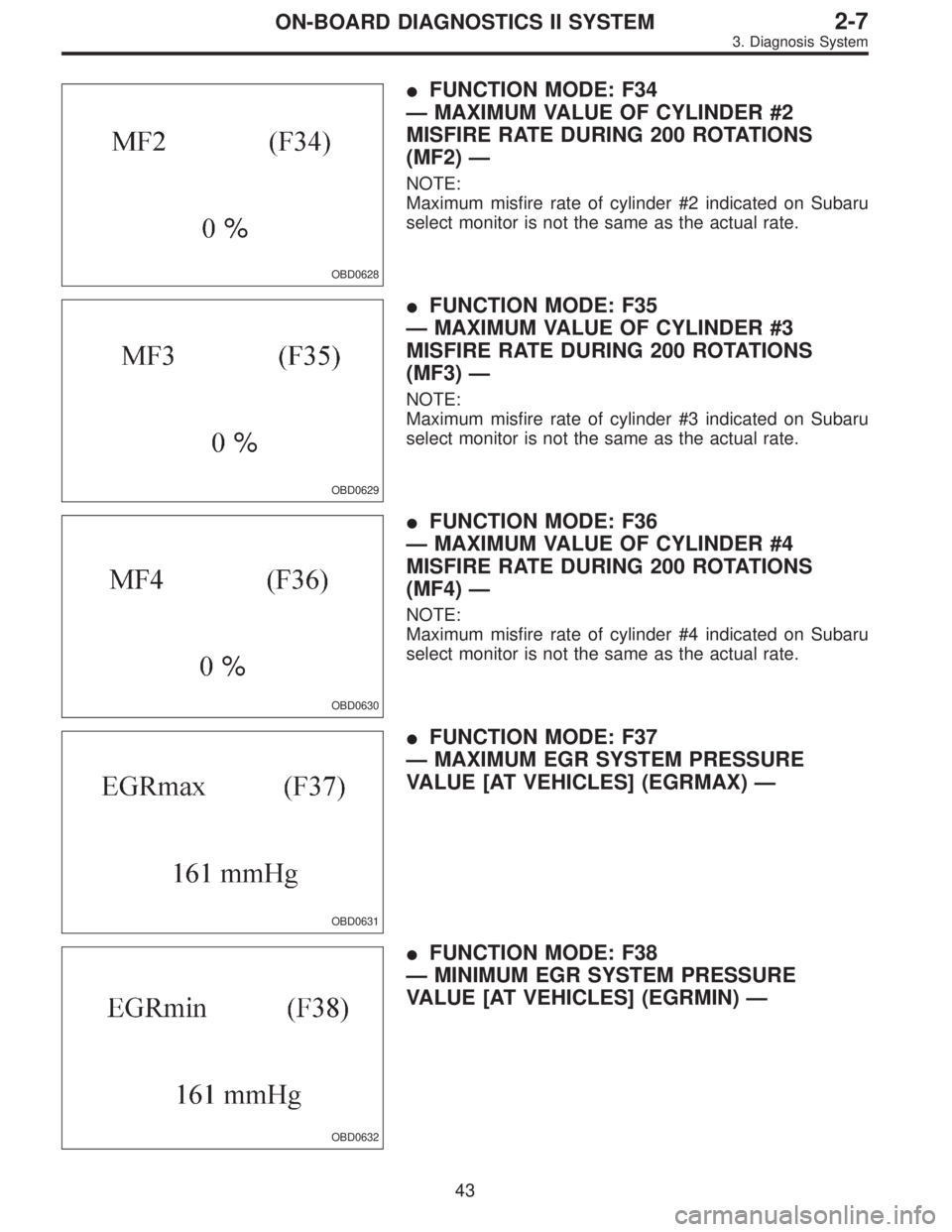

OBD0628
FUNCTION MODE: F34
—MAXIMUM VALUE OF CYLINDER #2
MISFIRE RATE DURING 200 ROTATIONS
(MF2)—
NOTE:
Maximum misfire rate of cylinder #2 indicated on Subaru
select monitor is not the same as the actual rate.
OBD0629
FUNCTION MODE: F35
—MAXIMUM VALUE OF CYLINDER #3
MISFIRE RATE DURING 200 ROTATIONS
(MF3)—
NOTE:
Maximum misfire rate of cylinder #3 indicated on Subaru
select monitor is not the same as the actual rate.
OBD0630
FUNCTION MODE: F36
—MAXIMUM VALUE OF CYLINDER #4
MISFIRE RATE DURING 200 ROTATIONS
(MF4)—
NOTE:
Maximum misfire rate of cylinder #4 indicated on Subaru
select monitor is not the same as the actual rate.
OBD0631
FUNCTION MODE: F37
—MAXIMUM EGR SYSTEM PRESSURE
VALUE [AT VEHICLES] (EGRMAX)—
OBD0632
FUNCTION MODE: F38
—MINIMUM EGR SYSTEM PRESSURE
VALUE [AT VEHICLES] (EGRMIN)—
43
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
Page 1250 of 2248

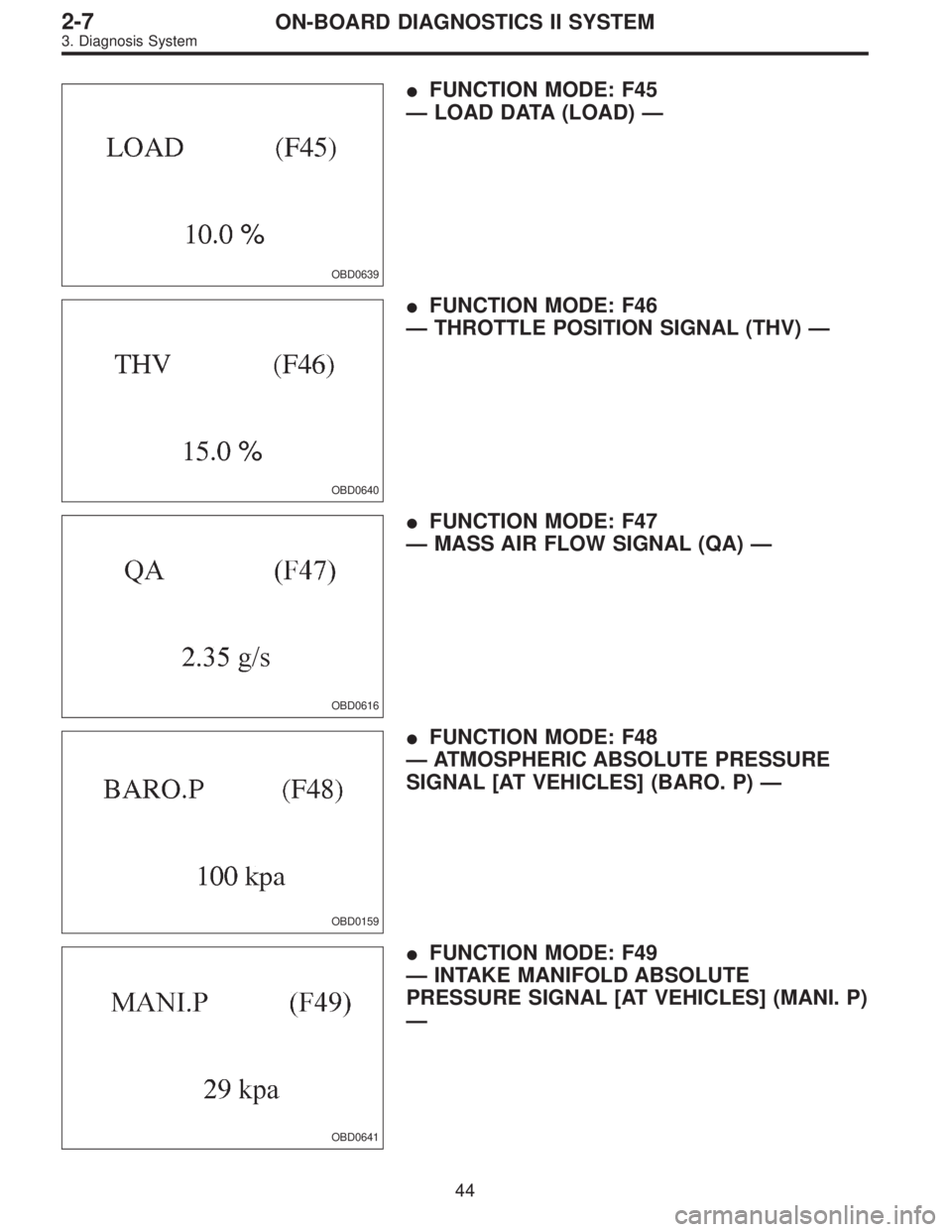

OBD0639
FUNCTION MODE: F45
—LOAD DATA (LOAD)—
OBD0640
FUNCTION MODE: F46
—THROTTLE POSITION SIGNAL (THV)—
OBD0616
FUNCTION MODE: F47
—MASS AIR FLOW SIGNAL (QA)—
OBD0159
FUNCTION MODE: F48
—ATMOSPHERIC ABSOLUTE PRESSURE
SIGNAL [AT VEHICLES] (BARO. P)—
OBD0641
FUNCTION MODE: F49
—INTAKE MANIFOLD ABSOLUTE
PRESSURE SIGNAL [AT VEHICLES] (MANI. P)
—
44
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
Page 1251 of 2248

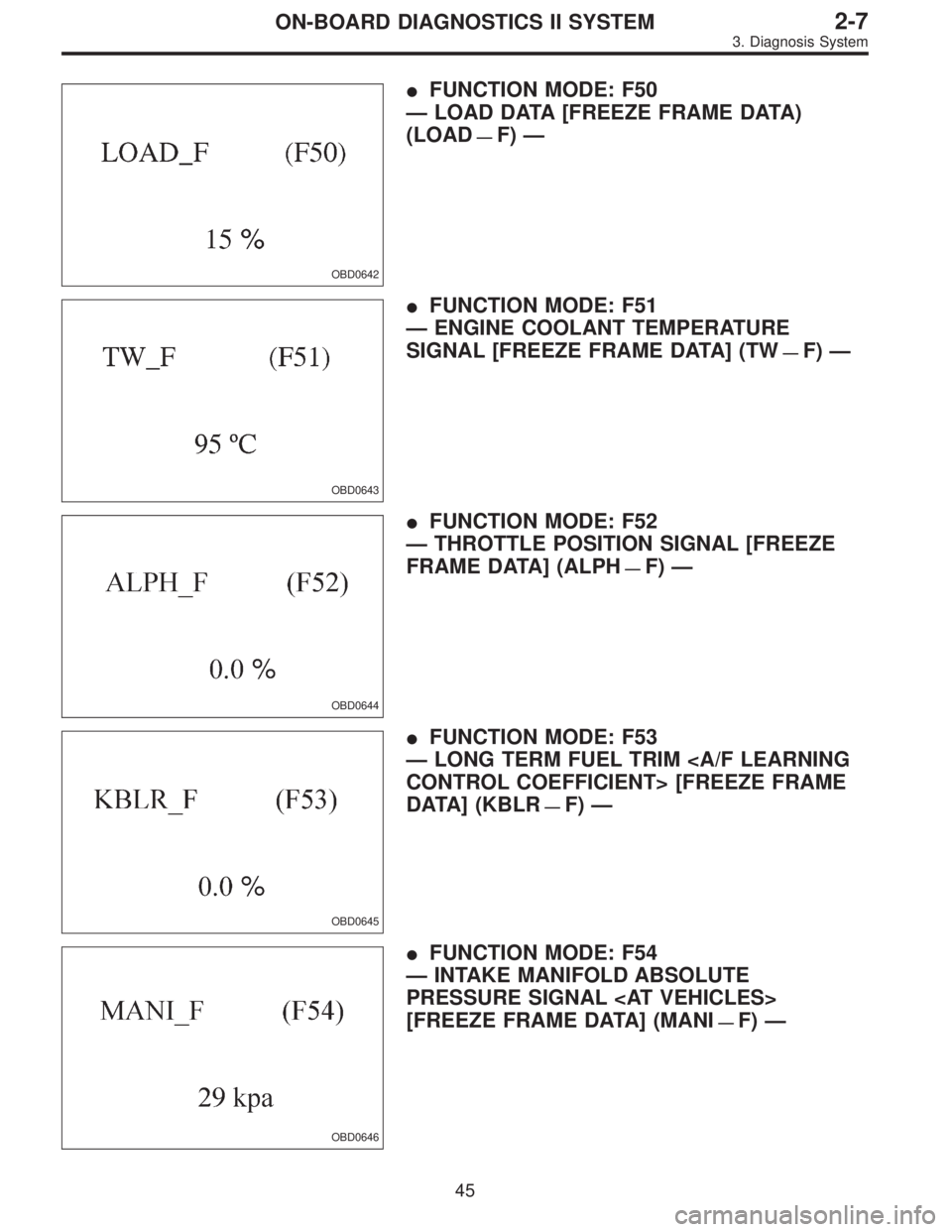

OBD0642
FUNCTION MODE: F50
—LOAD DATA [FREEZE FRAME DATA)
(LOAD
—F)—
OBD0643
FUNCTION MODE: F51
—ENGINE COOLANT TEMPERATURE
SIGNAL [FREEZE FRAME DATA] (TW
—F)—
OBD0644
FUNCTION MODE: F52
—THROTTLE POSITION SIGNAL [FREEZE
FRAME DATA] (ALPH
—F)—
OBD0645
FUNCTION MODE: F53
—LONG TERM FUEL TRIM
CONTROL COEFFICIENT> [FREEZE FRAME
DATA] (KBLR
—F)—
OBD0646
FUNCTION MODE: F54
—INTAKE MANIFOLD ABSOLUTE
PRESSURE SIGNAL
[FREEZE FRAME DATA] (MANI
—F)—
45
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System

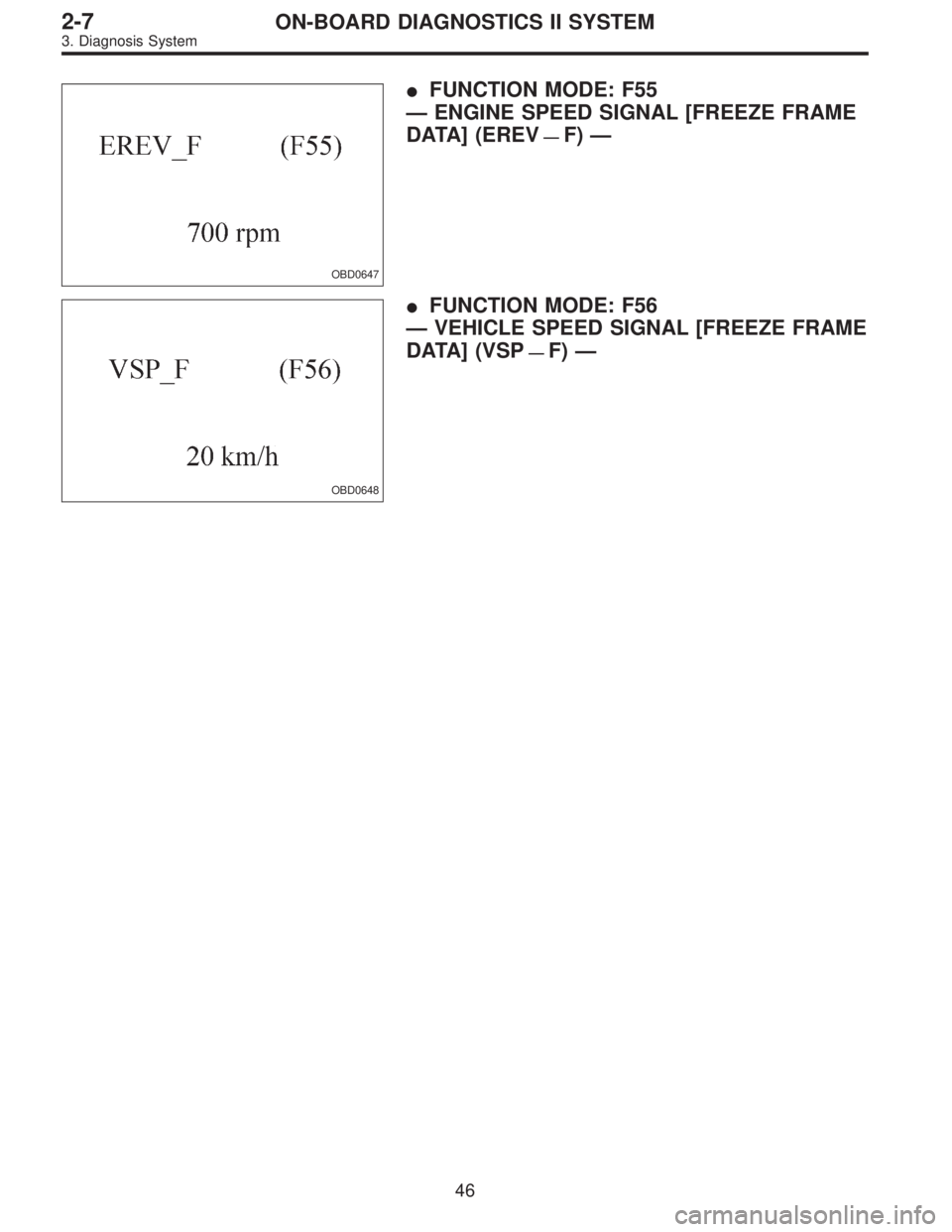

Page 1252 of 2248
OBD0647
FUNCTION MODE: F55
—ENGINE SPEED SIGNAL [FREEZE FRAME
DATA] (EREV
—F)—
OBD0648
FUNCTION MODE: F56
—VEHICLE SPEED SIGNAL [FREEZE FRAME
DATA] (VSP
—F)—
46
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
Page 1253 of 2248

3. FA MODE FOR ENGINE
Function
modeLED No. Contents Display LED“ON”requirements
FA 01 Ignition switch IG When ignition switch is turned ON.
2 AT/MT identification signal AT When AT identification signal is entered.
3 Test mode connector UD When test mode connector is connected.
5 Idle speed control identification signal ICWhen engine rpm is less than the established
value.
7 Neutral switch NT When neutral position signal is entered.
FA 12 Air conditioner switch AC When air conditioner switch is turned ON.
3 Air conditioner relay AR When air conditioner relay is in function.
4 Radiator fan relay 1 R1 When radiator fan relay 1 is in function.
5 Radiator fan relay 2 R2 When radiator fan relay 2 is in function.
6 Fuel pump relay FP When fuel pump relay is in function.
7 Purge control solenoid valve CP When purge control solenoid valve is in function.
9 Pressure sources switching solenoid valve BRWhen pressure sources switching solenoid valve
is in function.
FA 23 EGR solenoid valve EG When EGR solenoid valve is in function.
4 Engine torque control signal TR When engine torque control signal is entered.
5 Engine torque control cut signal TC When engine torque control cut signal is got out.
9 Front oxygen sensor signal FO When front oxygen sensor mixture ratio is rich.
10 Rear oxygen sensor signal RO When rear oxygen sensor mixture ratio is rich.
47
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System

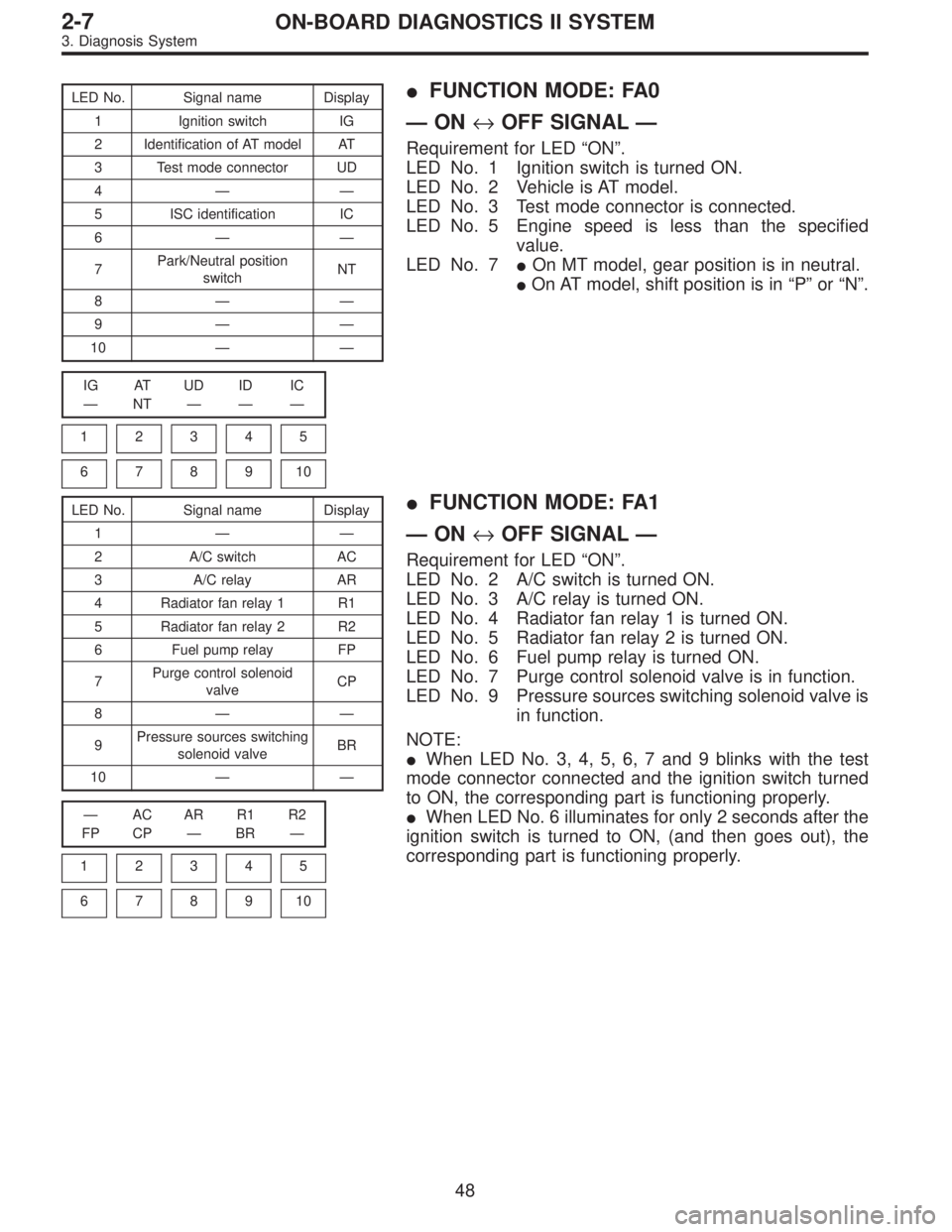

Page 1254 of 2248

LED No. Signal name Display
1 Ignition switch IG
2 Identification of AT model AT
3 Test mode connector UD
4——
5 ISC identification IC
6——
7Park/Neutral position
switchNT
8——
9——
10——
IG AT UD ID IC
—NT———
1
2345
678910
FUNCTION MODE: FA0
—ON↔OFF SIGNAL—
Requirement for LED“ON”.
LED No. 1 Ignition switch is turned ON.
LED No. 2 Vehicle is AT model.
LED No. 3 Test mode connector is connected.
LED No. 5 Engine speed is less than the specified
value.
LED No. 7On MT model, gear position is in neutral.
On AT model, shift position is in“P”or“N”.
LED No. Signal name Display
1——
2 A/C switch AC
3 A/C relay AR
4 Radiator fan relay 1 R1
5 Radiator fan relay 2 R2
6 Fuel pump relay FP
7Purge control solenoid
valveCP
8——
9Pressure sources switching
solenoid valveBR
10——
—AC AR R1 R2
FP CP—BR—
1
2345
678910
FUNCTION MODE: FA1
—ON↔OFF SIGNAL—
Requirement for LED“ON”.
LED No. 2 A/C switch is turned ON.
LED No. 3 A/C relay is turned ON.
LED No. 4 Radiator fan relay 1 is turned ON.
LED No. 5 Radiator fan relay 2 is turned ON.
LED No. 6 Fuel pump relay is turned ON.
LED No. 7 Purge control solenoid valve is in function.
LED No. 9 Pressure sources switching solenoid valve is
in function.
NOTE:
When LED No. 3, 4, 5, 6, 7 and 9 blinks with the test
mode connector connected and the ignition switch turned
to ON, the corresponding part is functioning properly.
When LED No. 6 illuminates for only 2 seconds after the
ignition switch is turned to ON, (and then goes out), the
corresponding part is functioning properly.
48
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System

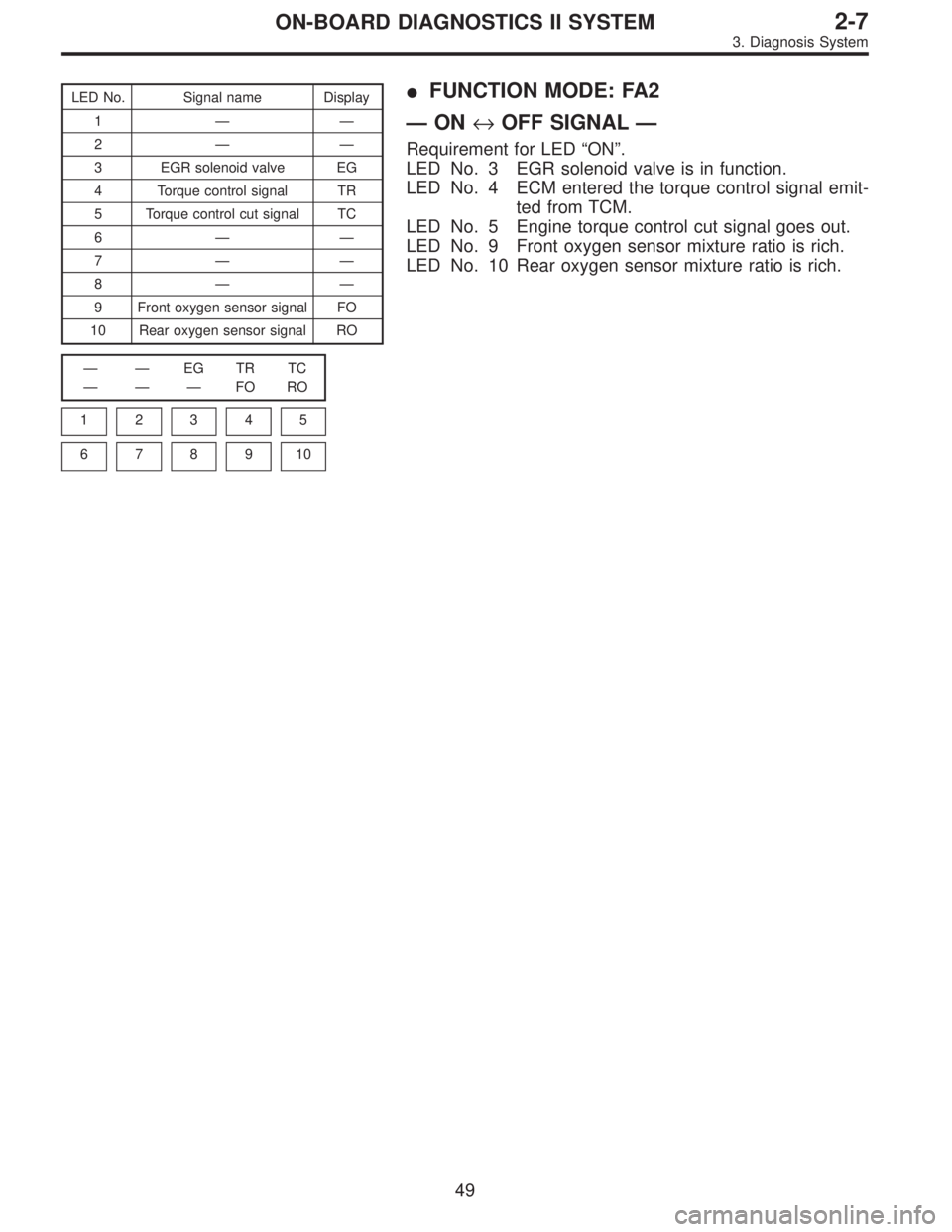

Page 1255 of 2248
LED No. Signal name Display
1——
2——
3 EGR solenoid valve EG
4 Torque control signal TR
5 Torque control cut signal TC
6——
7——
8——
9 Front oxygen sensor signal FO
10 Rear oxygen sensor signal RO
——EG TR TC
———FO RO
1
2345
678910
FUNCTION MODE: FA2
—ON↔OFF SIGNAL—
Requirement for LED“ON”.
LED No. 3 EGR solenoid valve is in function.
LED No. 4 ECM entered the torque control signal emit-
ted from TCM.
LED No. 5 Engine torque control cut signal goes out.
LED No. 9 Front oxygen sensor mixture ratio is rich.
LED No. 10 Rear oxygen sensor mixture ratio is rich.
49
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
Page 1256 of 2248

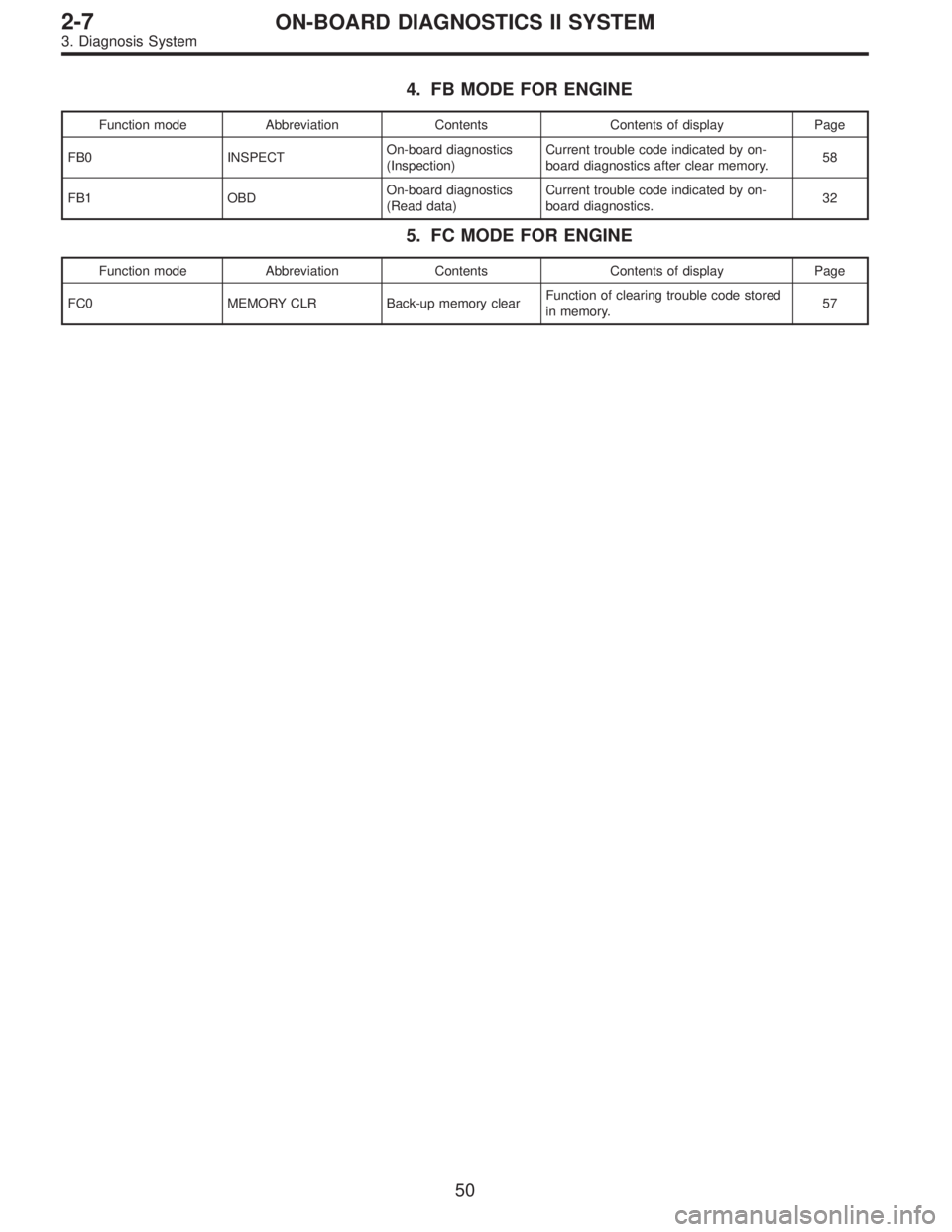

4. FB MODE FOR ENGINE
Function mode Abbreviation Contents Contents of display Page
FB0 INSPECTOn-board diagnostics
(Inspection)Current trouble code indicated by on-
board diagnostics after clear memory.58
FB1 OBDOn-board diagnostics
(Read data)Current trouble code indicated by on-
board diagnostics.32
5. FC MODE FOR ENGINE
Function mode Abbreviation Contents Contents of display Page
FC0 MEMORY CLR Back-up memory clearFunction of clearing trouble code stored
in memory.57
50
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
