Page 1009 of 2248

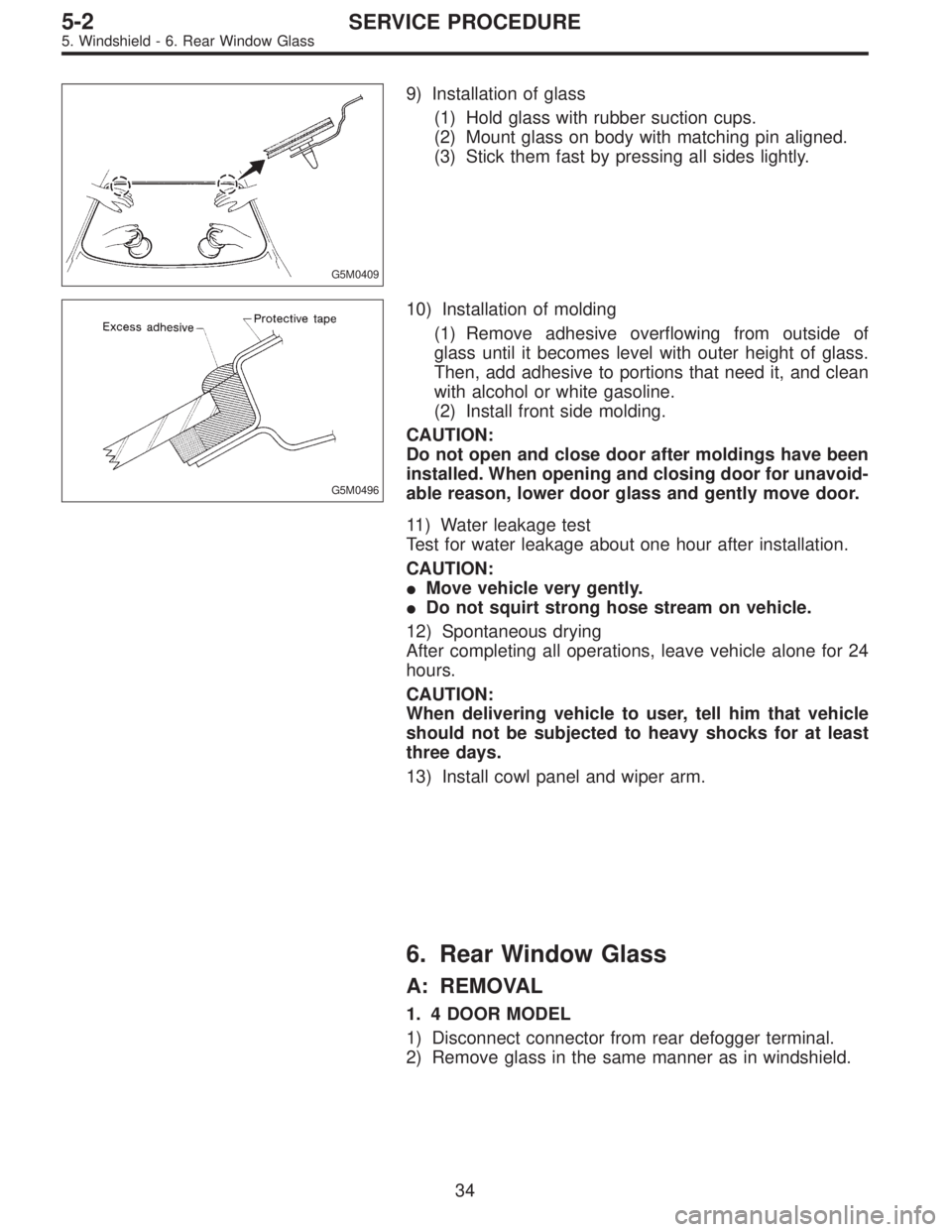

SUBARU LEGACY 1995 Service Repair Manual G5M0409 9) Installation of glass (1) Hold glass with rubber suction cups. (2) Mount glass on body with matching pin aligned. (3) Stick them fast by pressing all sides lightly. G5M0496 10) Installation

Page 1010 of 2248

SUBARU LEGACY 1995 Service Repair Manual G5M0409 9) Installation of glass (1) Hold glass with rubber suction cups. (2) Mount glass on body with matching pin aligned. (3) Stick them fast by pressing all sides lightly. G5M0496 10) Installation

Page 1011 of 2248

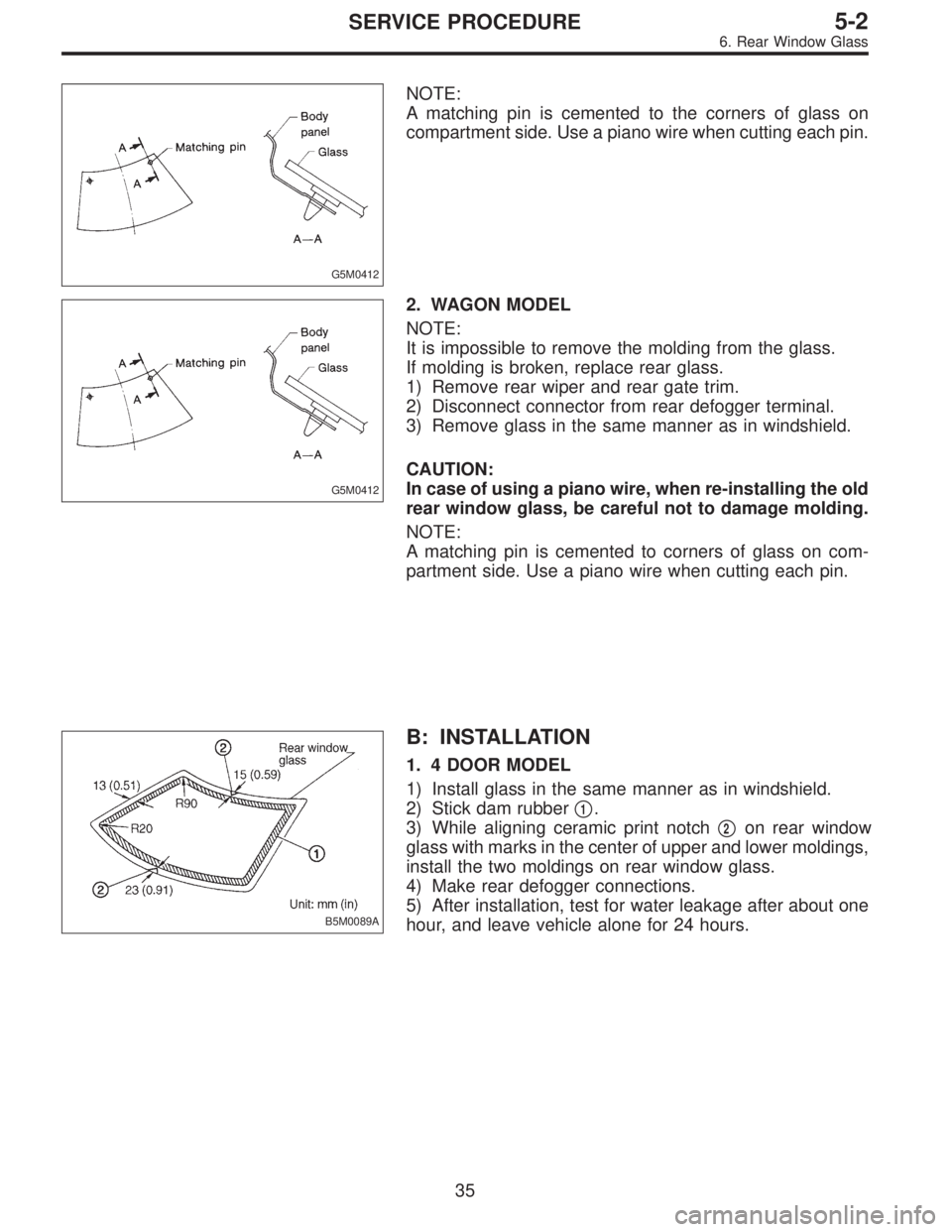

SUBARU LEGACY 1995 Service Repair Manual G5M0412 NOTE: A matching pin is cemented to the corners of glass on compartment side. Use a piano wire when cutting each pin. G5M0412 2. WAGON MODEL NOTE: It is impossible to remove the molding from t

Page 1012 of 2248

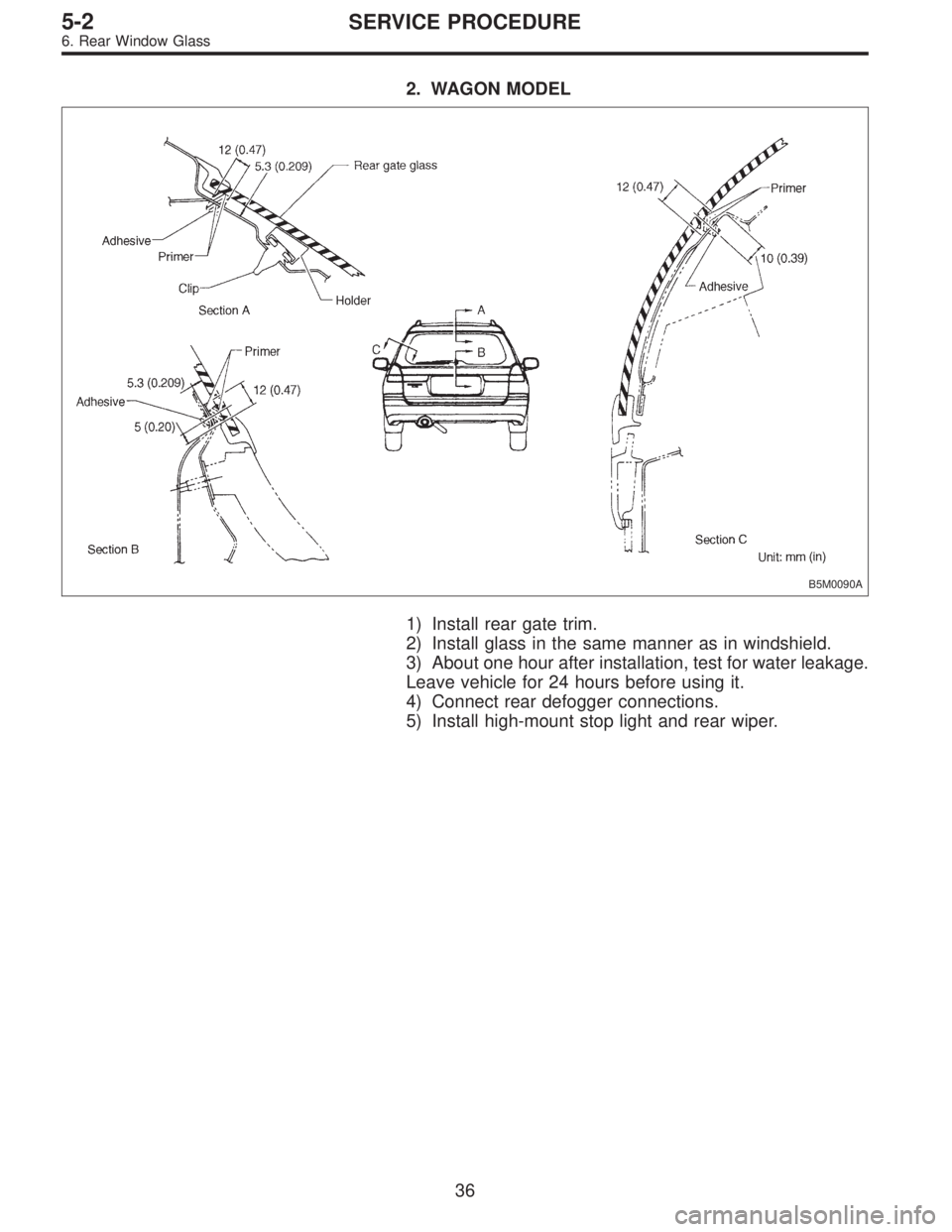

SUBARU LEGACY 1995 Service Repair Manual 2. WAGON MODEL B5M0090A 1) Install rear gate trim. 2) Install glass in the same manner as in windshield. 3) About one hour after installation, test for water leakage. Leave vehicle for 24 hours before

Page 1013 of 2248

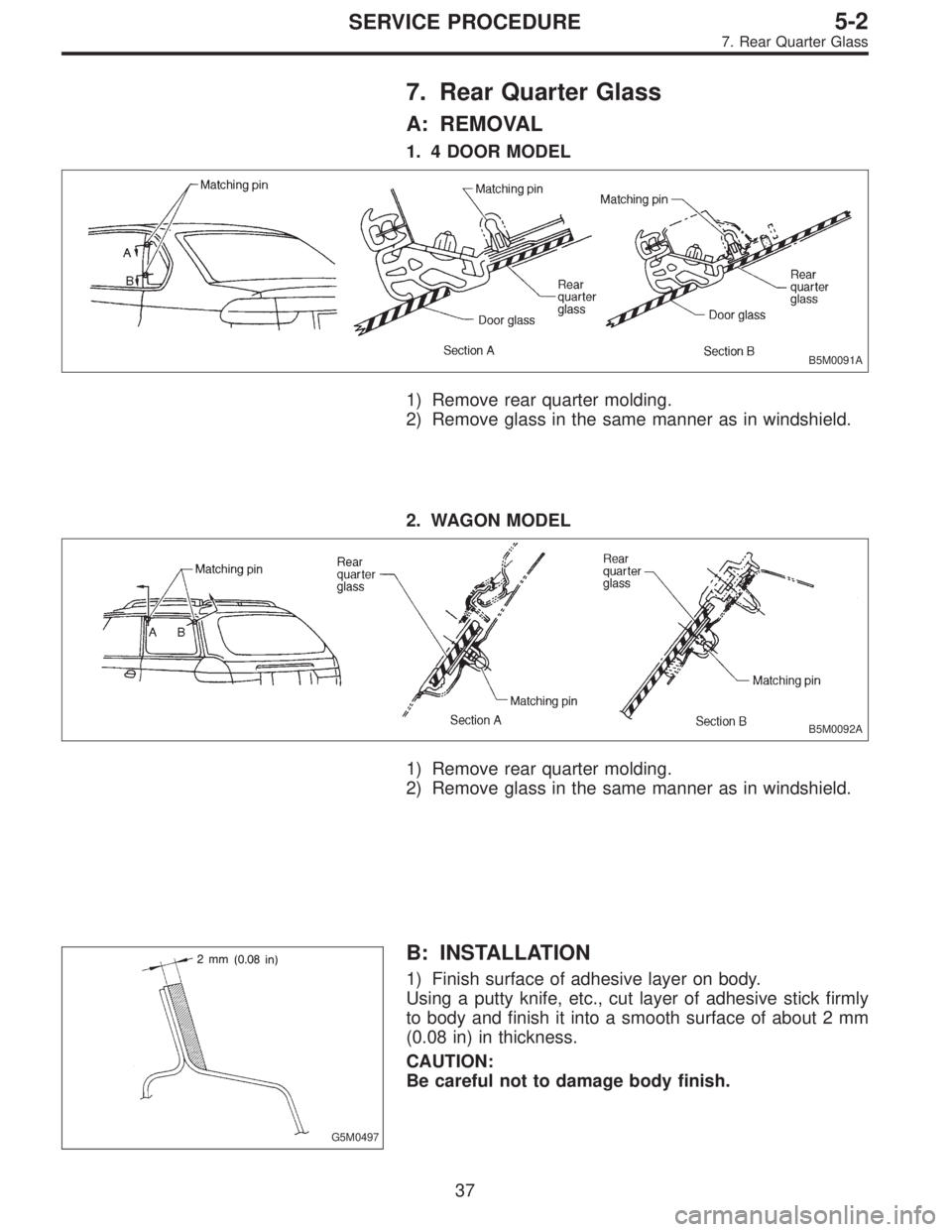

SUBARU LEGACY 1995 Service Repair Manual 7. Rear Quarter Glass A: REMOVAL 1. 4 DOOR MODEL B5M0091A 1) Remove rear quarter molding. 2) Remove glass in the same manner as in windshield. 2. WAGON MODEL B5M0092A 1) Remove rear quarter molding. 2

Page 1014 of 2248

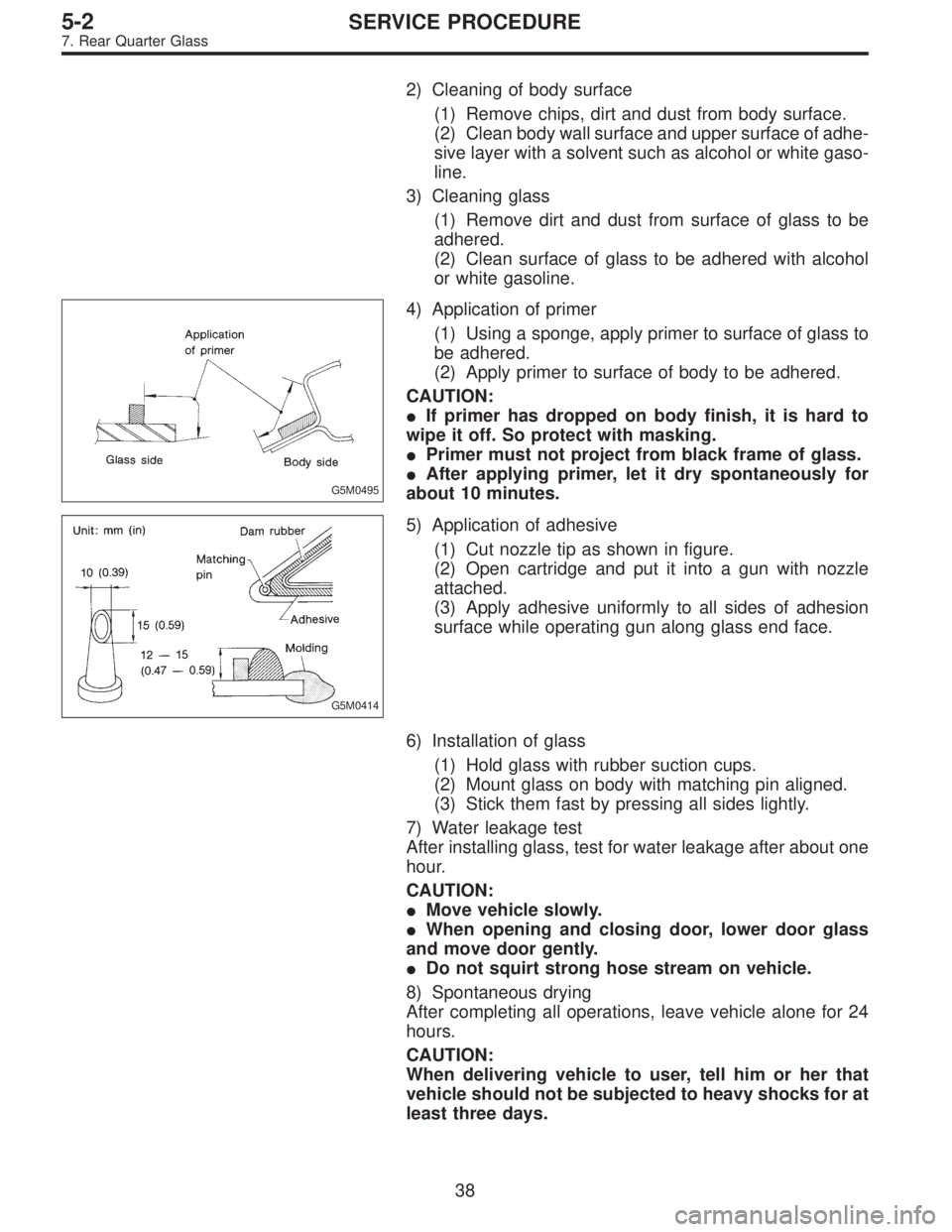

SUBARU LEGACY 1995 Service Repair Manual 2) Cleaning of body surface (1) Remove chips, dirt and dust from body surface. (2) Clean body wall surface and upper surface of adhe- sive layer with a solvent such as alcohol or white gaso- line. 3)

Page 1015 of 2248

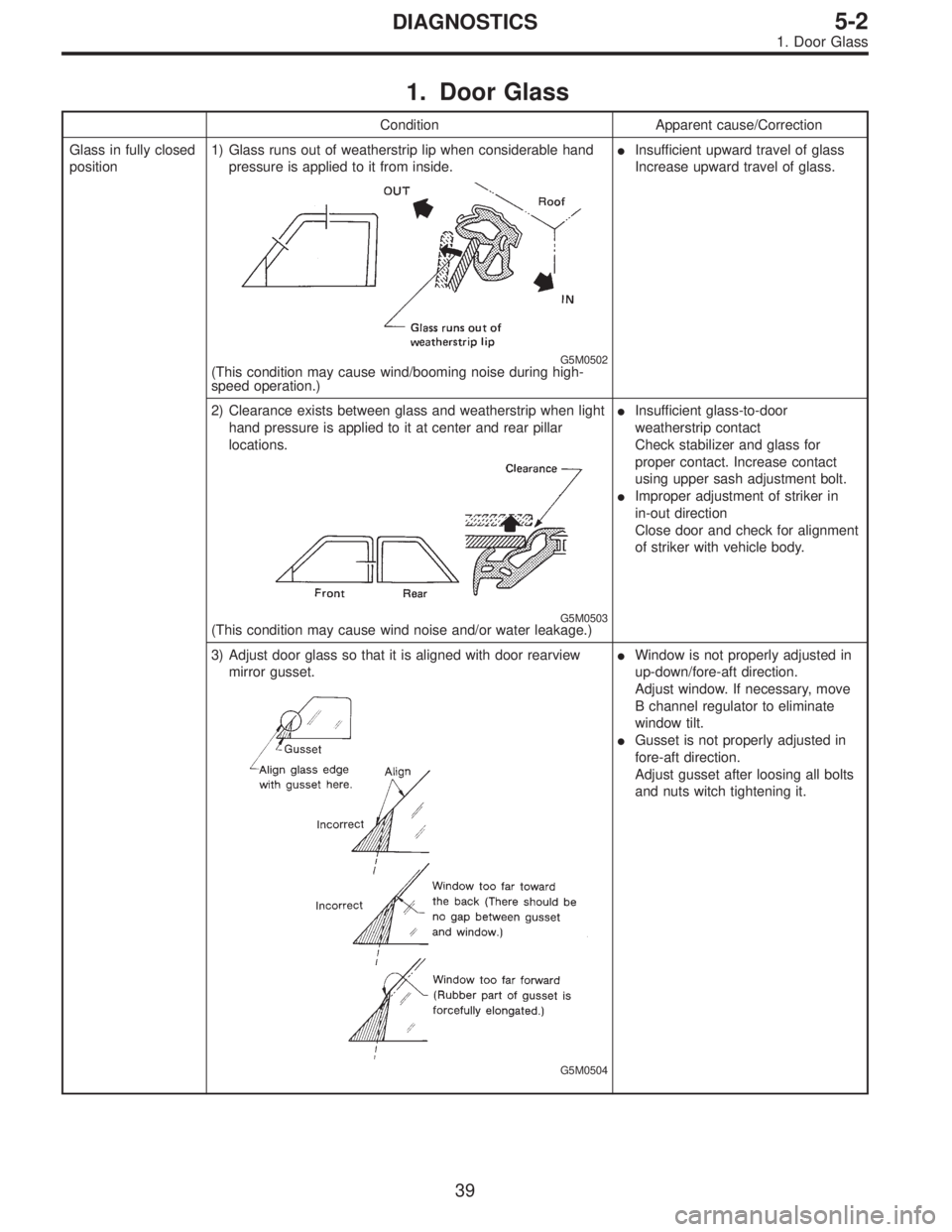

SUBARU LEGACY 1995 Service Repair Manual 1. Door Glass Condition Apparent cause/Correction Glass in fully closed position1) Glass runs out of weatherstrip lip when considerable hand pressure is applied to it from inside. G5M0502(This conditi

Page 1016 of 2248

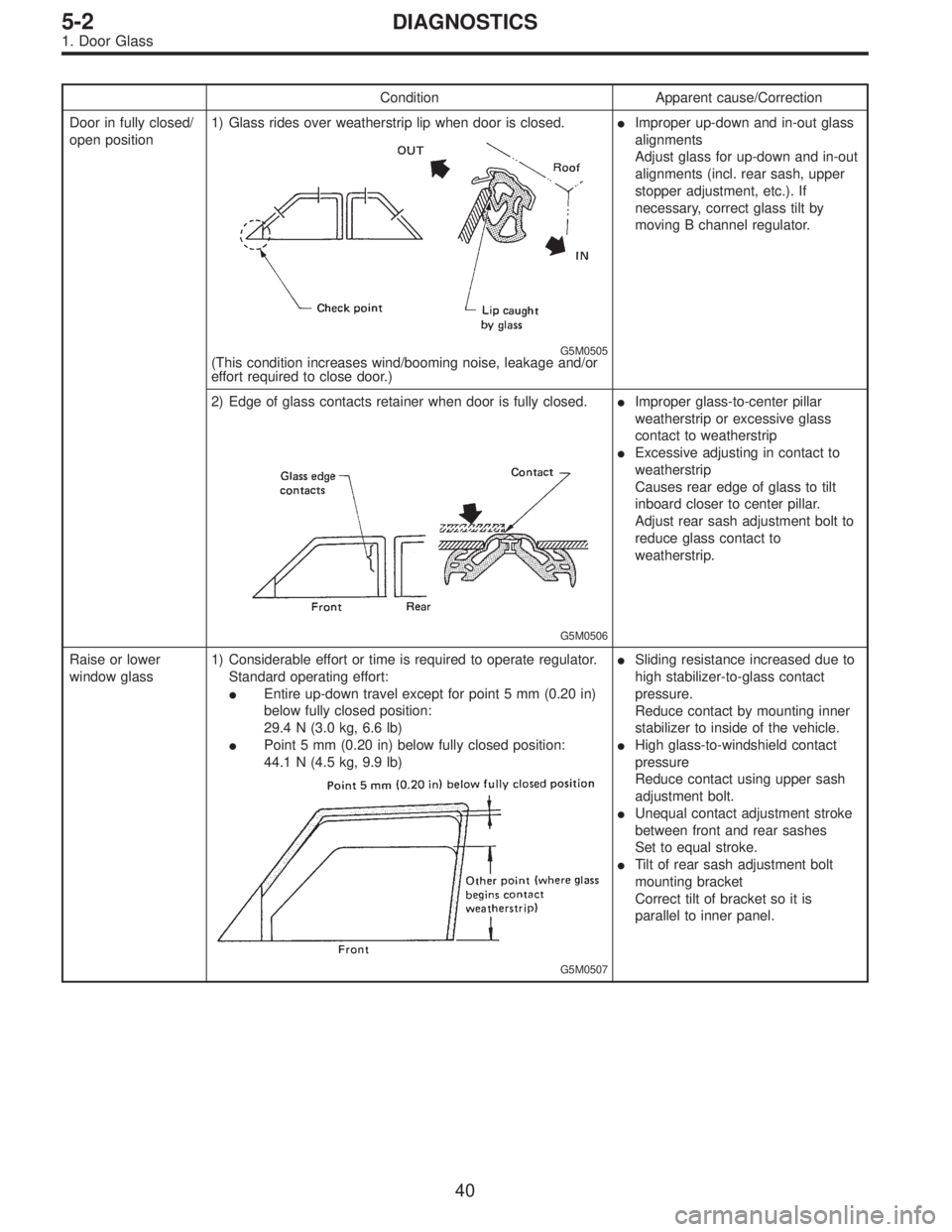

SUBARU LEGACY 1995 Service Repair Manual Condition Apparent cause/Correction Door in fully closed/ open position1) Glass rides over weatherstrip lip when door is closed. G5M0505(This condition increases wind/booming noise, leakage and/or eff
