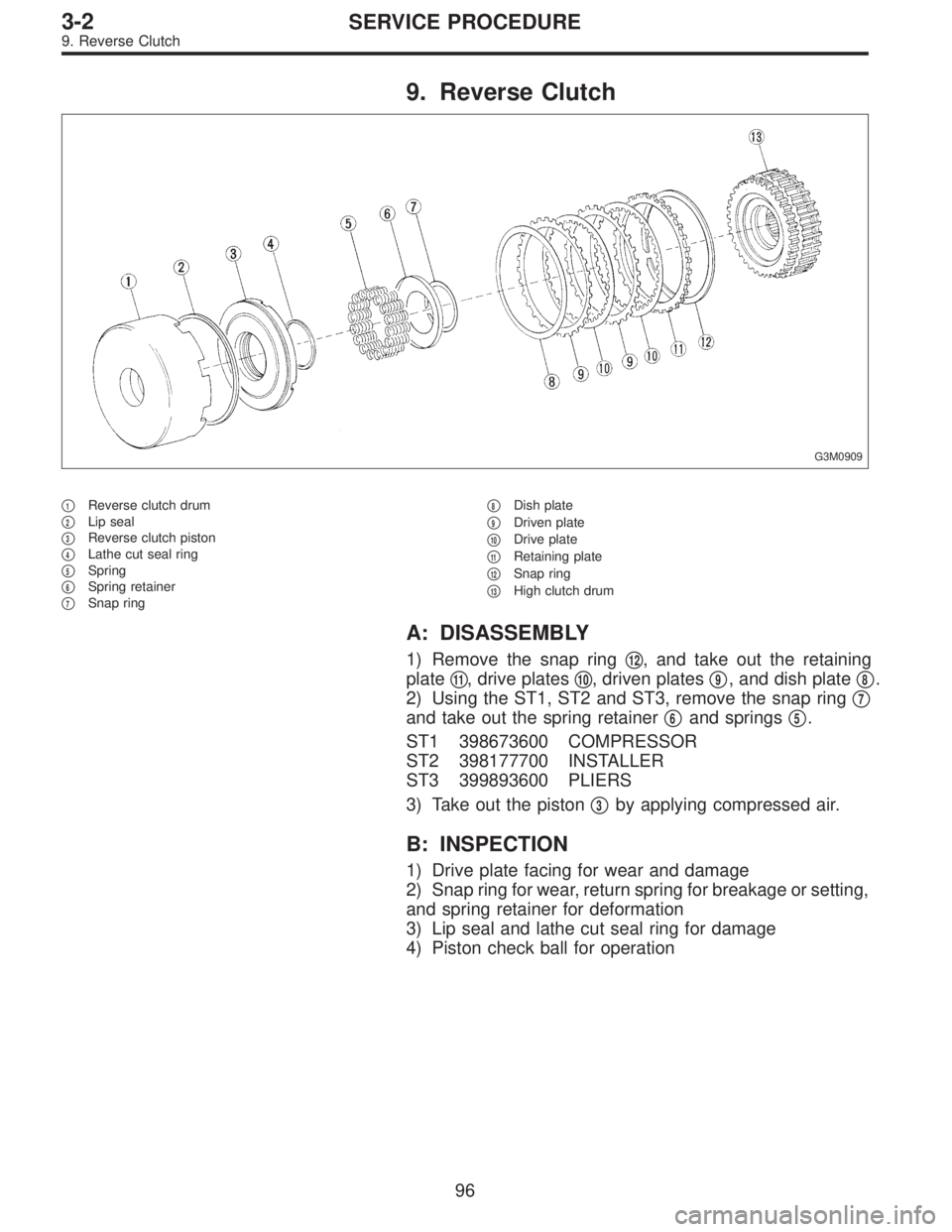

9. Reverse Clutch
G3M0909
1Reverse clutch drum
2Lip seal
3Reverse clutch piston
4Lathe cut seal ring
5Spring
6Spring retainer
7Snap ring
8Dish plate
9Driven plate
10Drive plate
11Retaining plate
12Snap ring
13High clutch drum
A: DISASSEMBLY
1) Remove the snap ring12, and take out the retaining
plate
11, drive plates10, driven plates9, and dish plate8.
2) Using the ST1, ST2 and ST3, remove the snap ring
7
and take out the spring retainer6and springs5.
ST1 398673600 COMPRESSOR
ST2 398177700 INSTALLER
ST3 399893600 PLIERS
3) Take out the piston
3by applying compressed air.
B: INSPECTION
1) Drive plate facing for wear and damage
2) Snap ring for wear, return spring for breakage or setting,
and spring retainer for deformation
3) Lip seal and lathe cut seal ring for damage
4) Piston check ball for operation
96
3-2SERVICE PROCEDURE
9. Reverse Clutch
Page 442 of 2248

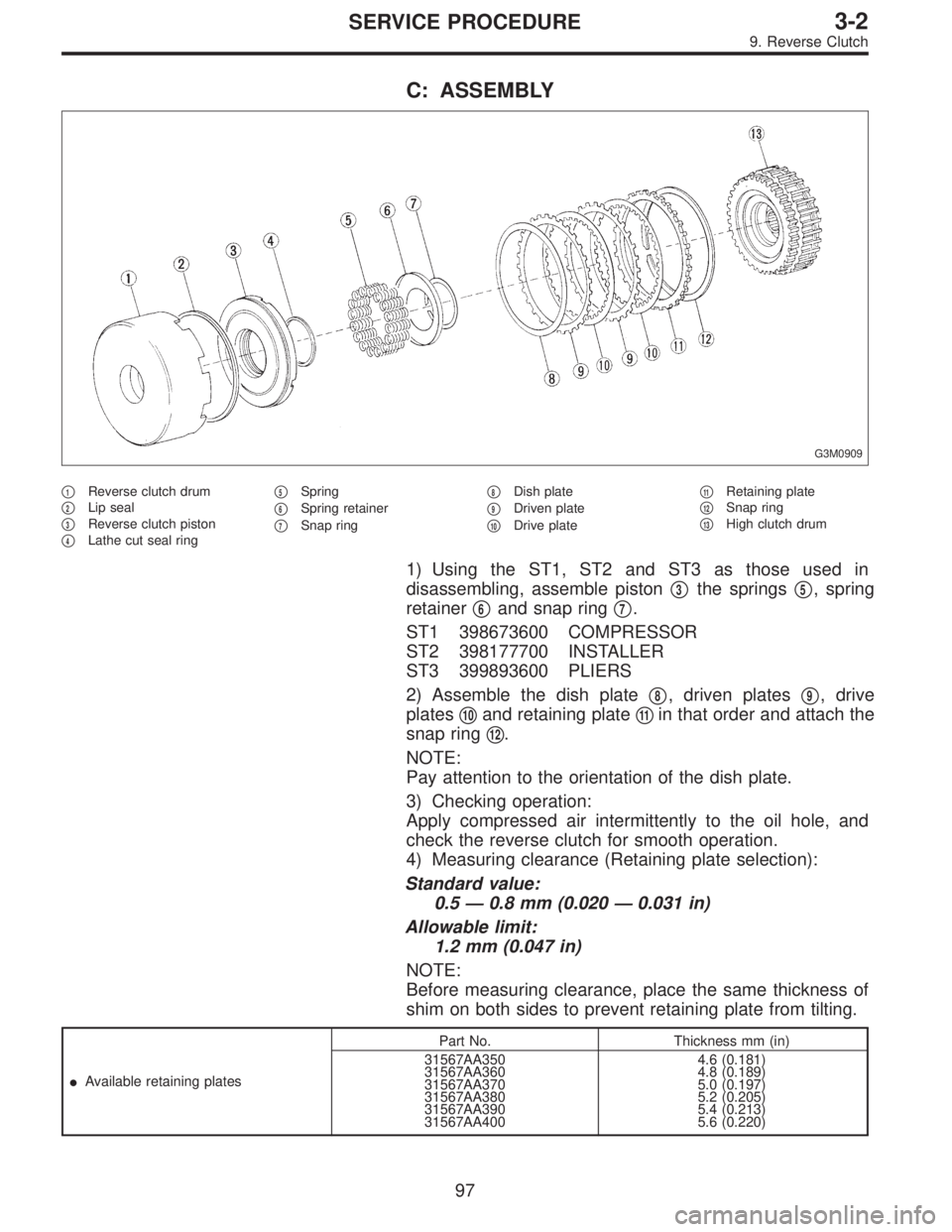

C: ASSEMBLY
G3M0909
1Reverse clutch drum
2Lip seal
3Reverse clutch piston
4Lathe cut seal ring
5Spring
6Spring retainer
7Snap ring
8Dish plate
9Driven plate
10Drive plate
11Retaining plate
12Snap ring
13High clutch drum
1) Using the ST1, ST2 and ST3 as those used in
disassembling, assemble piston
3the springs5, spring
retainer
6and snap ring7.
ST1 398673600 COMPRESSOR
ST2 398177700 INSTALLER
ST3 399893600 PLIERS
2) Assemble the dish plate
8, driven plates9, drive
plates
10and retaining plate11in that order and attach the
snap ring
12.
NOTE:
Pay attention to the orientation of the dish plate.
3) Checking operation:
Apply compressed air intermittently to the oil hole, and
check the reverse clutch for smooth operation.
4) Measuring clearance (Retaining plate selection):
Standard value:
0.5—0.8 mm (0.020—0.031 in)
Allowable limit:
1.2 mm (0.047 in)
NOTE:
Before measuring clearance, place the same thickness of
shim on both sides to prevent retaining plate from tilting.
Available retaining platesPart No. Thickness mm (in)
31567AA350
31567AA360
31567AA370
31567AA380
31567AA390
31567AA4004.6 (0.181)
4.8 (0.189)
5.0 (0.197)
5.2 (0.205)
5.4 (0.213)
5.6 (0.220)
97
3-2SERVICE PROCEDURE
9. Reverse Clutch
Page 443 of 2248

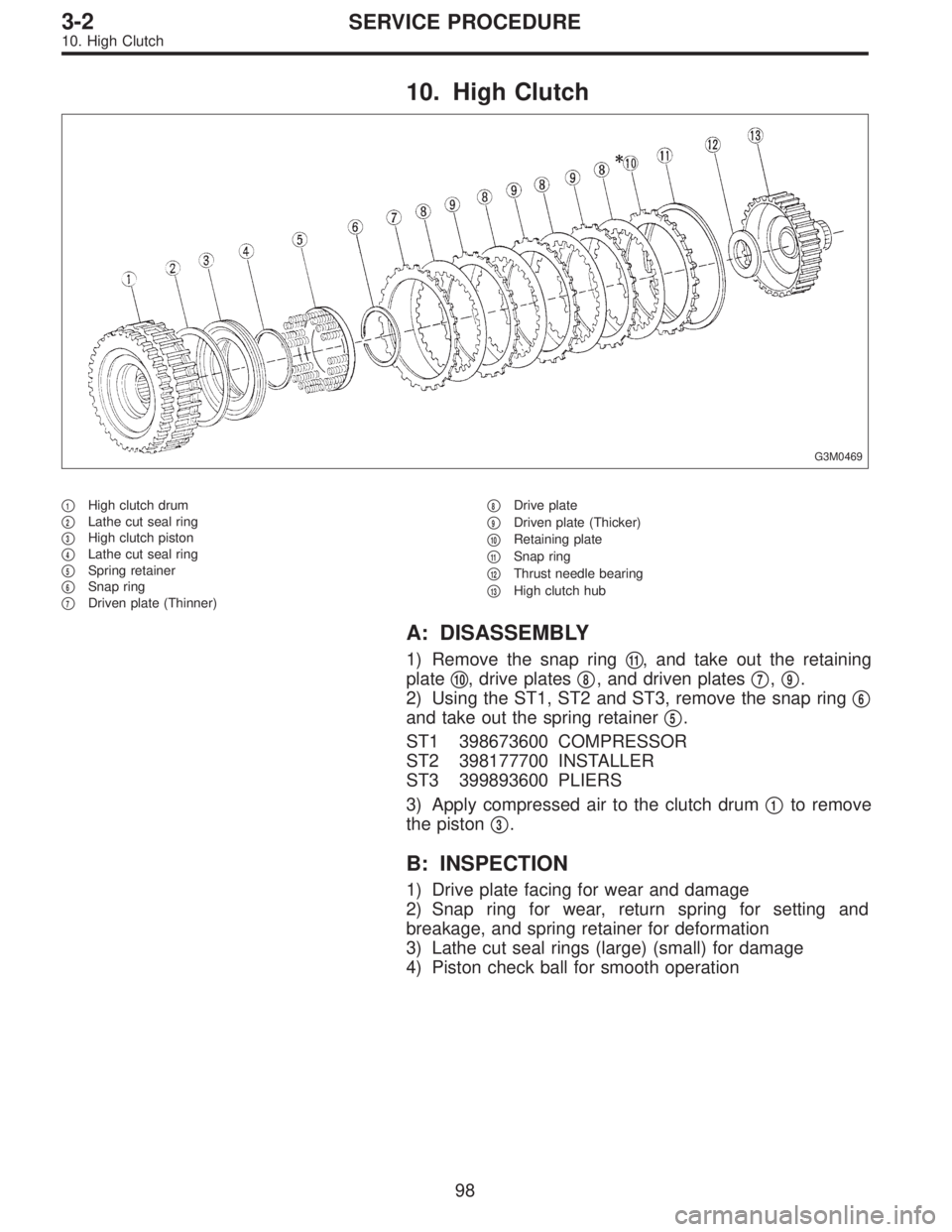

10. High Clutch
G3M0469
1High clutch drum
2Lathe cut seal ring
3High clutch piston
4Lathe cut seal ring
5Spring retainer
6Snap ring
7Driven plate (Thinner)
8Drive plate
9Driven plate (Thicker)
10Retaining plate
11Snap ring
12Thrust needle bearing
13High clutch hub
A: DISASSEMBLY
1) Remove the snap ring11, and take out the retaining
plate
10, drive plates8, and driven plates7,9.
2) Using the ST1, ST2 and ST3, remove the snap ring
6
and take out the spring retainer5.
ST1 398673600 COMPRESSOR
ST2 398177700 INSTALLER
ST3 399893600 PLIERS
3) Apply compressed air to the clutch drum
1to remove
the piston
3.
B: INSPECTION
1) Drive plate facing for wear and damage
2) Snap ring for wear, return spring for setting and
breakage, and spring retainer for deformation
3) Lathe cut seal rings (large) (small) for damage
4) Piston check ball for smooth operation
98
3-2SERVICE PROCEDURE
10. High Clutch
Page 444 of 2248

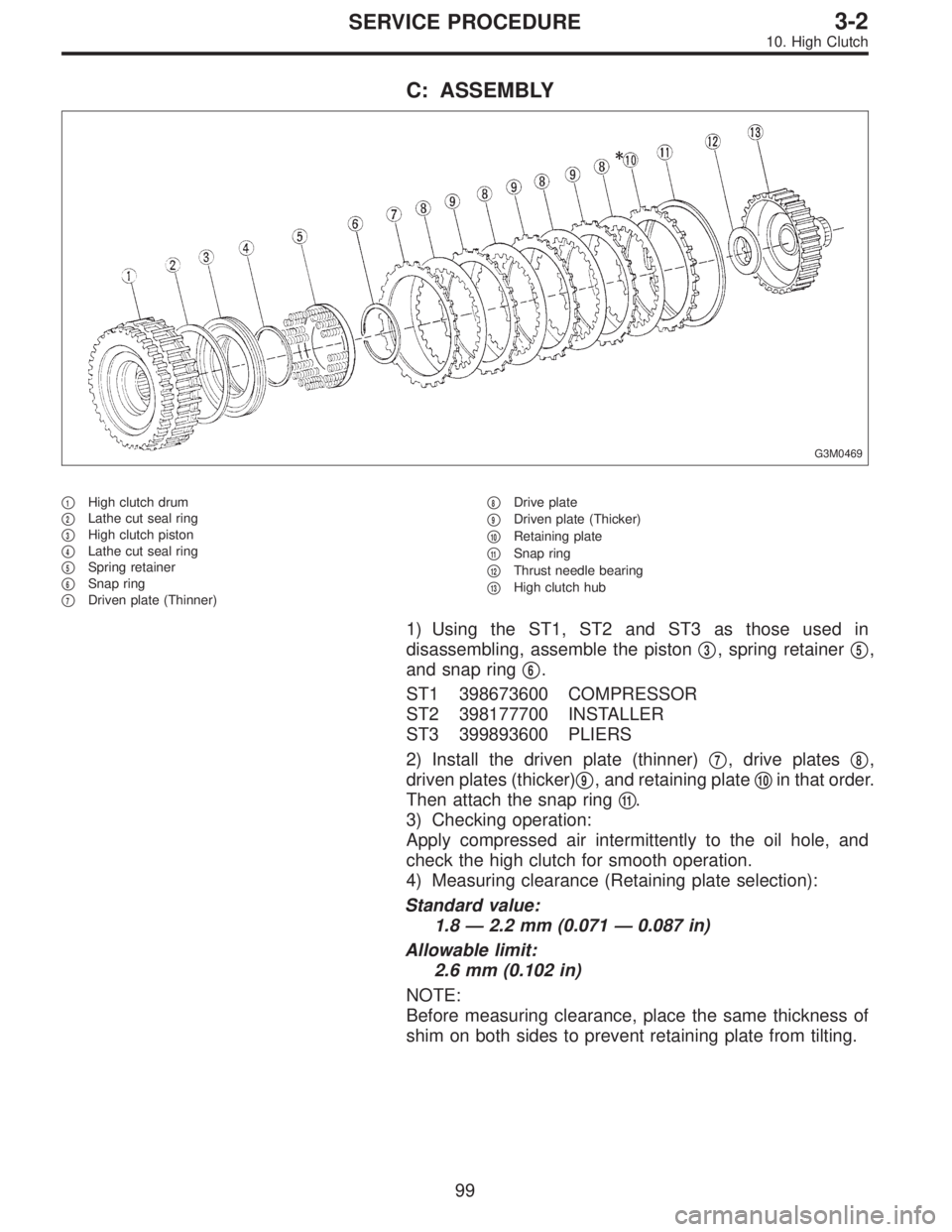

C: ASSEMBLY
G3M0469
1High clutch drum
2Lathe cut seal ring
3High clutch piston
4Lathe cut seal ring
5Spring retainer
6Snap ring
7Driven plate (Thinner)
8Drive plate
9Driven plate (Thicker)
10Retaining plate
11Snap ring
12Thrust needle bearing
13High clutch hub
1) Using the ST1, ST2 and ST3 as those used in
disassembling, assemble the piston
3, spring retainer5,
and snap ring
6.
ST1 398673600 COMPRESSOR
ST2 398177700 INSTALLER
ST3 399893600 PLIERS
2) Install the driven plate (thinner)
7, drive plates8,
driven plates (thicker)
9, and retaining plate10in that order.
Then attach the snap ring
11.
3) Checking operation:
Apply compressed air intermittently to the oil hole, and
check the high clutch for smooth operation.
4) Measuring clearance (Retaining plate selection):
Standard value:
1.8—2.2 mm (0.071—0.087 in)
Allowable limit:
2.6 mm (0.102 in)
NOTE:
Before measuring clearance, place the same thickness of
shim on both sides to prevent retaining plate from tilting.
99
3-2SERVICE PROCEDURE
10. High Clutch
Page 445 of 2248
Available retaining platesPart No. Thickness mm (in)
31567AA190
31567AA200
31567AA210
31567AA220
31567AA230
31567AA240
31567AA250
31567AA2603.6 (0.142)
3.8 (0.150)
4.0 (0.157)
4.2 (0.165)
4.4 (0.173)
4.6 (0.181)
4.8 (0.189)
5.0 (0.197)
G3M0471

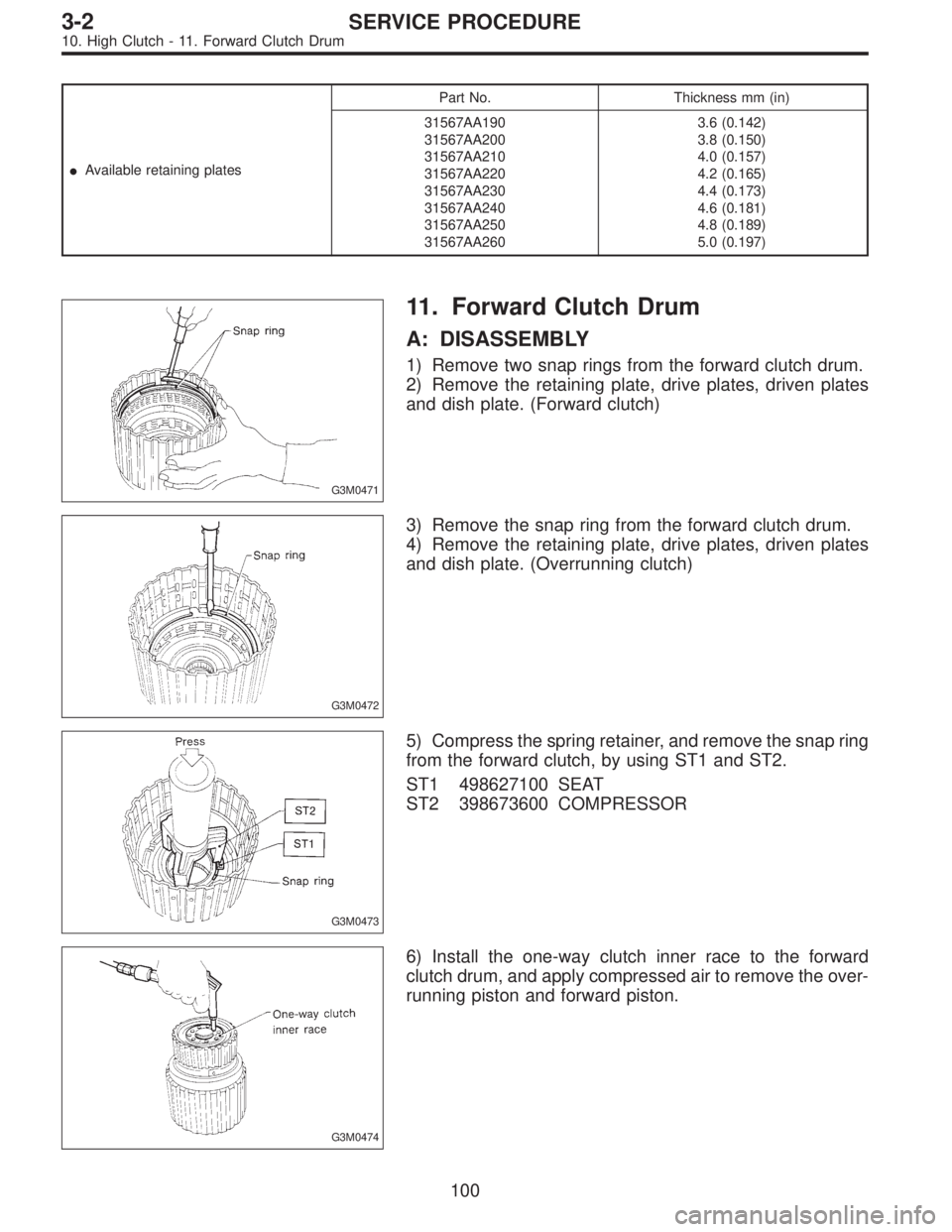

11. Forward Clutch Drum
A: DISASSEMBLY
1) Remove two snap rings from the forward clutch drum.
2) Remove the retaining plate, drive plates, driven plates
and dish plate. (Forward clutch)
G3M0472
3) Remove the snap ring from the forward clutch drum.
4) Remove the retaining plate, drive plates, driven plates
and dish plate. (Overrunning clutch)
G3M0473
5) Compress the spring retainer, and remove the snap ring
from the forward clutch, by using ST1 and ST2.
ST1 498627100 SEAT
ST2 398673600 COMPRESSOR
G3M0474
6) Install the one-way clutch inner race to the forward
clutch drum, and apply compressed air to remove the over-
running piston and forward piston.
100
3-2SERVICE PROCEDURE
10. High Clutch - 11. Forward Clutch Drum
Page 446 of 2248
Available retaining platesPart No. Thickness mm (in)
31567AA190
31567AA200
31567AA210
31567AA220
31567AA230
31567AA240
31567AA250
31567AA2603.6 (0.142)
3.8 (0.150)
4.0 (0.157)
4.2 (0.165)
4.4 (0.173)
4.6 (0.181)
4.8 (0.189)
5.0 (0.197)
G3M0471
11. Forward Clutch Drum
A: DISASSEMBLY
1) Remove two snap rings from the forward clutch drum.
2) Remove the retaining plate, drive plates, driven plates
and dish plate. (Forward clutch)
G3M0472
3) Remove the snap ring from the forward clutch drum.
4) Remove the retaining plate, drive plates, driven plates
and dish plate. (Overrunning clutch)
G3M0473
5) Compress the spring retainer, and remove the snap ring
from the forward clutch, by using ST1 and ST2.
ST1 498627100 SEAT
ST2 398673600 COMPRESSOR
G3M0474
6) Install the one-way clutch inner race to the forward
clutch drum, and apply compressed air to remove the over-
running piston and forward piston.
100
3-2SERVICE PROCEDURE
10. High Clutch - 11. Forward Clutch Drum
Page 447 of 2248

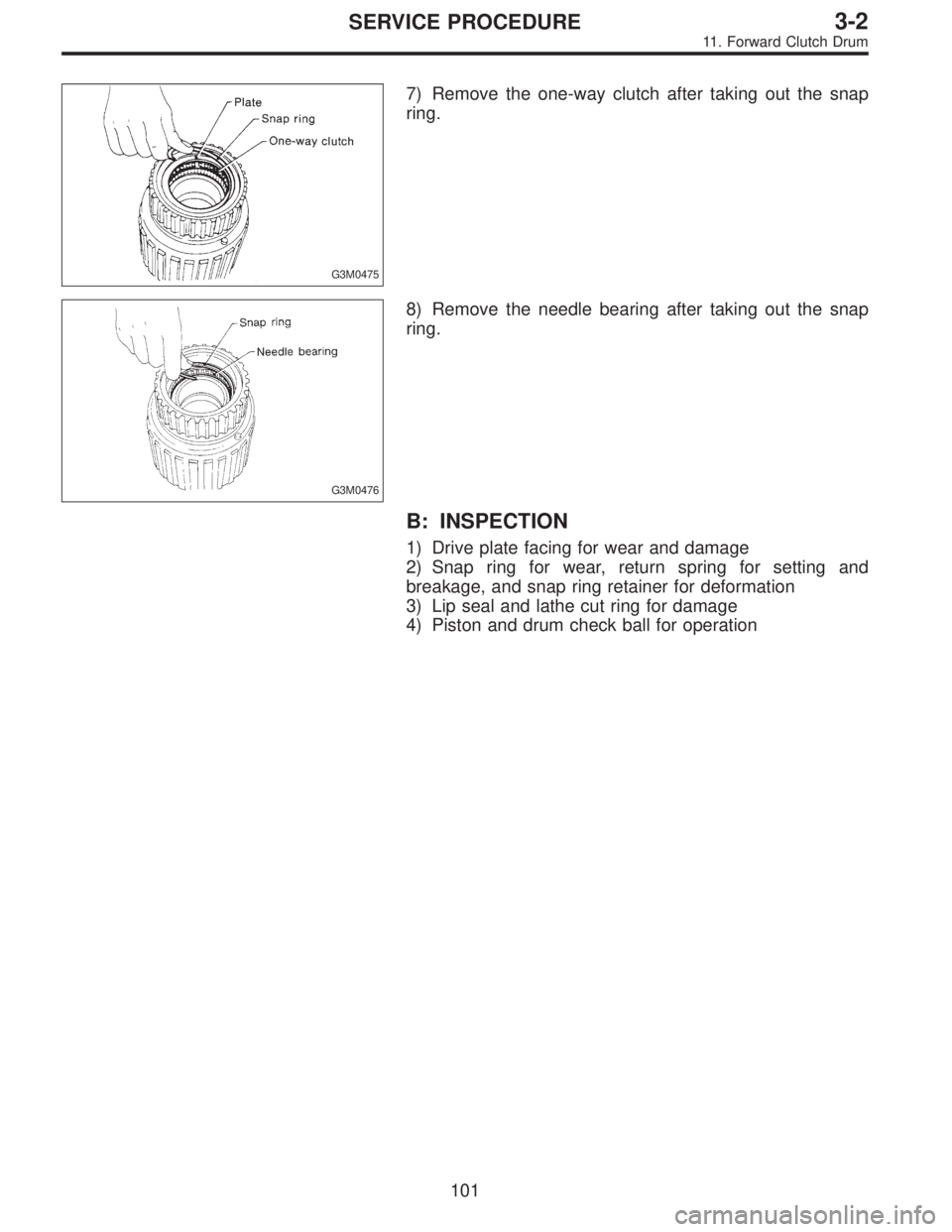

G3M0475
7) Remove the one-way clutch after taking out the snap
ring.
G3M0476
8) Remove the needle bearing after taking out the snap
ring.
B: INSPECTION
1) Drive plate facing for wear and damage
2) Snap ring for wear, return spring for setting and
breakage, and snap ring retainer for deformation
3) Lip seal and lathe cut ring for damage
4) Piston and drum check ball for operation
101
3-2SERVICE PROCEDURE
11. Forward Clutch Drum
Page 448 of 2248
C: ASSEMBLY
B3H0014
1Snap ring
2Retainer
3Lathe cut seal ring
4Dish plate
5Snap ring
6Snap ring
7Retaining plate
8Dish plate
9Snap ring
10Retaining plate
11Forward clutch piston
12Lathe cut seal ring
13Drift ball
14Forward clutch drum
15Overrunning clutch piston
16Snap ring
17Plate
18O.W.C. (1-2)
19Needle bearing
20Lathe cut seal ring
21Snap ring
22Outer race
23Driven plate
24Driven plate (Thicker)
25Driven plate (Thinner)
26Drive plate
27Drive plate
28Sleeve
29Bushing
G3M0478
1) Fit the forward piston and overrunning piston to the for-
ward clutch drum.
NOTE:
Align the forward piston cut-out portion with the spline of
the drum.
102
3-2SERVICE PROCEDURE
11. Forward Clutch Drum
