Page 1841 of 2248

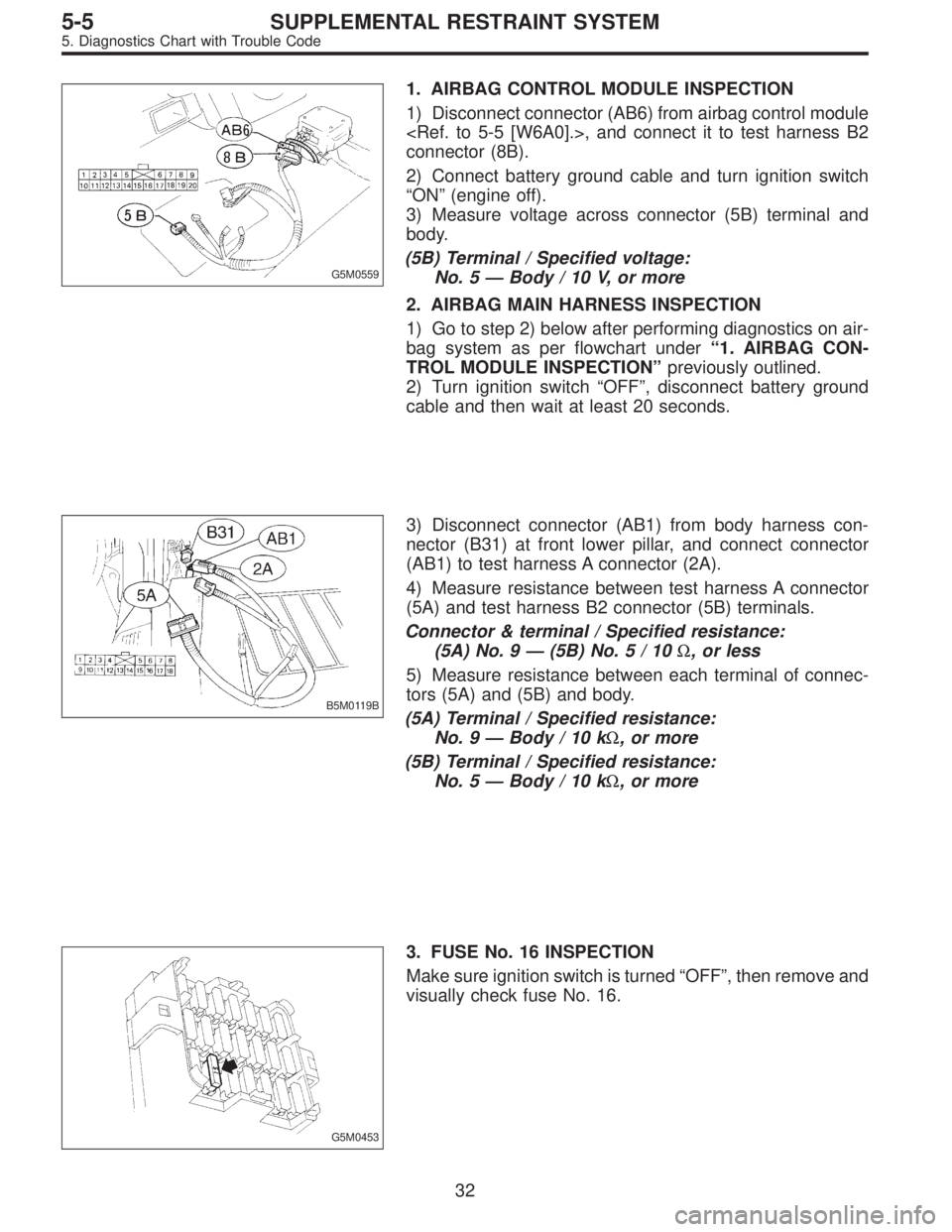

SUBARU LEGACY 1995 Service Repair Manual G5M0559 1. AIRBAG CONTROL MODULE INSPECTION 1) Disconnect connector (AB6) from airbag control module <Ref. to 5-5 [W6A0].>, and connect it to test harness B2 connector (8B). 2) Connect battery ground

Page 1842 of 2248

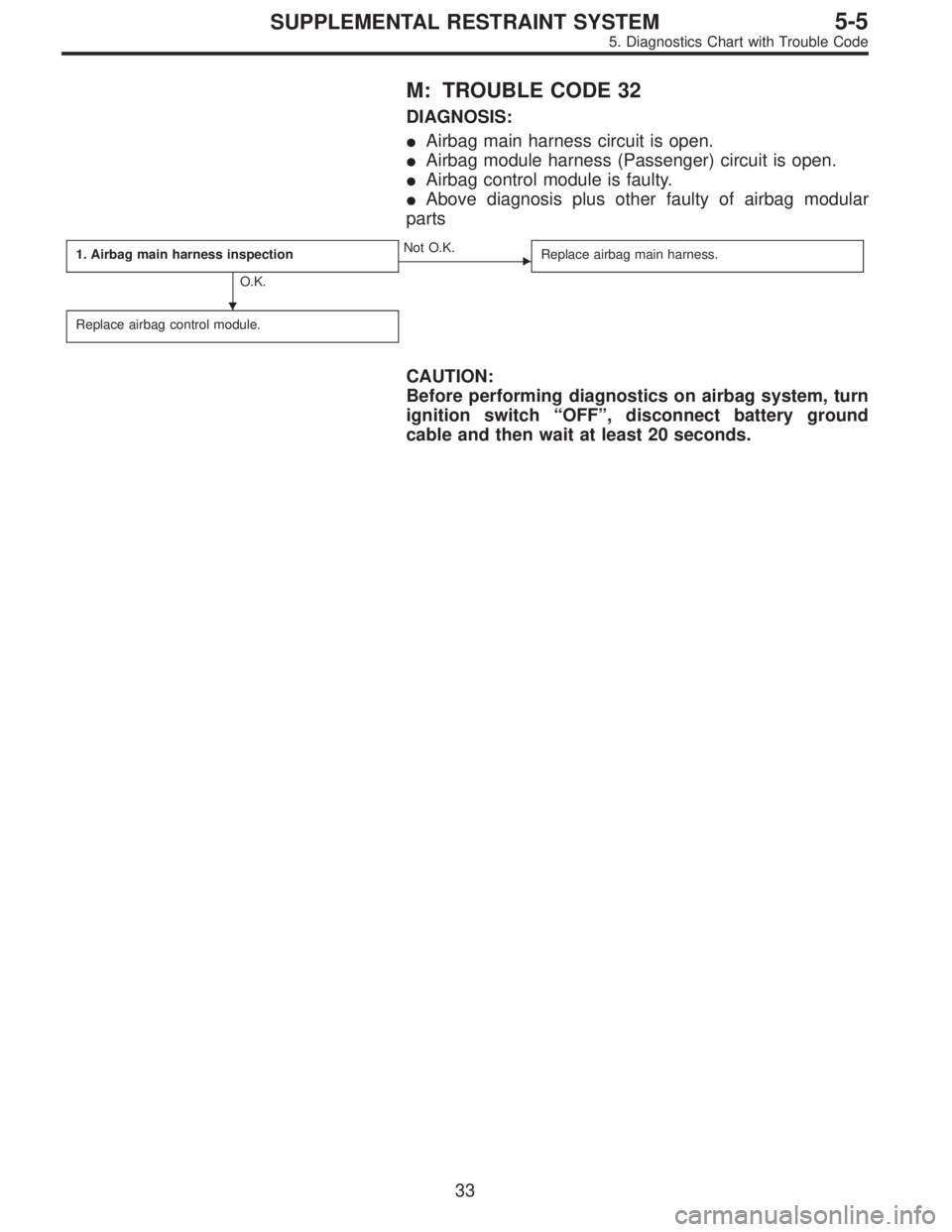

SUBARU LEGACY 1995 Service Repair Manual M: TROUBLE CODE 32 DIAGNOSIS: Airbag main harness circuit is open. Airbag module harness (Passenger) circuit is open. Airbag control module is faulty. Above diagnosis plus other faulty of airbag m

Page 1843 of 2248

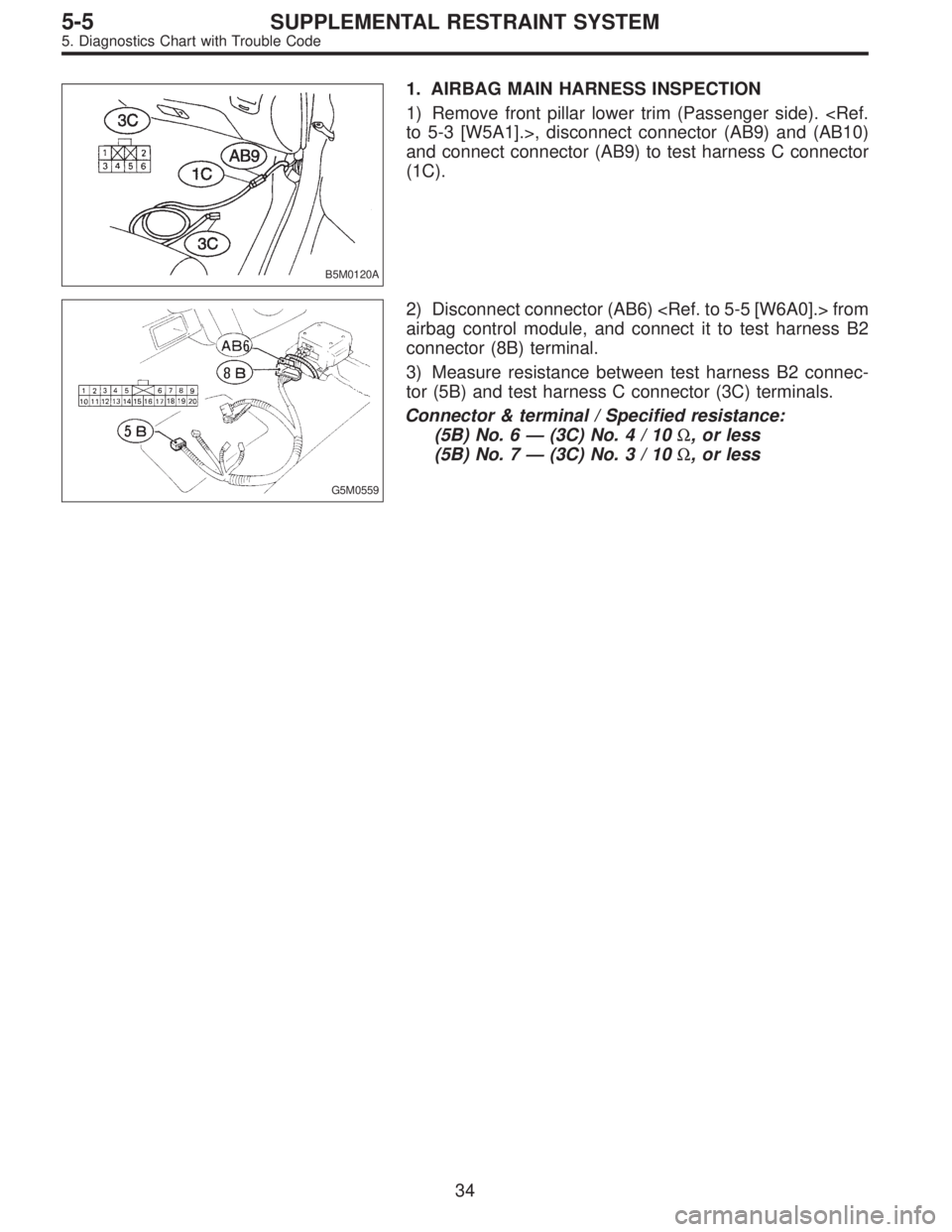

SUBARU LEGACY 1995 Service Repair Manual B5M0120A 1. AIRBAG MAIN HARNESS INSPECTION 1) Remove front pillar lower trim (Passenger side). <Ref. to 5-3 [W5A1].>, disconnect connector (AB9) and (AB10) and connect connector (AB9) to test harness

Page 1844 of 2248

SUBARU LEGACY 1995 Service Repair Manual N: AIRBAG WARNING LIGHT REMAINS ON. DIAGNOSIS: Airbag warning light is faulty. Airbag control module to airbag warning light harness circuit is shorted or open. Grounding circuit is faulty. Airbag

Page 1845 of 2248

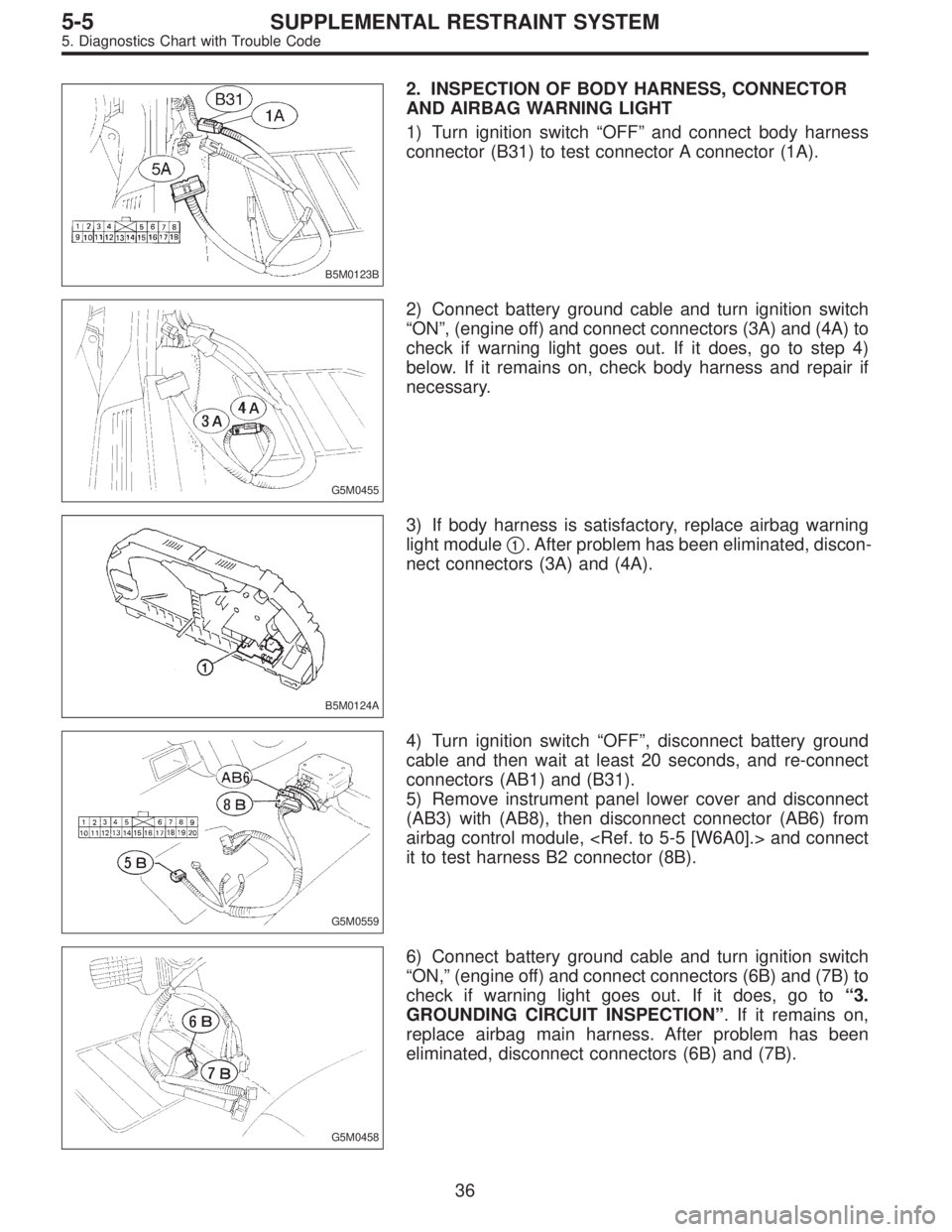

SUBARU LEGACY 1995 Service Repair Manual B5M0123B 2. INSPECTION OF BODY HARNESS, CONNECTOR AND AIRBAG WARNING LIGHT 1) Turn ignition switch“OFF”and connect body harness connector (B31) to test connector A connector (1A). G5M0455 2) Conne

Page 1846 of 2248

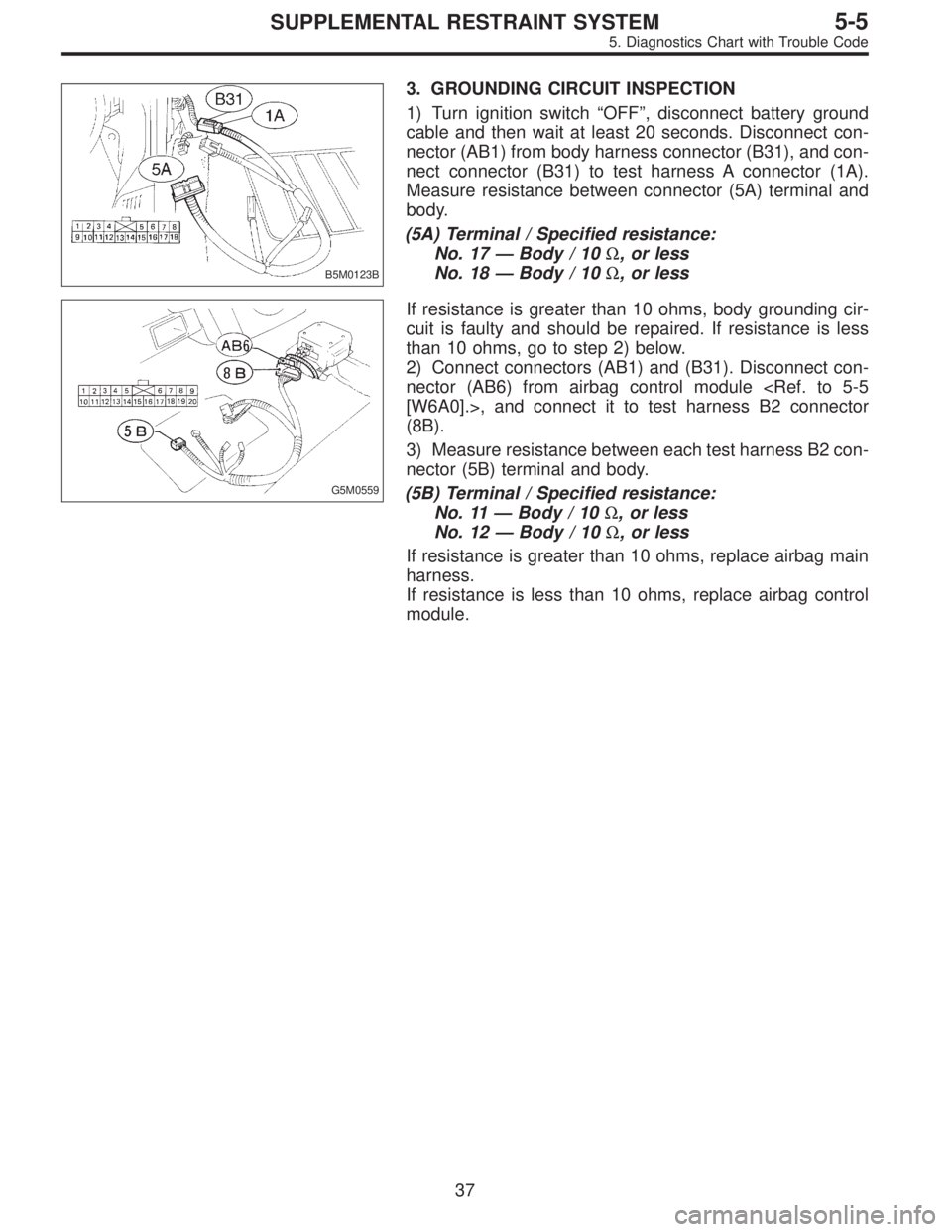

SUBARU LEGACY 1995 Service Repair Manual B5M0123B 3. GROUNDING CIRCUIT INSPECTION 1) Turn ignition switch“OFF”, disconnect battery ground cable and then wait at least 20 seconds. Disconnect con- nector (AB1) from body harness connector (

Page 1847 of 2248

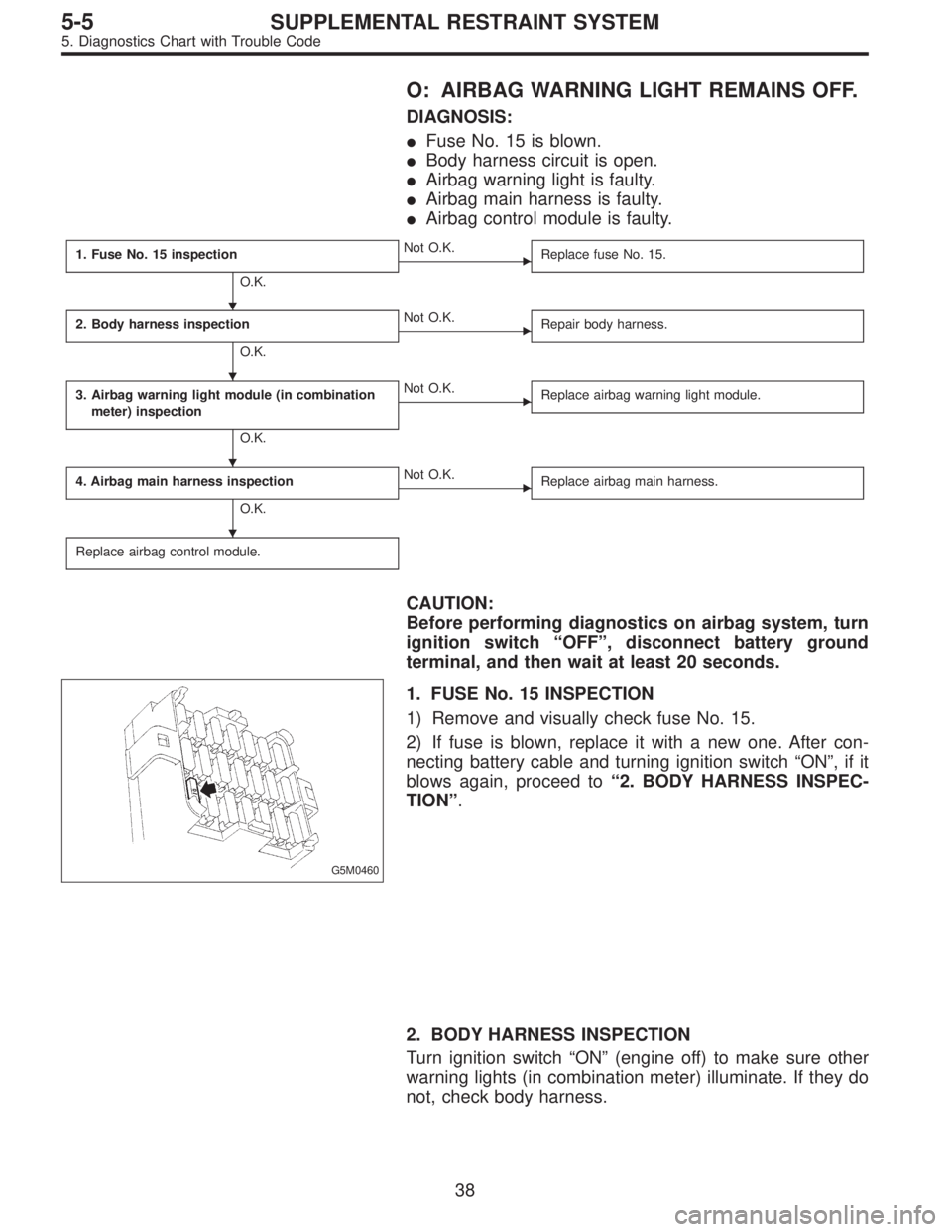

SUBARU LEGACY 1995 Service Repair Manual O: AIRBAG WARNING LIGHT REMAINS OFF. DIAGNOSIS: Fuse No. 15 is blown. Body harness circuit is open. Airbag warning light is faulty. Airbag main harness is faulty. Airbag control module is faulty.

Page 1848 of 2248

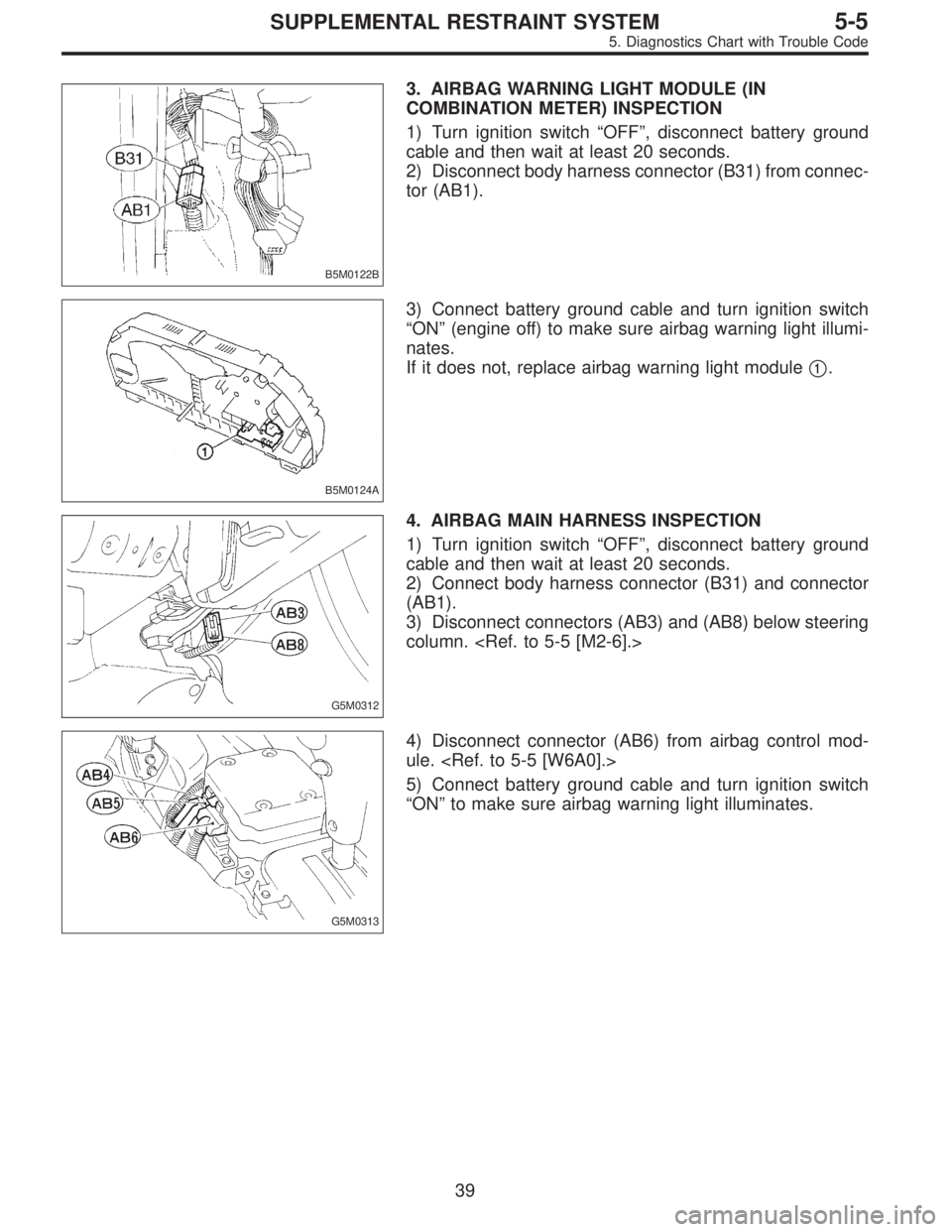

SUBARU LEGACY 1995 Service Repair Manual B5M0122B 3. AIRBAG WARNING LIGHT MODULE (IN COMBINATION METER) INSPECTION 1) Turn ignition switch“OFF”, disconnect battery ground cable and then wait at least 20 seconds. 2) Disconnect body harnes
