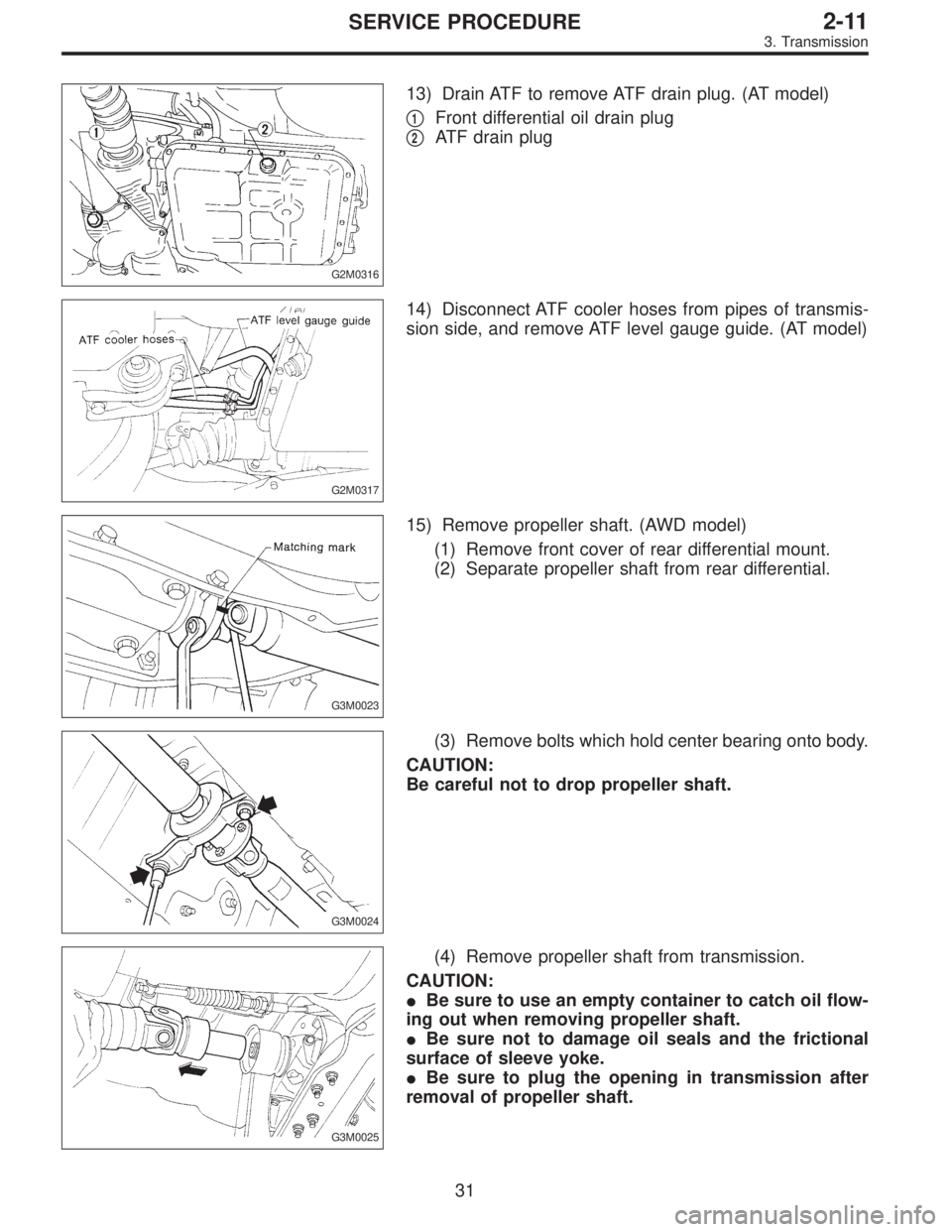

Page 265 of 2248
G2M0316
13) Drain ATF to remove ATF drain plug. (AT model)
1Front differential oil drain plug
2ATF drain plug
G2M0317
14) Disconnect ATF cooler hoses from pipes of transmis-
sion side, and remove ATF level gauge guide. (AT model)
G3M0023
15) Remove propeller shaft. (AWD model)
(1) Remove front cover of rear differential mount.
(2) Separate propeller shaft from rear differential.
G3M0024
(3) Remove bolts which hold center bearing onto body.
CAUTION:
Be careful not to drop propeller shaft.
G3M0025
(4) Remove propeller shaft from transmission.
CAUTION:
Be sure to use an empty container to catch oil flow-
ing out when removing propeller shaft.
Be sure not to damage oil seals and the frictional
surface of sleeve yoke.
Be sure to plug the opening in transmission after
removal of propeller shaft.
31
2-11SERVICE PROCEDURE
3. Transmission

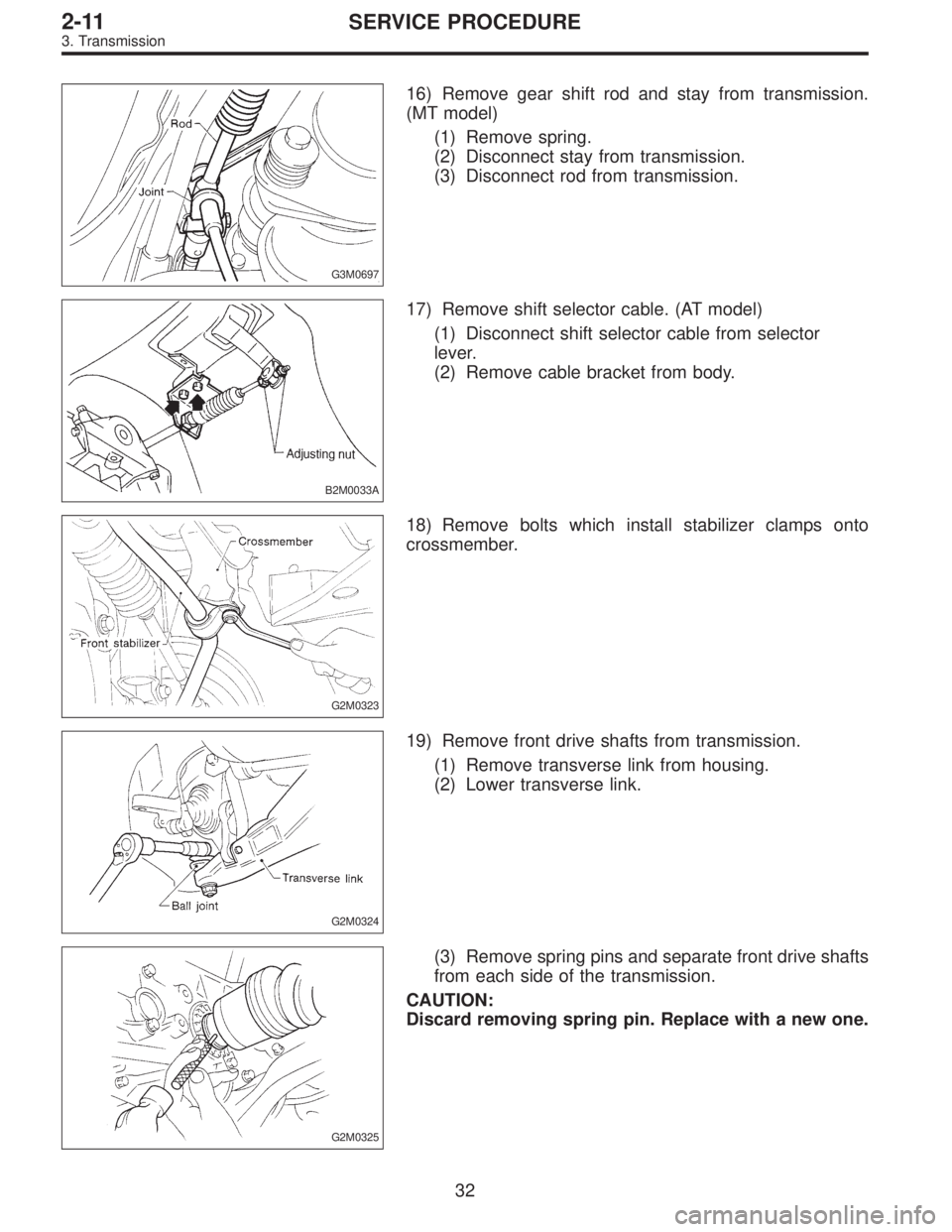

Page 266 of 2248
G3M0697
16) Remove gear shift rod and stay from transmission.
(MT model)
(1) Remove spring.
(2) Disconnect stay from transmission.
(3) Disconnect rod from transmission.
B2M0033A
17) Remove shift selector cable. (AT model)
(1) Disconnect shift selector cable from selector
lever.
(2) Remove cable bracket from body.
G2M0323
18) Remove bolts which install stabilizer clamps onto
crossmember.
G2M0324
19) Remove front drive shafts from transmission.
(1) Remove transverse link from housing.
(2) Lower transverse link.
G2M0325
(3) Remove spring pins and separate front drive shafts
from each side of the transmission.
CAUTION:
Discard removing spring pin. Replace with a new one.
32
2-11SERVICE PROCEDURE
3. Transmission

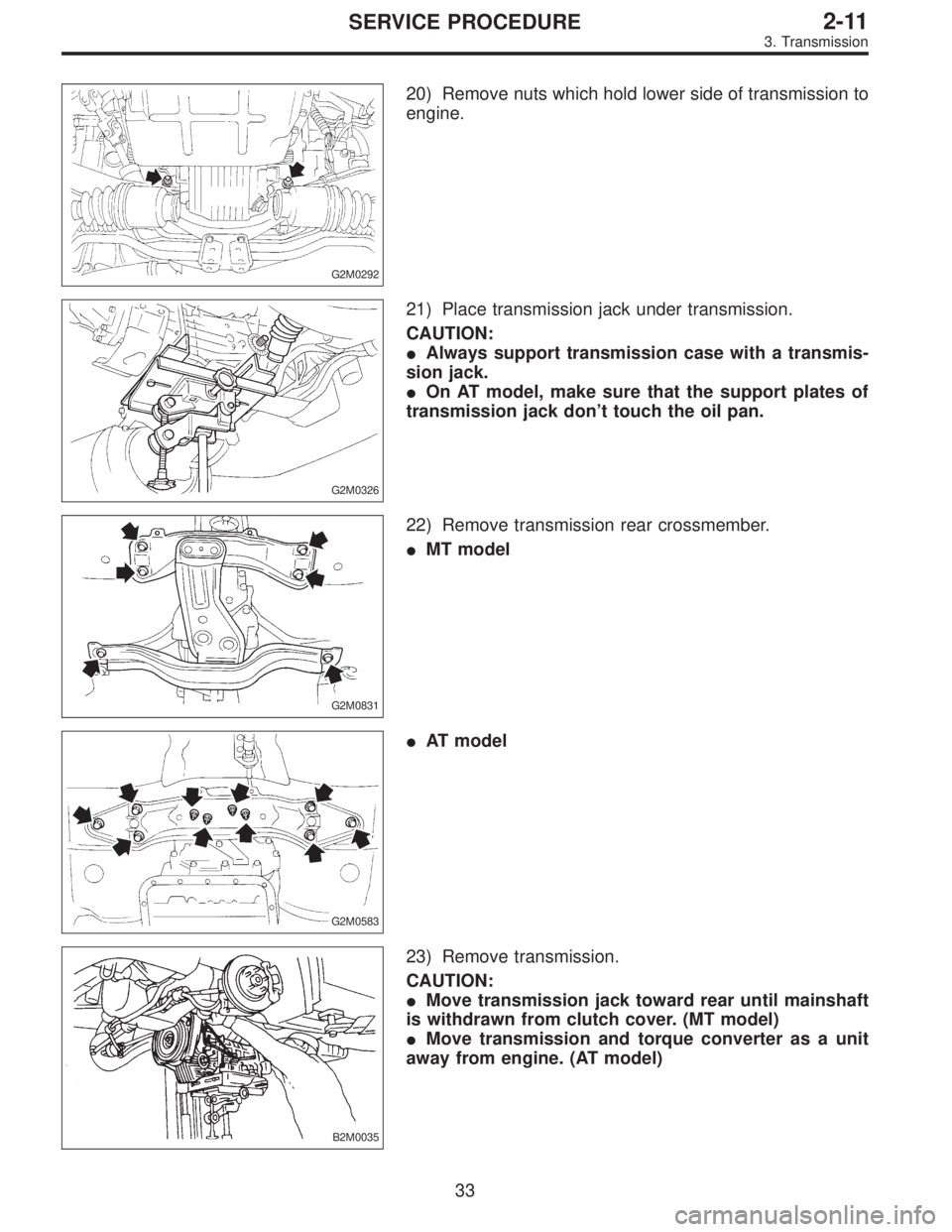

Page 267 of 2248
G2M0292
20) Remove nuts which hold lower side of transmission to
engine.
G2M0326
21) Place transmission jack under transmission.
CAUTION:
Always support transmission case with a transmis-
sion jack.
On AT model, make sure that the support plates of
transmission jack don’t touch the oil pan.
G2M0831
22) Remove transmission rear crossmember.
MT model
G2M0583
AT model
B2M0035
23) Remove transmission.
CAUTION:
Move transmission jack toward rear until mainshaft
is withdrawn from clutch cover. (MT model)
Move transmission and torque converter as a unit
away from engine. (AT model)
33
2-11SERVICE PROCEDURE
3. Transmission

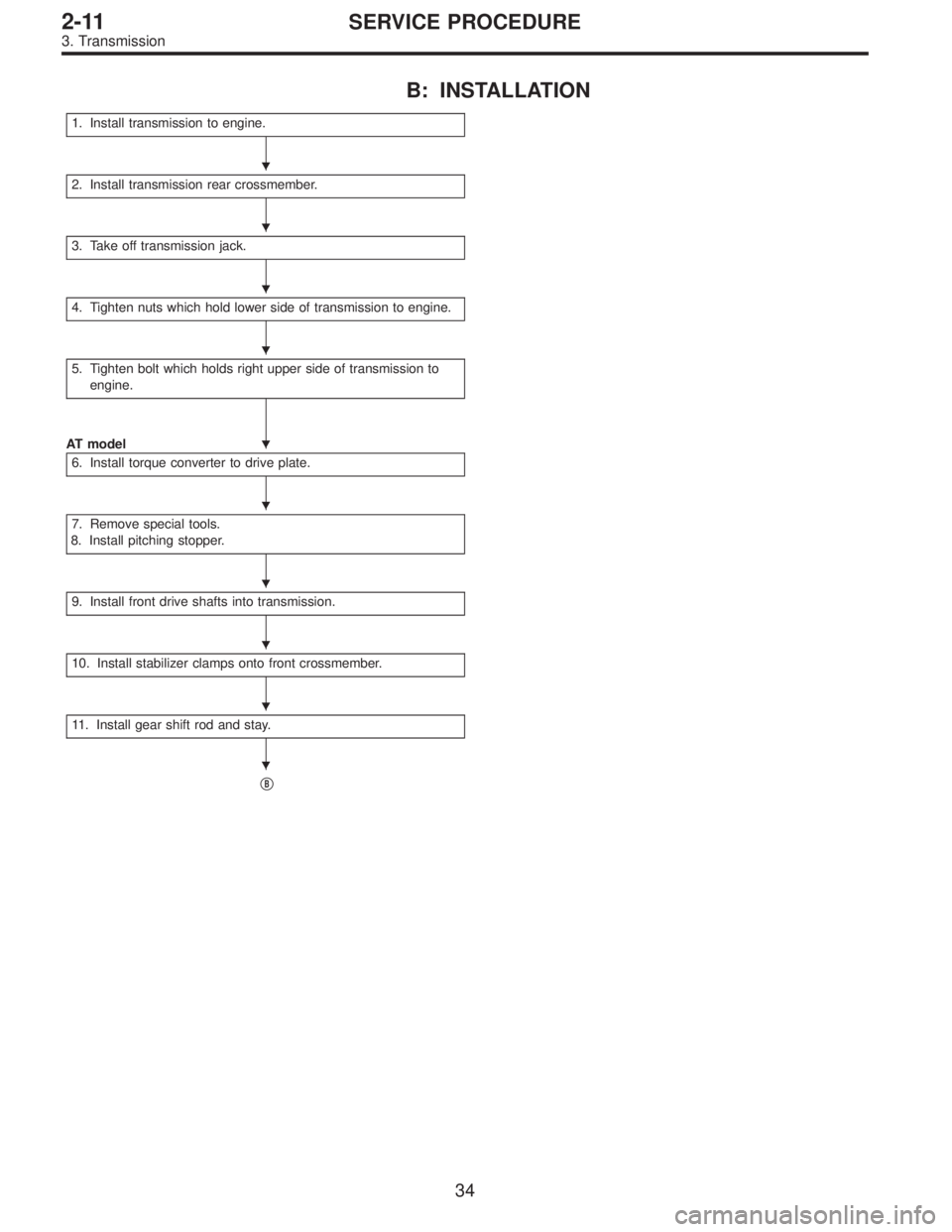

Page 268 of 2248
B: INSTALLATION
1. Install transmission to engine.
2. Install transmission rear crossmember.
3. Take off transmission jack.
4. Tighten nuts which hold lower side of transmission to engine.
5. Tighten bolt which holds right upper side of transmission to
engine.
AT model
6. Install torque converter to drive plate.
7. Remove special tools.
8. Install pitching stopper.
9. Install front drive shafts into transmission.
10. Install stabilizer clamps onto front crossmember.
11. Install gear shift rod and stay.
B
34
2-11SERVICE PROCEDURE
3. Transmission

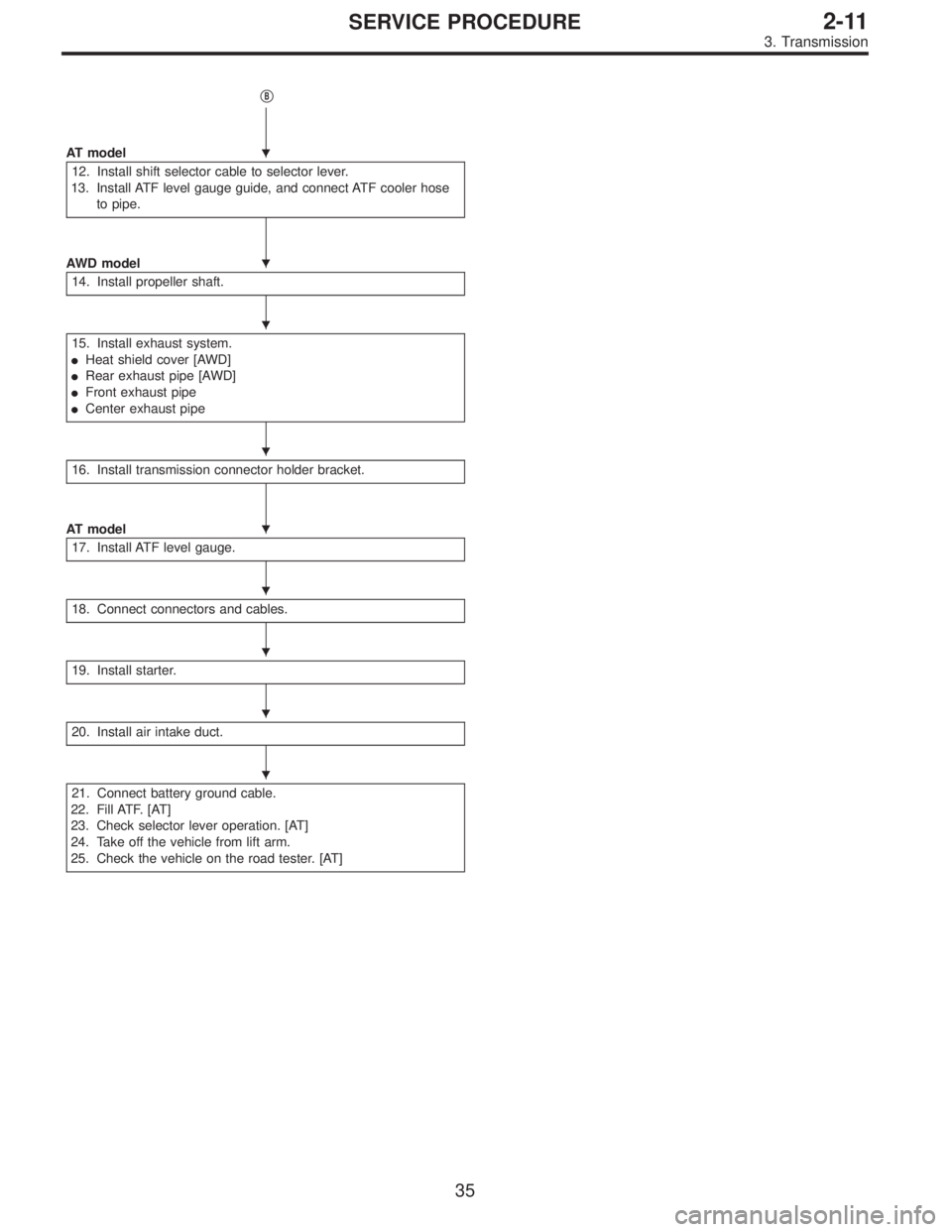

Page 269 of 2248
B
AT model
12. Install shift selector cable to selector lever.
13. Install ATF level gauge guide, and connect ATF cooler hose
to pipe.
AWD model
14. Install propeller shaft.
15. Install exhaust system.
Heat shield cover [AWD]
Rear exhaust pipe [AWD]
Front exhaust pipe
Center exhaust pipe
16. Install transmission connector holder bracket.
AT model
17. Install ATF level gauge.
18. Connect connectors and cables.
19. Install starter.
20. Install air intake duct.
21. Connect battery ground cable.
22. Fill ATF. [AT]
23. Check selector lever operation. [AT]
24. Take off the vehicle from lift arm.
25. Check the vehicle on the road tester. [AT]
35
2-11SERVICE PROCEDURE
3. Transmission

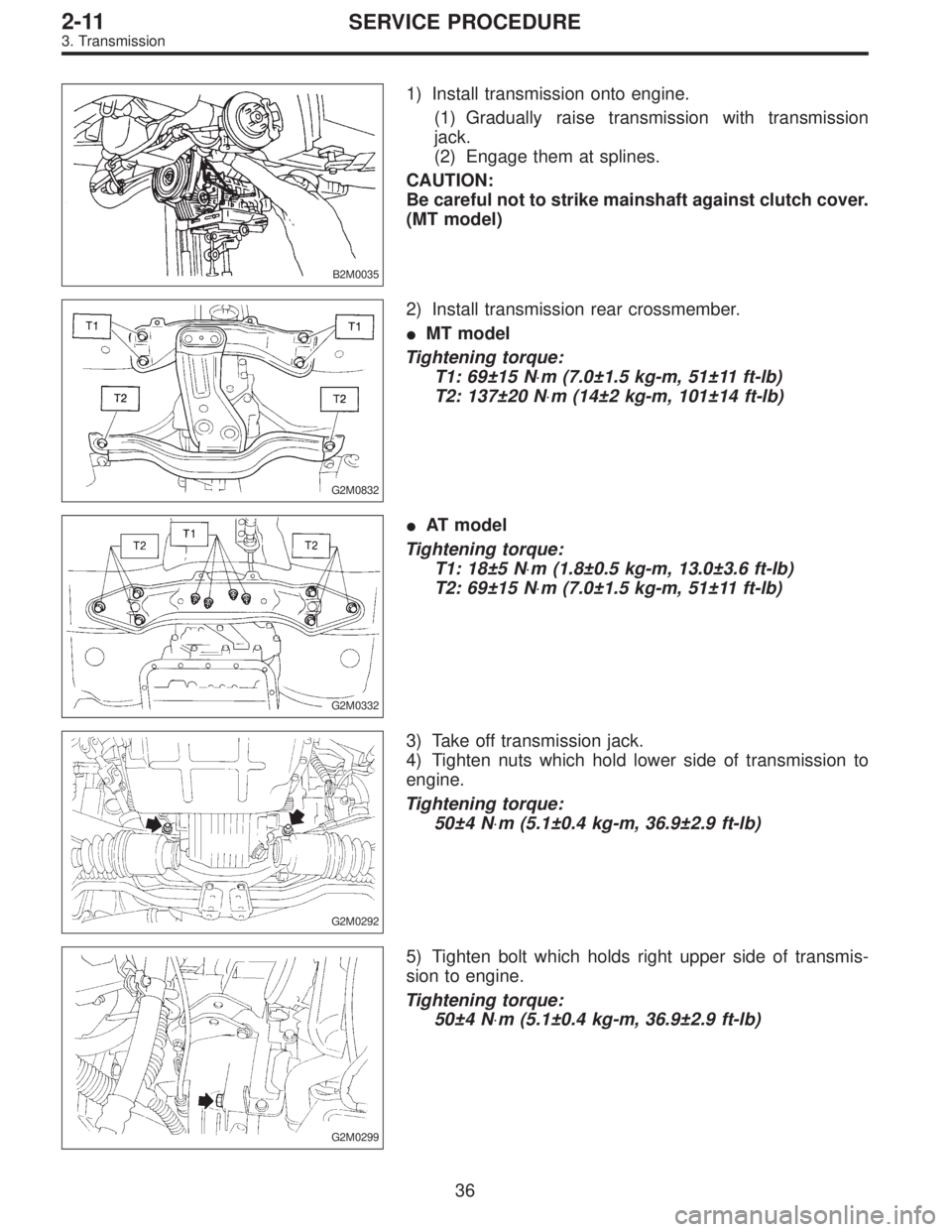

Page 270 of 2248
B2M0035
1) Install transmission onto engine.
(1) Gradually raise transmission with transmission
jack.
(2) Engage them at splines.
CAUTION:
Be careful not to strike mainshaft against clutch cover.
(MT model)
G2M0832
2) Install transmission rear crossmember.
MT model
Tightening torque:
T1: 69±15 N⋅m (7.0±1.5 kg-m, 51±11 ft-lb)
T2: 137±20 N⋅m (14±2 kg-m, 101±14 ft-lb)
G2M0332
AT model
Tightening torque:
T1: 18±5 N⋅m (1.8±0.5 kg-m, 13.0±3.6 ft-lb)
T2: 69±15 N⋅m (7.0±1.5 kg-m, 51±11 ft-lb)
G2M0292
3) Take off transmission jack.
4) Tighten nuts which hold lower side of transmission to
engine.
Tightening torque:
50±4 N⋅m (5.1±0.4 kg-m, 36.9±2.9 ft-lb)
G2M0299
5) Tighten bolt which holds right upper side of transmis-
sion to engine.
Tightening torque:
50±4 N⋅m (5.1±0.4 kg-m, 36.9±2.9 ft-lb)
36
2-11SERVICE PROCEDURE
3. Transmission

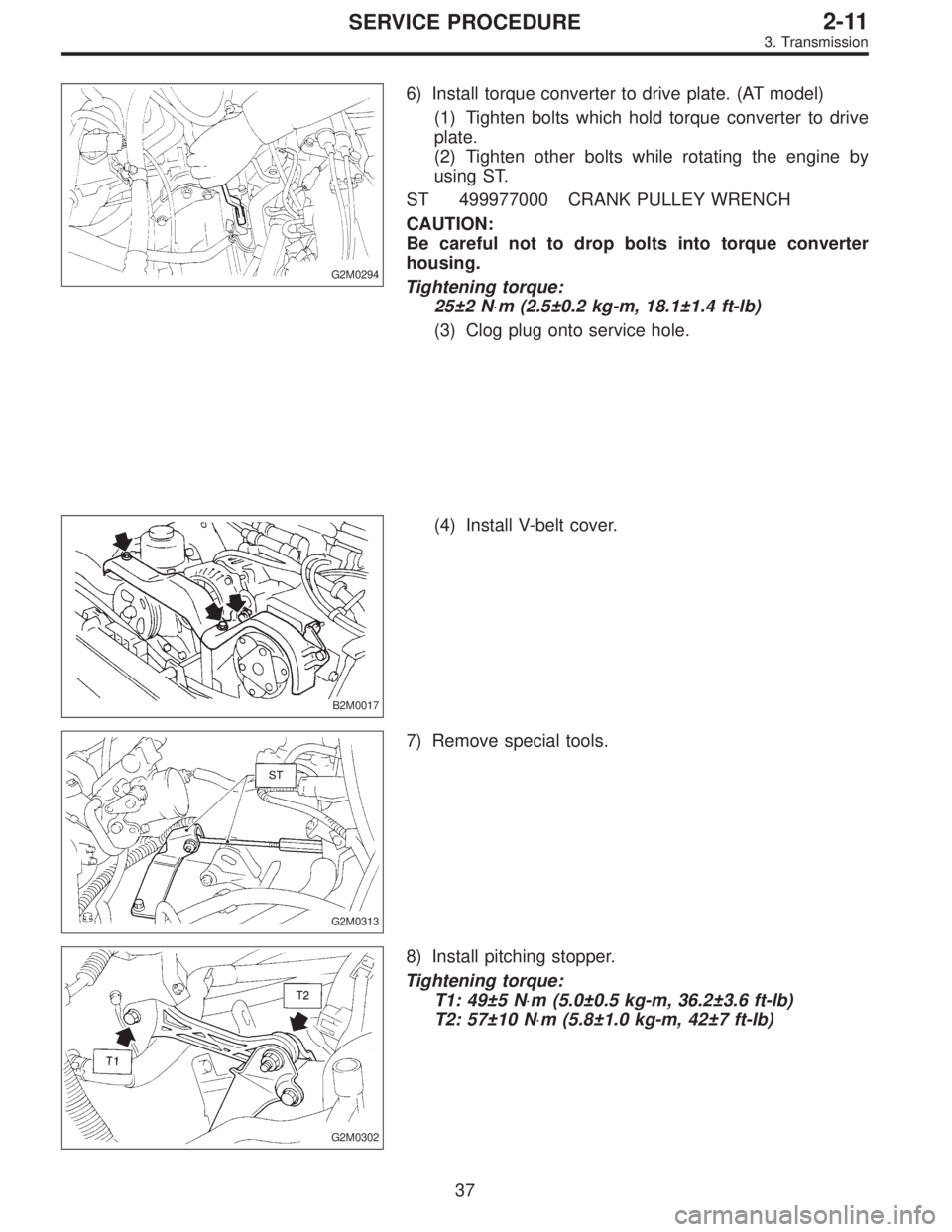

Page 271 of 2248
G2M0294
6) Install torque converter to drive plate. (AT model)
(1) Tighten bolts which hold torque converter to drive
plate.
(2) Tighten other bolts while rotating the engine by
using ST.
ST 499977000 CRANK PULLEY WRENCH
CAUTION:
Be careful not to drop bolts into torque converter
housing.
Tightening torque:
25±2 N⋅m (2.5±0.2 kg-m, 18.1±1.4 ft-lb)
(3) Clog plug onto service hole.
B2M0017
(4) Install V-belt cover.
G2M0313
7) Remove special tools.
G2M0302
8) Install pitching stopper.
Tightening torque:
T1: 49±5 N⋅m (5.0±0.5 kg-m, 36.2±3.6 ft-lb)
T2: 57±10 N⋅m (5.8±1.0 kg-m, 42±7 ft-lb)
37
2-11SERVICE PROCEDURE
3. Transmission
Page 272 of 2248
G2M0325
9) Install front drive shafts into transmission.
(1) Lift-up the vehicle.
(2) Install front drive shaft into transmission.
(3) Drive spring pin into chamfered hole of drive shaft.
CAUTION:
Always use a new spring pin.
G2M0324
(4) Install ball joints of lower arm into knuckle arm of
housing, and tighten installing bolts.
Tightening torque:
49±10 N⋅m (5.0±1.0 kg-m, 36±7 ft-lb)
G2M0323
10) Install stabilizer clamps onto front crossmember.
Tightening torque:
25±4 N⋅m (2.5±0.4 kg-m, 18.1±2.9 ft-lb)
G3M0697
11) Install gear shift rod and stay. (MT model)
(1) Install gear shift rod onto transmission.
(2) Install stay onto transmission.
(3) Install spring.
B2M0033A
12) Install shift selector cable onto selector lever. (AT
model)
(1) Install selector cable into selector lever.
(2) Install cable bracket onto body.
NOTE:
Tighten selector cable adjusting and lock nut after check-
ing selector lever operation [step. 24)].
38
2-11SERVICE PROCEDURE
3. Transmission
