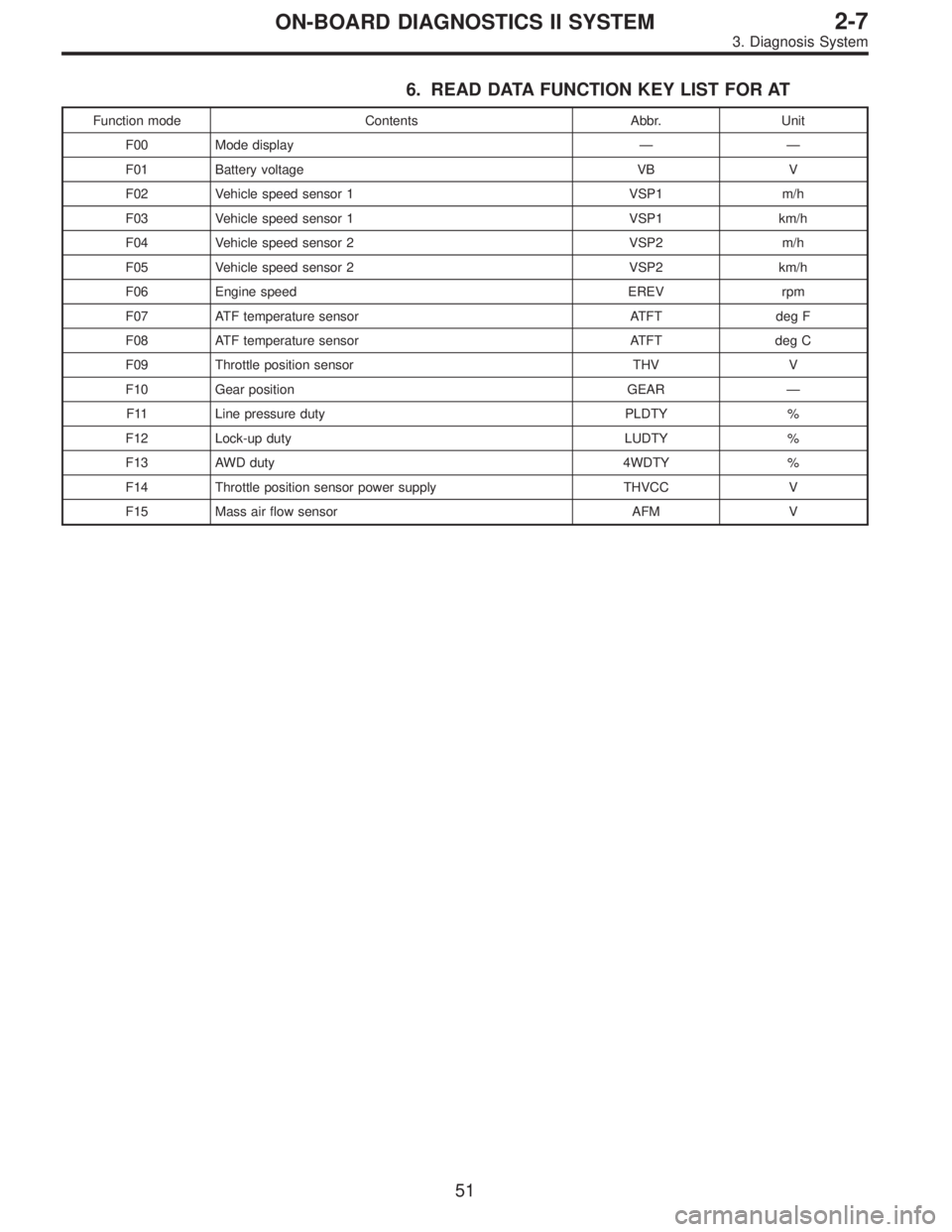

6. READ DATA FUNCTION KEY LIST FOR AT
Function mode Contents Abbr. Unit
F00 Mode display——
F01 Battery voltage VB V
F02 Vehicle speed sensor 1 VSP1 m/h
F03 Vehicle speed sensor 1 VSP1 km/h
F04 Vehicle speed sensor 2 VSP2 m/h
F05 Vehicle speed sensor 2 VSP2 km/h
F06 Engine speed EREV rpm
F07 ATF temperature sensor ATFT deg F
F08 ATF temperature sensor ATFT deg C
F09 Throttle position sensor THV V
F10 Gear position GEAR—
F11 Line pressure duty PLDTY %
F12 Lock-up duty LUDTY %
F13 AWD duty 4WDTY %
F14 Throttle position sensor power supply THVCC V
F15 Mass air flow sensor AFM V
51
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
Page 1258 of 2248
G3M0723

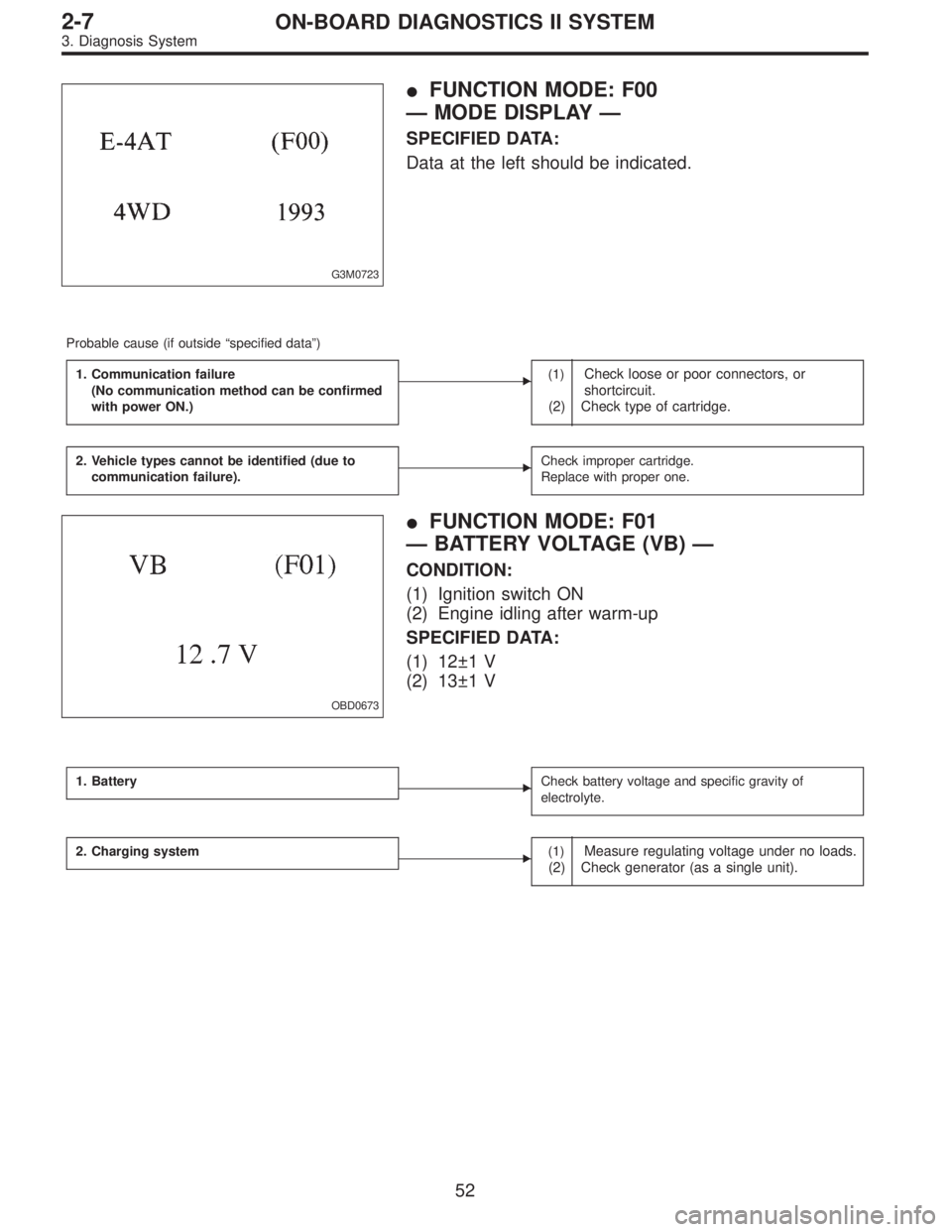

FUNCTION MODE: F00
—MODE DISPLAY—
SPECIFIED DATA:
Data at the left should be indicated.
Probable cause (if outside“specified data”)
1. Communication failure
(No communication method can be confirmed
with power ON.)
(1)Check loose or poor connectors, or
shortcircuit.
(2) Check type of cartridge.
2. Vehicle types cannot be identified (due to
communication failure).Check improper cartridge.
Replace with proper one.
OBD0673
FUNCTION MODE: F01
—BATTERY VOLTAGE (VB)—
CONDITION:
(1) Ignition switch ON
(2) Engine idling after warm-up
SPECIFIED DATA:
(1) 12±1 V
(2) 13±1 V
1. BatteryCheck battery voltage and specific gravity of
electrolyte.
2. Charging system(1)Measure regulating voltage under no loads.
(2) Check generator (as a single unit).
52
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
Page 1259 of 2248
G3M0725
FUNCTION MODE: F02
—VEHICLE SPEED SENSOR 1 (VSP1)—
F02: Vehicle speed is indicated in mile per hour (m/h).
F03: Vehicle speed is indicated in kilometer per hour
(km/h).
G3M0726
FUNCTION MODE: F04
—VEHICLE SPEED SENSOR 2 (VSP2)—
F04: Vehicle speed is indicated in mile per hour (m/h).
F05: Vehicle speed is indicated in kilometer per hour
(km/h).
G3M0727
FUNCTION MODE: F06
—ENGINE SPEED (EREV)—
B2M0620
FUNCTION MODE: F07
—ATF TEMPERATURE SENSOR (ATFT)—
F07: ATF temperature is indicated in“deg F”.
F08: ATF temperature is indicated in“deg C”.
G3M0935
FUNCTION MODE: F09
—THROTTLE POSITION SENSOR (THV)—
53
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
Page 1260 of 2248
G3M0730

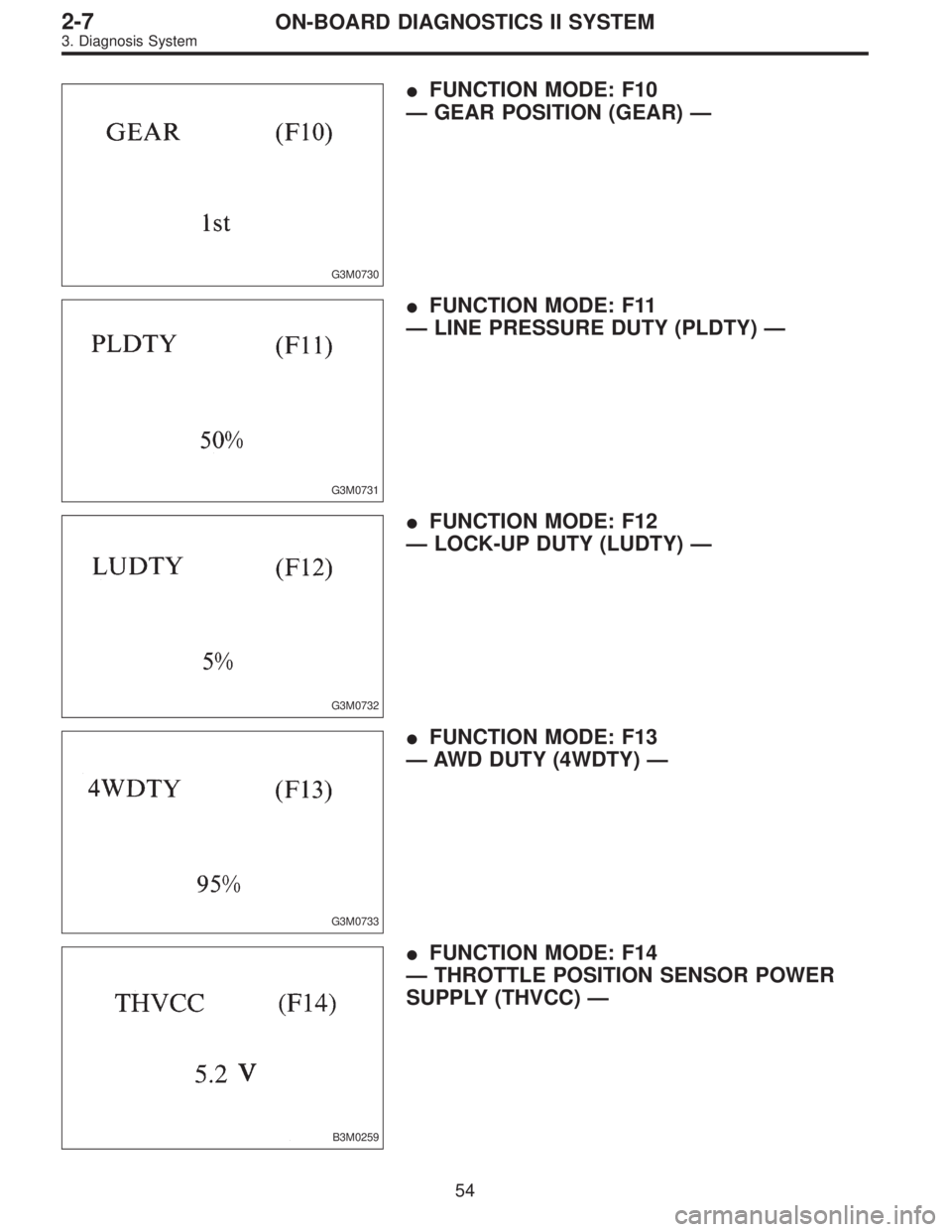

FUNCTION MODE: F10
—GEAR POSITION (GEAR)—
G3M0731
FUNCTION MODE: F11
—LINE PRESSURE DUTY (PLDTY)—
G3M0732
FUNCTION MODE: F12
—LOCK-UP DUTY (LUDTY)—
G3M0733
FUNCTION MODE: F13
—AWD DUTY (4WDTY)—
B3M0259
FUNCTION MODE: F14
—THROTTLE POSITION SENSOR POWER
SUPPLY (THVCC)—
54
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
Page 1261 of 2248
B3M0370

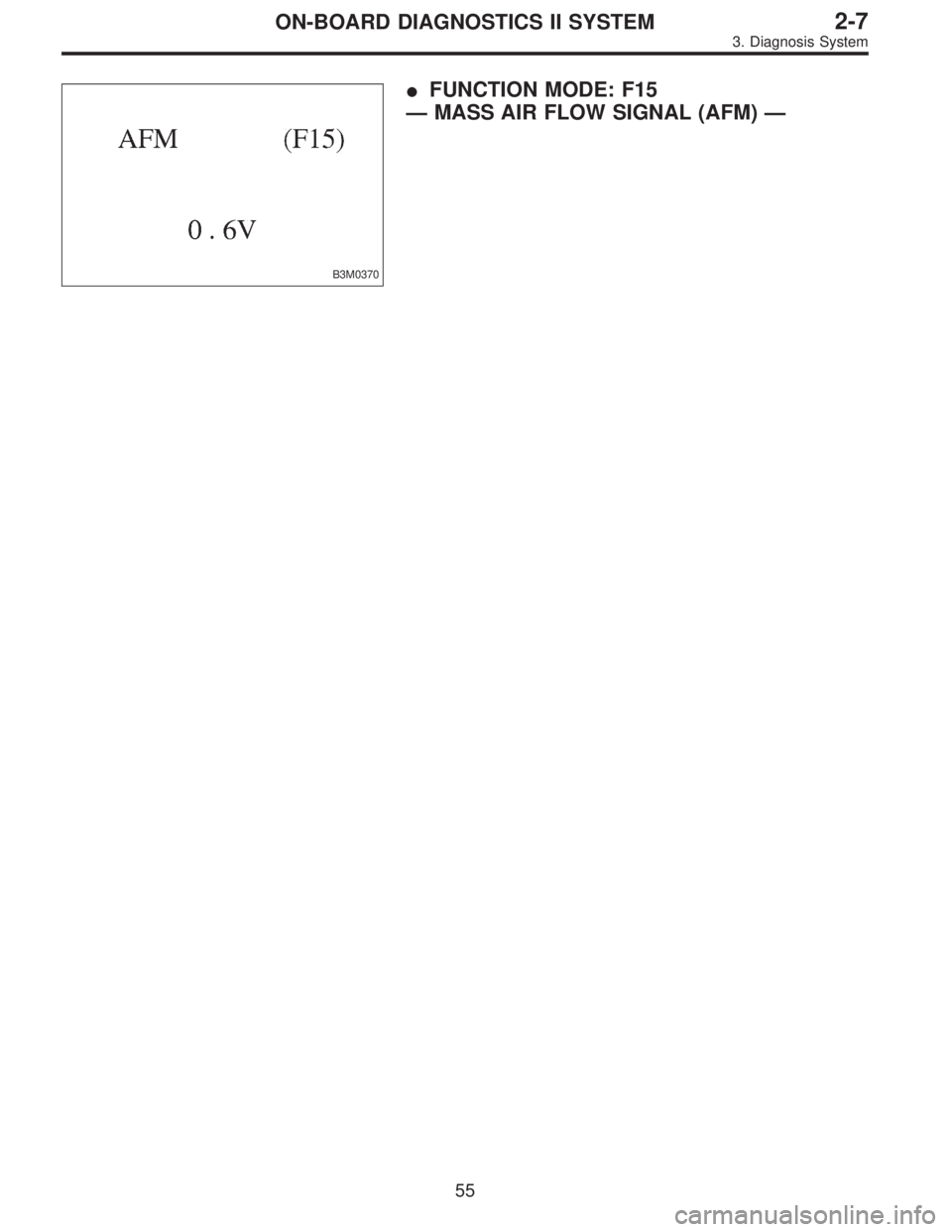

FUNCTION MODE: F15
—MASS AIR FLOW SIGNAL (AFM)—
55
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
Page 1262 of 2248

LED No. Signal name Display
1 FWD switch FF
2 Kick-down switch KD
3——
4——
5 Brake switch BR
6 ABS switch AB
7 Cruise control set CR
8 Power switch PW
9——
10——
FF KD——BR
AB CR PW——
1
2345
678910

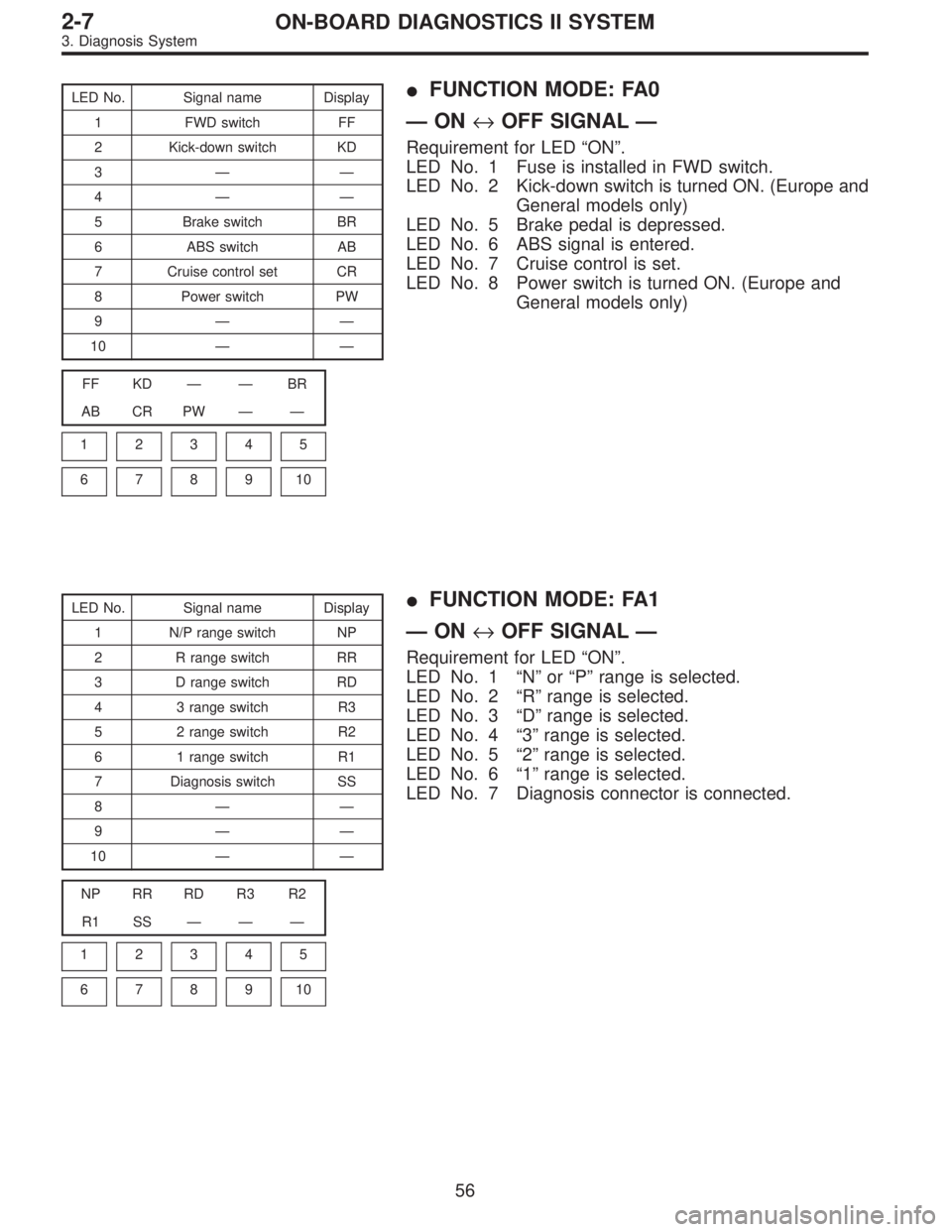

FUNCTION MODE: FA0
—ON↔OFF SIGNAL—
Requirement for LED“ON”.
LED No. 1 Fuse is installed in FWD switch.
LED No. 2 Kick-down switch is turned ON. (Europe and
General models only)
LED No. 5 Brake pedal is depressed.
LED No. 6 ABS signal is entered.
LED No. 7 Cruise control is set.
LED No. 8 Power switch is turned ON. (Europe and
General models only)
LED No. Signal name Display
1 N/P range switch NP
2 R range switch RR
3 D range switch RD
4 3 range switch R3
5 2 range switch R2
6 1 range switch R1
7 Diagnosis switch SS
8——
9——
10——
NP RR RD R3 R2
R1 SS———
1
2345
678910
FUNCTION MODE: FA1
—ON↔OFF SIGNAL—
Requirement for LED“ON”.
LED No. 1“N”or“P”range is selected.
LED No. 2“R”range is selected.
LED No. 3“D”range is selected.
LED No. 4“3”range is selected.
LED No. 5“2”range is selected.
LED No. 6“1”range is selected.
LED No. 7 Diagnosis connector is connected.
56
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
Page 1263 of 2248
OBD0064

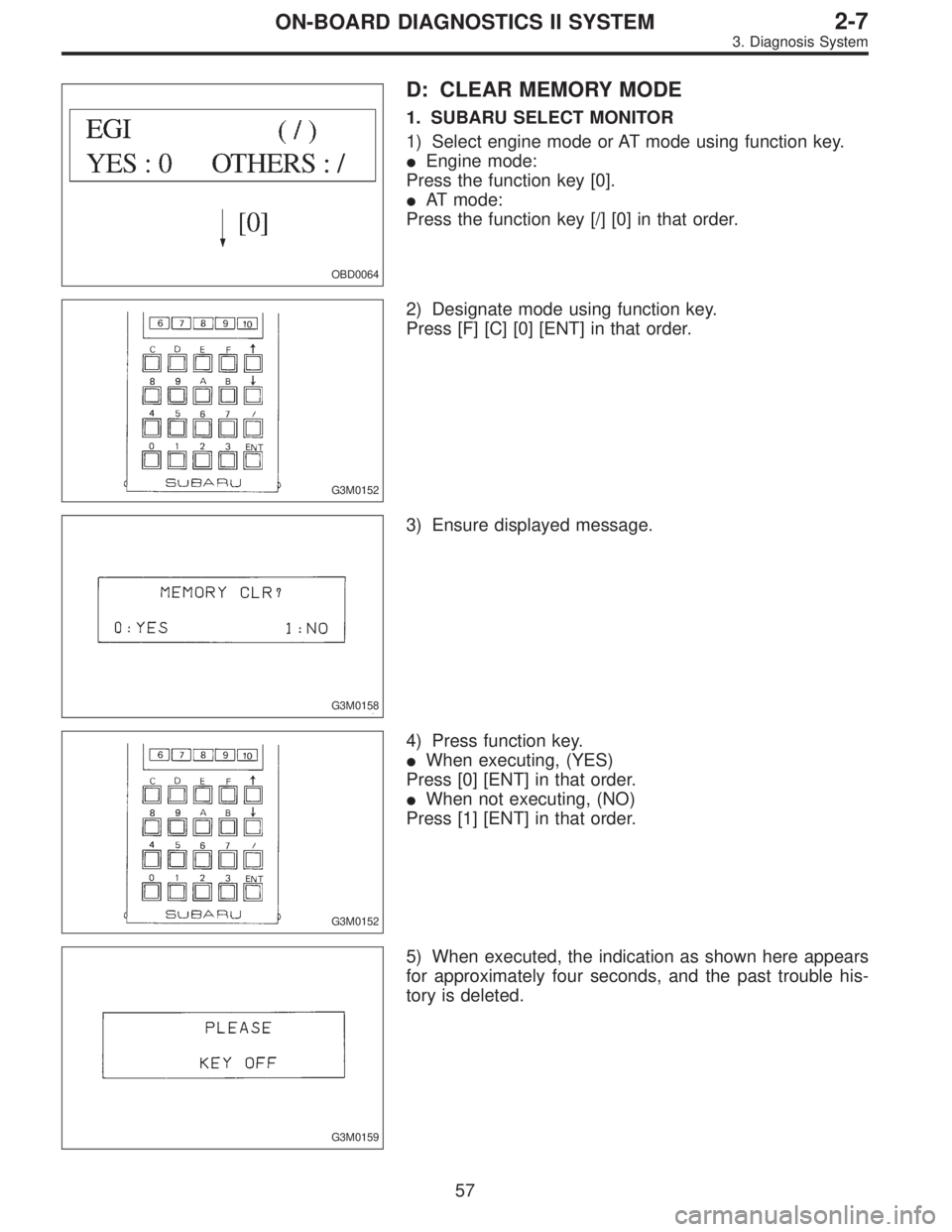

D: CLEAR MEMORY MODE
1. SUBARU SELECT MONITOR
1) Select engine mode or AT mode using function key.
Engine mode:
Press the function key [0].
AT mode:
Press the function key [/] [0] in that order.
G3M0152
2) Designate mode using function key.
Press [F] [C] [0] [ENT] in that order.
G3M0158
3) Ensure displayed message.
G3M0152
4) Press function key.
When executing, (YES)
Press [0] [ENT] in that order.
When not executing, (NO)
Press [1] [ENT] in that order.
G3M0159
5) When executed, the indication as shown here appears
for approximately four seconds, and the past trouble his-
tory is deleted.
57
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
Page 1264 of 2248

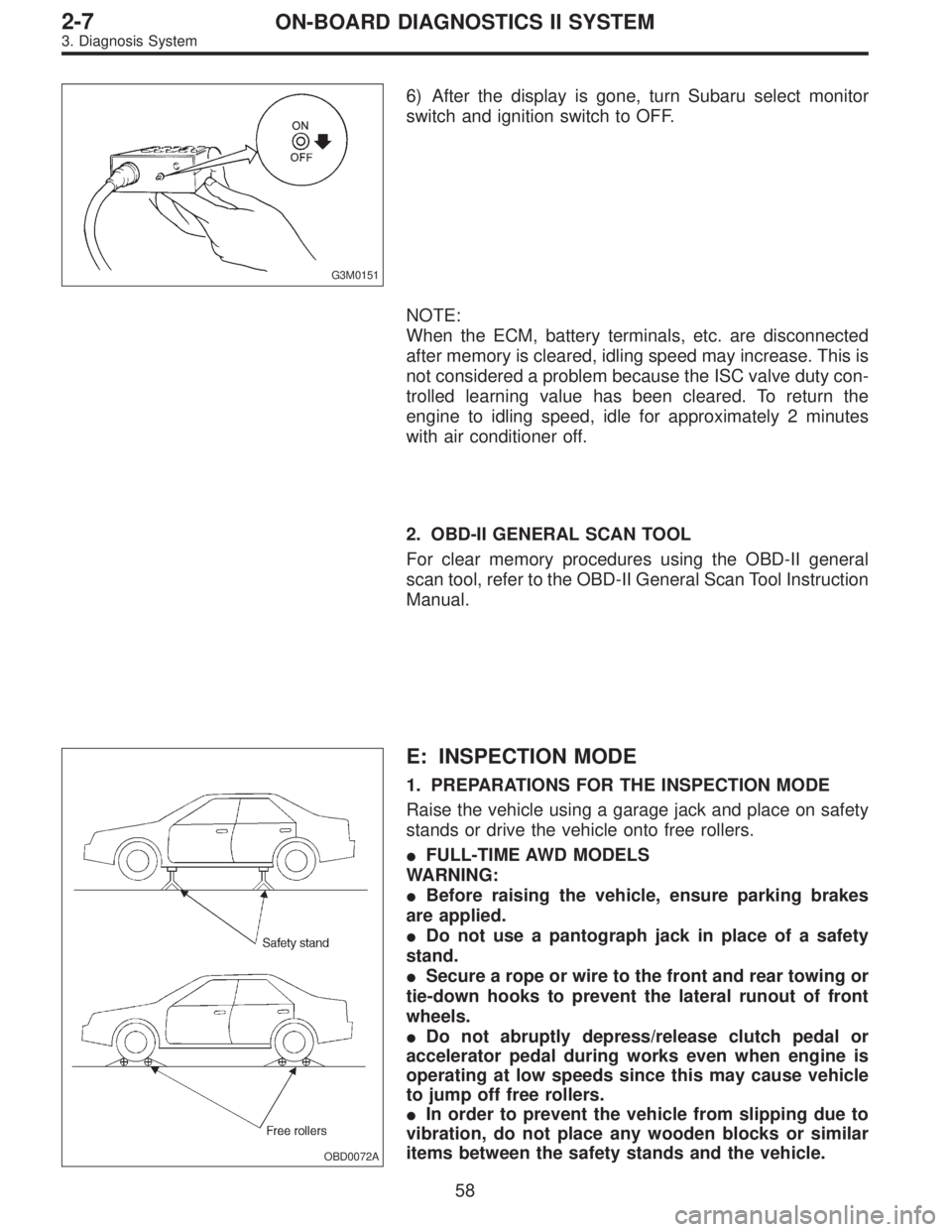

G3M0151
6) After the display is gone, turn Subaru select monitor
switch and ignition switch to OFF.
NOTE:
When the ECM, battery terminals, etc. are disconnected
after memory is cleared, idling speed may increase. This is
not considered a problem because the ISC valve duty con-
trolled learning value has been cleared. To return the
engine to idling speed, idle for approximately 2 minutes
with air conditioner off.
2. OBD-II GENERAL SCAN TOOL
For clear memory procedures using the OBD-II general
scan tool, refer to the OBD-II General Scan Tool Instruction
Manual.
OBD0072A
E: INSPECTION MODE
1. PREPARATIONS FOR THE INSPECTION MODE
Raise the vehicle using a garage jack and place on safety
stands or drive the vehicle onto free rollers.
FULL-TIME AWD MODELS
WARNING:
Before raising the vehicle, ensure parking brakes
are applied.
Do not use a pantograph jack in place of a safety
stand.
Secure a rope or wire to the front and rear towing or
tie-down hooks to prevent the lateral runout of front
wheels.
Do not abruptly depress/release clutch pedal or
accelerator pedal during works even when engine is
operating at low speeds since this may cause vehicle
to jump off free rollers.
In order to prevent the vehicle from slipping due to
vibration, do not place any wooden blocks or similar
items between the safety stands and the vehicle.
