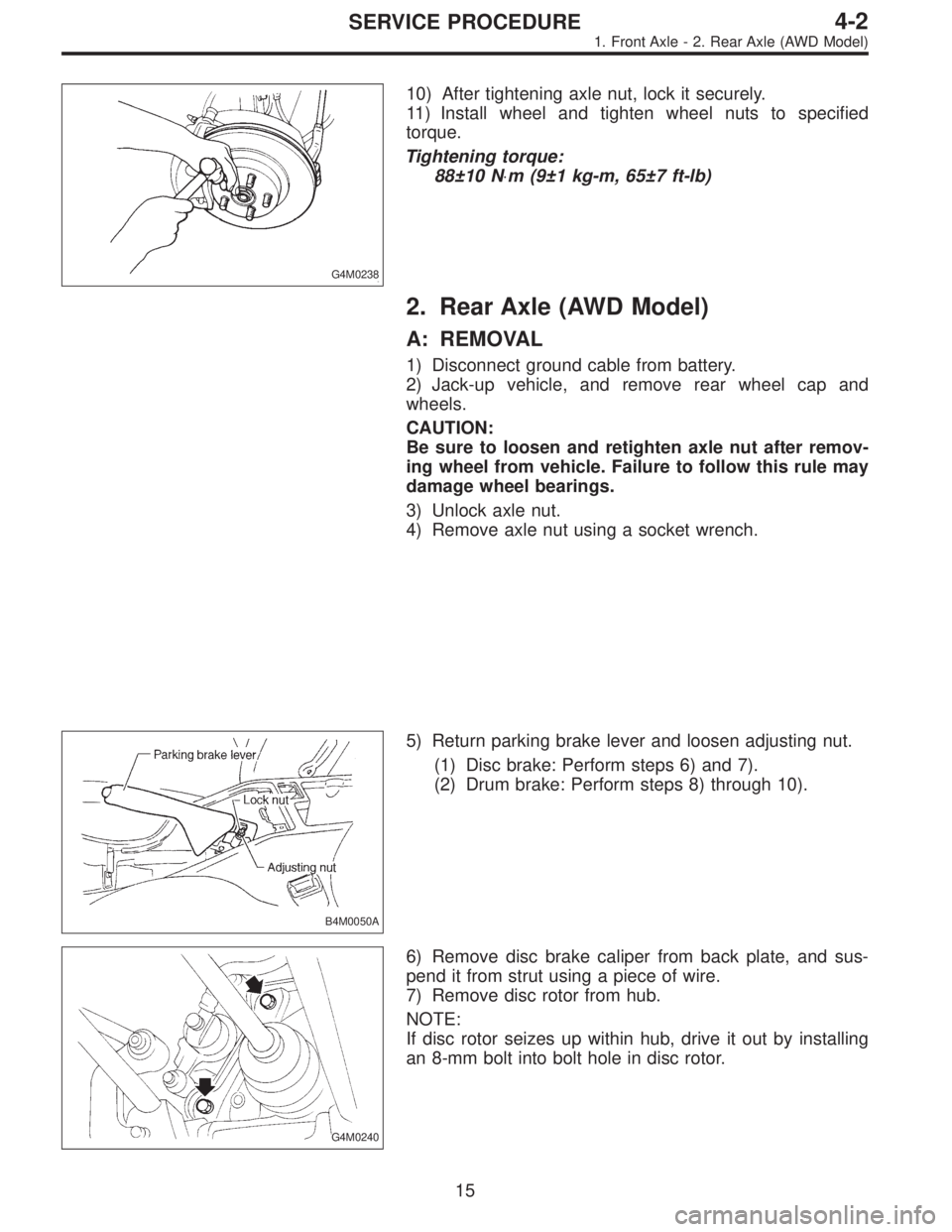

SUBARU LEGACY 1995 Service Repair Manual G4M0238 10) After tightening axle nut, lock it securely. 11) Install wheel and tighten wheel nuts to specified torque. Tightening torque: 88±10 N⋅m (9±1 kg-m, 65±7 ft-lb) 2. Rear Axle (AWD Model)

Page 578 of 2248

SUBARU LEGACY 1995 Service Repair Manual G4M0238 10) After tightening axle nut, lock it securely. 11) Install wheel and tighten wheel nuts to specified torque. Tightening torque: 88±10 N⋅m (9±1 kg-m, 65±7 ft-lb) 2. Rear Axle (AWD Model)

Page 579 of 2248

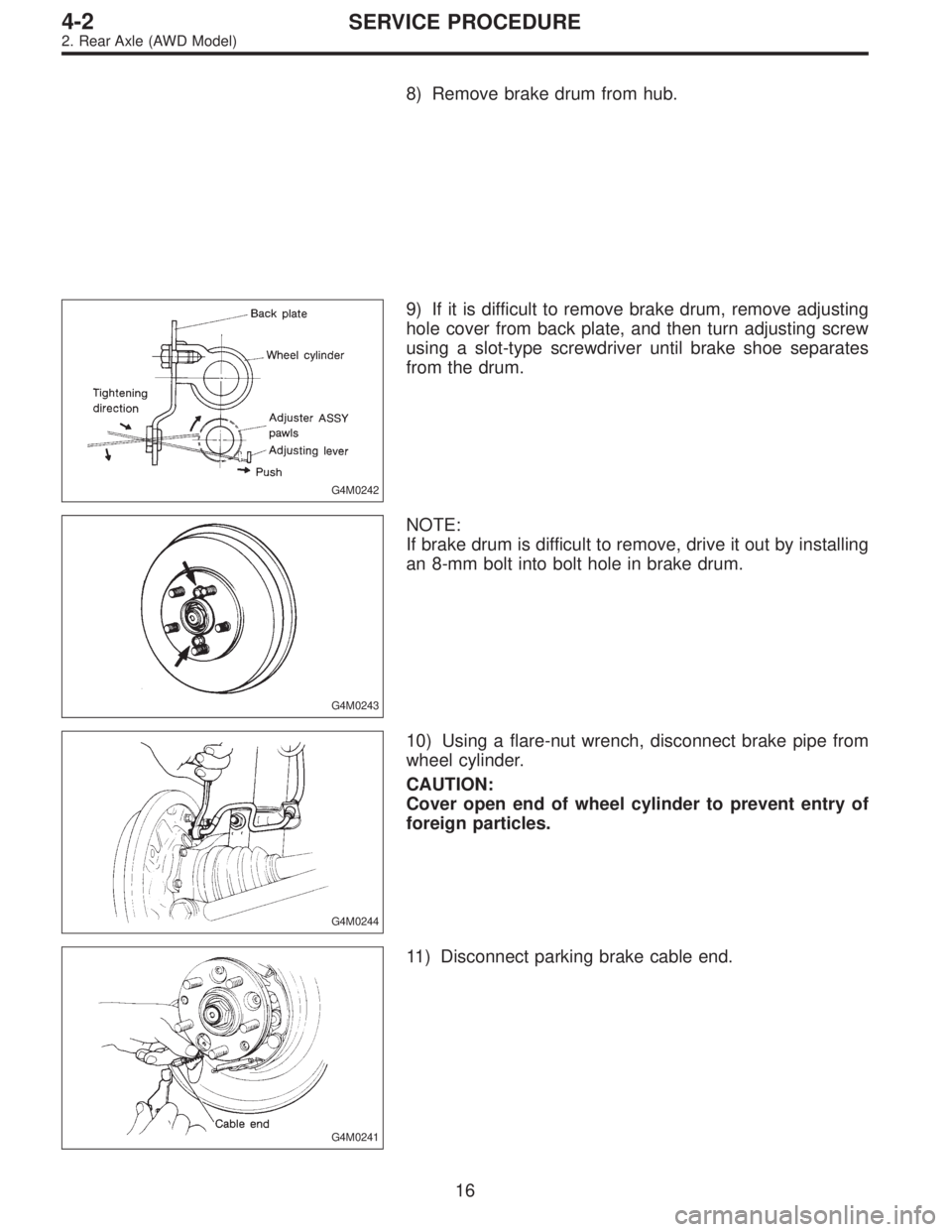

SUBARU LEGACY 1995 Service Repair Manual 8) Remove brake drum from hub. G4M0242 9) If it is difficult to remove brake drum, remove adjusting hole cover from back plate, and then turn adjusting screw using a slot-type screwdriver until brake

Page 580 of 2248

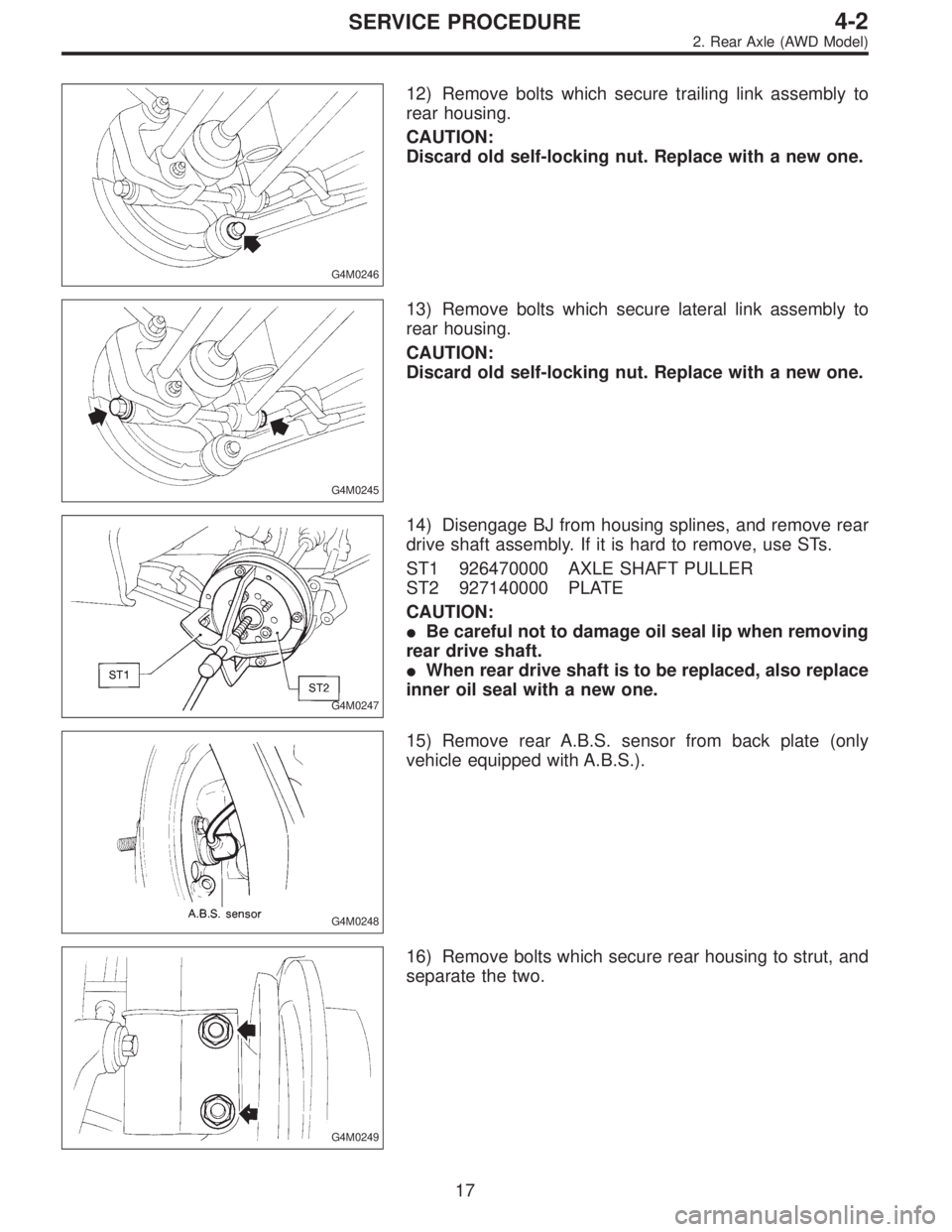

SUBARU LEGACY 1995 Service Repair Manual G4M0246 12) Remove bolts which secure trailing link assembly to rear housing. CAUTION: Discard old self-locking nut. Replace with a new one. G4M0245 13) Remove bolts which secure lateral link assembly

Page 581 of 2248

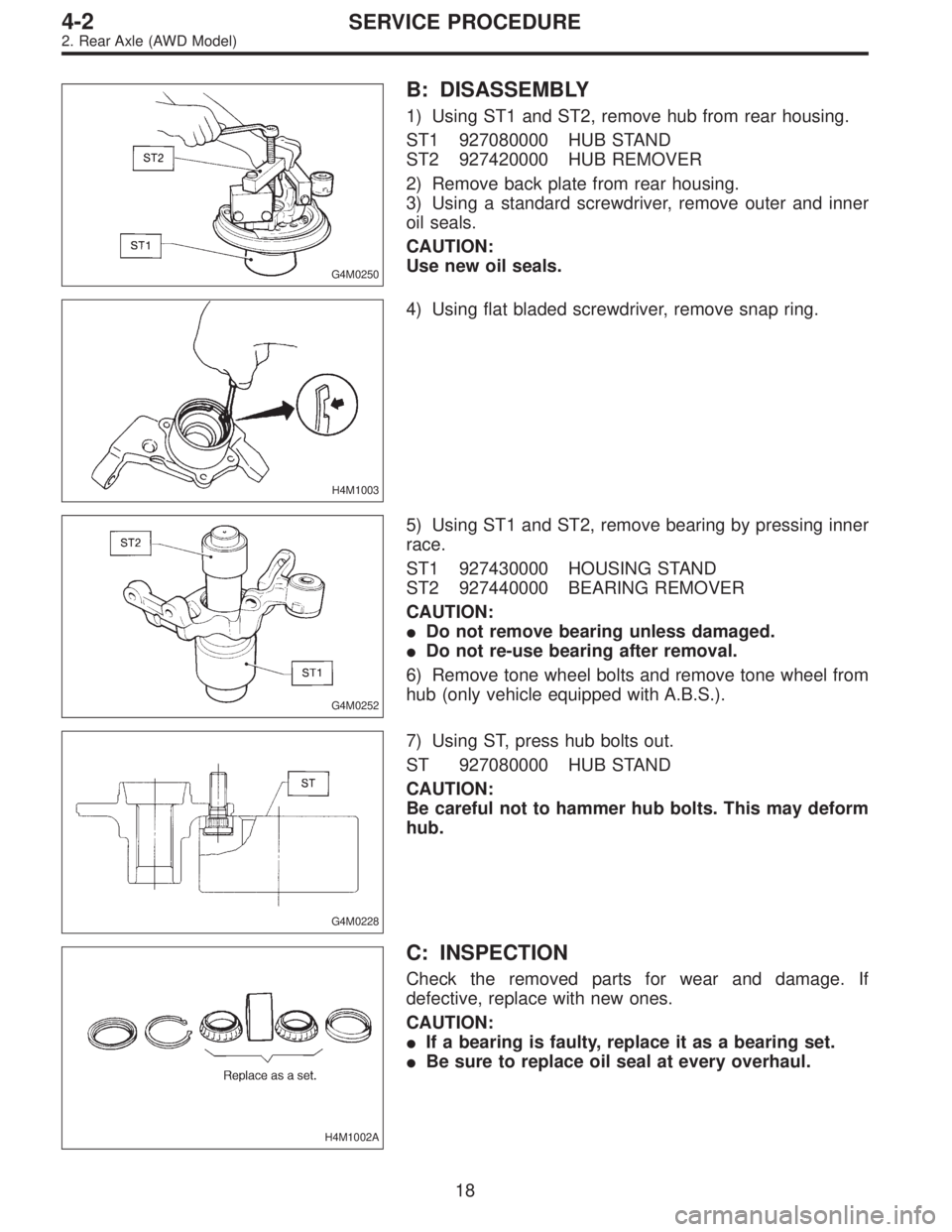

SUBARU LEGACY 1995 Service Repair Manual G4M0250 B: DISASSEMBLY 1) Using ST1 and ST2, remove hub from rear housing. ST1 927080000 HUB STAND ST2 927420000 HUB REMOVER 2) Remove back plate from rear housing. 3) Using a standard screwdriver, re

Page 582 of 2248

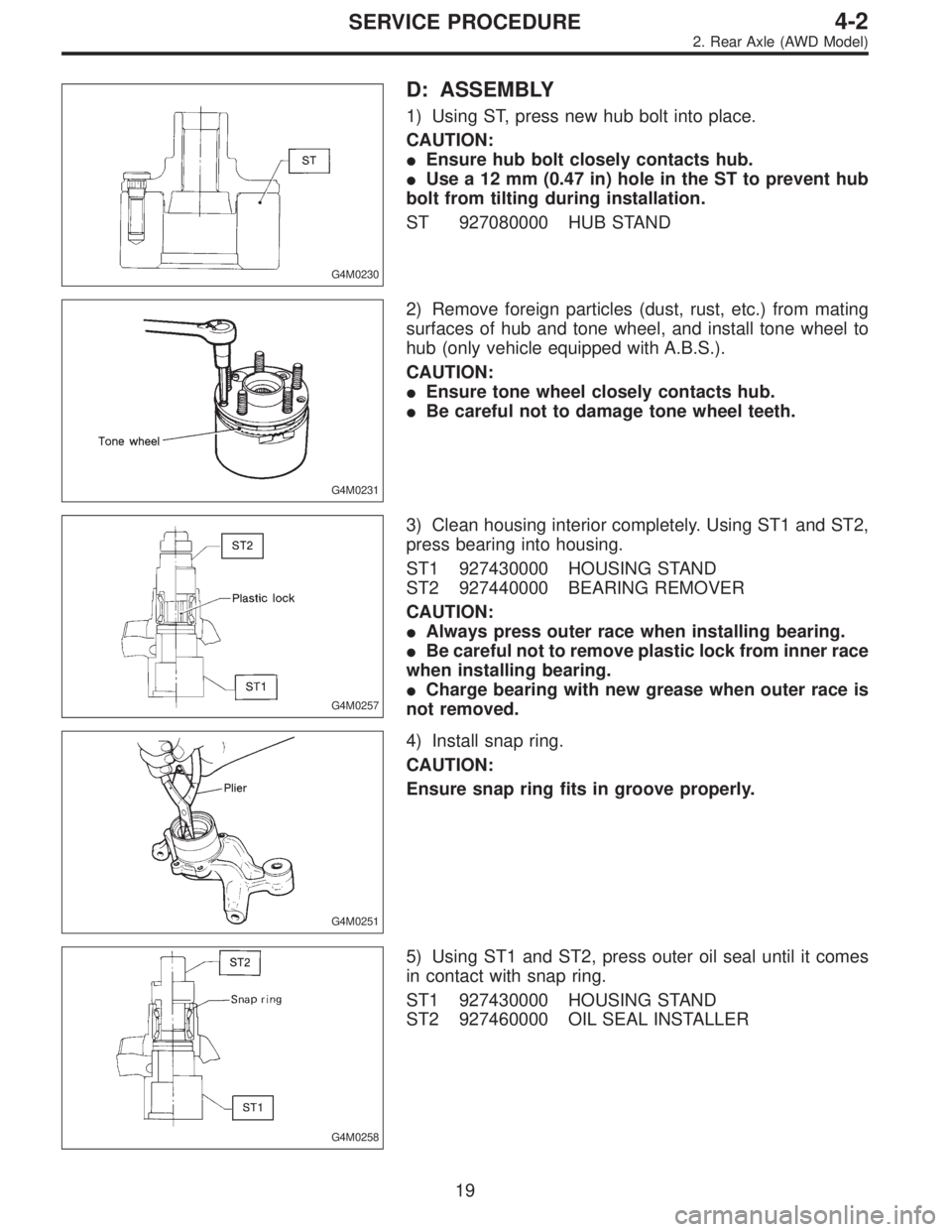

SUBARU LEGACY 1995 Service Repair Manual G4M0230 D: ASSEMBLY 1) Using ST, press new hub bolt into place. CAUTION: Ensure hub bolt closely contacts hub. Use a 12 mm (0.47 in) hole in the ST to prevent hub bolt from tilting during installati

Page 583 of 2248

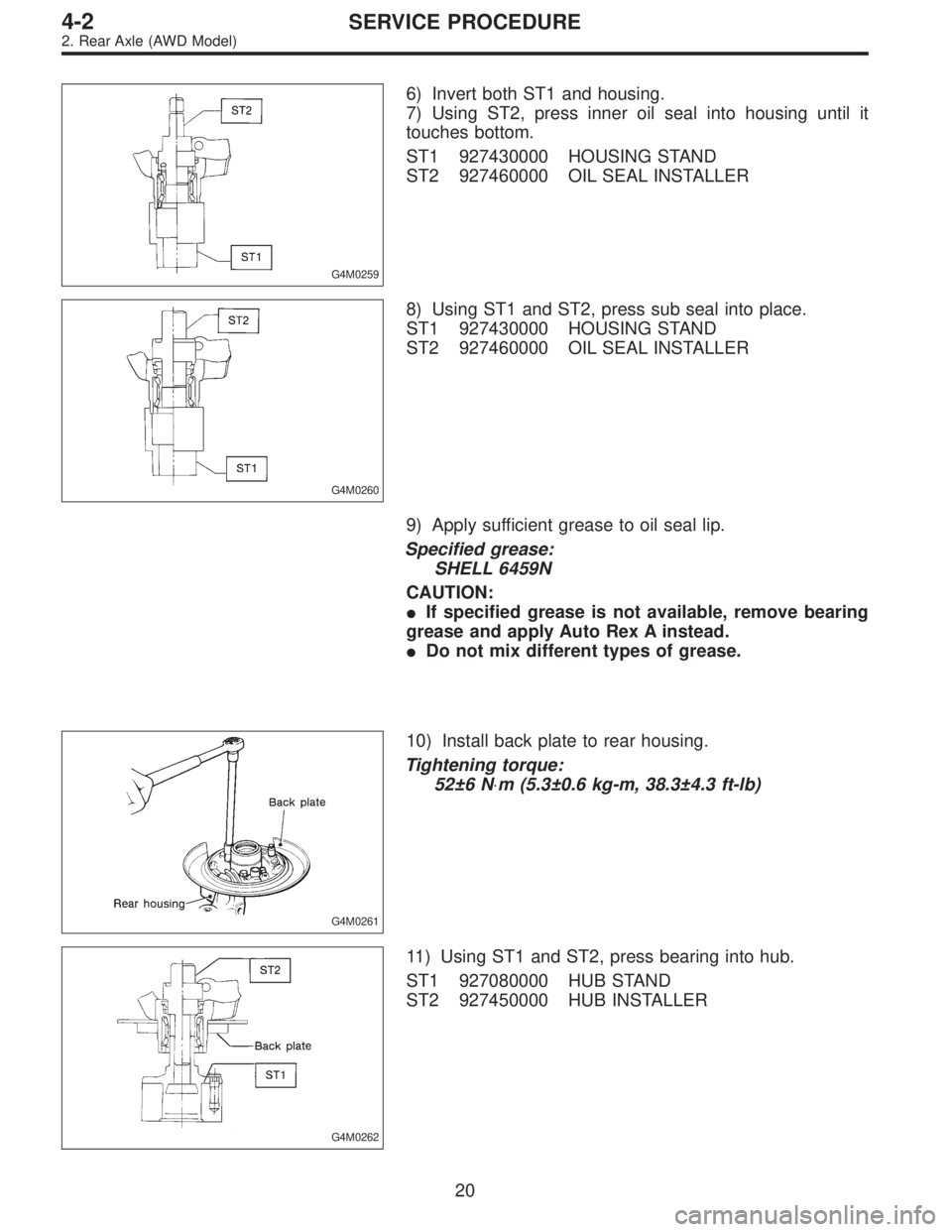

SUBARU LEGACY 1995 Service Repair Manual G4M0259 6) Invert both ST1 and housing. 7) Using ST2, press inner oil seal into housing until it touches bottom. ST1 927430000 HOUSING STAND ST2 927460000 OIL SEAL INSTALLER G4M0260 8) Using ST1 and S

Page 584 of 2248

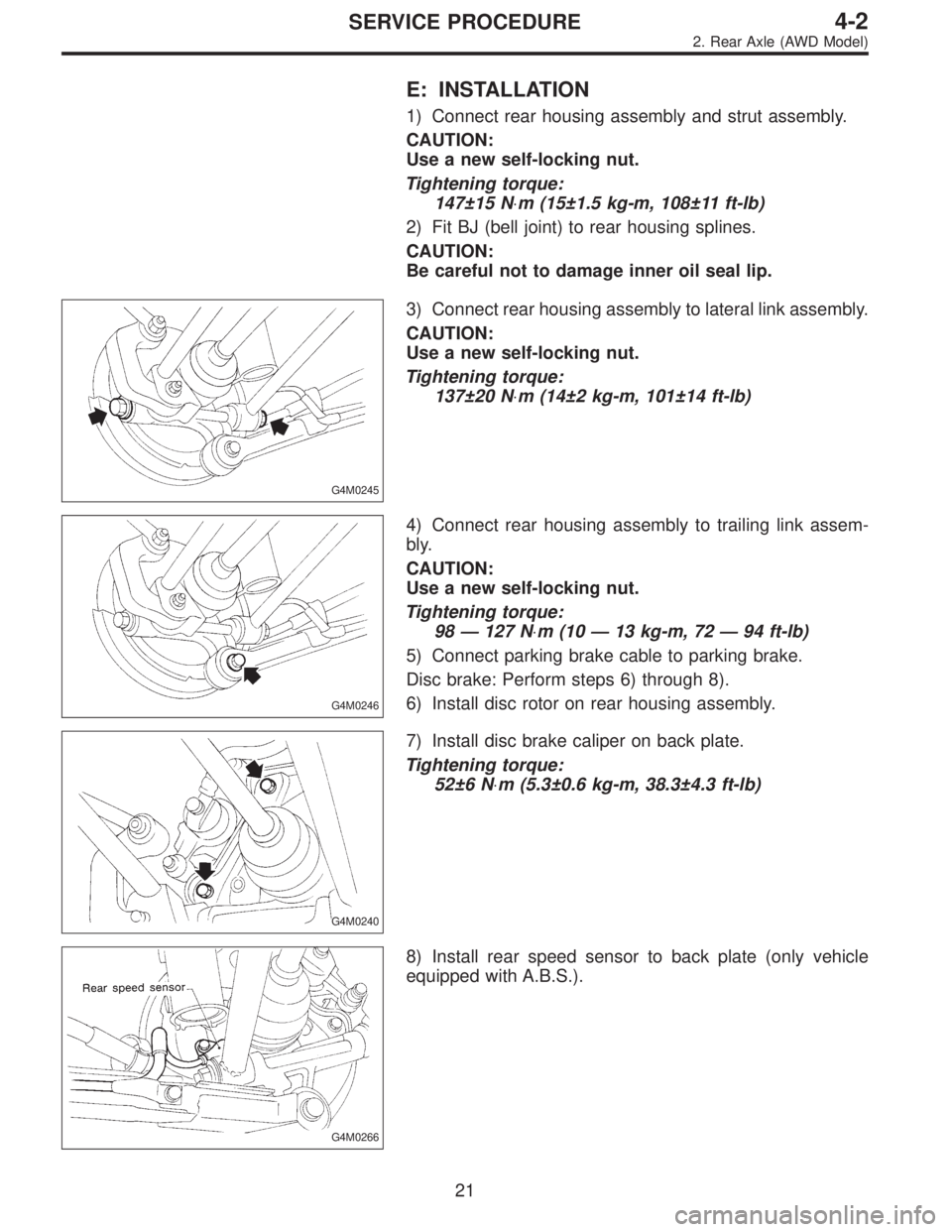

SUBARU LEGACY 1995 Service Repair Manual E: INSTALLATION 1) Connect rear housing assembly and strut assembly. CAUTION: Use a new self-locking nut. Tightening torque: 147±15 N⋅m (15±1.5 kg-m, 108±11 ft-lb) 2) Fit BJ (bell joint) to rear
