Page 705 of 2248

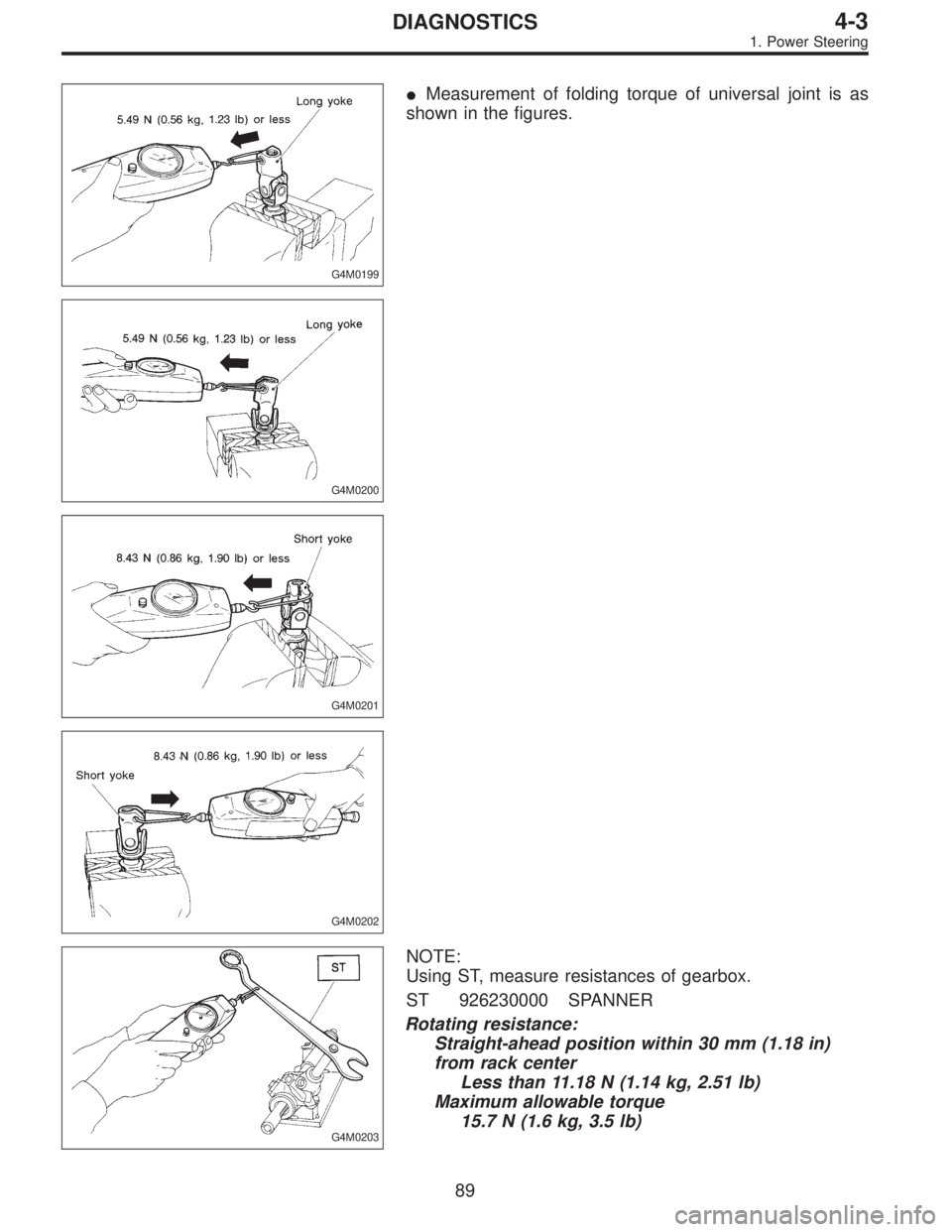

SUBARU LEGACY 1995 Service Repair Manual G4M0199 Measurement of folding torque of universal joint is as shown in the figures. G4M0200 G4M0201 G4M0202 G4M0203 NOTE: Using ST, measure resistances of gearbox. ST 926230000 SPANNER Rotating resi

Page 706 of 2248

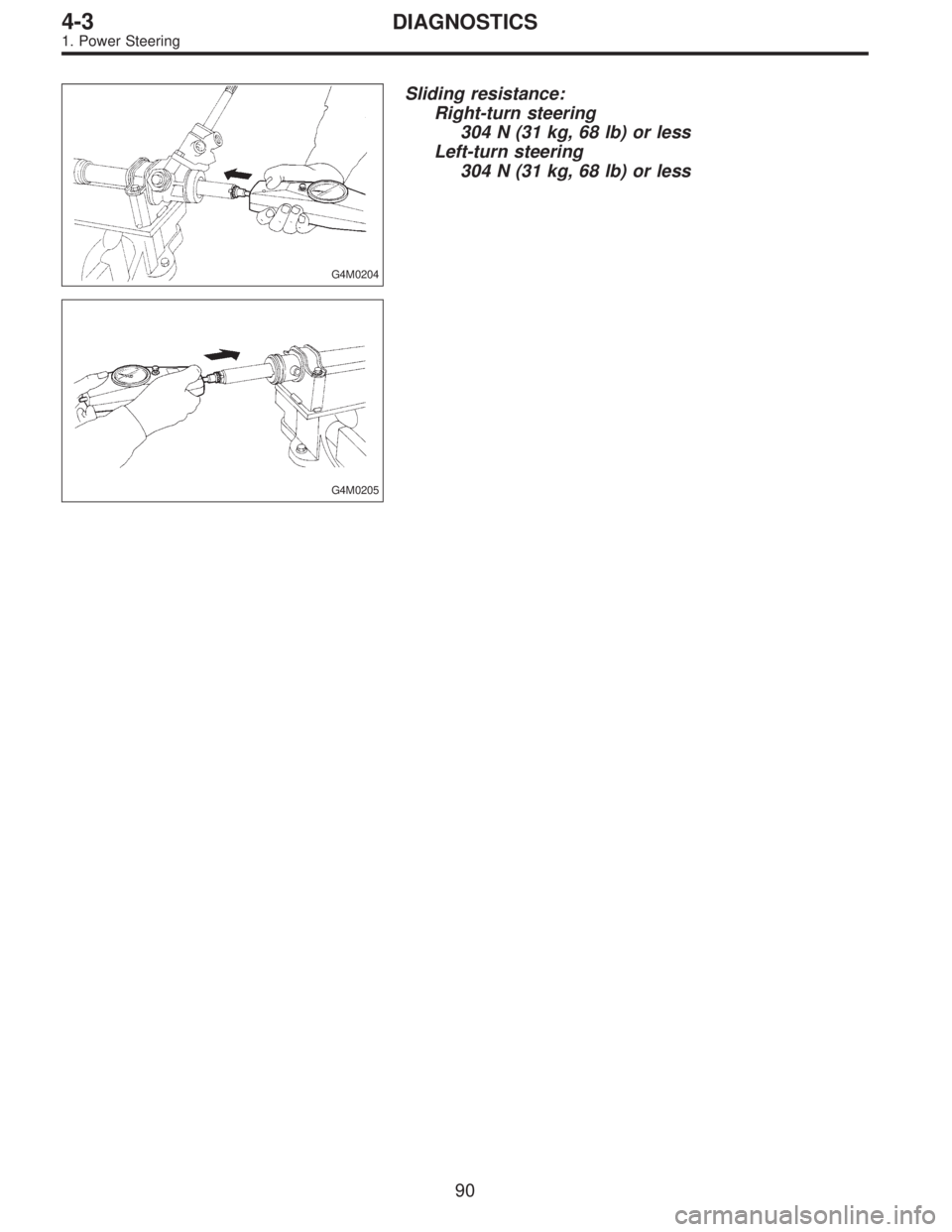

SUBARU LEGACY 1995 Service Repair Manual G4M0204 Sliding resistance: Right-turn steering 304 N (31 kg, 68 lb) or less Left-turn steering 304 N (31 kg, 68 lb) or less G4M0205 90 4-3DIAGNOSTICS 1. Power Steering

Page 707 of 2248

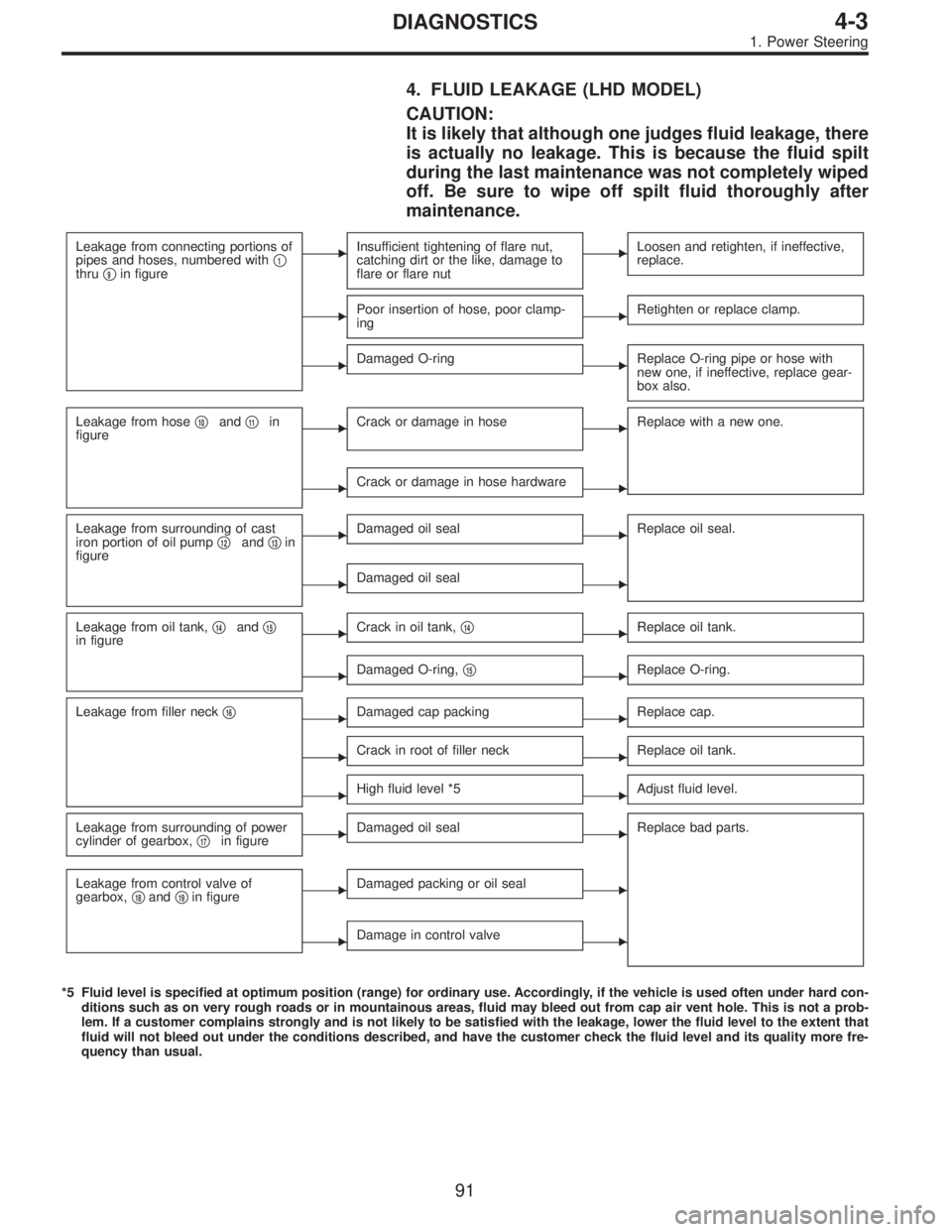

SUBARU LEGACY 1995 Service Repair Manual 4. FLUID LEAKAGE (LHD MODEL) CAUTION: It is likely that although one judges fluid leakage, there is actually no leakage. This is because the fluid spilt during the last maintenance was not completely

Page 708 of 2248

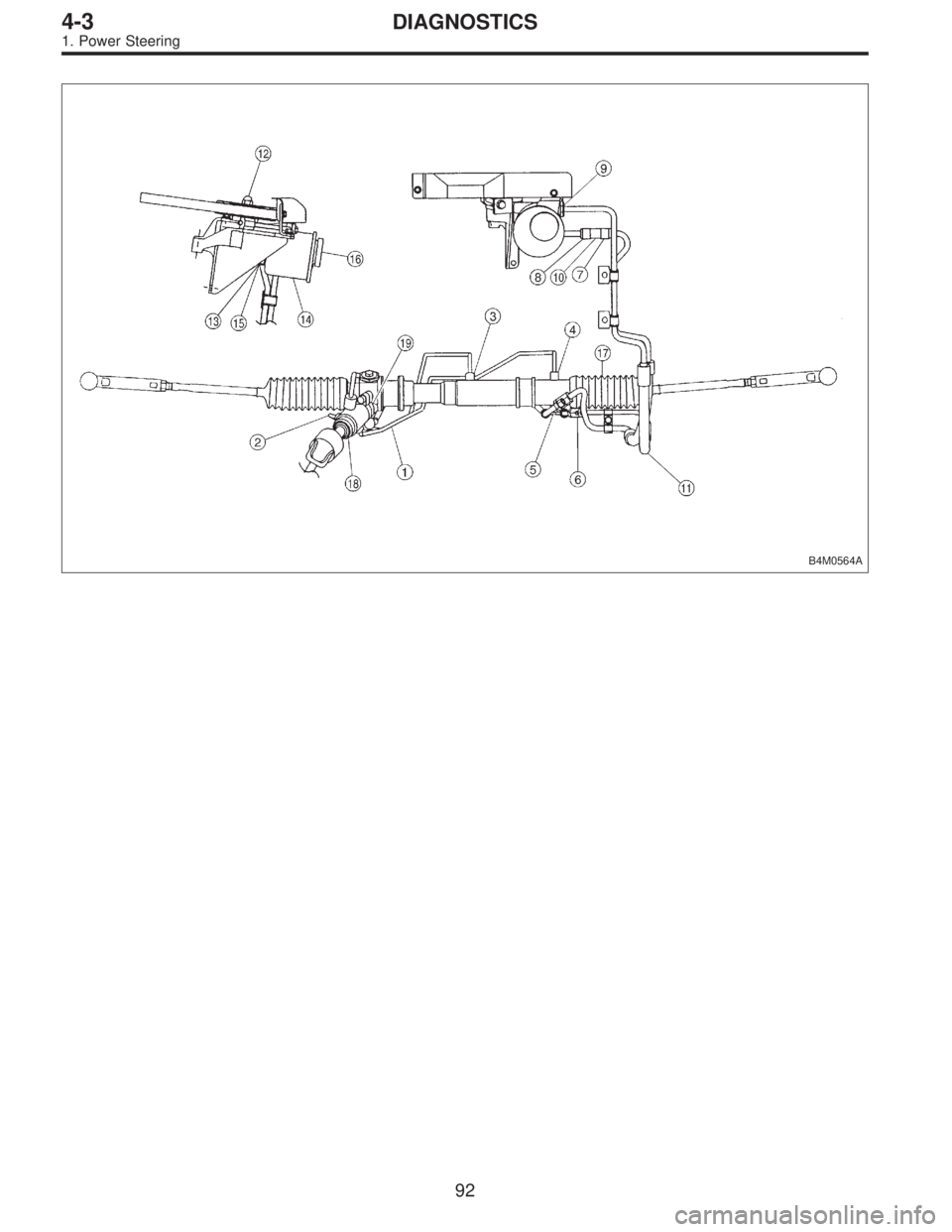

SUBARU LEGACY 1995 Service Repair Manual B4M0564A 92 4-3DIAGNOSTICS 1. Power Steering

Page 709 of 2248

SUBARU LEGACY 1995 Service Repair Manual 5. FLUID LEAKAGE (RHD MODEL) CAUTION: It is likely that although one judges fluid leakage, there is actually no leakage. This is because the fluid spilt during the last maintenance was not completely

Page 710 of 2248

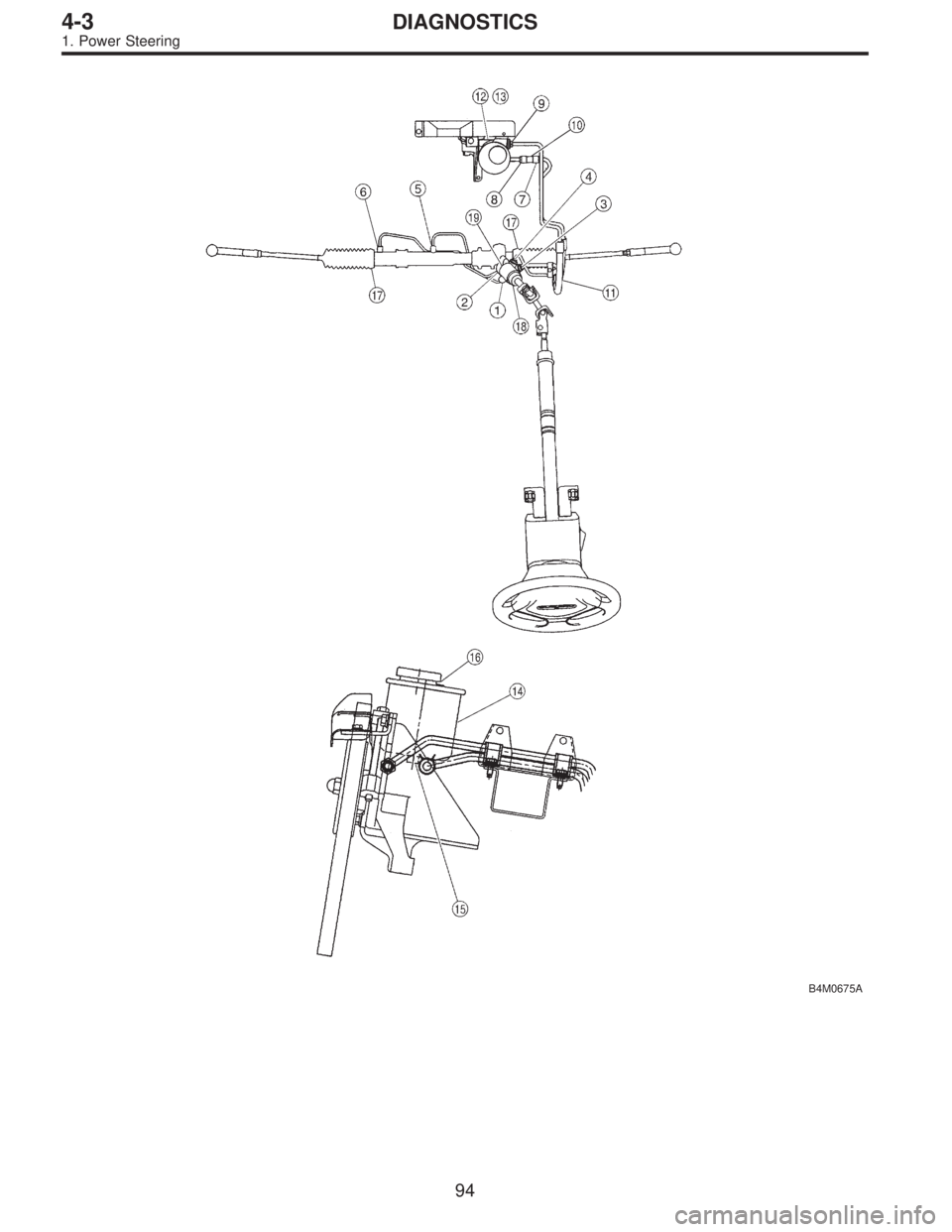

SUBARU LEGACY 1995 Service Repair Manual B4M0675A 94 4-3DIAGNOSTICS 1. Power Steering

Page 711 of 2248

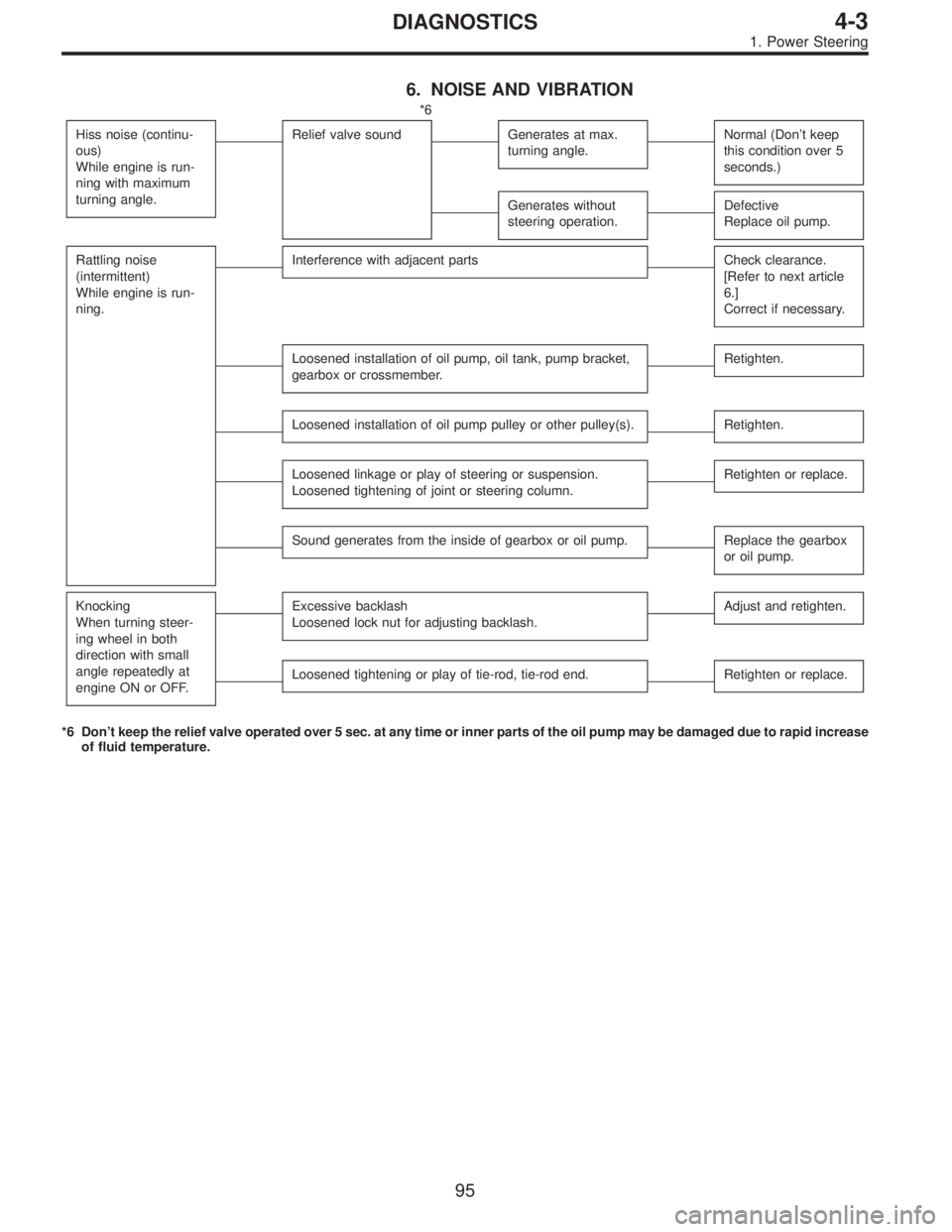

SUBARU LEGACY 1995 Service Repair Manual 6. NOISE AND VIBRATION *6 Hiss noise (continu- ous) While engine is run- ning with maximum turning angle. Relief valve soundGenerates at max. turning angle.Normal (Don’t keep this condition over 5 s

Page 712 of 2248

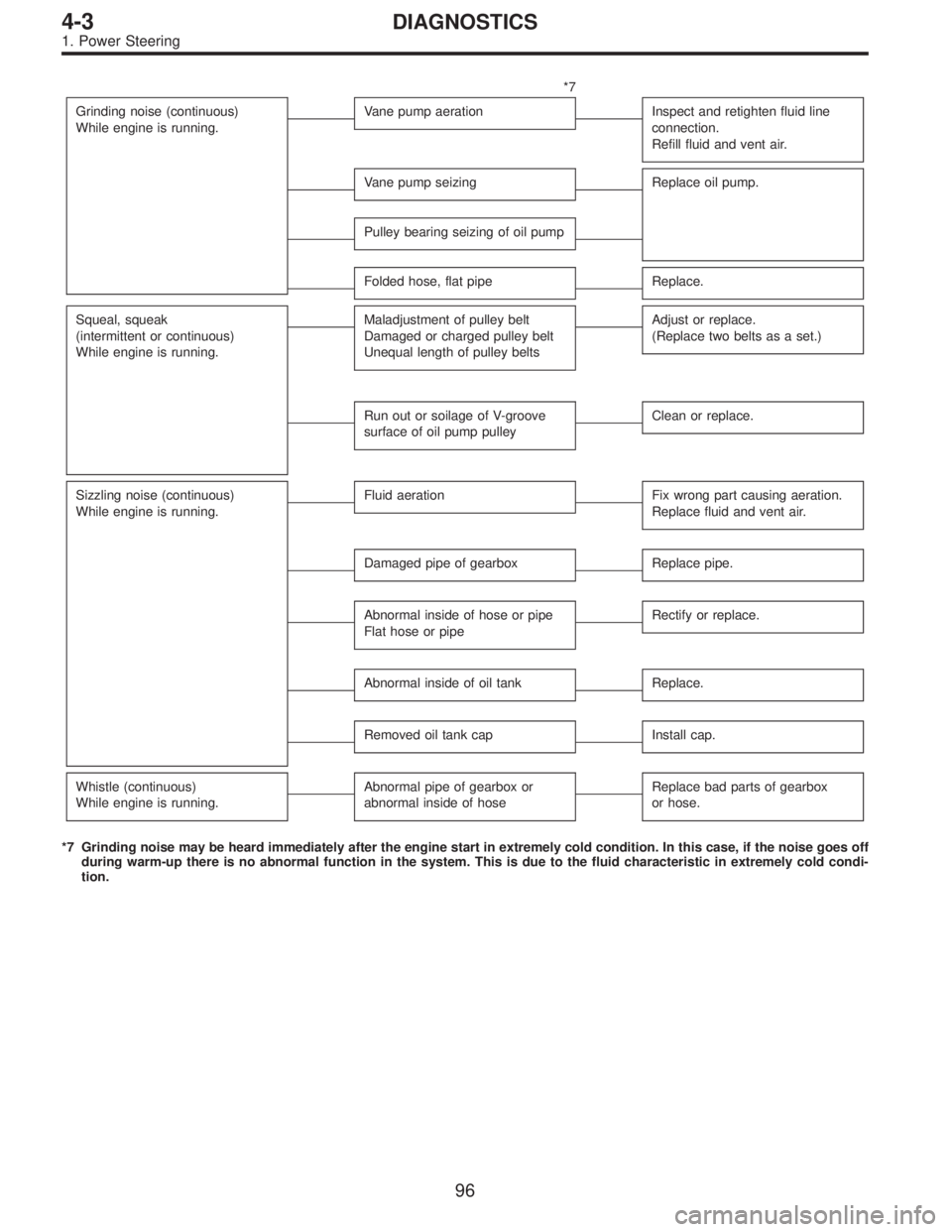

SUBARU LEGACY 1995 Service Repair Manual *7 Grinding noise (continuous) While engine is running. Vane pump aerationInspect and retighten fluid line connection. Refill fluid and vent air. Vane pump seizingReplace oil pump. Pulley bearing seiz
