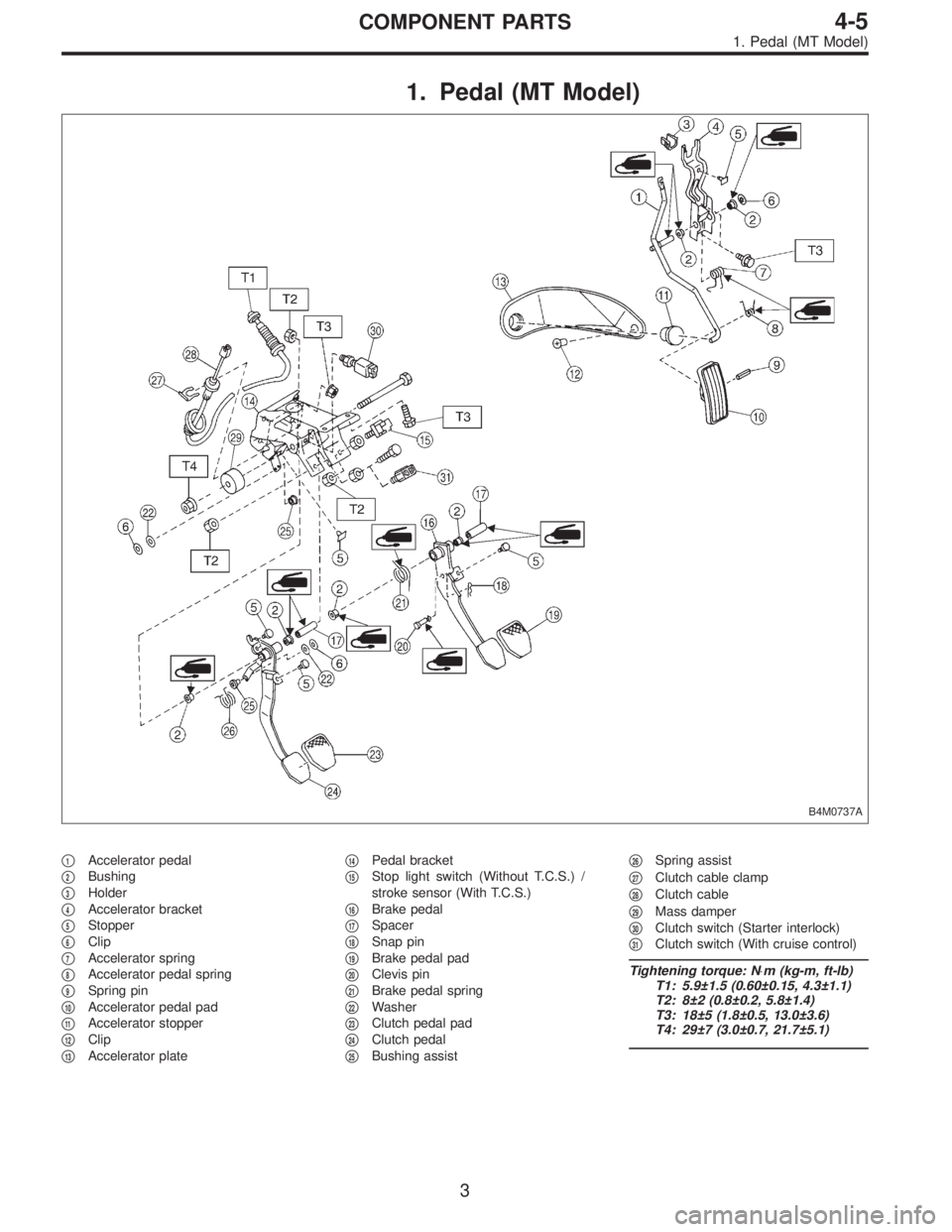

Page 825 of 2248

SUBARU LEGACY 1995 Service Repair Manual 1. Pedal (MT Model) B4M0737A 1Accelerator pedal  2Bushing  3Holder  4Accelerator bracket  5Stopper  6Clip  7Accelerator spring  8Accelerator pedal spring  9Spring pin  10Accelerator pedal pa

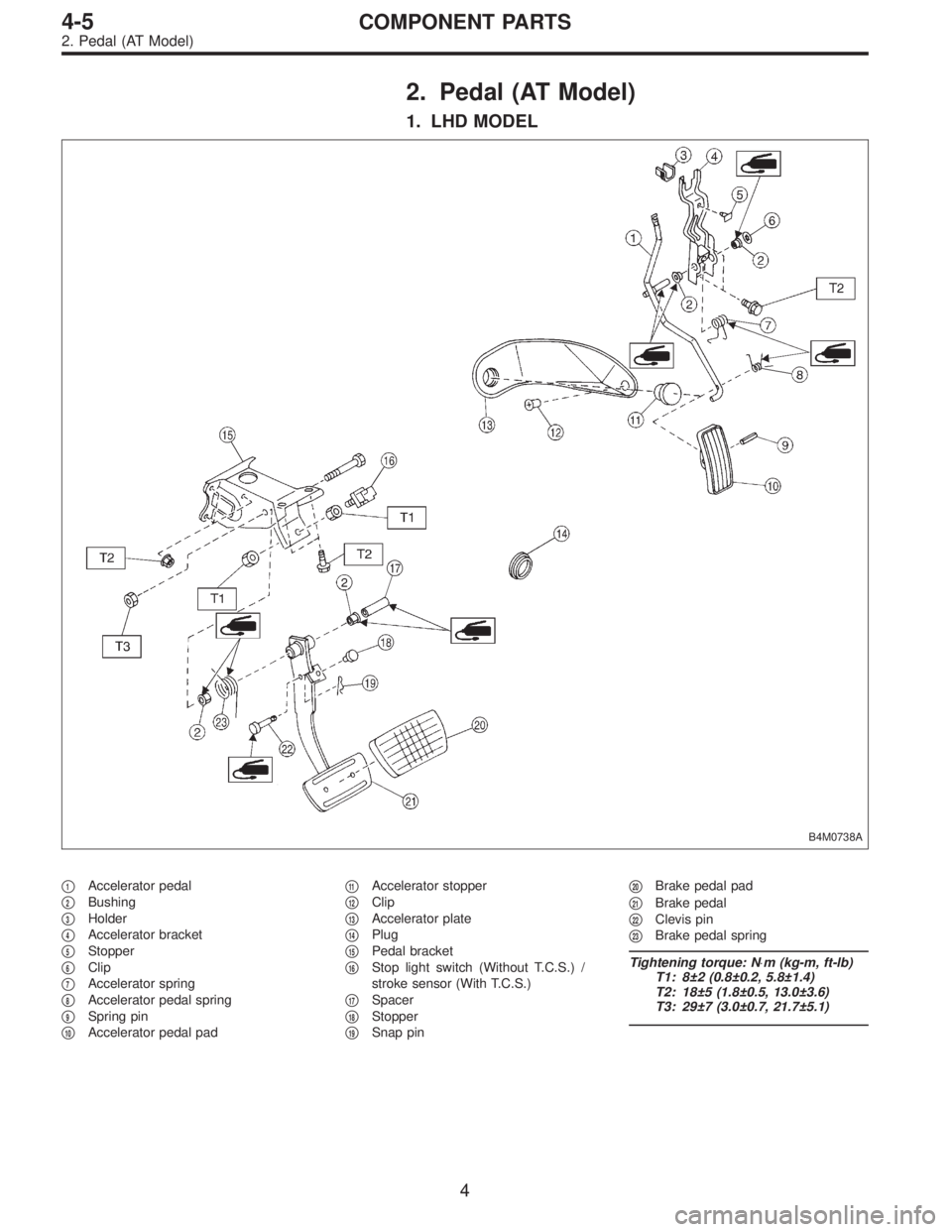

Page 826 of 2248

SUBARU LEGACY 1995 Service Repair Manual 2. Pedal (AT Model) 1. LHD MODEL B4M0738A 1Accelerator pedal  2Bushing  3Holder  4Accelerator bracket  5Stopper  6Clip  7Accelerator spring  8Accelerator pedal spring  9Spring pin  10Acceler

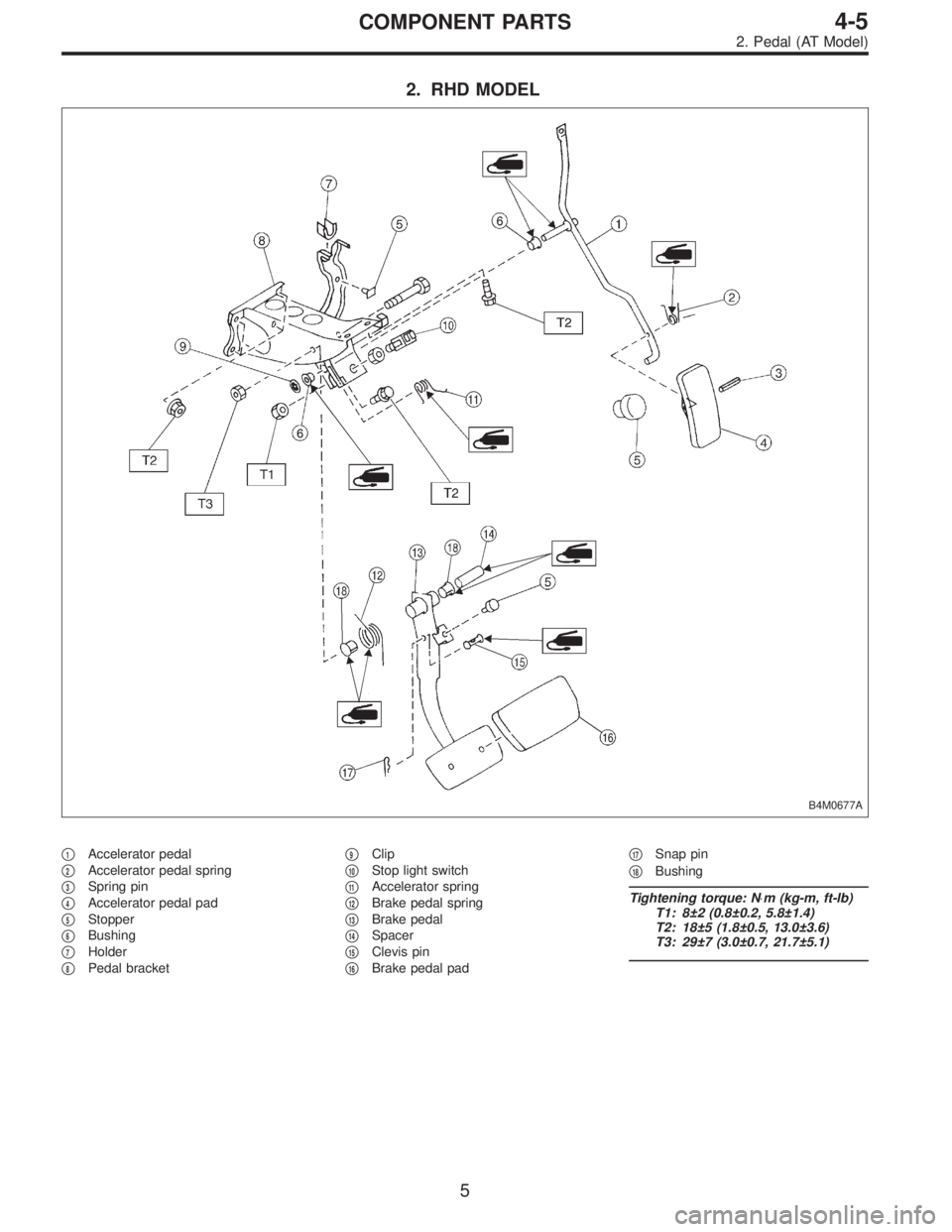

Page 827 of 2248

SUBARU LEGACY 1995 Service Repair Manual 2. RHD MODEL B4M0677A 1Accelerator pedal  2Accelerator pedal spring  3Spring pin  4Accelerator pedal pad  5Stopper  6Bushing  7Holder  8Pedal bracket 9Clip  10Stop light switch  11Accelerat

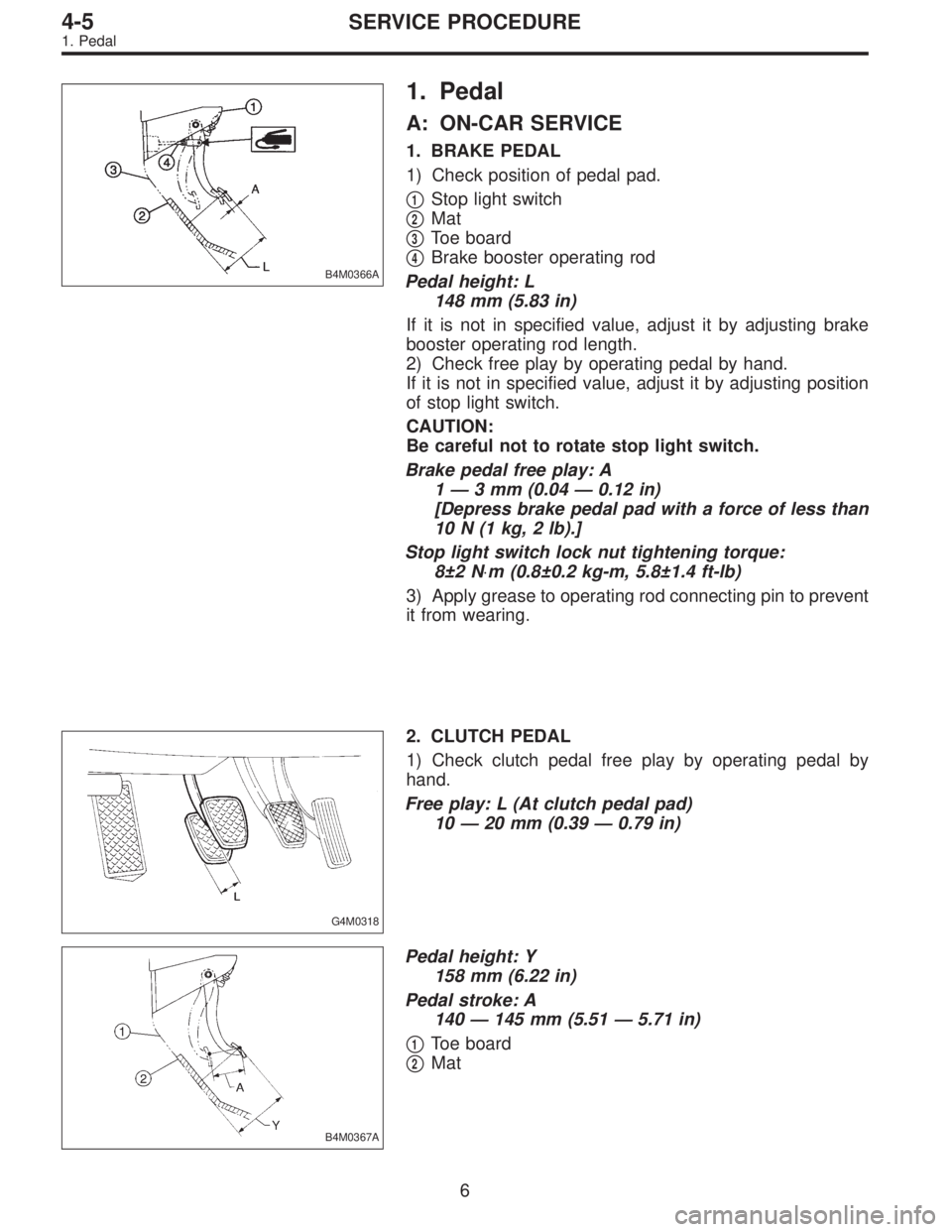

Page 828 of 2248

SUBARU LEGACY 1995 Service Repair Manual B4M0366A 1. Pedal A: ON-CAR SERVICE 1. BRAKE PEDAL 1) Check position of pedal pad.  1Stop light switch  2Mat  3Toe board  4Brake booster operating rod Pedal height: L 148 mm (5.83 in) If it is not

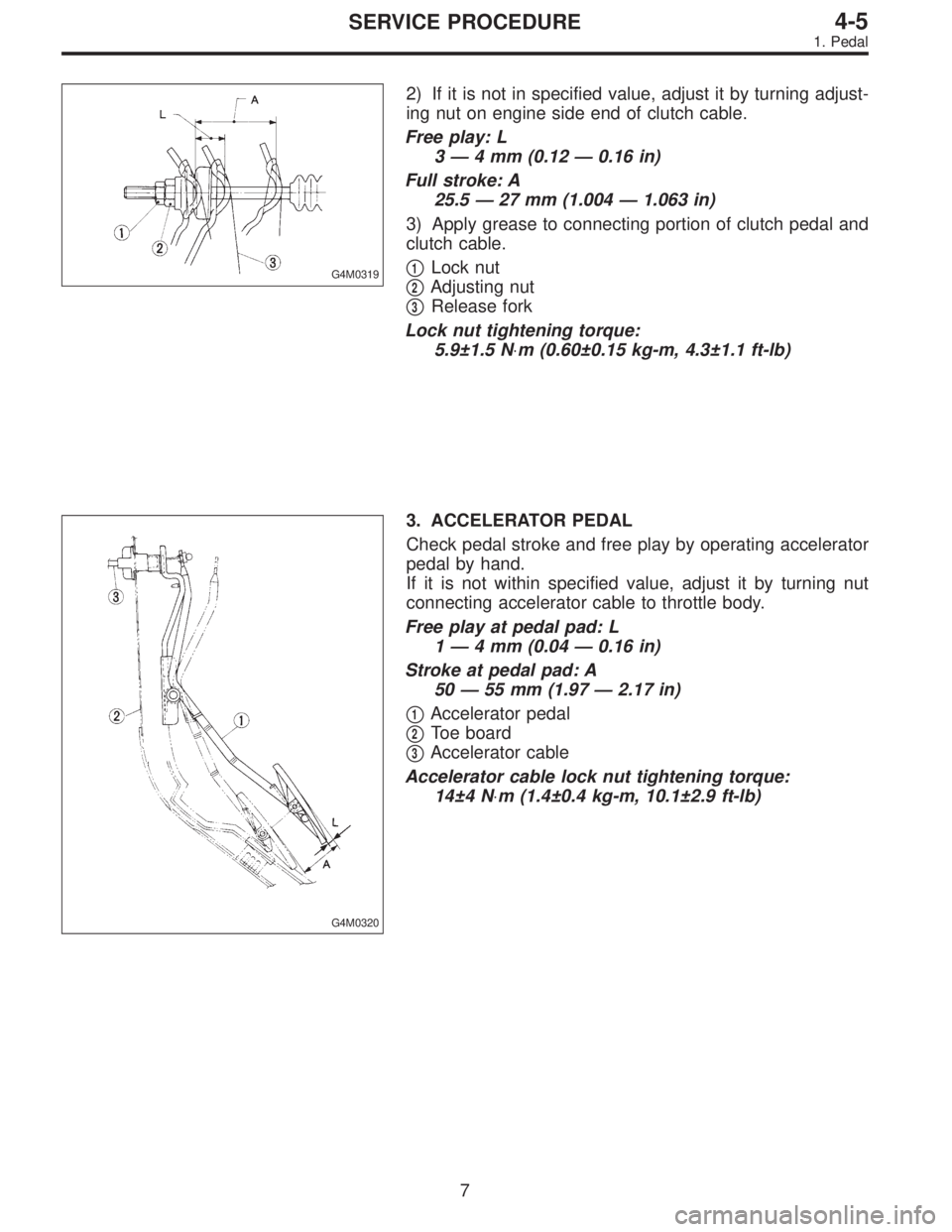

Page 829 of 2248

SUBARU LEGACY 1995 Service Repair Manual G4M0319 2) If it is not in specified value, adjust it by turning adjust- ing nut on engine side end of clutch cable. Free play: L 3—4 mm (0.12—0.16 in) Full stroke: A 25.5—27 mm (1.004—1.063 i

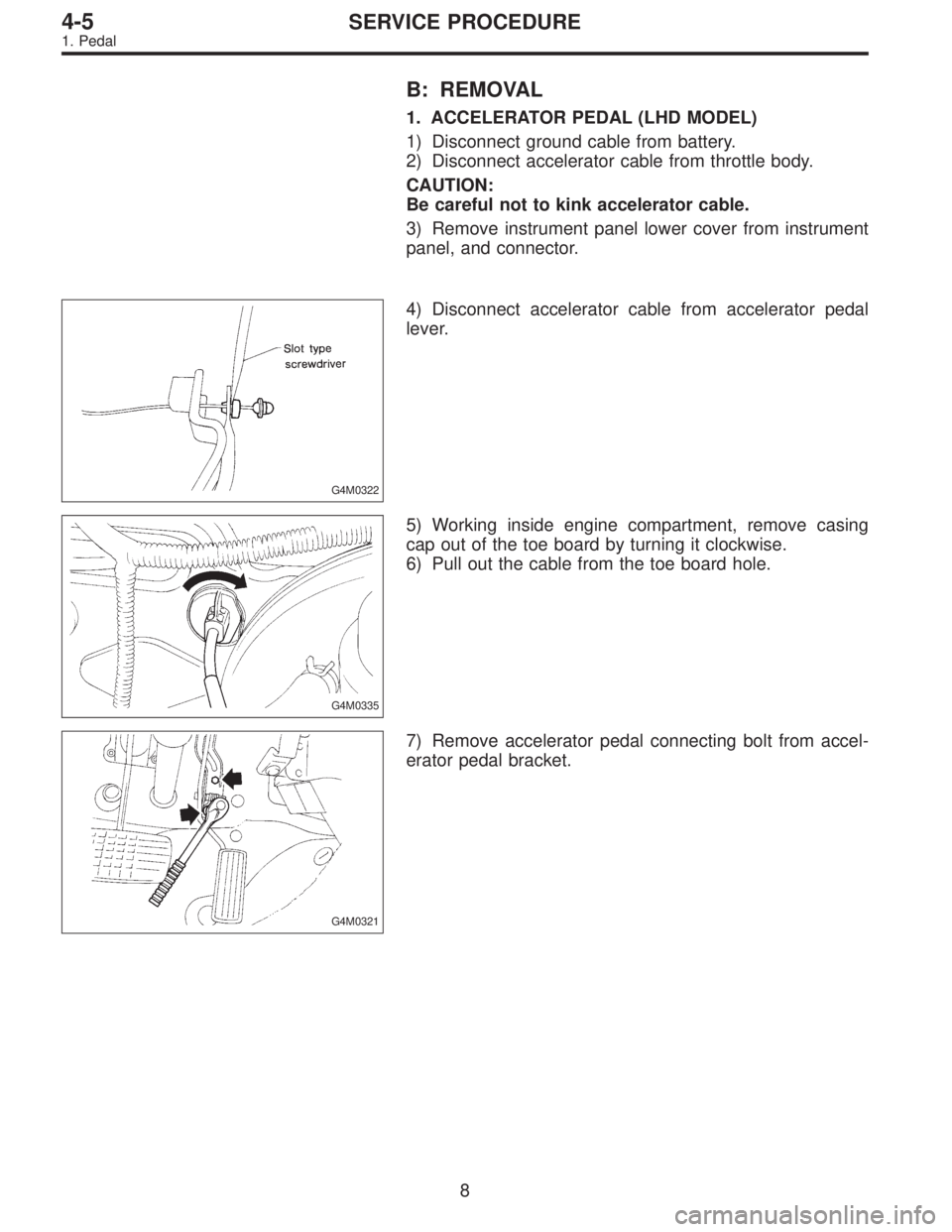

Page 830 of 2248

SUBARU LEGACY 1995 Service Repair Manual B: REMOVAL 1. ACCELERATOR PEDAL (LHD MODEL) 1) Disconnect ground cable from battery. 2) Disconnect accelerator cable from throttle body. CAUTION: Be careful not to kink accelerator cable. 3) Remove in

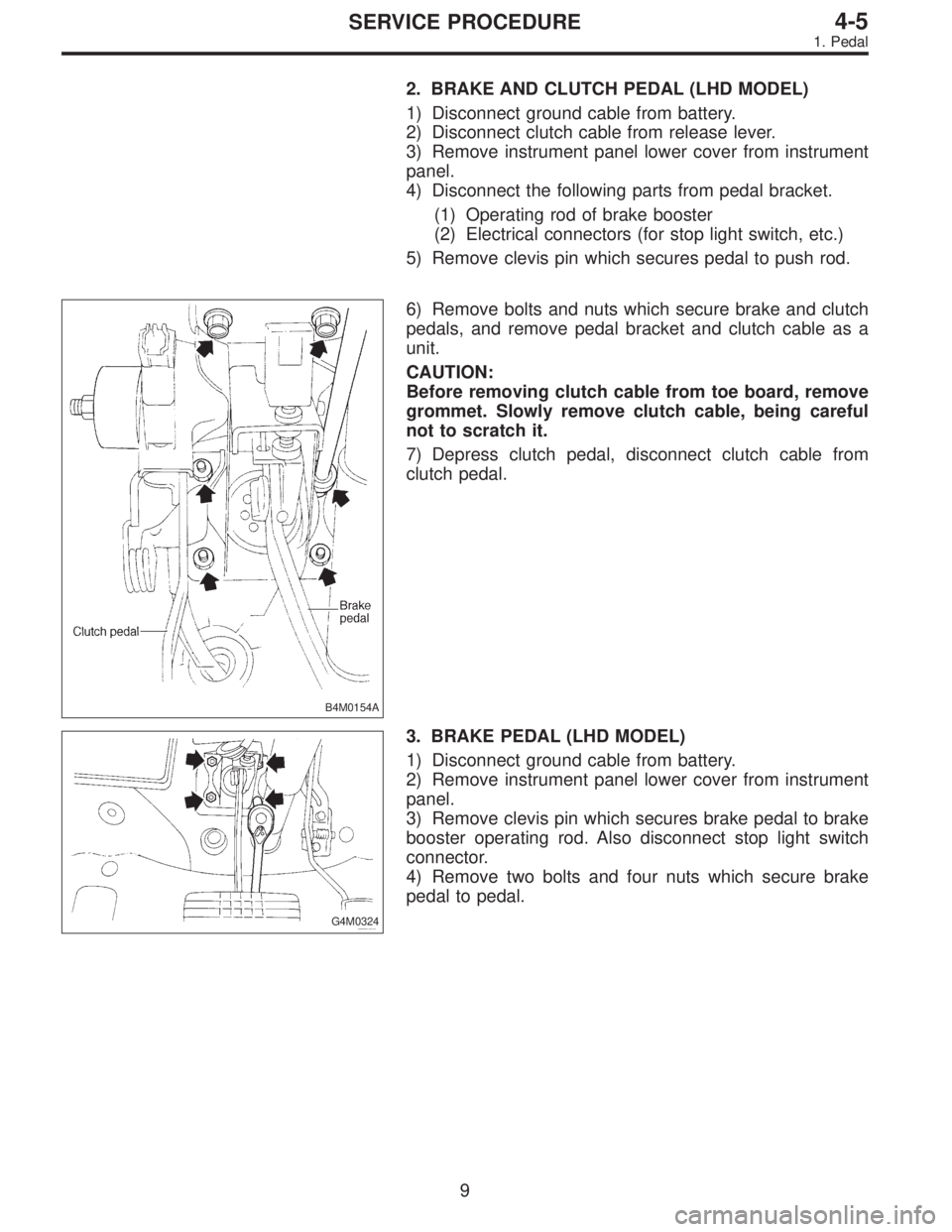

Page 831 of 2248

SUBARU LEGACY 1995 Service Repair Manual 2. BRAKE AND CLUTCH PEDAL (LHD MODEL) 1) Disconnect ground cable from battery. 2) Disconnect clutch cable from release lever. 3) Remove instrument panel lower cover from instrument panel. 4) Disconnec

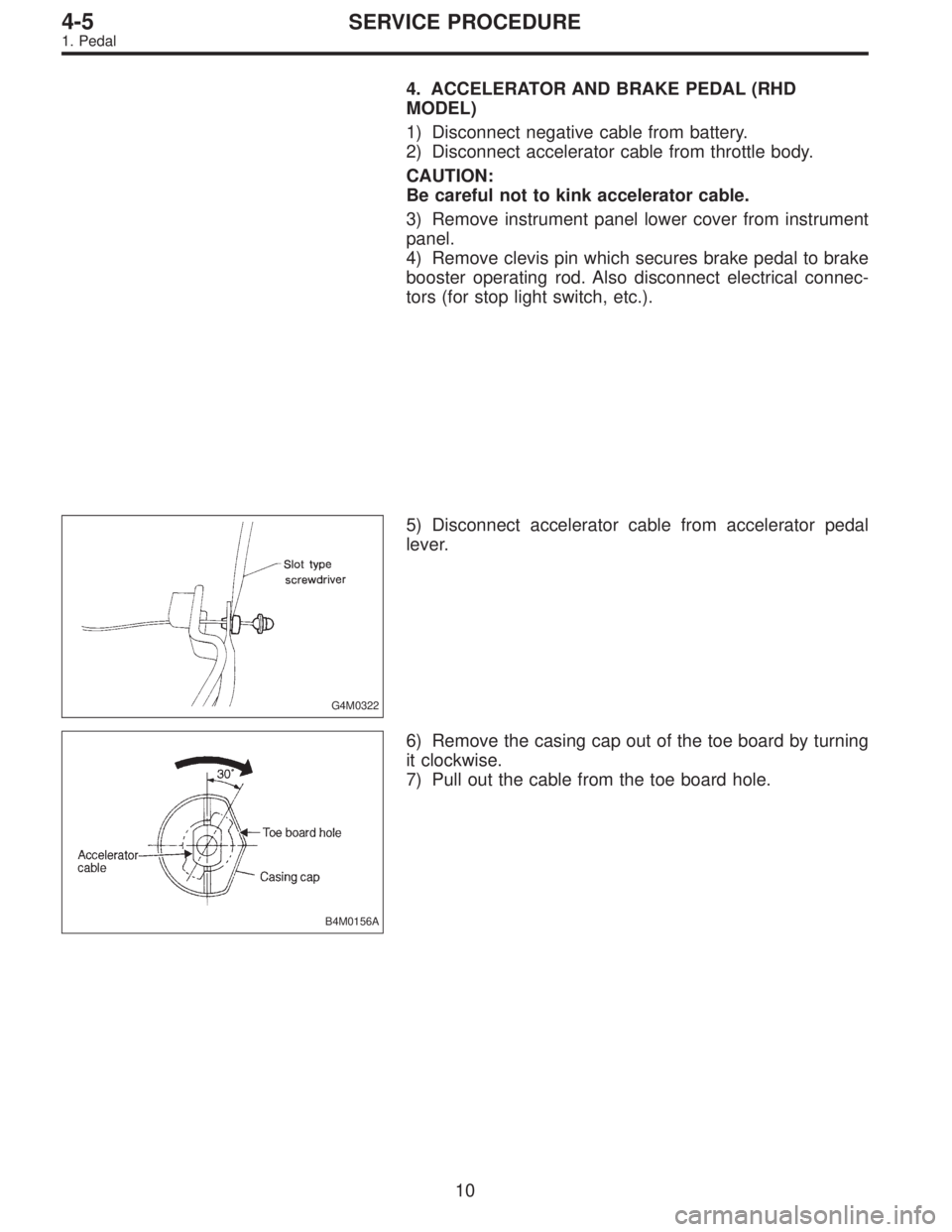

Page 832 of 2248

SUBARU LEGACY 1995 Service Repair Manual 4. ACCELERATOR AND BRAKE PEDAL (RHD MODEL) 1) Disconnect negative cable from battery. 2) Disconnect accelerator cable from throttle body. CAUTION: Be careful not to kink accelerator cable. 3) Remove i
