Page 2089 of 2248

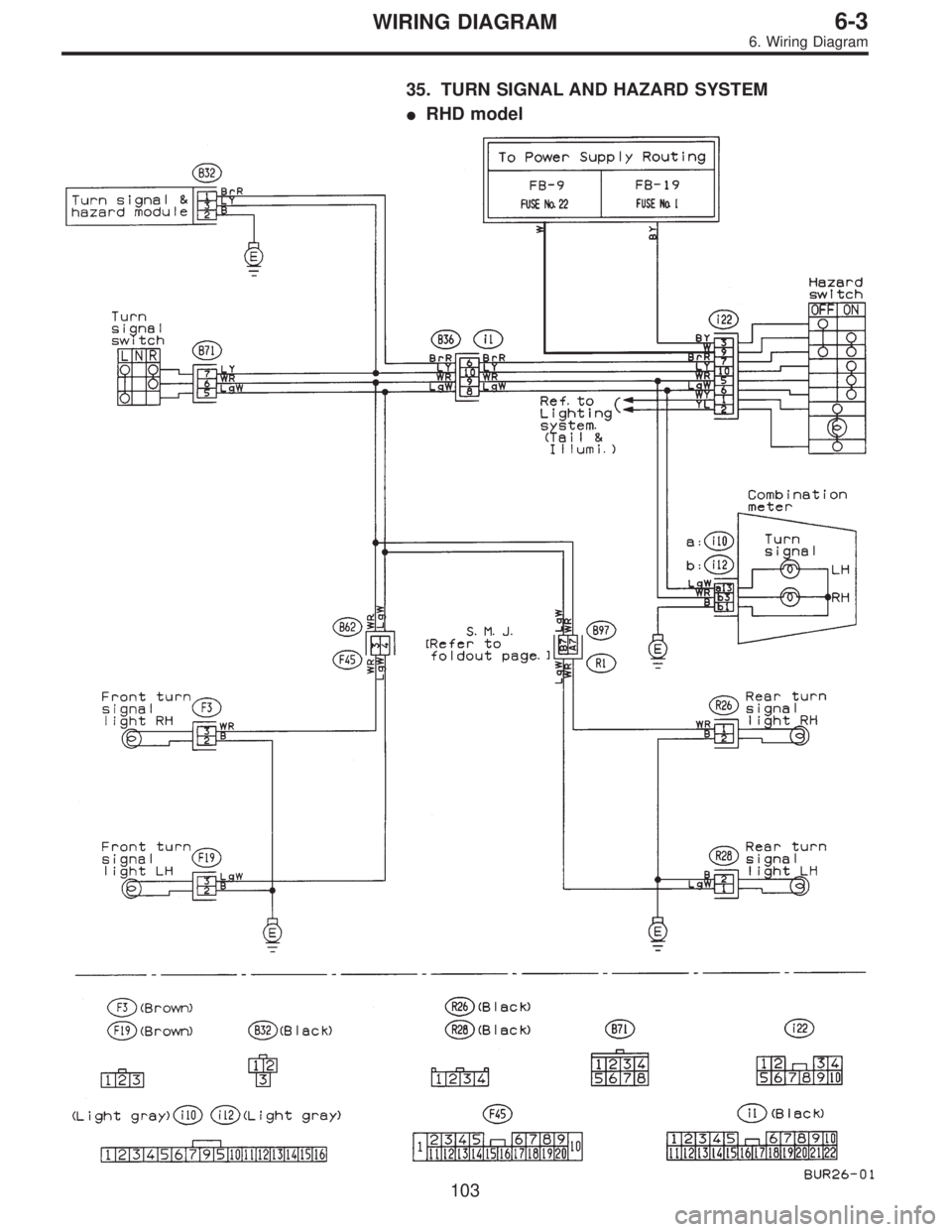

SUBARU LEGACY 1995 Service Repair Manual 35. TURN SIGNAL AND HAZARD SYSTEM
RHD model
103
6-3WIRING DIAGRAM
6. Wiring Diagram

Page 2090 of 2248

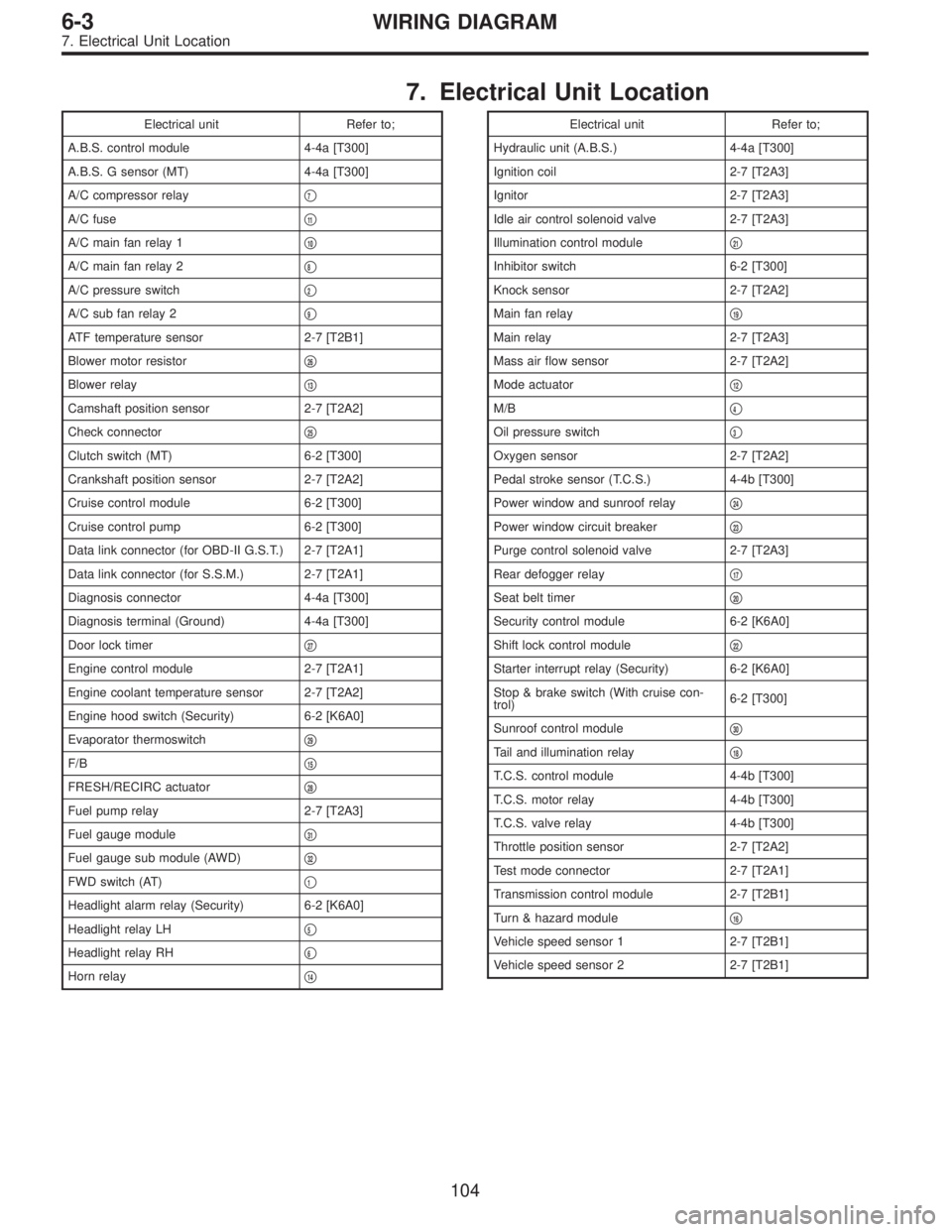

SUBARU LEGACY 1995 Service Repair Manual 7. Electrical Unit Location
Electrical unit Refer to;
A.B.S. control module 4-4a [T300]
A.B.S. G sensor (MT) 4-4a [T300]
A/C compressor relay
7
A/C fuse11
A/C main fan relay 110
A/C main fan relay

7. Electrical Unit Location
Electrical unit Refer to;
A.B.S. control module 4-4a [T300]
A.B.S. G sensor (MT) 4-4a [T300]
A/C compressor relay
7
A/C fuse11
A/C main fan relay 110
A/C main fan relay 28
A/C pressure switch2
A/C sub fan relay 29
ATF temperature sensor 2-7 [T2B1]
Blower motor resistor
26
Blower relay13
Camshaft position sensor 2-7 [T2A2]
Check connector
25
Clutch switch (MT) 6-2 [T300]
Crankshaft position sensor 2-7 [T2A2]
Cruise control module 6-2 [T300]
Cruise control pump 6-2 [T300]
Data link connector (for OBD-II G.S.T.) 2-7 [T2A1]
Data link connector (for S.S.M.) 2-7 [T2A1]
Diagnosis connector 4-4a [T300]
Diagnosis terminal (Ground) 4-4a [T300]
Door lock timer
27
Engine control module 2-7 [T2A1]
Engine coolant temperature sensor 2-7 [T2A2]
Engine hood switch (Security) 6-2 [K6A0]
Evaporator thermoswitch
29
F/B15
FRESH/RECIRC actuator28
Fuel pump relay 2-7 [T2A3]
Fuel gauge module
31
Fuel gauge sub module (AWD)32
FWD switch (AT)1
Headlight alarm relay (Security) 6-2 [K6A0]
Headlight relay LH
5
Headlight relay RH6
Horn relay14
Electrical unit Refer to;
Hydraulic unit (A.B.S.) 4-4a [T300]
Ignition coil 2-7 [T2A3]
Ignitor 2-7 [T2A3]
Idle air control solenoid valve 2-7 [T2A3]
Illumination control module
21
Inhibitor switch 6-2 [T300]
Knock sensor 2-7 [T2A2]
Main fan relay
19
Main relay 2-7 [T2A3]
Mass air flow sensor 2-7 [T2A2]
Mode actuator
12
M/B4
Oil pressure switch3
Oxygen sensor 2-7 [T2A2]
Pedal stroke sensor (T.C.S.) 4-4b [T300]
Power window and sunroof relay
24
Power window circuit breaker23
Purge control solenoid valve 2-7 [T2A3]
Rear defogger relay
17
Seat belt timer20
Security control module 6-2 [K6A0]
Shift lock control module
22
Starter interrupt relay (Security) 6-2 [K6A0]
Stop & brake switch (With cruise con-
trol)6-2 [T300]
Sunroof control module
30
Tail and illumination relay18
T.C.S. control module 4-4b [T300]
T.C.S. motor relay 4-4b [T300]
T.C.S. valve relay 4-4b [T300]
Throttle position sensor 2-7 [T2A2]
Test mode connector 2-7 [T2A1]
Transmission control module 2-7 [T2B1]
Turn & hazard module
16
Vehicle speed sensor 1 2-7 [T2B1]
Vehicle speed sensor 2 2-7 [T2B1]
104
6-3WIRING DIAGRAM
7. Electrical Unit Location

Page 2091 of 2248

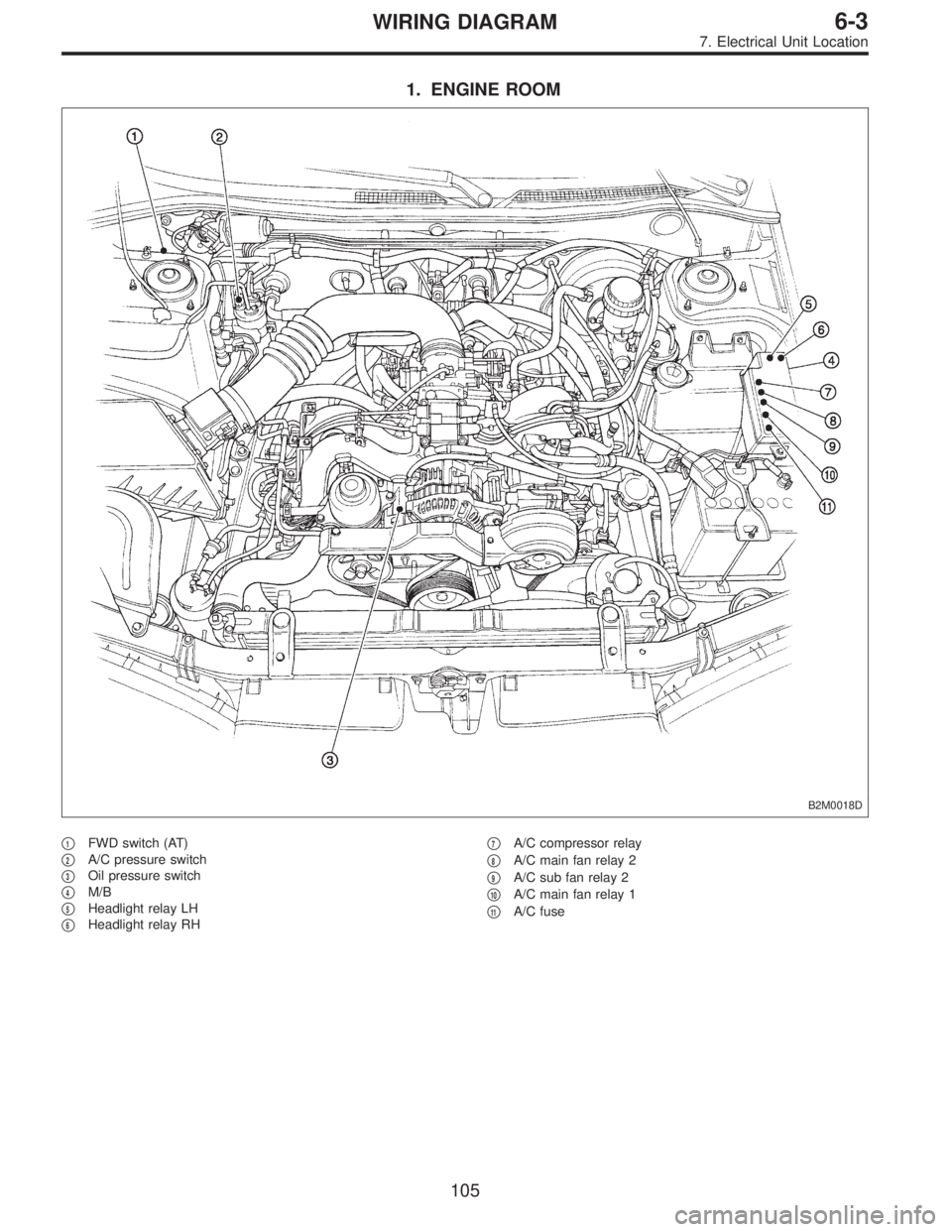

SUBARU LEGACY 1995 Service Repair Manual 1. ENGINE ROOM
B2M0018D
1FWD switch (AT)

2A/C pressure switch

3Oil pressure switch

4M/B

5Headlight relay LH

6Headlight relay RH
7A/C compressor relay

8A/C main fan relay 2

9A/C sub fan

Page 2092 of 2248

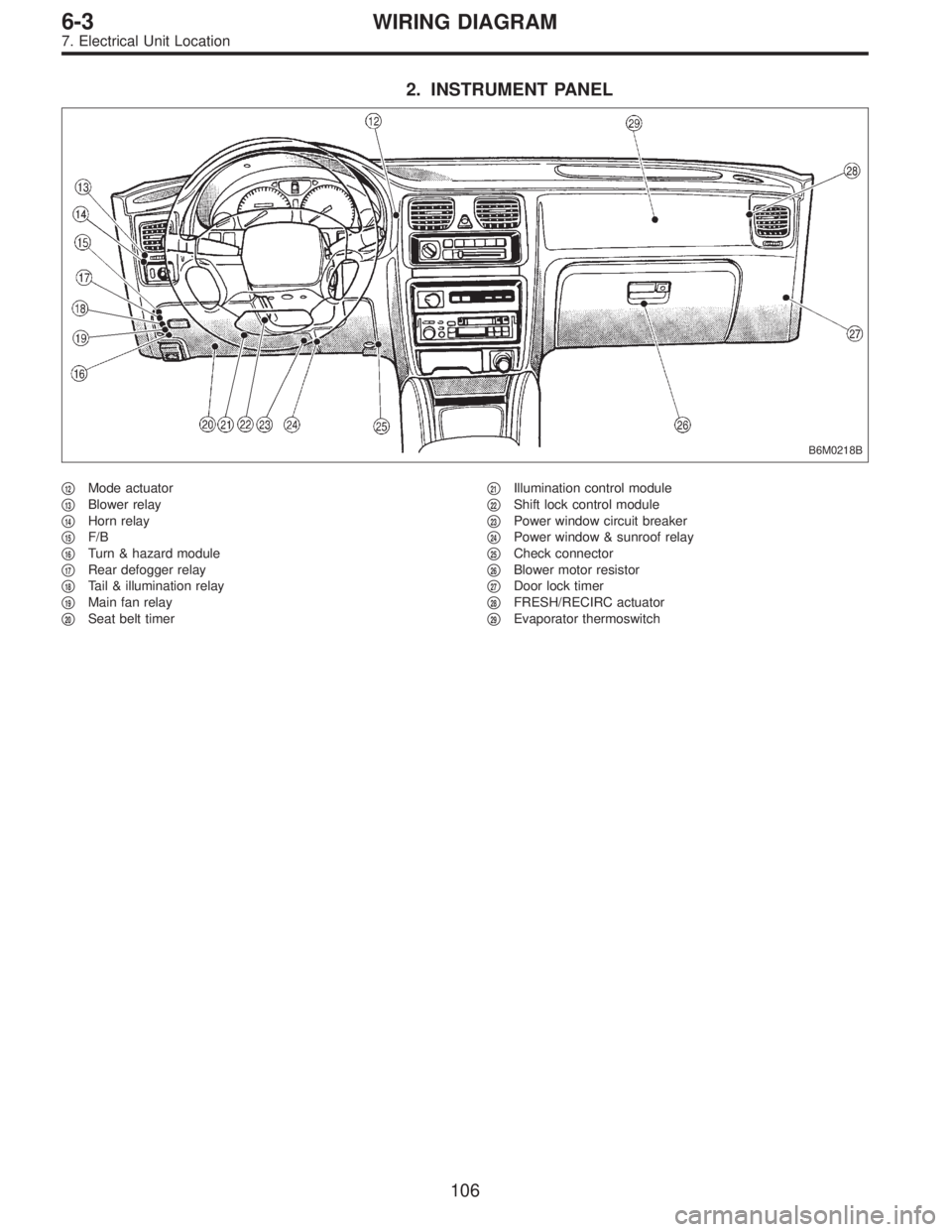

SUBARU LEGACY 1995 Service Repair Manual 2. INSTRUMENT PANEL
B6M0218B
12Mode actuator

13Blower relay

14Horn relay

15F/B

16Turn & hazard module

17Rear defogger relay

18Tail & illumination relay

19Main fan relay

20Seat belt ti

Page 2093 of 2248

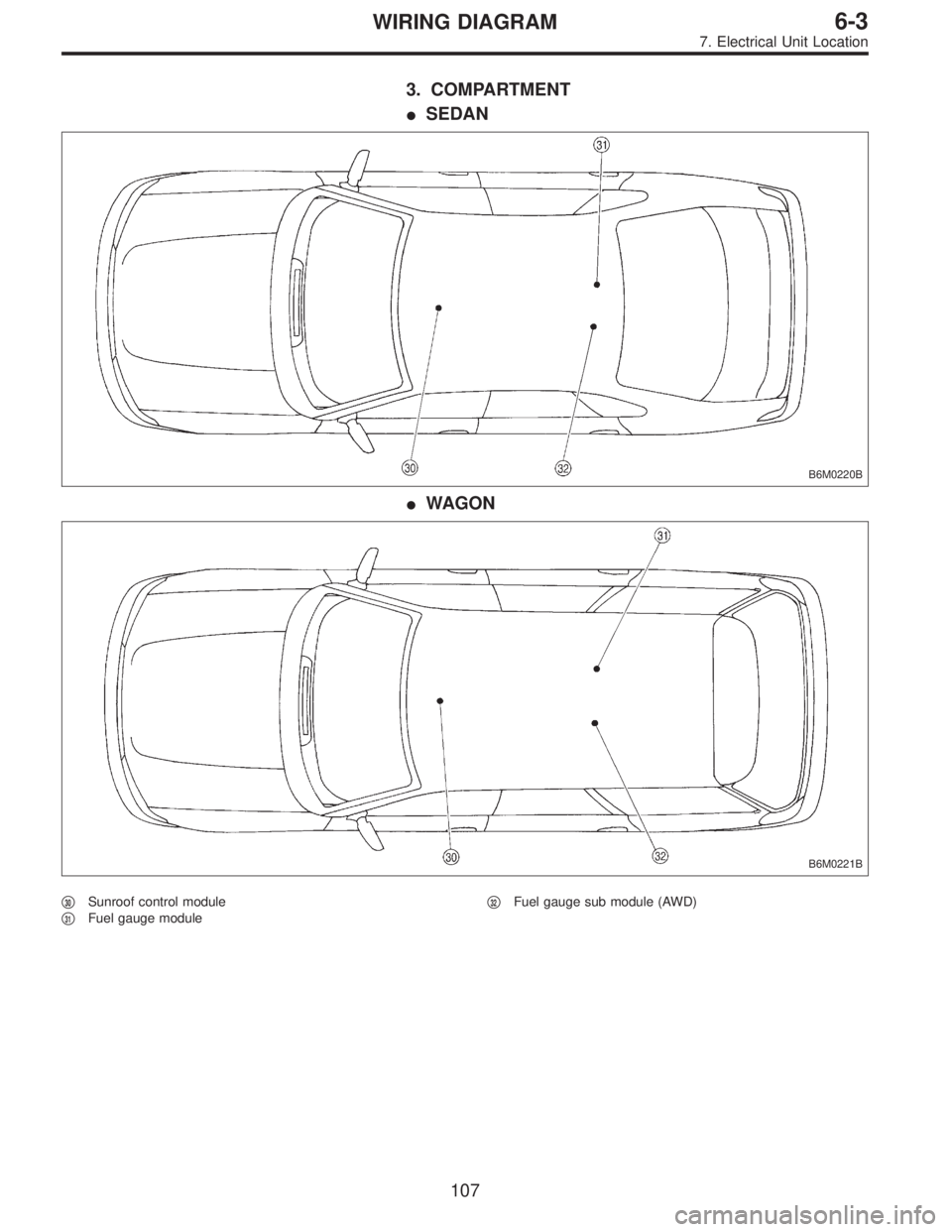

SUBARU LEGACY 1995 Service Repair Manual 3. COMPARTMENT
SEDAN
B6M0220B
WAGON
B6M0221B
30Sunroof control module

31Fuel gauge module
32Fuel gauge sub module (AWD)
107
6-3WIRING DIAGRAM
7. Electrical Unit Location

Page 2094 of 2248

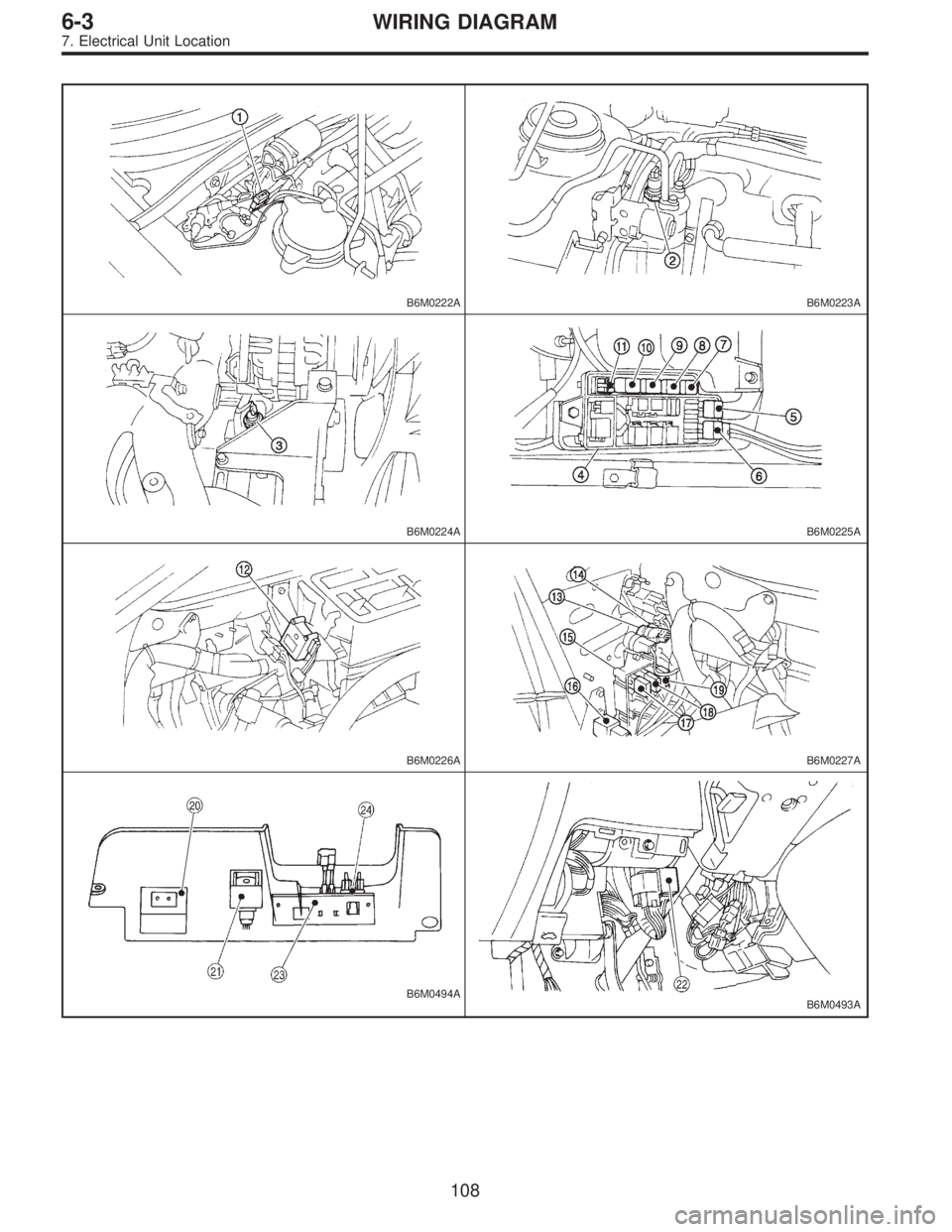

SUBARU LEGACY 1995 Service Repair Manual B6M0222AB6M0223A
B6M0224AB6M0225A
B6M0226AB6M0227A
B6M0494AB6M0493A
108
6-3WIRING DIAGRAM
7. Electrical Unit Location

Page 2095 of 2248

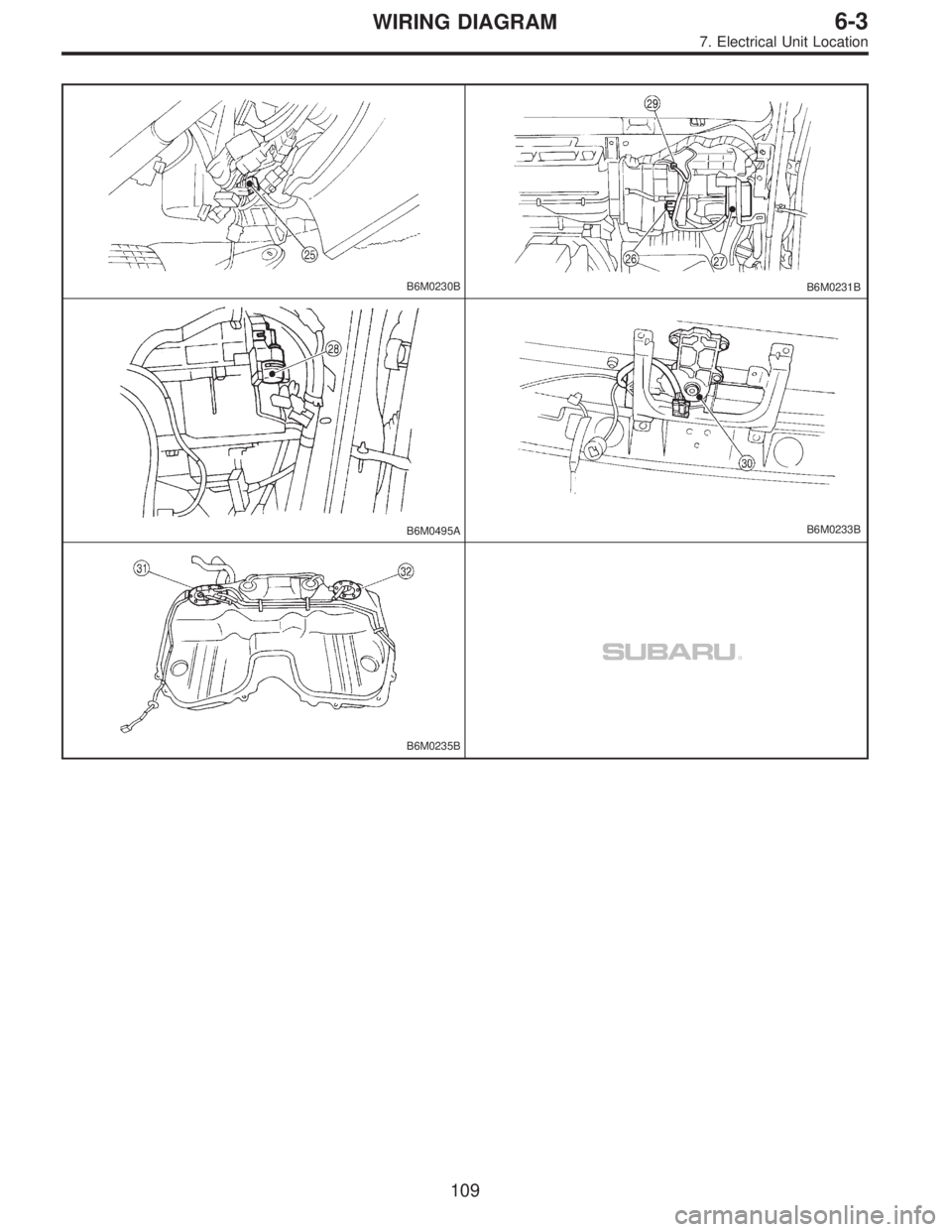

SUBARU LEGACY 1995 Service Repair Manual B6M0230BB6M0231B
B6M0495AB6M0233B
B6M0235B
109
6-3WIRING DIAGRAM
7. Electrical Unit Location

Page 2096 of 2248

SUBARU LEGACY 1995 Service Repair Manual 8. Electrical Wiring Harness and
Ground Point
B6M0267A
1Front wiring harness

2Engine wiring harness

3Room light cord

4Bulkhead wiring harness

5Instrument panel wiring harness

6Front door co
