Page 1241 of 2248

SUBARU LEGACY 1995 Service Repair Manual 2. READ DATA FUNCTION KEY LIST FOR ENGINE Function mode Contents Abbreviation Unit of measure F00 ROM ID number YEAR— F01 Battery voltage VB V F02 Vehicle speed signal VSP m/h F03 Vehicle speed sign

Page 1242 of 2248

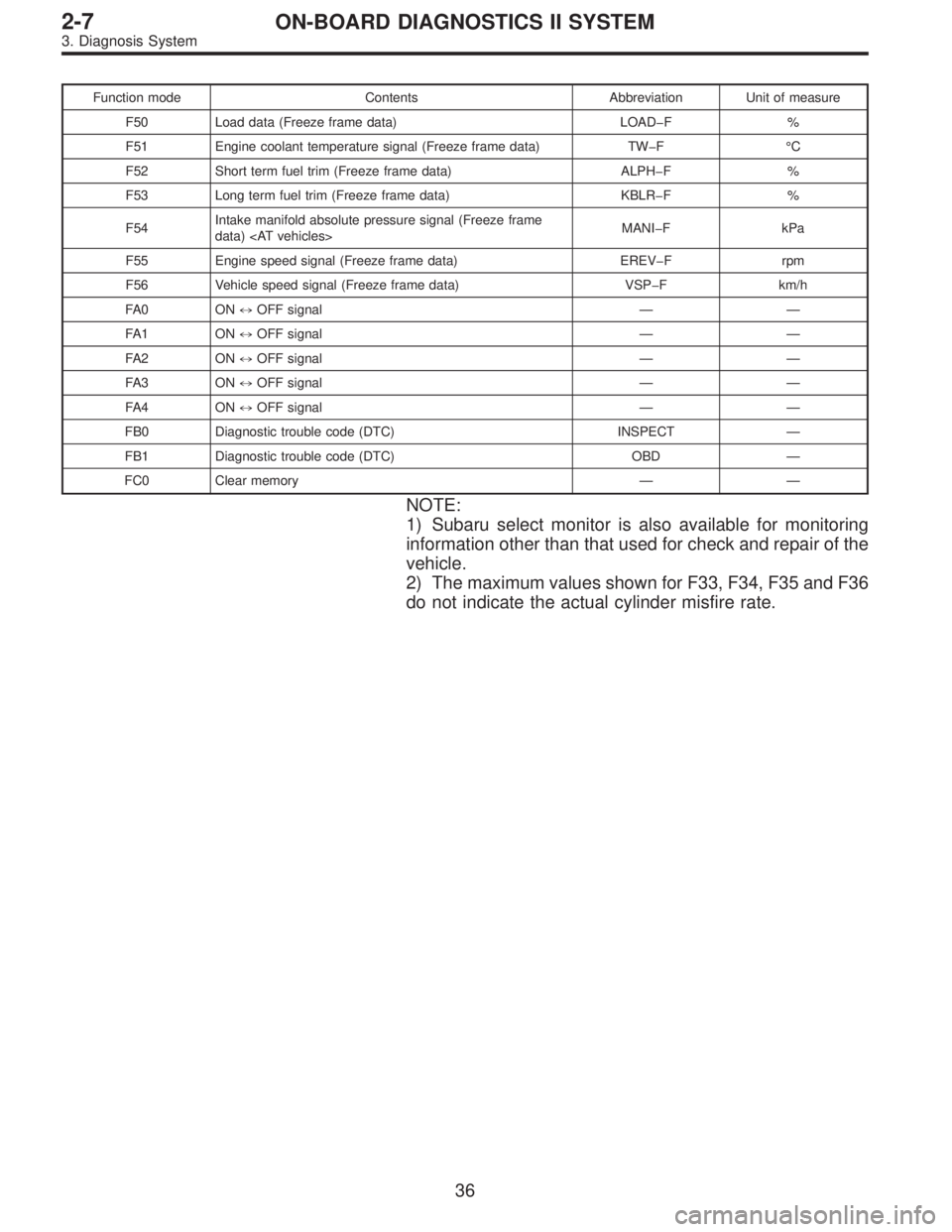

SUBARU LEGACY 1995 Service Repair Manual Function mode Contents Abbreviation Unit of measure F50 Load data (Freeze frame data) LOAD�F % F51 Engine coolant temperature signal (Freeze frame data) TW�F °C F52 Short term fuel trim (Freeze frame

Page 1243 of 2248

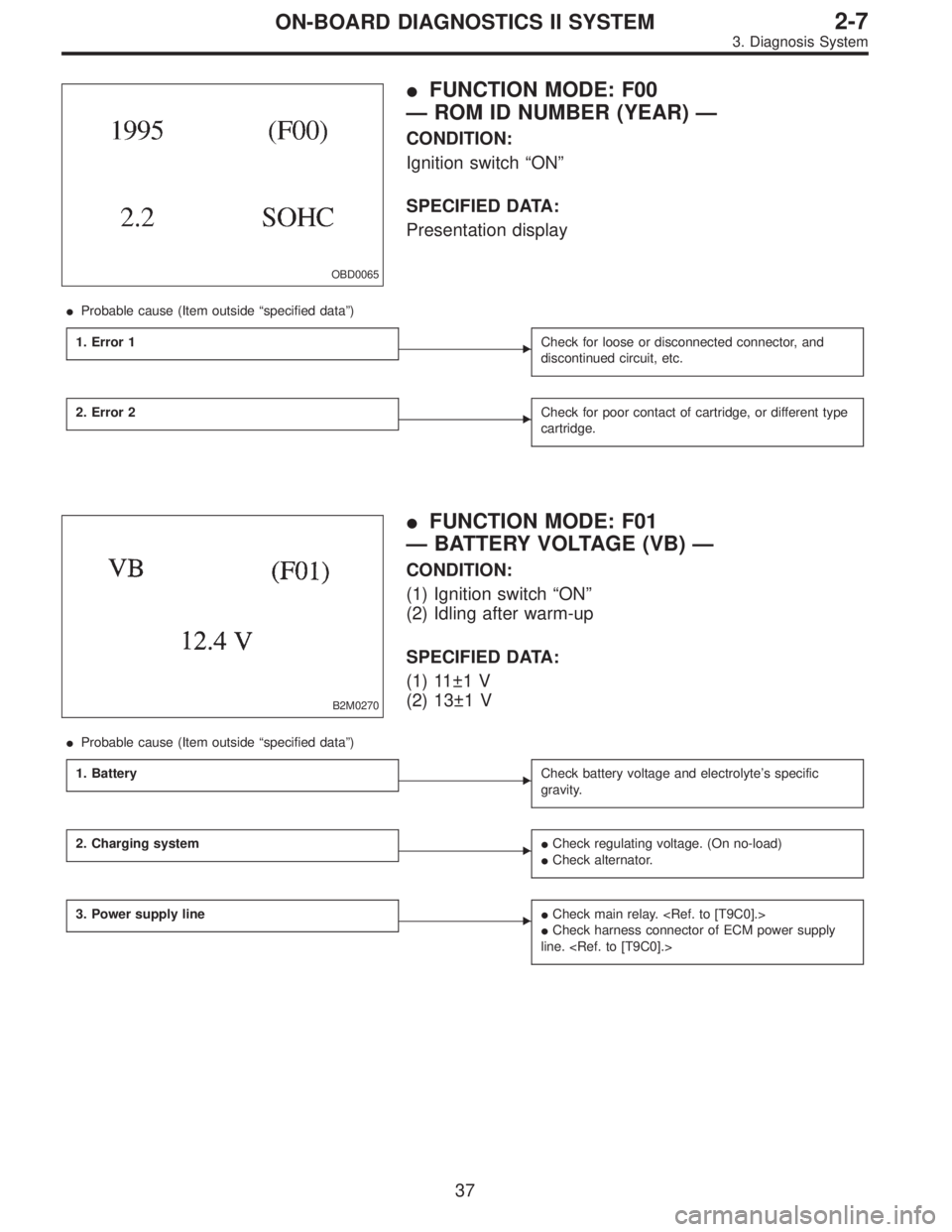

SUBARU LEGACY 1995 Service Repair Manual OBD0065 FUNCTION MODE: F00 — ROM ID NUMBER (YEAR) — CONDITION: Ignition switch“ON” SPECIFIED DATA: Presentation display Probable cause (Item outside“specified data”) 1. Error 1 Check fo

Page 1244 of 2248

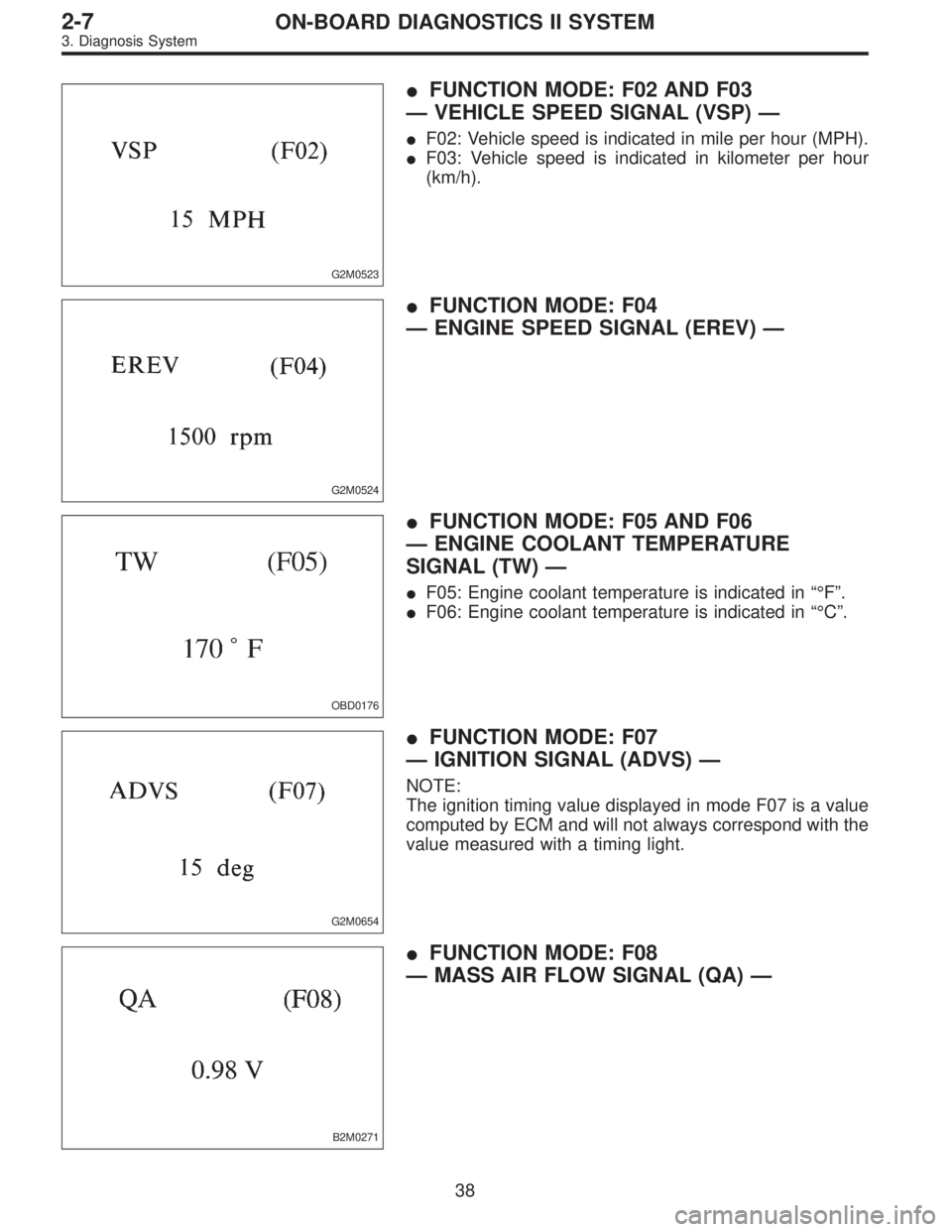

SUBARU LEGACY 1995 Service Repair Manual G2M0523 FUNCTION MODE: F02 AND F03 —VEHICLE SPEED SIGNAL (VSP)— F02: Vehicle speed is indicated in mile per hour (MPH). F03: Vehicle speed is indicated in kilometer per hour (km/h). G2M0524 FU

Page 1245 of 2248

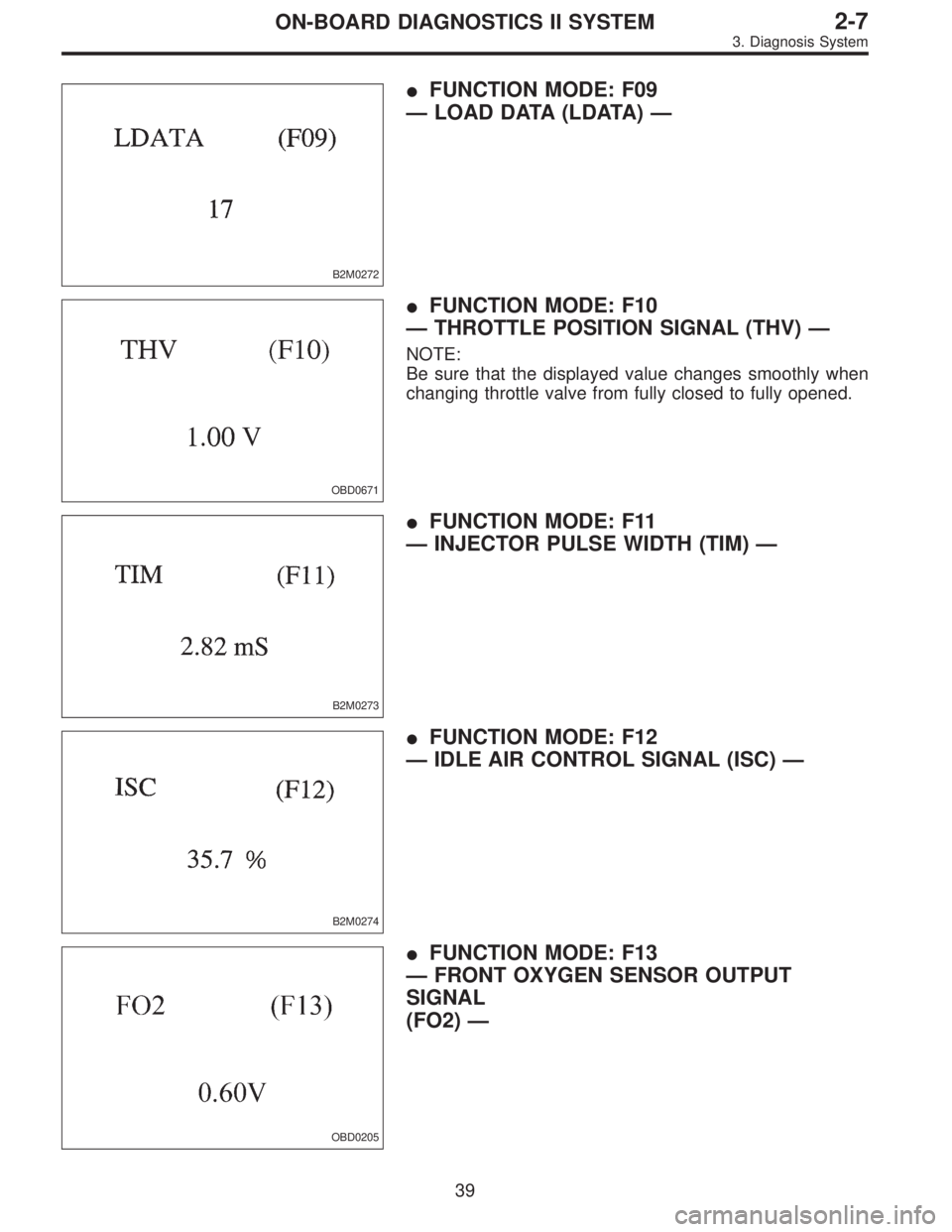

SUBARU LEGACY 1995 Service Repair Manual B2M0272 FUNCTION MODE: F09 —LOAD DATA (LDATA)— OBD0671 FUNCTION MODE: F10 —THROTTLE POSITION SIGNAL (THV)— NOTE: Be sure that the displayed value changes smoothly when changing throttle valv

Page 1246 of 2248

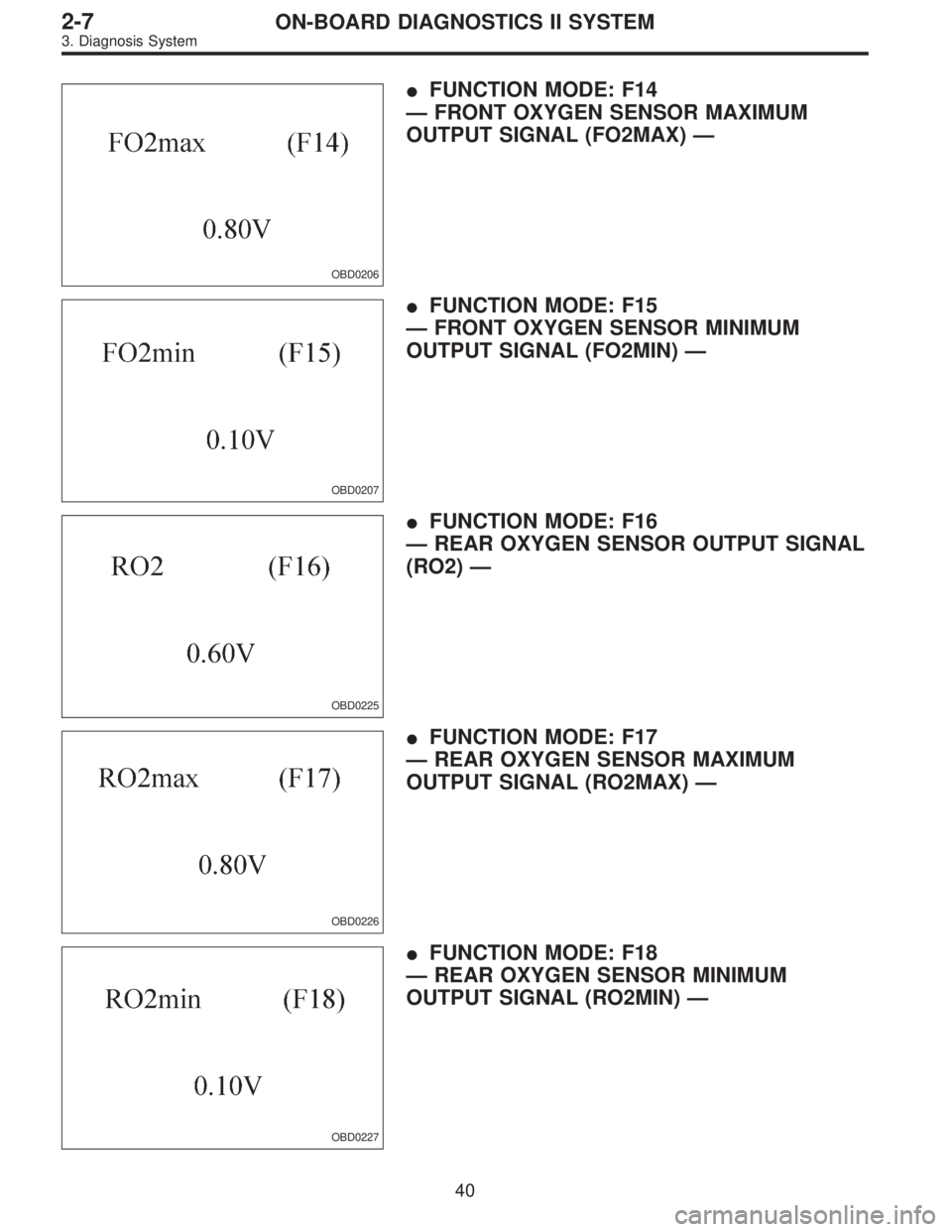

SUBARU LEGACY 1995 Service Repair Manual OBD0206 FUNCTION MODE: F14 —FRONT OXYGEN SENSOR MAXIMUM OUTPUT SIGNAL (FO2MAX)— OBD0207 FUNCTION MODE: F15 —FRONT OXYGEN SENSOR MINIMUM OUTPUT SIGNAL (FO2MIN)— OBD0225 FUNCTION MODE: F16

Page 1247 of 2248

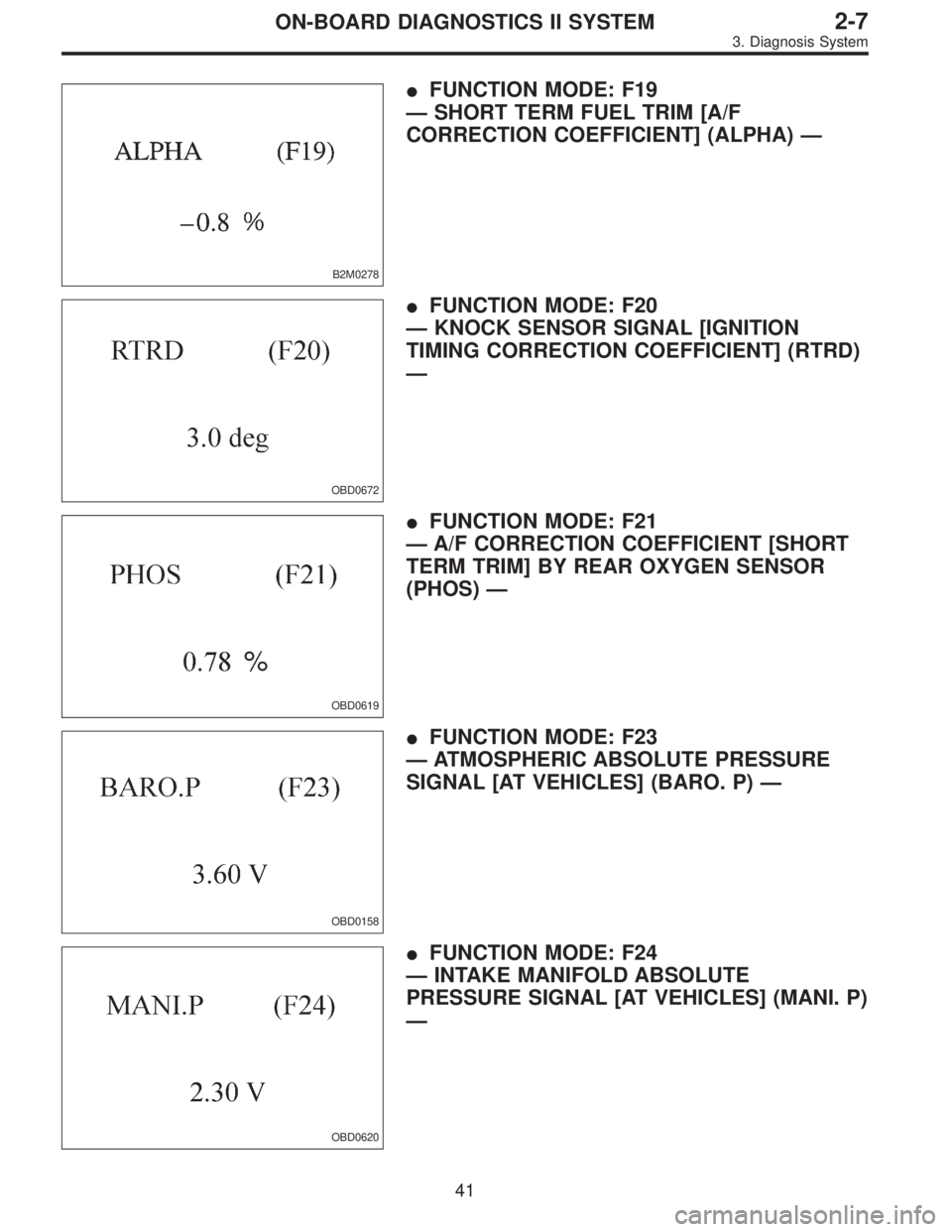

SUBARU LEGACY 1995 Service Repair Manual B2M0278 FUNCTION MODE: F19 —SHORT TERM FUEL TRIM [A/F CORRECTION COEFFICIENT] (ALPHA)— OBD0672 FUNCTION MODE: F20 —KNOCK SENSOR SIGNAL [IGNITION TIMING CORRECTION COEFFICIENT] (RTRD) — OBD06

Page 1248 of 2248

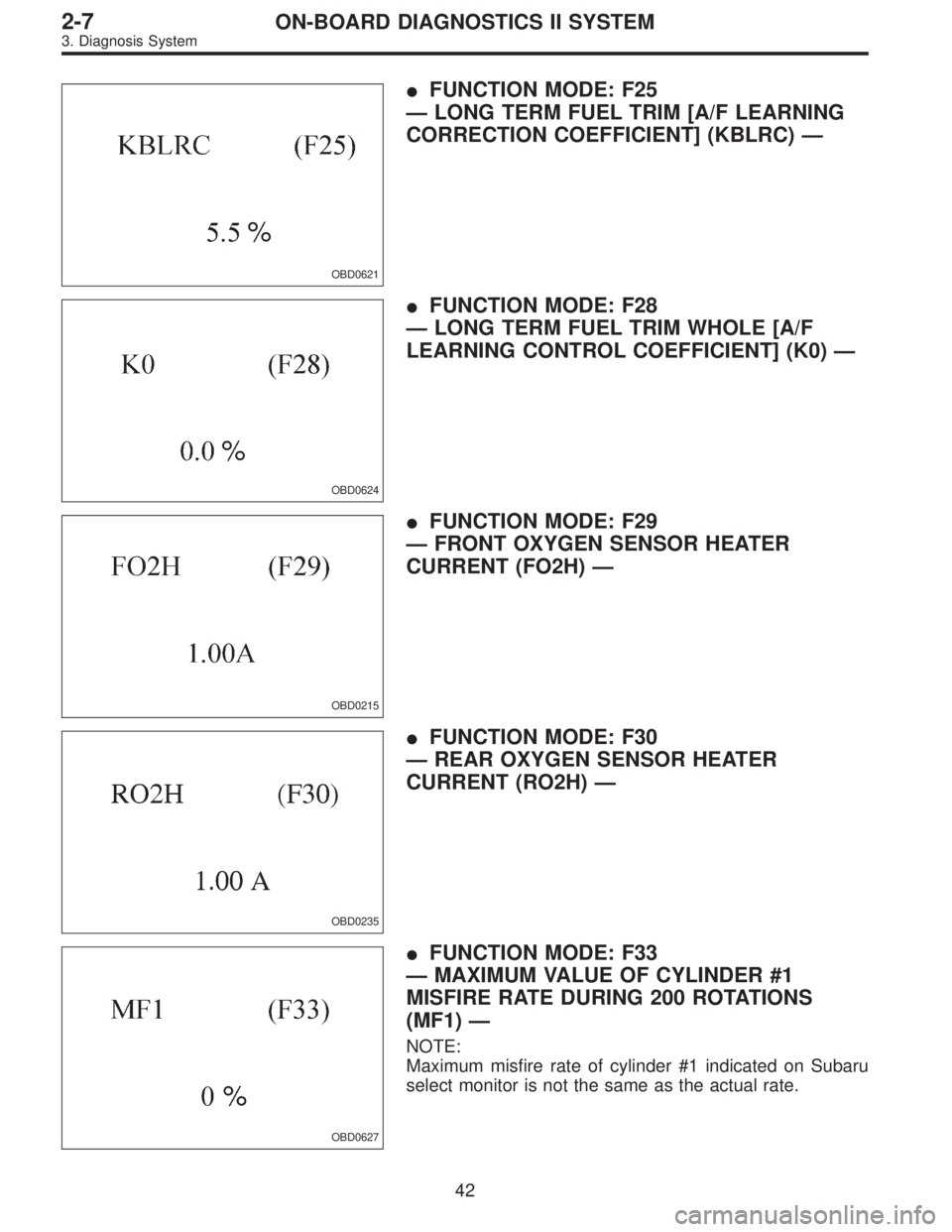

SUBARU LEGACY 1995 Service Repair Manual OBD0621 FUNCTION MODE: F25 —LONG TERM FUEL TRIM [A/F LEARNING CORRECTION COEFFICIENT] (KBLRC)— OBD0624 FUNCTION MODE: F28 —LONG TERM FUEL TRIM WHOLE [A/F LEARNING CONTROL COEFFICIENT] (K0)—
